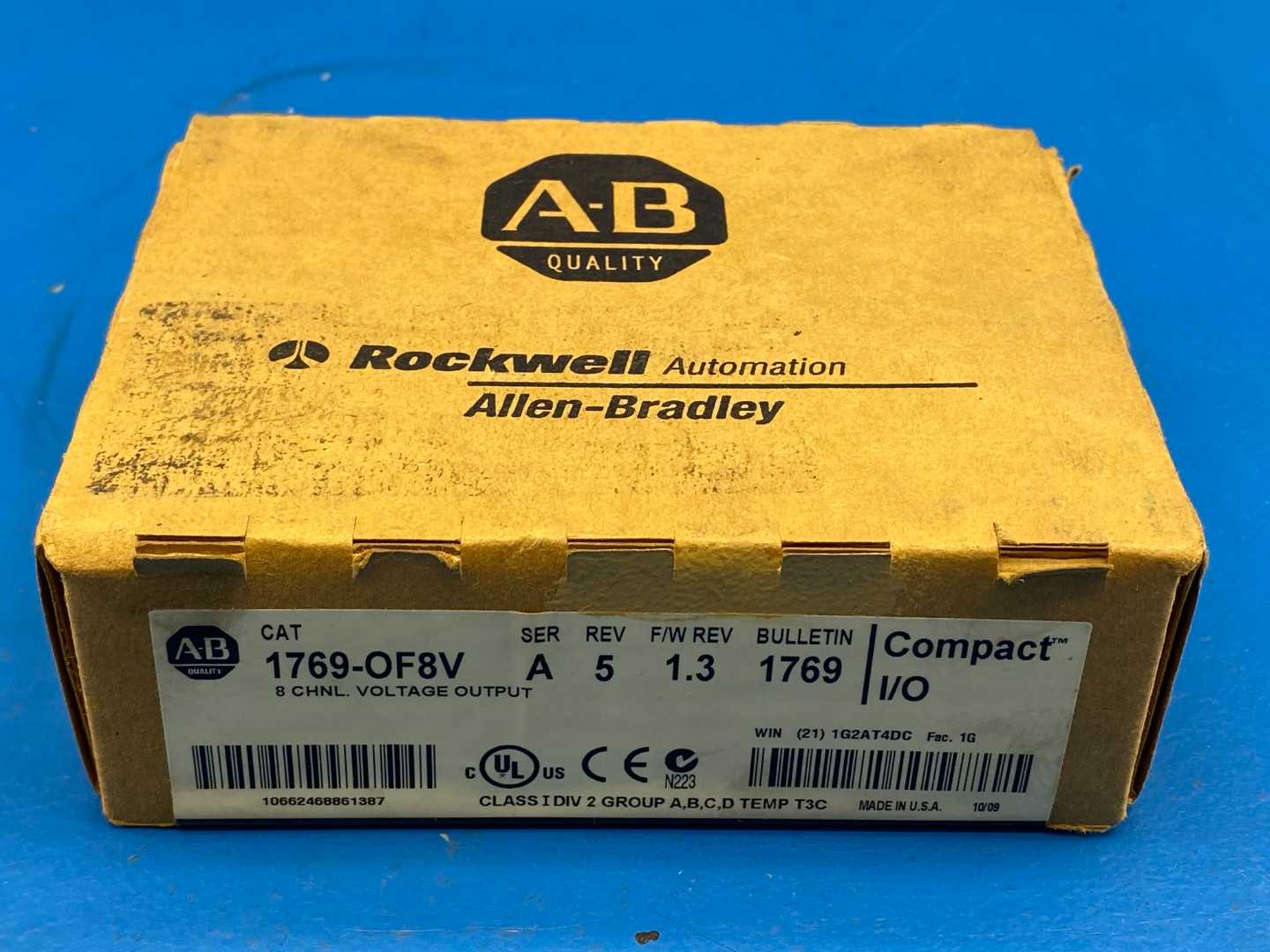

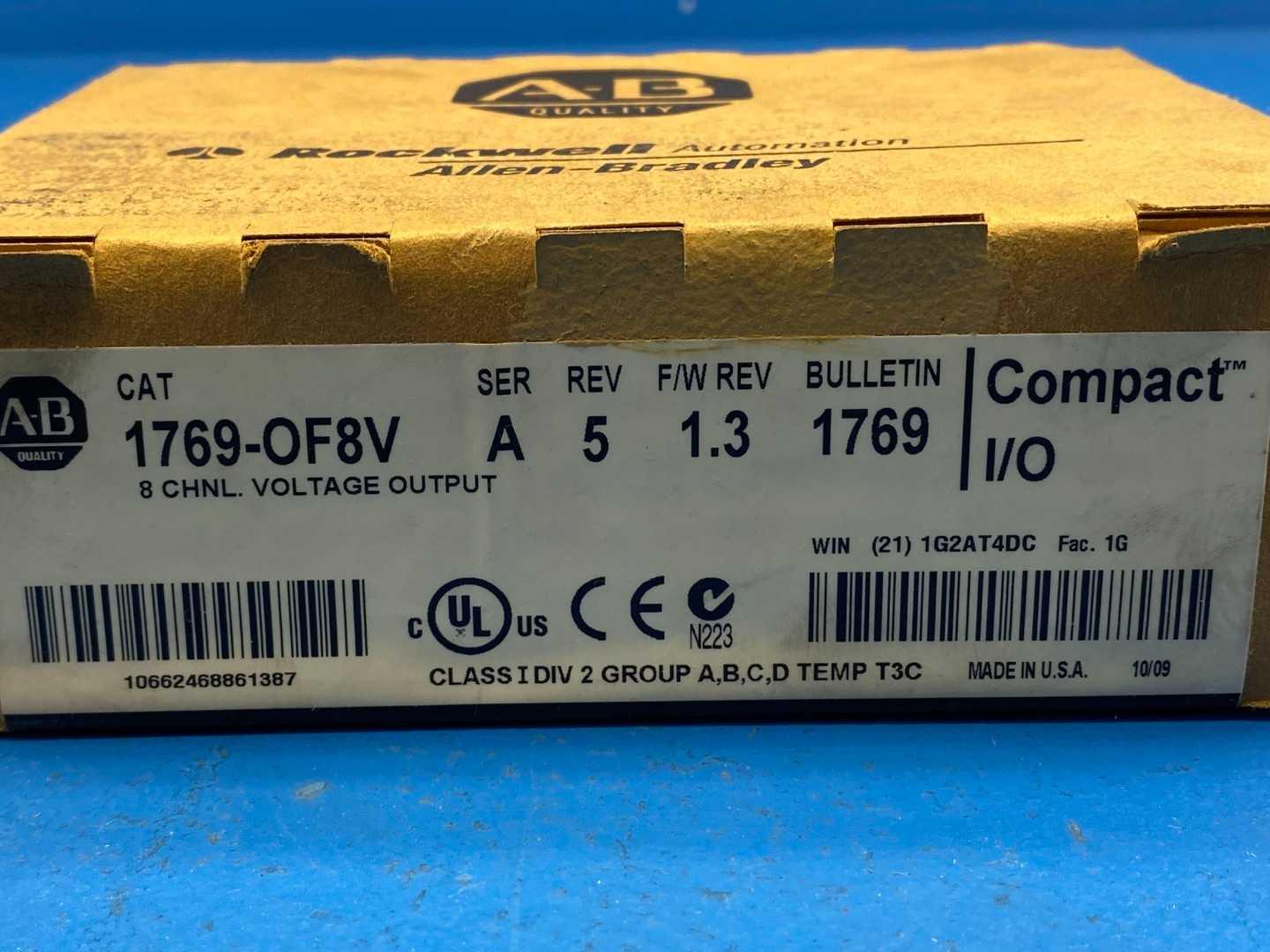

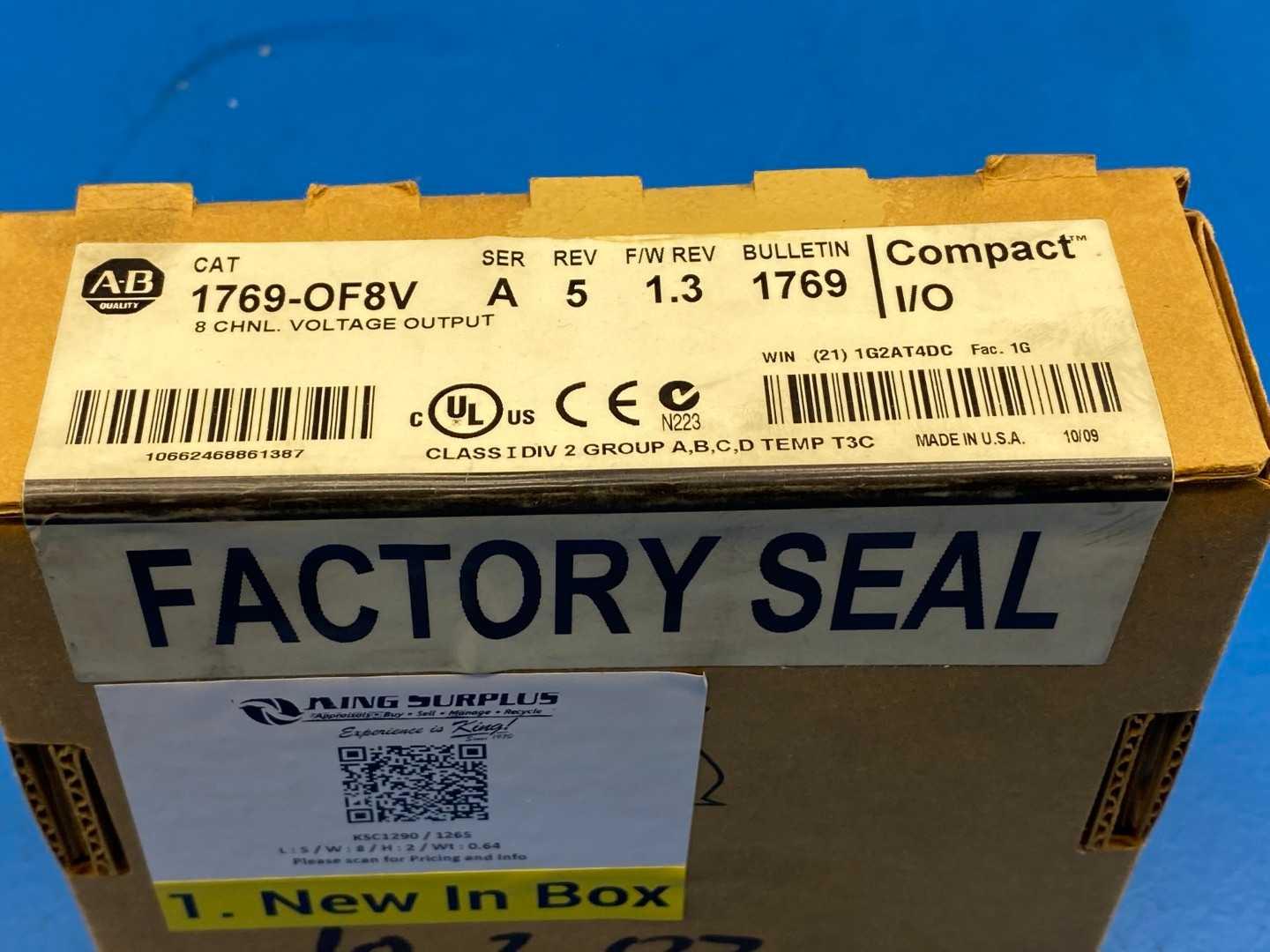

Allen-Bradley 1765-OF8V and 1769-OF8V CompactLogix 8 Point Output Module

The Allen-Bradley 1769-OF8V is a CompactLogix 8 Point Output Module designed for use within the Rockwell Automation ecosystem. This module is primarily used in industrial settings where compact and robust control solutions are required. It is ideal for applications involving control of various types of actuators and output devices, including solenoids, motors, and other machinery interfaces. The 1769-OF8V module provides eight output points, each capable of being configured for various voltage levels, making it versatile for different operational needs. One of its notable features includes the ability to interface with both standard and high-capacity loads, thus increasing its adaptability to various tasks. Additionally, its design allows for easy integration with other CompactLogix systems, enhancing overall system efficiency. Typical industries utilizing the 1769-OF8V module include manufacturing, process control, and material handling. Its compact size also supports installation in tight spaces, making it a favored choice for modern control cabinets.

Input Voltage: 24V DC Output Type: Sourcing Number of Points: 8 Maximum Output Current per Point: 2A Maximum Total Output Current: 16A Thermal Current: 17A Isolation Voltage: 250V Integrated LED Status Indicators: Yes Operating Temperature Range: 0 to 60 degrees Celsius Dimensions: 4.76 in x 3.47 in x 2.91 in Weight: 0.89 lb
