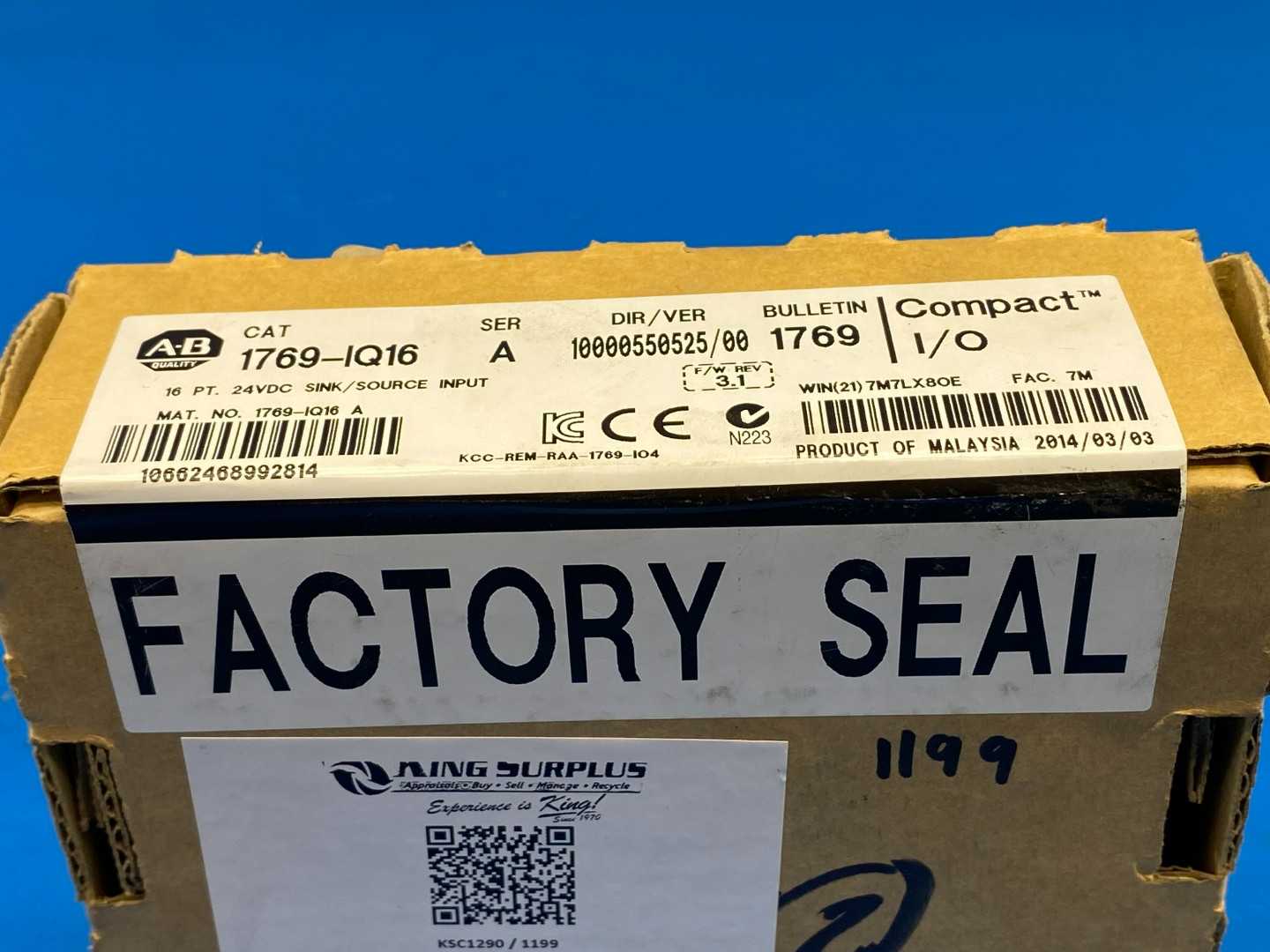

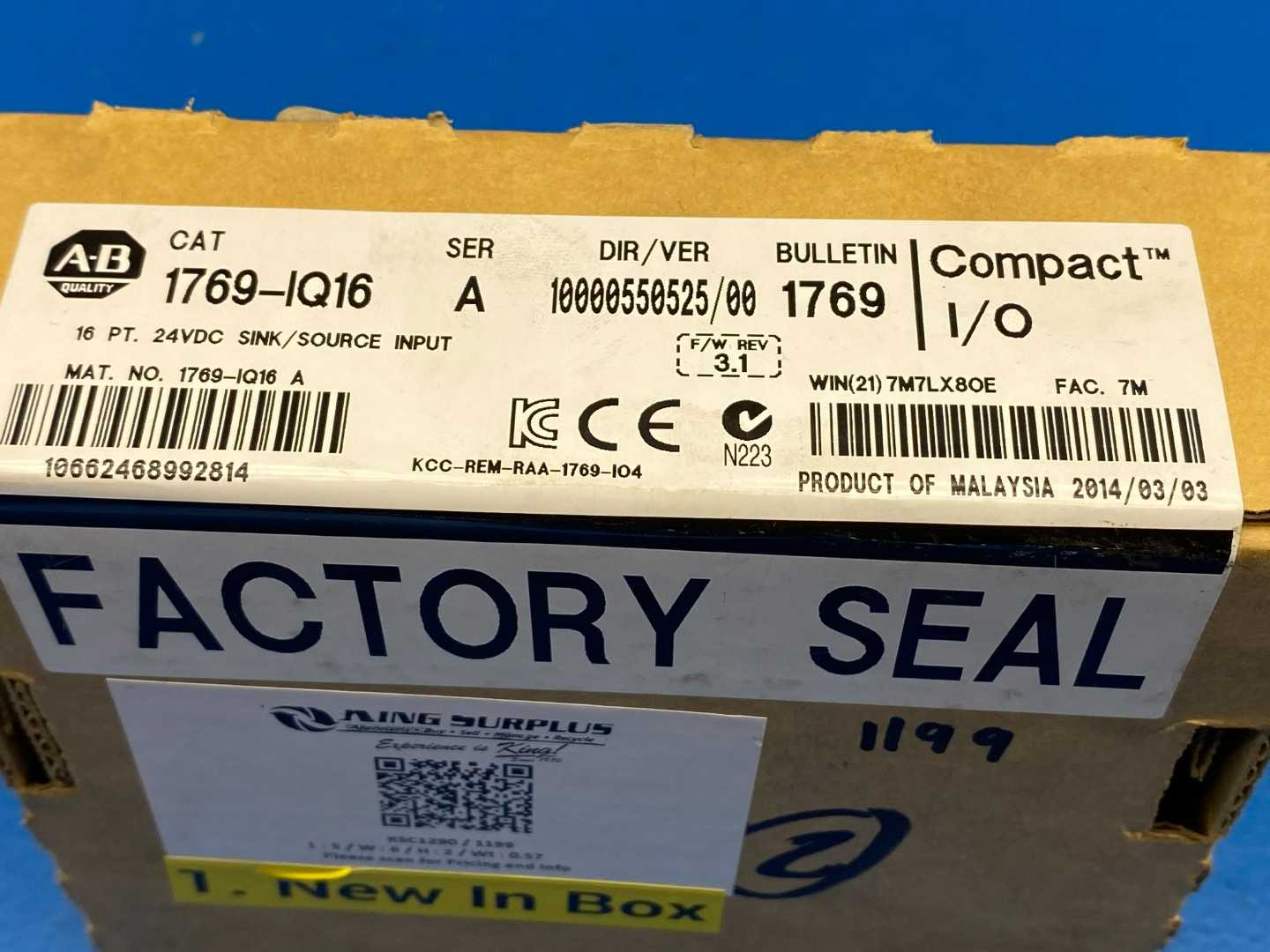

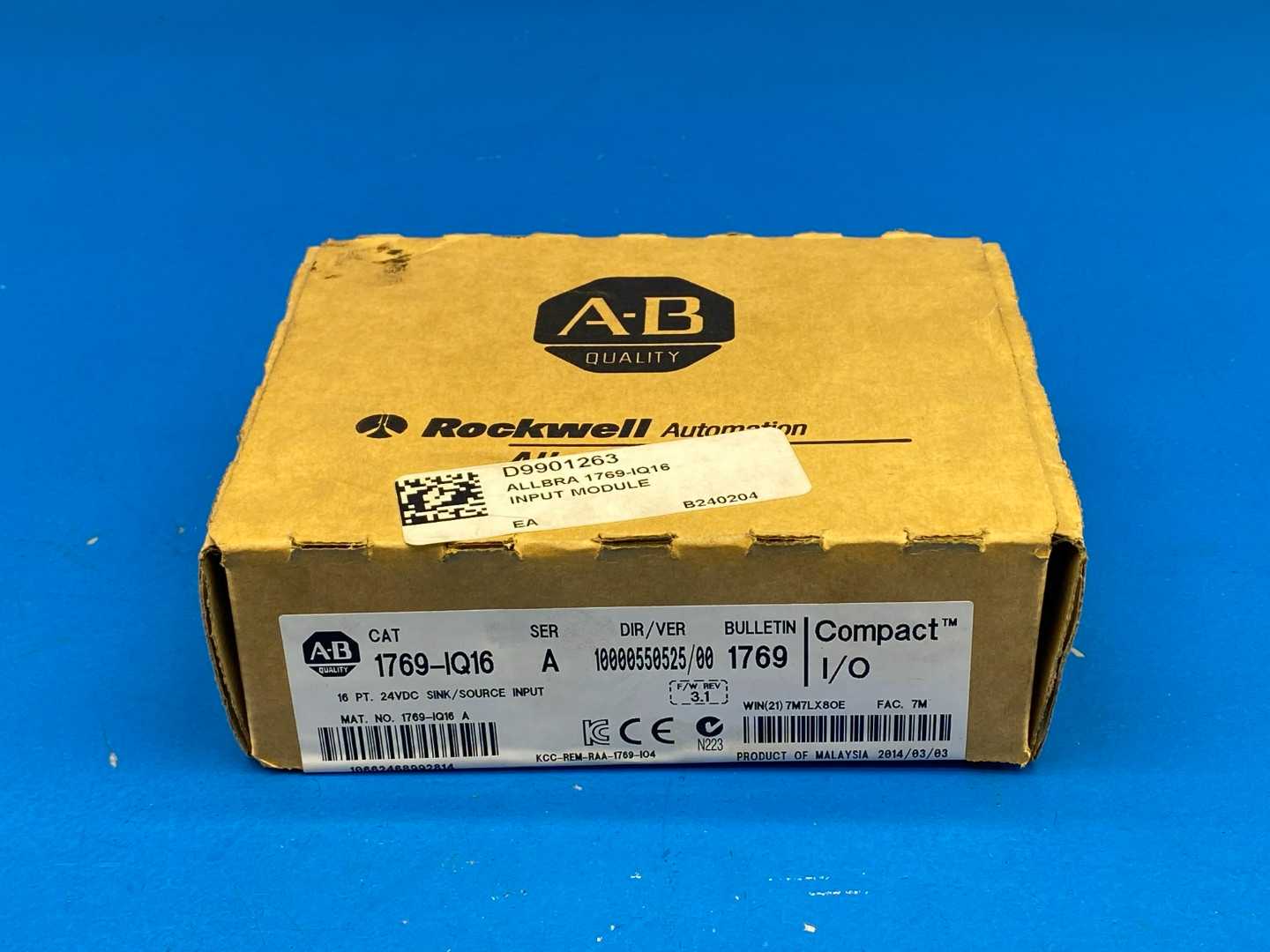

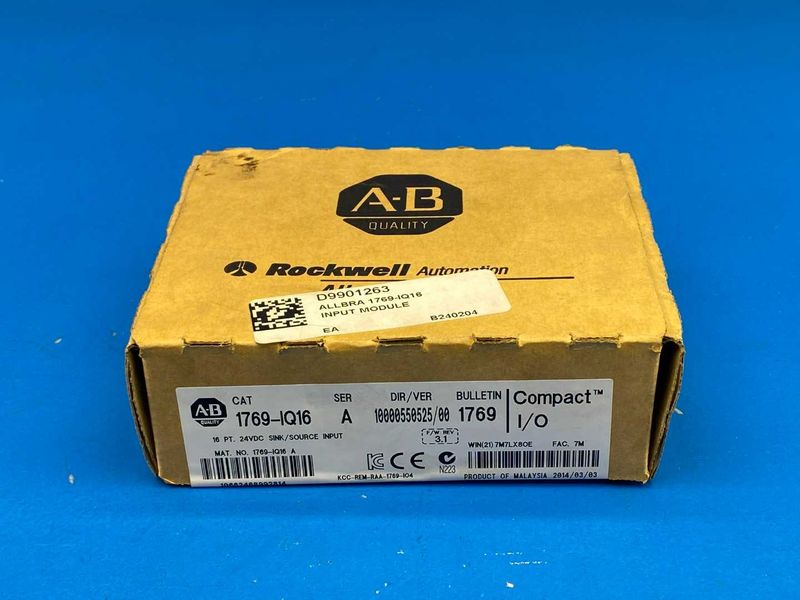

Allen-Bradley 1769-IQ16 SER A CompactLogix PLC 16 PT 24VDC Sink/Source Input Module DIR/VER 10000550525/00

1769-IQ16 Input Module Specifications: Points, Voltage & Signal Type

PLC Rack Compatibility for Allen-Bradley 1769-IQ16

Product image 1
1 / 4
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 4
+4
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 4
+4
Product image 1
1 / 4
DescriptionDetails
Available Quantity1
Model1769-IQ16
ConditionNew
ManufacturerAllen-Bradley
Asset NumberKSC1290 / 1199
Guarantee or ASIS1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Inspections - Yellow Tag1. New in Box
Packaging Cost1.6 6x10 CH $3.00
Available Qty: 1
Free Shipping
$59.95
Call UsText UsEmail Us
$59.95
Free Shipping
Call Us
Text Us
Email Us

Asset #

KSC1290 / 1199

Available Quantity

1

Inspections - Yellow Tag

1. New in Box

Condition

New

Guarantee or ASIS

1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.

  • Manufacturer: Allen-Bradley (Rockwell Automation)
  • Model: 1769-IQ16, Series A
  • Product Line: CompactLogix 1769 Compact I/O
  • Module Type: 16-point DC digital input module - sink/source compatible
  • Input Voltage: 24V DC nominal; operating range 10 to 30V DC at 30 degrees C; 10 to 26.4V DC at 60 degrees C
  • Input Points: 16 (two groups of 8)
  • Input ON Threshold: 10V DC minimum
  • Input OFF Threshold: 5V DC maximum
  • Input Impedance: 3 kilohm nominal
  • Input Filter Delay: 8 ms (default)
  • Backplane Current: 115 mA at 5.1V DC
  • Power Dissipation: 3.55W (12.11 BTU/hr)
  • Isolation: IEC Class 2 reinforced; 75V DC continuous; 1697V DC test (1 second)
  • Operating Temperature: 0 to 60 degrees C
  • Mounting: DIN rail or panel mount
  • Status Indicators: LED per input point
Manufacturer

Allen-Bradley

Model

1769-IQ16

Serial

7M7LX80E

Year

2014

HP / AMP / KW / KVA

N/A

Amps

115mA

Length (Inches)

5

Width (Inches)

6

Height (Inches)

2

Phase

1

Estimated Packaging Weight

0

Estimated Total Weight

0.56875

Asset Number

KSC1290 / 1199

Packaging Cost

1.6 6x10 CH $3.00
