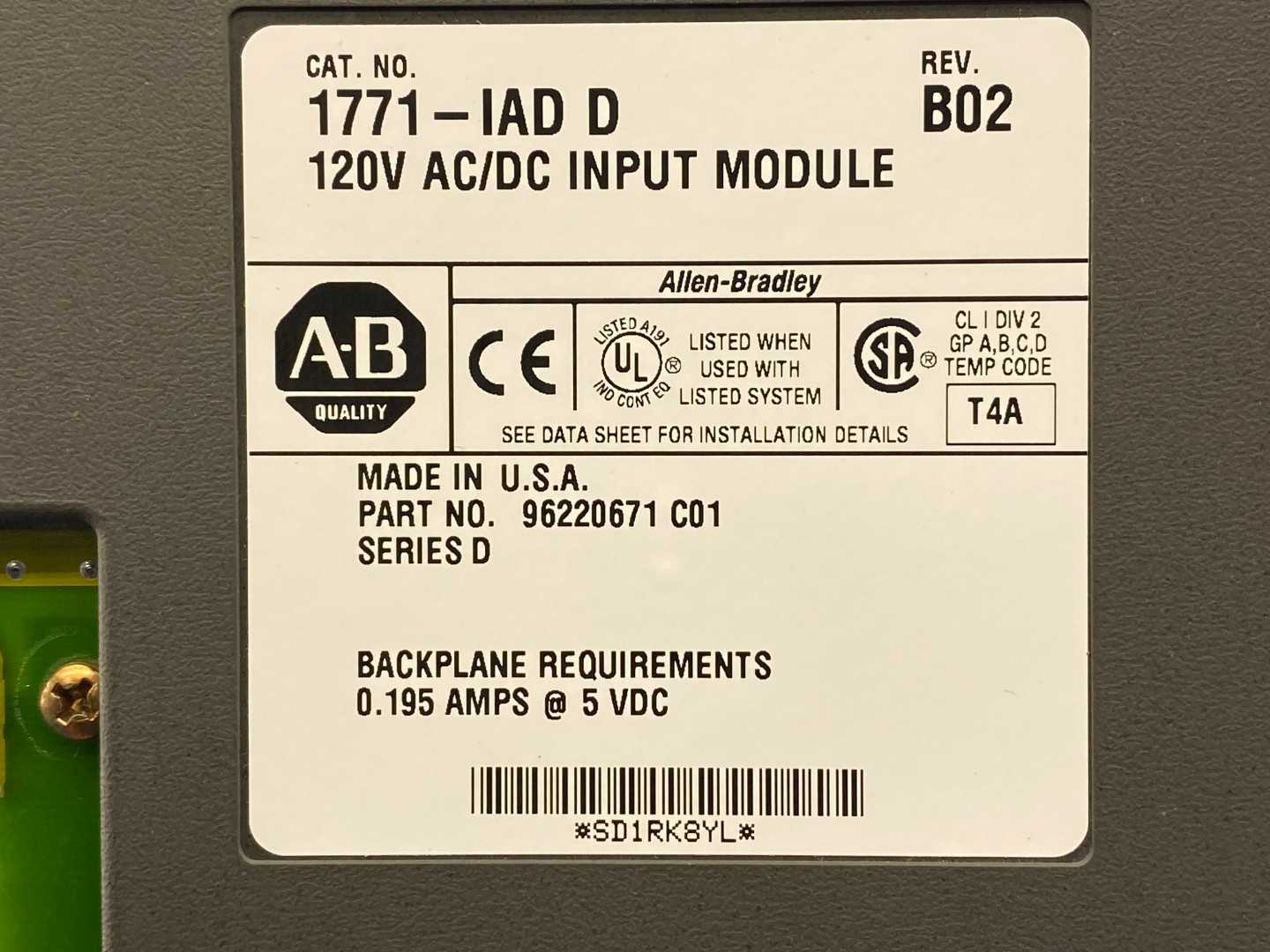

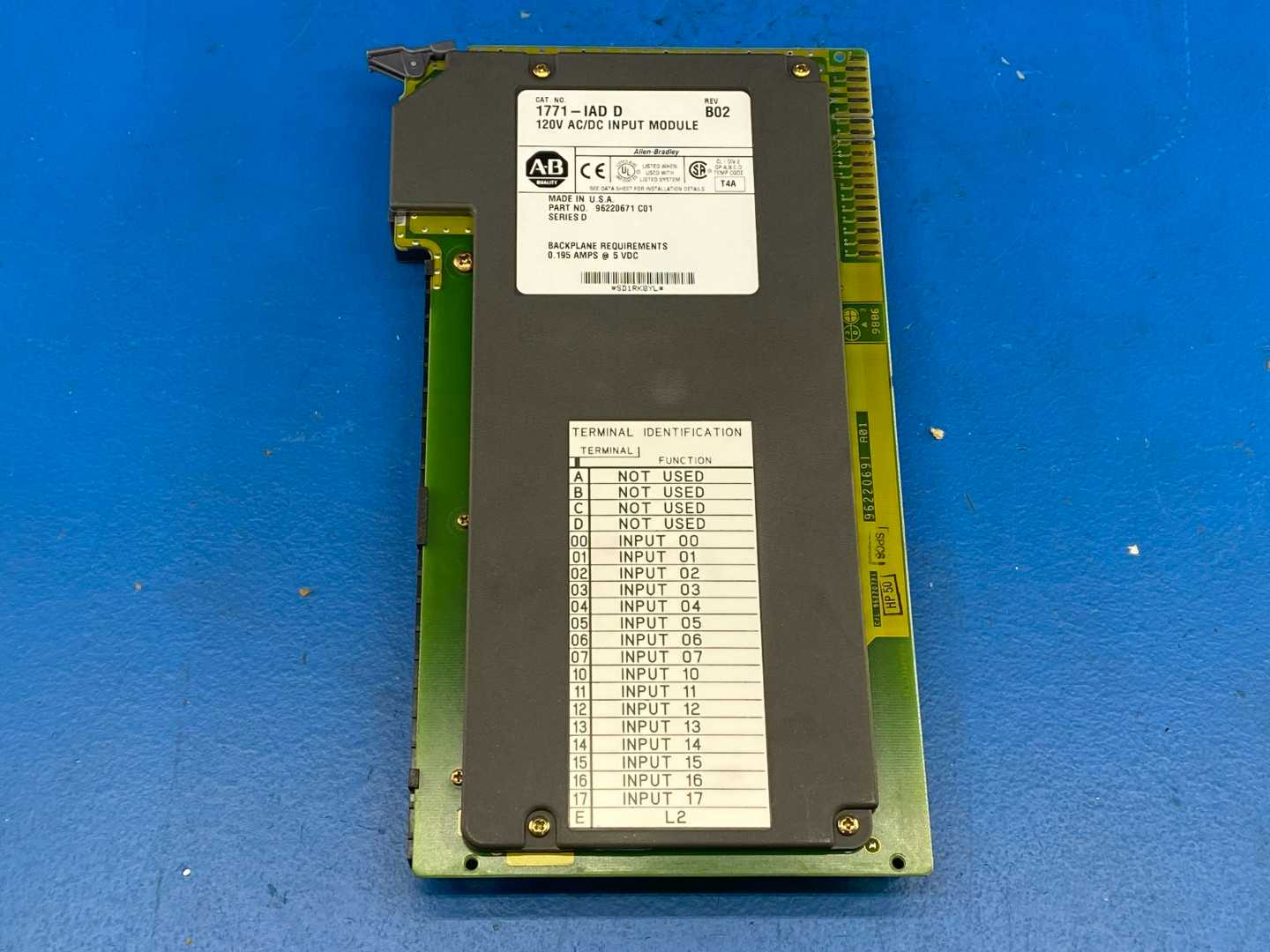

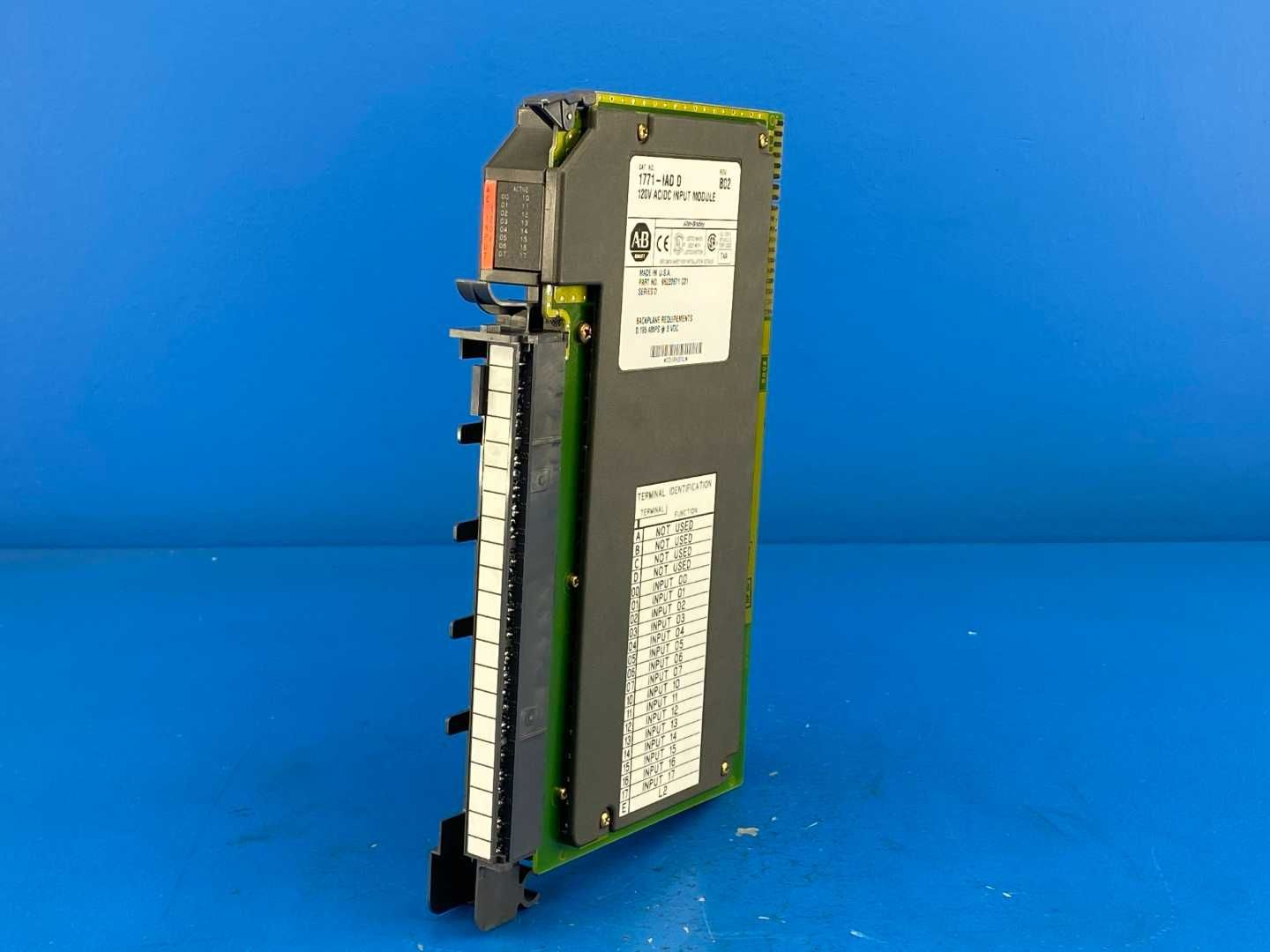

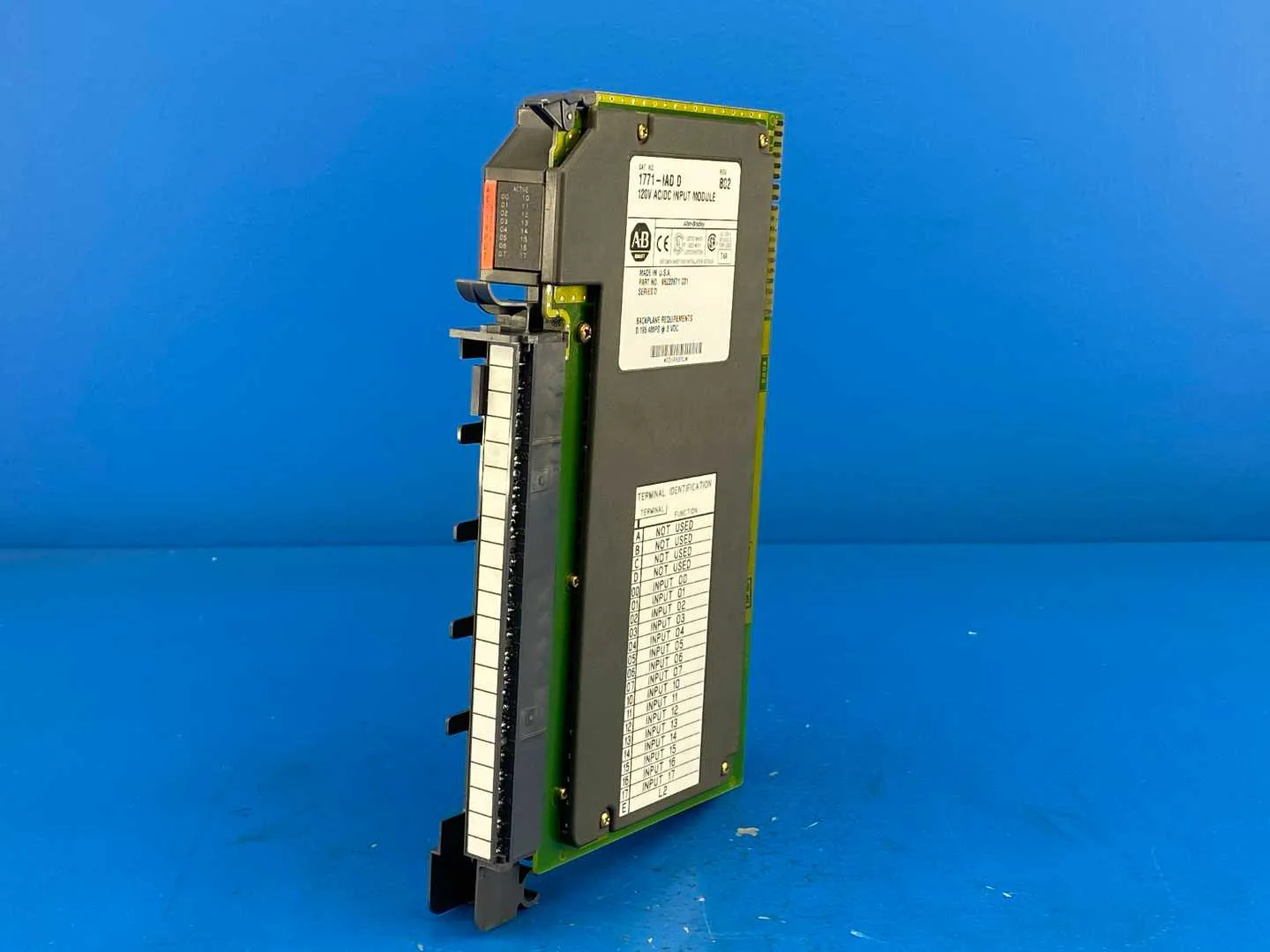

Allen-Bradley 1771-IAD D 120V AC/DC Input Module T4A REV:B02
1771-IAD D Input Module Specifications: Points, Voltage & Signal Type
PLC Rack Compatibility for Allen-Bradley 1771-IAD D
1 / 8
+8
+8
1 / 8
| Description | Details |
|---|---|
| Available Quantity | 4 |
| Model | 1771-IAD D |
| Condition | New |
| Manufacturer | Allen-Bradley |
| Asset Number | KSC1290 / 1149 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 4
Free Shipping
$34.95
Basic Information
Asset #
KSC1290 / 1149
Available Quantity
4
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
N/A
Factory Information
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Model: 1771-IAD, Series C (Rev B02 as noted on unit)
- Series: 1771 Universal I/O family - PLC-5 system
- Product Type: Discrete AC/DC input module, single-slot width
- Number of Inputs: 16 channels
- Input Voltage: 120 VAC / 125 VDC
- Operating Voltage Range: 79 to 138 VAC; 79 to 138 VDC
- Maximum Off-State Current (AC): 2.8 mA
- Backplane Current Draw: 195 mA at 5 VDC
- Power Dissipation: 8.8 W maximum
- Signal Delay (AC ON): 5 +/- 3 ms; (AC OFF): 25 +/- 5 ms; (DC ON): 3 +/- 0.1 ms or 10 +/- 1 ms selectable
- Isolation: Optoelectrical isolation per channel
- Status Indicators: 1 module active (green) + 16 input status (red) LEDs

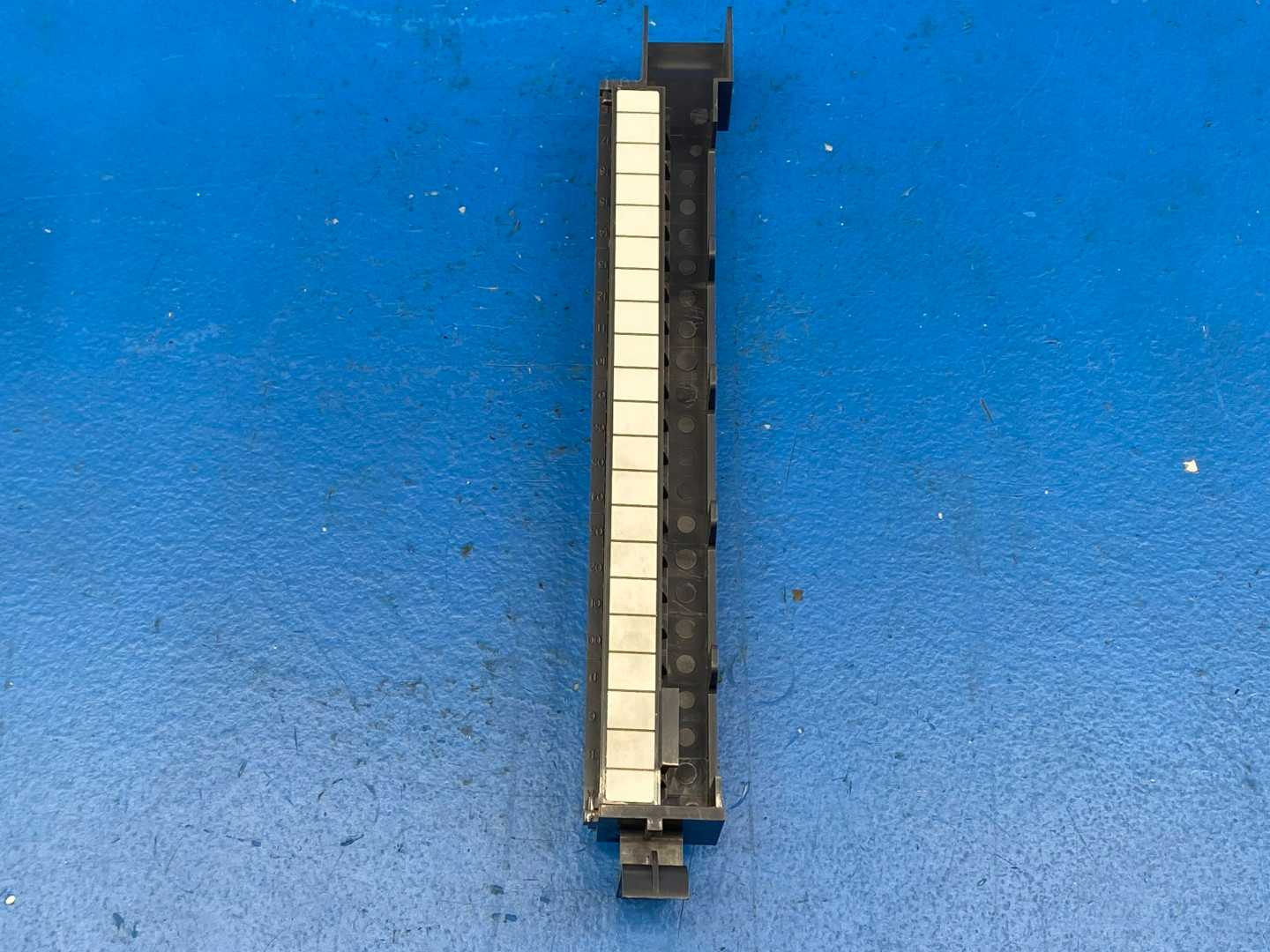

- Wiring Arm: 1771-WH
- Compatible Chassis: 1771-A1B, A2B, A3B, A3B1, A4B, 1771-AM1, AM2
- Addressing Modes: 0.5-slot, 1-slot, 2-slot selectable
- Physical Dimensions: 3.5 x 6.5 x 2.0 in
- Weight: 1.2 lb
Specifications
Manufacturer
Allen-Bradley
Model
1771-IAD D
Serial
SD1RK8YL
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
0.195
Length (Inches)
9
Width (Inches)
12
Height (Inches)
2
Phase
1
Estimated Packaging Weight
0
Estimated Total Weight
1.9125
Asset Number
KSC1290 / 1149
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
