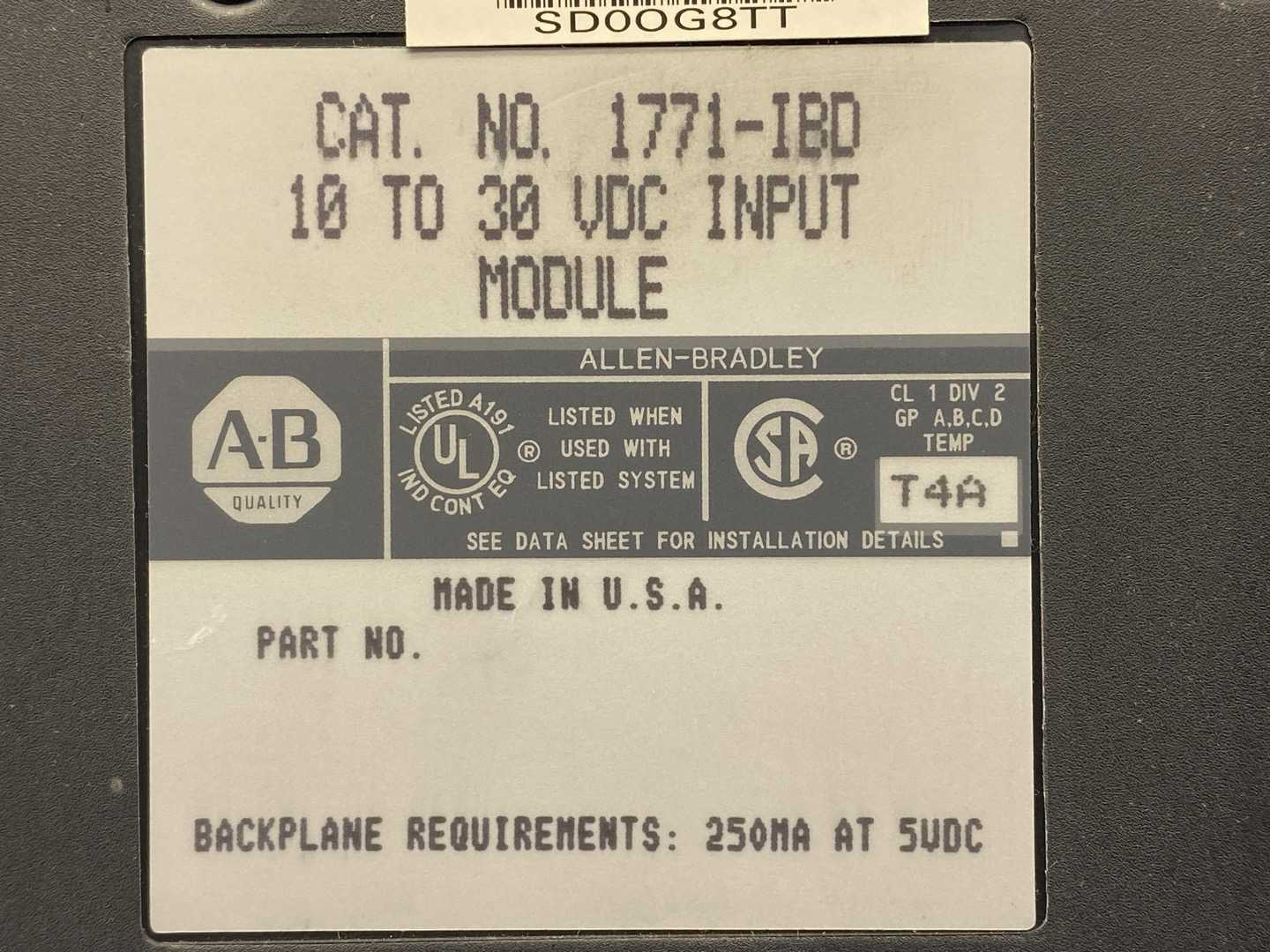

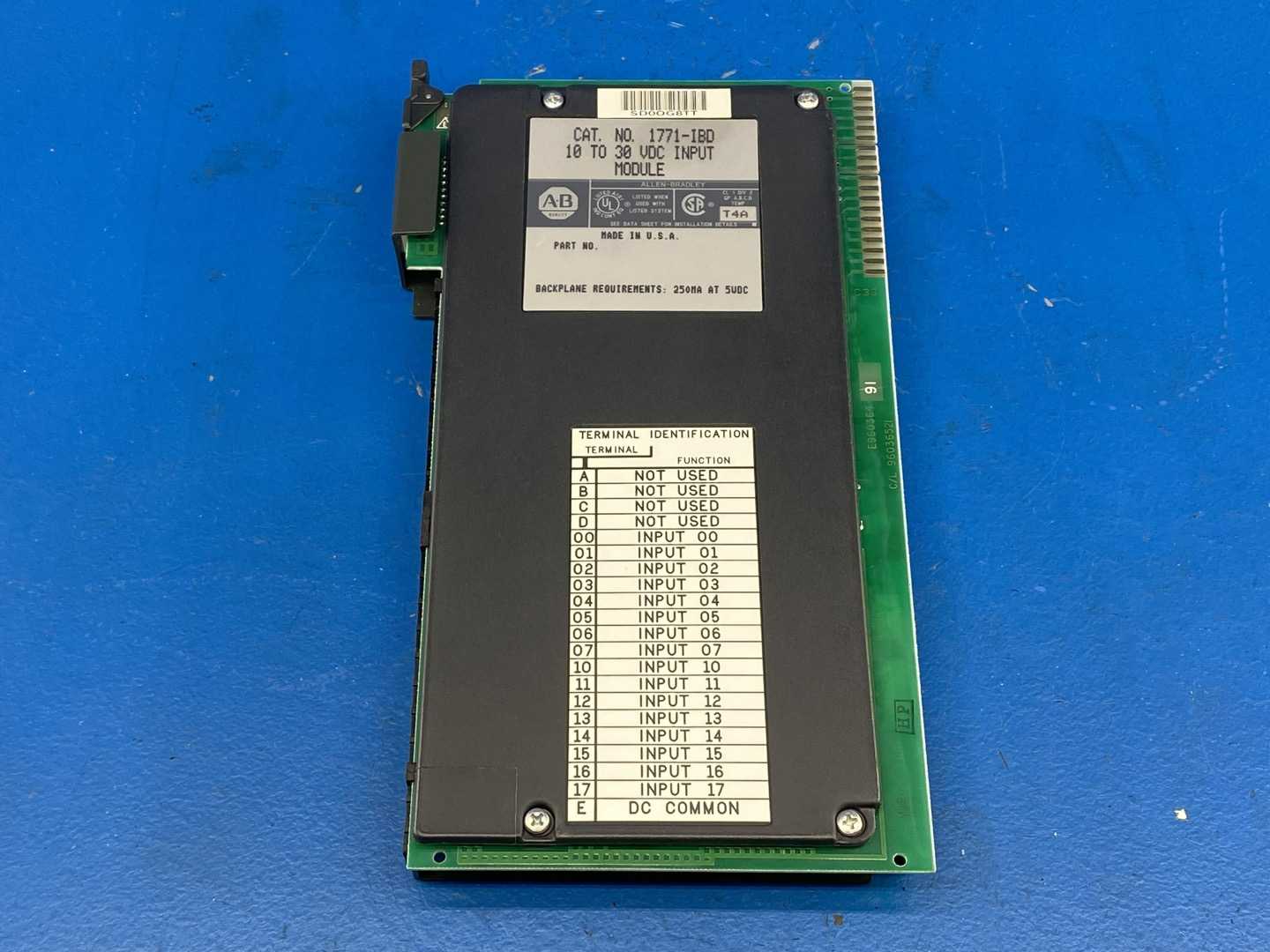

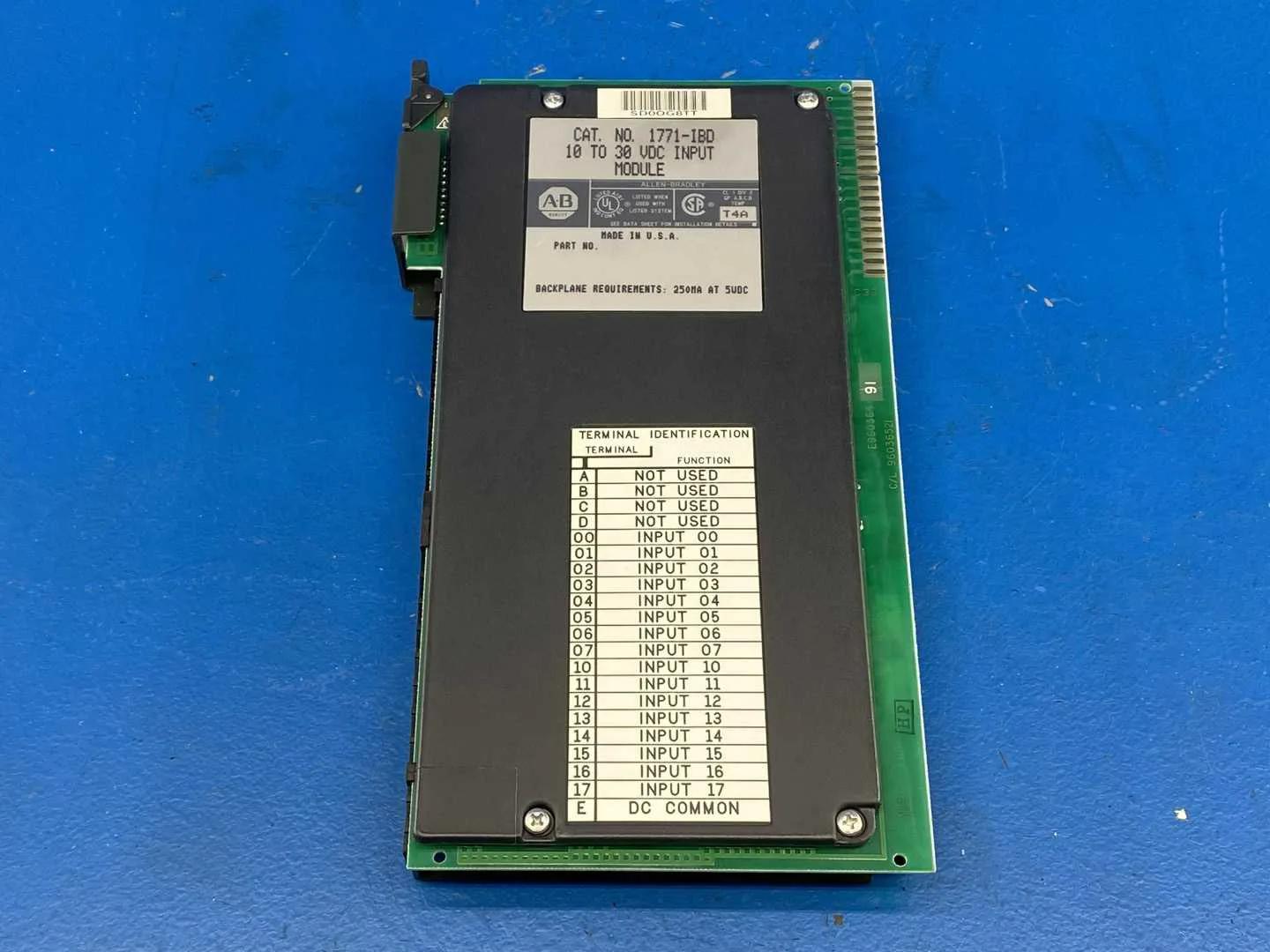

Allen-Bradley 1771-IBD 10 to 30 VDC Input Module
Allen-Bradley 1771-IBD 10 to 30 VDC Input Module
Key Features of the 1771-IBD Input Module
Applications of the Allen-Bradley 1771-IBD Module
1 / 5
+5
+5
1 / 5
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 1771-IBD |
| Condition | Used |
| Manufacturer | Allen-Bradley |
| Asset Number | KSC1290 / 1144 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
Free Shipping
$6.95
Basic Information
Asset #
KSC1290 / 1144
Available Quantity
1
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Model: 1771-IBD
- Series: 1771 Universal I/O family - PLC-5 system
- Product Type: Discrete DC input module, single-slot width
- Number of Inputs: 16 channels
- Input Voltage Range: 10 to 30 VDC (sink/source compatible)
- Minimum On-State Voltage: 10 VDC
- Maximum Off-State Voltage: 5 VDC
- Input Current: 4.5 mA at 10 VDC; 15 mA at 30 VDC
- Backplane Current Draw: 130 mA at 5 VDC
- Power Dissipation: 7.3 W maximum
- Signal Delay (ON): 1.3 ms typical; (OFF): selectable 1 ms or 6 ms
- Isolation: Optoelectrical isolation per channel
- Status Indicators: 18 LED (1 module status + 16 input status + 1 spare)
- Wiring Arm: 1771-WH
- Compatible Chassis: All 1771 I/O chassis except 1771-A1, -A2, and -A4
- Physical Dimensions: 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm)
- Status: Discontinued March 2020; surplus stock only
Specifications
Manufacturer
Allen-Bradley
Model
1771-IBD
Serial
SD0OG8TT
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
0.25
Length (Inches)
11
Width (Inches)
14
Height (Inches)
5
Phase
1
Estimated Packaging Weight
0
Estimated Total Weight
2.15625
Asset Number
KSC1290 / 1144
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
Payment Details
Appraised Value
$6.95
Payment MethodsPayment Types Accepted : Visa, Mastercard, ACH, Wire Transfer, Check (14 Day Hold Before Release), Cash
