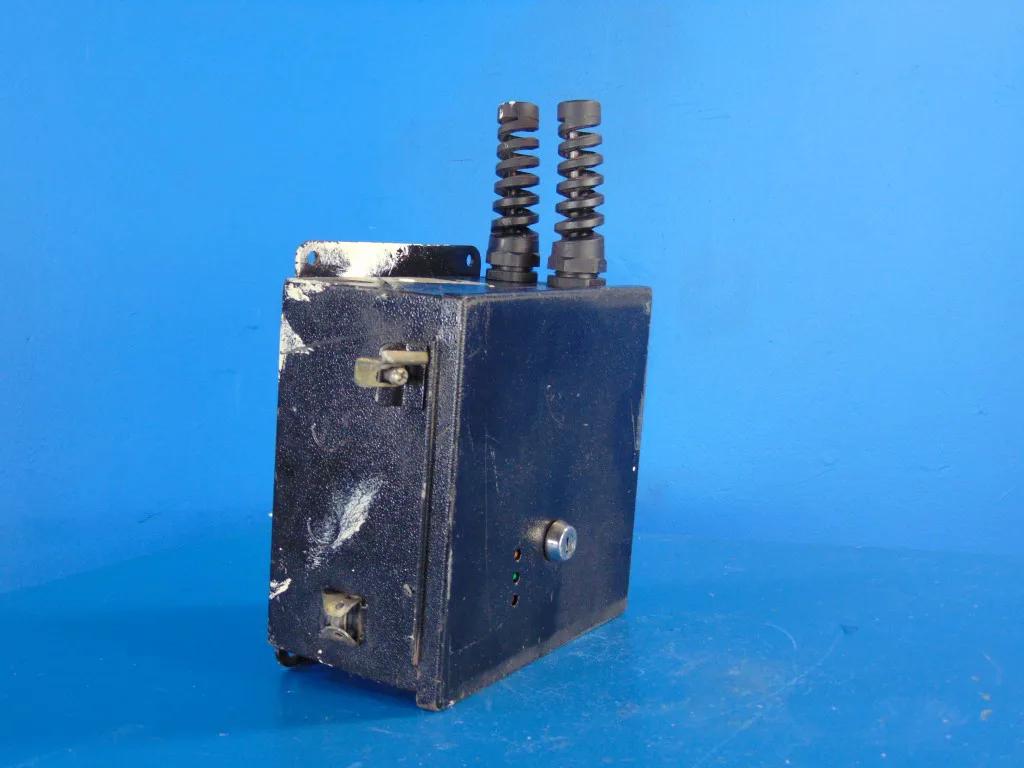

Banner MGCA-4A Machine Guard Laser Beam Array Controller
MGCA-4A Controller Specifications: I/O, Voltage & Communication
Compatible Systems & Applications for Banner MGCA-4A
1 / 14
+14
+14
1 / 14
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | MGCA-4A |
| Condition | Used |
| Manufacturer | Banner |
| Asset Number | KSCU / 244 |
| Guarantee or ASIS | 4. UNKNOWN: SOLD FOR PARTS OR SALVAGE VALUE ONLY |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
Free Shipping
$119.00
Basic Information
Asset #
KSCU / 244
Available Quantity
1
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
4. UNKNOWN: SOLD FOR PARTS OR SALVAGE VALUE ONLY
Item Description
The Banner MGCA-4A Machine Guard Laser Beam Array Controller is a specialized product designed to enhance safety in industrial environments by enabling the precise control of laser beam safety systems.
This controller is part of a series developed by Banner Engineering, a company renowned for its innovation in sensor technology and automation solutions. The MGCA-4A was introduced to meet the growing demand for reliable safety measures in workplaces, particularly where machinery operates in close proximity to human workers.
The primary purpose of the MGCA-4A is to facilitate the operation of laser beam safety systems, which serve to protect personnel from hazardous machinery. It achieves this by monitoring the status of laser beams and ensuring that machines are halted when a beam is interrupted.
Industries that benefit from the MGCA-4A include manufacturing, automation, and any applications involving automated machinery that poses potential risks to operators. Its reliability and ease of integration make it a preferred choice for businesses striving to comply with safety regulations and improve workplace safety.
Unique features of the MGCA-4A include:
1. Support for multiple laser beams, allowing for comprehensive safety coverage in large workspaces.
2. User-friendly interface that simplifies setup and monitoring.
3. Flexibility to integrate with various types of safety laser devices, enhancing adaptability across different setups.
4. Robust build designed to withstand the rigors of industrial environments, ensuring long-lasting performance.
Factory Information
- System: Banner Engineering MACHINE-GUARD System control box
- Model: MGCA-4A

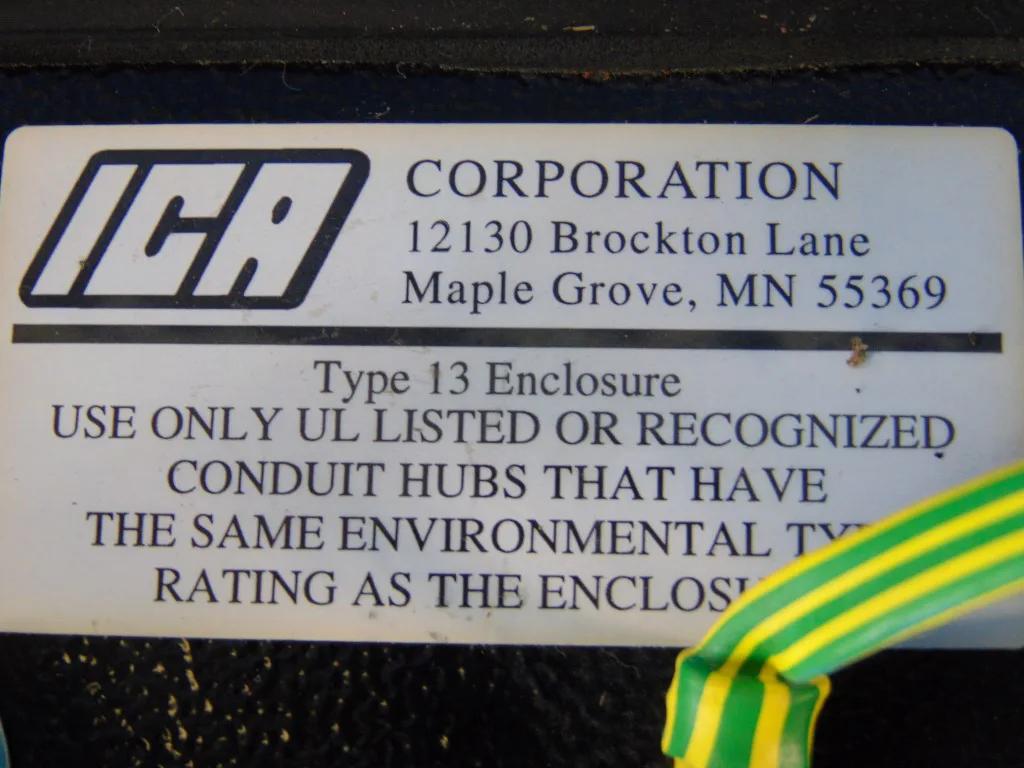

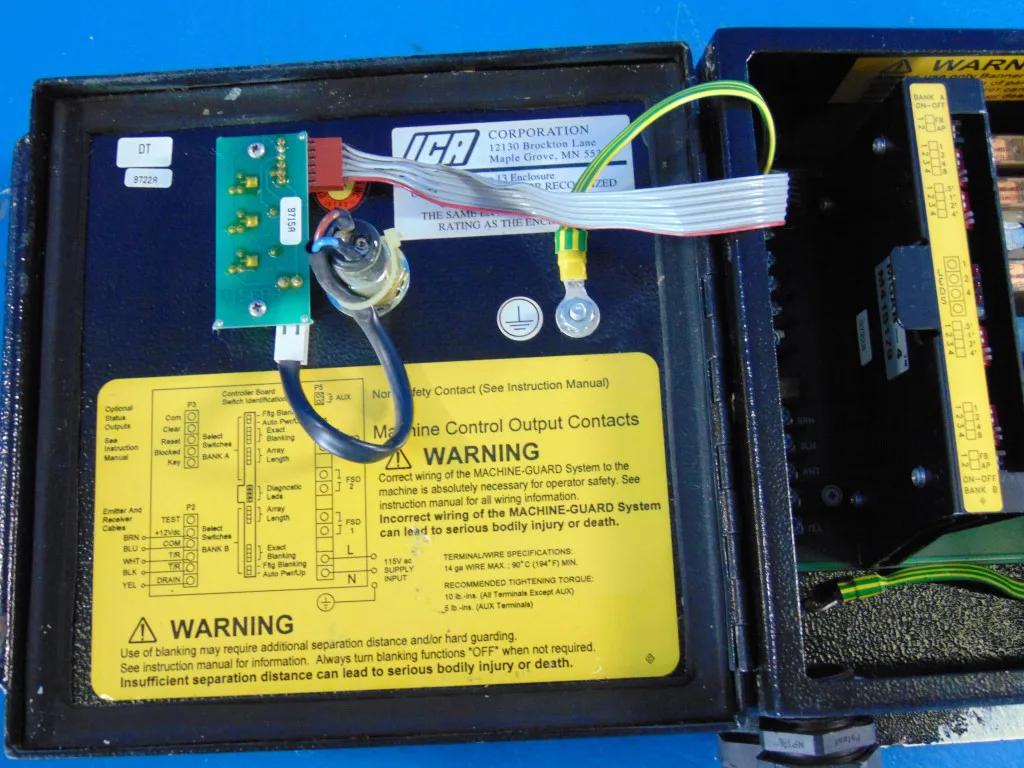

- Enclosure Nameplate: ICA Corporation, 12130 Brockton Lane, Maple Grove, MN 55369
- Date Codes on Nameplate: DT 9722R / 9715A
- Type: Safety light curtain controller; one control box per system, paired with an MGE Series emitter and MGR Series receiver
- Supply Voltage: 115V AC, 50/60 Hz. The 230V AC version of this control box is a different model, the MGCB-4A. There is no 24V DC MACHINE-GUARD control box.
- Power: 50 VA
- Fuse: 1/2 amp, 250V AC, 3AG slow blow (the MGCB-4A takes 1/4 amp)
- AC Connection: three-wire (hot, neutral, earth ground) at control box wiring barrier P6, terminals L and N. Must not be operated without an earth ground.
- Output Relays (FSD1, FSD2, SSD): forced-guided contact relays, 250V AC max, 4 A max resistive
- Output Relay Life: mechanical 10,000,000 operations minimum; electrical 100,000 operations typical at full rated load
- Auxiliary Monitor Relay: reed relay, 125V AC or DC max, 500 mA max, 10 VA max resistive. Non-safety contact, connected at wiring barrier P5.
- Response Time: less than 40 ms with emitter and receiver up to 48 in; less than 55 ms with 54 in to 72 in
- Self-Checking Interval: 20 ms
- Minimum Object Sensitivity: 1.50 in (38.1 mm), assuming no floating blanking
- Ambient Light Immunity: greater than 10,000 lux at 5 degree angle of incidence
- Emitter Elements (system): infrared LEDs, 880 nm peak emission

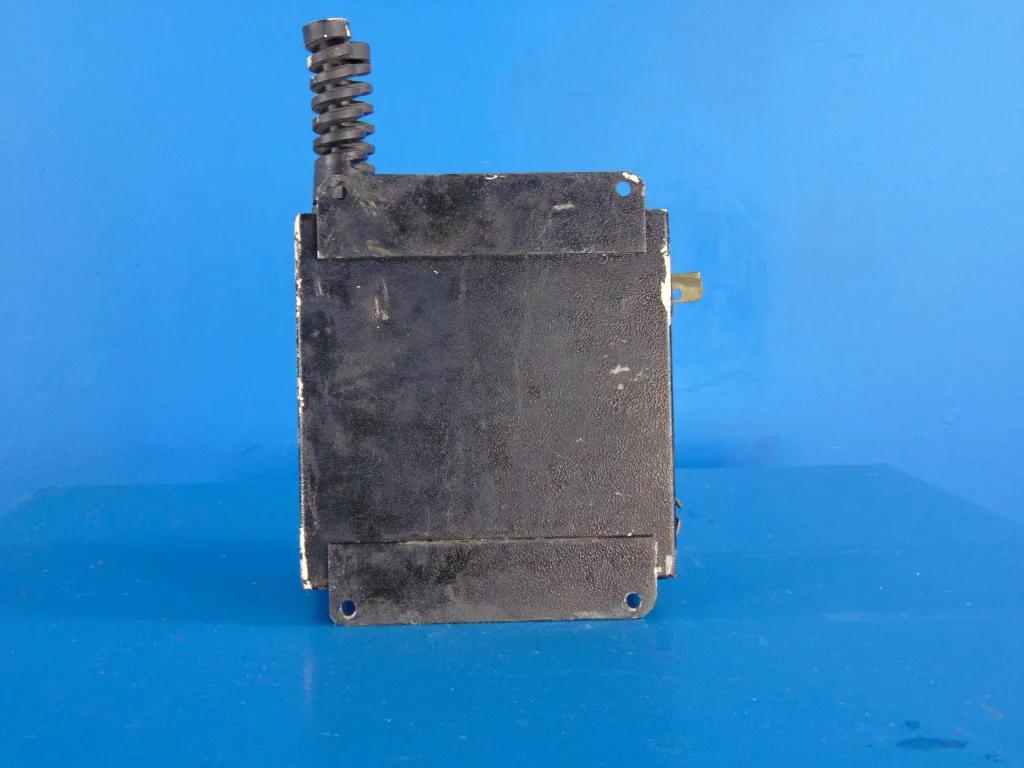

- Enclosure Material: welded steel box, black polyester powder paint finish
- Enclosure Rating: NEMA 13 (IP 64)
- Operating Temperature: 0 to +50 C (+32 to +122 F)
- Relative Humidity: 95% maximum, non-condensing
- Terminal / Wire Specification (nameplate): 14 ga wire maximum, 90 C (194 F) minimum
- Tightening Torque (nameplate): 10 lb-in on all terminals except AUX; 0.3 lb-in on AUX terminals

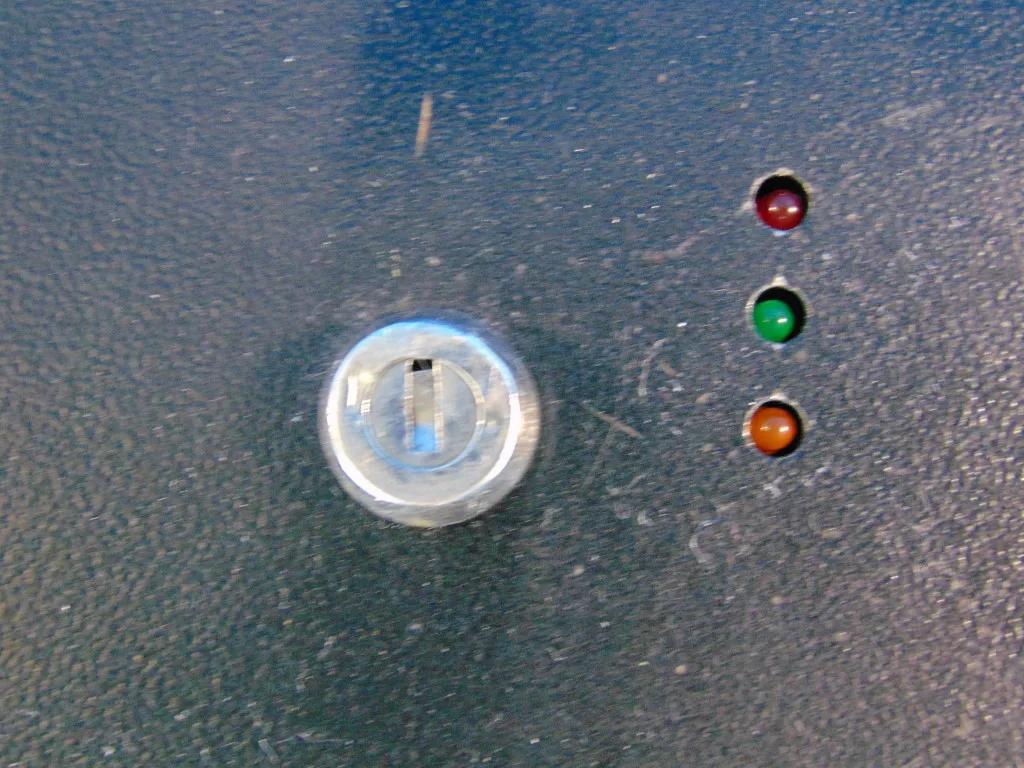

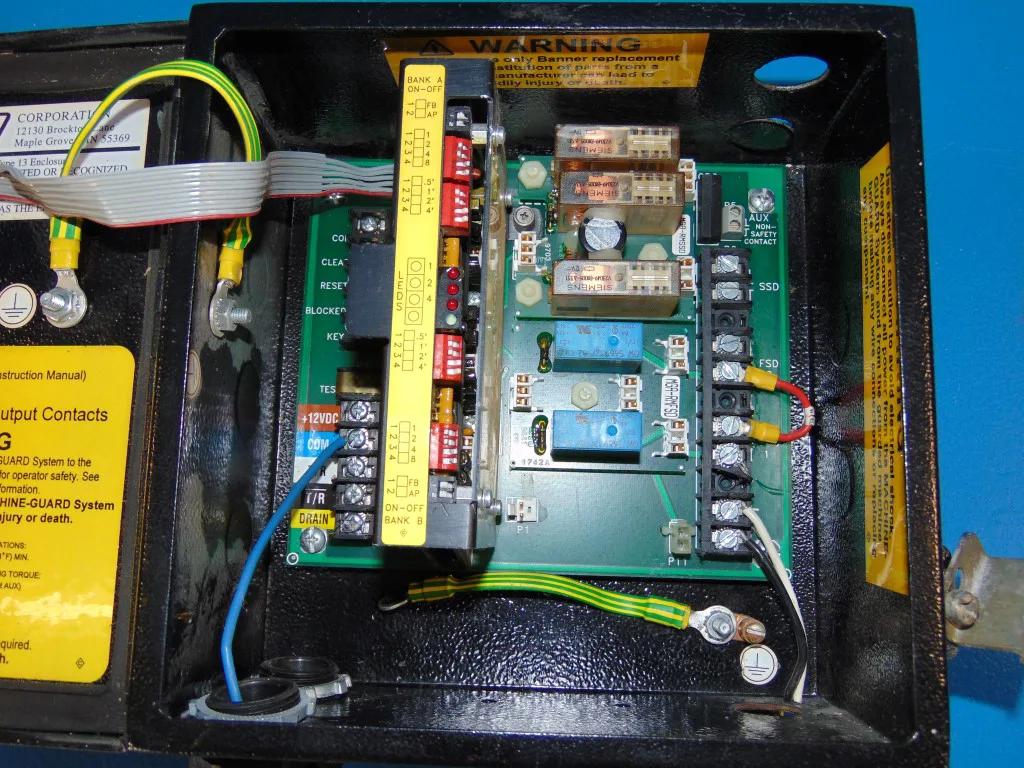

- Controls: keyed RESET of lockout conditions, ARRAY LENGTH selection switches, BLANKING function selection switches, AUTO POWER UP on/off switches

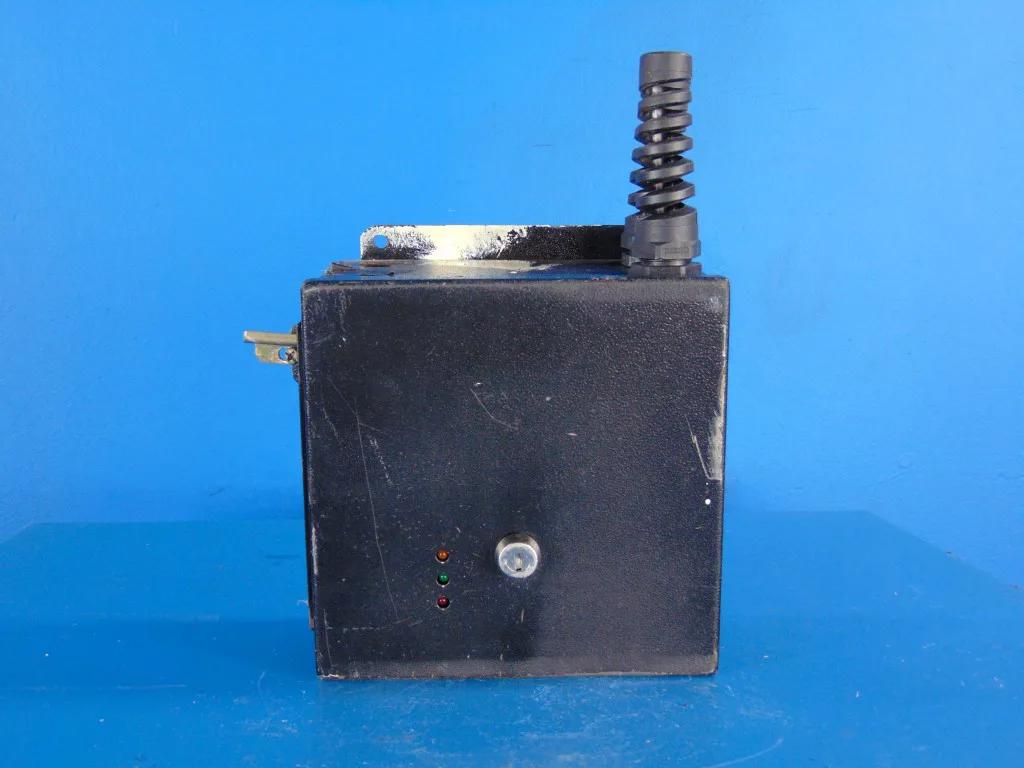

- Status Indicators: red = BLOCKED, green = CLEAR, yellow = RESET; flashing red = LOCKOUT, flashing green = BLANKING on, flashing yellow = waiting for power-up key reset
- Diagnostics: four LEDs indicating seven system status conditions
- Cabling: Banner twisted-pair cables only; total emitter plus receiver cable length may not exceed 175 ft
- Listings: Listed Presence Sensing Device LR 41887, 10Y8 SA8959; FMEA tested per the requirements of the proposed first edition of UL 491 Standards, Section SA4
- Spec Basis: Banner Engineering MACHINE-GUARD System Instruction Manual P/N 33130, Specifications and Model Listings, page 35; supply voltage corroborated by the 115V ac supply input marking on this unit's own nameplate
Specifications
Manufacturer
Banner
Model
MGCA-4A
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
9
Width (Inches)
5
Height (Inches)
13
Phase
N/A
Estimated Packaging Weight
2
Estimated Total Weight
12
Asset Number
KSCU / 244
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
