Compact Automation R6X10.0--14NPTRE Pneumatic Cylinder, 6" Bore, 10" Stroke, Rod Eye, 1/4" NPT
R6X10.0--14NPTRE Cylinder Specifications: Bore, Stroke & Mounting
Air System Fitment for Compact Automation R6X10.0--14NPTRE
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | R6X10.0--14NPTRE |
| Condition | New |
| Manufacturer | Compact Automation |
| Asset Number | KSC1290 / 1267 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$219.95
Basic Information
Asset #
KSC1290 / 1267
Available Quantity
2
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

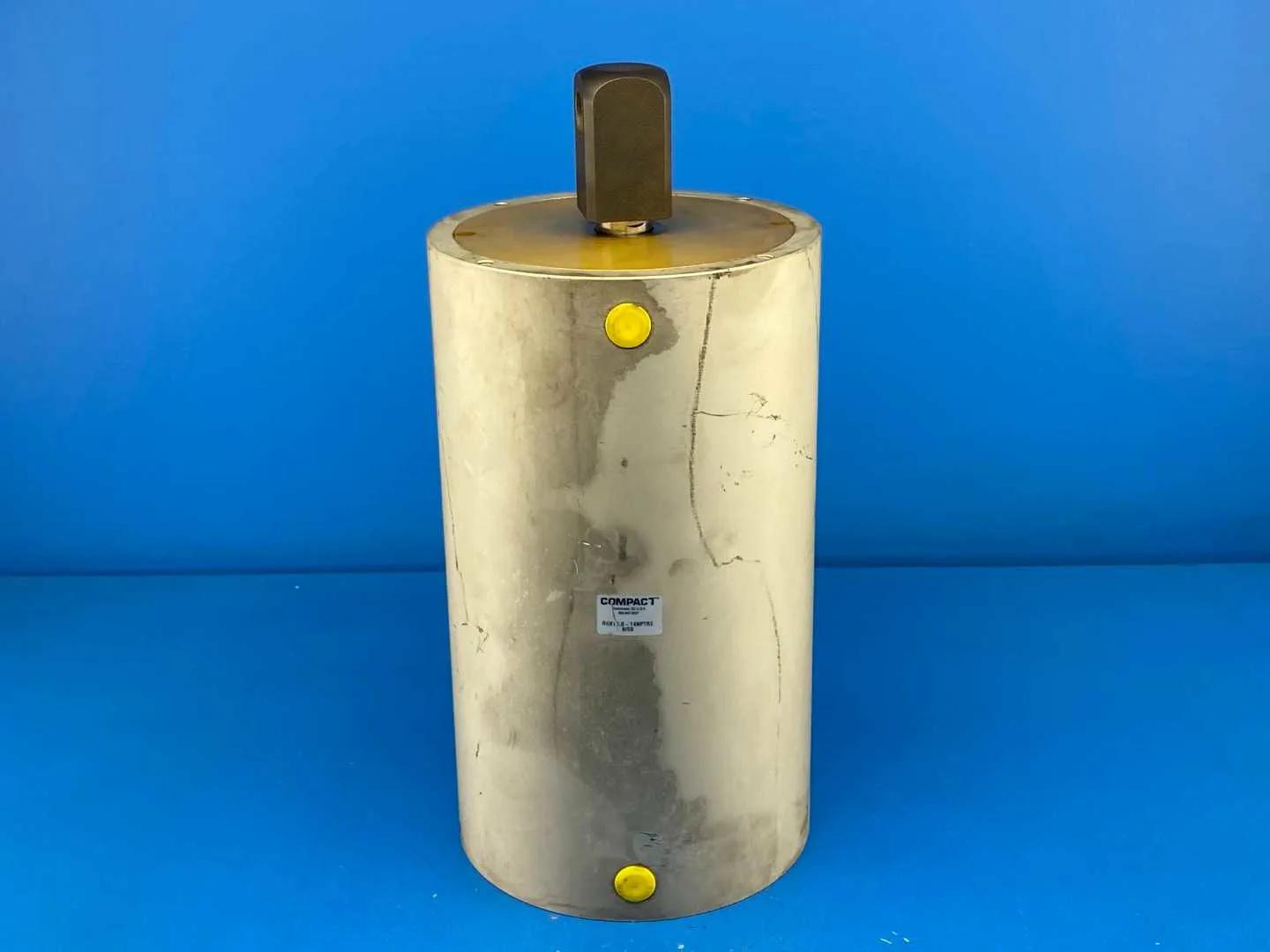

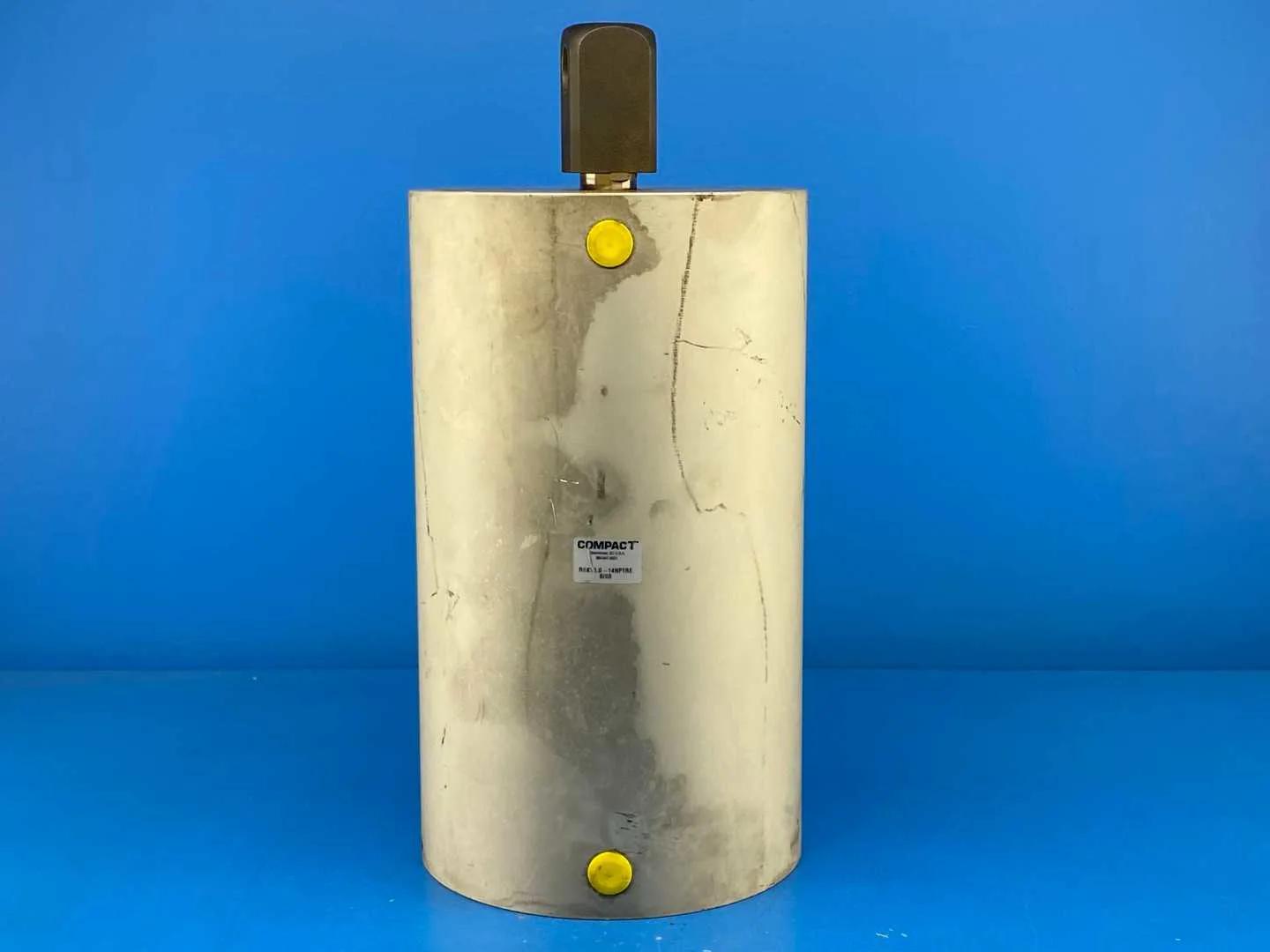

This is a Compact Automation Products round body, end mount pneumatic cylinder, model R6X10.0-14NPTRE, with a 6 inch bore and a 10 inch stroke. Compact Automation, based in Westminster, South Carolina, builds short-profile air cylinders in bore sizes from 1/2 inch to 8 inches. The nameplate carries a 6/08 date code.
The model number follows the Compact ordering code. R is the round end mount style, 6 is the bore in inches, X10.0 is the stroke length, 14NPT calls out 1/4 inch NPT ports and RE adds a rod eye to the piston rod end. In the current Compact catalog the 6 inch bore is rated to 200 PSI pneumatic and produces 2,830 pounds of push force and 2,750 pounds of pull force at 100 PSI.
Large bore compact cylinders are used where high force is needed in a short envelope, such as clamping and pressing fixtures, lift and gate actuators, packaging and material handling machinery, and automation cells. Machine builders, plant maintenance technicians and automation integrators use them in new equipment and as replacements on existing machines.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information

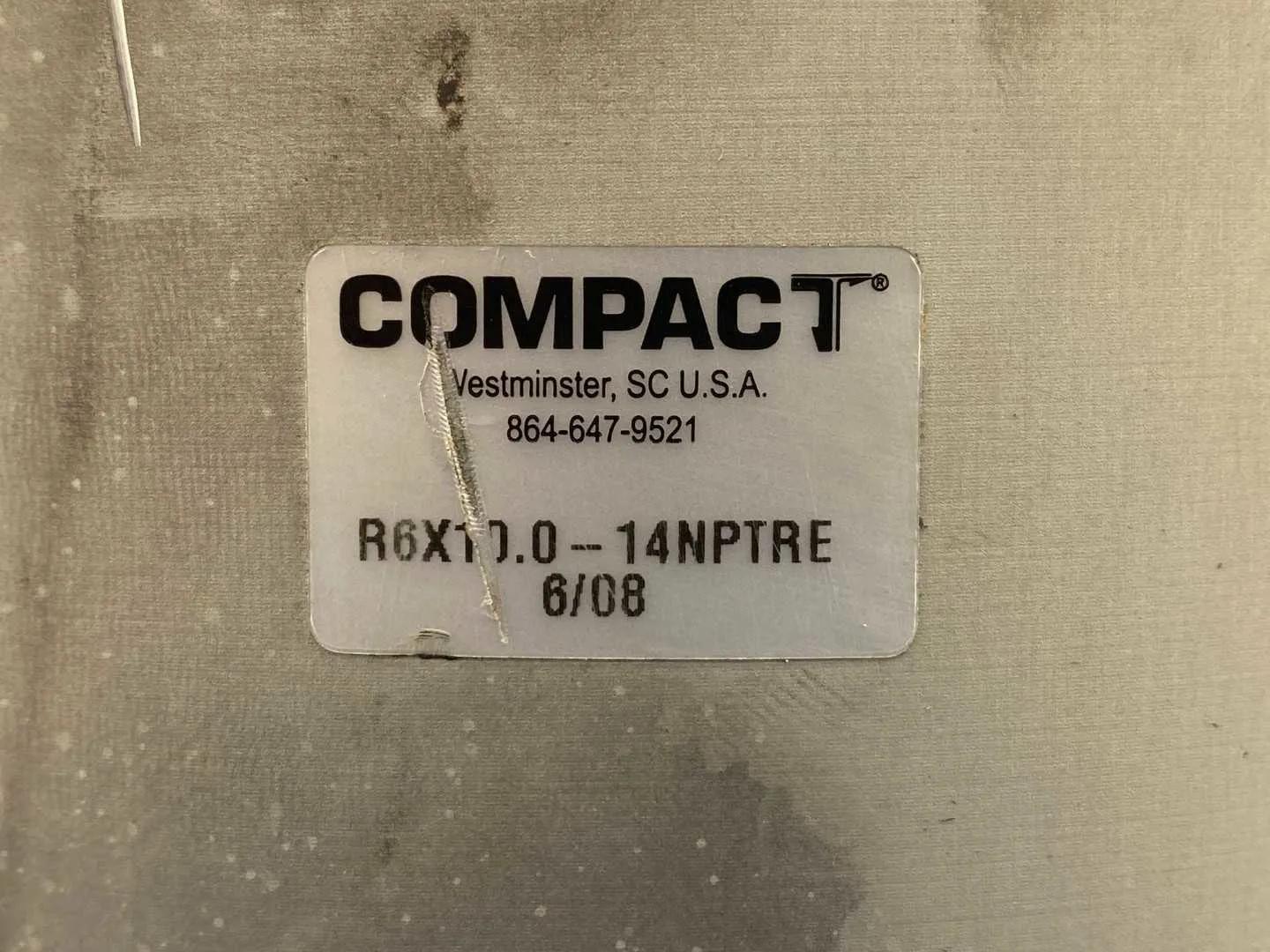

- Manufacturer (nameplate): Compact Automation Products, Westminster, SC U.S.A.
- Model (nameplate): R6X10.0--14NPTRE
- Date Code (nameplate): 6/08
- Mounting Style: R, round end mount
- Bore: 6 in
- Stroke: 10 in (from model code)
- Port Option: 14NPT, 1/4 in NPT (1/4-18 NPTF optional porting on 6 in bore)

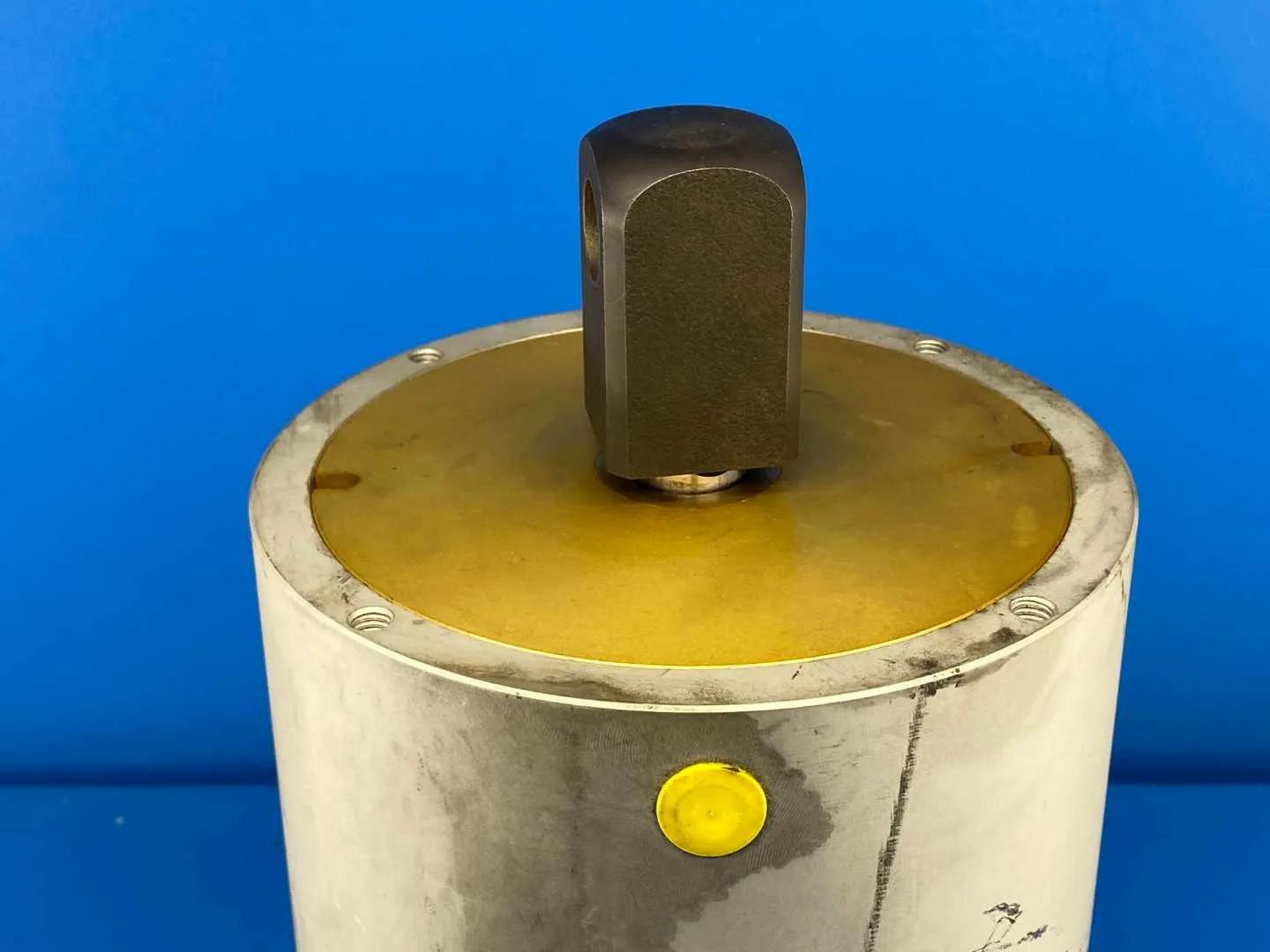

- Rod End Option: RE, rod eye
- Pneumatic Pressure Rating: 200 PSI (6 in bore)
- Piston Area: 28.3 sq in push / 27.5 sq in pull
- Force at 100 PSI: 2,830 lbs push / 2,750 lbs pull
- Body Diameter: 7.00 in; piston rod 1.00 in diameter, rod end 5/8-18 tap
- Mounting Holes: 5/16-18 tap on 6.50 in bolt circle
- Standard Seals: Buna-N, 0 to 200 F
- Catalog Materials: aluminum body, end caps and piston; stainless steel piston rod; sintered bronze rod bearing; low friction nitrile piston and rod seals
- Note: current catalog lists 6 in bore standard strokes to 6 in; the 10 in stroke on this unit is from the model code
- Spec Basis: nameplate photo; Compact Automation catalog CAP1059R4 (https://www.compactautomation.com/getmedia/ea33713a-c6f4-41c9-b88d-482cc2bc171d/CAP1059R4.pdf), current catalog values, unit built 6/08
Specifications
Compact Automation
R6X10.0--14NPTRE
N/A
N/A
N/A
N/A
7
7
15
N/A
2
23
KSC1290 / 1267
Packaging fees
1.6 6x10 CH $3.00
