Schneider Electric AS-B824-016 Automatic Modicon, 800 I/O 24VDC TRU HI OUT 16PT
AS-B824-016 Output Module Specifications: Points, Voltage & Signal Type
PLC Rack Compatibility for Schneider Electric AS-B824-016
1 / 9
+9
+9
1 / 9
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | AS-B824-016 |
| Condition | New |
| Manufacturer | Schneider Electric |
| Asset Number | KSC1290 / 664 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
Free Shipping
$79.95
Basic Information
Asset #
KSC1290 / 664
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

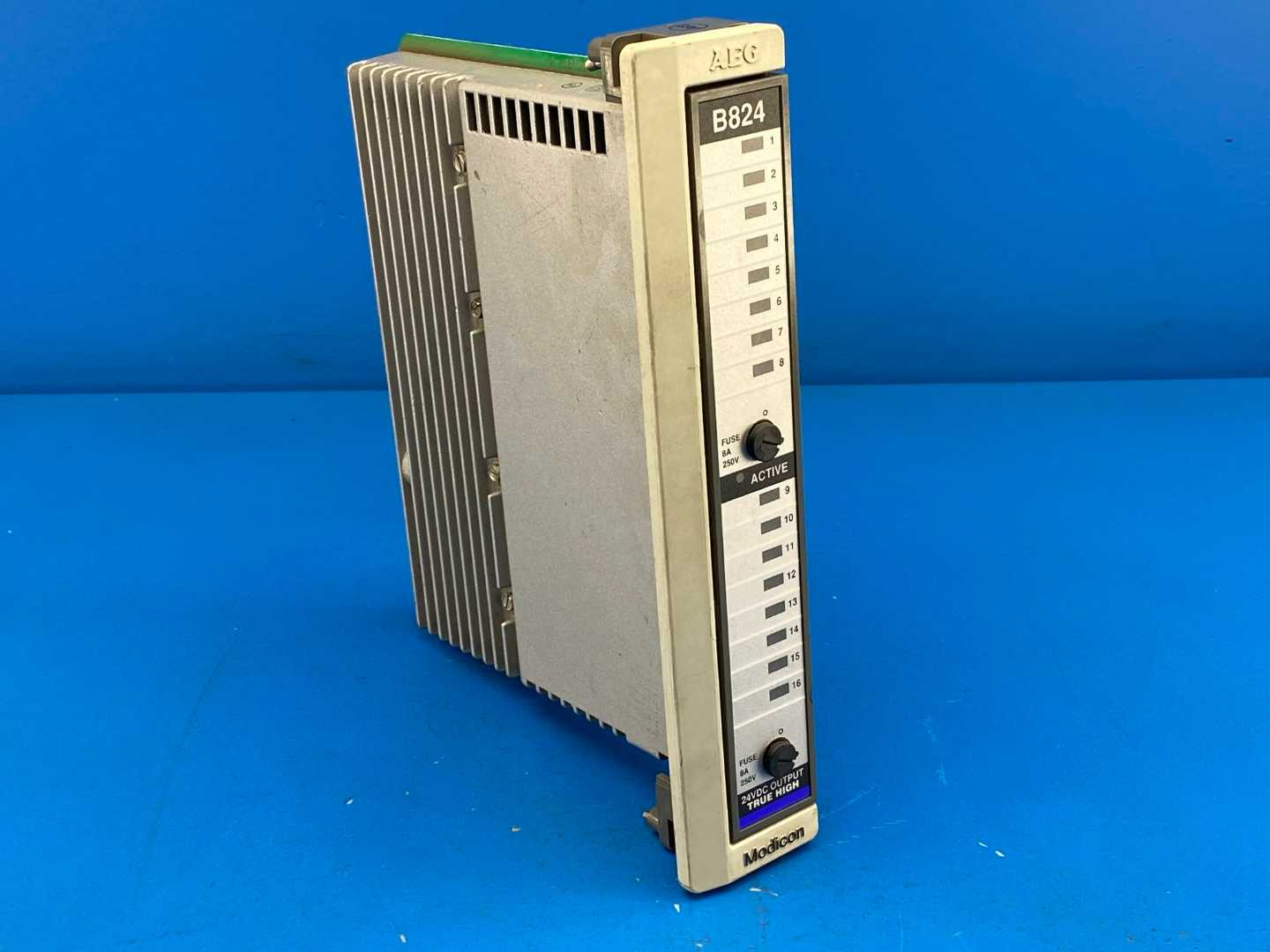

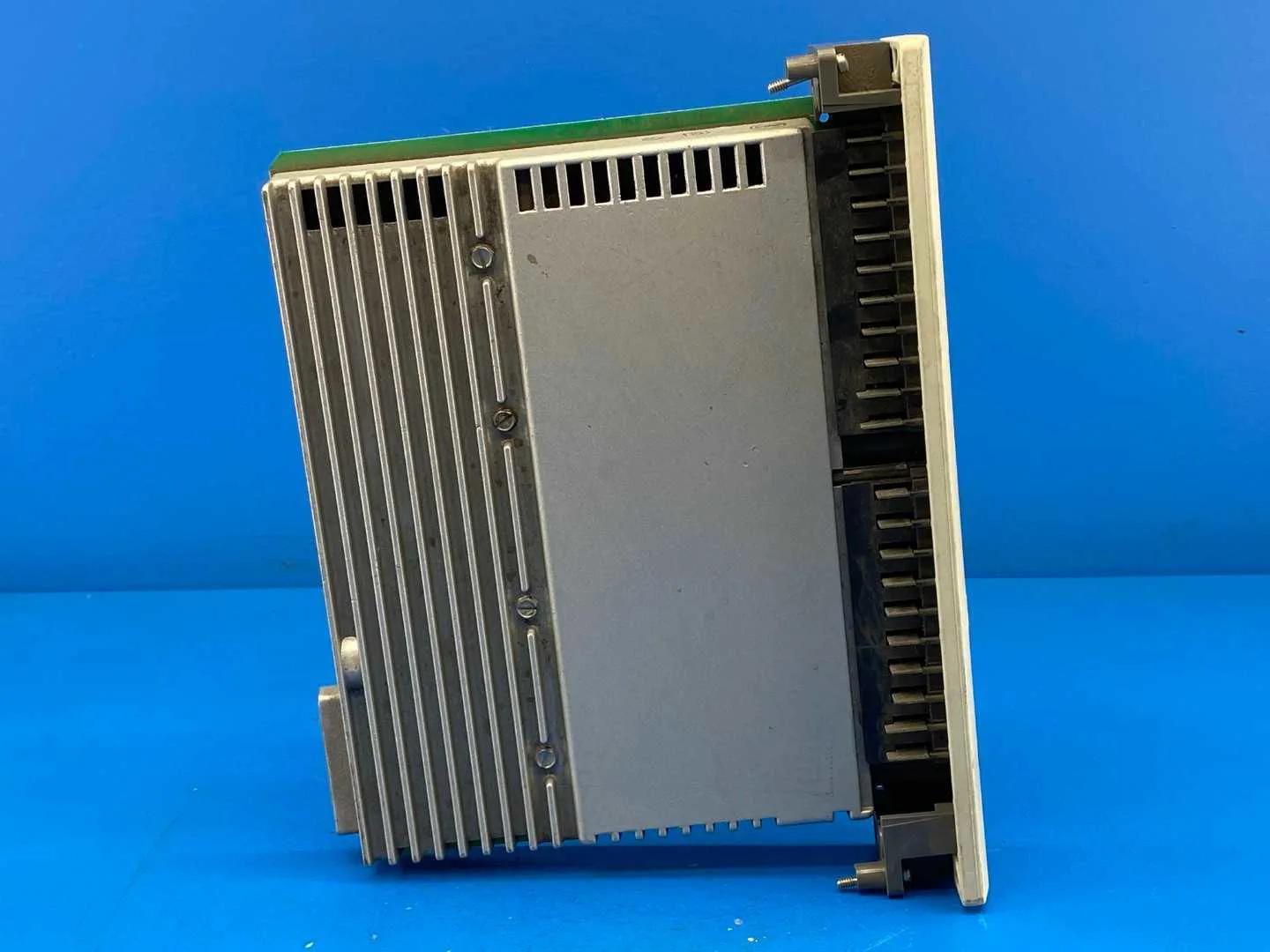

The Schneider Automatic AS-B824-016 is a crucial component of the Modicon programmable logic controller (PLC) ecosystem, designed for industrial automation applications. The product is renowned for its reliability and performance in managing I/O operations across various sectors.
Factory Information
- Manufacturer: Schneider Electric (Gould / AEG / Modicon)
- Model: AS-B824-016

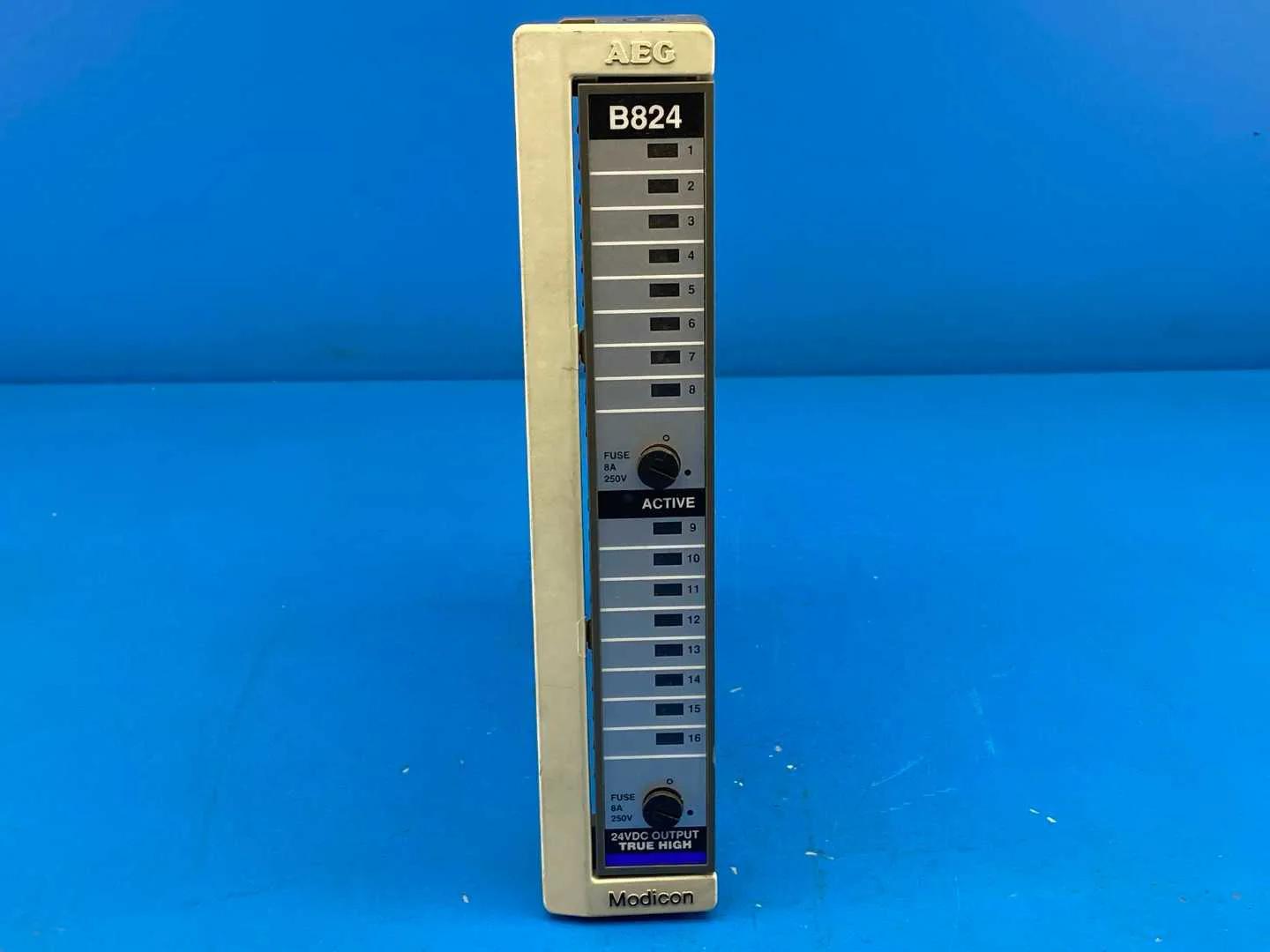

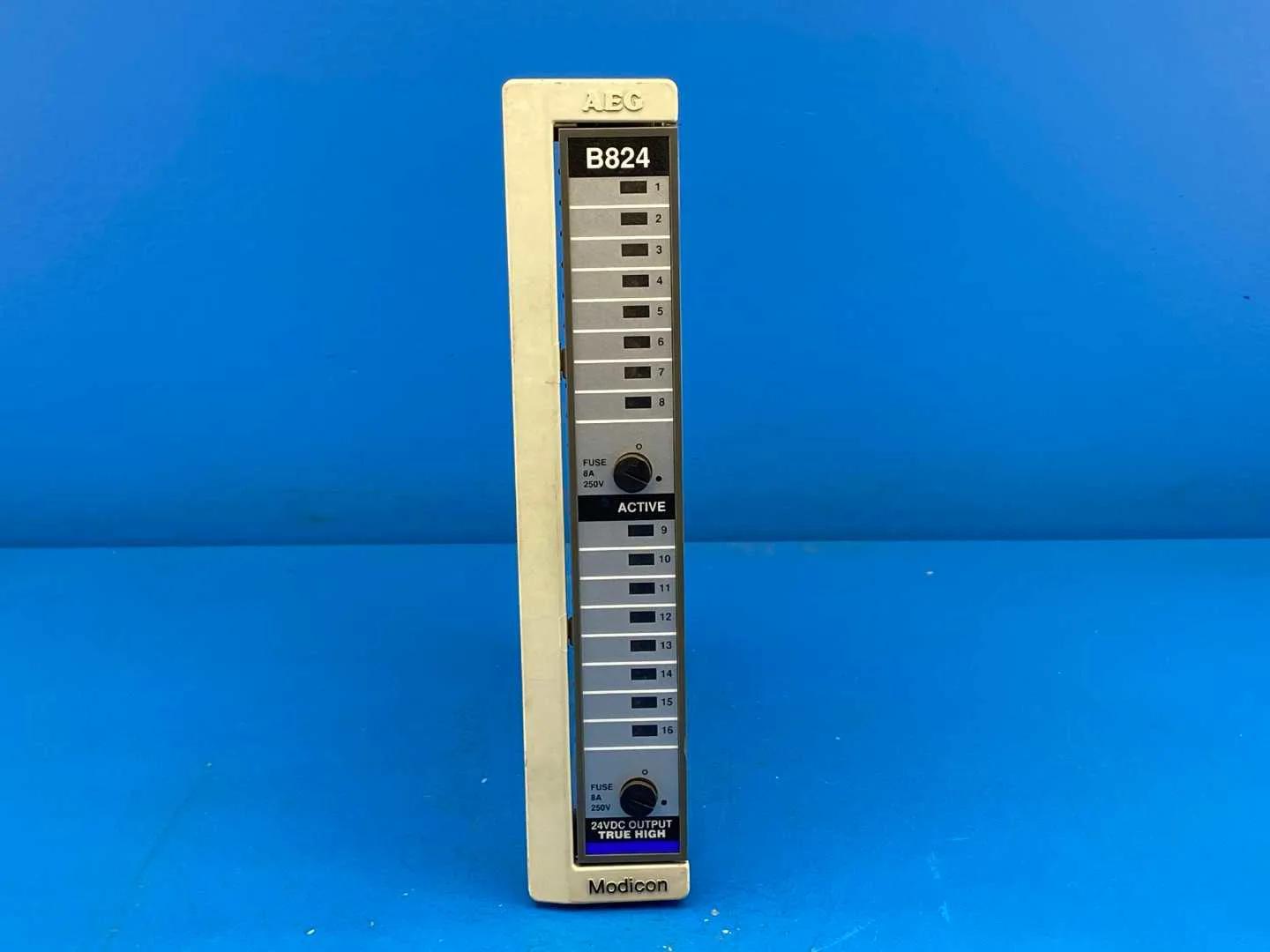

- Type: Discrete output module, 24 V DC True High, Modicon 800 Series I/O
- Number of Output Points: 16
- Output Groups: 2 groups of 8 points each
- Operating Voltage: 20 to 28 V DC
- Max Current per Point: 2 A continuous; 5 A for 10 ms
- Max Current per Group: 6 A
- Max Current per Module: 12 A
- External Power Supply: 24 V DC +/- 4 V, 175 mA (excluding field load current)
- Leakage Current: 1 mA max at 24 V DC
- Space Required: 1 slot in Modicon 800 Series rack
- Terminal Connector: AS-8534-000
- Compatible Systems: Modicon 800 Series PLC
Specifications
Manufacturer
Schneider Electric
Model
AS-B824-016

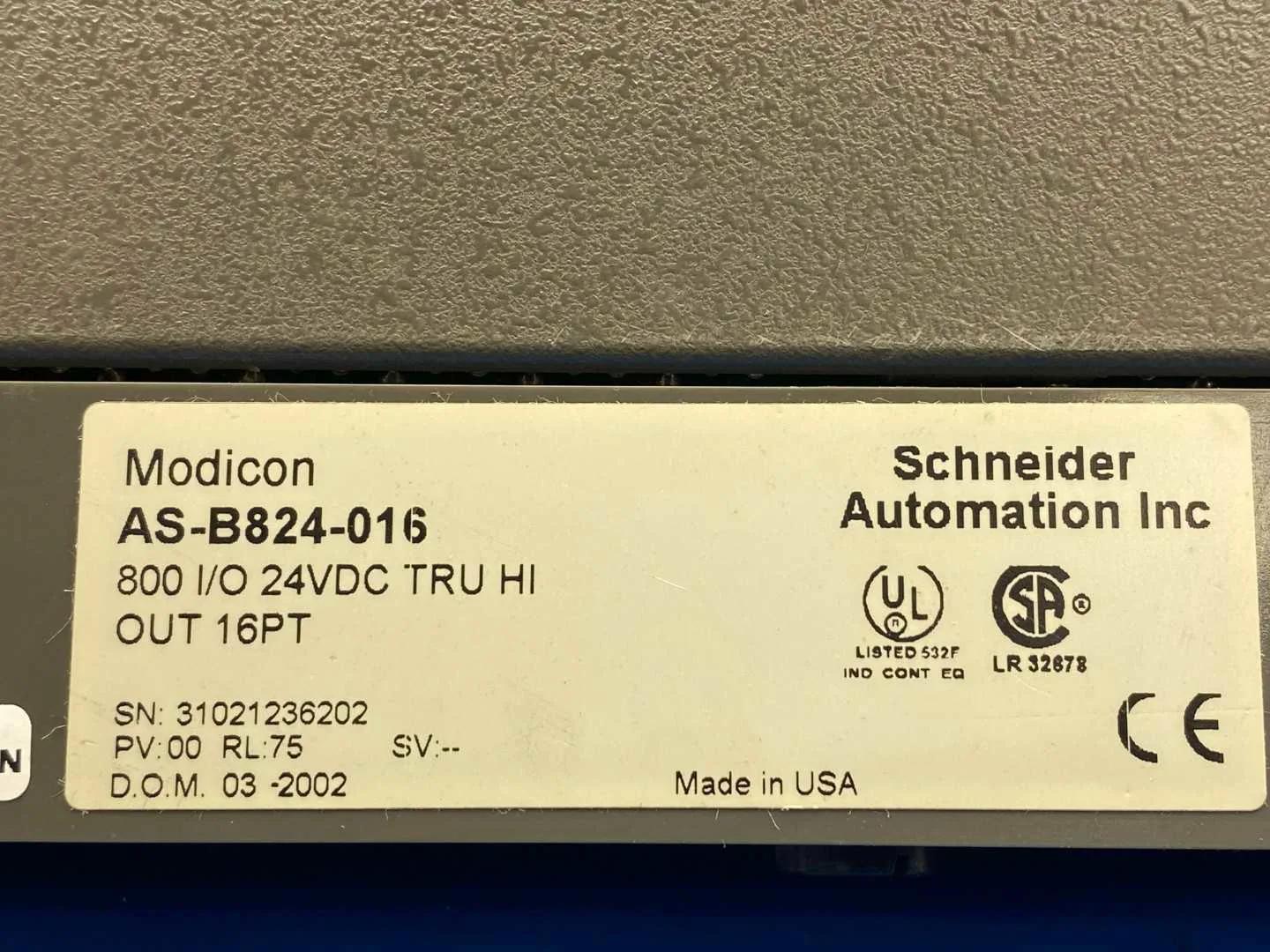

Serial
31021236202
Year
2002
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
11
Width (Inches)
9
Height (Inches)
3
Phase
N/A
Estimated Packaging Weight
0
Estimated Total Weight
2.6625
Asset Number
KSC1290 / 664
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
