Dorman HD Solutions 1" BUDD STYLE INNER LUG (Lot of 23)
Dorman HD Solutions 1" BUDD STYLE INNER LUG Specifications & Fitment
Condition & What's Included
1 / 7
+7
+7
1 / 7
| Description | Details |
|---|---|
| Available Quantity | 23 |
| Model | 1" BUDD STYLE INNER LUG |
| Condition | Used |
| Manufacturer | Dorman HD Solutions |
| Asset Number | KSCU / 263 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 2. Mint (Very good condition for it's age) |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 23
$58.80
Basic Information
Asset #
KSCU / 263
Available Quantity
23
Inspections - Yellow Tag
2. Mint (Very good condition for it's age)
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information

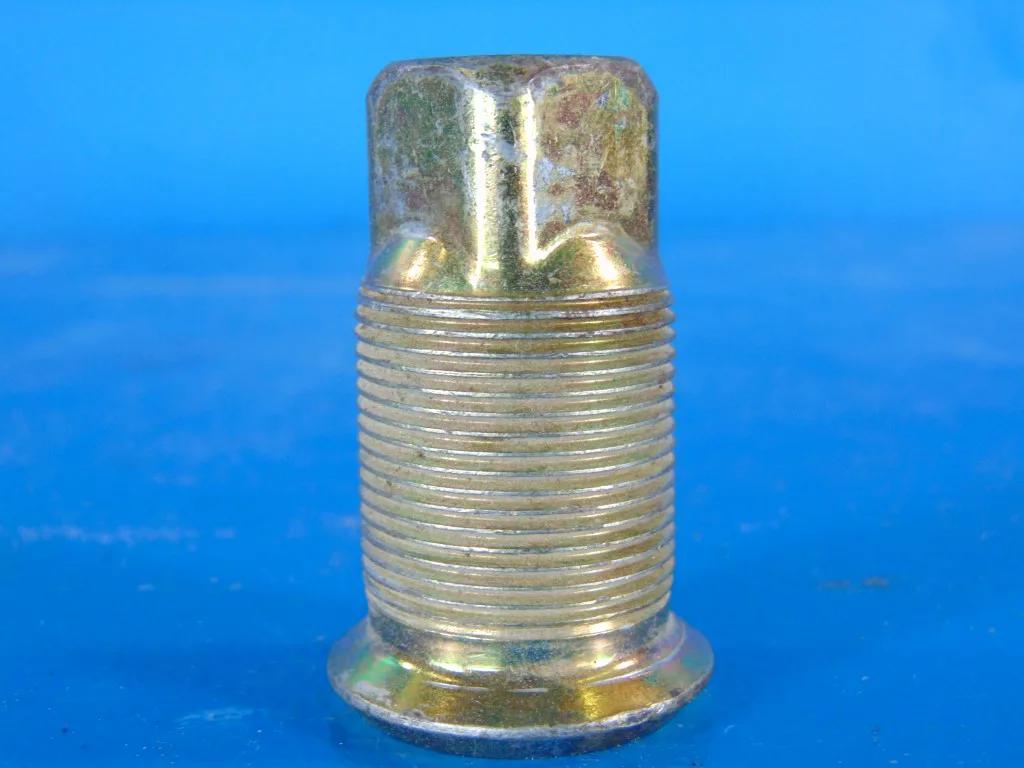

- Type: Budd-style inner cap nut (also called a thimble or inner wheel nut) for a dual-wheel double-nut hub
- Attributed Manufacturer: Dorman HD Solutions, per this record. NOT CONFIRMED - the part carries no manufacturer name, part number or any other marking anywhere on it. The attribution comes from the record, not from the hardware.
- Function: the inner wheel is mounted to the hub and held by this nut. The nut is internally threaded to engage the hub stud and externally threaded so that the outer wheel slides over it and is retained by a separate outer cap nut. It is literally a nut on top of a nut.
- Nominal Size (per record title): 1 in

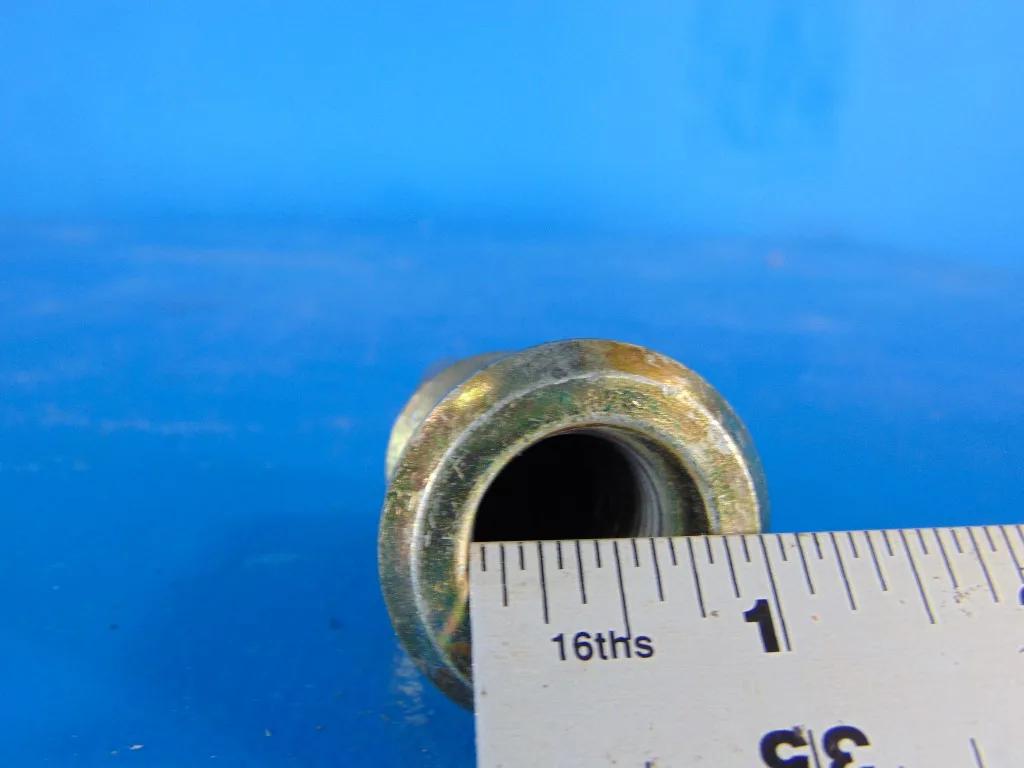

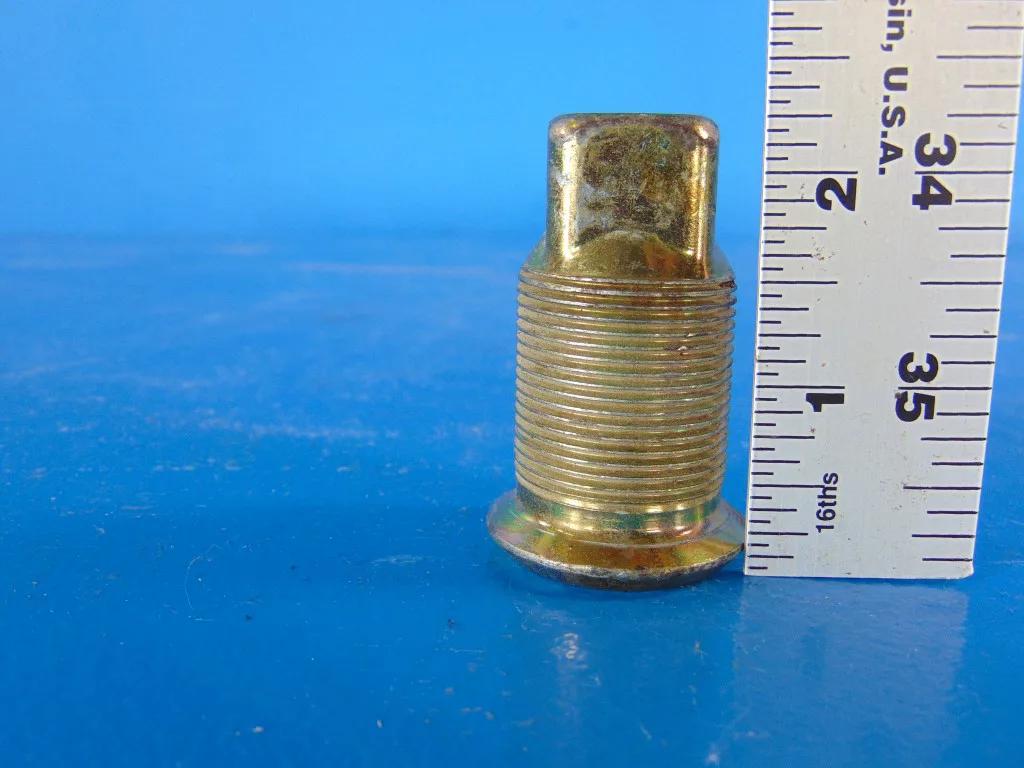

- Measured Dimensions: 2 in length x 1 in across x 1 in high
- Weight: 1 lb
- Finish: brass or gold-coloured plating, tarnished on the threads and top face
- Thread Hand: NOT CONFIRMED. Budd systems use left-hand threaded studs and nuts on the vehicle left side and right-hand on the right side, so hand matters and must be verified against the application before fitting. Nothing on this part identifies which it is.
- Thread Size: NOT CONFIRMED. Common Budd inner cap nut threads include 1-1/8 in-16 and 15/16 in-12 internal with a matching larger external thread, but the specific thread on this part was not measured and is not marked.
- System Background: the Budd dual-wheel inner/outer cap nut arrangement was introduced by the Budd Company in the late 1920s and has largely been superseded by hub-piloted wheel systems on modern trucks.
- Buyer Note: because neither the thread size nor the thread hand is marked or verified, this part should be gauged against the intended hub before purchase.
- Spec Basis: direct observation of the photographs on this record for dimensions, finish and absence of markings; published Budd dual-wheel cap nut engineering references for the system description. No manufacturer datasheet was located, because no manufacturer part number is legible on the part.
Specifications
Manufacturer
Dorman HD Solutions
Model
1" BUDD STYLE INNER LUG
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
8
Width (Inches)
6
Height (Inches)
4
Phase
N/A
Estimated Packaging Weight
2
Estimated Total Weight
25
Asset Number
KSCU / 263
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
