60 Amp Class R Fuse Block 250V 2-Pole Mersen 20607R Rejection Holder
20607R Fuse Block Specifications: Amps, Poles & Class
Fuse & Panel Compatibility for Mersen 20607R
1 / 6
+6
+6
1 / 6
| Description | Details |
|---|---|
| Available Quantity | 333 |
| Model | 20607R |
| Condition | New |
| Manufacturer | Mersen |
| Asset Number | KSC1230 / 161 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 333
Free Shipping
$13.95
Basic Information
Asset #
KSC1230 / 161
Available Quantity
333
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

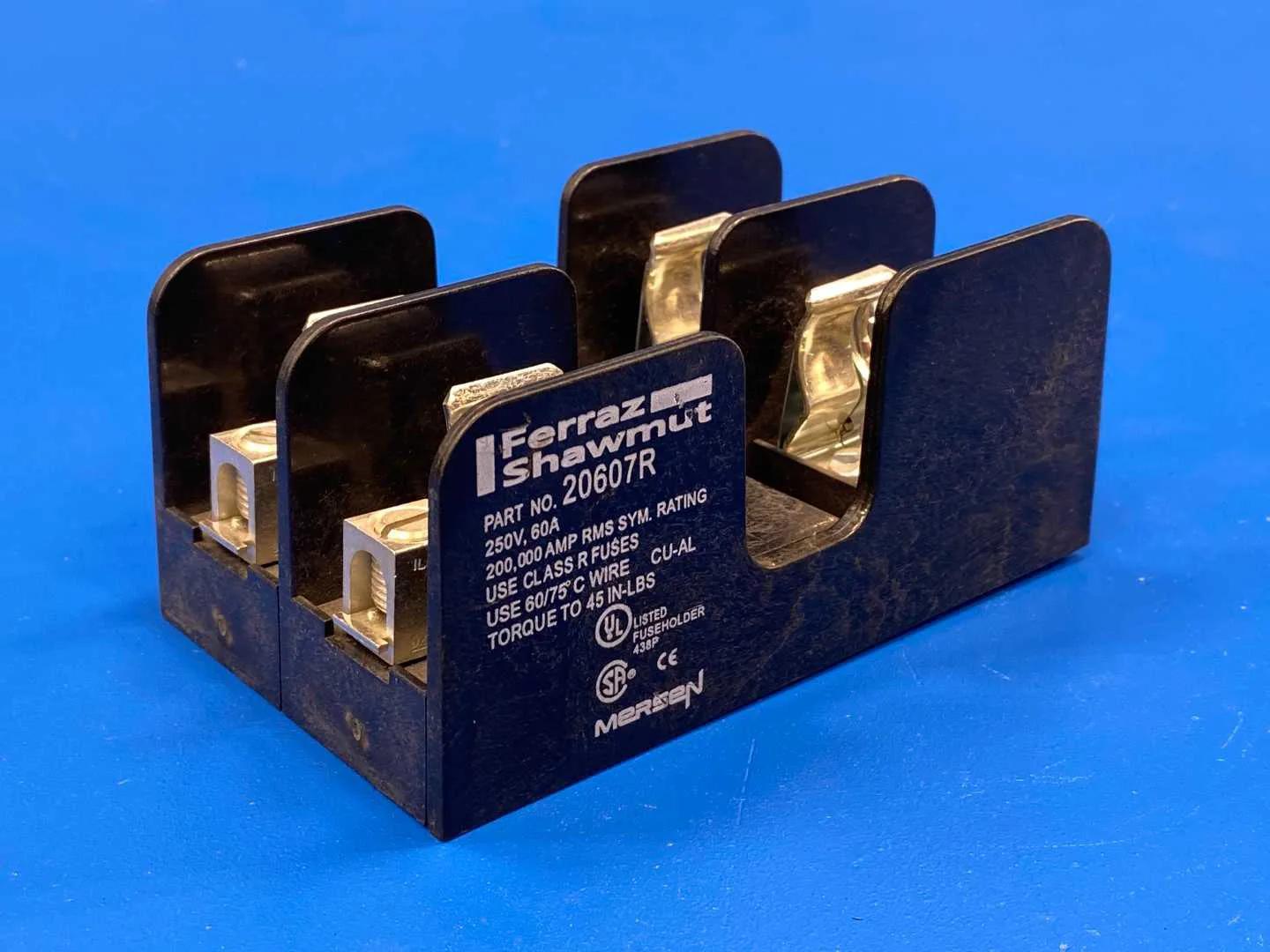

The Ferraz Shawmut 20607R Fuse Block is a prominent component in the electrical distribution and protection sector. Manufactured by Mersen, this fuse holder is designed for Class R fuses, which are commonly used in power distribution applications.
Historically, Ferraz Shawmut has been at the forefront of developing innovative electrical protection solutions. The company has built a reputation for producing reliable fuses and complementary devices that enhance both safety and performance in electrical systems.
The 20607R Fuse Block serves a critical role in protecting electrical circuits by housing a Class R fuse. These fuses are known for their quick response to overcurrent conditions, safeguarding equipment from potential damage due to overloads or short circuits.
This product is widely used across various industries, including manufacturing, construction, and commercial facilities. It ensures compliance with electrical safety standards while providing a dependable way to manage electrical faults.
One of the unique features of the 20607R Fuse Block is its robust design, which allows for easy installation and maintenance. Additionally, it supports a maximum current rating of 60A and operates effectively at voltages up to 250V, making it suitable for a range of applications where reliable fuse protection is essential.
Factory Information
- Manufacturer: Mersen (formerly Ferraz Shawmut)
- Part Number: 20607R

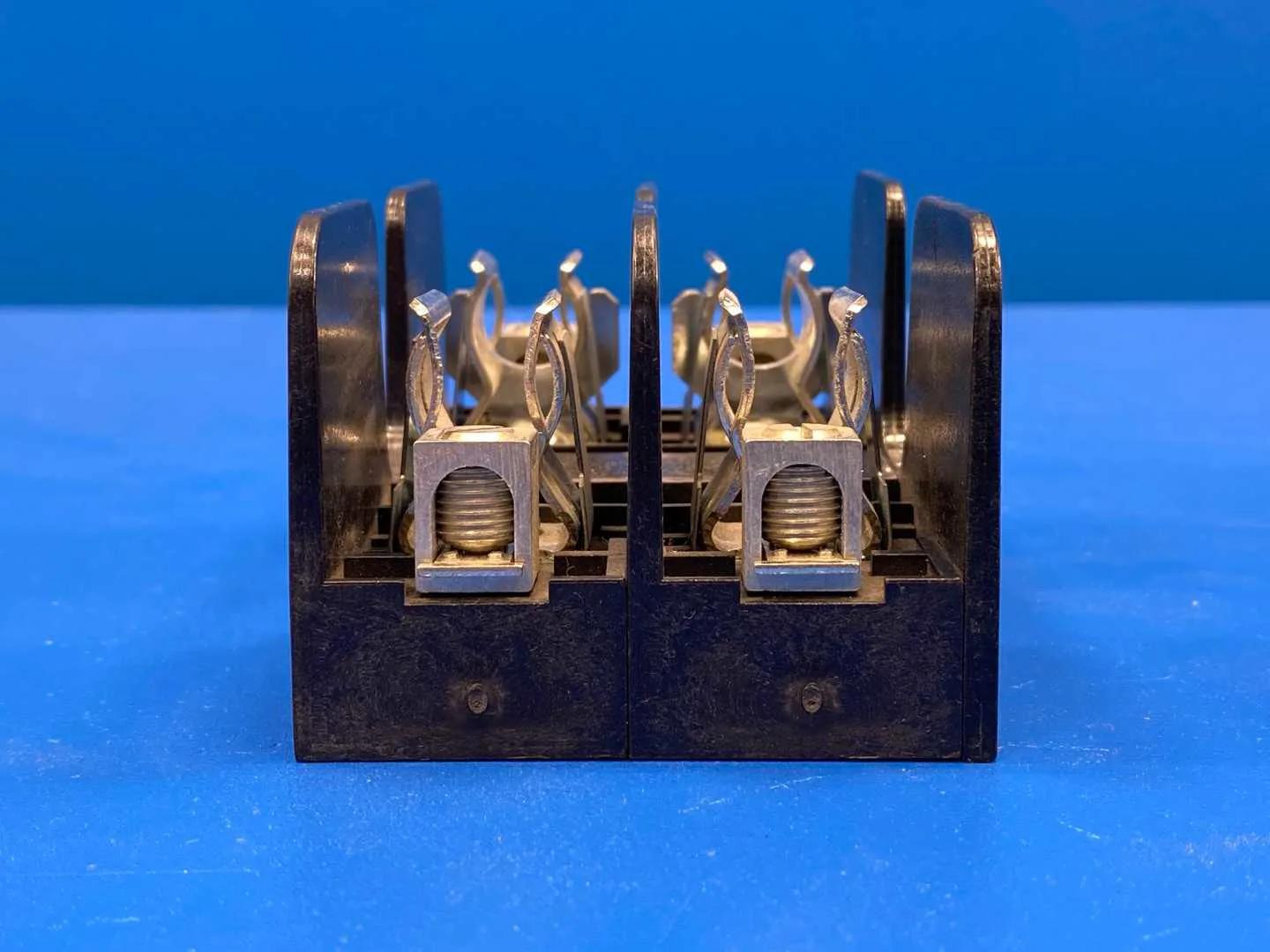

- Type: Class R rejection-style fuse block / fuseholder, open style, spring reinforced
- Poles: 2
- Current Rating: 60 A
- Voltage Rating: 250 V AC
- Interrupting Rating: 200,000 A RMS symmetrical
- Fuse Class: Class R only. The rejection feature physically prevents a non-current-limiting Class H or K fuse being fitted in its place.

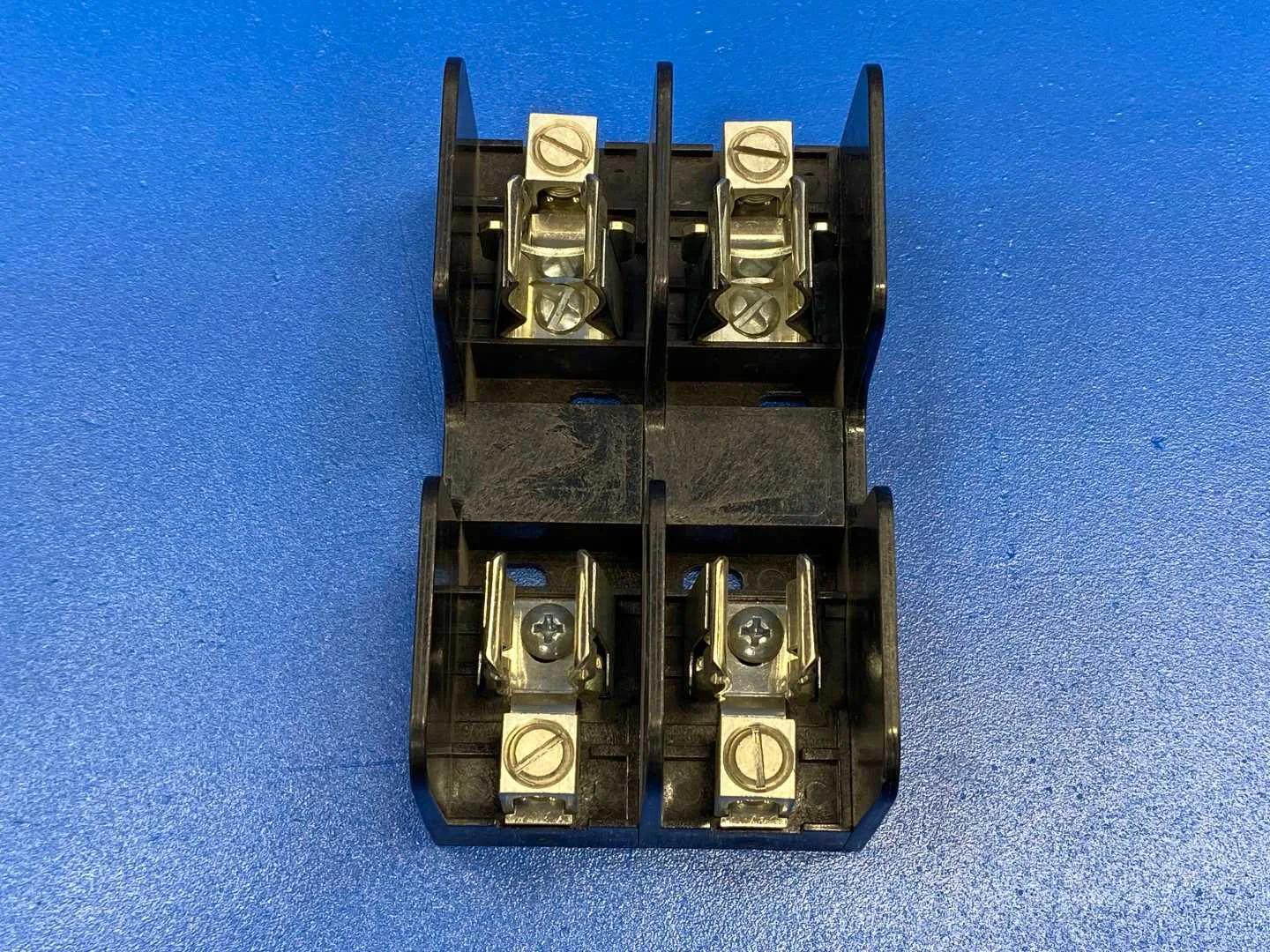

- Wire Range: #14 to #2 AWG, box connector
- Conductor: 60/75 °C wire, copper or aluminium
- Terminal Torque: 45 in-lbs
- Approvals: UL Listed Fuseholder 438P, CSA, CE

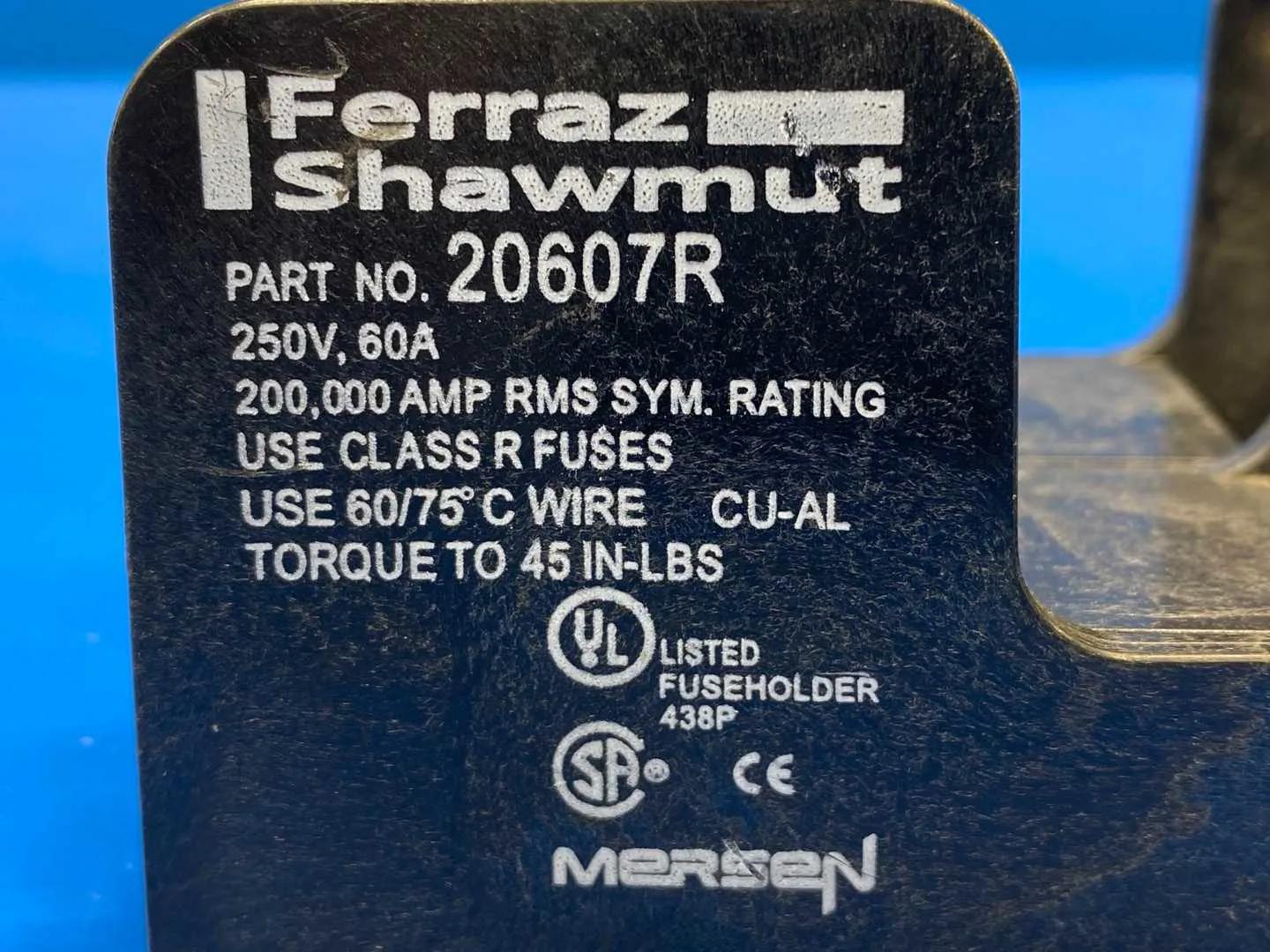

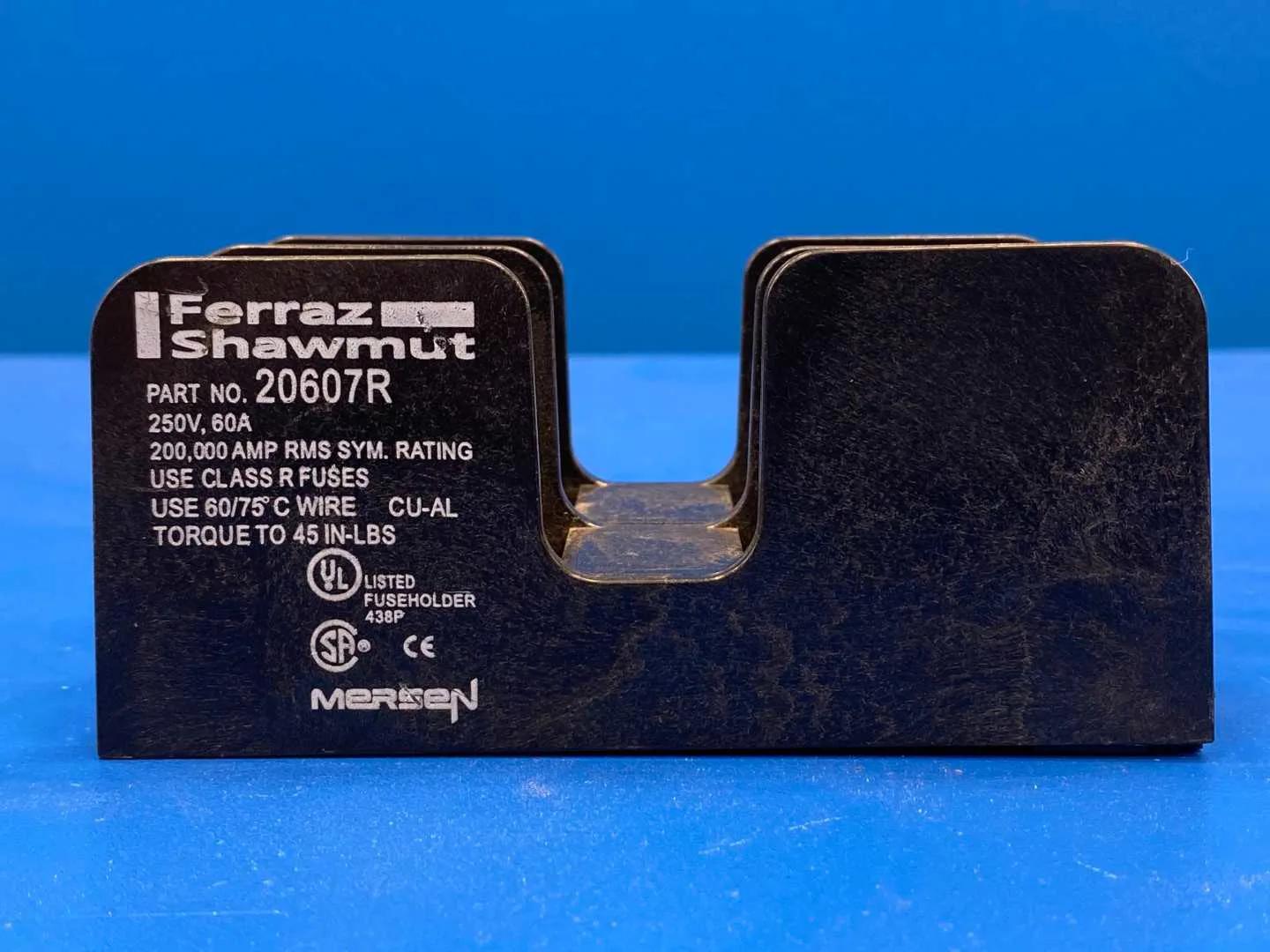

- Nameplate Markings (verbatim from the item): PART NO. 20607R | 250V, 60A | 200,000 AMP RMS SYM. RATING | USE CLASS R FUSES | USE 60/75°C WIRE CU-AL | TORQUE TO 45 IN-LBS | UL LISTED FUSEHOLDER 438P | CSA | CE | MERSEN
- Related Part: the 3-pole version of this block is Mersen 20608R, a different part number.
- Spec Basis: markings read from the photographs on this record; pole count, wire range and construction confirmed against Mersen's own published product page for 20607R.
Specifications
Manufacturer
Mersen
Model
20607R
Serial
30782001663866
Year
2020
HP / AMP / KW / KVA
N/A
Amps
60
Length (Inches)
3
Width (Inches)
5
Height (Inches)
2
Phase
N/A
Estimated Packaging Weight
2
Estimated Total Weight
3
Asset Number
KSC1230 / 161
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
