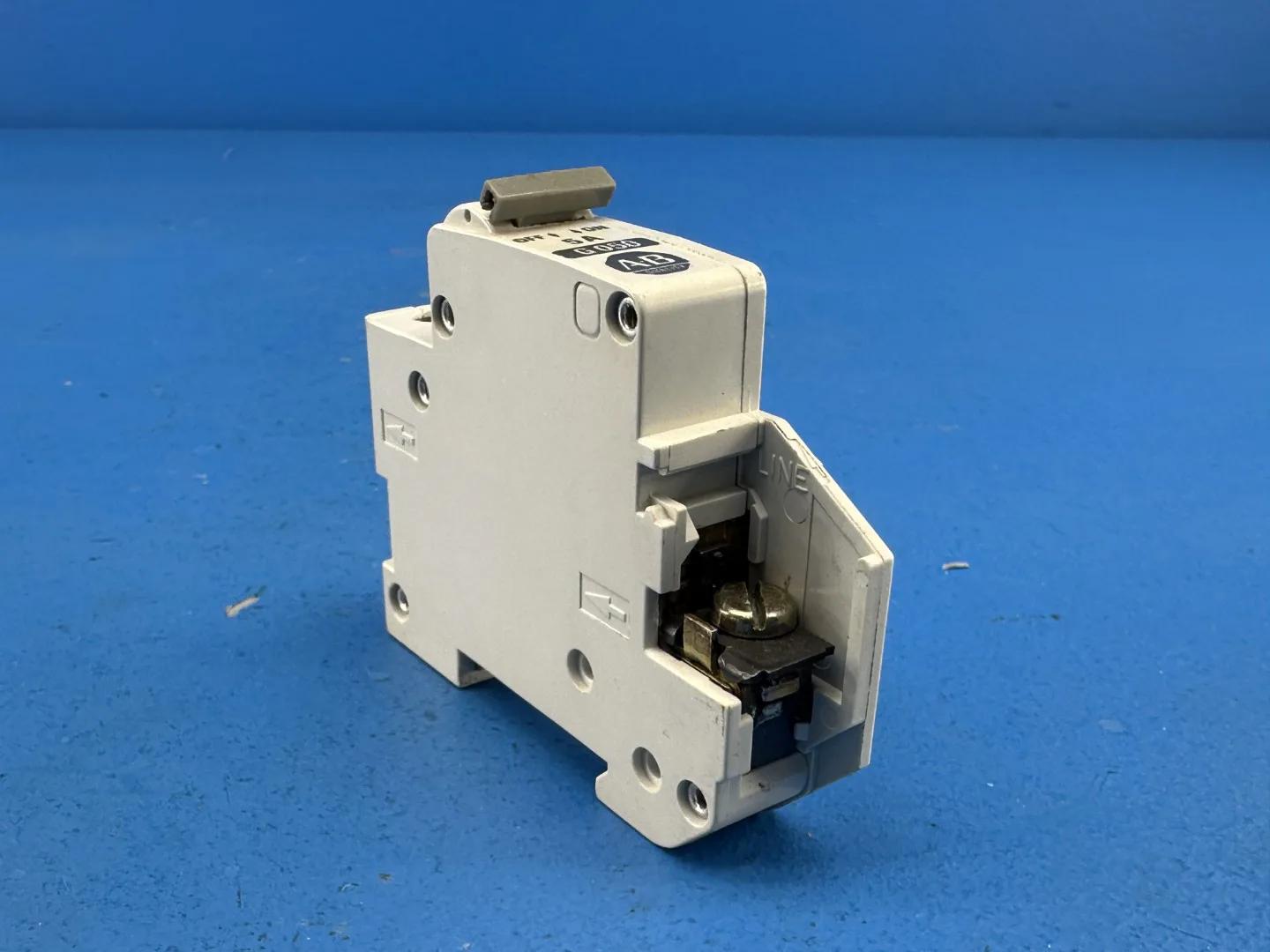

Allen-Bradley 1492-CB1 Thermal-Magnetic Miniature Circuit Breaker
1492-CB1 Breaker Specifications: Amps, Poles & Voltage
Panel Compatibility & Interchange for Allen-Bradley 1492-CB1
1 / 10
+10
+10
1 / 10
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 1492-CB1 |
| Condition | Used |
| Manufacturer | Allen-Bradley |
| Asset Number | KSC507 / 44 / 6 / 26 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
$9.95
Basic Information
Asset #
KSC507 / 44 / 6 / 26
Available Quantity
1
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Allen-Bradley (Rockwell Automation)

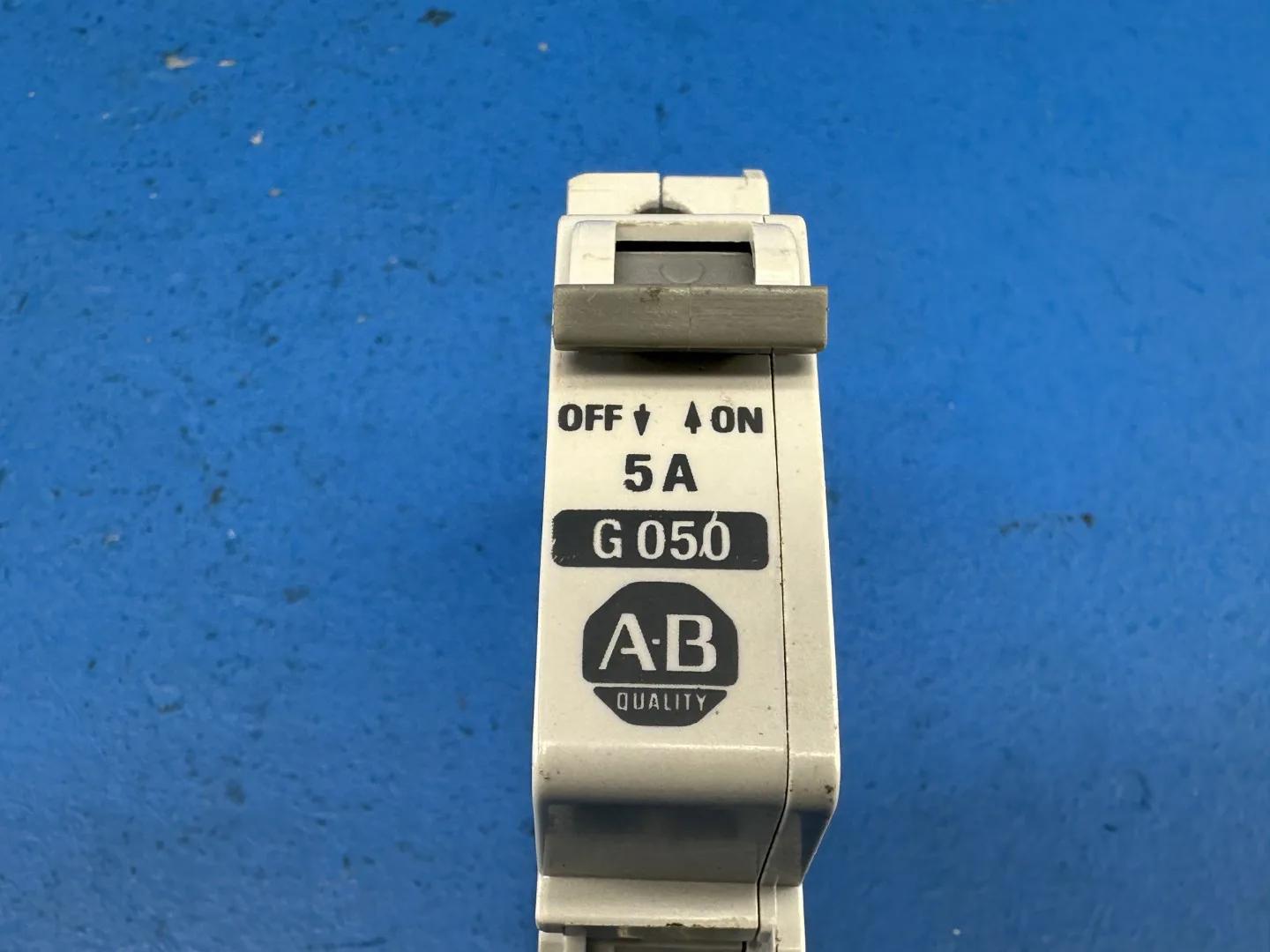

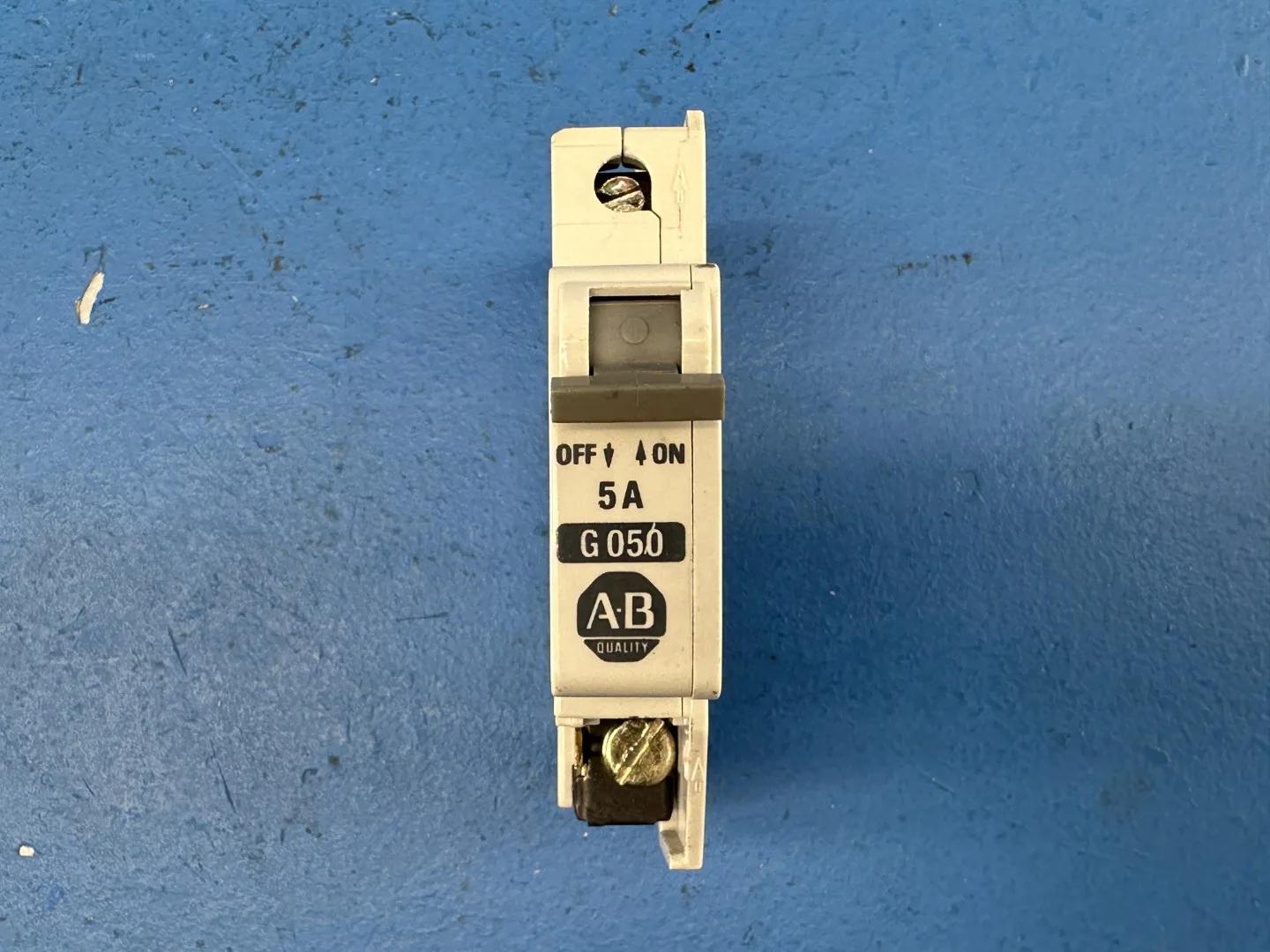

- Model: 1492-CB1, front code G 050 (1492-CB1G050)
- Series: A
- Bulletin: 1492-CB
- Type: Thermal-magnetic supplementary protector / miniature circuit breaker
- Poles: 1
- Continuous Current Rating (In): 5 A
- Trip Curve: G (inductive loads, 6 - 10 x In)

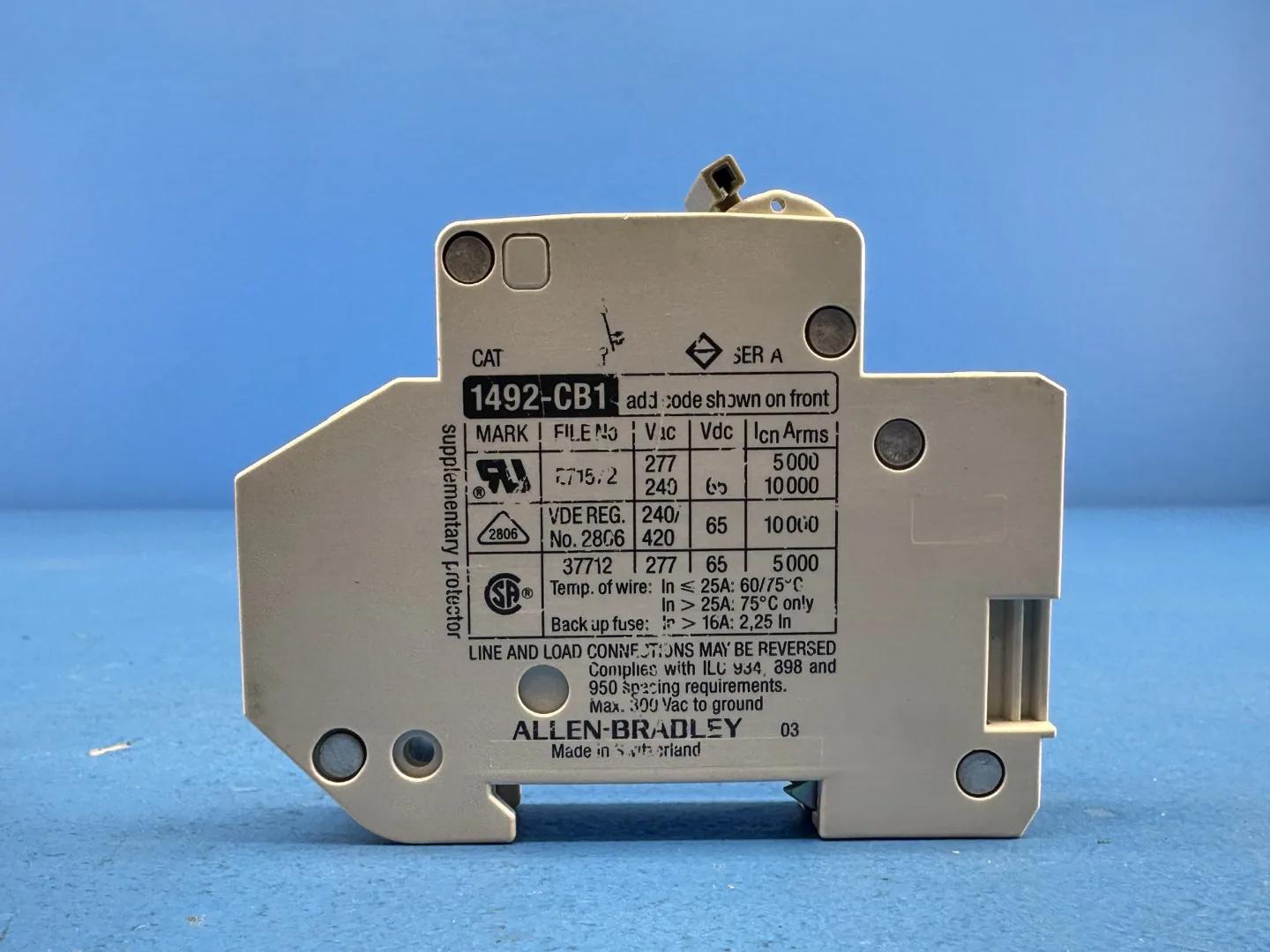

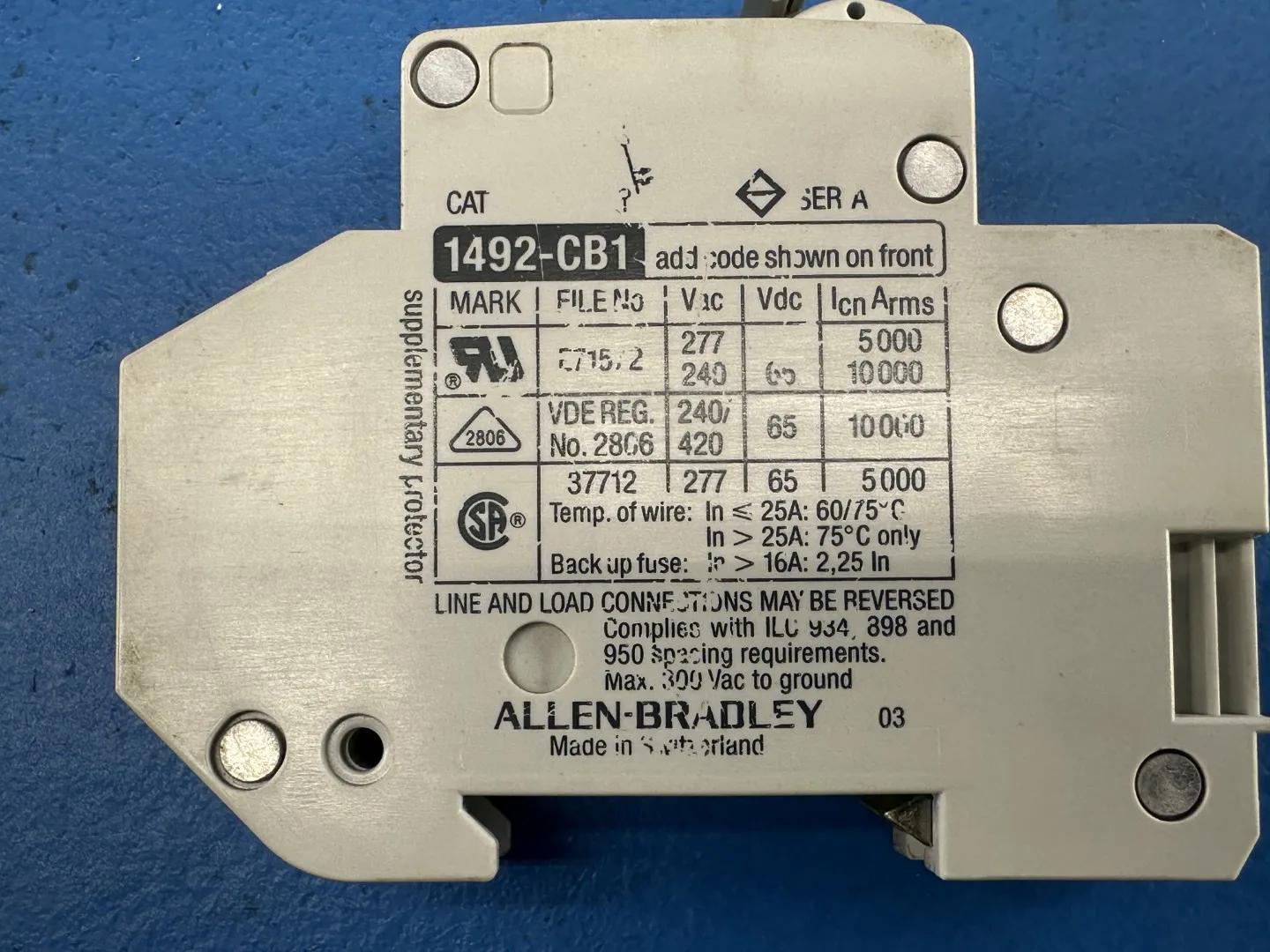

- Nameplate Ratings - UL File E71572: 277/240 VAC, 65 VDC, Icn 5000/10000 A rms
- Nameplate Ratings - VDE Reg. No. 2806: 240/420 VAC, 65 VDC, Icn 10000 A rms
- Nameplate Ratings - CSA 37712: 277 VAC, 65 VDC, Icn 5000 A rms
- Maximum Voltage to Ground: 300 VAC
- Wire Temperature Rating: In up to 25 A, 60/75 C; In above 25 A, 75 C only
- Back-up Fuse: For Ic above 16 A, 2.25 x In

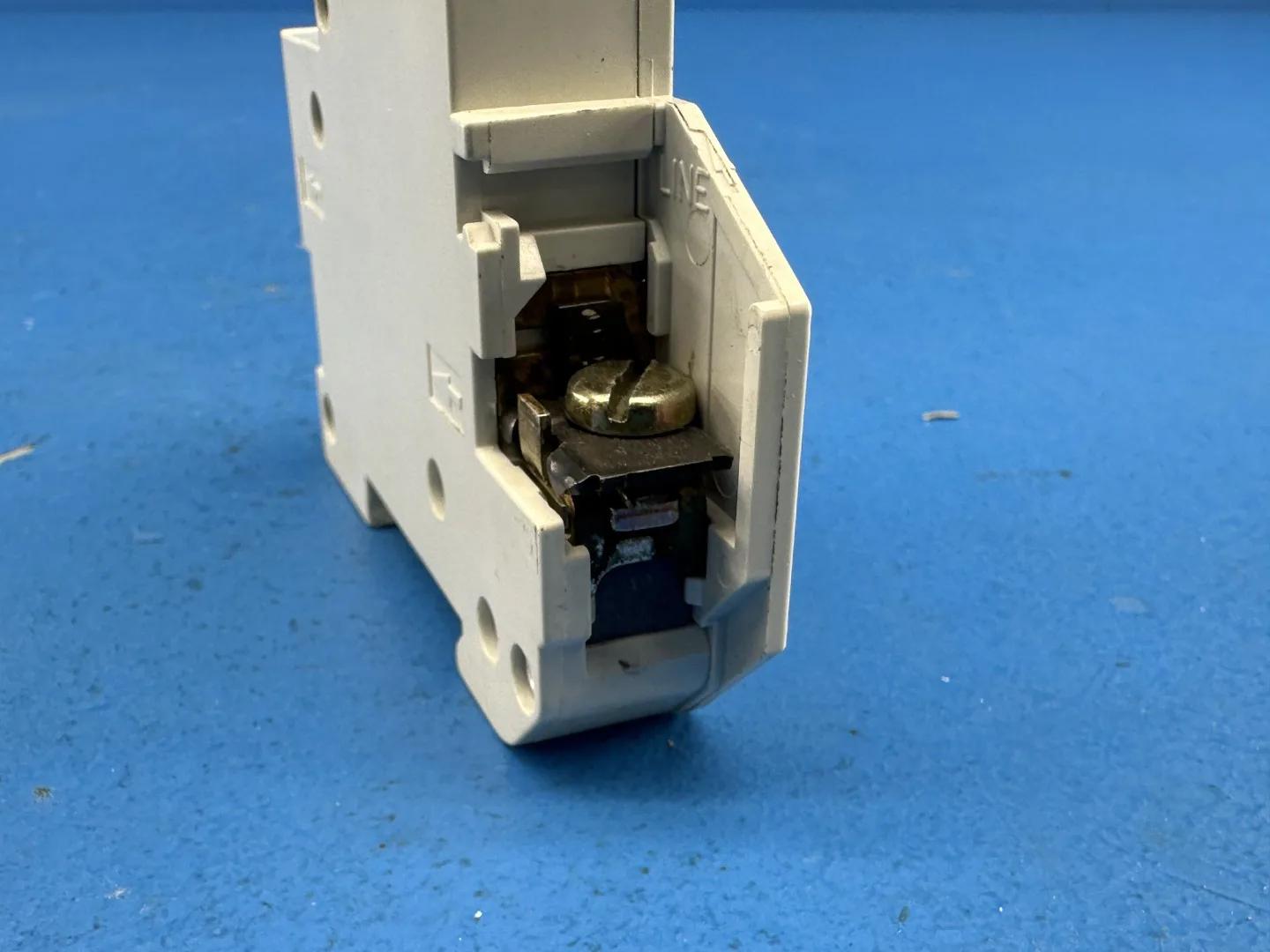

- Connections: Line and load connections may be reversed
- Spacing Compliance: Complies with IEC 934, 898 and 950 spacing requirements
- Mounting: DIN rail
- Country of Origin: Made in Switzerland
- Spec Basis: Verbatim nameplate transcription from record photographs, corroborated by Allen-Bradley Bulletin 1492-CB catalogue data
Specifications
Manufacturer
Allen-Bradley
Model
1492-CB1
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
1
Length (Inches)
4
Width (Inches)
3
Height (Inches)
1
Phase
1
Estimated Packaging Weight
0.2
Estimated Total Weight
1.2
Asset Number
KSC507 / 44 / 6 / 26
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
