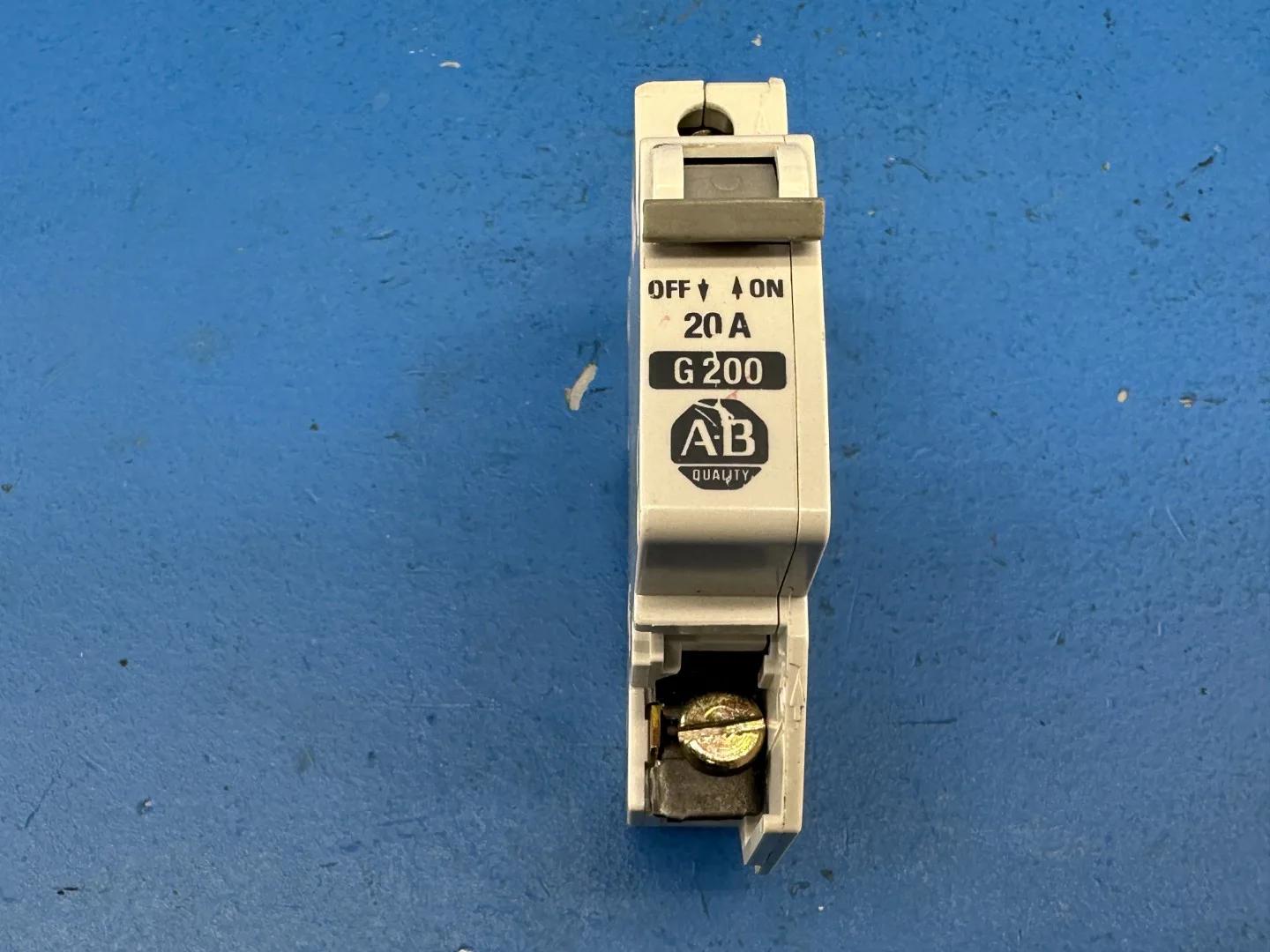

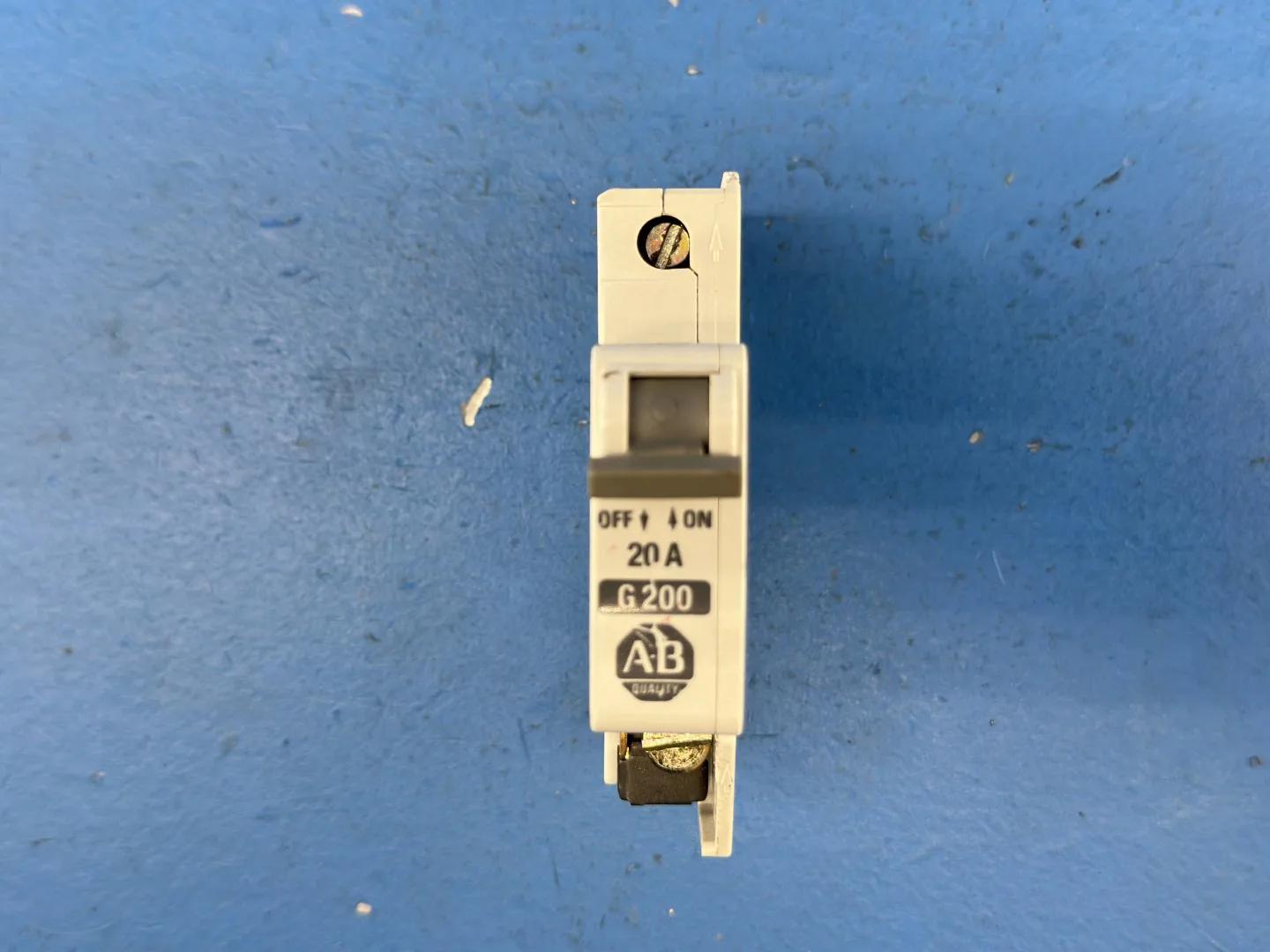

Allen-Bradley 1492-CB1G200 Thermal-Magnetic Supplementary Protector
1492-CB1G200 Breaker Specifications: Amps, Poles & Voltage
Panel Compatibility & Interchange for Allen-Bradley 1492-CB1G200
1 / 8
+8
+8
1 / 8
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 1492-CB1G200 |
| Condition | Used |
| Manufacturer | Allen-Bradley |
| Asset Number | KSC507 / 44 / 6 / 27 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
$14.95
Basic Information
Asset #
KSC507 / 44 / 6 / 27
Available Quantity
1
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Model: 1492-CB1G200
- Bulletin: 1492-CB
- Type: Energy-limiting thermal-magnetic supplementary protector / miniature circuit breaker / manual motor controller
- Poles: 1
- Continuous Current Rating (In): 20 A
- Trip Curve: G (inductive loads, 6 - 10 x In)
- Maximum Horsepower: 3 HP at 277 VAC, 1-phase
- Tripping Current: 125 - 135% of amp range
- Trip Mechanism: Fixed thermal (bimetal) overload plus instantaneous magnetic, positively trip-free

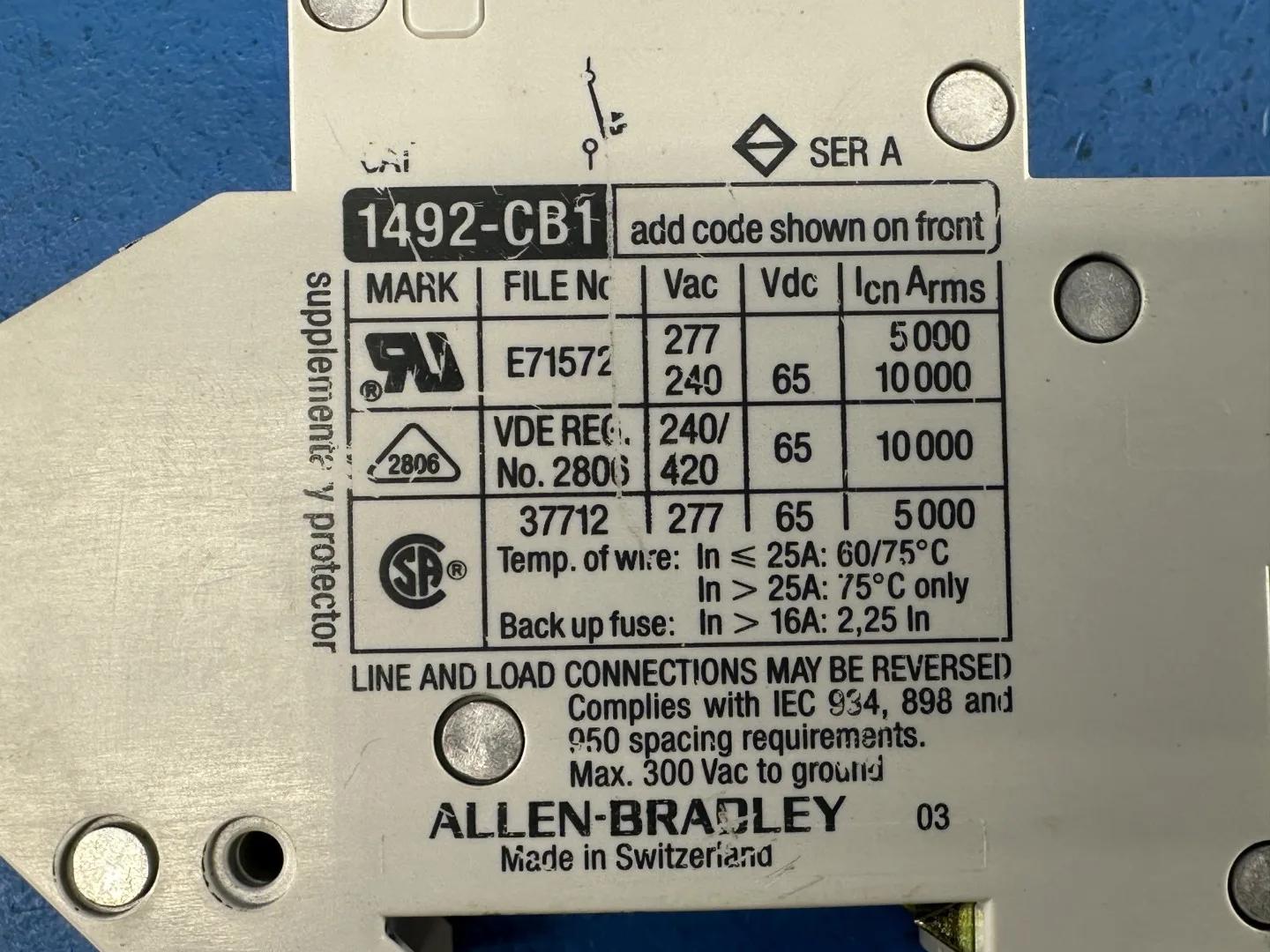

- Short Circuit / Interrupting Capability (1-pole, supplementary protector): 5 kA at 277 VAC U1; 3 kA at 277 VAC U2 and U3; 10 kA at 125 VAC U2 and U3
- Short Circuit Rating (manual motor controller, Series C): 5 kA at 277 VAC
- Dielectric Strength: 1960 VAC
- Housing Material: Melamine-phenolic, IP2X finger-safe top and sides
- Termination: Screw, #16 - 4 AWG (1.0 - 25 mm2) copper
- Electromechanical Life at 240 VAC: 20,000 cycles (20 - 32 A range)
- Operating Temperature: -40 to +140 F (-20 to +60 C) non-condensing
- Mounting: DIN rail
- Standards: UL 508, UL 1077, CSA 22.2 No. 14 and No. 235, IEC/EN 60950 and 60934, VDE 0641 and 0660, CE marked
- Spec Basis: Allen-Bradley Bulletin 1492-CB Manual Motor Controller / Supplementary Protector catalogue, published specifications and product selection tables
Specifications
Manufacturer
Allen-Bradley
Model
1492-CB1G200
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
20
Length (Inches)
4
Width (Inches)
3
Height (Inches)
1
Phase
1
Estimated Packaging Weight
2
Estimated Total Weight
3
Asset Number
KSC507 / 44 / 6 / 27
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
