Amphenol Industrial 97-67-22-10 (Mfg P/N: U10-825923-222) Water Resistant Cable Clamp Adapter, Shell Size 20/22, Aluminum Alloy

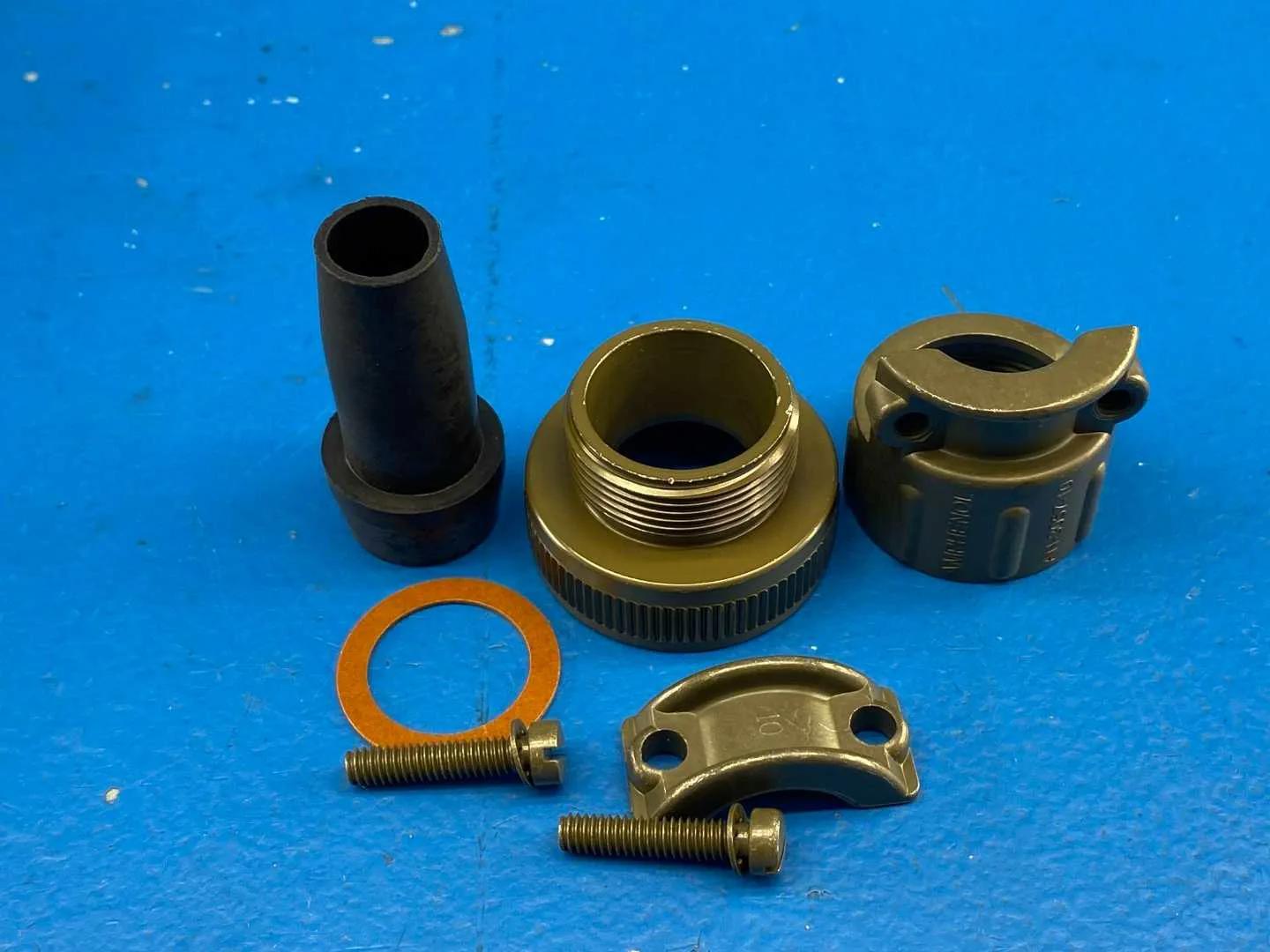

Manufacturer: Amphenol Industrial Operations Part Number: 97-67-22-10 Alternate Number Carried in This Record's Title: U10-825923-222 Product: 97 Series water-resistant cable clamp (connector accessory) PUBLISHED ATTRIBUTES Connector Family: 97 Series Primary Type: MIL-5015 Shell Size: 22 Finish: Cadmium Olive Drab Color: Olive Ingress Protection: IP67 Type: Industrial WHAT IT IS AND WHAT IT DOES: the 97 Series is Amphenol's commercial MIL-5015 style cylindrical connector range, used in automotive, robotics, machine tool and welding work and in heavy equipment generally. A water-resistant cable clamp of the MS3057A pattern attaches to the rear of the connector and does two jobs: it grips the cable so that mechanical load is taken by the clamp rather than by the soldered or crimped contacts, and, with its rubber bushing, it seals the cable entry against water ingress. Amphenol's literature describes the MS3057A type as intended for jacketed cable or for wires protected by tubing, with both clamping halves floating so as to give maximum strain relief. Amphenol states that 97 Series shell components are fabricated from high grade aluminium alloy for strength and environmental protection, and that the MS3057A style cable clamp body is die-cast zinc alloy. IMPORTANT ON SIZING: the shell size 22 designation must match the connector the clamp is fitted to, and the rubber bushing is selected separately to suit the actual cable outside diameter. A clamp of the correct shell size fitted with the wrong bushing will not seal. Amphenol publishes bushing part numbers separately from clamp part numbers. UNPUBLISHED / NOT STATED HERE: the cable outside diameter range this clamp accommodates, the bushing part number supplied with or required for it, the thread size of the coupling to the connector shell, overall dimensions and weight, and the operating temperature range. Amphenol publishes these in the 97 Series accessories tables against the specific clamp and bushing combination, and that table could not be retrieved for this part number, so no figure has been adopted. ALTERNATE NUMBER NOT VERIFIED: the number U10-825923-222 carried in this record's title returns no published Amphenol catalogue record. It is reproduced above as recorded but has not been confirmed as an Amphenol number, and it may be a customer or contract number rather than a manufacturer part number. Spec Basis: Amphenol Industrial published 97 Series MIL-5015 connector and cable clamp literature (97 Series family description, aluminium alloy shell construction, MS3057A cable clamp pattern, die-cast zinc alloy clamp body, floating clamp halves for strain relief, application to jacketed cable or wires in tubing) and the Amphenol Industrial distributor catalogue entry for 97-67-22-10 (97 Series, MIL-5015 primary type, shell size 22, cadmium olive drab finish, olive colour, IP67, industrial type). No dimensional or cable-range figure has been invented.
