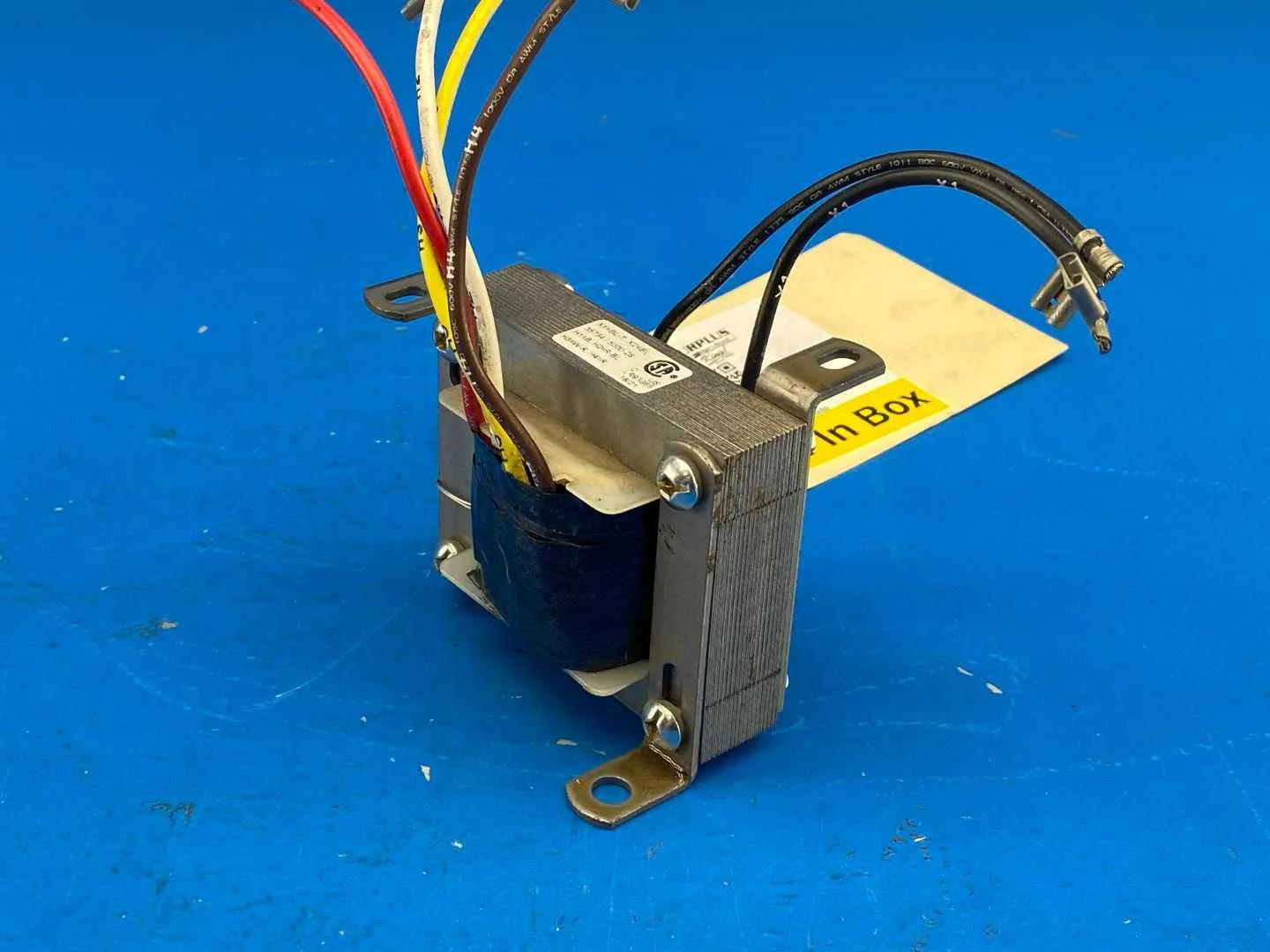

Columbus Mckinnon Transformer 35734 115V
35734 Transformer Specifications: kVA, Primary & Secondary Voltage
Electrical Applications for Columbus McKinnon 35734
1 / 5
+5
+5
1 / 5
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 35734 |
| Condition | New |
| Manufacturer | Columbus McKinnon |
| Asset Number | KSC1290 / 906 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
Free Shipping
$169.95
Basic Information
Asset #
KSC1290 / 906
Available Quantity
1
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
The Columbus McKinnon Transformer 35734 is a vital component in the electrical systems utilized in various industrial settings. Columbus McKinnon is renowned for its commitment to providing high-quality lifting and material handling solutions.
The transformer operates at a voltage of 115V, making it suitable for diverse applications across multiple industries, including construction, manufacturing, and entertainment.
Designed for reliability and efficiency, the 35734 model is characterized by its robust construction, allowing it to withstand demanding operational environments. It serves to convert voltage levels, enabling machinery and equipment to function optimally.
Unique features of the Columbus McKinnon Transformer include:
- Enhanced safety features to prevent overloads and short circuits.
- Compact design for easy integration into existing systems.
- Durability meant for long-term, continuous use under heavy loads.
Overall, the Columbus McKinnon Transformer 35734 plays a critical role in ensuring that companies can safely and efficiently power their equipment, leading to improved productivity and operational success.
Factory Information
- Manufacturer: Columbus McKinnon Corporation (CM)
- Part Number: 35734
- Nameplate Marking: 35734/5500-28
- Cross References: CT-1354; 627-530
- Type: Control transformer for electric chain hoists

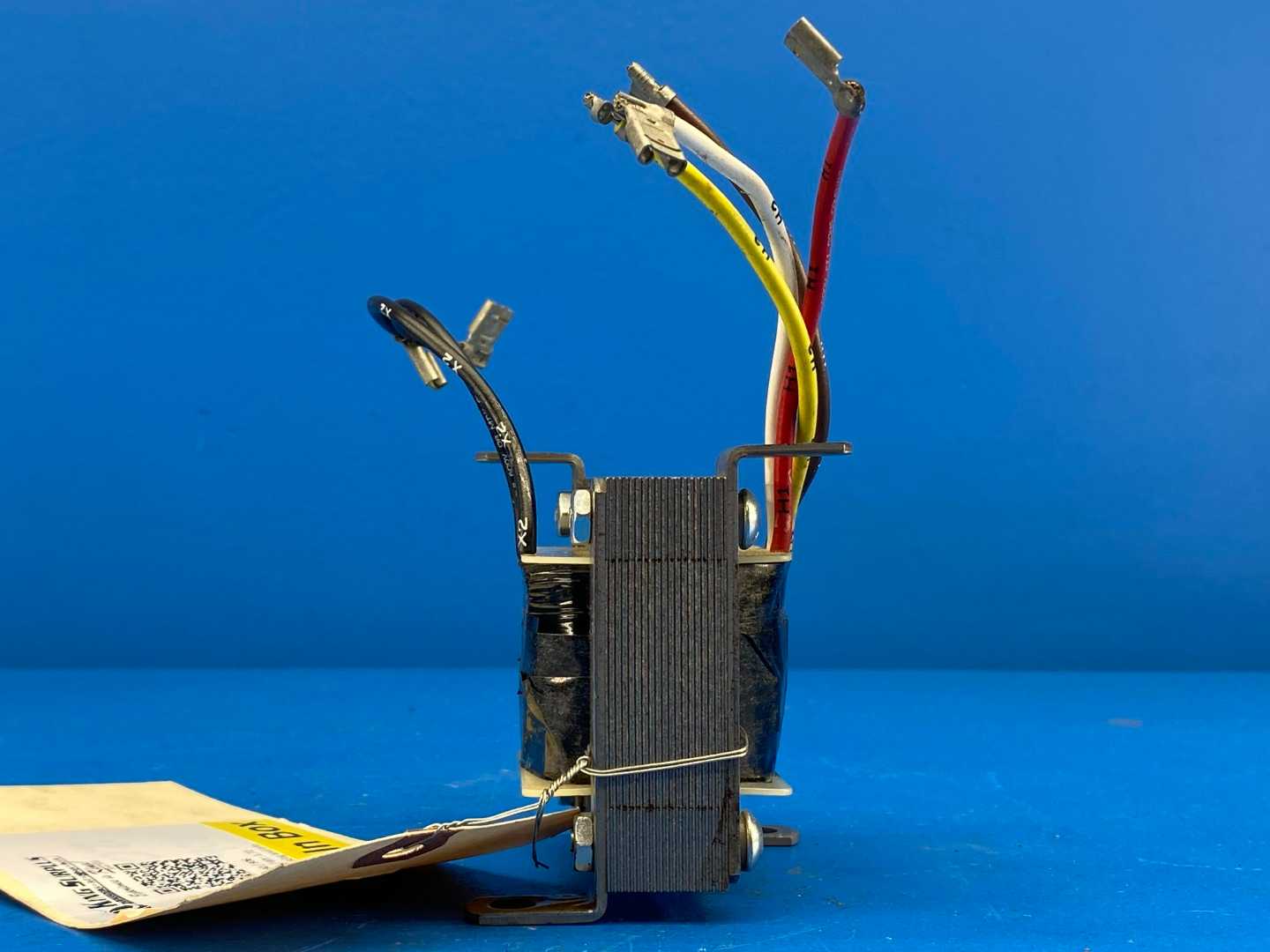

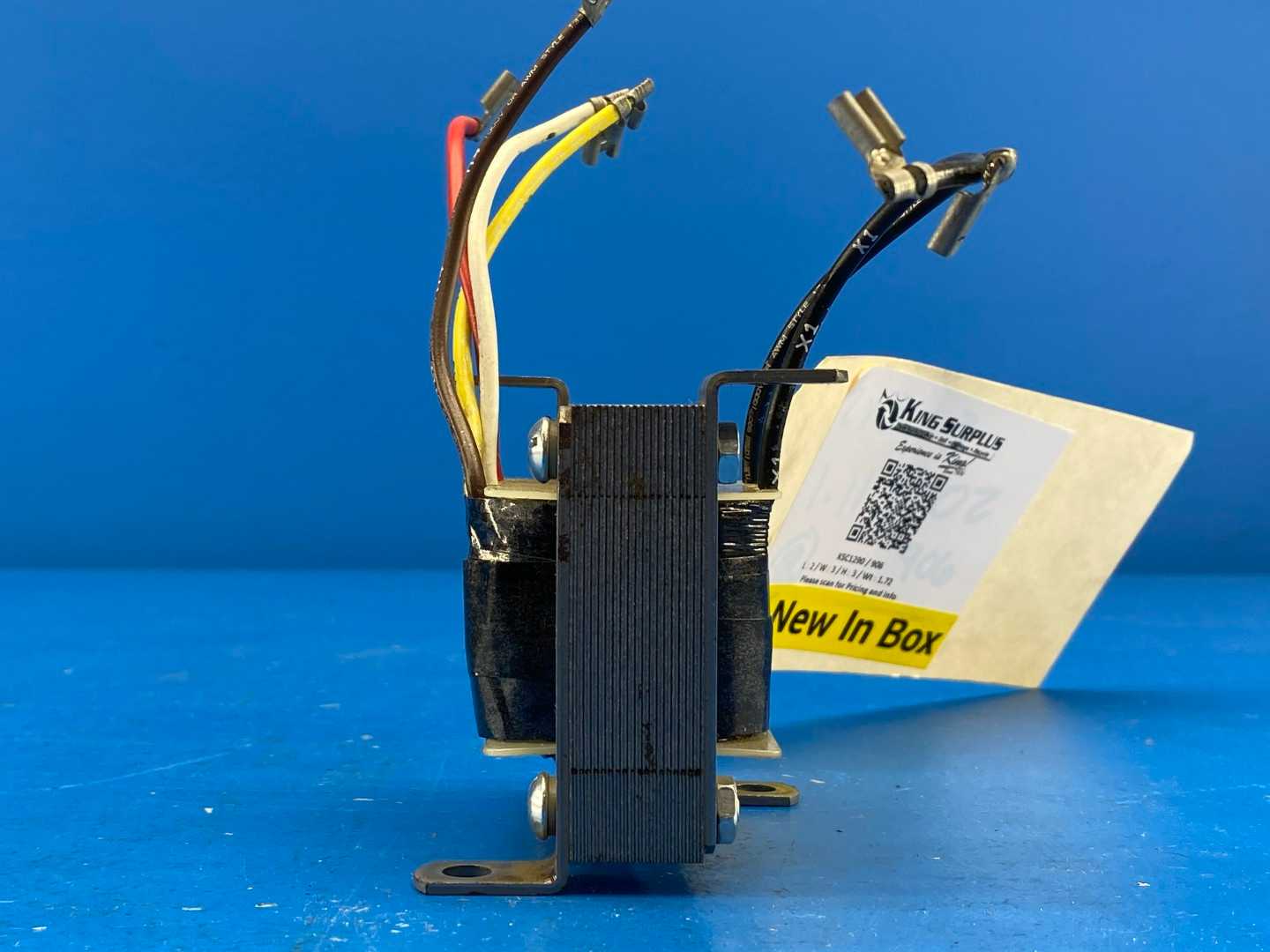

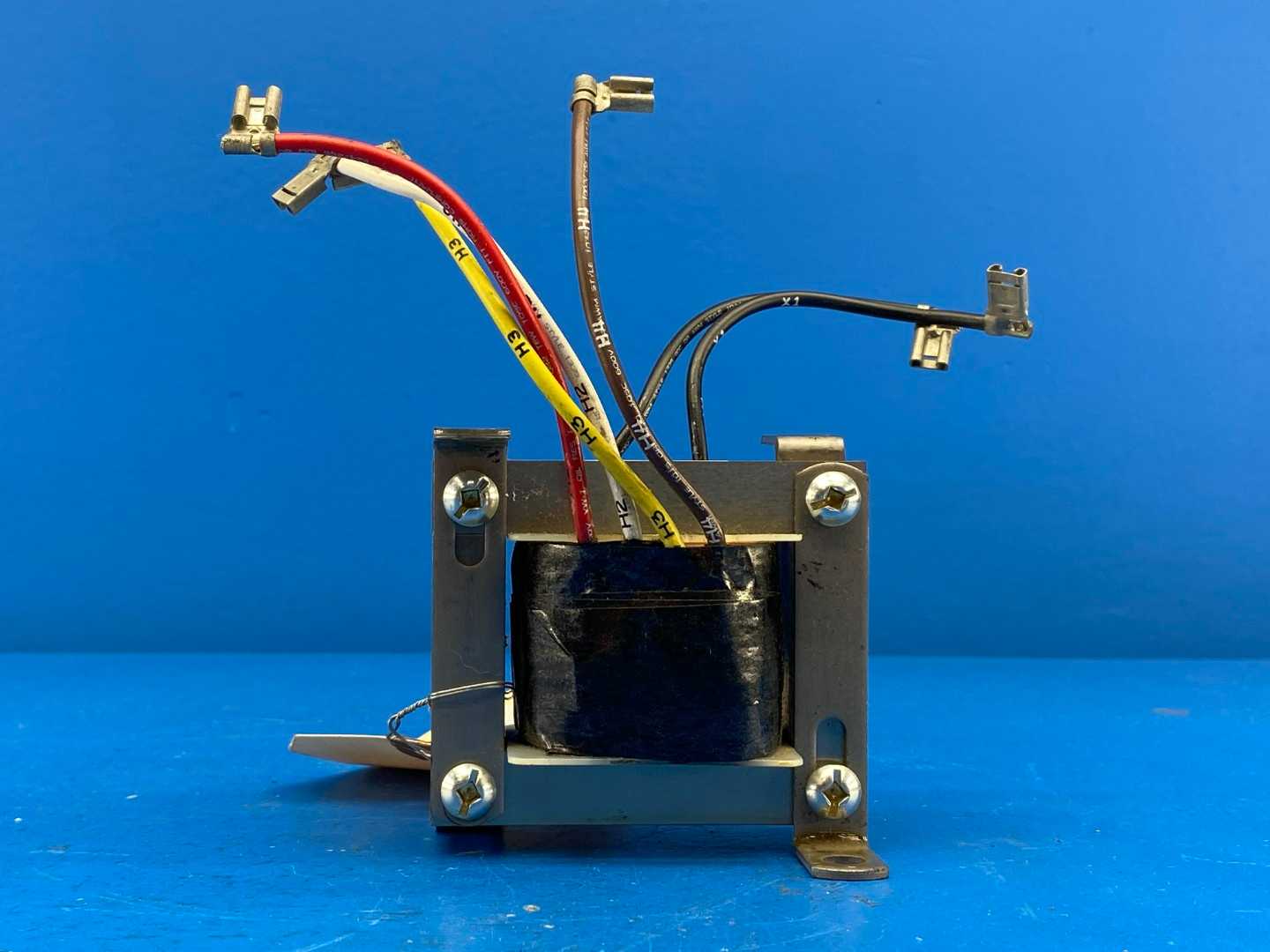

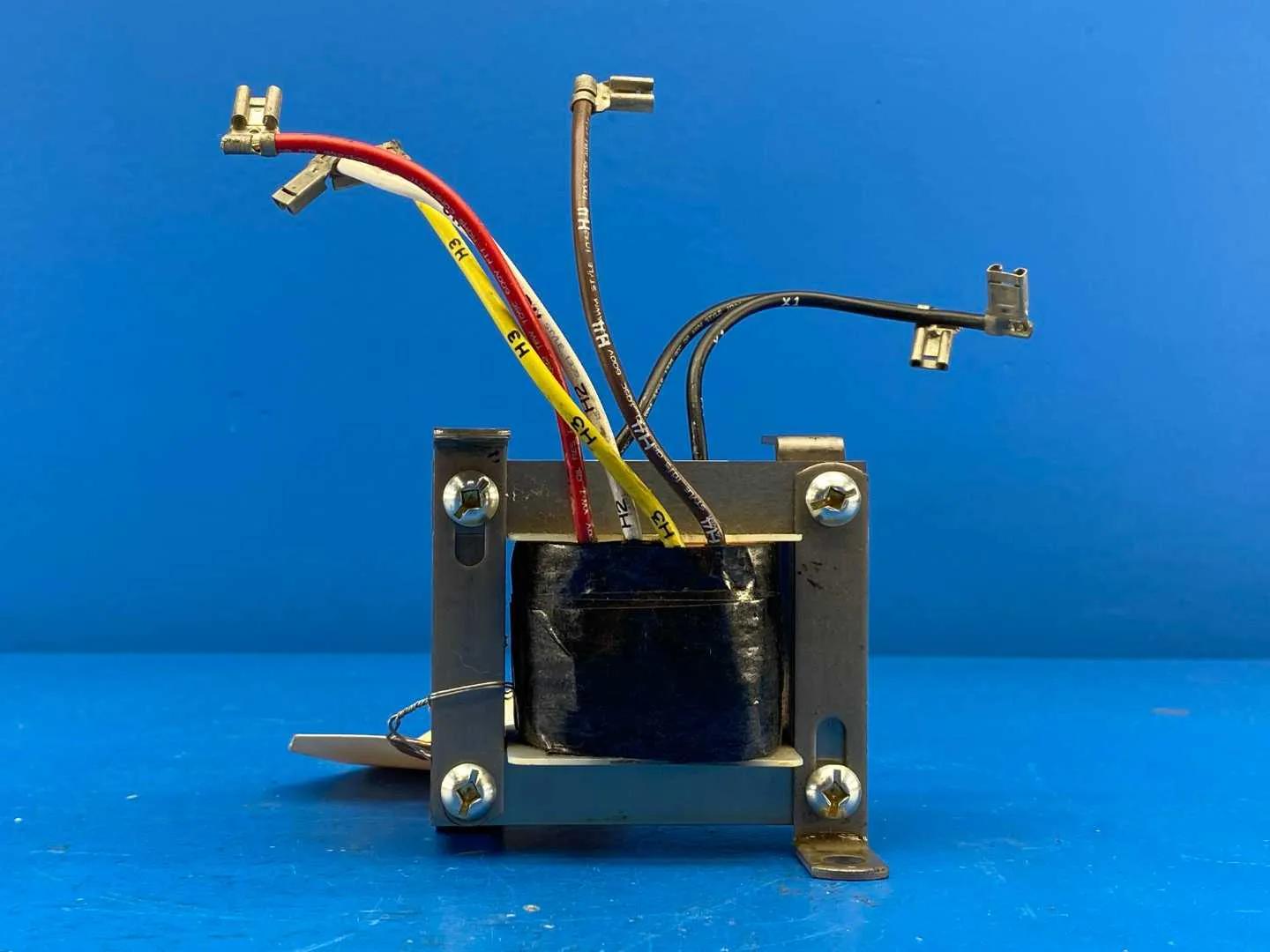

- Terminal Configuration: four primary (H) leads and two secondary (X) leads - H1, H2, H3, H4 and X1, X2. Four H leads denote a DUAL primary winding, the standard arrangement allowing the two primaries to be paralleled for the lower input voltage or placed in series for double that voltage.

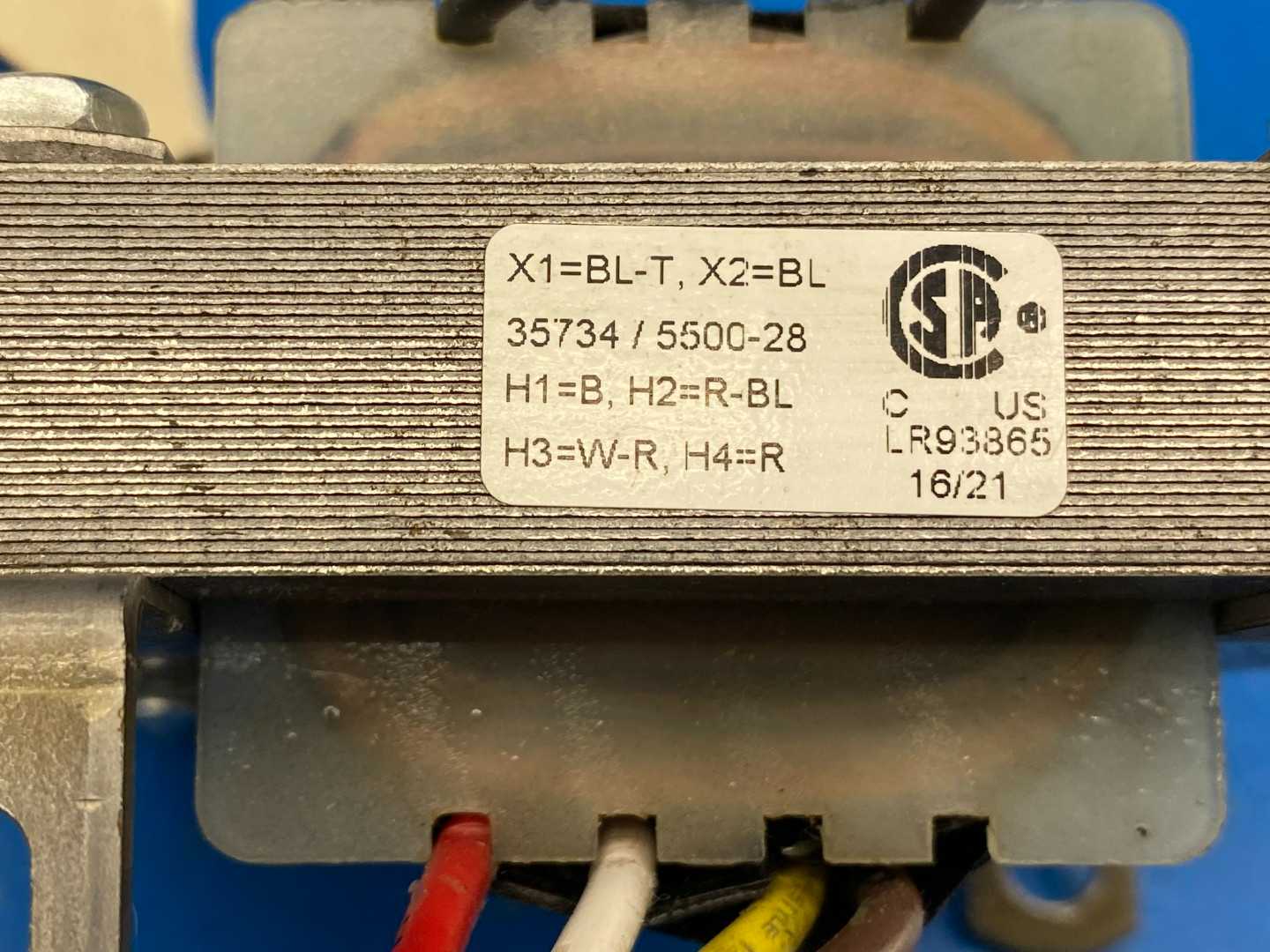

- Lead Identification Code, verbatim from the nameplate: X1 = BL-T, X2 = BL, H1 = B, H2 = R-BL, H3 = W-R, H4 = R
- Primary Voltage: 115 V (as catalogued by Columbus McKinnon for this part)
- VA RATING: NOT PUBLISHED. Columbus McKinnon lists 35734 as a hoist service part by number and application only, and does not publish a VA rating, secondary voltage or frequency for it in any public document. The secondary rating is also not legible on the unit itself. It is deliberately not stated here rather than estimated. Confirm against the hoist wiring diagram before use.
- Compatible Host Equipment: CM Lodestar electric chain hoists. THE FOLLOWING ARE THE HOIST'S RATINGS, NOT THIS TRANSFORMER'S - Lodestar models of 2,000 lb, 4,000 lb and 6,000 lb rated load capacity.
- Approvals: marked C US LR93865. LR93865 is the CSA file number under which the component is certified for both Canada and the United States. A component certification of this kind is conditional: it is recognised for use within end equipment that has itself been evaluated, not as a standalone listed product.
- Date Code: 16/21
- Physical Size: approximately 3 in L x 3 in W x 2.5 in H
- Spec Basis: nameplate photographs on this record for the part number, lead code, certification file and date code; Columbus McKinnon published hoist parts listings for the part number, 115 V primary and Lodestar application. No VA or secondary rating is stated because no manufacturer source publishes one.
Specifications
Manufacturer
Columbus McKinnon
Model
35734
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
2
Width (Inches)
3
Height (Inches)
3
Phase
1
Estimated Packaging Weight
0
Estimated Total Weight
1
Asset Number
KSC1290 / 906
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
