Eaton Cutler-Hammer C320KG13 Side-Mount Auxiliary Contact Block, 1NO-1NC, 10A, 600VAC
C320KG13 Shaft Extension Specifications: Bore & Length
Disconnect System Fitment for Cutler-Hammer C320KG13
1 / 8
+8
+8
1 / 8
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | C320KG13 |
| Condition | New |
| Manufacturer | Cutler-Hammer |
| Asset Number | KSC1230 / 1158 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
$19.95
Basic Information
Asset #
KSC1230 / 1158
Available Quantity
1
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Eaton Cutler-Hammer
- Model: C320KG13
- Series: A2
- Type: Side-mount auxiliary contact block
- Contact Configuration: 1 N.O. - 1 N.C.

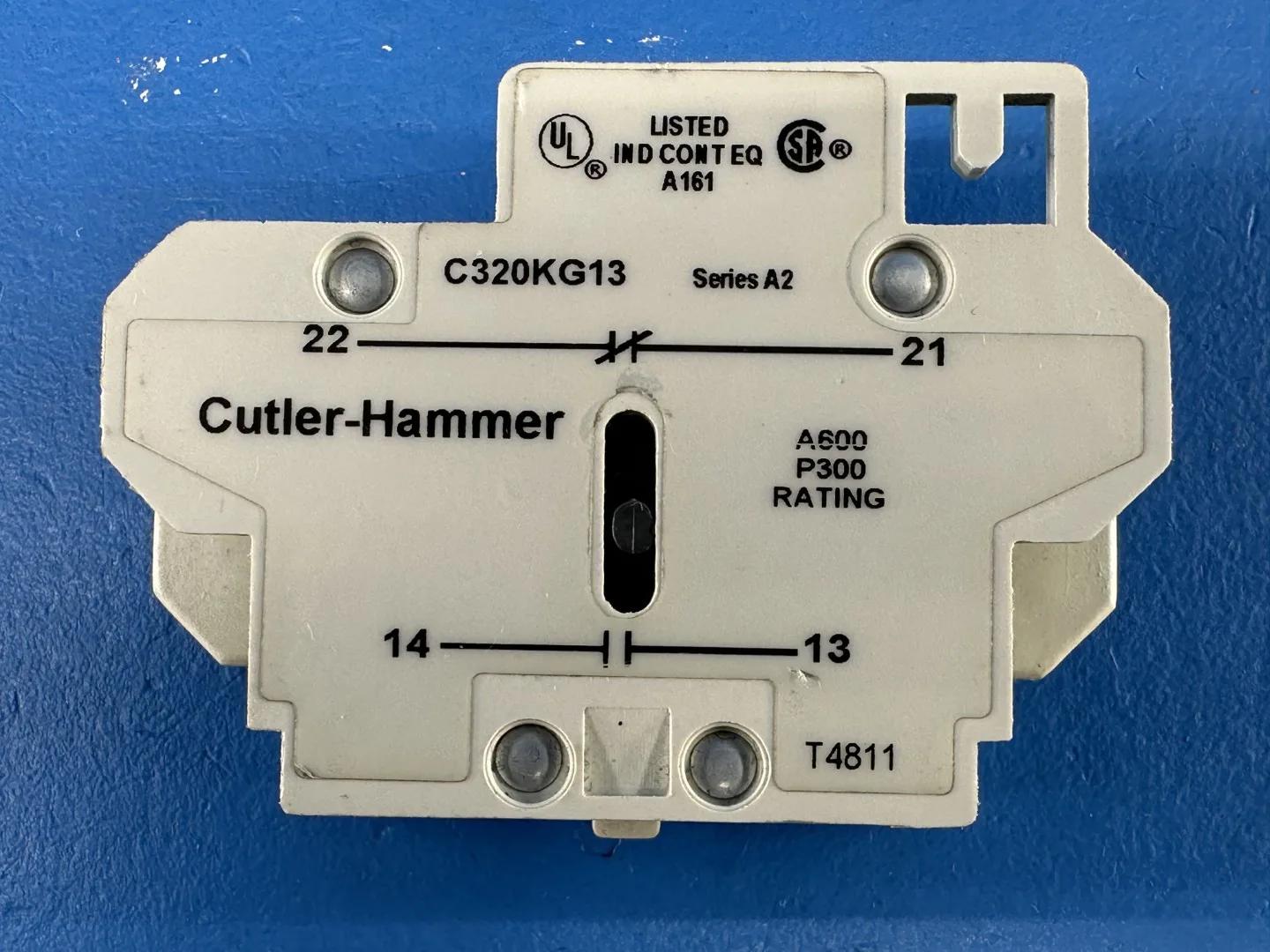

- Contact Terminal Markings: 13-14 (normally open), 21-22 (normally closed)
- NEMA Contact Rating Designation: A600 (AC) and P300 (DC)
- Reference: T4811
- Approvals: UL and CSA Listed Industrial Control Equipment, A161
- Mounting: Side mount, with standard pressure plate and quick-connect terminals
- Application: Auxiliary contact for definite purpose contactors in the 15 - 75 A range
- Note: The A600 designation corresponds to a 600 V AC rating, consistent with the 10 A / 600 V AC figure carried on the record
- Spec Basis: Verbatim nameplate transcription from record photographs, corroborated by Eaton Cutler-Hammer published product data for C320KG13
Specifications
Manufacturer
Cutler-Hammer
Model
C320KG13
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
10
Length (Inches)
3
Width (Inches)
3
Height (Inches)
1
Phase
1
Estimated Packaging Weight
0.2
Estimated Total Weight
1.2
Asset Number
KSC1230 / 1158
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
