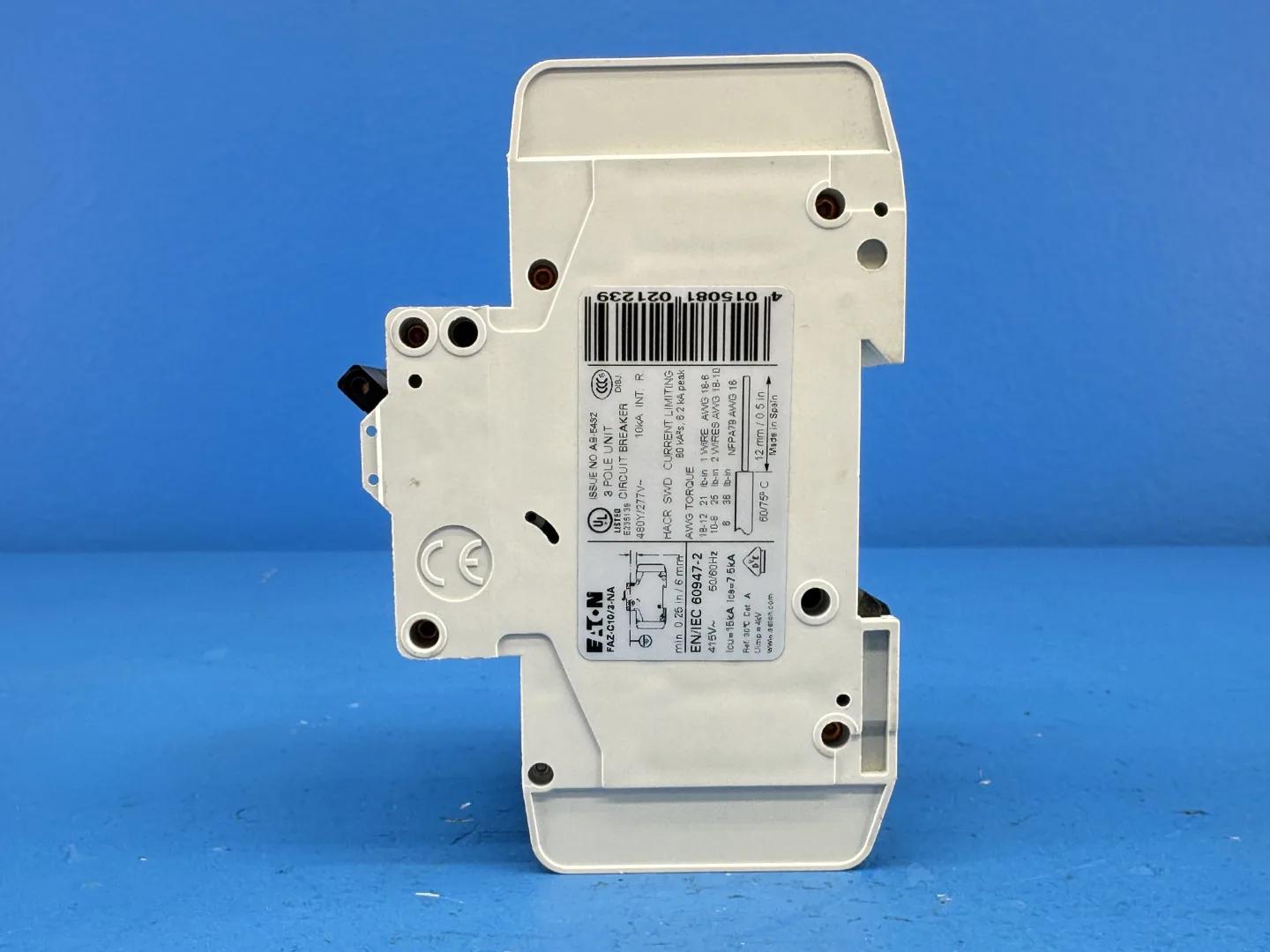

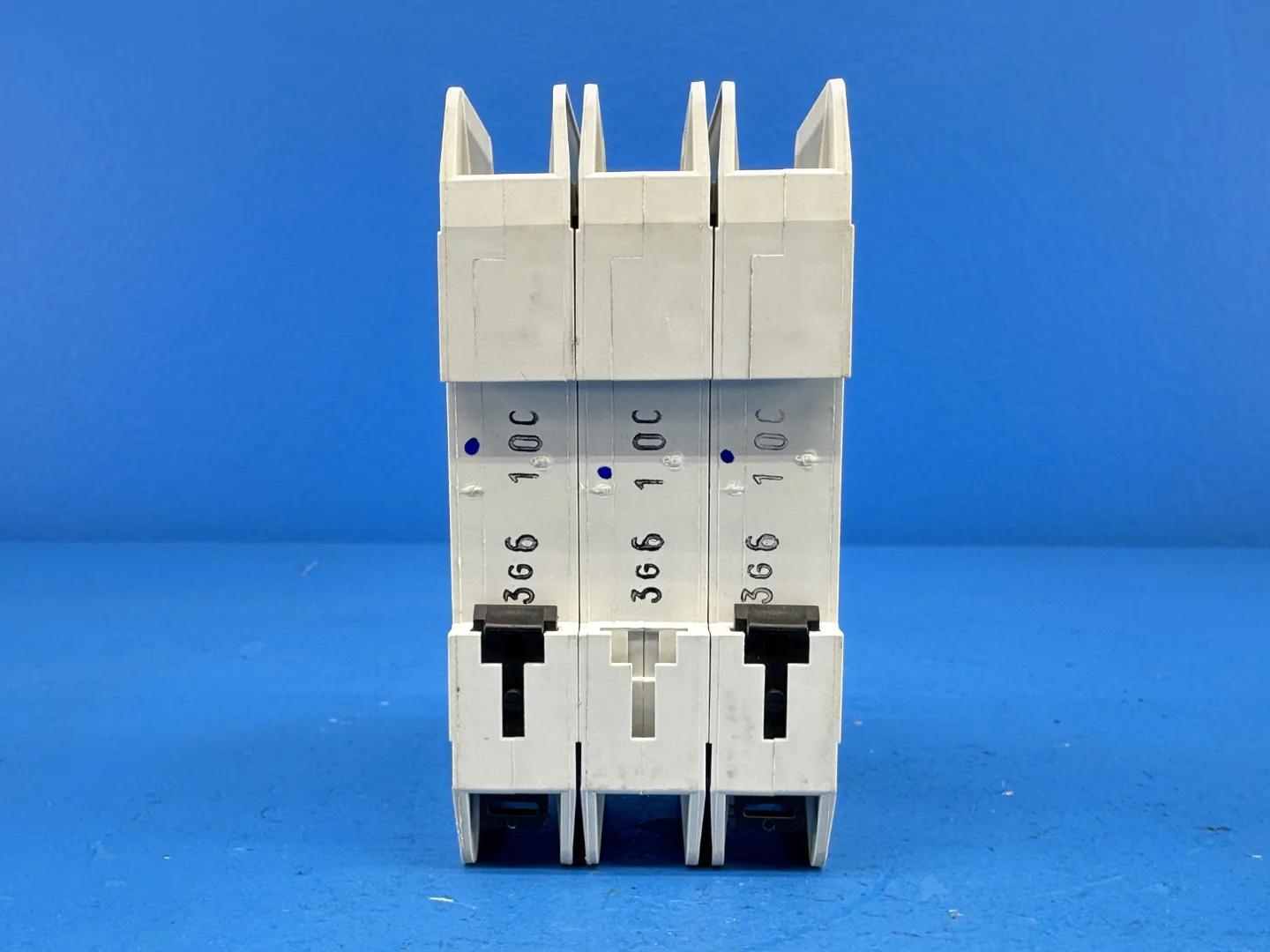

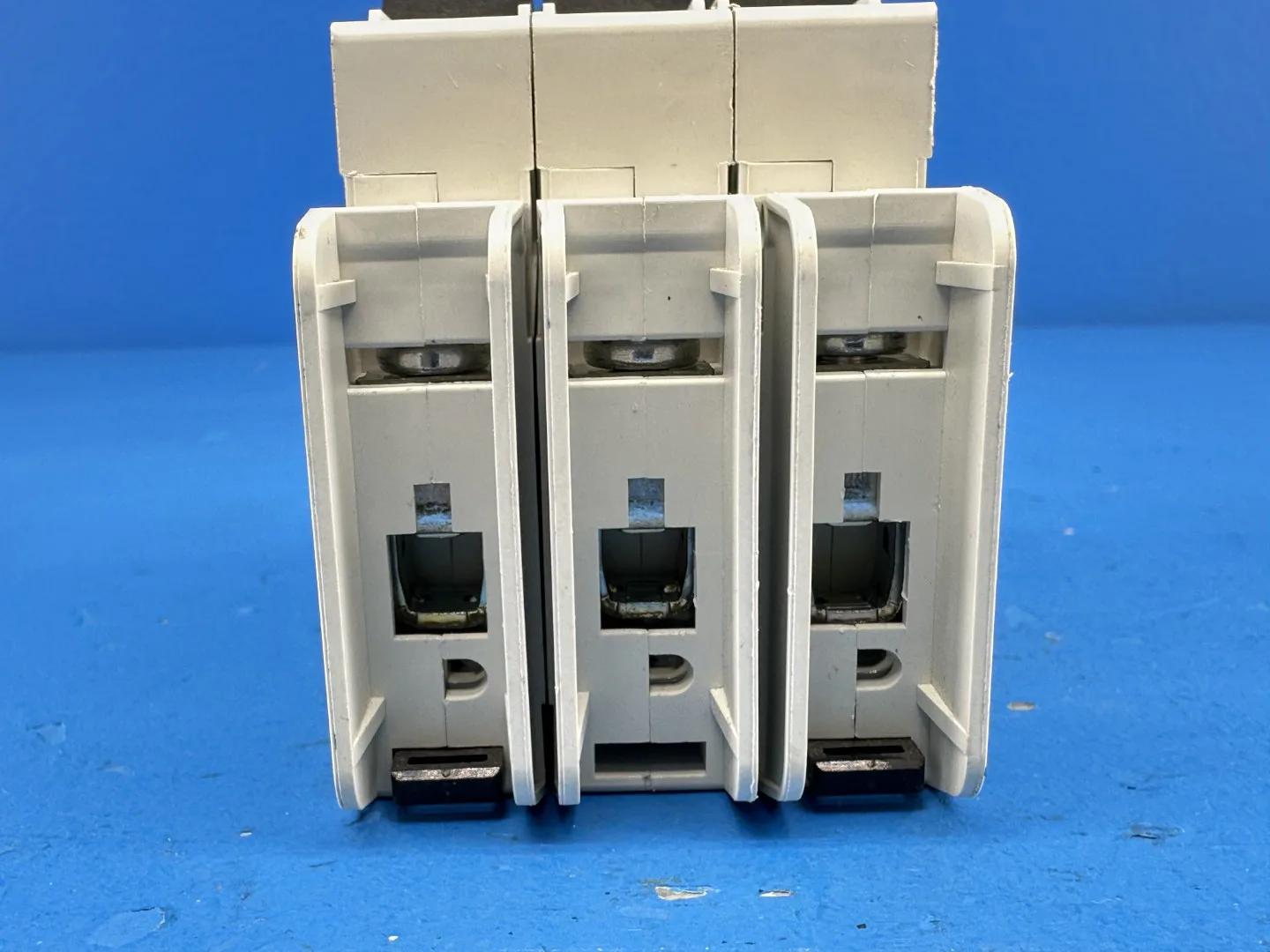

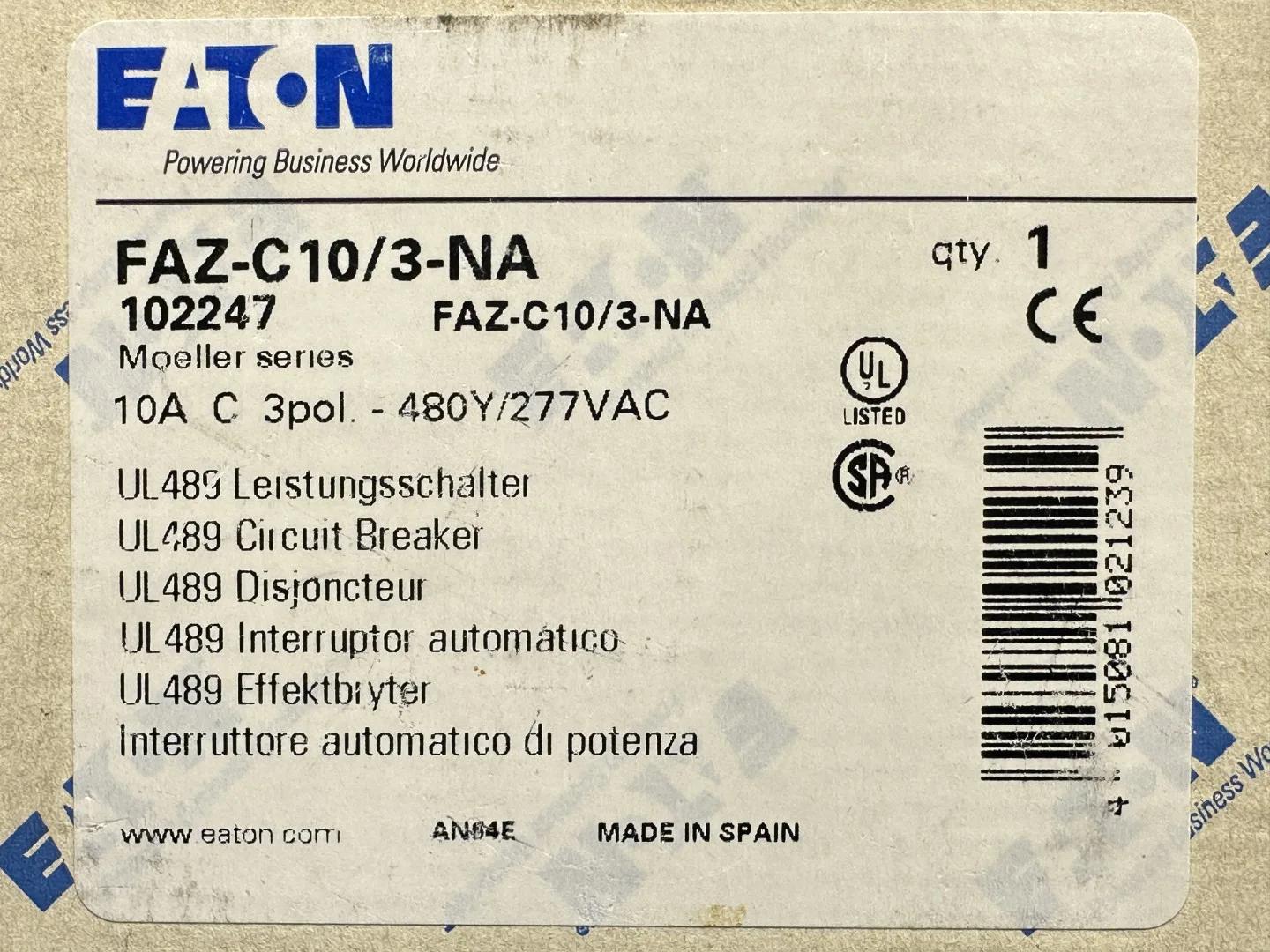

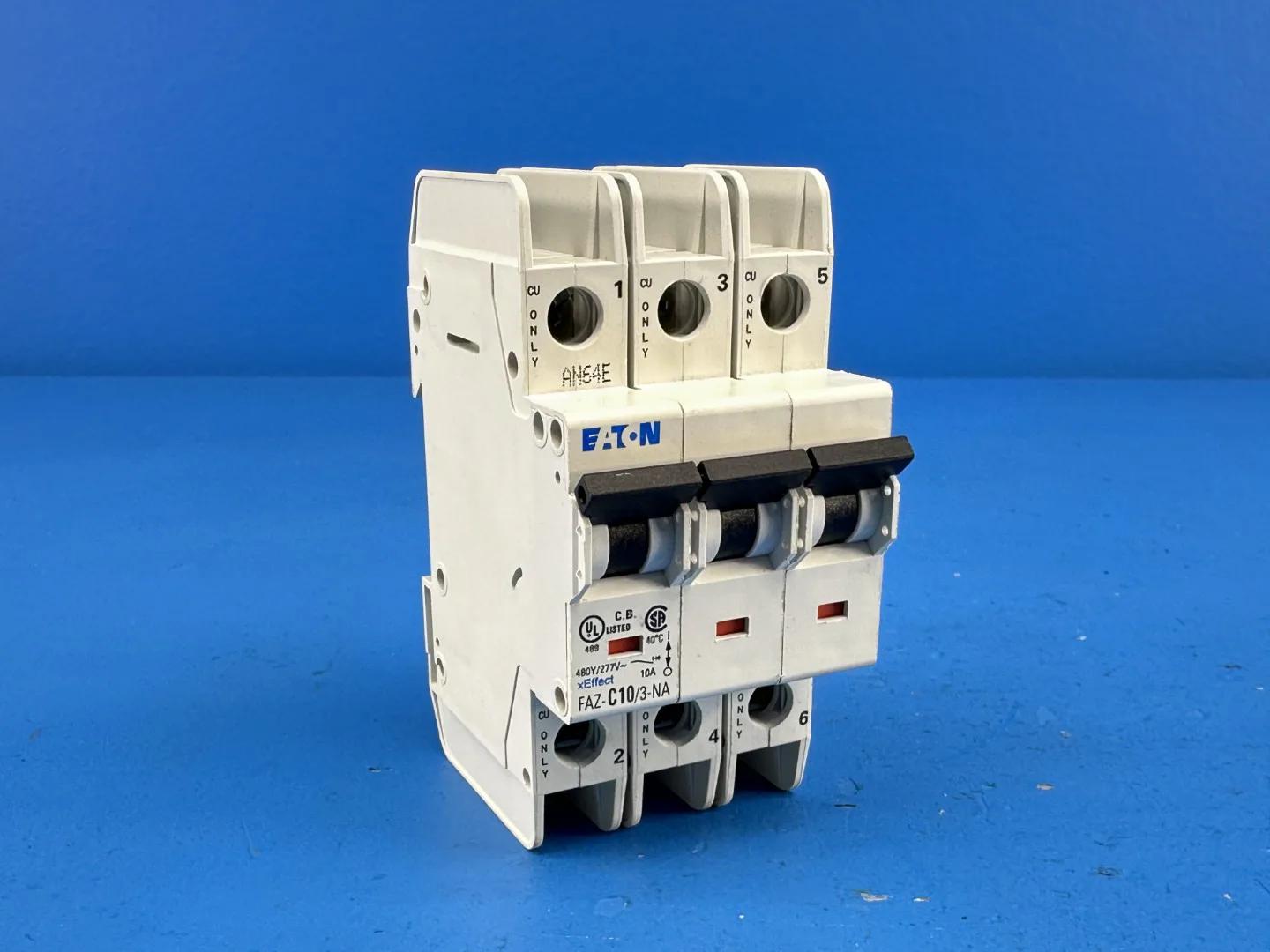

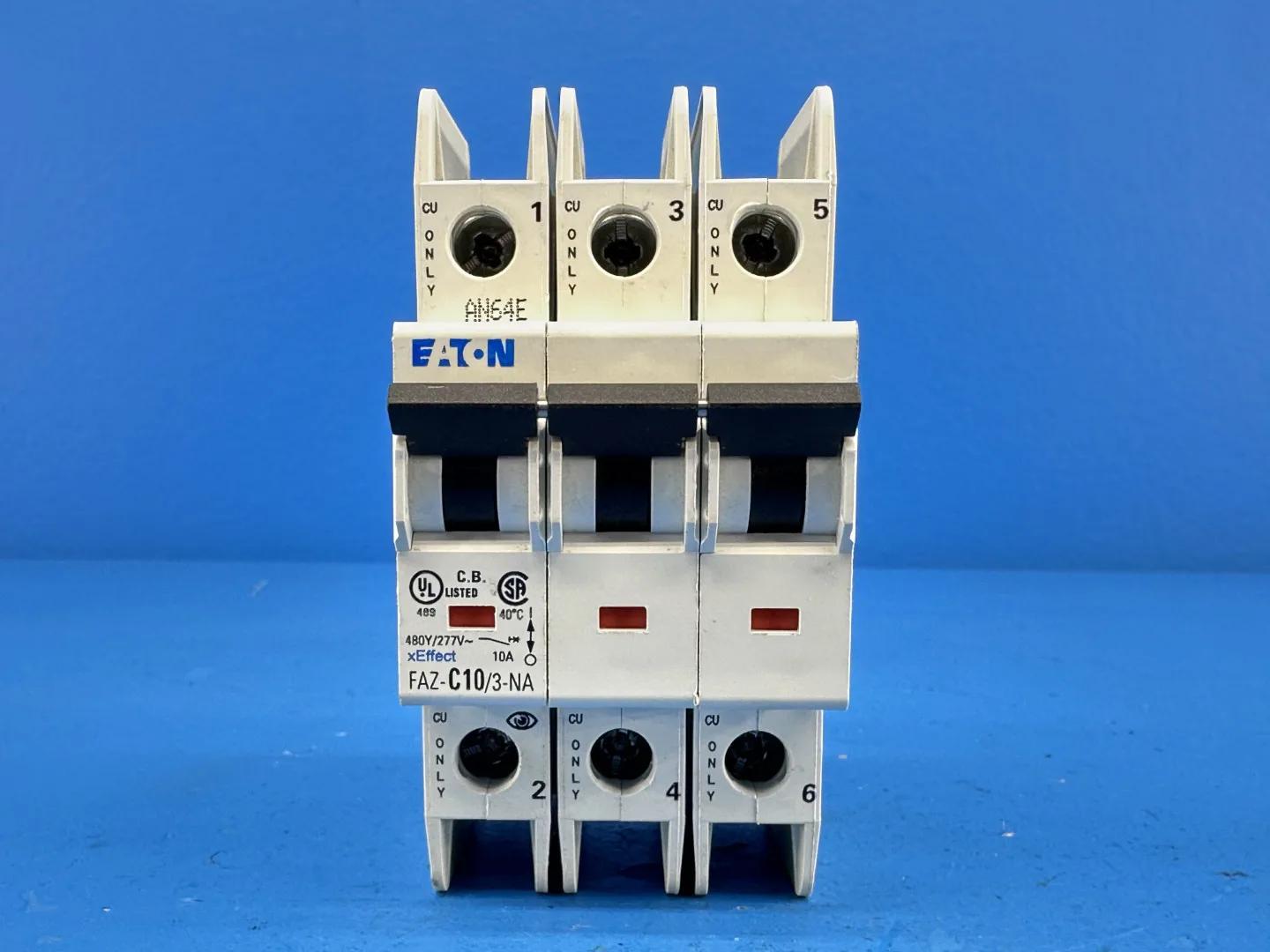

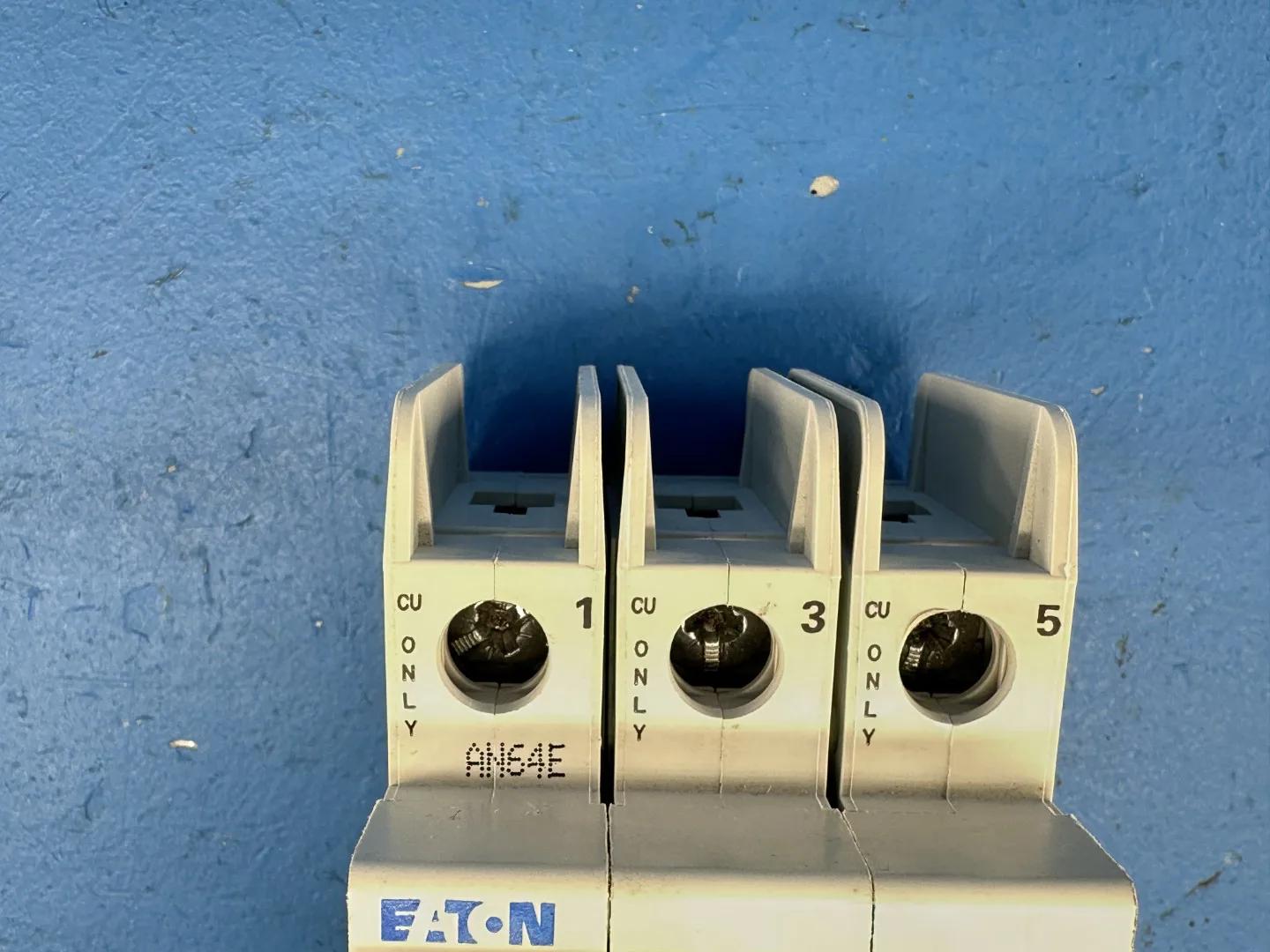

Eaton FAZ-C10/3-NA, Miniature Circuit Breaker, 3-Pole, 10A
Faz-C10/3-NA Breaker Specifications: Amps, Poles & Voltage
Panel Compatibility & Interchange for Eaton Faz-C10/3-NA
1 / 12
+12
+12
1 / 12
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | Faz-C10/3-NA |
| Condition | New |
| Manufacturer | Eaton |
| Asset Number | KSC1230 / 1271 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
Free Shipping
$69.95
Basic Information
Asset #
KSC1230 / 1271
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
N/A
Factory Information
- Manufacturer: Eaton
- Model: FAZ-C10/3-NA
- Eaton Catalog No.: 102247
- Product Range: FAZ-NA
- Type: Miniature circuit breaker (MCB), current-limiting, suitable as a branch circuit protective device
- Poles: 3 (3 protected poles)
- Rated Current (In): 10 A
- Tripping Characteristic: C
- Rated Operational Voltage: 277/480Y VAC; 60 VDC
- Rated Voltage per UL: 480Y/277 VAC
- Rated Voltage per IEC/EN 60947-2: 440 VAC
- Breaking Capacity per UL 489: 10 kA
- Rated Switching Capacity Icu per IEC/EN 60947-2: 15 kA at 230 V and at 400 V
- Rated Insulation Voltage (Ui): 440 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Frequency: 50 - 60 Hz
- Current Limiting Class: 3
- Selectivity Class: 3
- Lifespan: More than 20,000 operations
- Mounting: IEC/EN 60715 top-hat DIN rail
- Standard Front Dimension: 45 mm; Enclosure Height: 105 mm; Mounting Width per Pole: 17.7 mm; Built-in Depth: 70.5 mm
- Width: 3 modular spacings

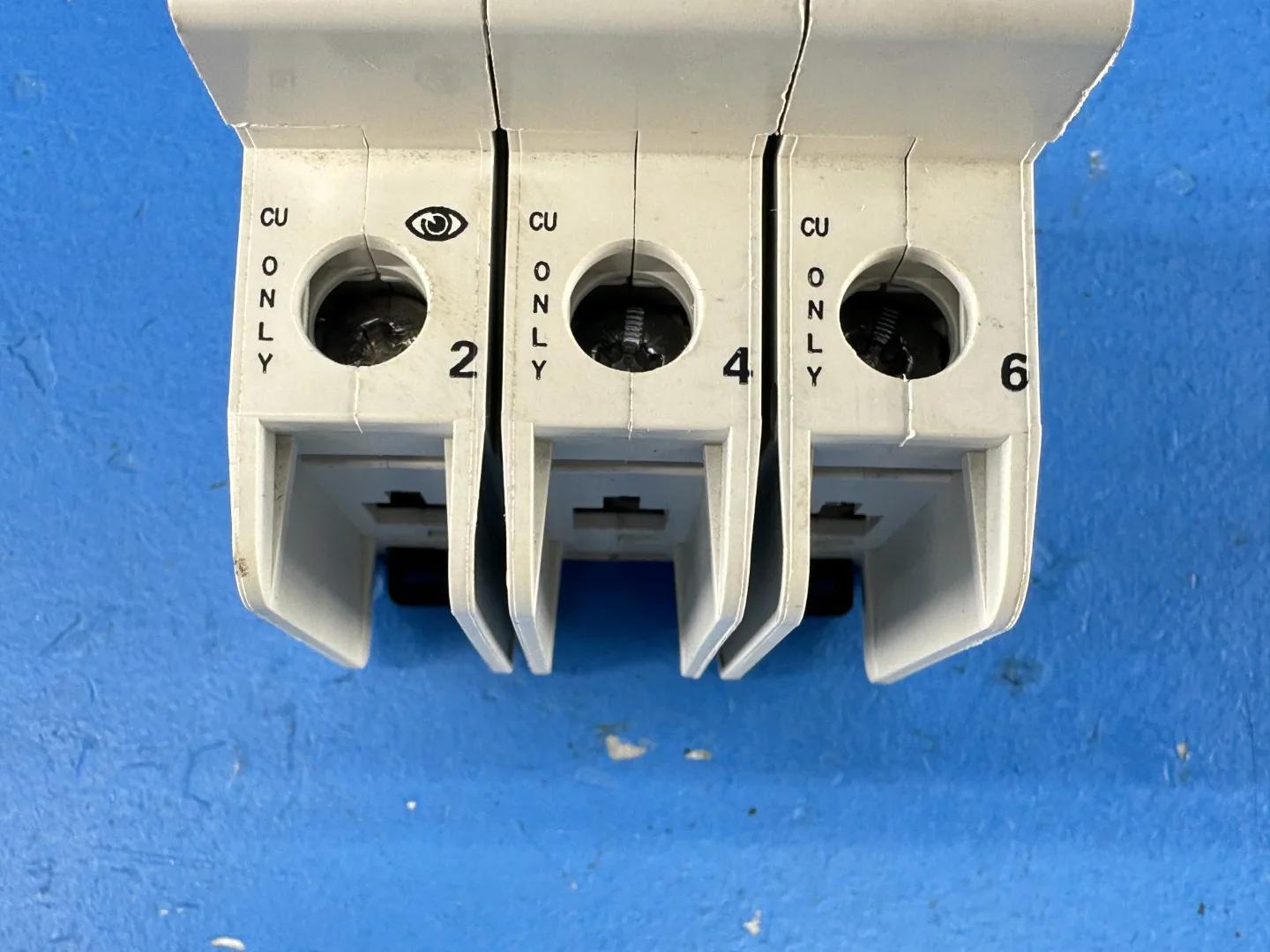

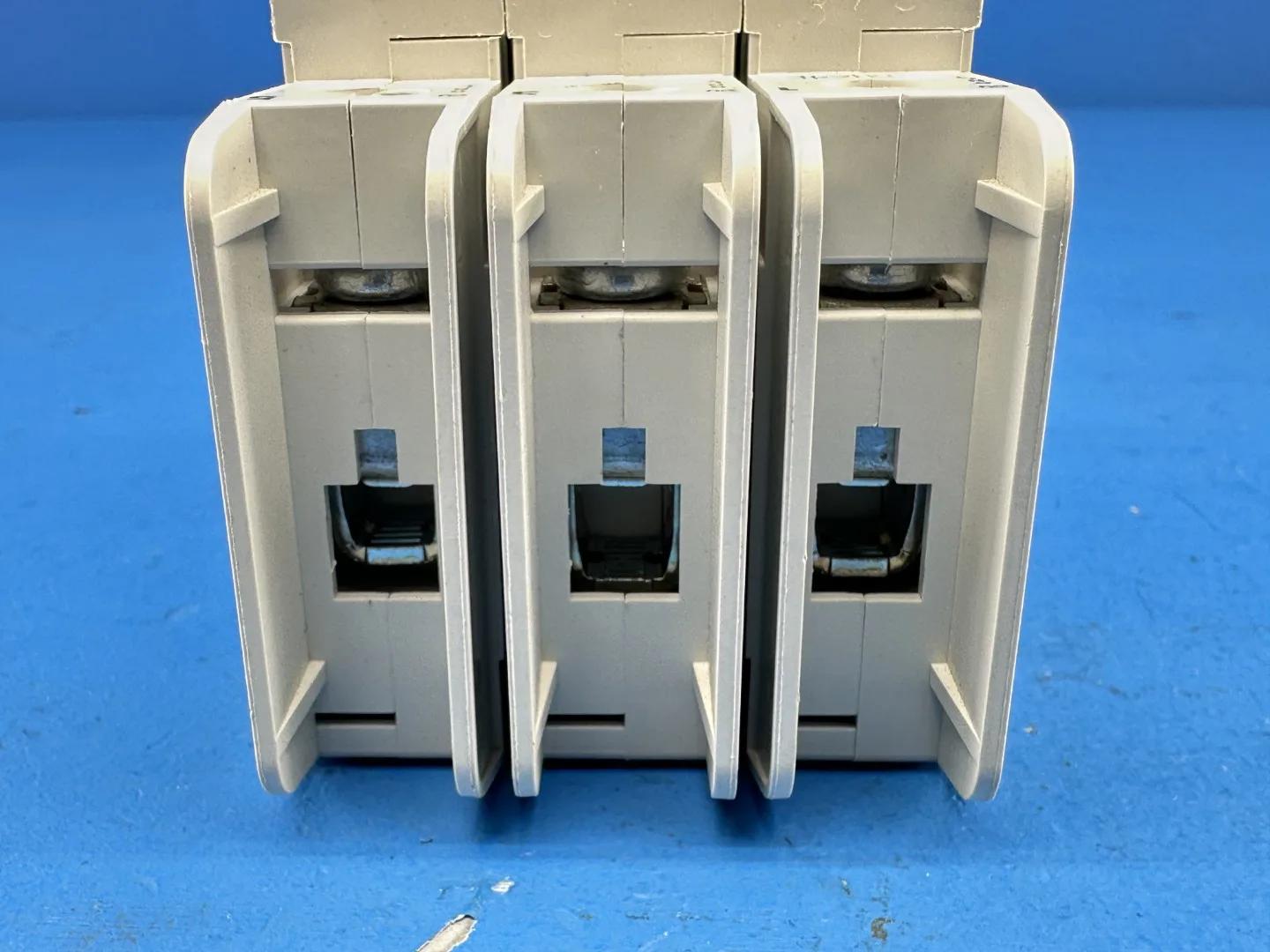

- Terminals: Twin-purpose, top and bottom; finger and back-of-hand proof to BGV A2
- Conductor Cross Section: 1 - 25 mm2 solid-core or multi-wired
- Terminal Tightening Torque (UL): #18-12 AWG 2.4 Nm (21 lb-in); #10-8 AWG 2.8 Nm (25 lb-in); #6 AWG 4 Nm (36 lb-in)
- Degree of Protection: IP20 (IP40 when fitted)
- Operating Ambient Temperature: -25 to +75 C
- Overvoltage Category: 3; Pollution Degree: 2

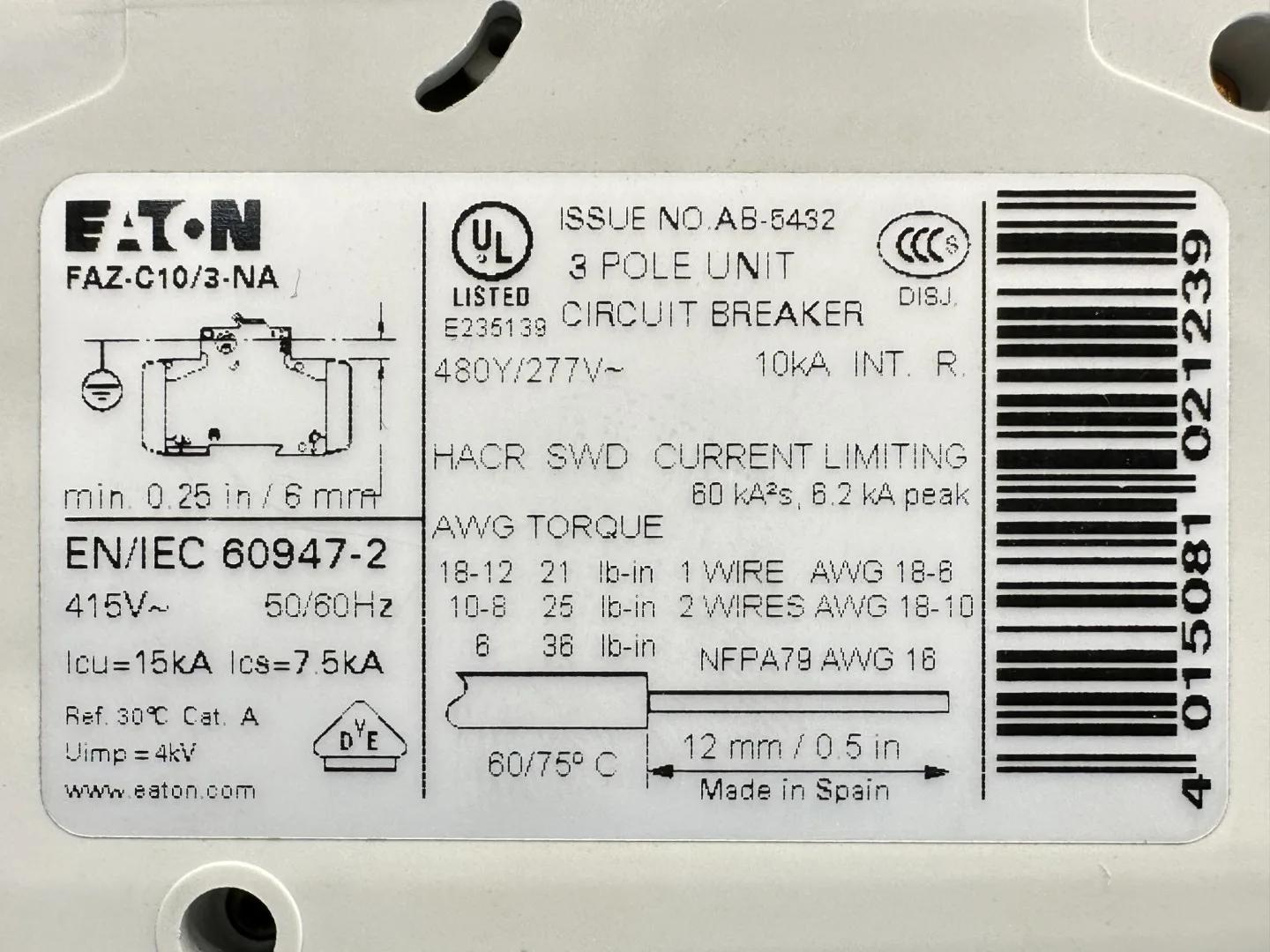

- Standards and Approvals: UL 489 (File E235139, Category DIVQ), CSA C22.2 No. 5-09 (File 204453, Class 1432-01), IEC/EN 60947-2, CE marked
- Application: Feeder circuits and branch circuits where medium inrush is expected
- Spec Basis: Eaton published datasheet for FAZ-C10/3-NA (Eaton 102247, ED2018 V51.0 EN), text extracted directly from the PDF
Specifications
Manufacturer
Eaton
Model
Faz-C10/3-NA
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
10
Length (Inches)
3
Width (Inches)
5
Height (Inches)
3
Phase
3
Estimated Packaging Weight
2
Estimated Total Weight
3
Asset Number
KSC1230 / 1271
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
