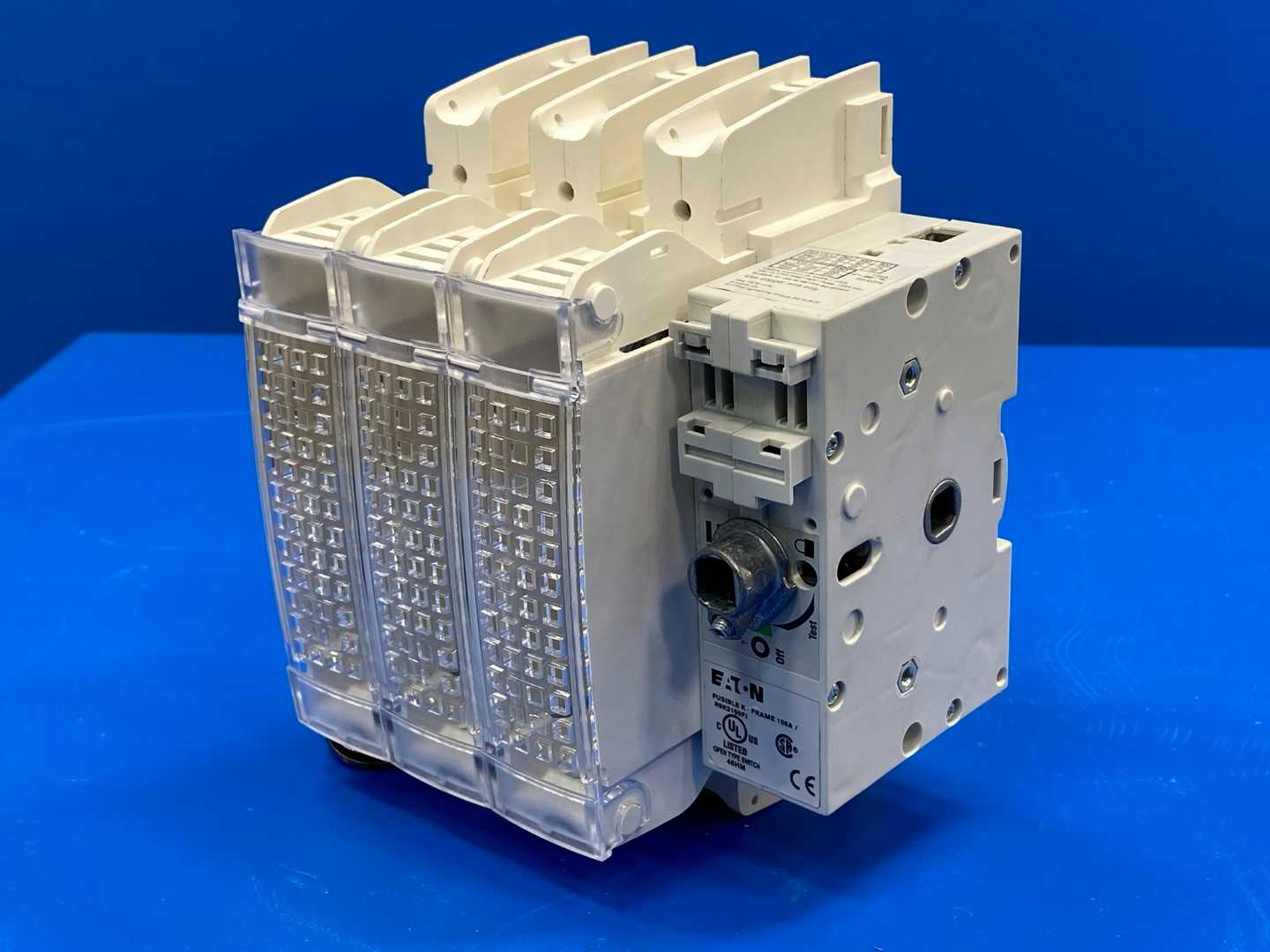

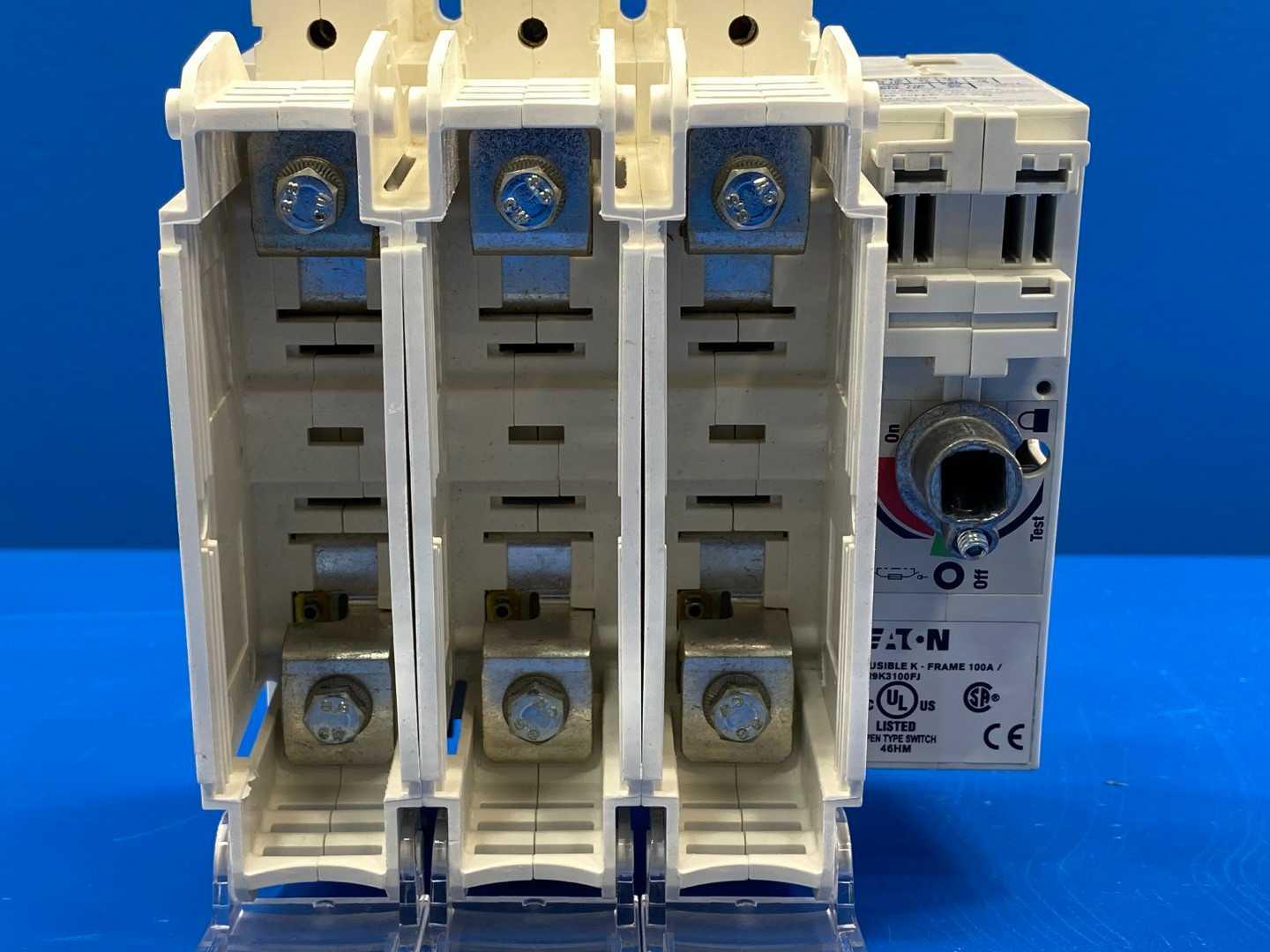

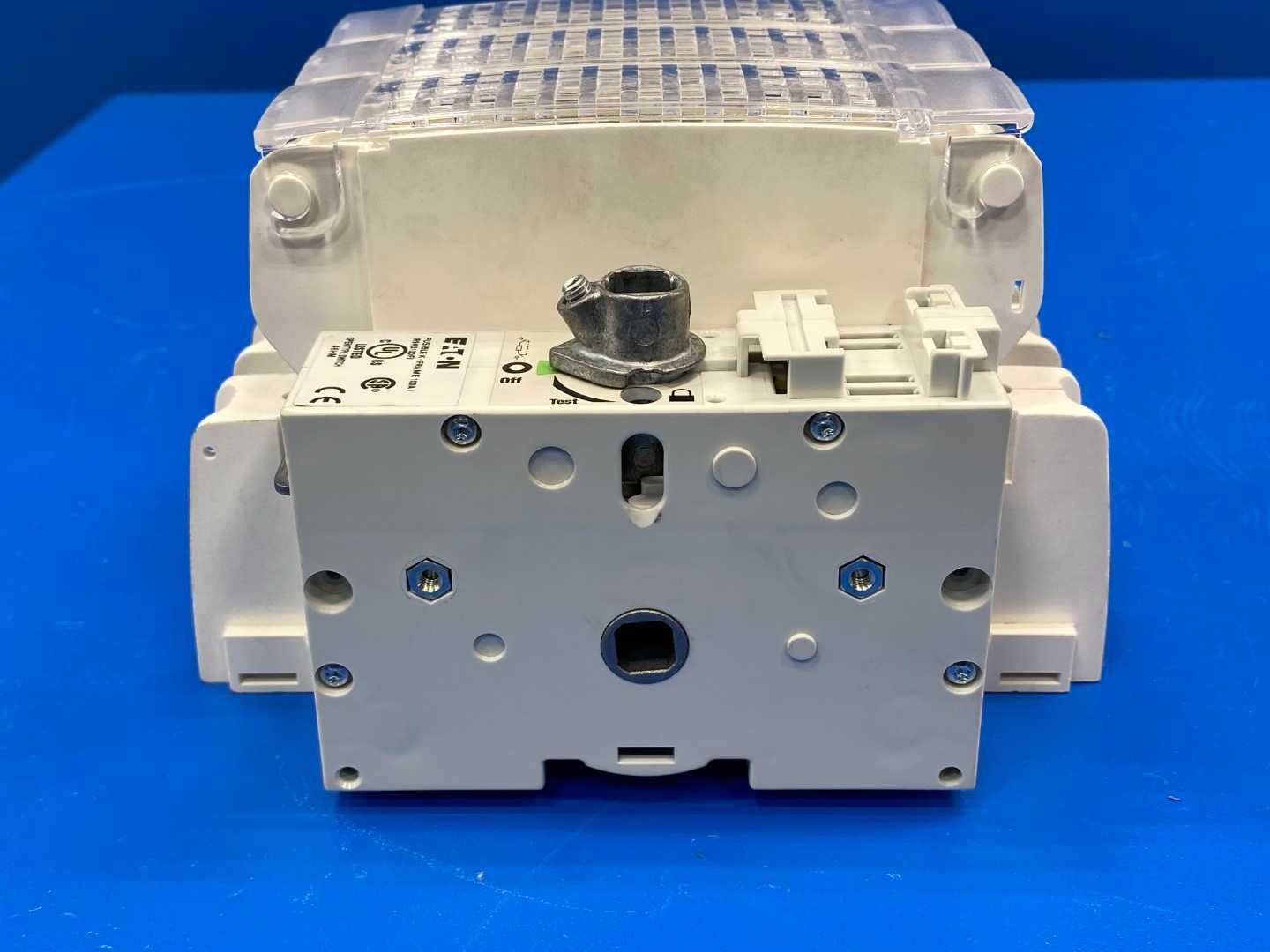

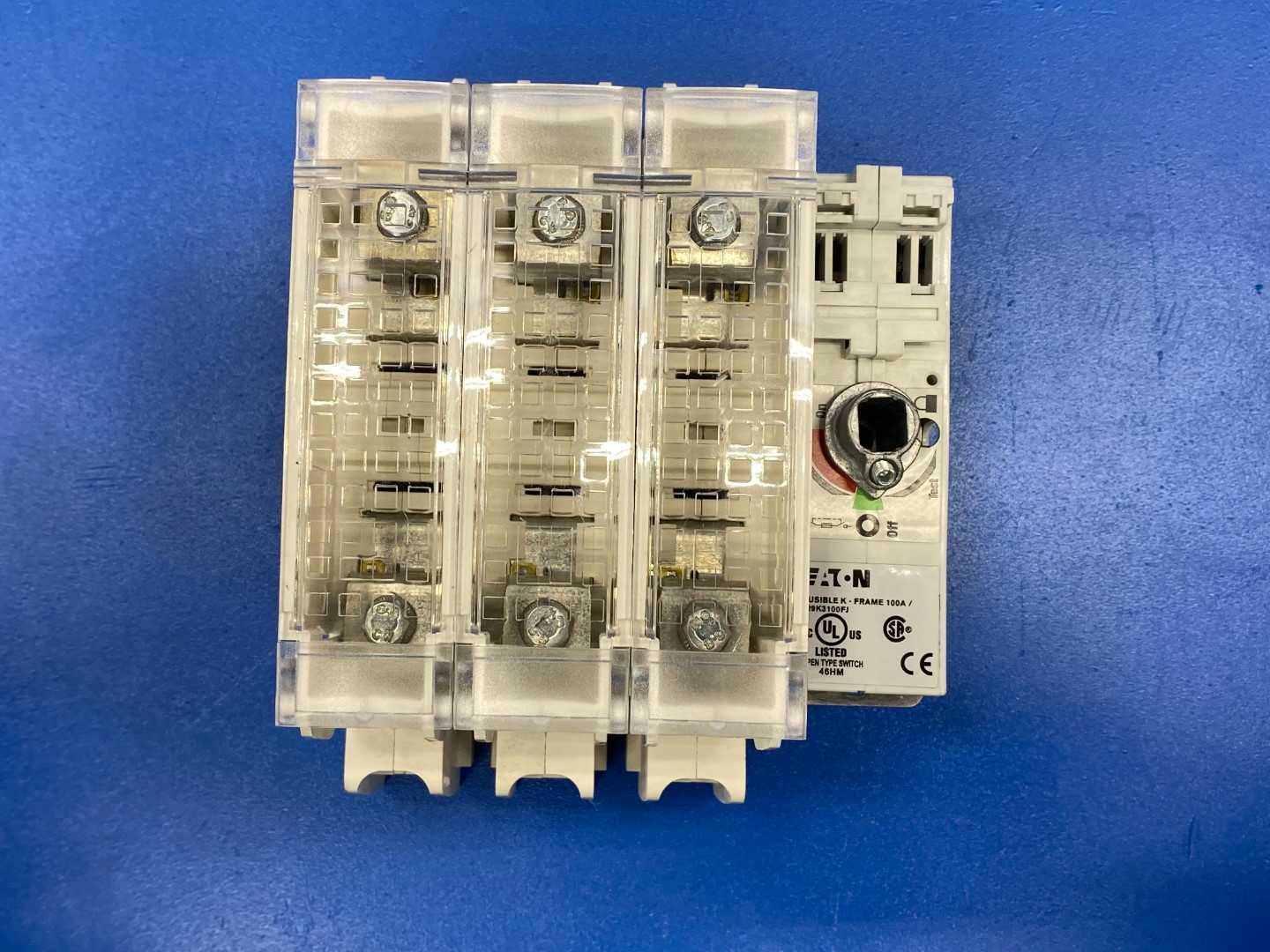

Eaton R9K3100FJ 100 Amp Rotary Disconnect Switch 600VAC 250VDC 3-Phase

The Eaton R9K3100FJ is a robust 3-Pole Switch Disconnect designed for efficient electrical isolation. Eaton, a global leader in power management solutions, developed this product to meet the increasing demand for reliable and safe disconnect switches in various industries. This switch is primarily used in industrial and commercial applications where the need for a secure method to disconnect electrical power is critical. It provides a safe means to isolate equipment for maintenance and repairs. With a rated current of 100 amps, the Eaton R9K3100FJ can handle significant electrical loads, making it suitable for a wide range of applications including manufacturing, HVAC, and utility operations. Key features of the Eaton R9K3100FJ include: - Three-pole design for effective isolation of three-phase circuits - Durability to withstand harsh environments - Easy mounting options for quick installation - Clear visibility of switch position for operational safety Overall, the Eaton R9K3100FJ combines functional reliability with advanced engineering to serve industries requiring safe and effective electrical disconnection.

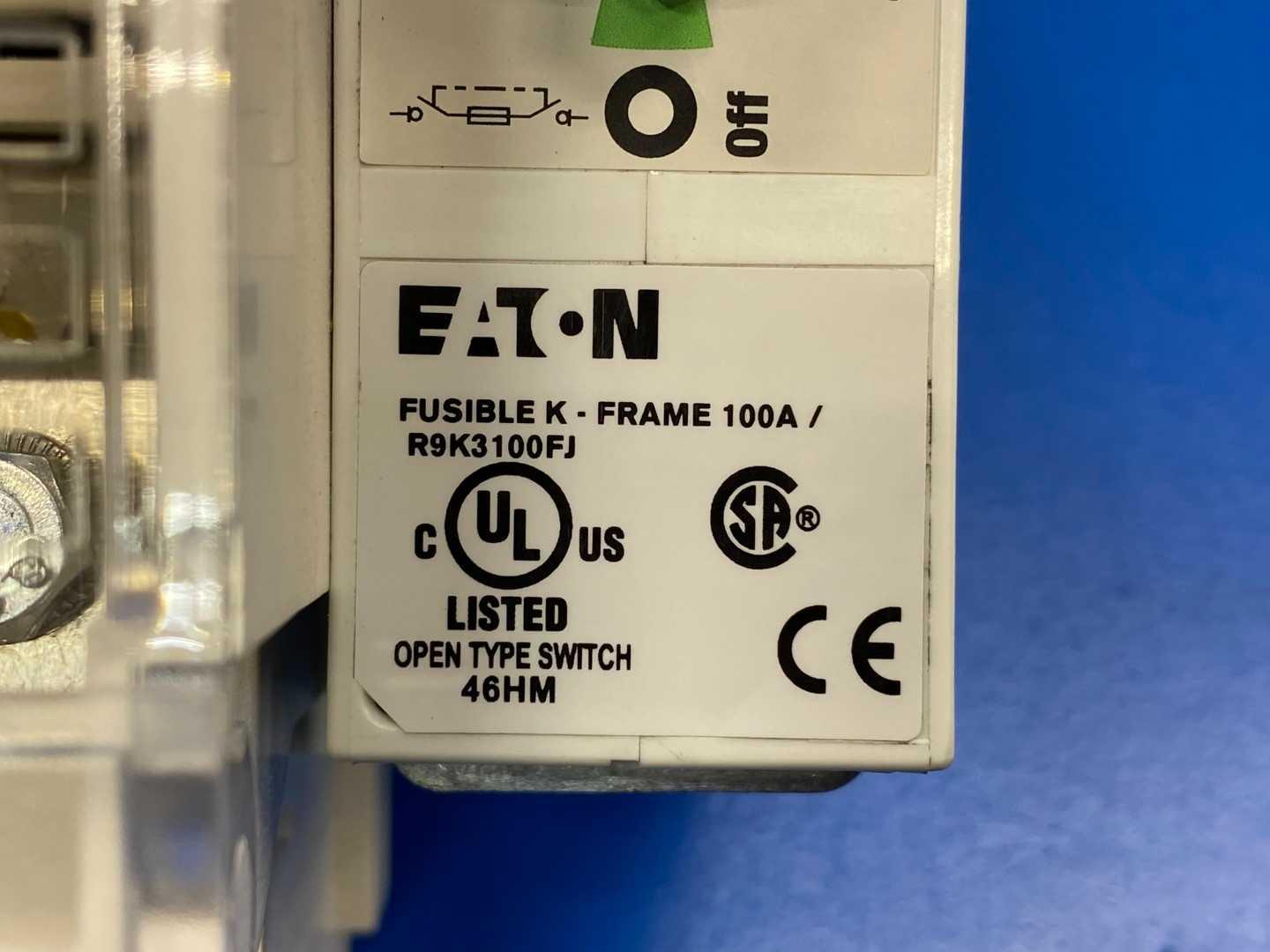

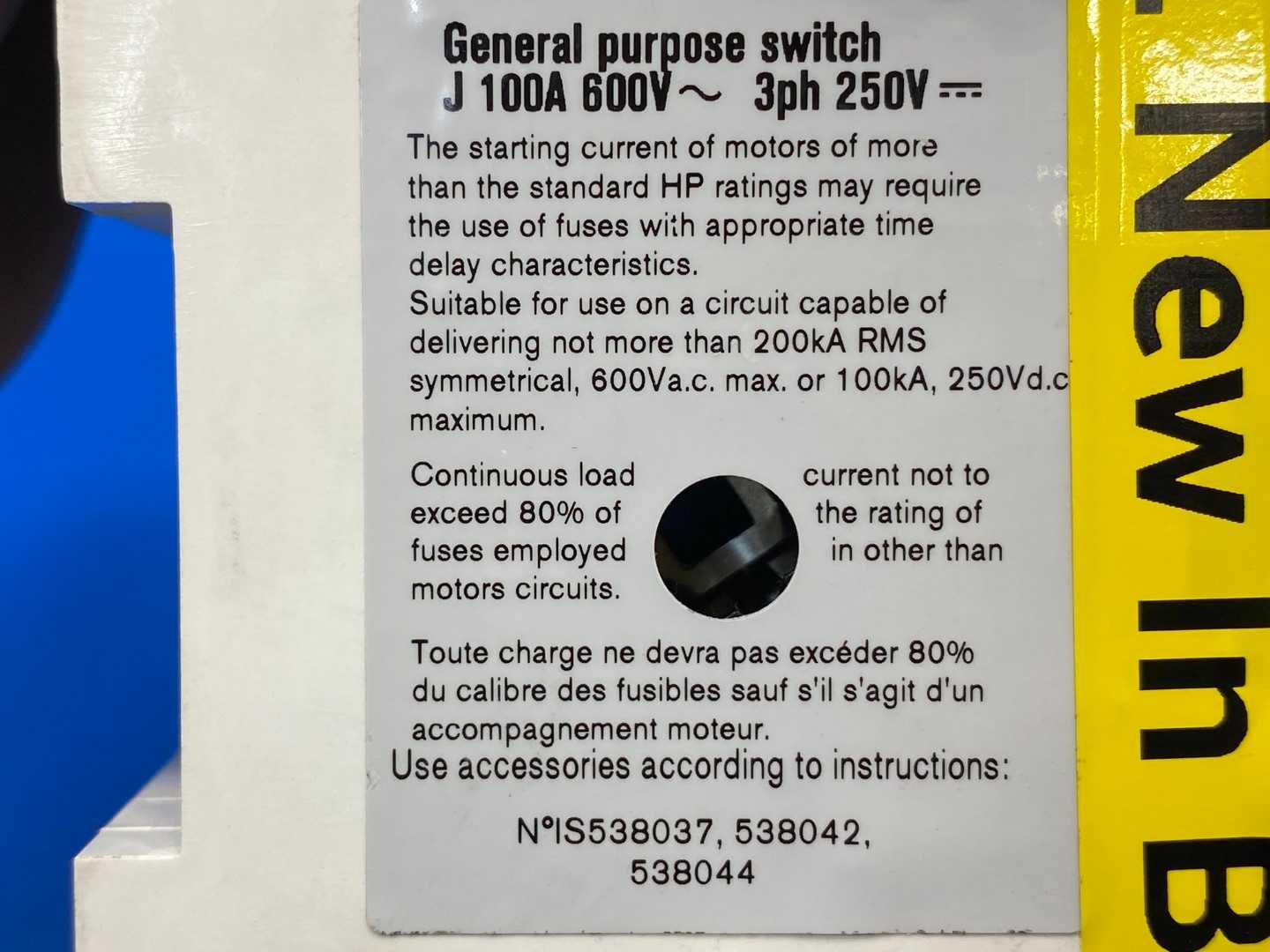

Manufacturer: Eaton (Cutler-Hammer) Catalog Number: R9K3100FJ Product: K-Frame fusible rotary disconnect switch PUBLISHED RATINGS Current Rating: 100 A Voltage Rating: 600 VAC Poles: 3 Frame: K-Frame Fusible: YES. This is a FUSIBLE disconnect and requires fuses to be fitted. UL Fuse Class Accepted: Class J Short Circuit Current Rating: 200 kA Standard: Built to UL98 Actuator: rotary handle Terminals: lug terminals Contact Design: double break contacts, giving complete fuse isolation when the switch is in the OFF position Dimensions as catalogued: 4.81 in. L x 5.78 in. W x 7.32 in. H FUSIBLE, NOT NON-FUSIBLE - FLAGGED: this record's title describes the item only as a "100 Amp Rotary Disconnect Switch". The catalogue number R9K3100FJ is the FUSIBLE version taking Class J fuses; the trailing FJ denotes the J-fuse build. A buyer expecting a non-fusible switch would be getting the wrong device, and the fuses are a separate item. The title also lists 250VDC; Eaton's catalogue entry states the 600 VAC rating, and a DC rating is not confirmed from the manufacturer source, so no DC figure is asserted here. MOUNTING, UNRESOLVED: authorised distributor listings for this catalogue number disagree on the mounting method, one giving DIN rail mount and another giving panel mount. Eaton's own specification page could not be retrieved to settle it, so no mounting method is stated here. Confirm against the unit and against Eaton's specification sheet before it is quoted into a panel design. UNPUBLISHED / NOT STATED HERE: weight, the DC voltage rating, enclosure or open-construction detail, and the shaft and handle accessories required to complete a door-mounted installation. These are ordered separately in the R9K range and are not stated on the sources consulted. Spec Basis: Eaton SKU catalogue entry for R9K3100FJ and authorised Eaton distributor catalogue listings (RS Components, WESCO and Platt Electric Supply) for the current and voltage ratings, pole count, K-Frame designation, Class J fusing, 200 kA short circuit rating, UL98 standard, rotary handle actuator, lug terminals, double break contact design and catalogued dimensions. Conflicting mounting descriptions are reported rather than resolved by guesswork.
