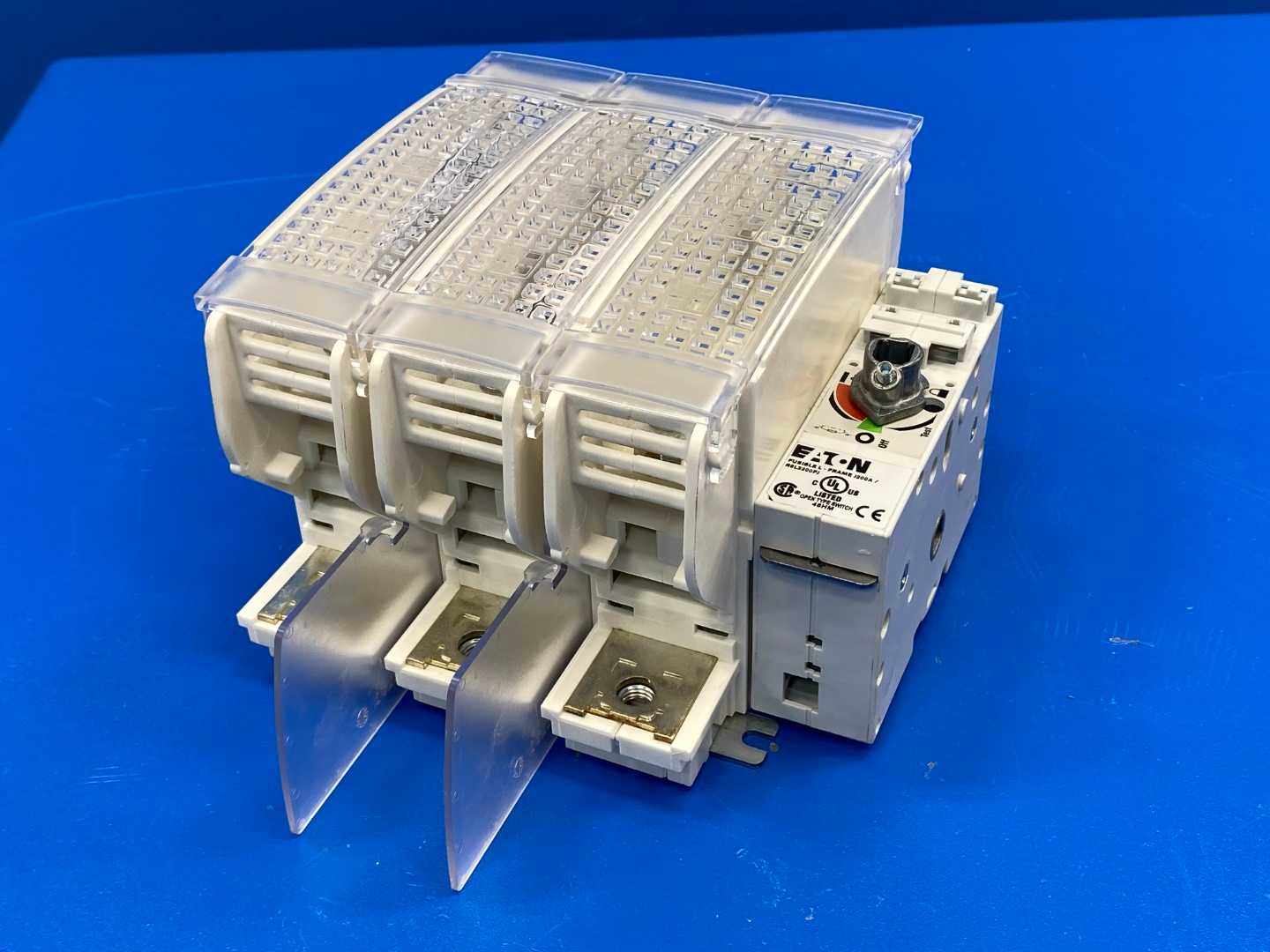

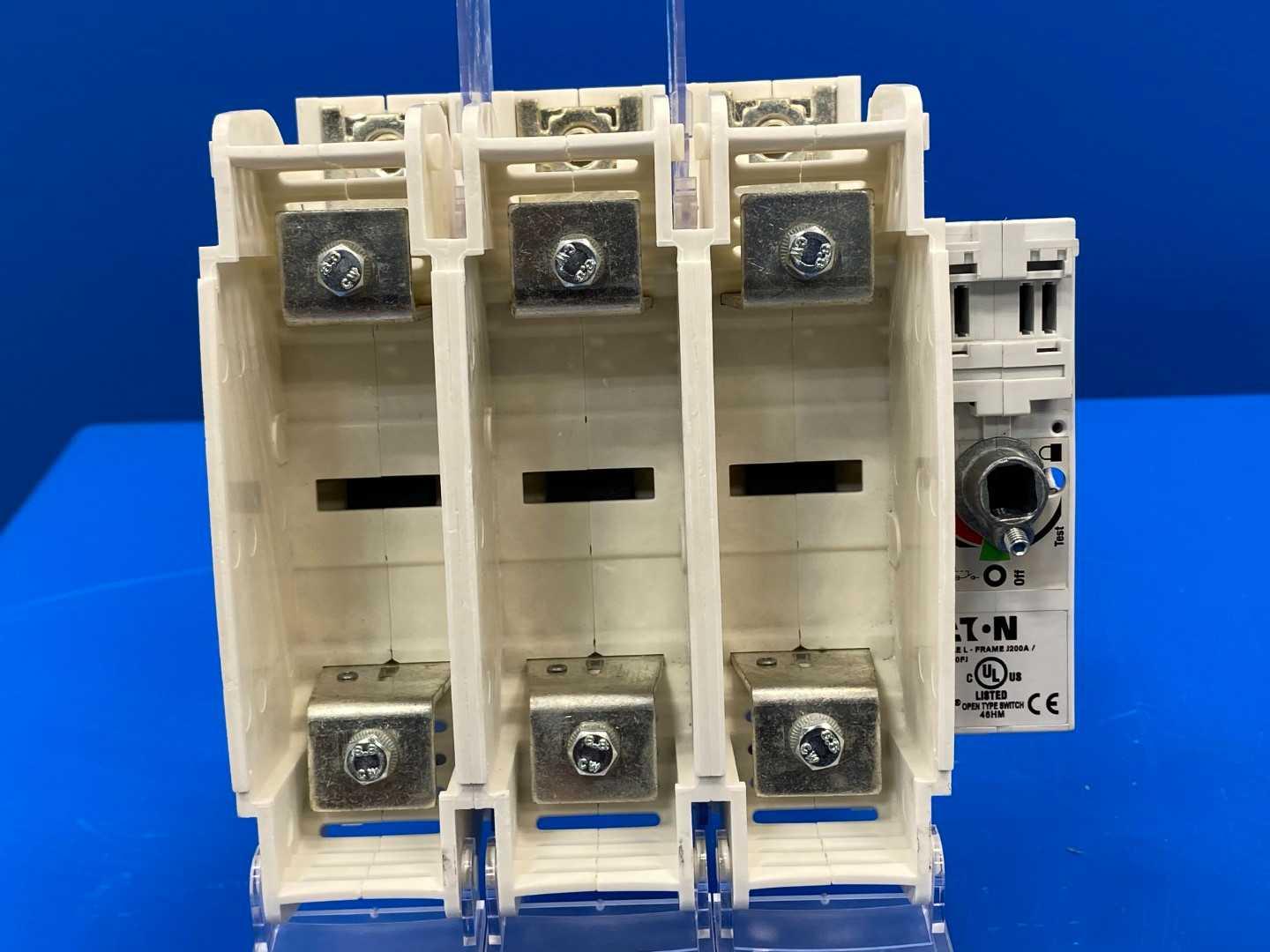

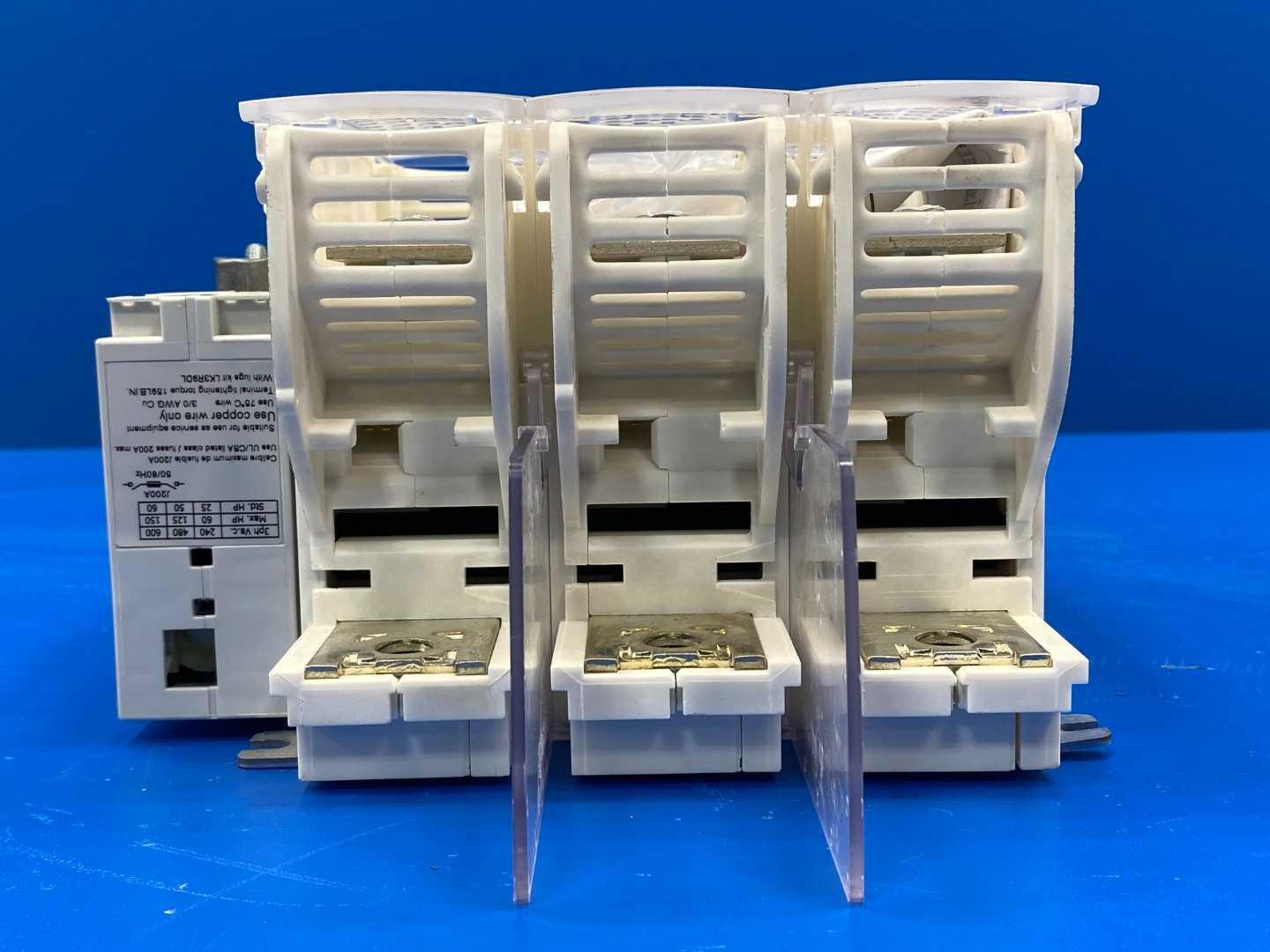

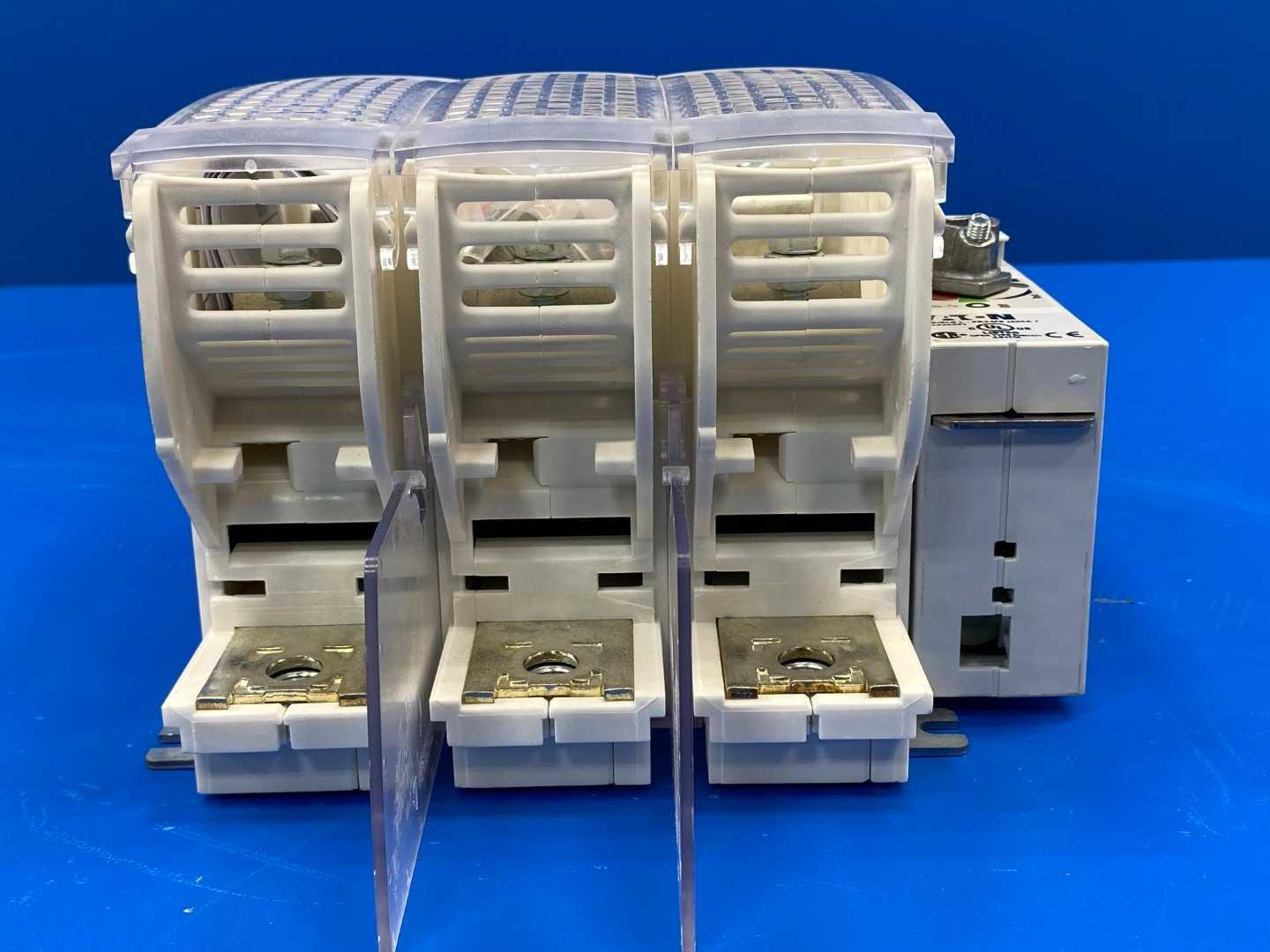

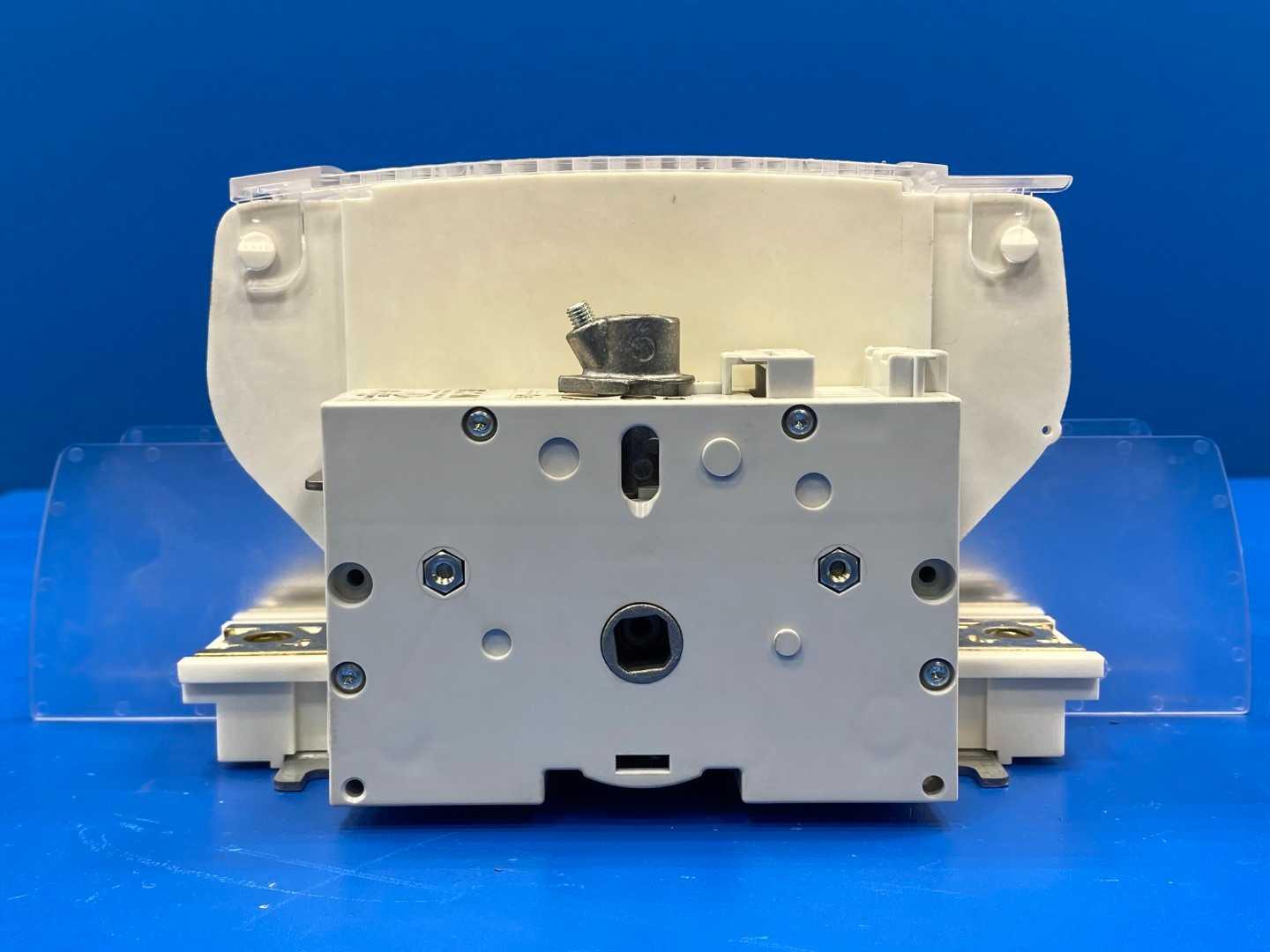

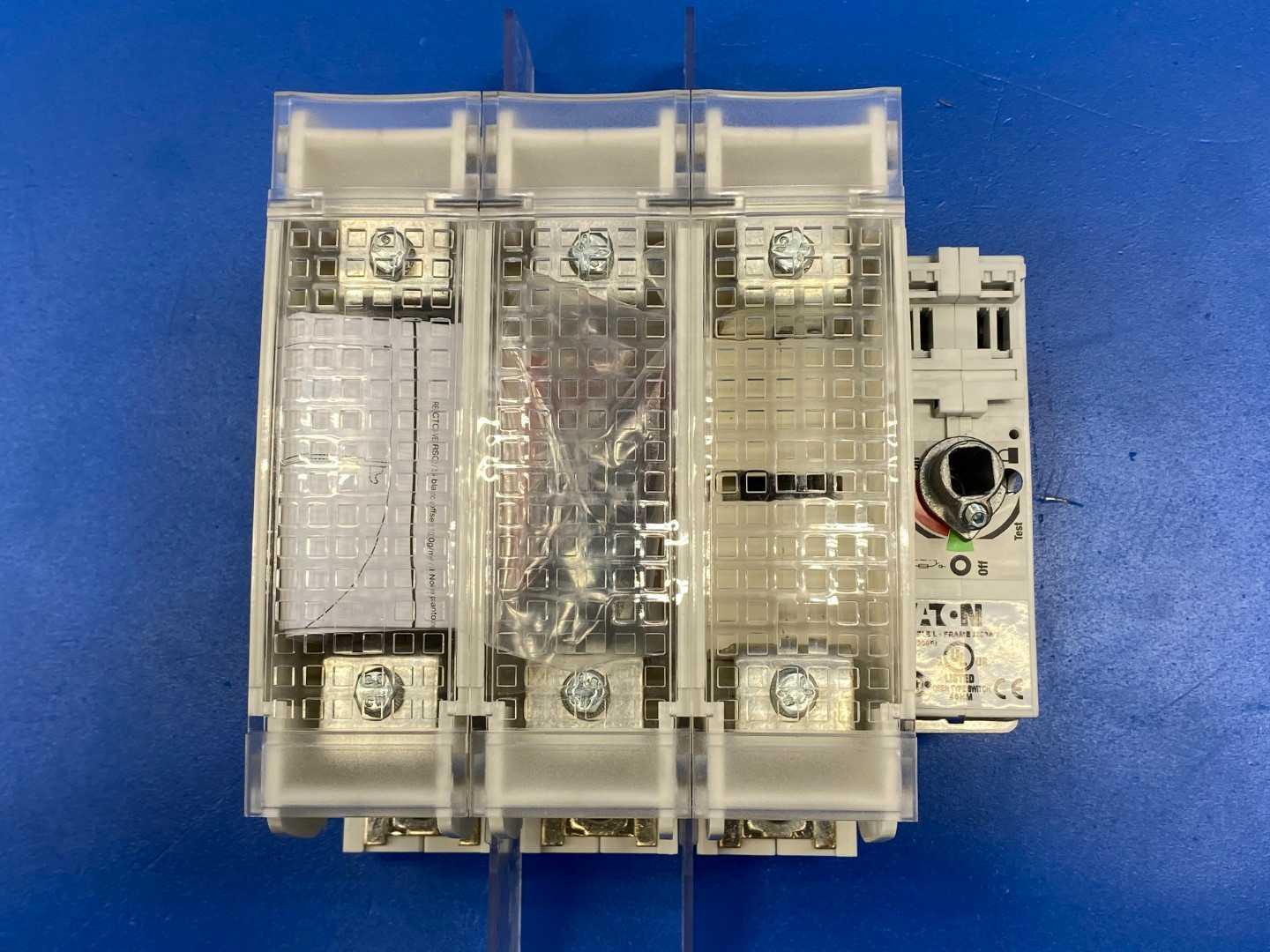

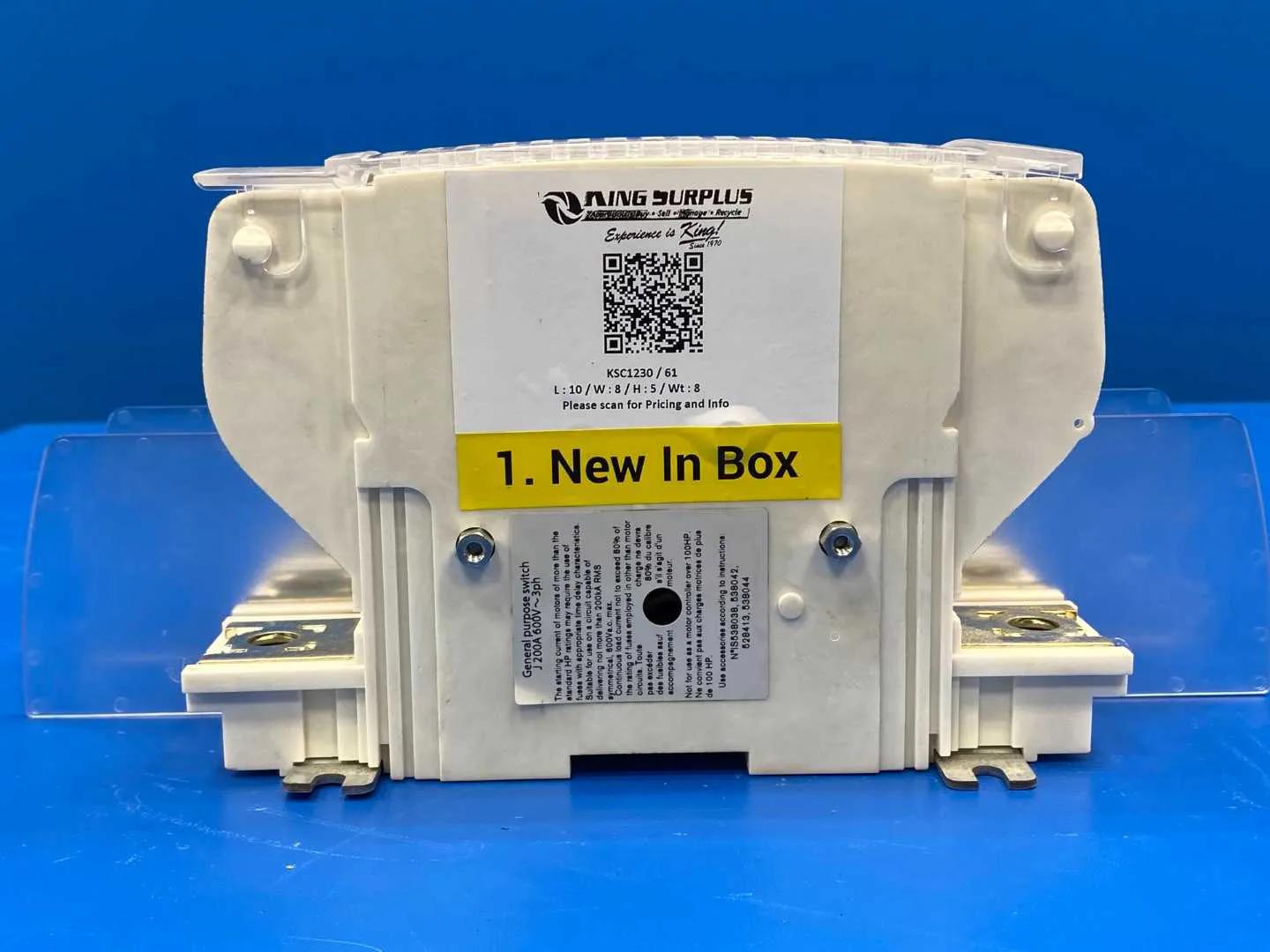

Eaton R9L3200FJ 200 Amp Rotary Disconnect Switch Frame L 600V 3 Phase

Verified from the unit's own nameplate

• Manufacturer: EATON
• Model: R9L3200FJ

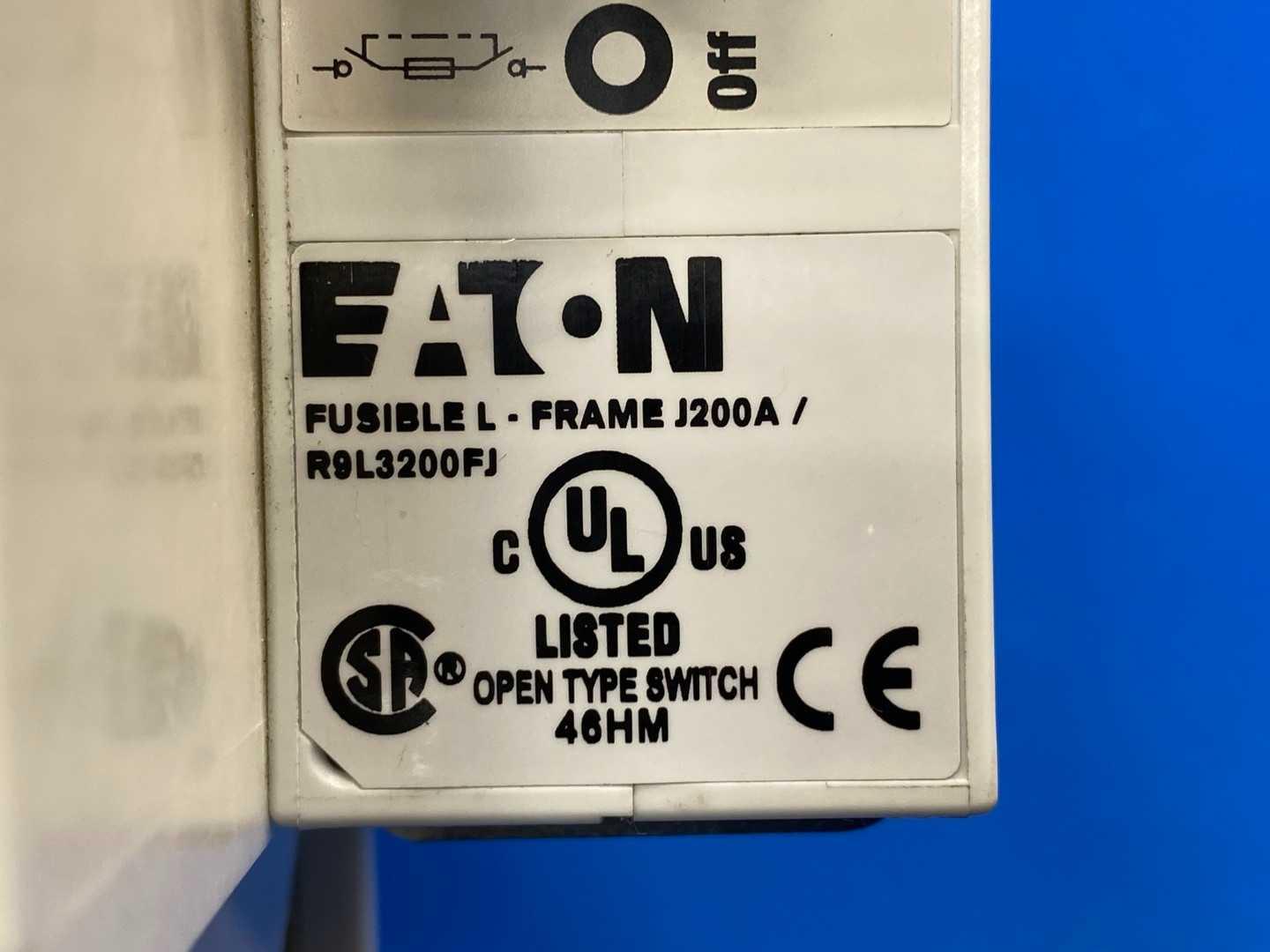

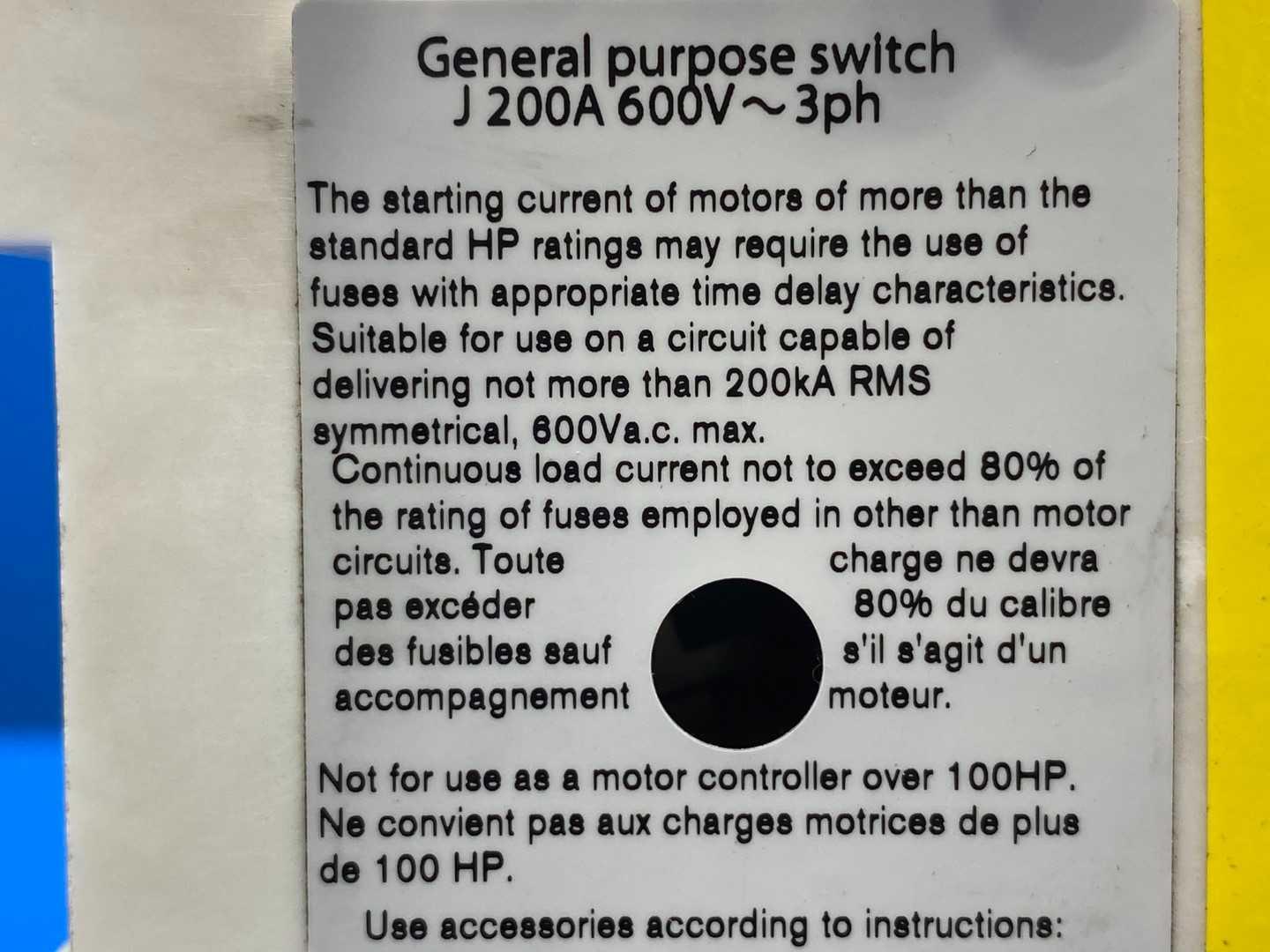

• Type: Fusible rotary disconnect switch, L-frame. Nameplate reads "FUSIBLE L - FRAME J200A".
• Fuse class / frame: J, 200 A
• Rating: J 200A 600V ~ 3ph
• Switch classification: General purpose switch
• Markings: C UL US LISTED; CSA OPEN TYPE SWITCH; 46HM; CE
• Short circuit rating: suitable for use on a circuit capable of delivering not more than 200kA RMS symmetrical, 600V a.c. max
• Nameplate cautions, verbatim in substance: the starting current of motors of more than the standard HP ratings may require fuses with appropriate time delay characteristics; continuous load current not to exceed 80% of the rating of fuses employed in other than motor circuits; not for use as a motor controller over 100HP; use accessories according to instructions.
• Serial: M9F42305, per this record's Serial Number field (FID 58). No serial number is visible on the nameplate in any photograph.
• Frequency: 50/60 Hz, per this record's HP / AMP / KW / KVA field (FID 60). A frequency line is not legible on the nameplate.

Claims from the prior entry that this pass could NOT confirm - none of the following appears in the nameplate text readable in the photographs. They are recorded as unconfirmed, not as specifications, and should be checked against the Eaton catalogue sheet for R9L3200FJ before any of them is relied on.

• Horsepower ratings of 240V 25/60 HP, 480V 50/125 HP, 600V 60/150 HP. Note that the 600V 150 HP figure sits awkwardly against the nameplate's own caution that the switch is not for use as a motor controller over 100HP.
• Copper-only wire, 3/0 AWG 75 C, terminal torque 156 lb-in, lug kit LK3R6DL

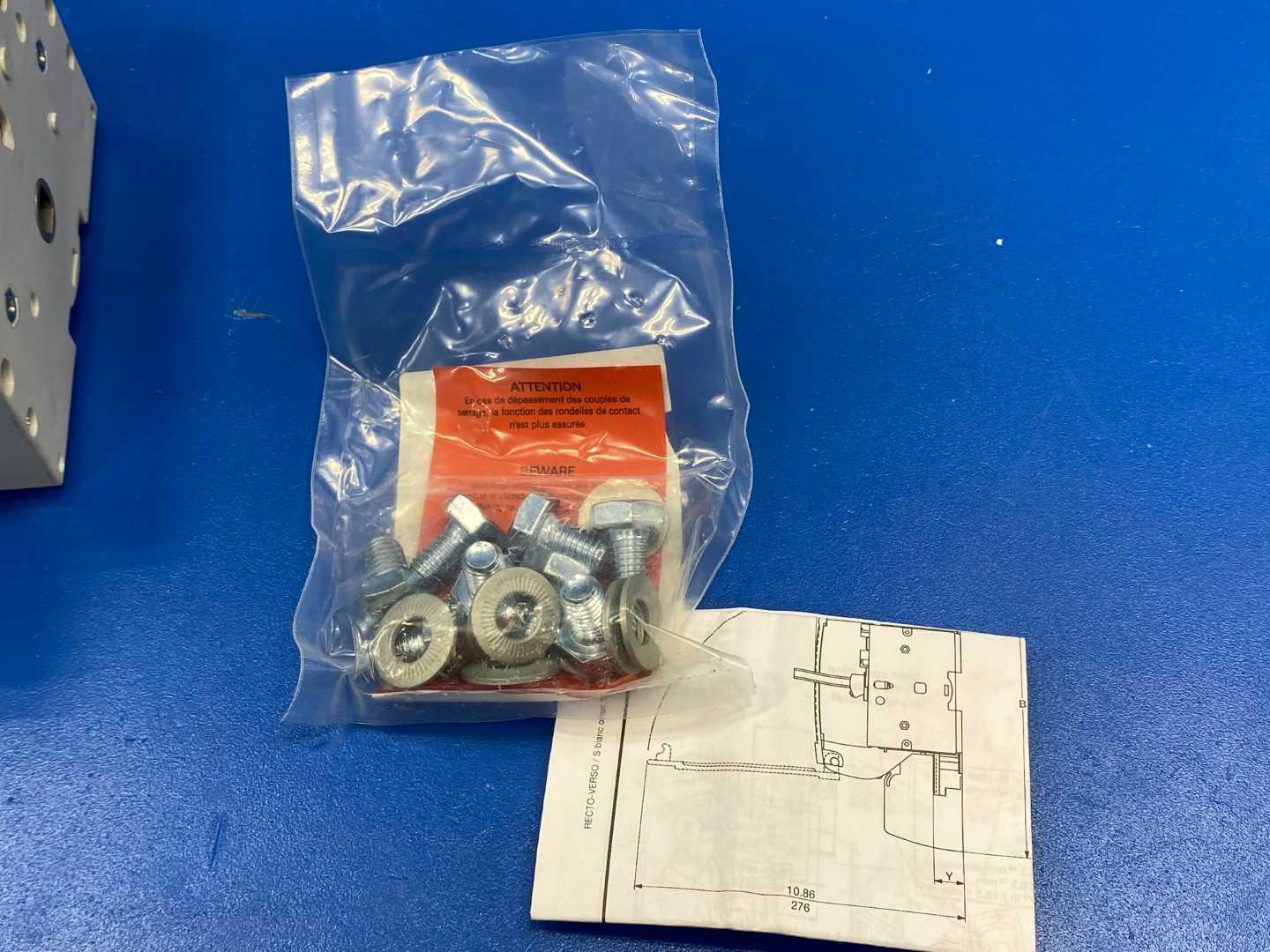

• Accessory numbers N 1538038, 538042, 528413, 538044. The nameplate does carry an accessories instruction line, but the numbers following it are not legible in the photographs.

Spec Basis: Verified 2026-09-16 against this unit's own nameplate photographs (Eaton data plate, KSC record 12899), cross-checked against Manufacturer (FID 56), Model (FID 57), Voltage (FID 61), Phase (FID 63) and Amps (FID 66), all of which agree with the plate. One claim was taken out rather than reclassified: the prior entry listed the switch as "suitable for use as service equipment". That is a specific UL designation, it is not on the nameplate, and the nameplate instead classifies this unit as a General purpose switch. A buyer relying on a service-equipment rating that the unit does not carry is a safety matter, so that claim is gone and is not to be restored without the Eaton catalogue sheet in hand. The prior entry's "Dimensions: 10 x 8 x 5 in" and "Weight: 8 lb" were a copy of our own shipping measurements (FIDs 77, 78, 79, 80), not factory specifications.
