Eaton XTCE040D00T 40A 3-Pole IEC Contactor, Frame D, FVNR, 24V 50/60Hz Coil (DILM40)
Eaton XTCE040D00T 40A 3-Pole IEC Contactor, Frame D, FVNR, 24V 50/60Hz Coil (DILM40)

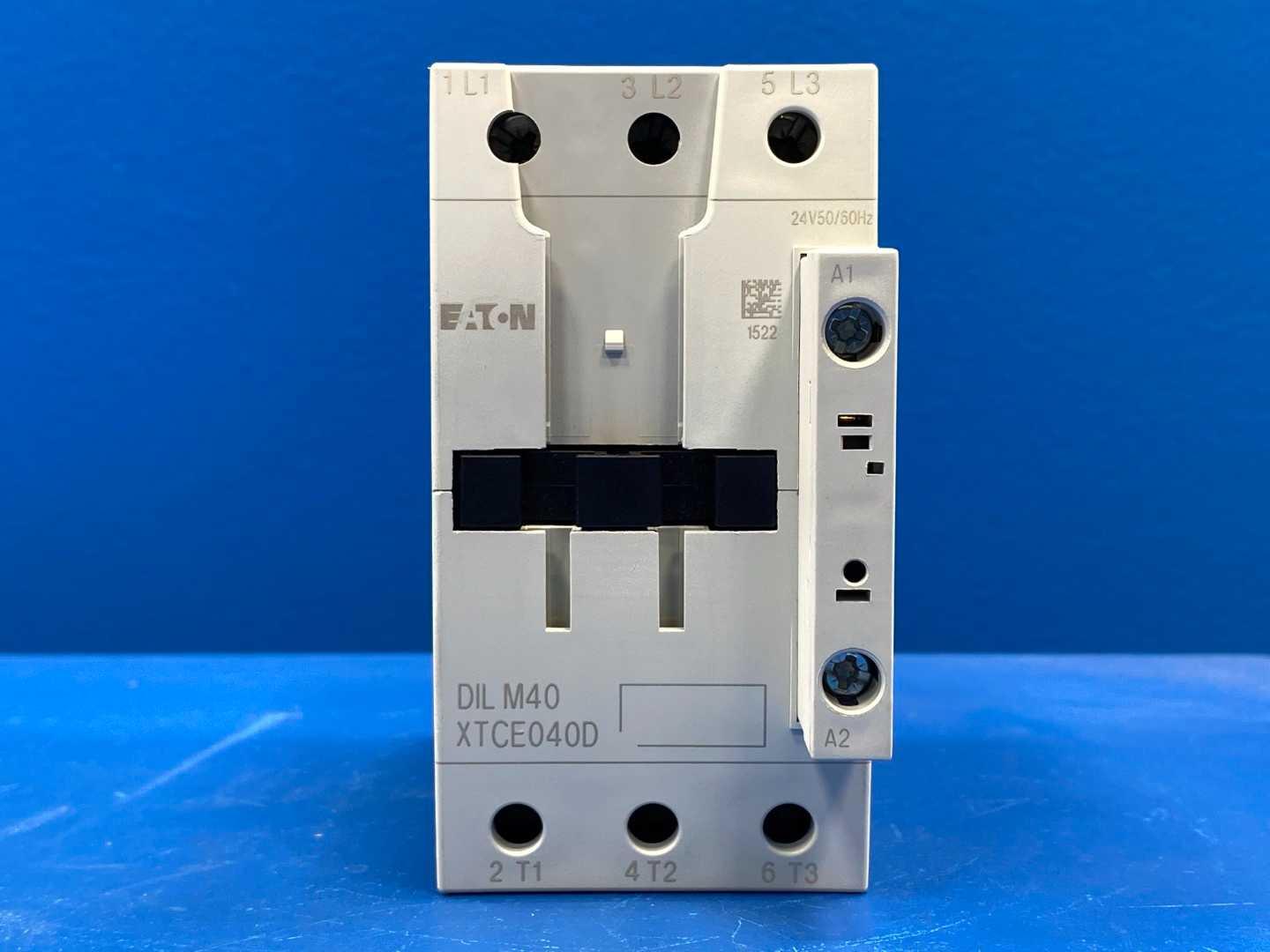

Eaton XTCE040D00T 40A 3-Pole IEC Contactor - New In Box
Frame D FVNR Specs: 24V 50/60Hz Coil, 40A AC-3, Screw Terminals
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | XTCE040D00T |
| Condition | New |
| Manufacturer | Eaton |
| Asset Number | KSC1230 / 218 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$104.00
Basic Information
Asset #
KSC1230 / 218
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

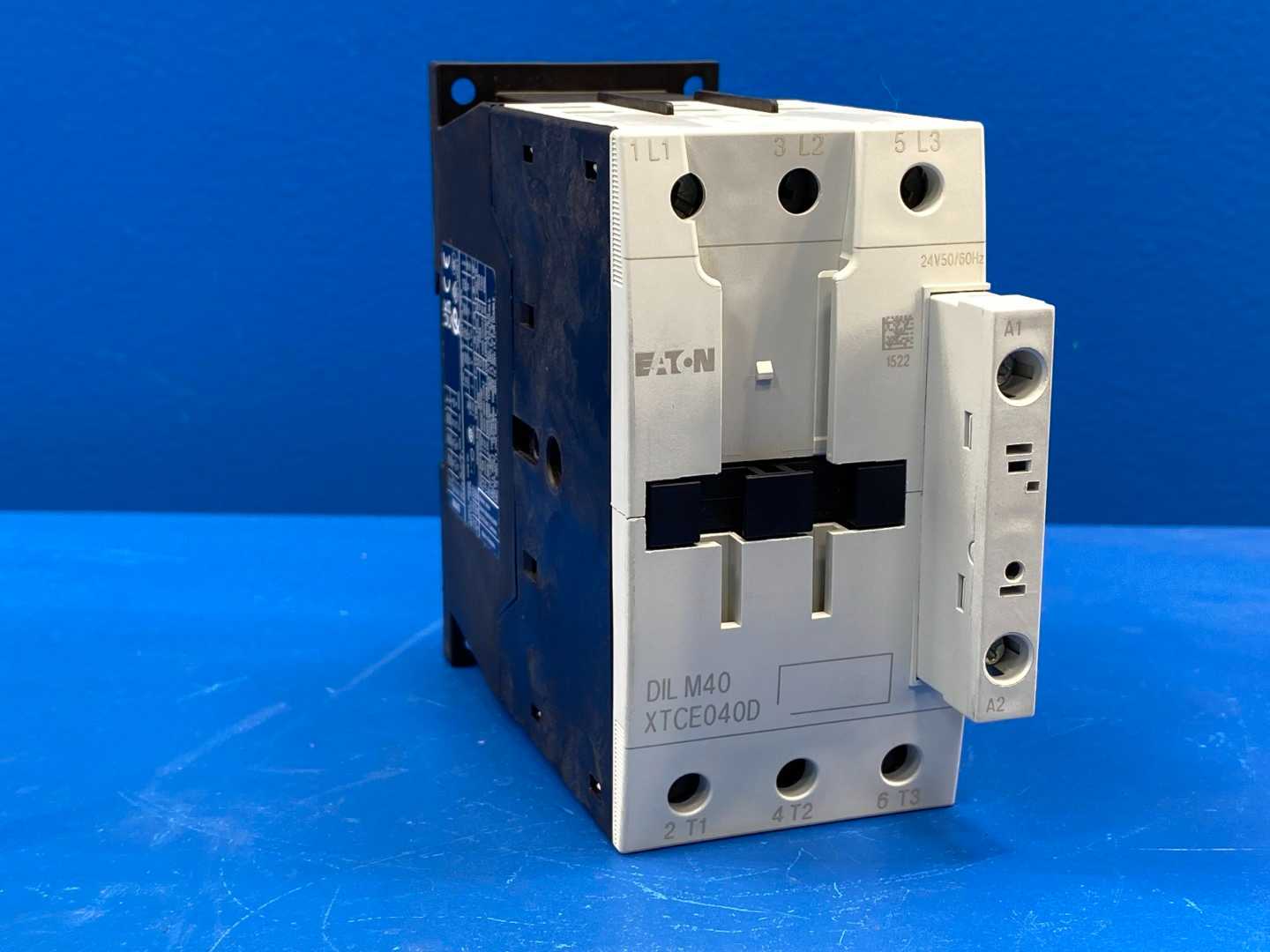

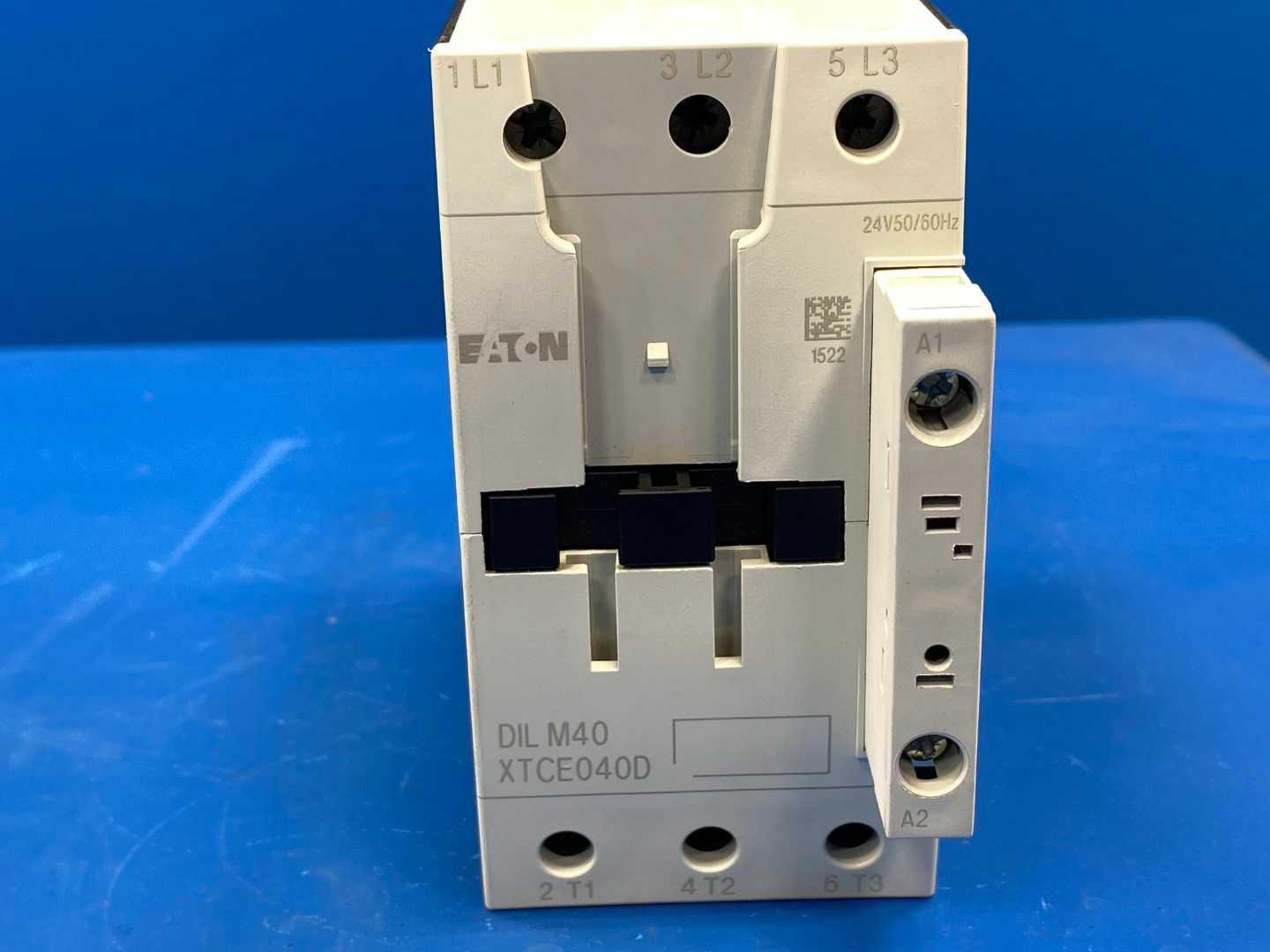

The Eaton XTCE040D00T is a 40 amp (AC-3), 3-pole IEC full-voltage non-reversing contactor in the Frame D, XT Series (legacy Moeller DILM40). It carries a 24V 50/60Hz AC control coil with screw terminals and a 0NO-0NC auxiliary configuration. Rated 18.5 kW at 400V, it switches motor loads to 15 HP at 230V and 30 HP at 460V three-phase, and accepts front- and side-mounted auxiliary contact blocks plus an XTOB overload relay to form a complete starter. Built to IEC, UL, CSA and CE standards for industrial motor control in manufacturing, HVAC and process applications. This unit is new in box. Made in Romania.
Factory Information
Manufacturer: Eaton (XT Series; legacy Moeller DILM40)
Catalog No: XTCE040D00T

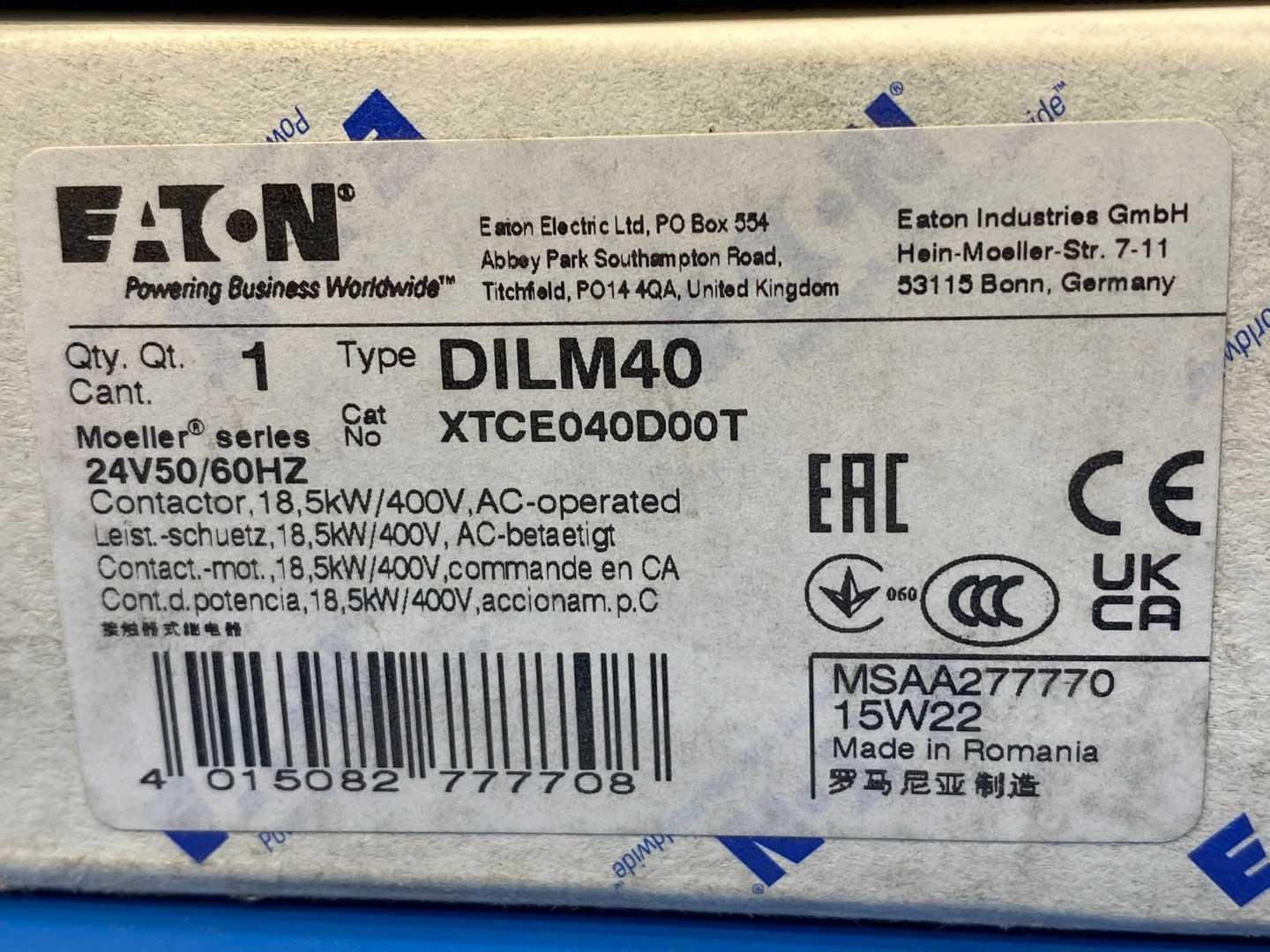

EAN: 4015082777708
Type: Full Voltage Non-Reversing (FVNR), IEC contactor
Poles: 3
Rated Current: 40A AC-3 (63A AC-1)
Power Rating: 18.5 kW at 400V; 15 HP at 230V, 30 HP at 460V (3-phase)
Coil Voltage: 24V AC, 50/60 Hz
Auxiliary Contacts: 0NO-0NC
Frame: D (55 mm)

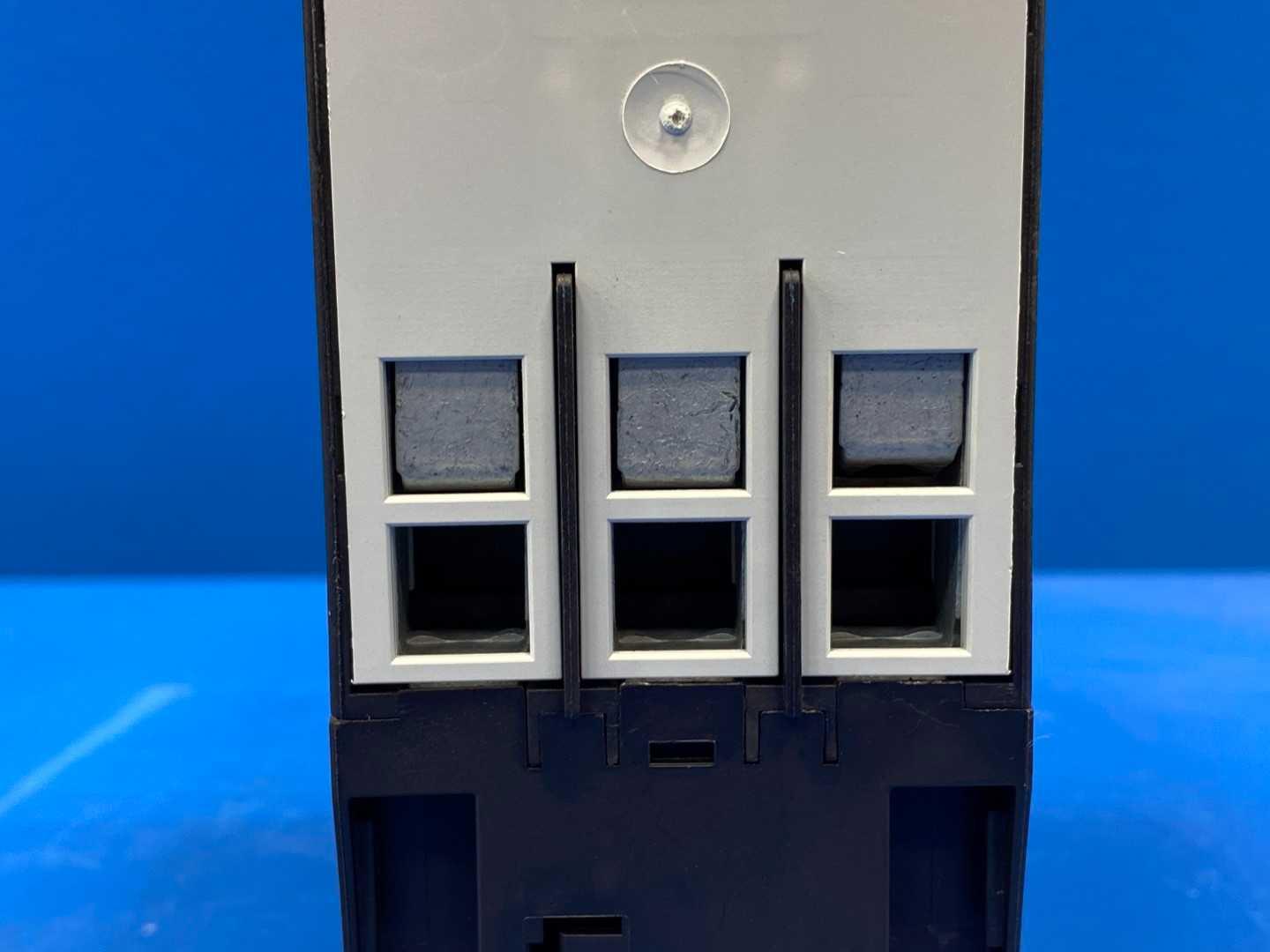

Terminals: Screw
Protection: IP20

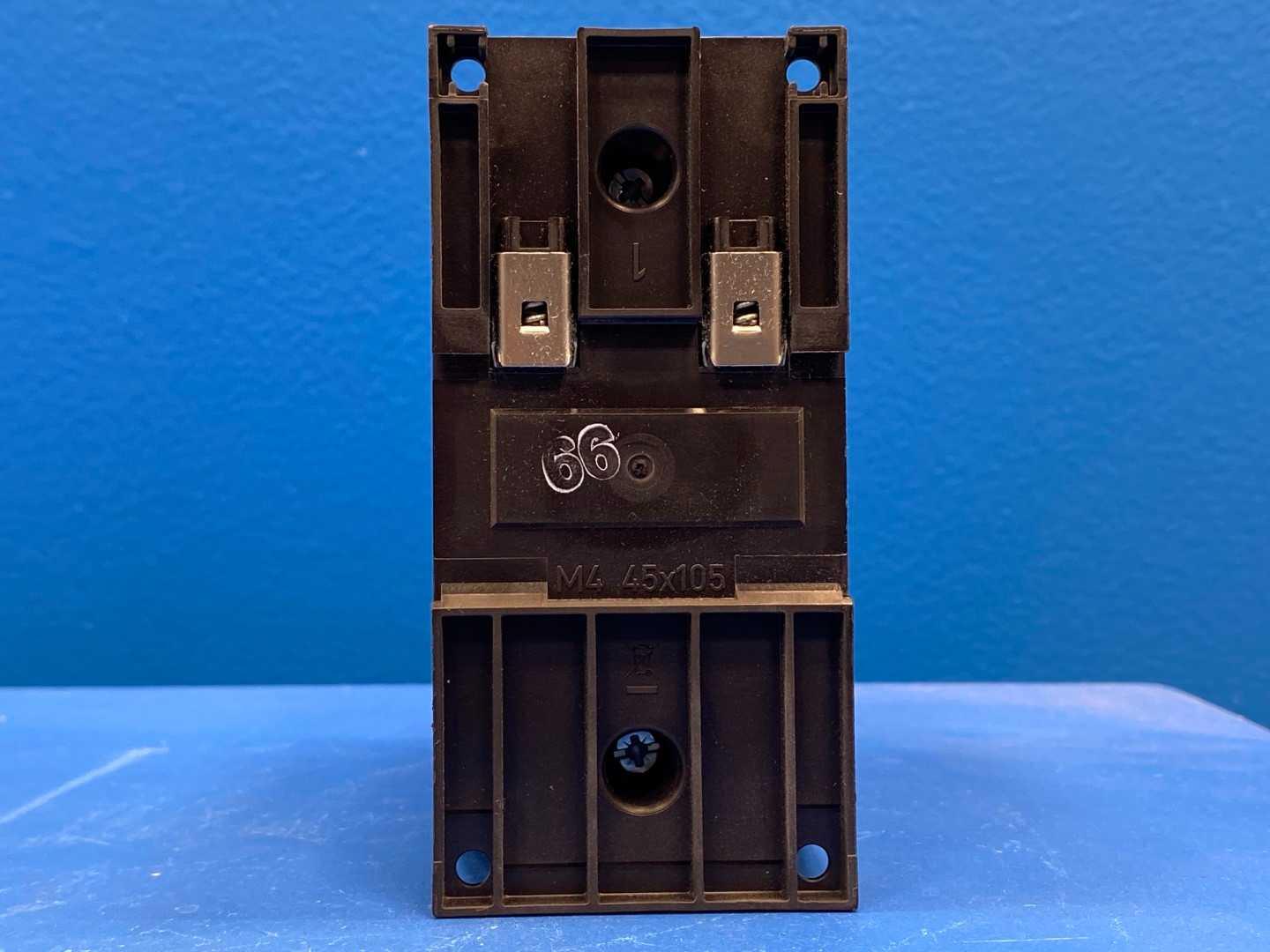

Mounting: DIN rail or panel
Approvals: UL Listed, CSA, IEC 60947, CE, RoHS
Country of Origin: Romania
Serial: 015082777708
Specifications
Eaton
XTCE040D00T
015082777708
N/A
18.5 kW / 40A AC-3 (30 HP @ 460V)
40
6
5
3
3
0
2
KSC1230 / 218
Packaging fees
1.6 6x10 CH $3.00
Payment Details
$104.00
