Ensto KSR3.1251/U 3-Pole 125A 600VAC Rotary Disconnect Switch and Motor Controller
KSR3.1251/U Disconnect Specifications: Amps, Voltage & NEMA Rating
Interchange & Panel Applications for Ensto KSR3.1251/U
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | KSR3.1251/U |
| Condition | New |
| Manufacturer | Ensto |
| Asset Number | KSC1230 / 1177 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$89.95
Basic Information
Asset #
KSC1230 / 1177
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

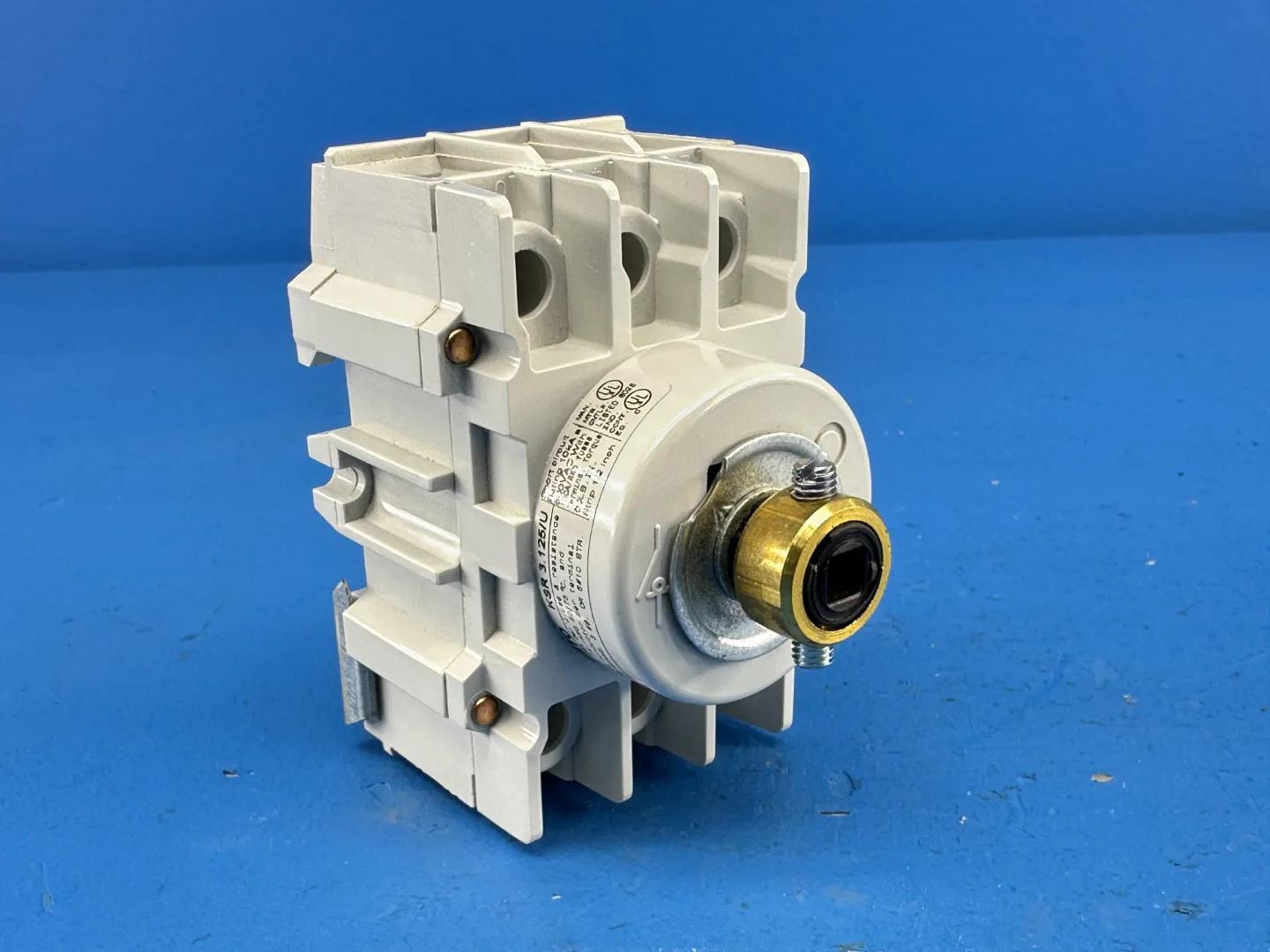

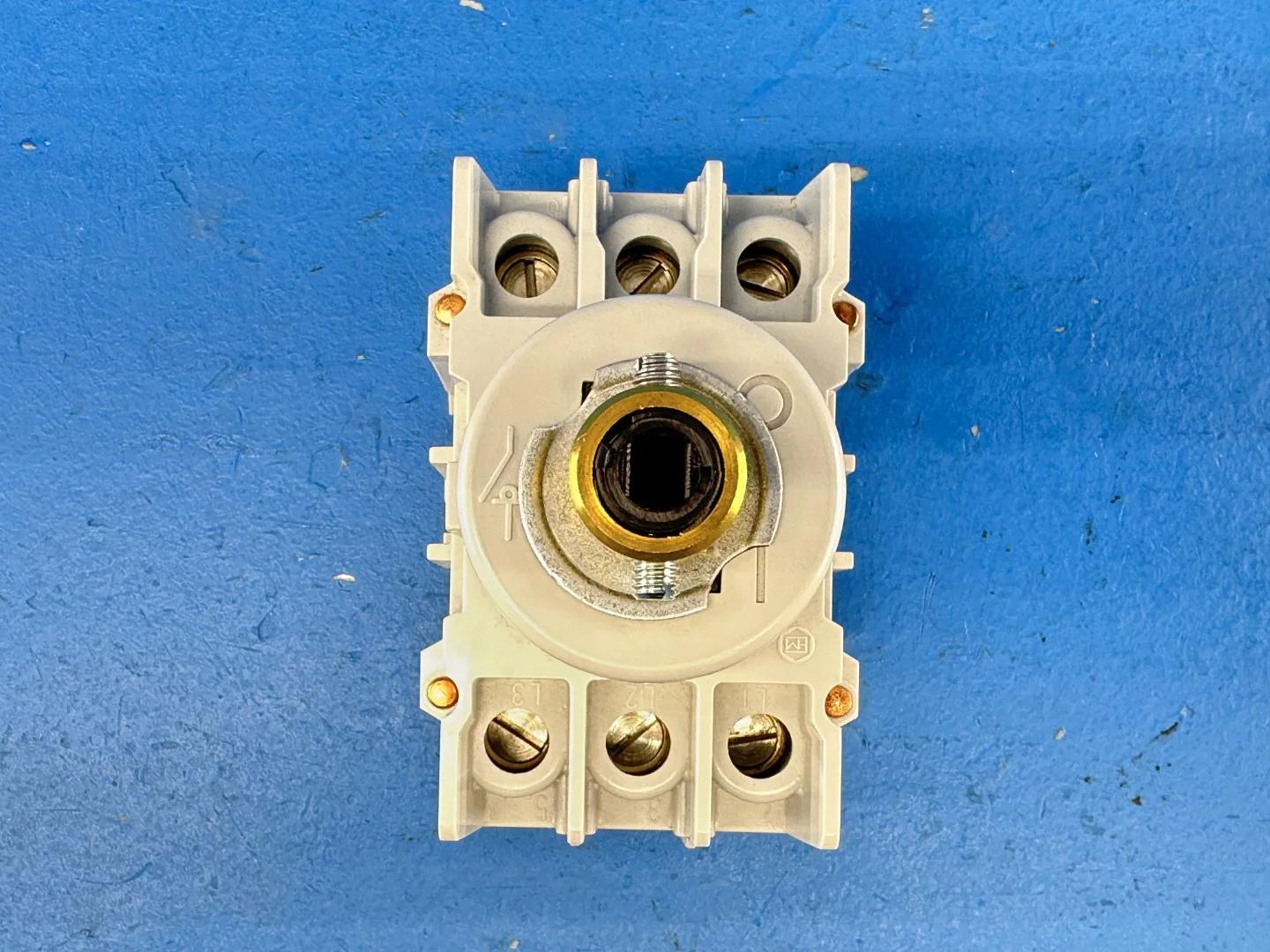

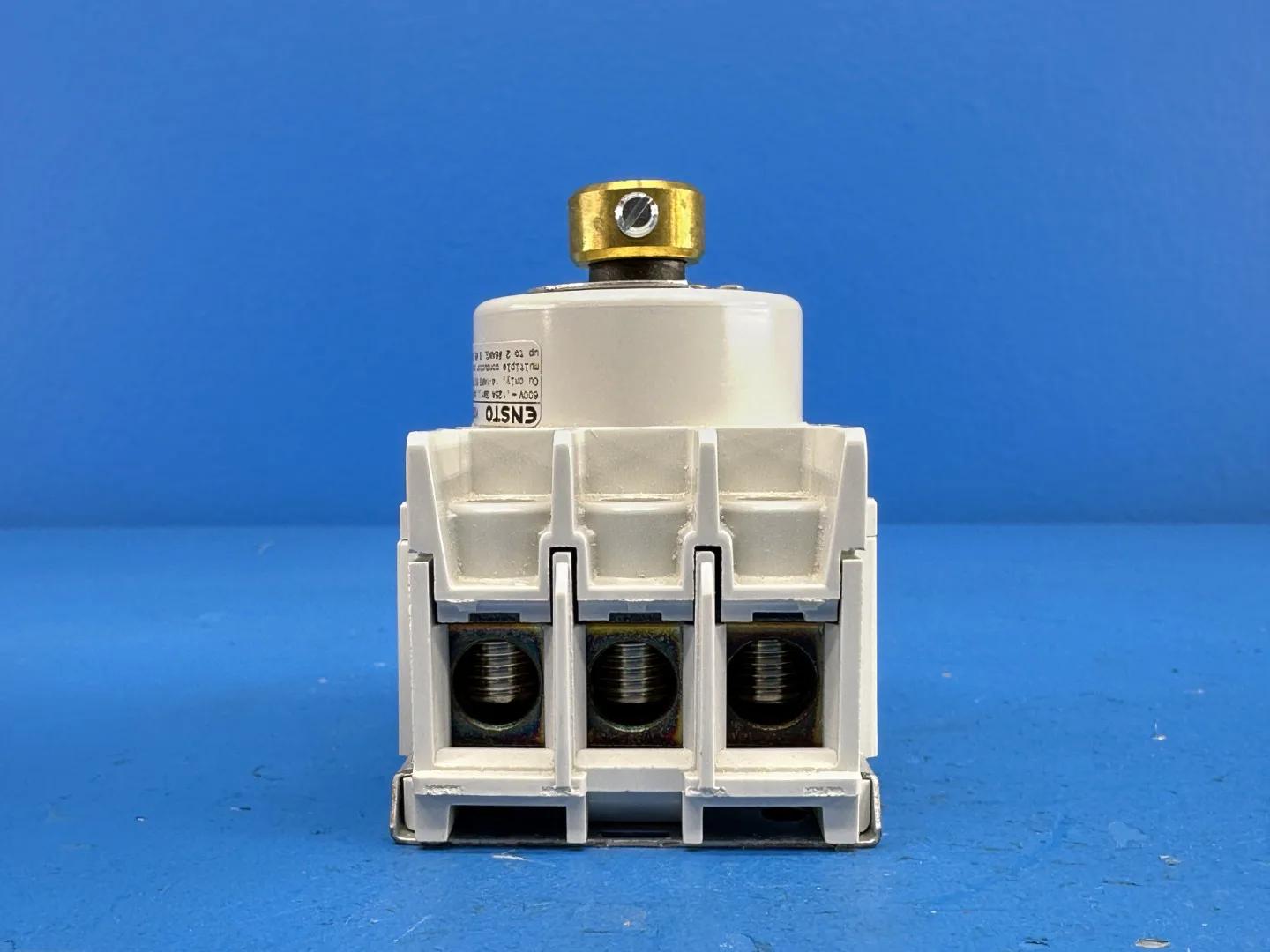

Ensto KSR3.1251/U three-pole rotary disconnect switch rated 125 amps at 600 volts AC, listed for use as a switch and motor controller. The switch body is marked KSR 3.125/U and the box carries the full catalog number KSR3.1251/U, which includes the shaft collar used to couple the switch to a remote handle.
Rotary disconnects of this type isolate a machine, motor or control panel from its supply so it can be locked out for service. The switch mounts inside an enclosure or on a DIN or base plate, and an external handle drives the square shaft through the panel door. The U suffix marks Ensto's UL/cUL version for North American equipment, with ratings stated in amps, horsepower-class motor duty and AWG wire sizes rather than IEC values only.
The label gives a 10kA short circuit rating at 600VAC when protected by 150A class RK5 fuses, copper conductors from 14 to 1 AWG, and a 50 lb-in terminal torque, which is the information an electrician needs to fit it into a panel design.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: Ensto

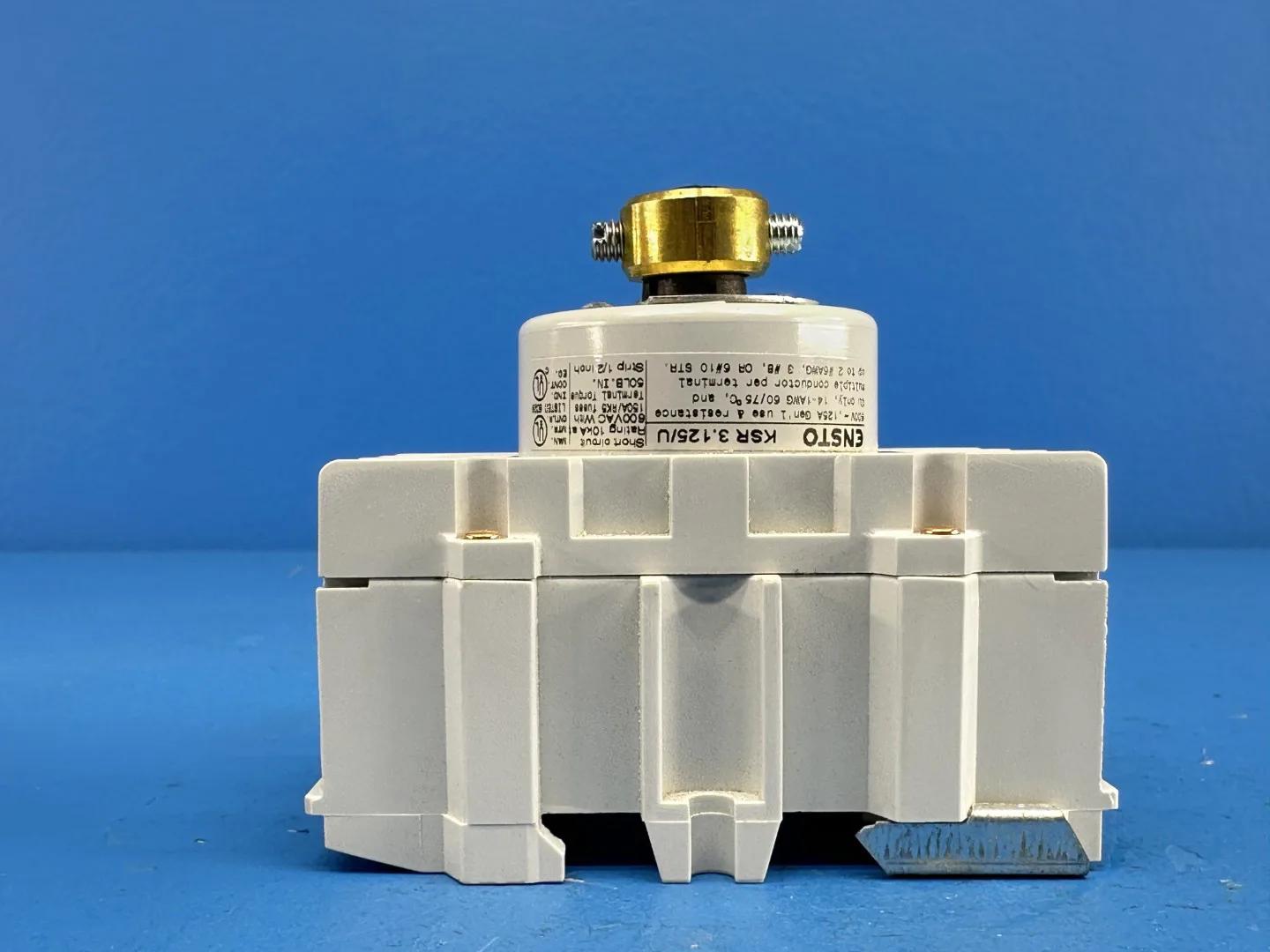

- Catalog Number: KSR3.1251/U (box label); switch body marked KSR 3.125/U
- Description (box label): KSR3.125/U, 125A switch and Motor Controller, Rotary 3 pole, 600 VAC, with collar
- Poles: 3

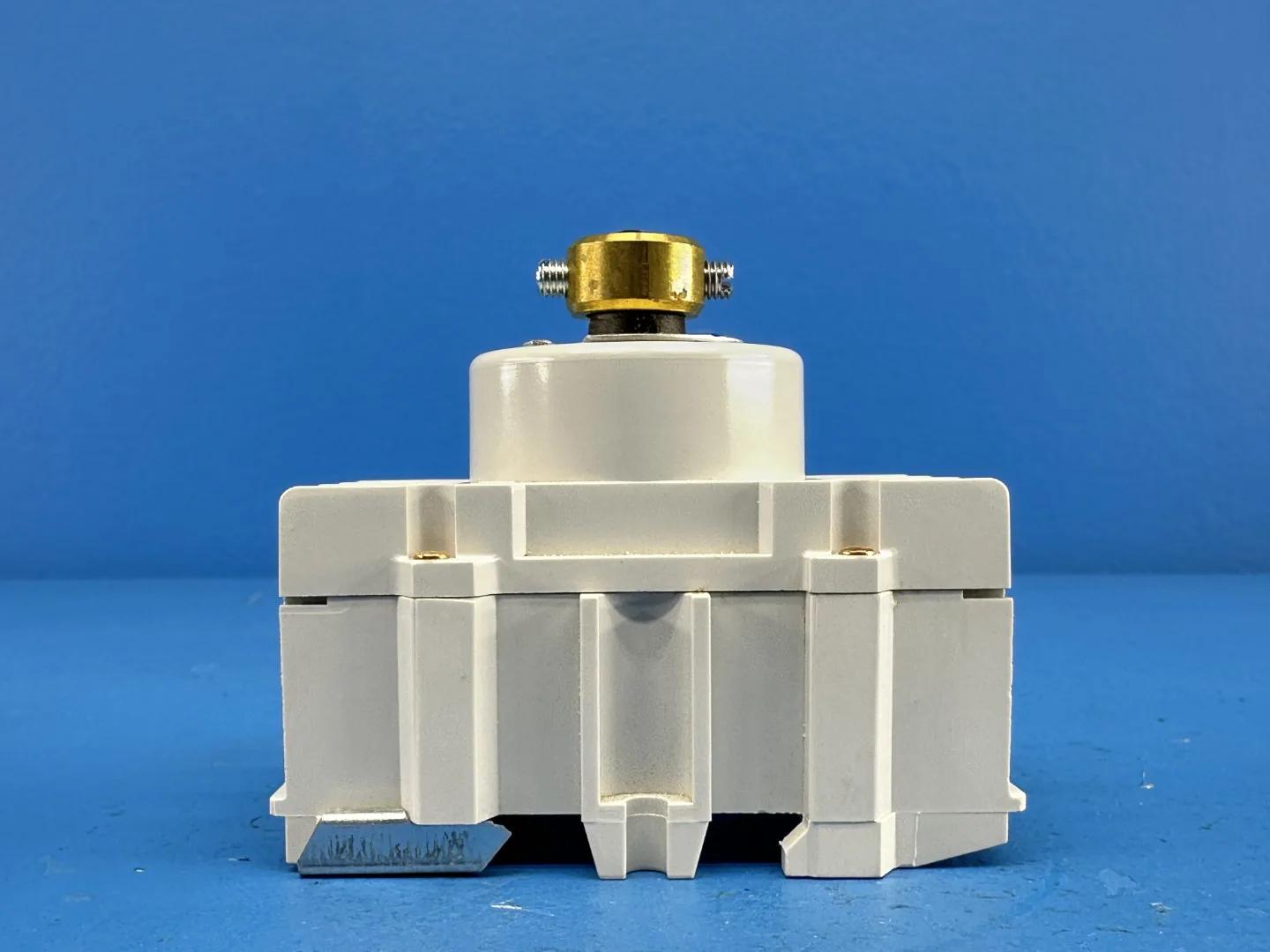

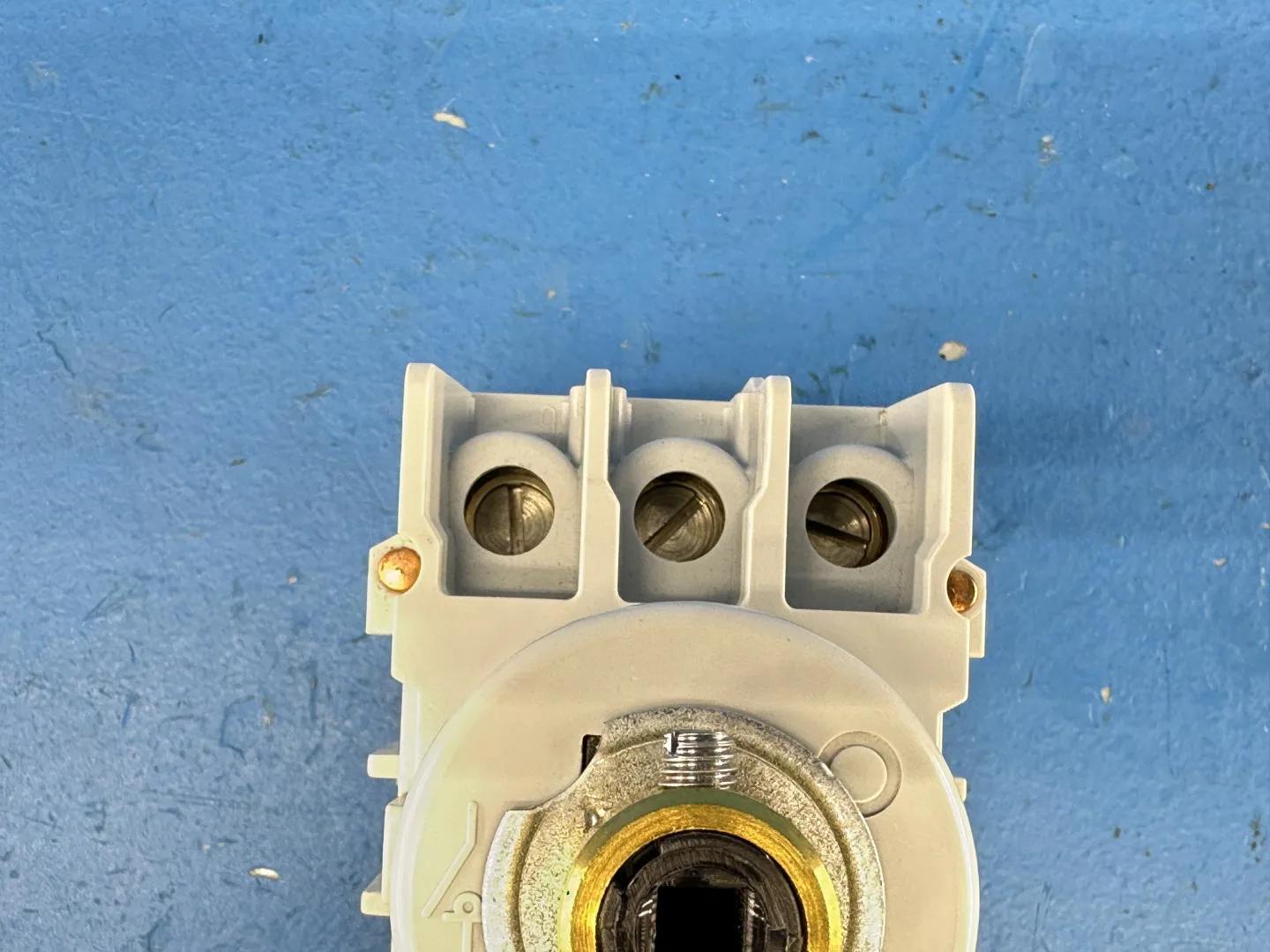

- Operation: rotary, shaft-operated, supplied with a brass shaft collar

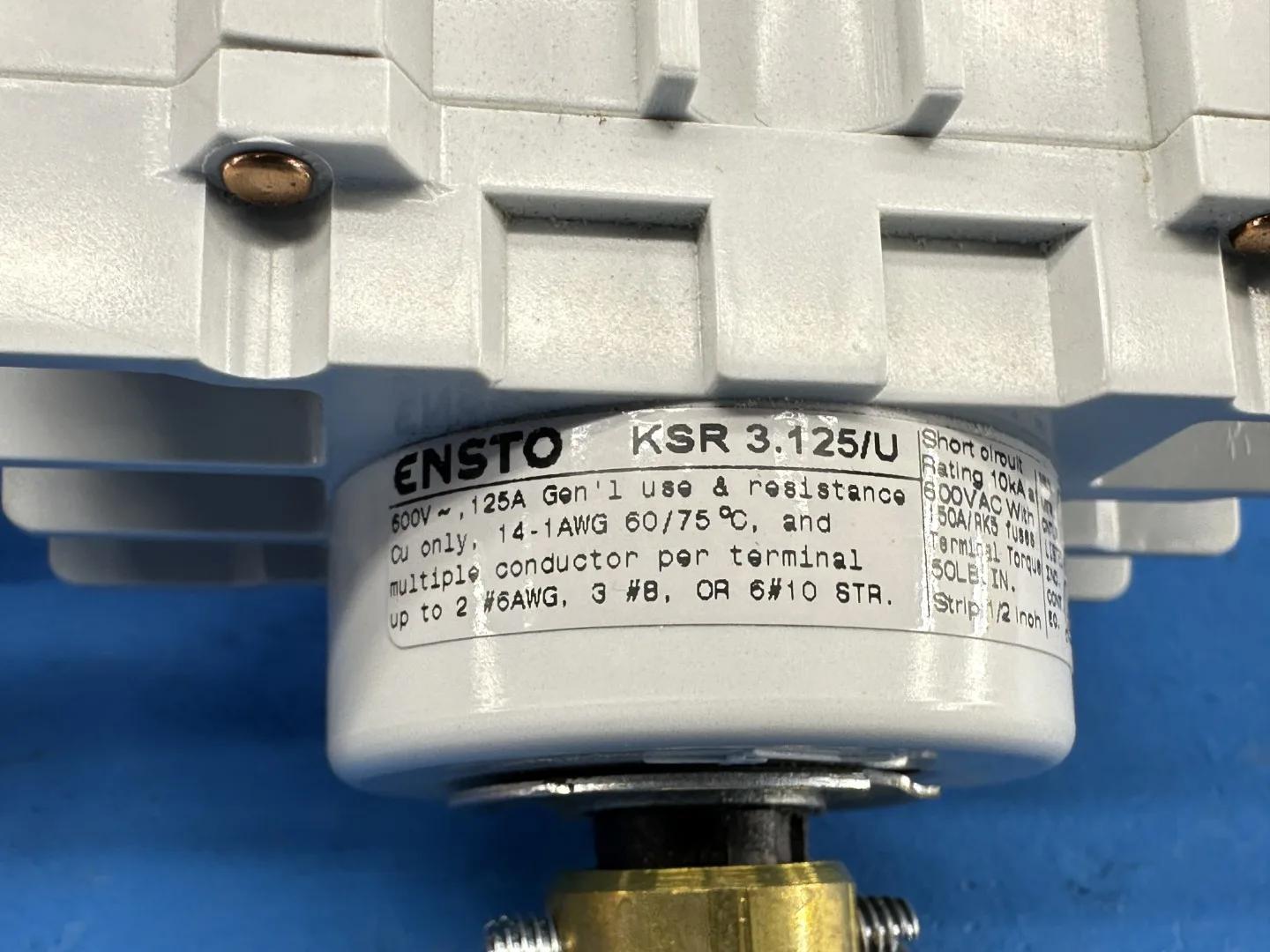

- Rating (switch label): 600V AC, 125A, general use and resistance
- Short Circuit Rating: 10kA at 600VAC with 150A RK5 fuses

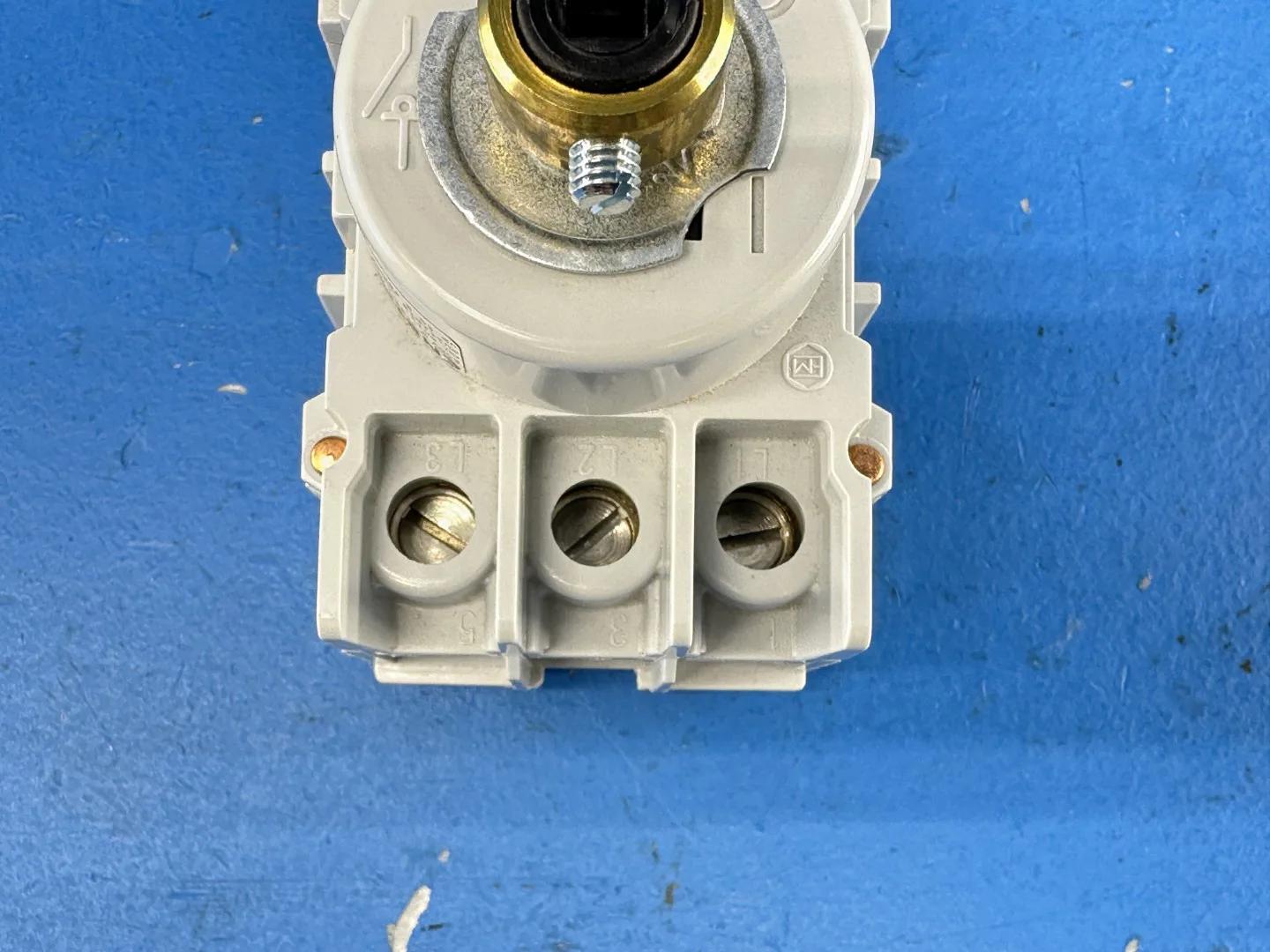

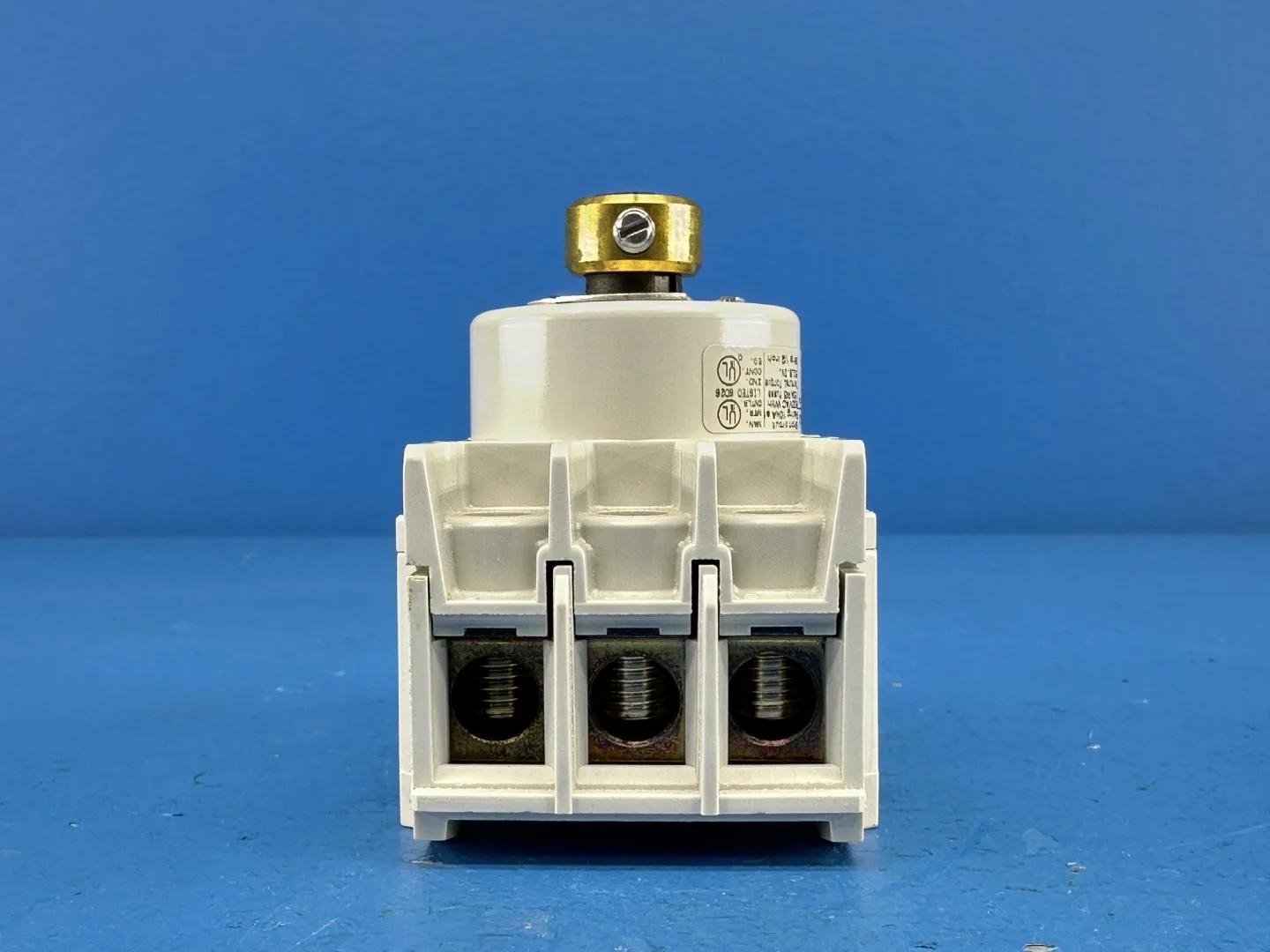

- Conductors: copper only, 14-1 AWG, 60/75 C; multiple conductors per terminal up to 2 #6 AWG, 3 #8, or 6 #10 stranded
- Terminal Torque: 50 lb-in
- Wire Strip Length: 1/2 in
- Approvals: UL and cUL listed marks, CE
- Origin (box label): Made in EU
- Box Date Code: 19.7.2012
- Spec Basis: Ensto box label and switch body label read directly from KSC record 18289 gallery photos 2026-09-16.
Specifications
Ensto
KSR3.1251/U
N/A
07/19/2012
N/A
125
3
4
3
3
0.2
1.2
KSC1230 / 1177
Packaging fees
1.6 6x10 CH $3.00
