Ensto KST3.100/U 3-Pole 100A Toggle Disconnect Switch, 690V Max, IEC 947-3
KST3.100/U Disconnect Specifications: Amps, Voltage & NEMA Rating
Interchange & Panel Applications for Ensto KST3.100/U
| Description | Details |
|---|---|
| Available Quantity | 5 |
| Model | KST3.100/U |
| Condition | New |
| Manufacturer | Ensto |
| Asset Number | KSC1230 / 1272 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$89.95
Basic Information
Asset #
KSC1230 / 1272
Available Quantity
5
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

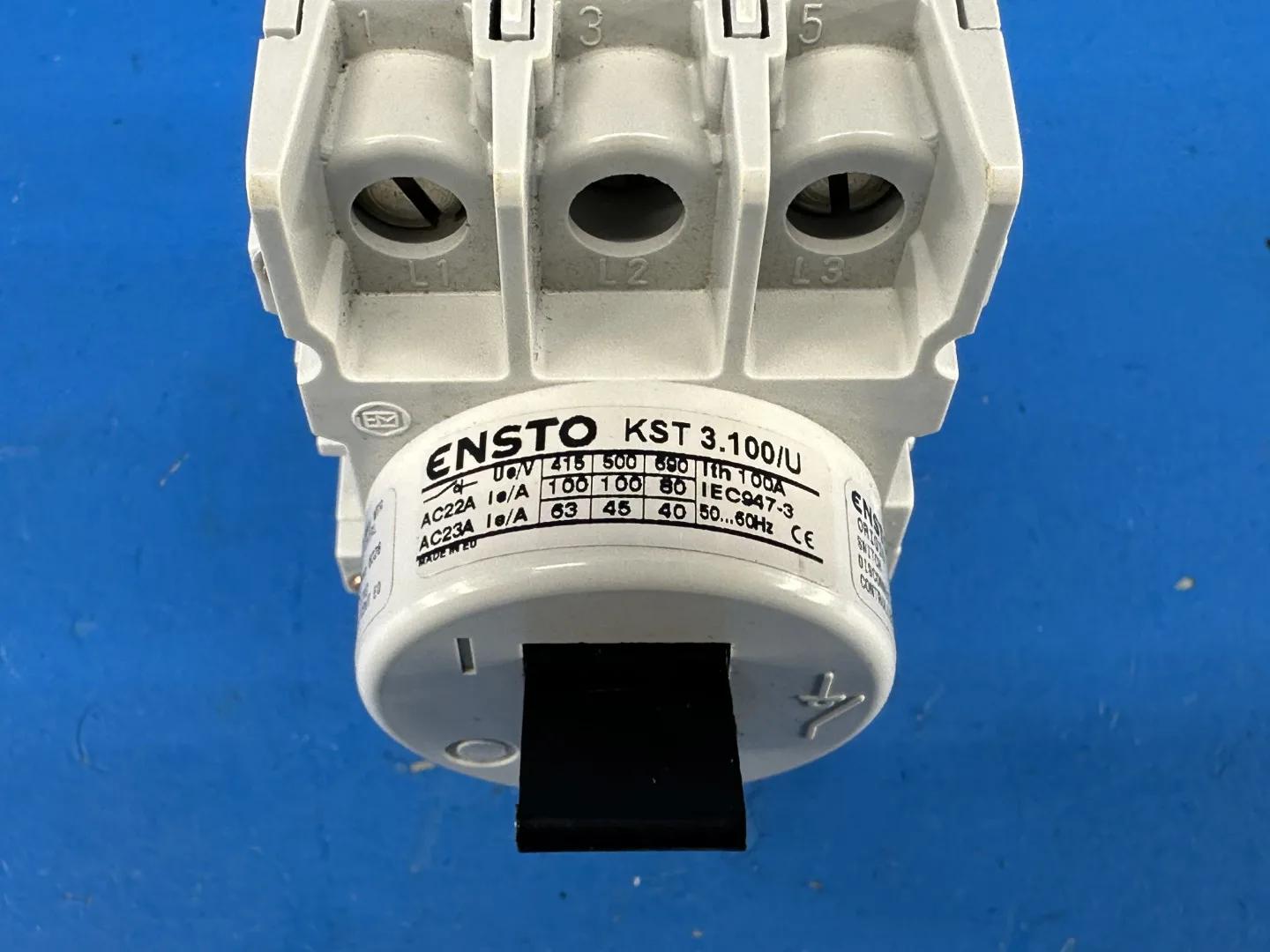

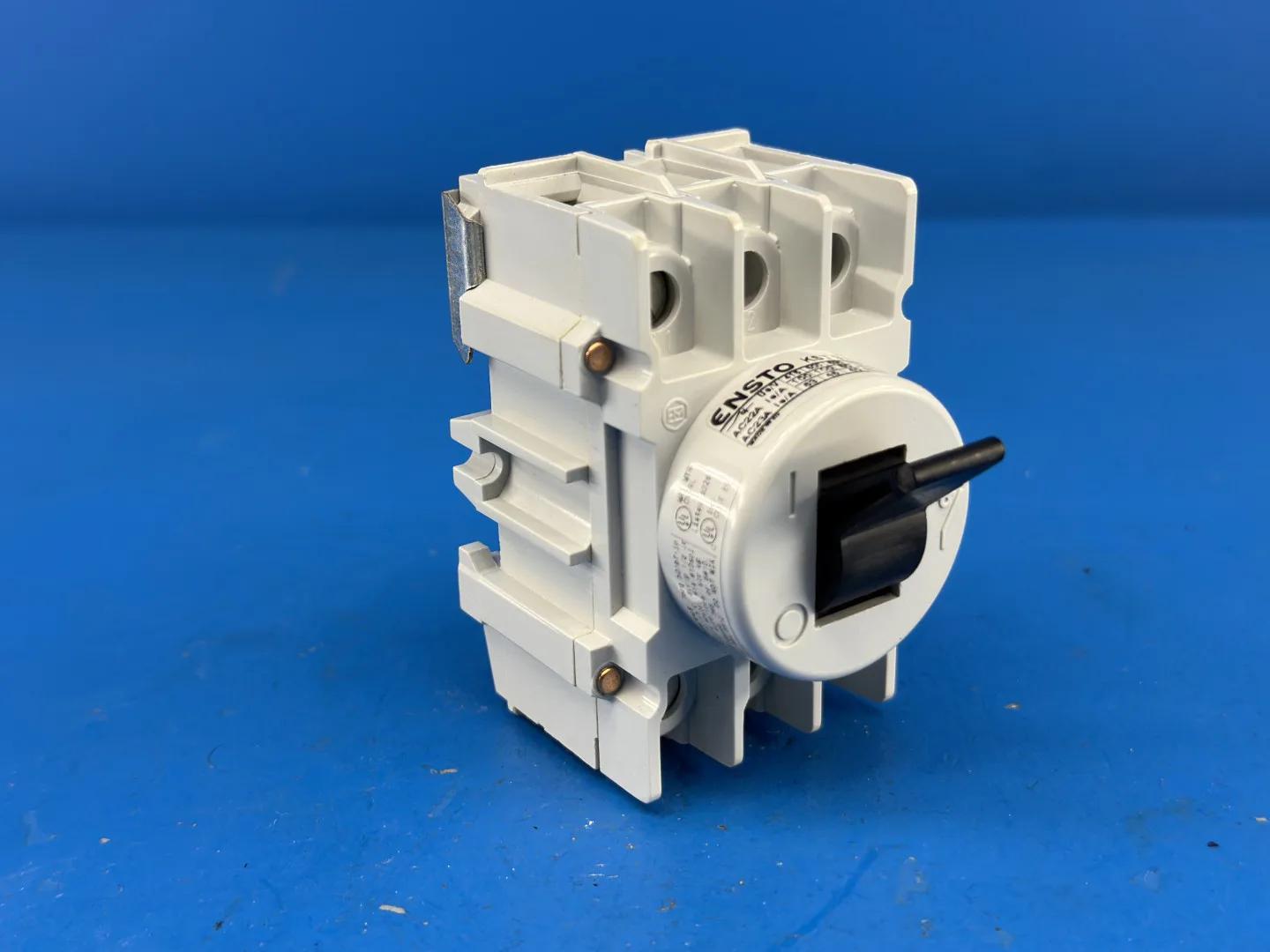

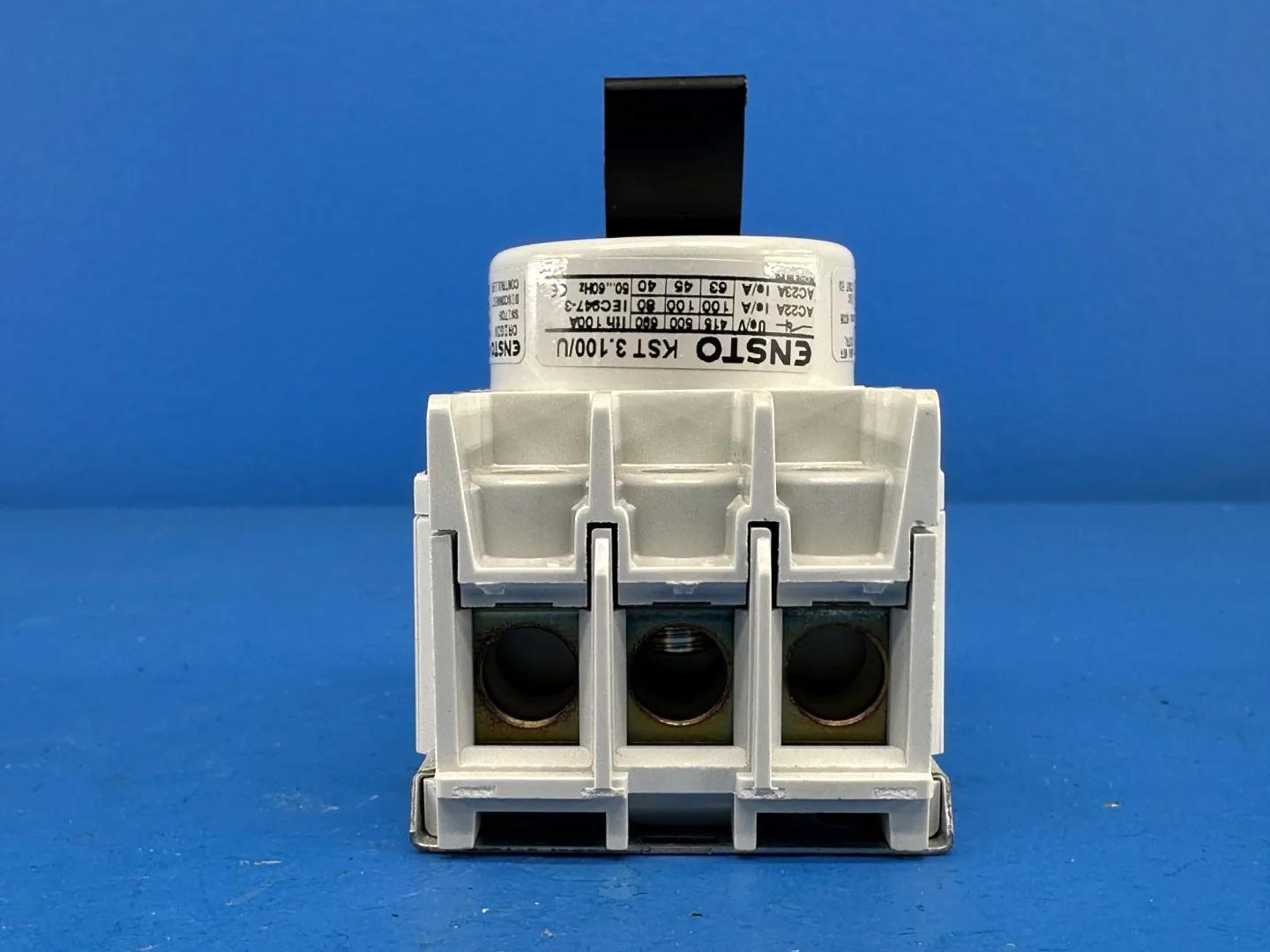

Ensto KST3.100/U three-pole disconnect switch with a front toggle handle, rated 100 amps thermal current. The switch body carries its IEC utilization ratings: 100A under AC-22A duty at 415 and 500 volts and 80A at 690 volts, and 63A, 45A and 40A under the heavier AC-23A motor-switching duty at those same voltages. The U suffix is Ensto's UL/cUL listed North American version.
A toggle disconnect like this is used as the main isolating switch on machinery, pump and fan panels, heaters and small distribution boards, giving a visible on and off position for lockout during maintenance. The AC-23A figures matter when the switch will make and break a motor load directly, while AC-22A applies to mixed resistive and motor loads.

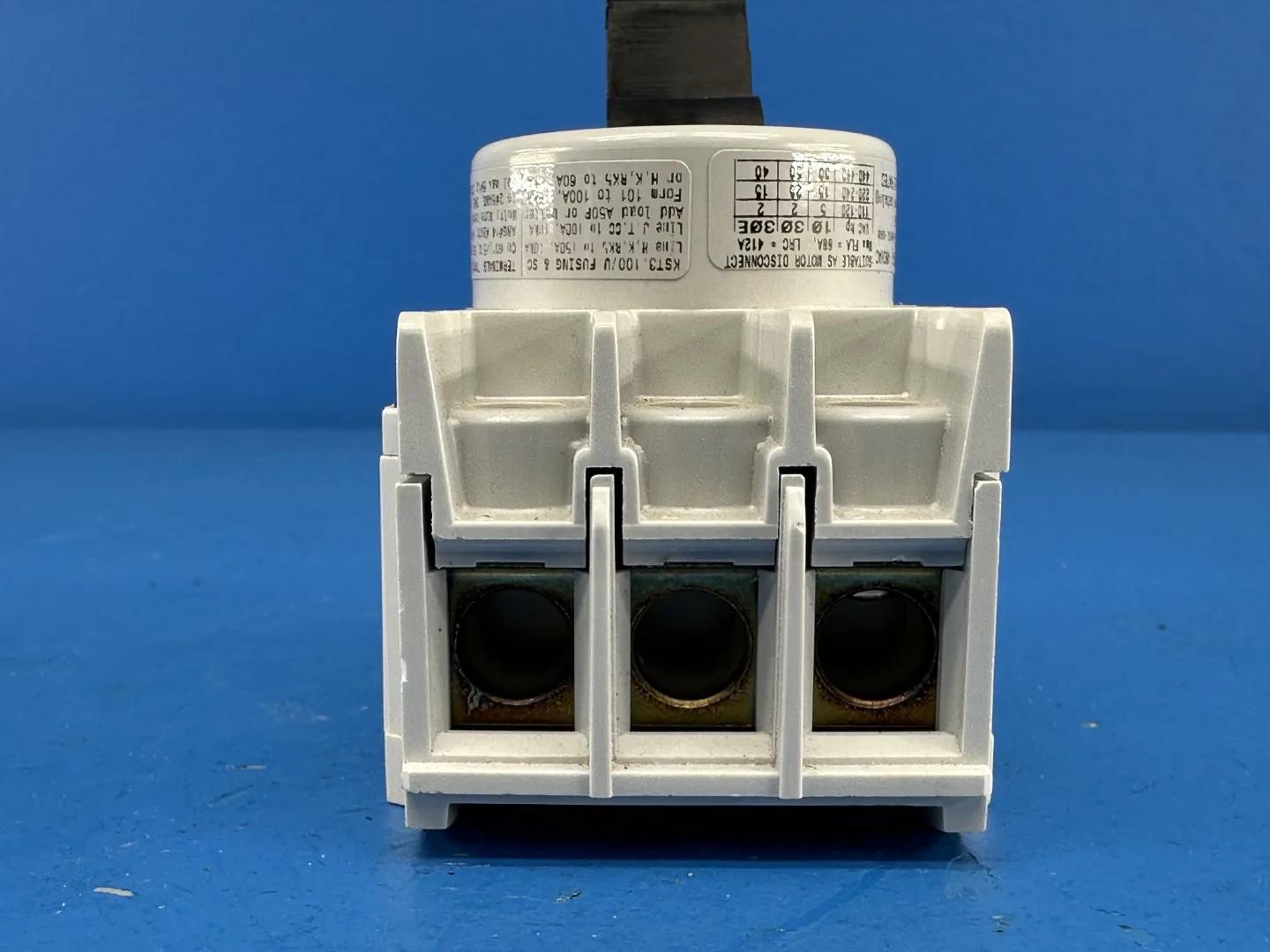

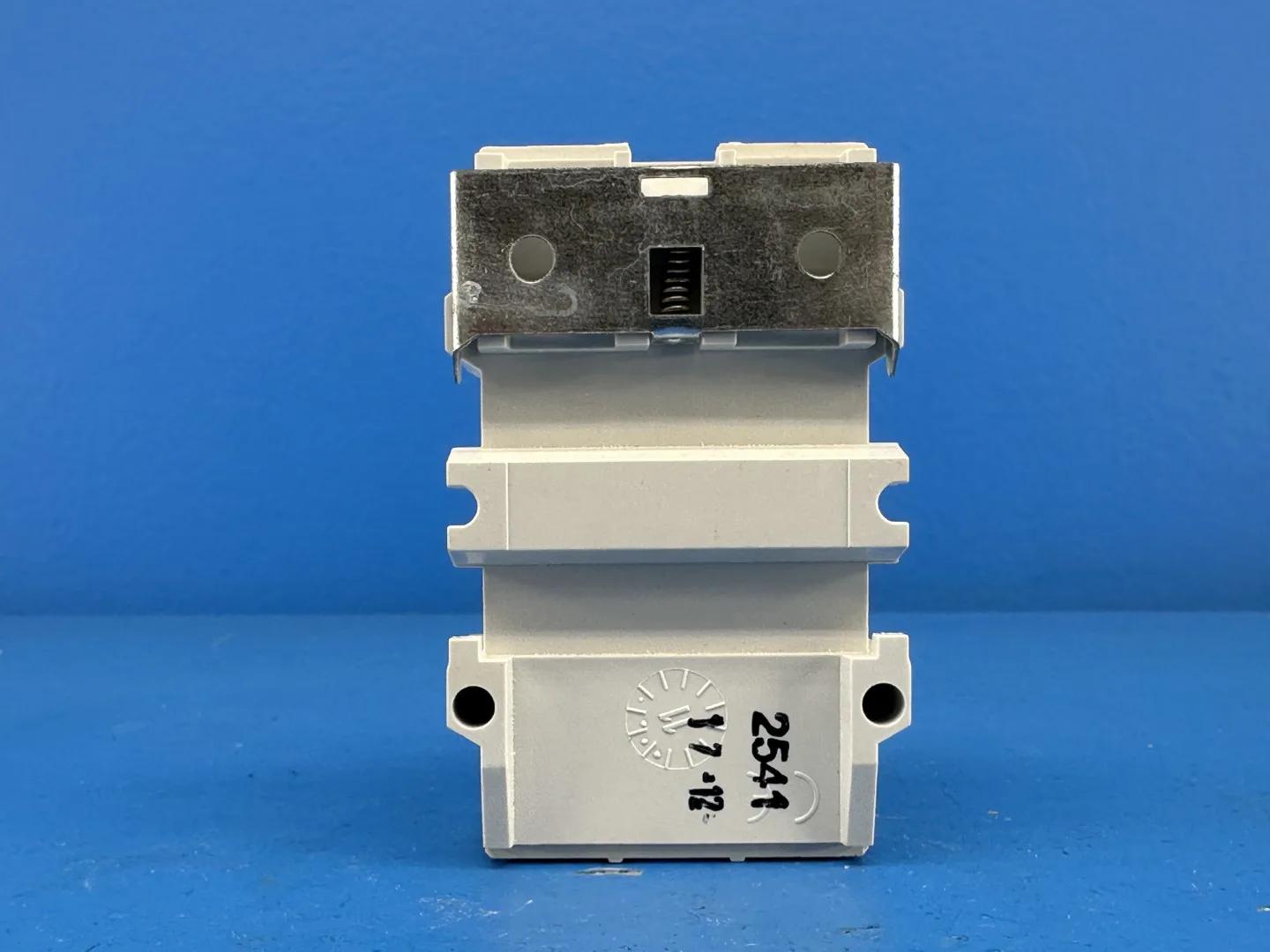

It mounts on a base plate inside an enclosure with the handle protruding through the cover, and wires to box-type terminals marked L1, L2 and L3 on the line side.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: Ensto
- Catalog Number: KST3.100/U

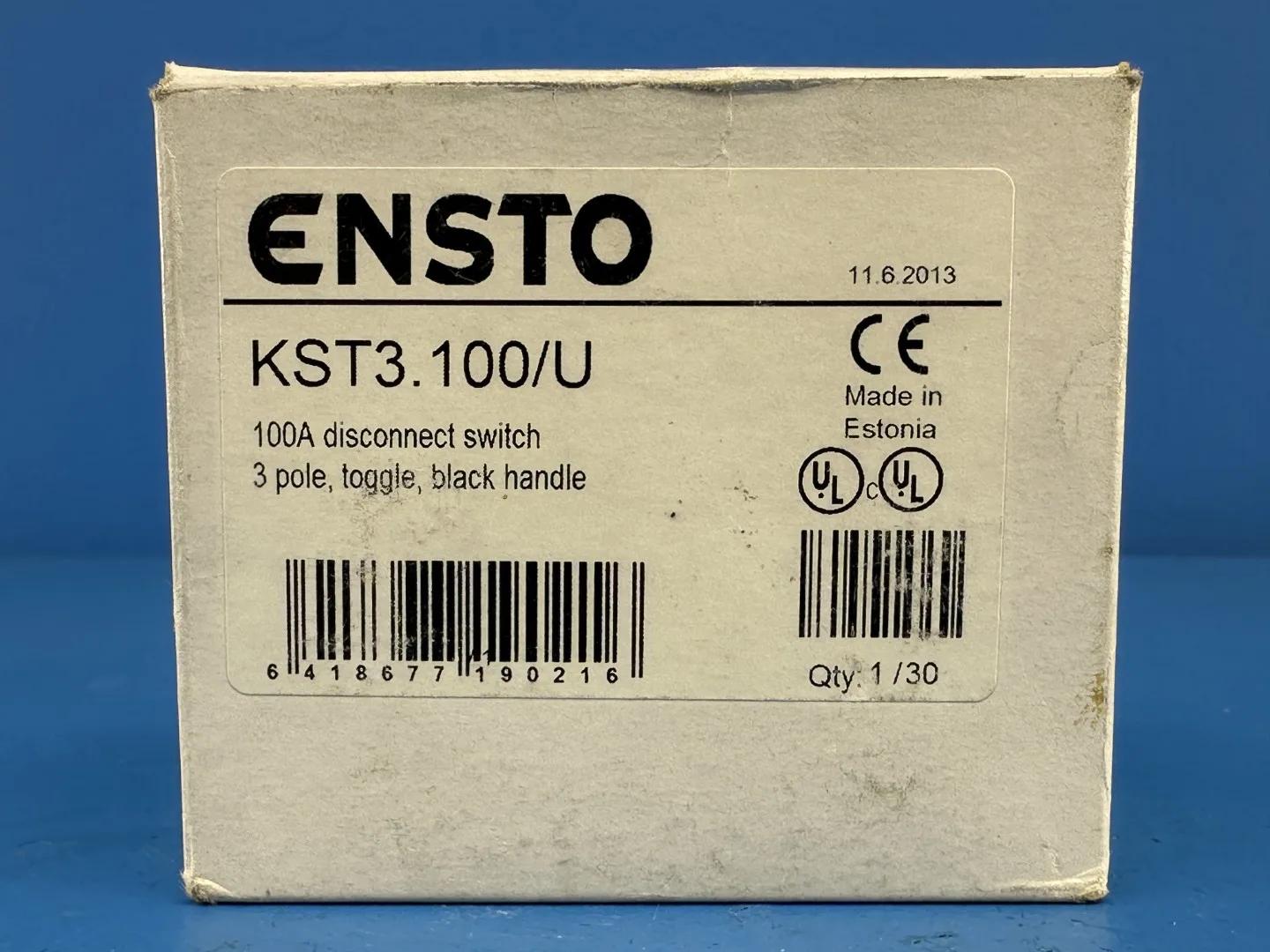

- Description (box label): 100A disconnect switch, 3 pole, toggle, black handle
- Poles: 3 (terminals L1, L2, L3)

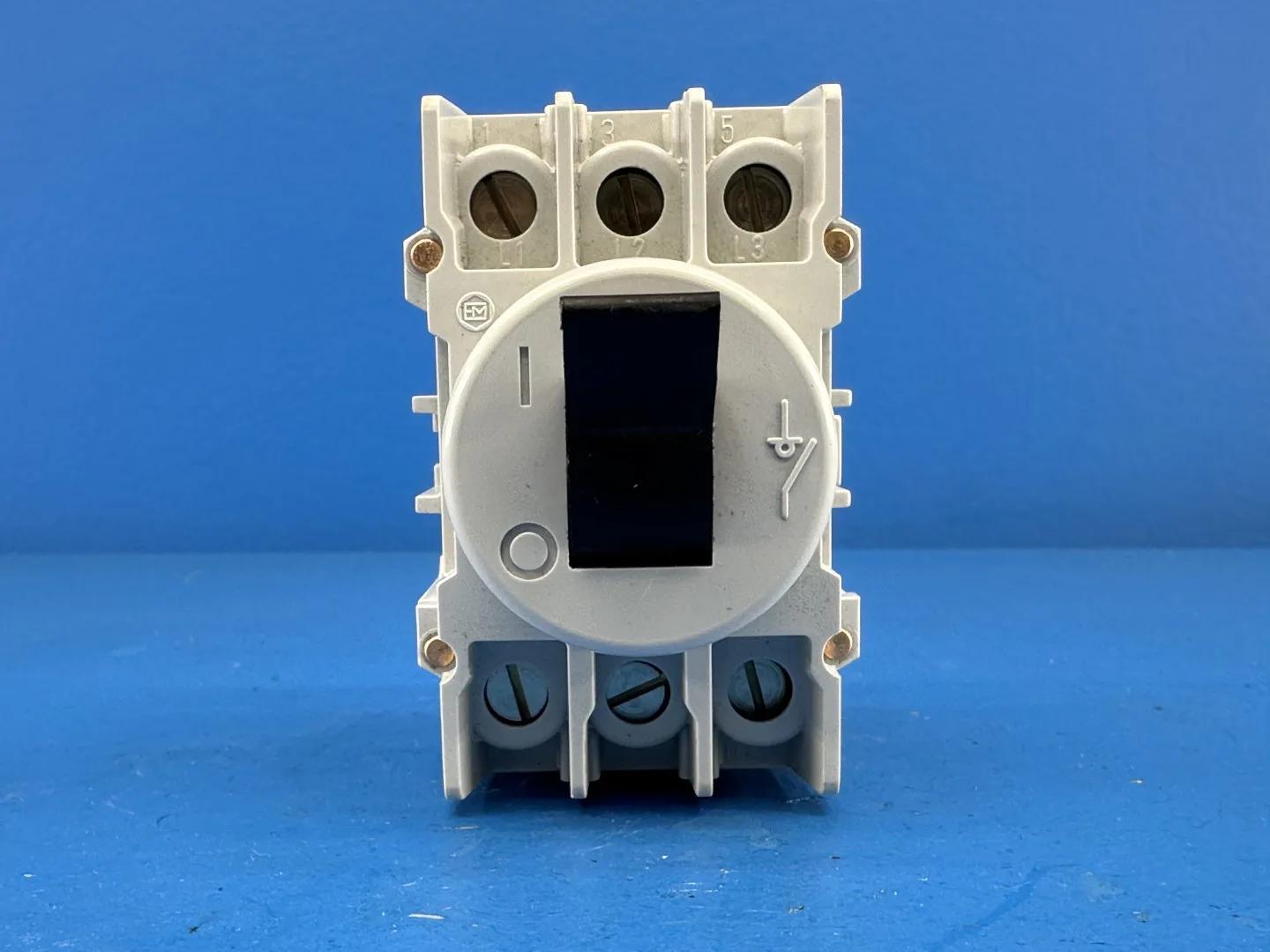

- Operation: front toggle handle, positions I (on) and O (off)
- Conventional Thermal Current (Ith): 100A
- AC-22A Rated Current: 100A at 415V, 100A at 500V, 80A at 690V
- AC-23A Rated Current: 63A at 415V, 45A at 500V, 40A at 690V
- Frequency: 50-60Hz
- Standard: IEC 947-3
- Approvals: UL and cUL listed marks, CE
- Origin (box label): Made in Estonia
- EAN (box label): 6418677190216
- Box Date Code: 11.6.2013
- Spec Basis: Ensto box label and switch body rating label read directly from KSC record 18628 gallery photos 2026-09-16.
Specifications
Ensto
KST3.100/U
6418677190216
N/A
N/A
100
3
4
3
3
2
3
KSC1230 / 1272
