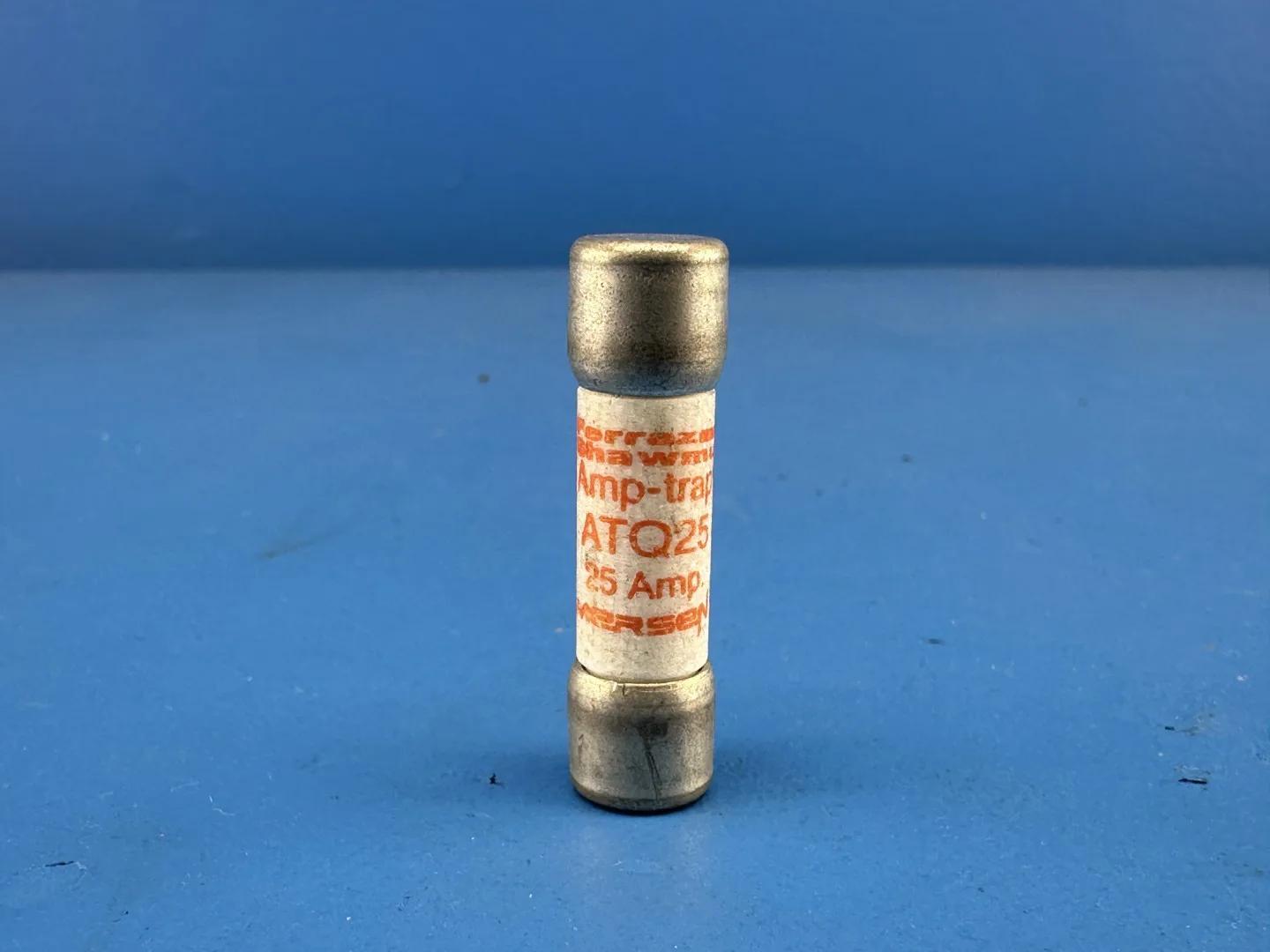

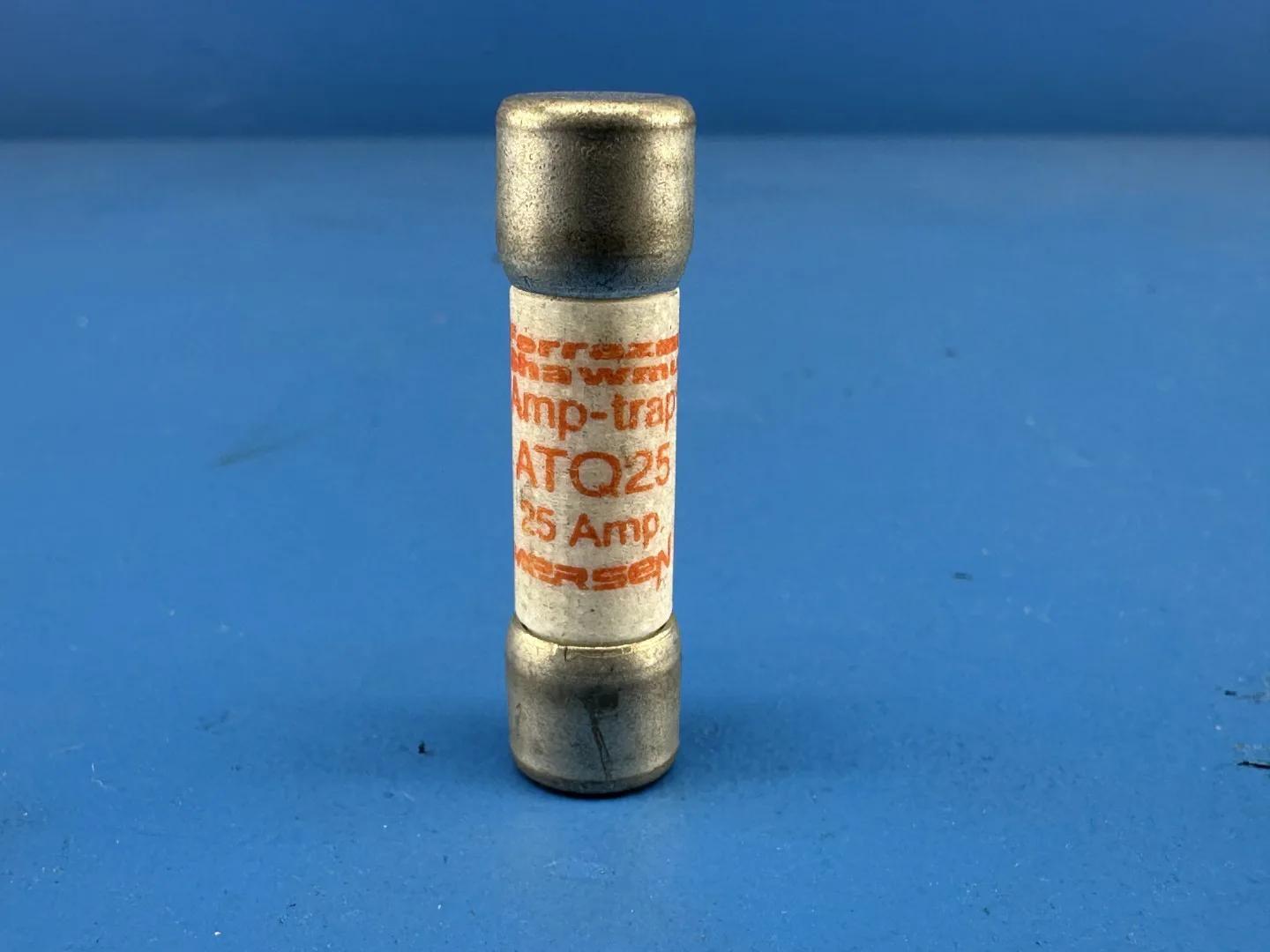

Ferraz Shawmut ATQ25 Amp-Trap Time Delay Midget Fuse, 25A, 500VAC, 10kA
ATQ25 Fuse Specifications: Amps, Voltage & Class
Replacement & Interchange for Ferraz Shawmut ATQ25
1 / 3
+3
+3
1 / 3
| Description | Details |
|---|---|
| Available Quantity | 4 |
| Model | ATQ25 |
| Condition | New |
| Manufacturer | Ferraz Shawmut |
| Asset Number | KSC1230 / 1141 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 4
$4.95
Basic Information
Asset #
KSC1230 / 1141
Available Quantity
4
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Ferraz Shawmut (now Mersen)
- Model: ATQ25
- Series: Amp-Trap
- Type: Time-delay midget fuse
- Class: Midget, supplemental protection
- Current Rating: 25 A
- Voltage Rating: 500 VAC
- Interrupting Rating: 10 kA
- Time Delay: 12 seconds at 200% of rated load
- Terminal Type: Ferrule
- Body Size: 13/32 in diameter x 1-1/2 in length
- Body Material: Melamine
- Indication: Non-indicating
- Approvals: UL 248-14, CSA C22.2
- Application: Supplemental protection of lighting, solenoid, motor and transformer circuits
- Spec Basis: Mersen / Ferraz Shawmut published ATQ series catalogue data and Grainger listing
Specifications
Manufacturer
Ferraz Shawmut
Model
ATQ25
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
25
Length (Inches)
2
Width (Inches)
1
Height (Inches)
1
Phase
1
Estimated Packaging Weight
0.2
Estimated Total Weight
1.2
Asset Number
KSC1230 / 1141
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
