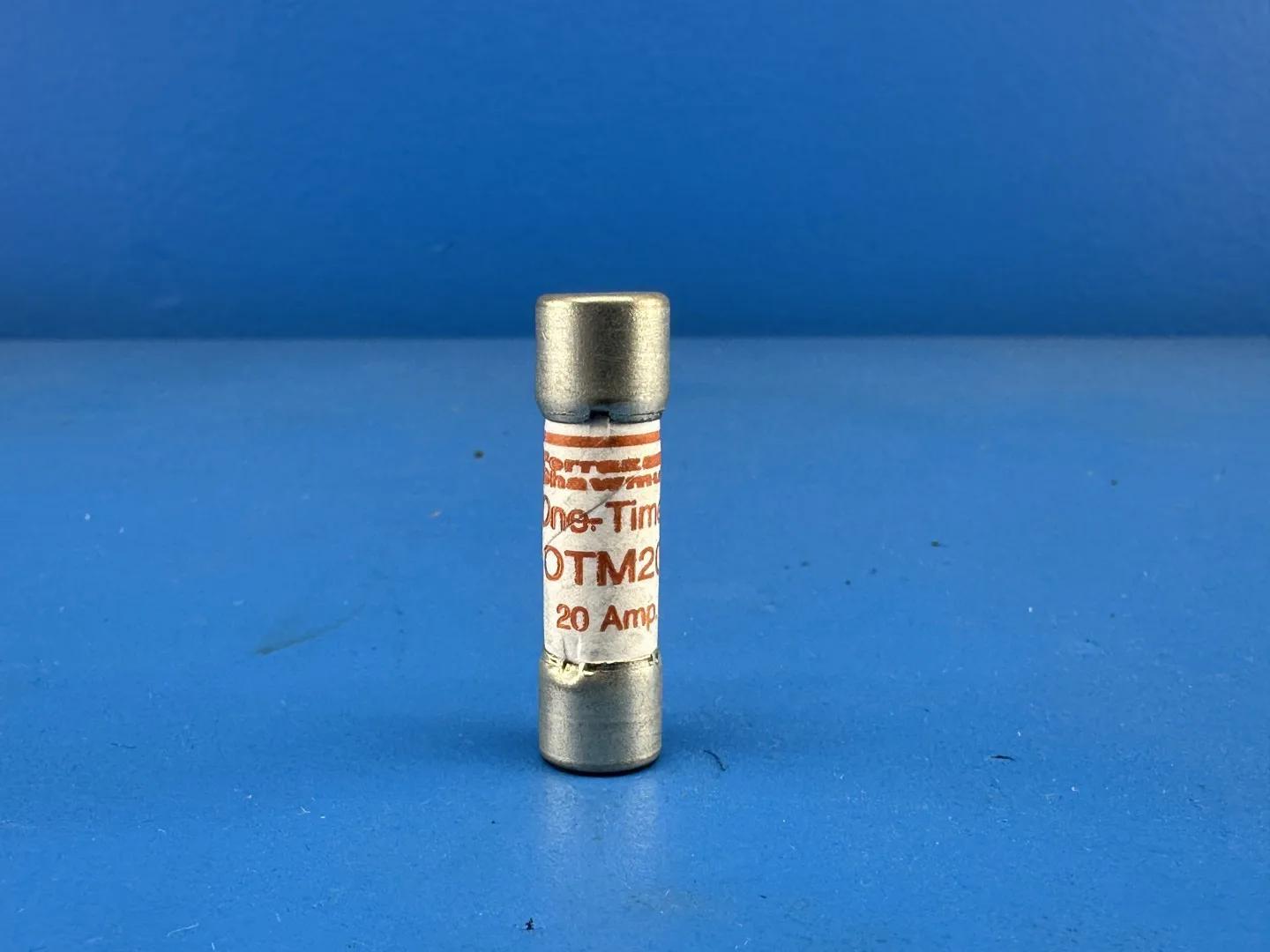

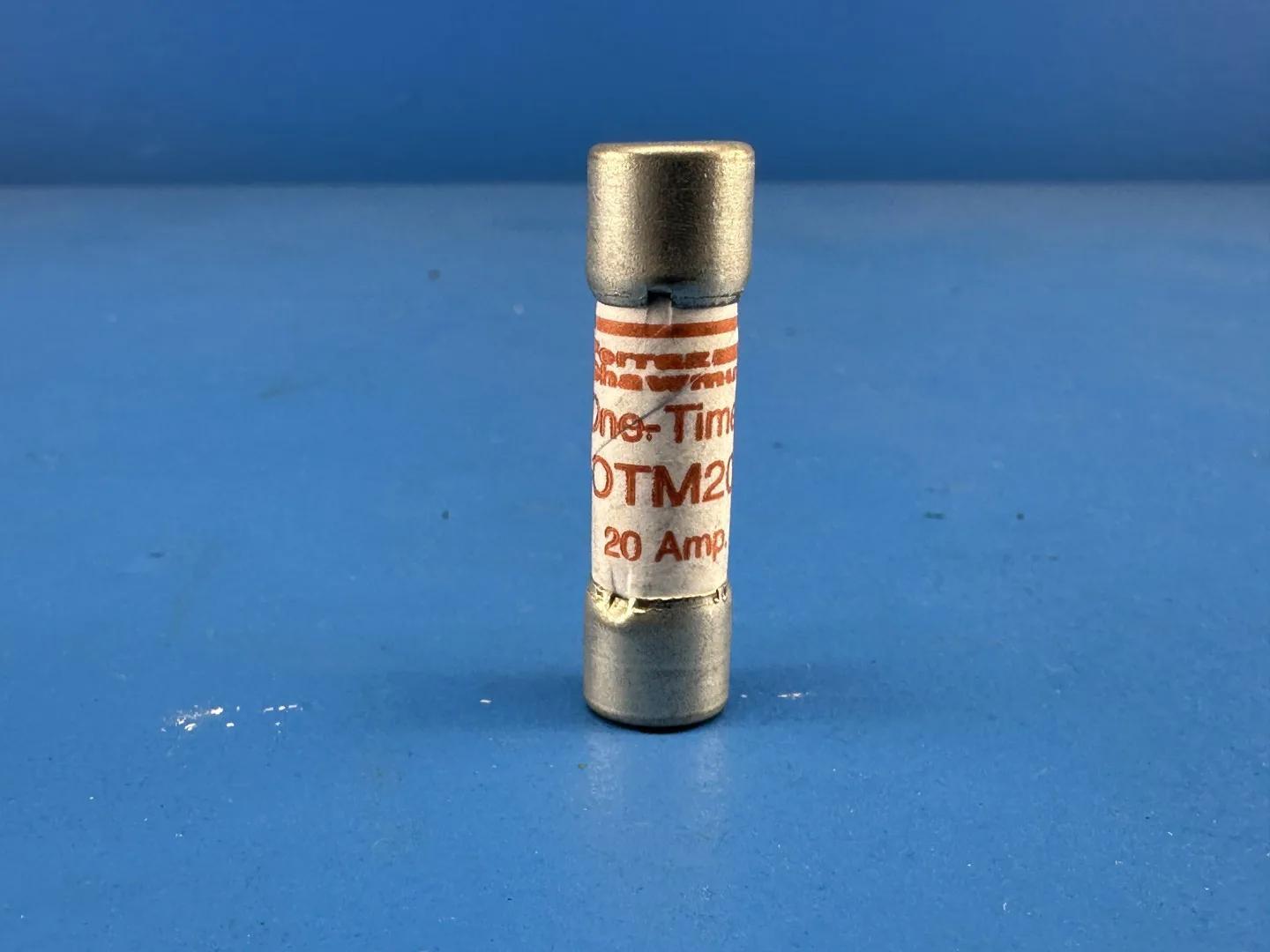

Ferraz Shawmut OTM 20 Fast-Acting Midget Fuse, 20A, 250V
OTM 20 Fuse Specifications: Amps, Voltage & Class
Replacement & Interchange for Ferraz Shawmut OTM 20
1 / 3
+3
+3
1 / 3
| Description | Details |
|---|---|
| Available Quantity | 14 |
| Model | OTM 20 |
| Condition | New |
| Manufacturer | Ferraz Shawmut |
| Asset Number | KSC1230 / 1133 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 14
$4.95
Basic Information
Asset #
KSC1230 / 1133
Available Quantity
14
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Ferraz Shawmut (now Mersen)
- Model: OTM20
- Type: One-time, fast-acting midget fuse
- Class: Midget, supplemental protection
- Current Rating: 20 A
- Voltage Rating: 250 VAC
- Interrupting Rating: 10 kA
- Terminal Type: Ferrule
- Body Size: 13/32 in diameter x 1-1/2 in length
- Approvals: UL 248-14 (File E33925), CSA C22.2 No. 248.14
- Application: General-purpose 250 VAC lighting, heating and control circuits where time delay is not required. Not rated for branch circuit protection.
- Spec Basis: Mersen / Ferraz Shawmut published OTM series catalogue data
Specifications
Manufacturer
Ferraz Shawmut
Model
OTM 20
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
20
Length (Inches)
2
Width (Inches)
1
Height (Inches)
1
Phase
1
Estimated Packaging Weight
2
Estimated Total Weight
3
Asset Number
KSC1230 / 1133
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
SELL TO KING SURPLUS
Sitting on surplus of your own?
We'll buy it.
Family owned, four generations, since 1970.
Client Asset Management
A managed joint venture for enterprise surplus, powered by our AMP™ (Asset Management & Procurement).
Partner With Us →Payment Details
Appraised Value
$4.95
Payment MethodsPayment Types Accepted : Visa, Mastercard, ACH, Wire Transfer, Check (14 Day Hold Before Release), Cash
