GE Lumination LDX6SA440840VQ 6 in Square LED Downlight Housing, 4000 lm, 4000K, 277V, 0-10V Dimming
LDX6SA440840VQ Light Specifications: Wattage, Voltage & Mounting
Applications & Replacement Fitment for General Electric LDX6SA440840VQ
| Description | Details |
|---|---|
| Available Quantity | 5 |
| Model | LDX6SA440840VQ |
| Condition | New |
| Manufacturer | General Electric |
| Asset Number | KSC1075 / 044 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$59.95
Basic Information
Asset #
KSC1075 / 044
Available Quantity
5
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

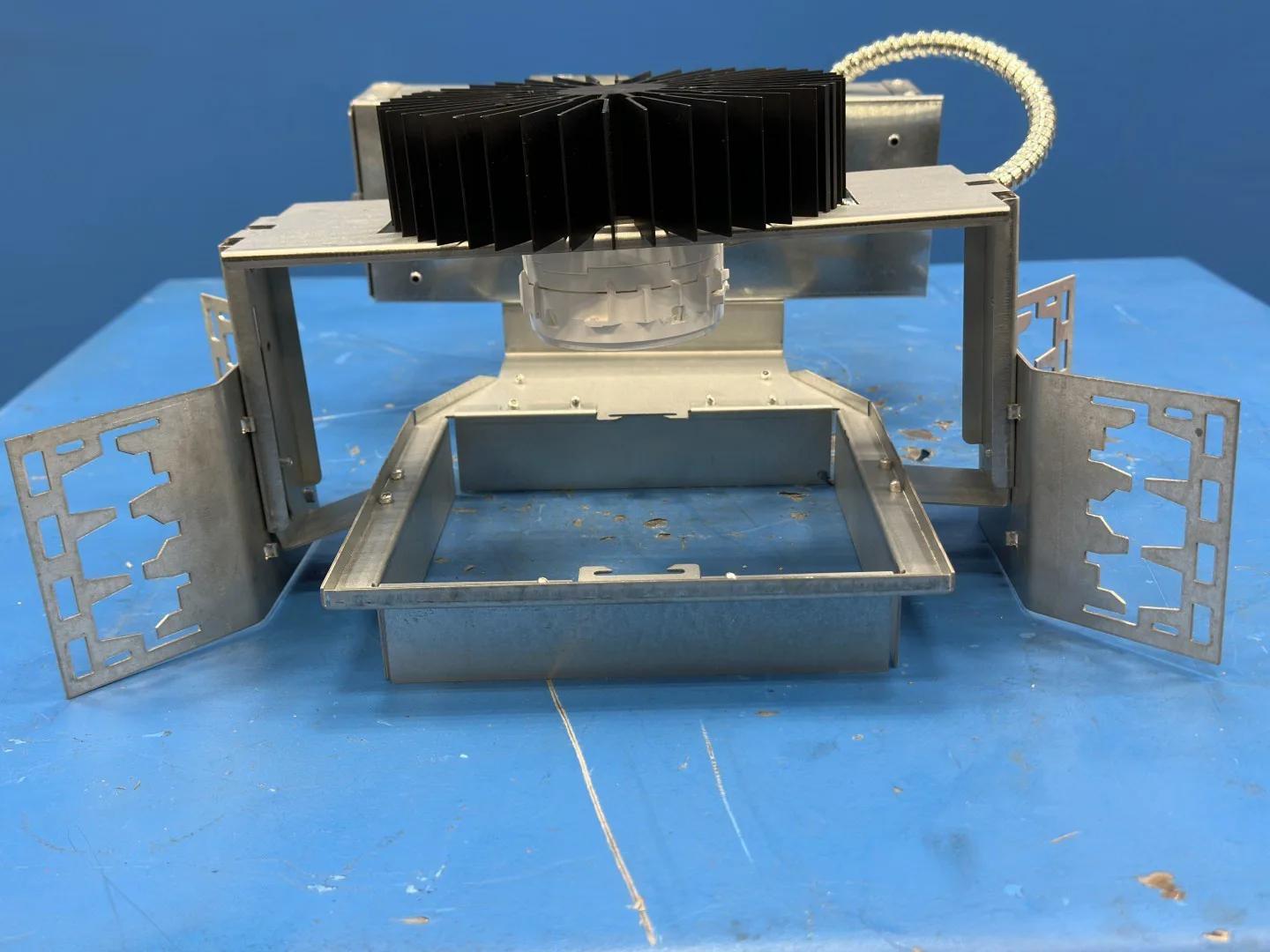

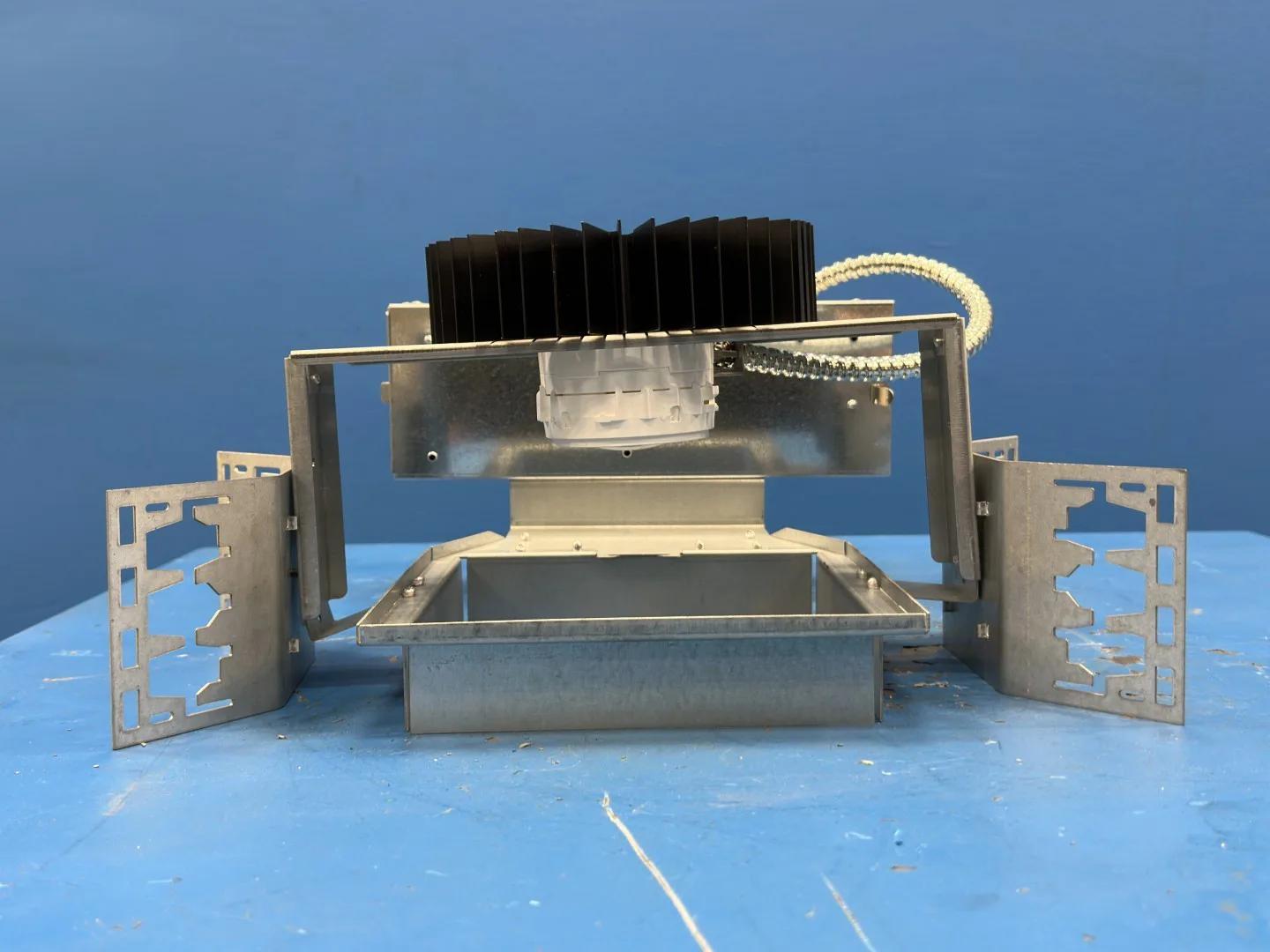

The GE LDX6SA440840VQ is a configured housing for the Lumination LDX Square Series, a 6 inch LED new construction recessed downlight from GE Lighting Solutions, now Current. The catalog number decodes as LDX family, 6S fixture type, A first generation, 4 for 277V input, 40 for 4000 nominal lumens, 8 for 82 CRI, 40 for 4000K color temperature, and VQ for 0-10V dimming control.

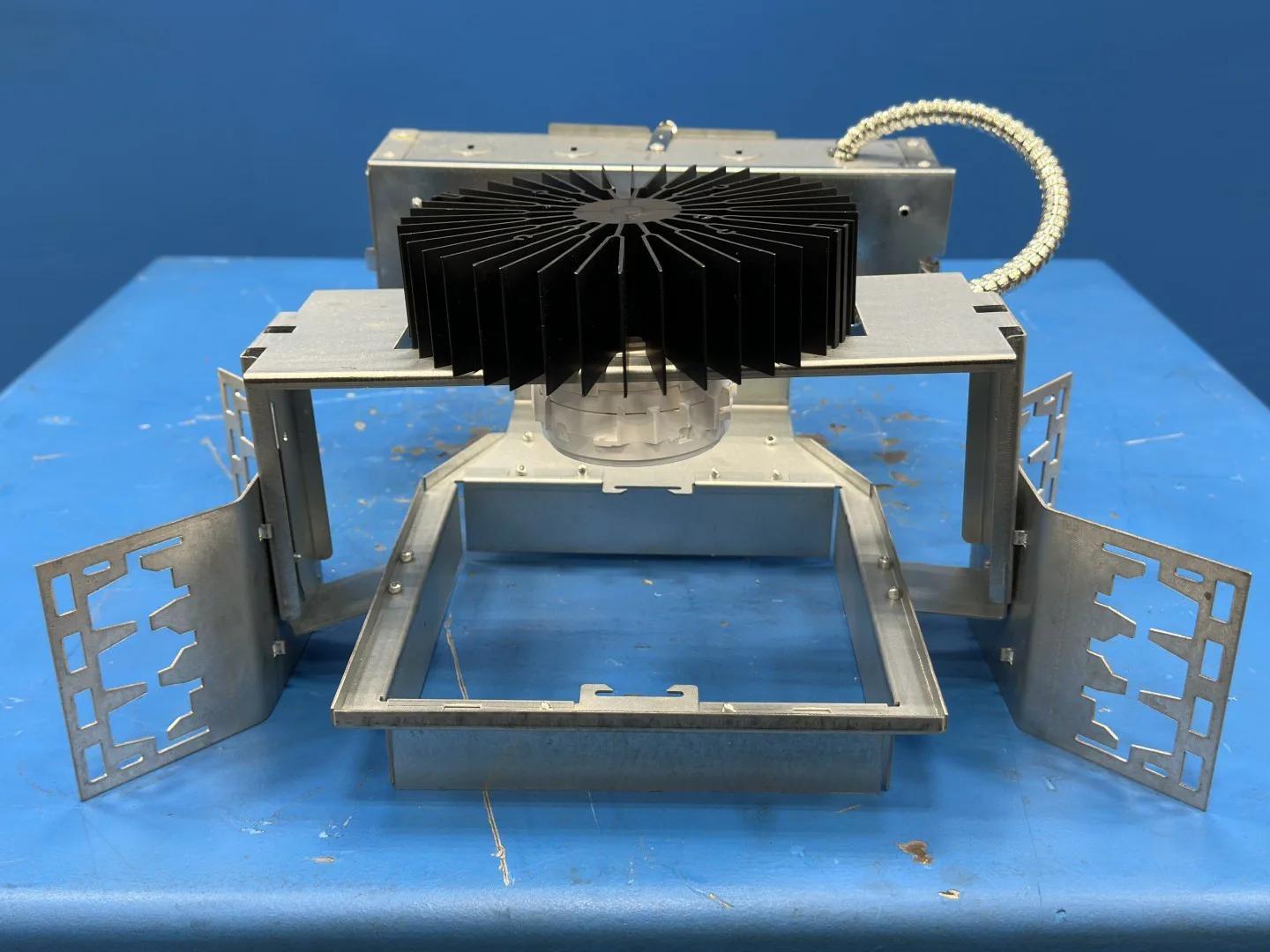

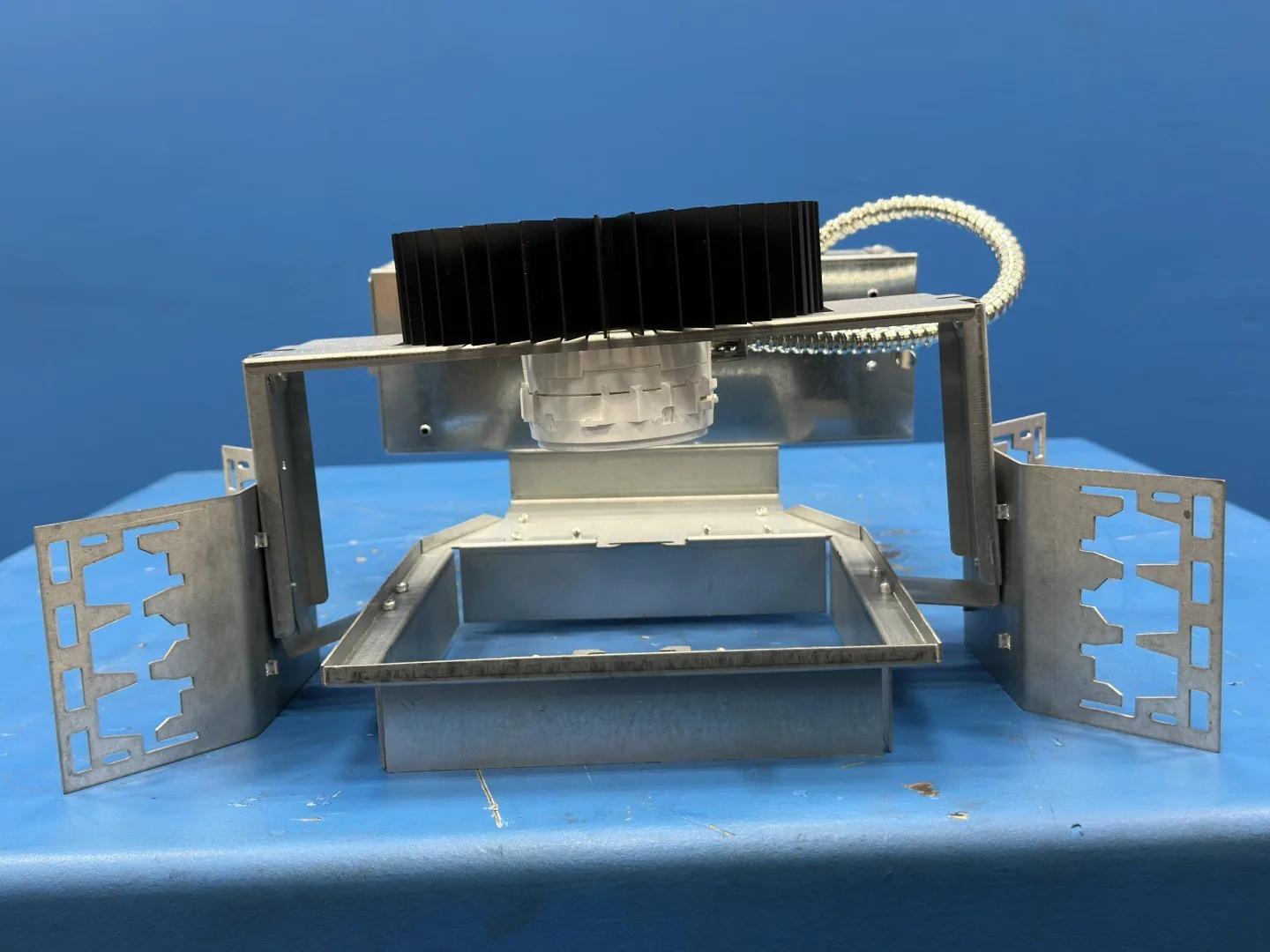

LDX downlights are powered by a twist-in LED downlight module that can be changed without tools as LED technology advances. In the GE spec sheet table the 4000 lumen standard CRI version delivers 4298 lumens at 47.6 watts, about 90 lumens per watt, with L85 lumen maintenance at 50,000 hours.

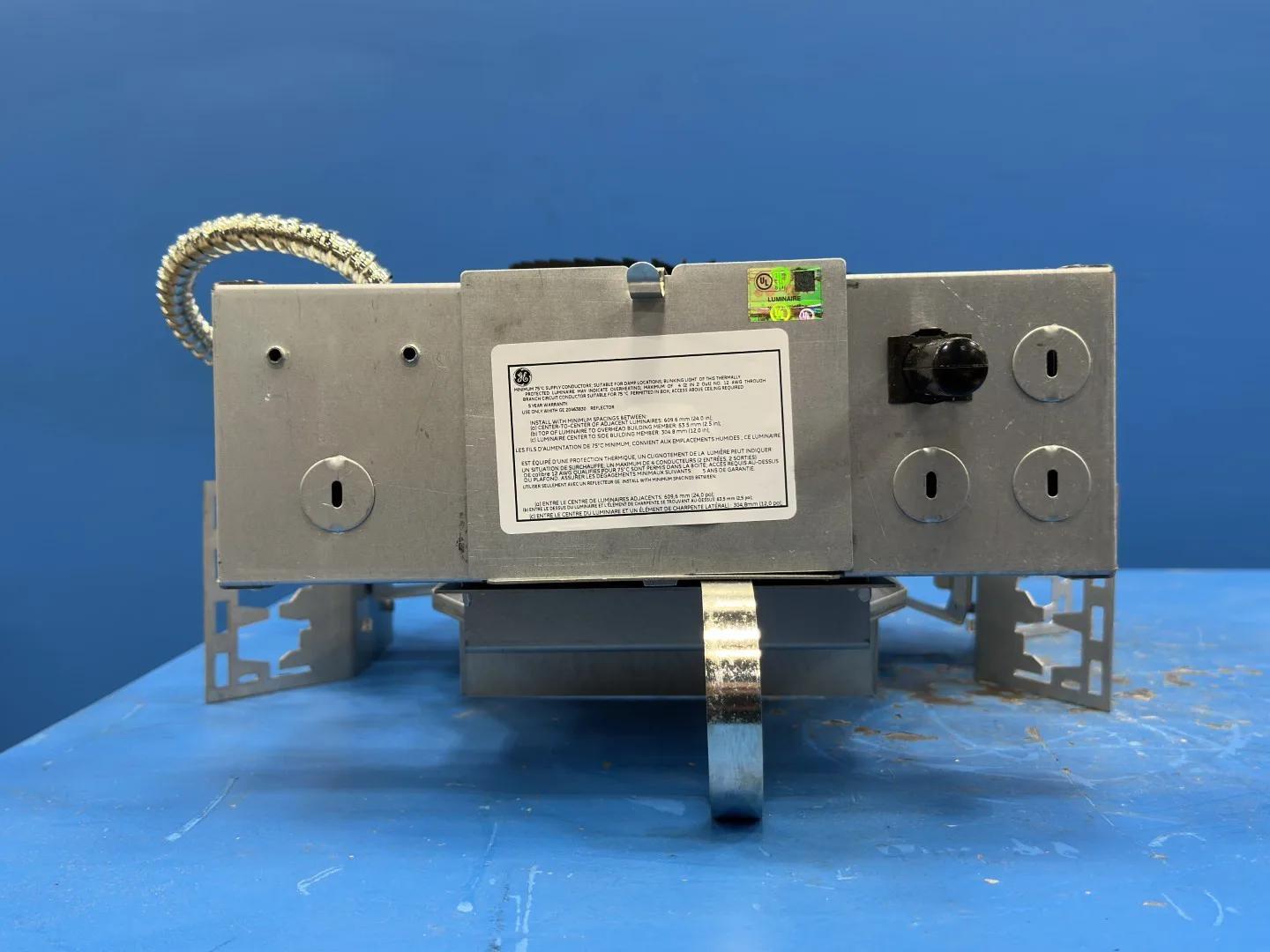

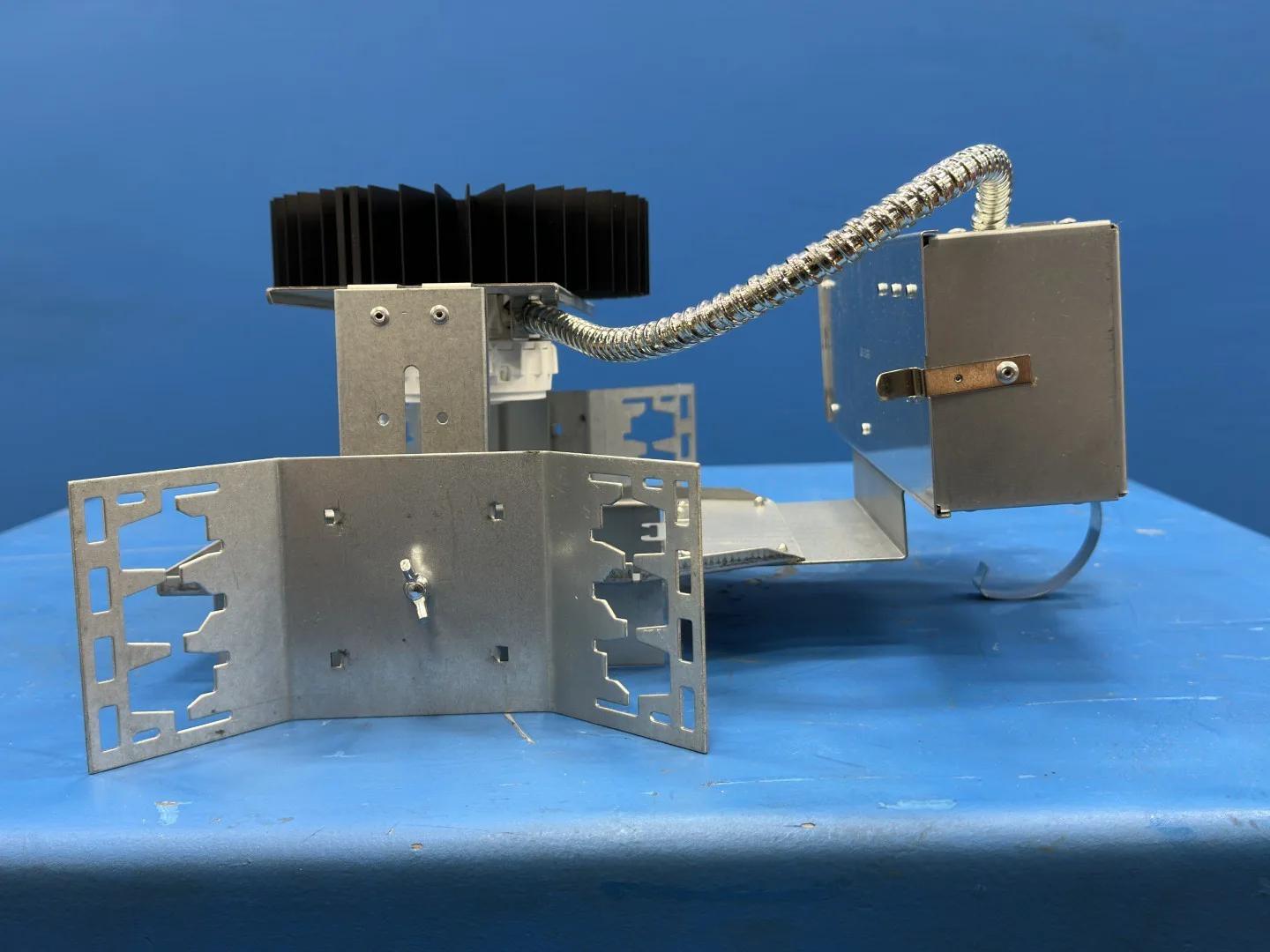

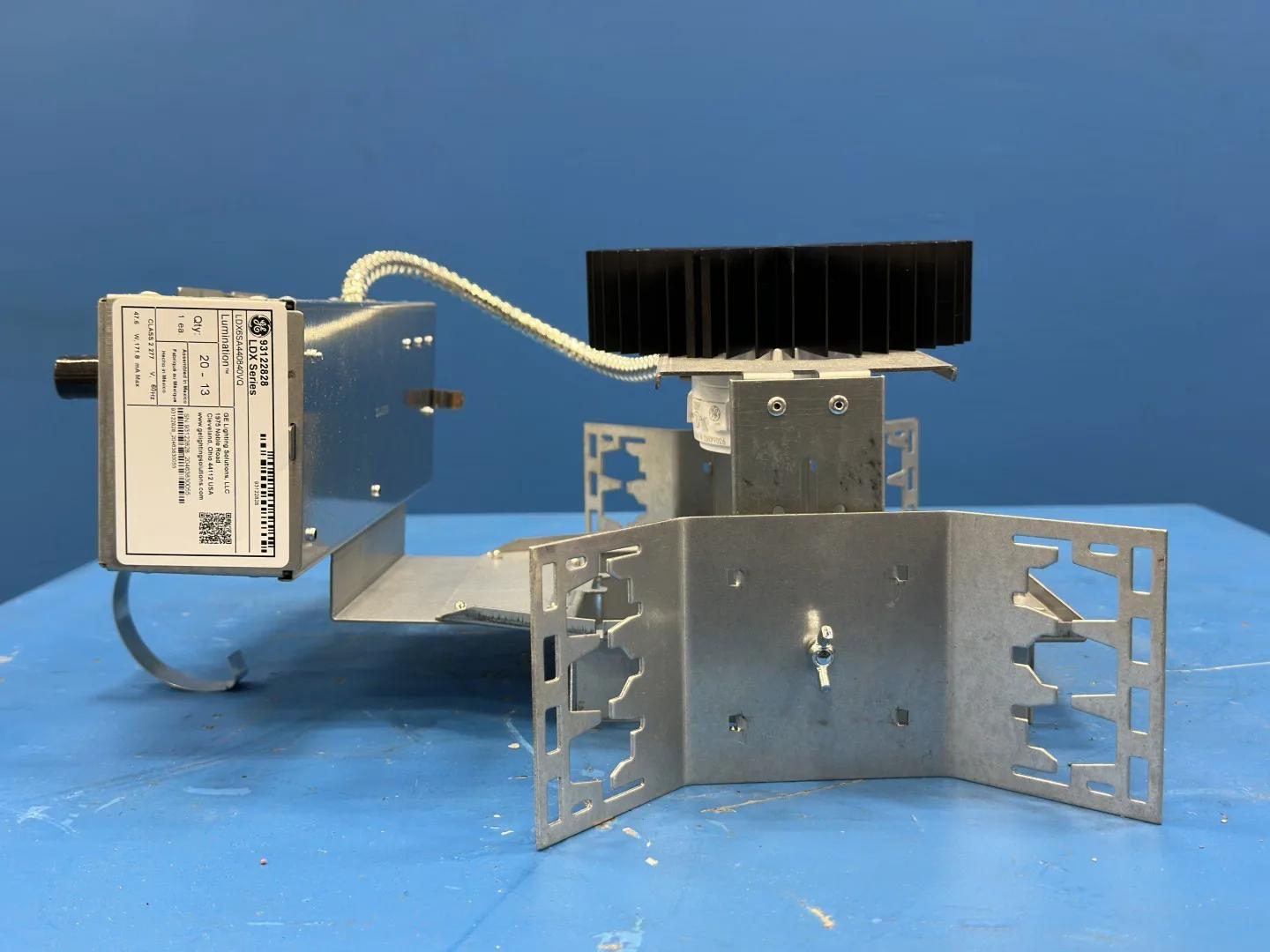

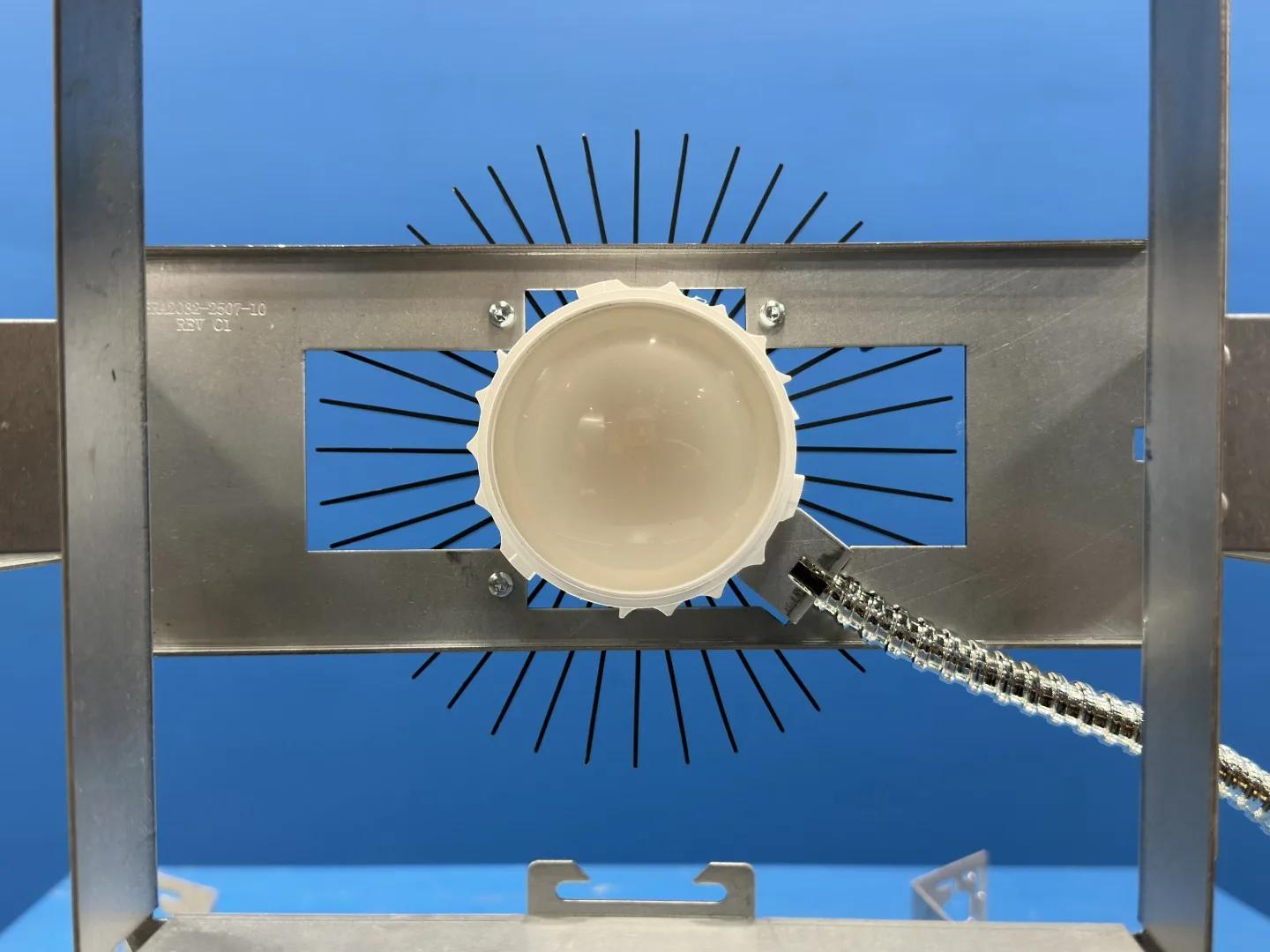

The housing is installed above the ceiling in new construction and is completed with an RDI6S series reflector and trim, ordered separately, plus BH3 hanger bars. It is used in offices, retail stores, lobbies, schools, healthcare and hospitality spaces on 277V lighting circuits, and replaces high wattage metal halide and compact fluorescent downlights. The 0-10V driver connects to standard low voltage dimming controls.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Product: LED new construction downlight, configured housing
- Series: Lumination LDX Square Series
- Fixture Type: 6S, 6 in (spec sheet code)
- Generation: A, 1st generation
- Input Voltage: 277V (code 4)
- Nominal Lumens: 4000 lm (code 40); fixture delivered lumens 4298 lm per spec sheet table
- System Input Power: 47.6 W at 4000 lm nominal (spec sheet table, 4000K, semi-diffused, 120V basis)
- System Efficacy: 90 lm/W (spec sheet table)
- CRI: 82 standard (code 8)
- CCT: 4000K (code 40)
- Controls: 0-10V dimming (code VQ)

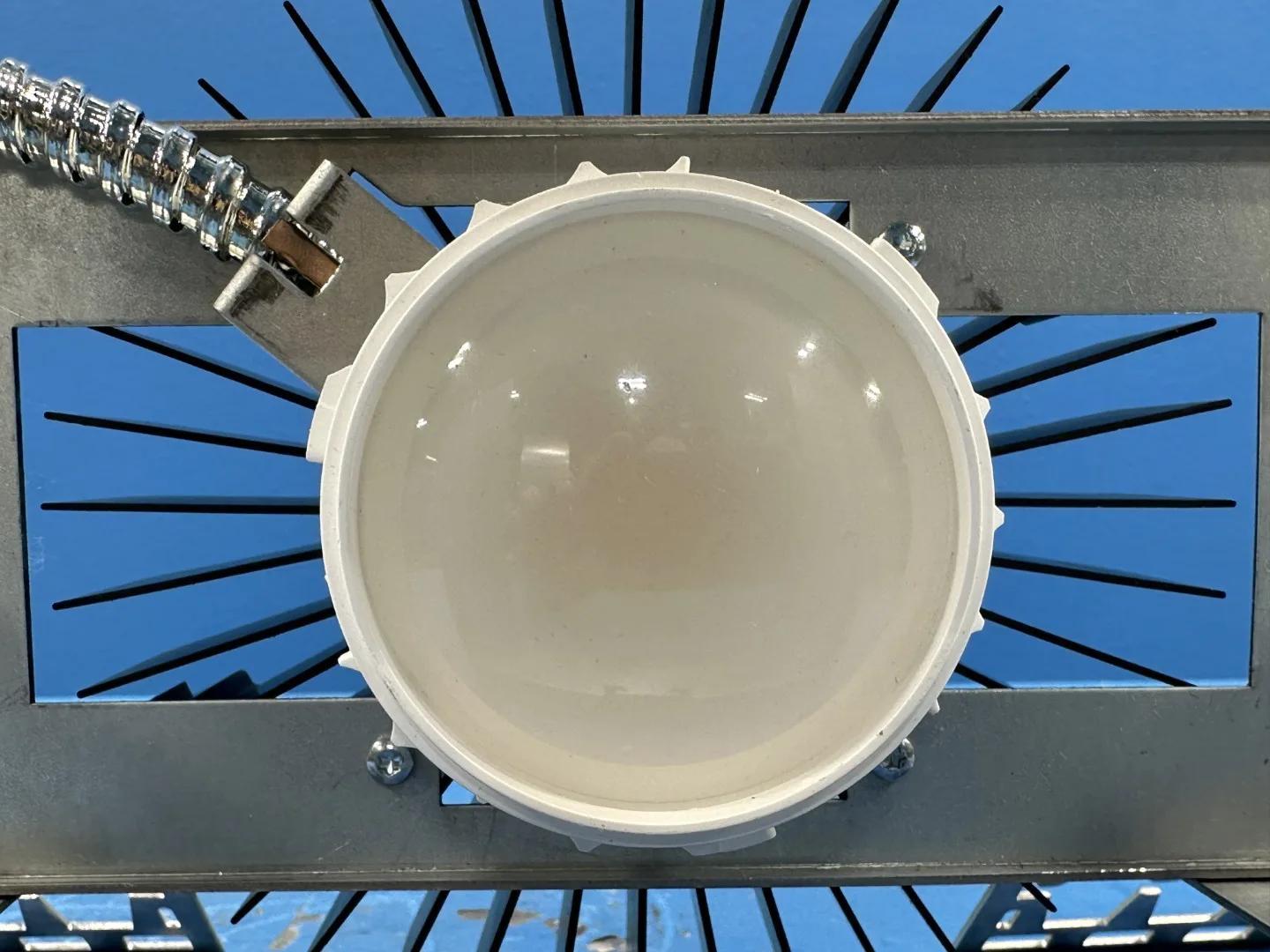

- LED Module: Twist-in LED downlight module, tool-free replacement
- Rated Lumen Depreciation: L85 at 50,000 hours
- Supply Conductors: 75 C minimum (label)
- GE Material Number: 93122828 (label)
- Complete Fixture: configured housing plus reflector (RDI6S series) plus BH3 hanger bars, ordered separately

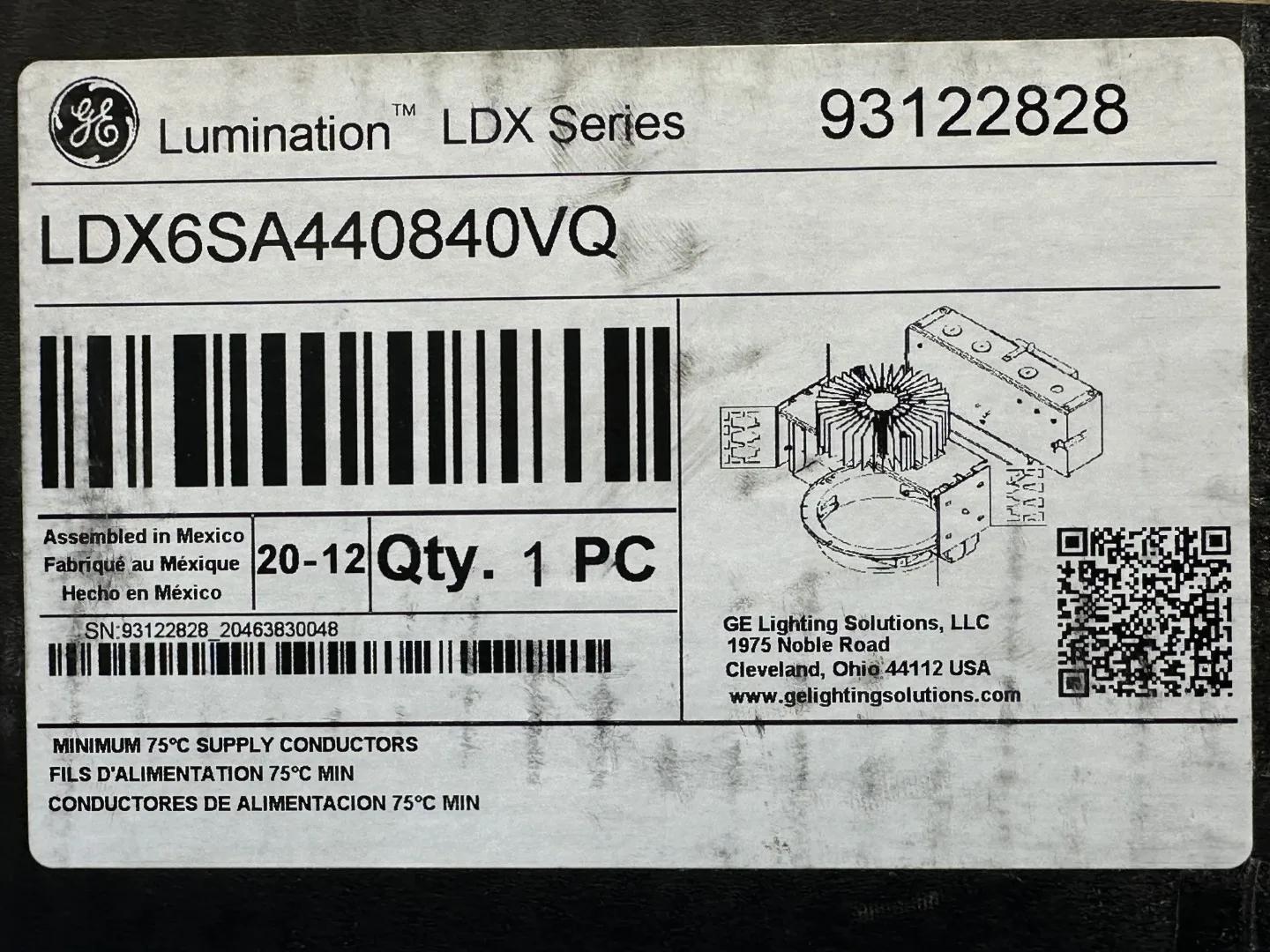

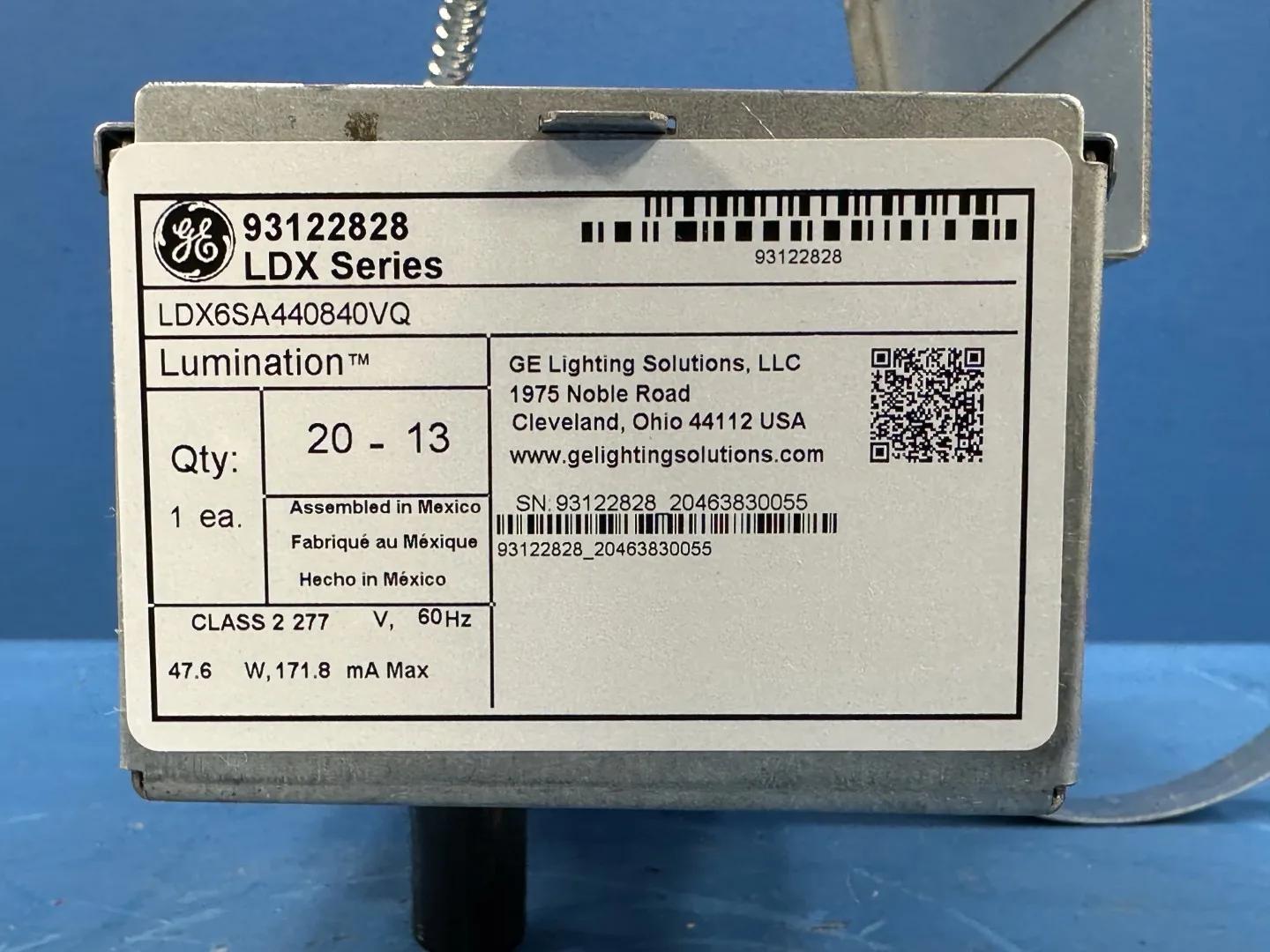

- Spec Basis: label photo (GE Lumination LDX Series LDX6SA440840VQ, 93122828, Assembled in Mexico, MINIMUM 75C SUPPLY CONDUCTORS, GE Lighting Solutions LLC Cleveland OH); GE Lumination LED Luminaires LDX Square Series spec sheet IND446 (ordering nomenclature, standard 82 CRI performance table)
Specifications
General Electric
LDX6SA440840VQ
93122828_20463830048
N/A
N/A
0.17
15
15
12
1
2
11
KSC1075 / 044
Packaging fees
1.6 6x10 CH $3.00
