GE Lumination LRC12RBD30WDSDCLMR840VQ 12" Recessed LED Downlight, 347V, 33W, 4000K, with RC12WSDCLMR Trim

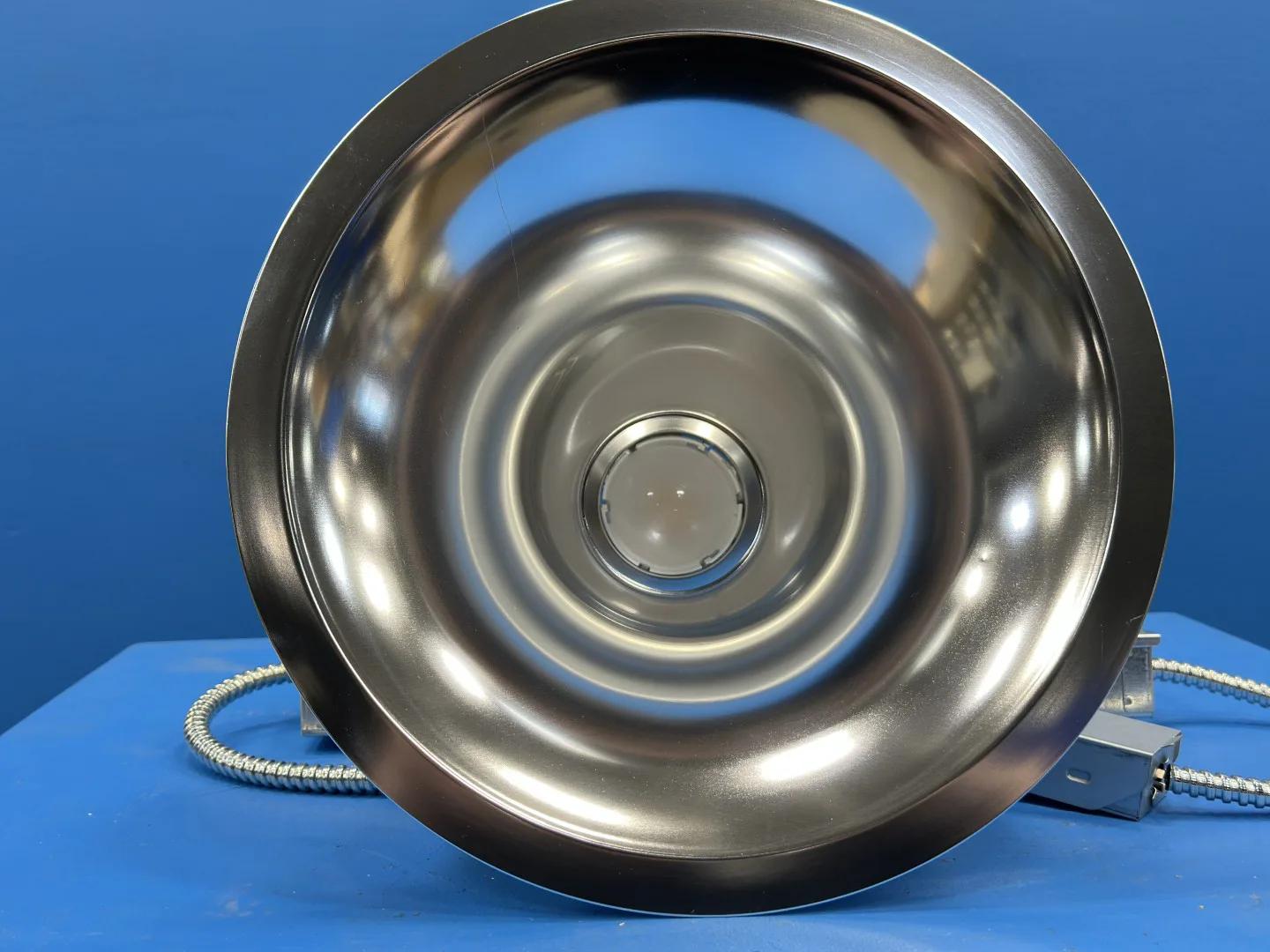

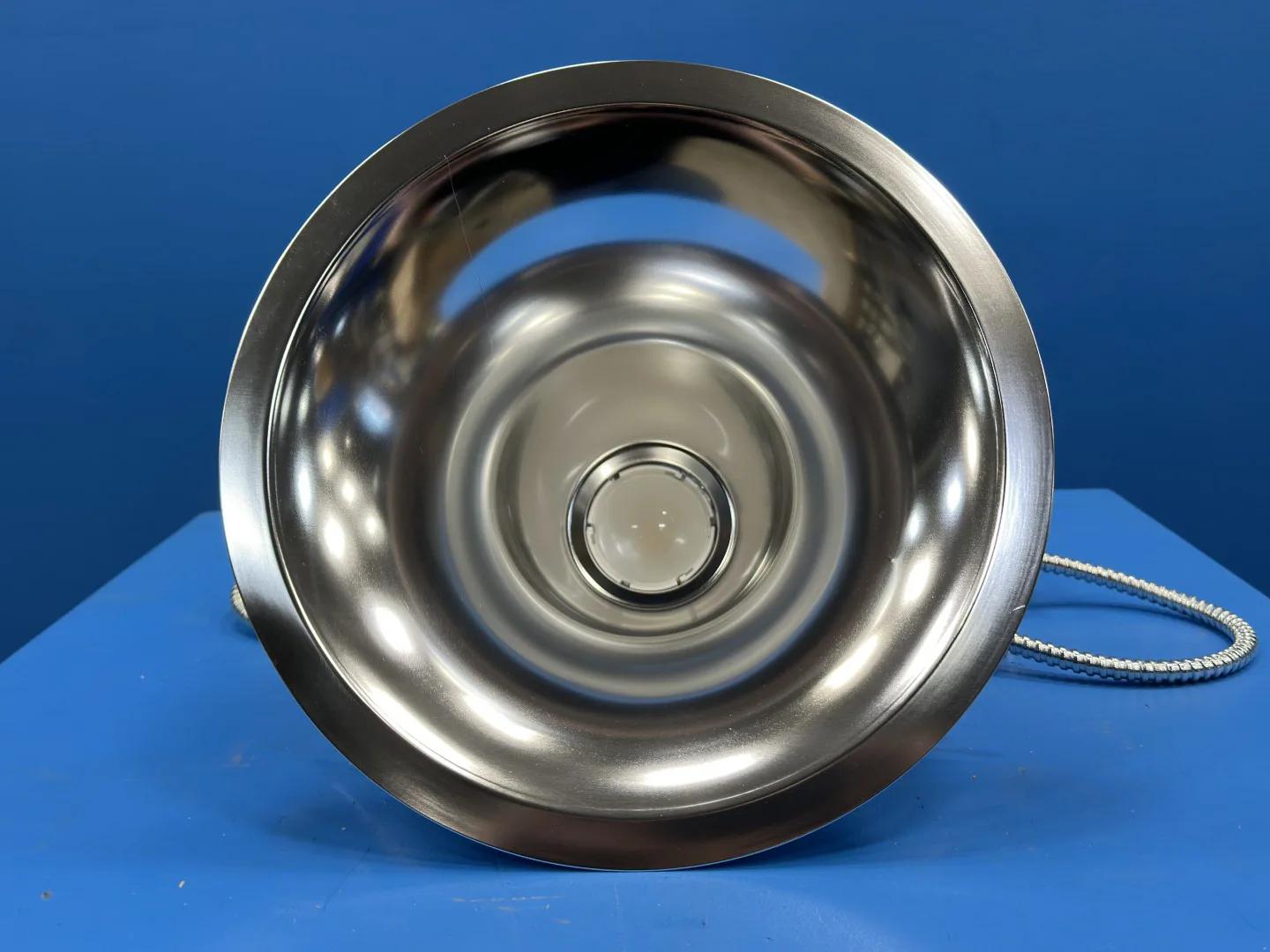

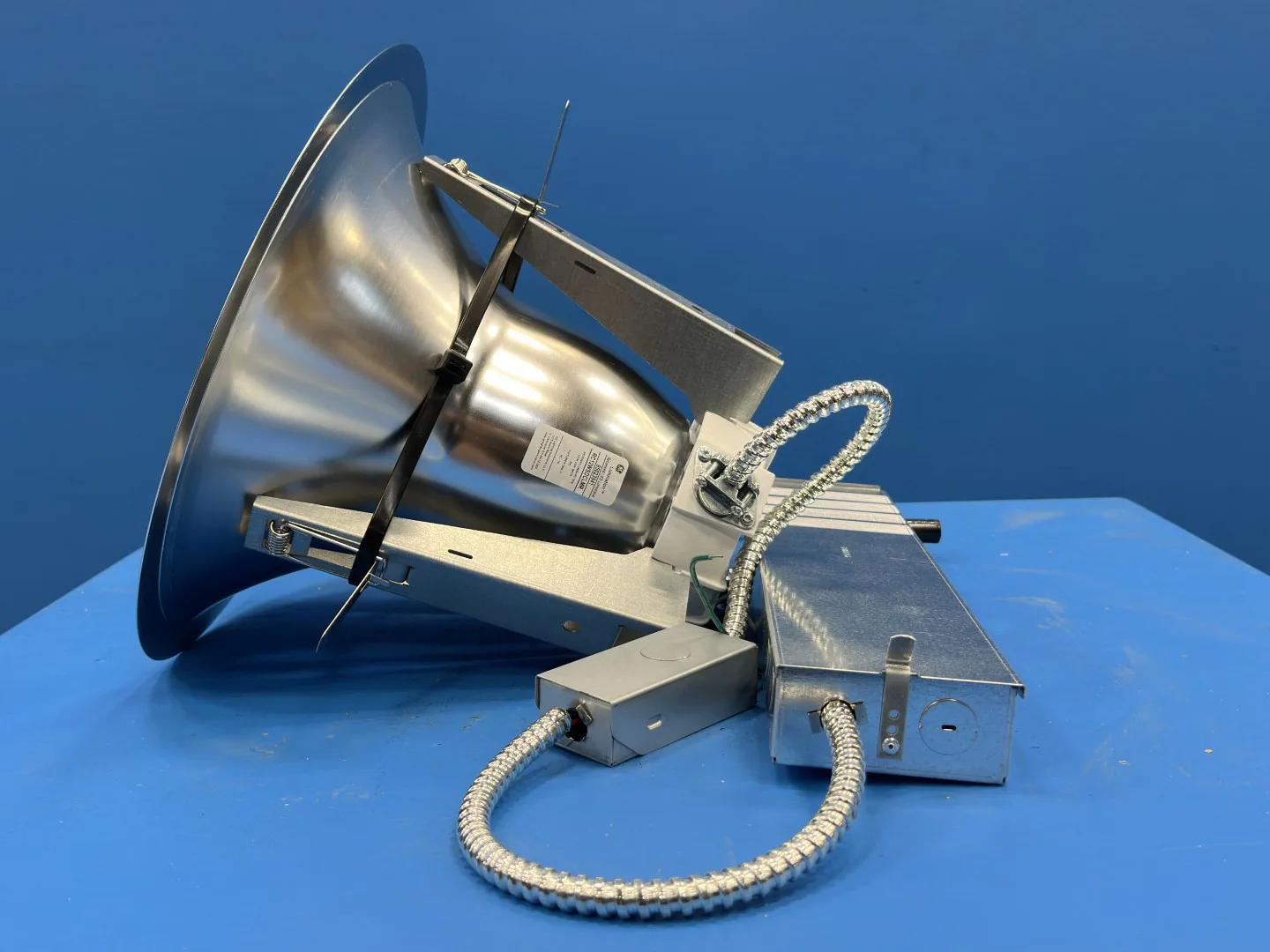

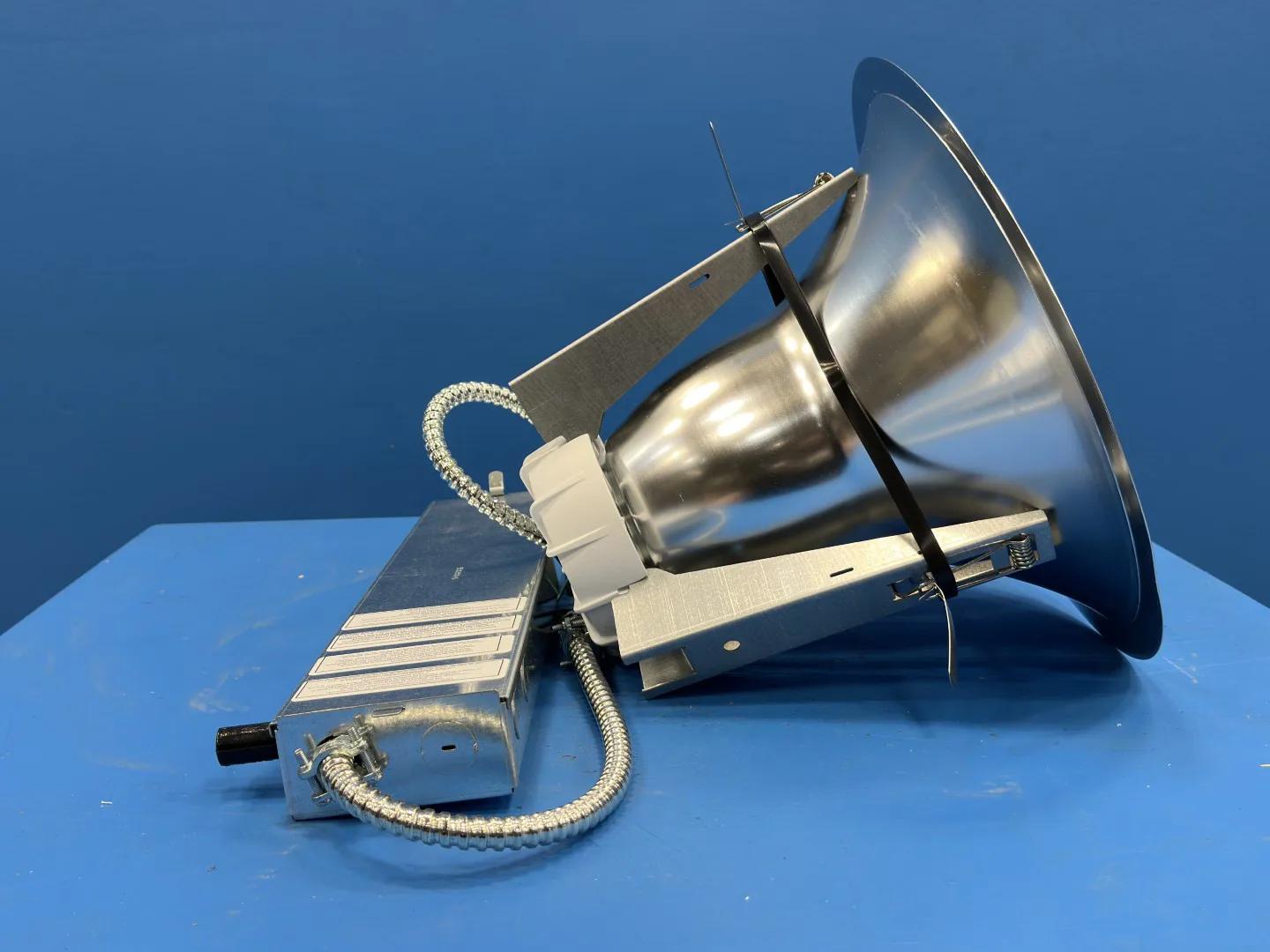

This is a GE Lumination LRC Series recessed LED downlight, catalog number LRC12RBD30WDSDCLMR840VQ, with its matching RC12 reflector trim. The LRC is GE's retrofit commercial downlight, built to convert existing round recessed fixtures to LED with tool-free installation from below the ceiling.

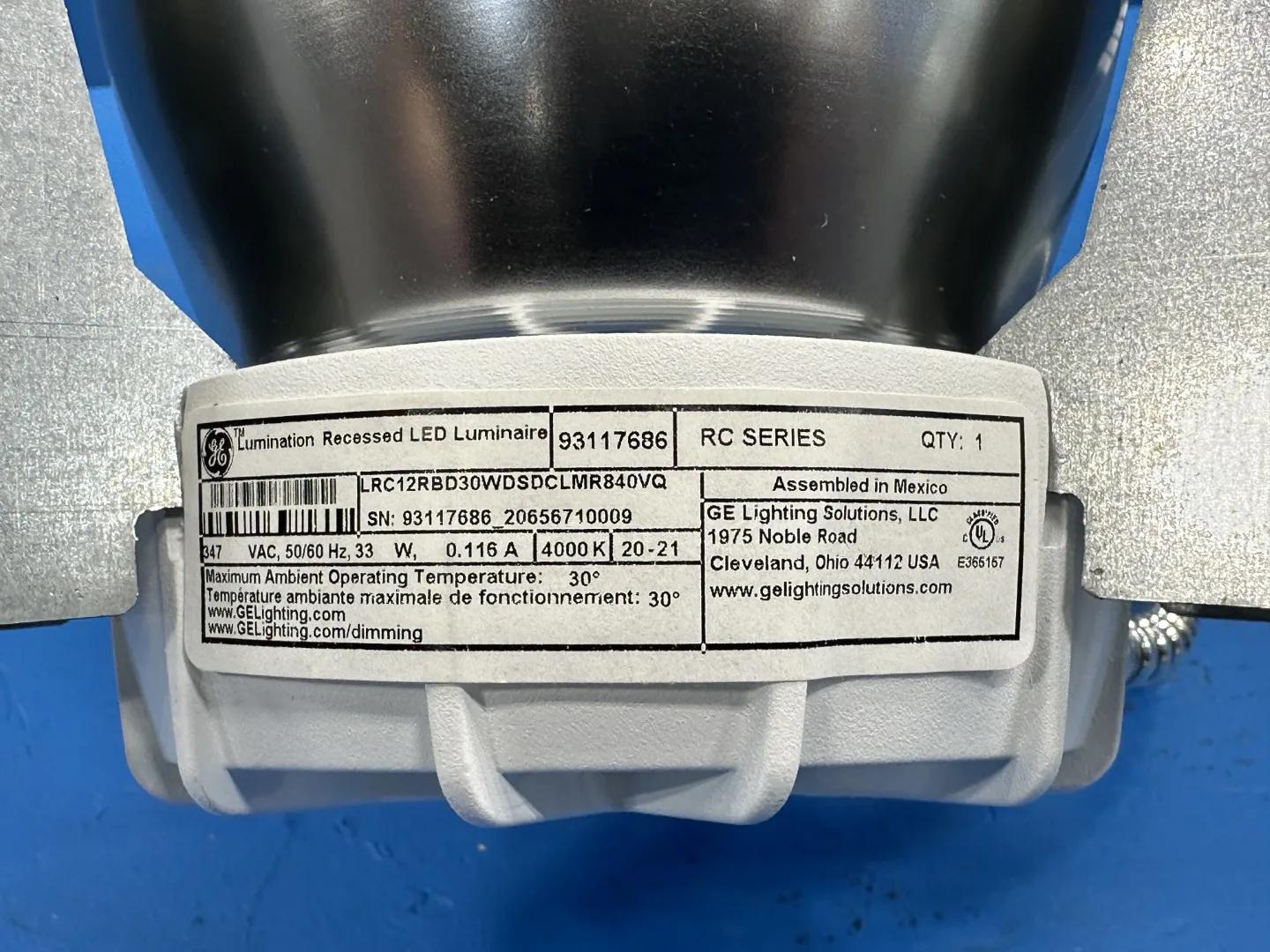

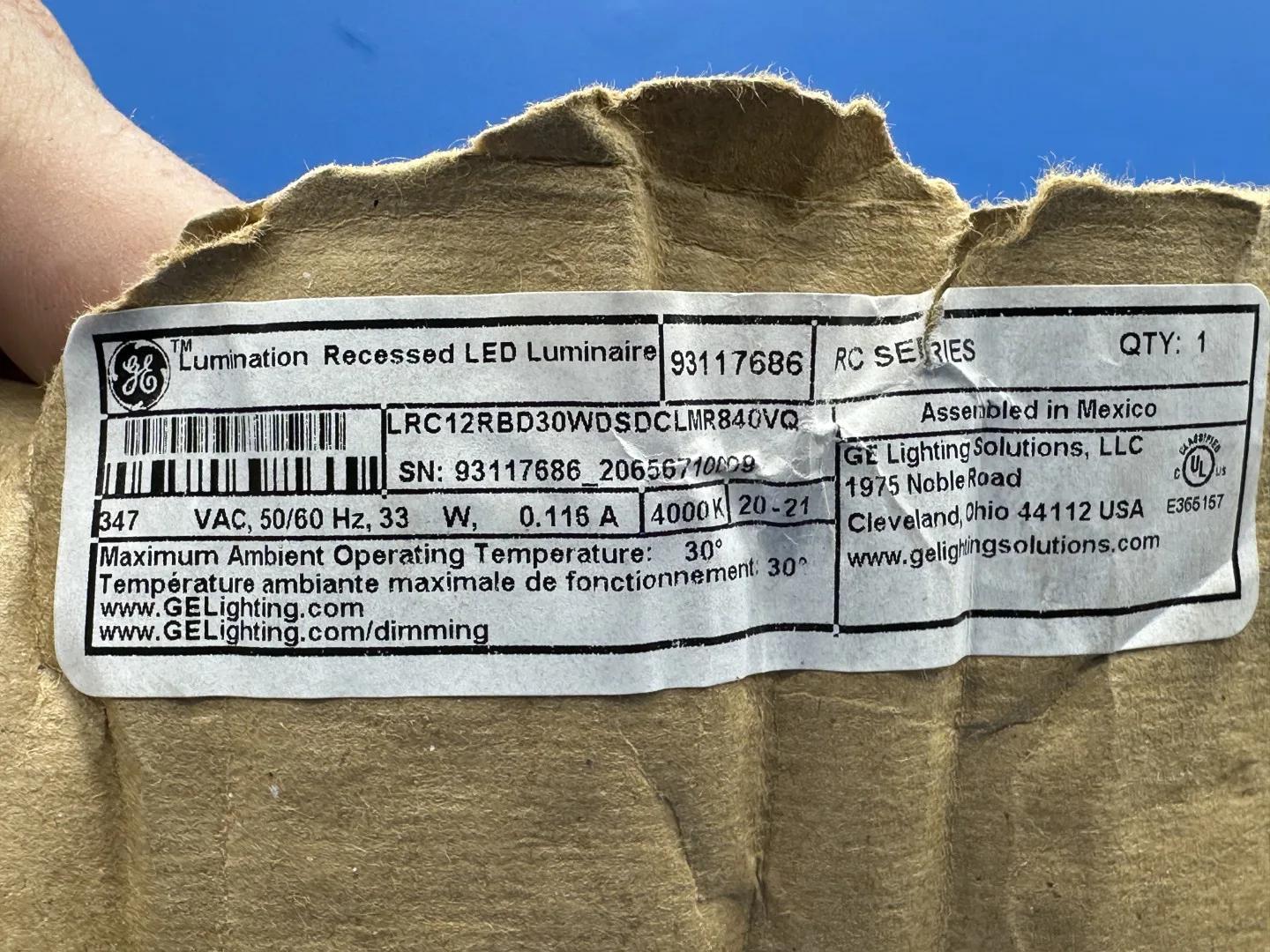

The catalog number spells out the configuration. 12R is the 12 inch round size, B is the second generation, D selects the 347 volt input, 30 is the 3000 lumen package, WD is the wide 56 degree beam, SD CL MR is a clear semi-diffused reflector with a matching flange, 8 is 83 CRI, 40 is 4000K and VQ is 0-10V dimming down to 10 percent. The nameplate confirms 347 VAC at 0.116 A, 33 watts and 4000K, and the fixture is labeled assembled in Mexico.

The 12 inch size fits ceiling openings from 11.75 to 12.25 inches in ceilings 0.5 to 1.3 inches thick. The 347 volt version is used mainly in Canadian commercial buildings wired at 600Y/347V. Electrical contractors and facility managers use these fixtures in offices, retail, schools, hospitals and airports with high ceilings.

Available from King Surplus inventory in Del Rio, Texas.

• Manufacturer (nameplate): GE Lighting Solutions, LLC, Cleveland, Ohio
• Product: Lumination LRC Series recessed LED retrofit commercial downlight (RC Series)
• Catalog Number (nameplate): LRC12RBD30WDSDCLMR840VQ
• Item Number (nameplate): 93117686
• Code Decode (LRC spec sheet): 12R 12 in round; B 2nd generation; D 347V; 30 3000 lumen package; WD wide beam, 56 degree; SD semi-diffused reflector; CL clear reflector; MR flange matches reflector; 8 83 CRI; 40 4000K; VQ 0-10V dimming to 10%
• Input Voltage (nameplate): 347 VAC, 50/60 Hz
• Input Current (nameplate): 0.116 A
• Input Power (nameplate): 33 W
• Color Temperature (nameplate): 4000K
• Maximum Ambient Operating Temperature (nameplate): 30 C

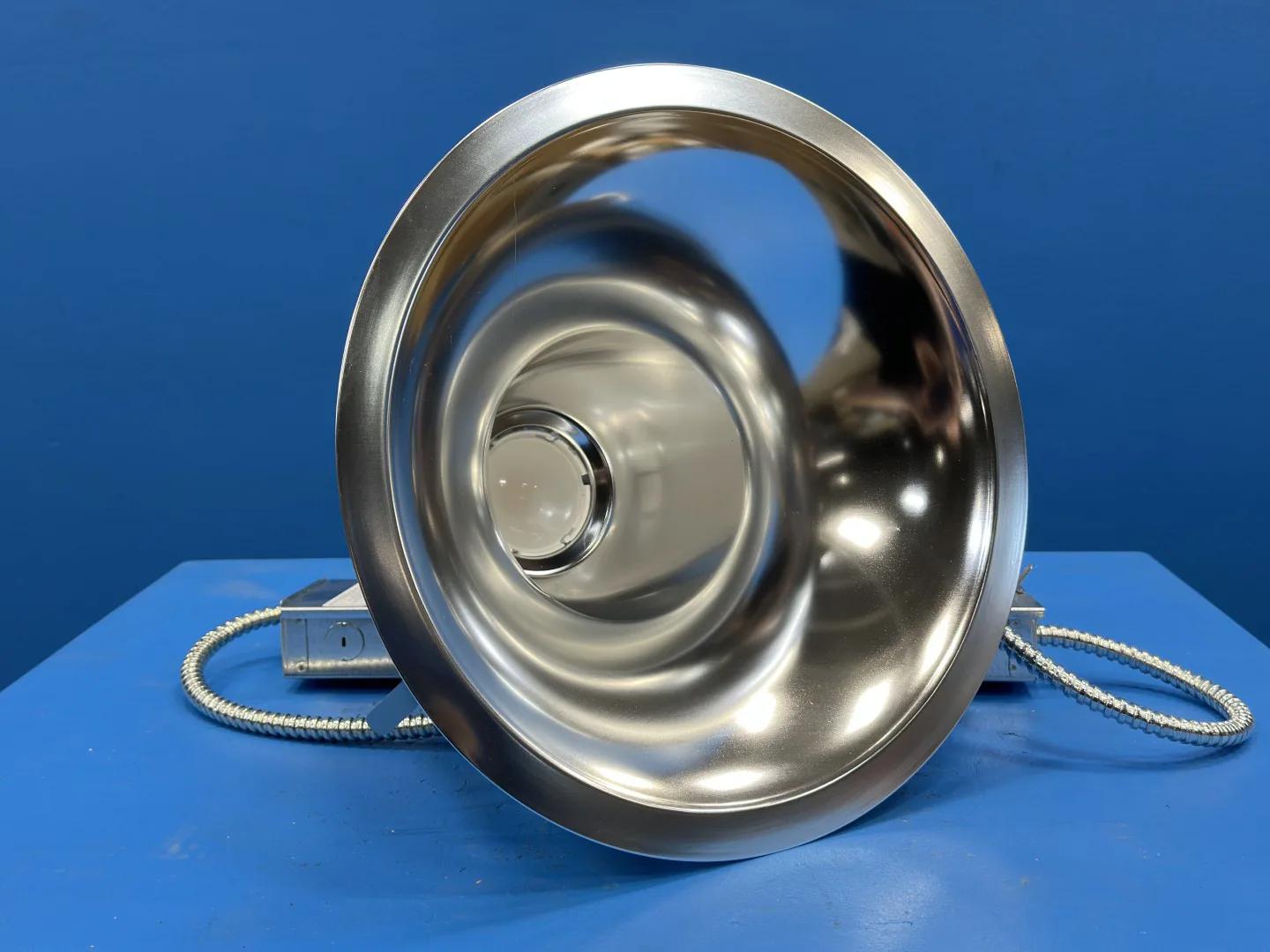

• Trim (label): RC12WSDCLMR, item 95023841, recessed luminaire trim for use with RC fixtures only
• Applicable Ceiling Hole Diameter: 11.75 to 12.25 in
• Applicable Ceiling Thickness: 0.5 to 1.3 in
• Height from Bottom of Ceiling (3000 lm): 9.7 in
• Rated Lumen Depreciation (series): L85 at 50,000 hrs
• Listing Mark (nameplate): E365157
• Origin (nameplate): Assembled in Mexico
• Spec Basis: nameplate and trim label photos; GE Lumination LRC Series LED Downlights spec sheet, ordering information and product dimensions (via https://www.candelacorp.com/spec/?prod_num=LRC-6R-B-1-20-WD-SD-CL-MR-8-30-PQ)
