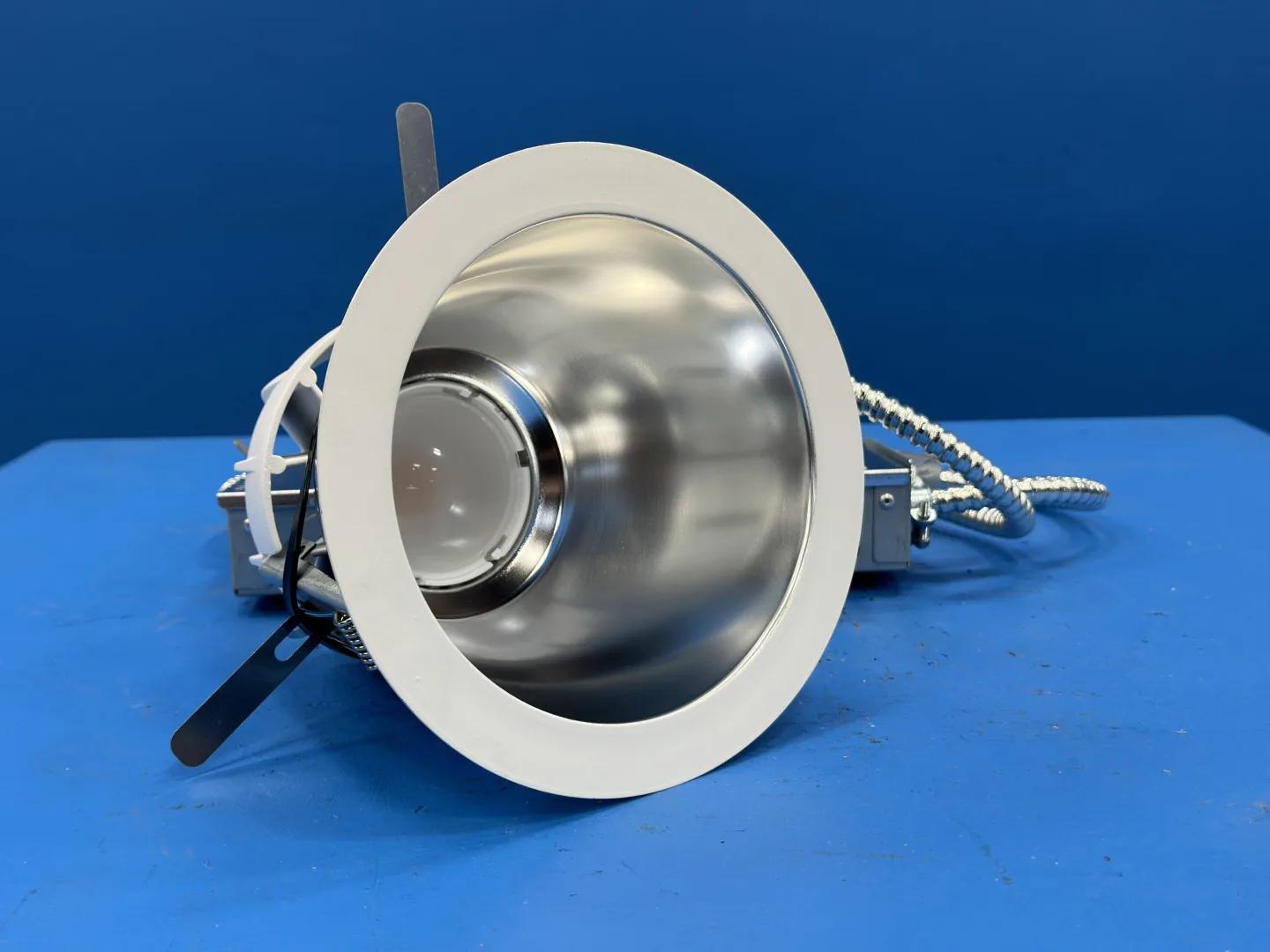

GE Lumination LRC6RB120WDSDCLWT830VQ 6" Recessed LED Downlight, 120VAC, 0.158A, 19W, 3000K
LRC6RB120WDSDCLWT830VQ Light Specifications: Wattage, Voltage & Mounting
Applications & Replacement Fitment for General Electric LRC6RB120WDSDCLWT830VQ
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | LRC6RB120WDSDCLWT830VQ |
| Condition | New |
| Manufacturer | General Electric |
| Asset Number | KSC1075 / 047 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$9.95
Basic Information
Asset #
KSC1075 / 047
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

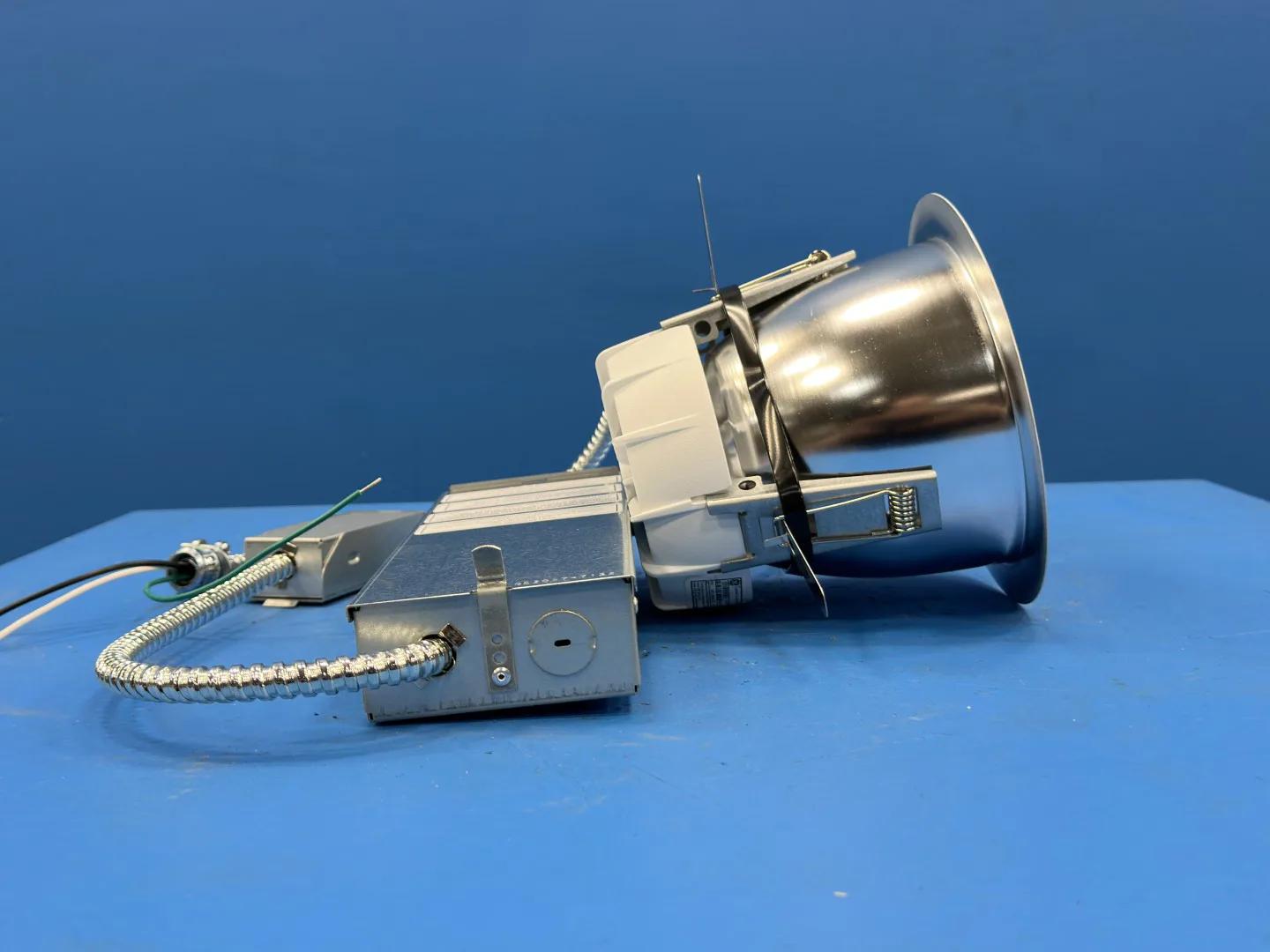

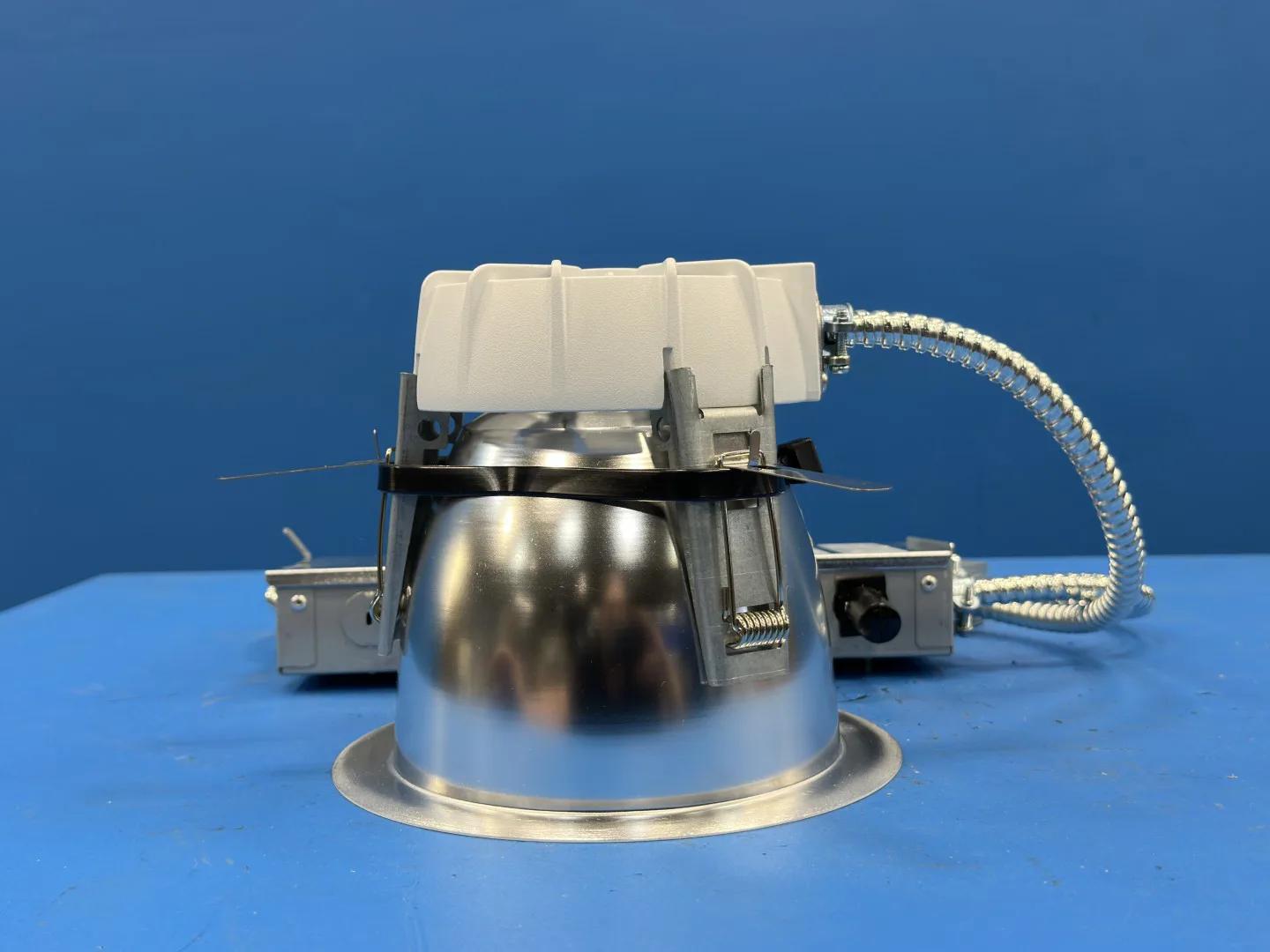

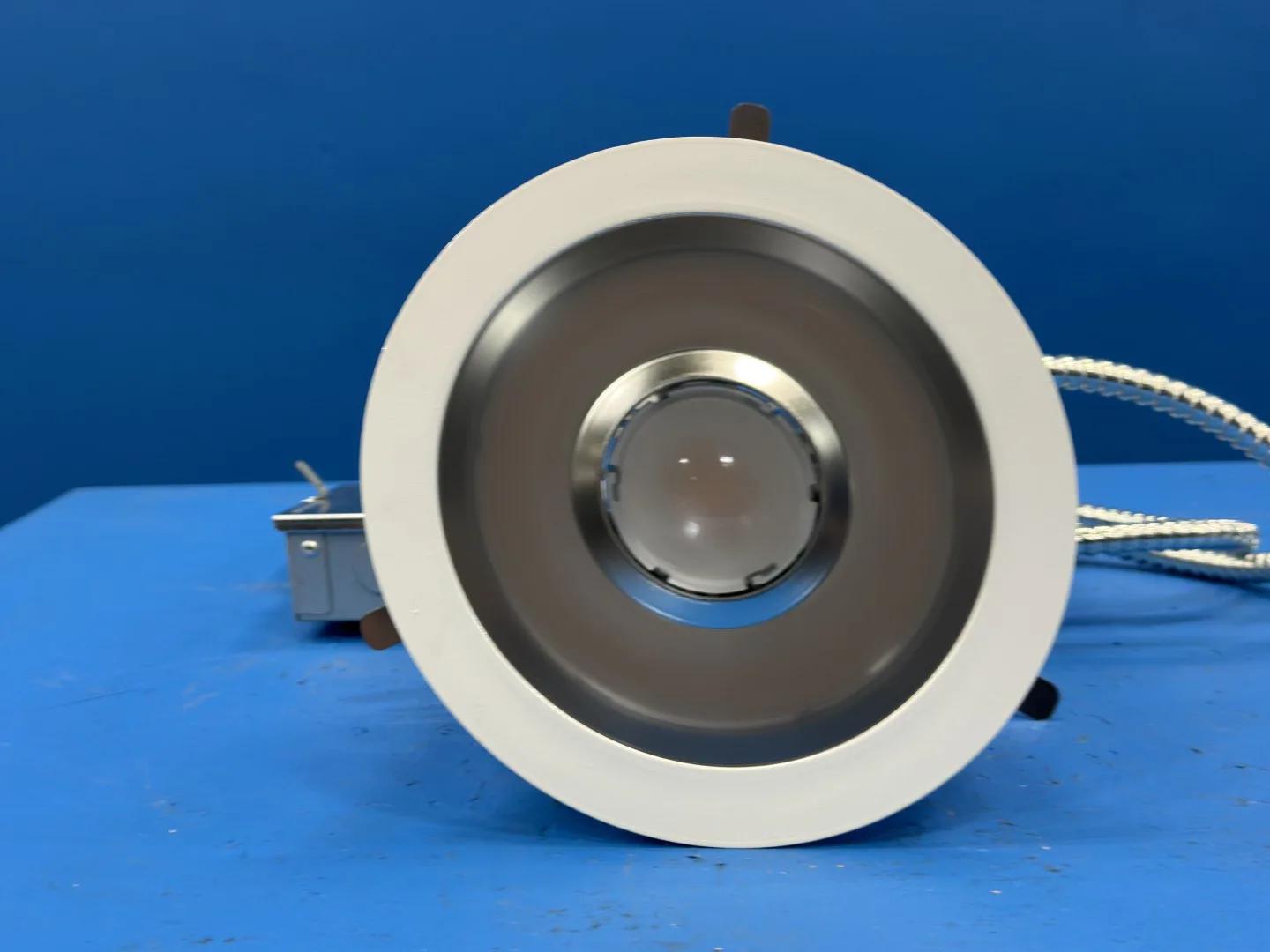

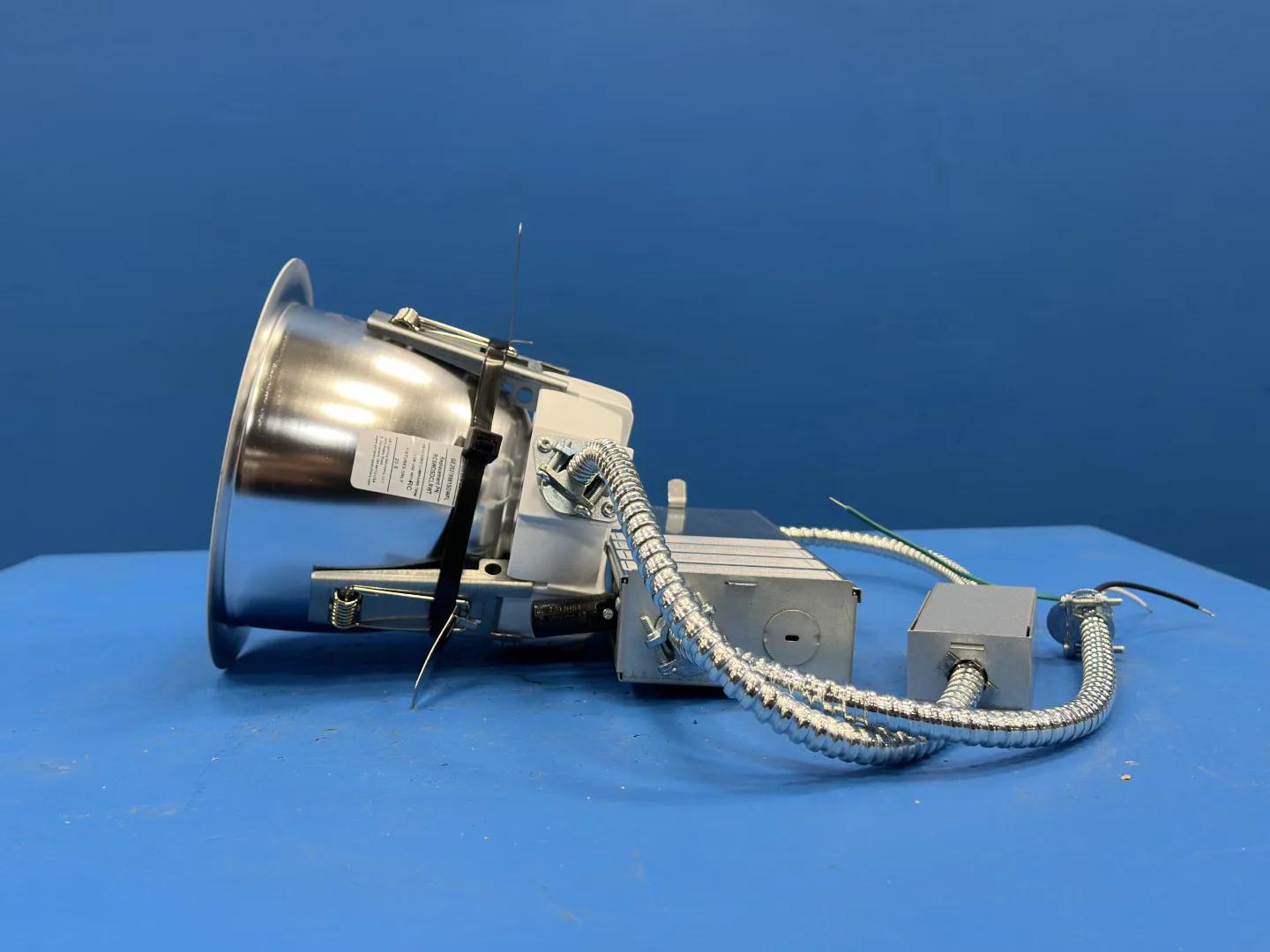

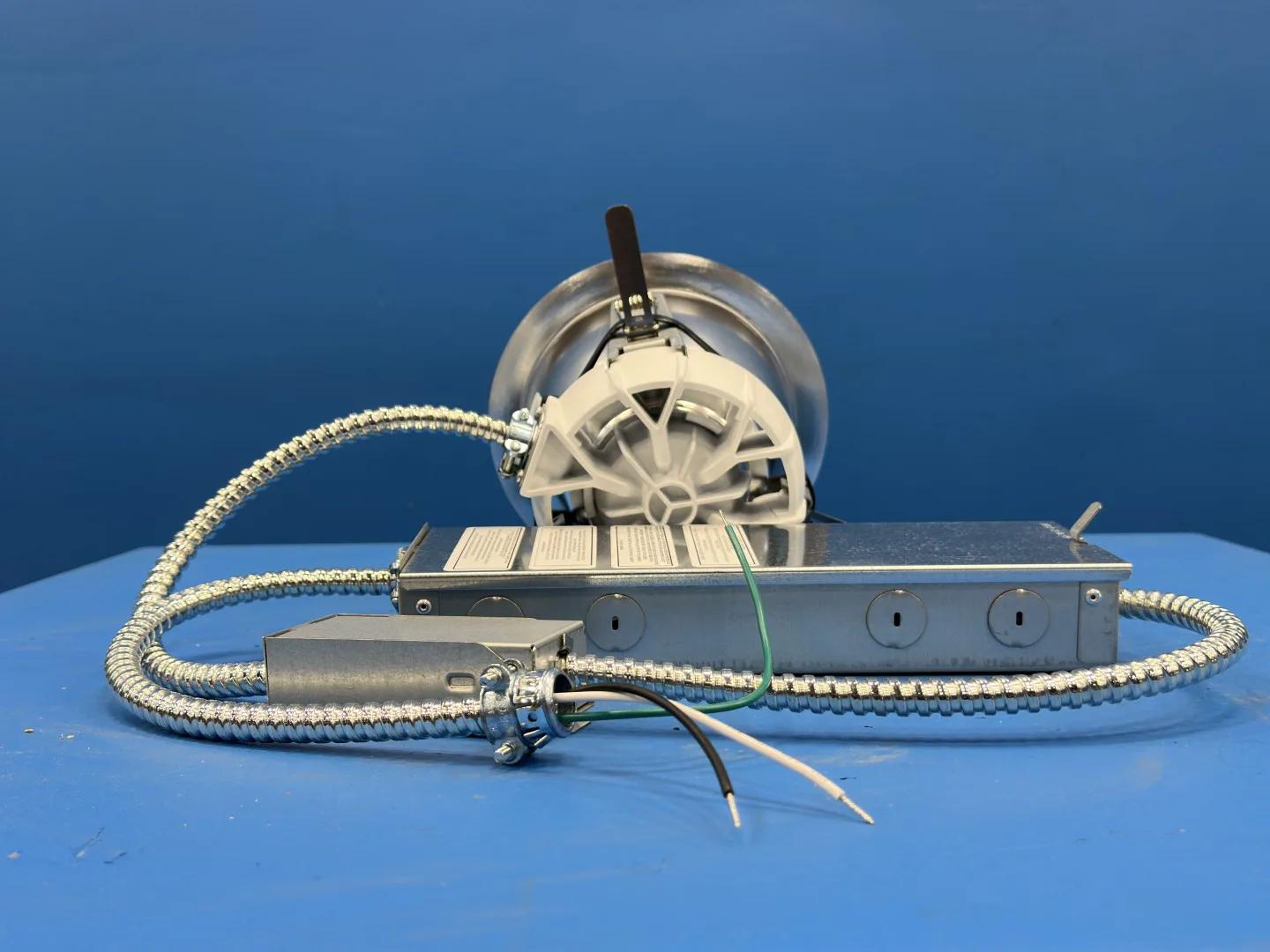

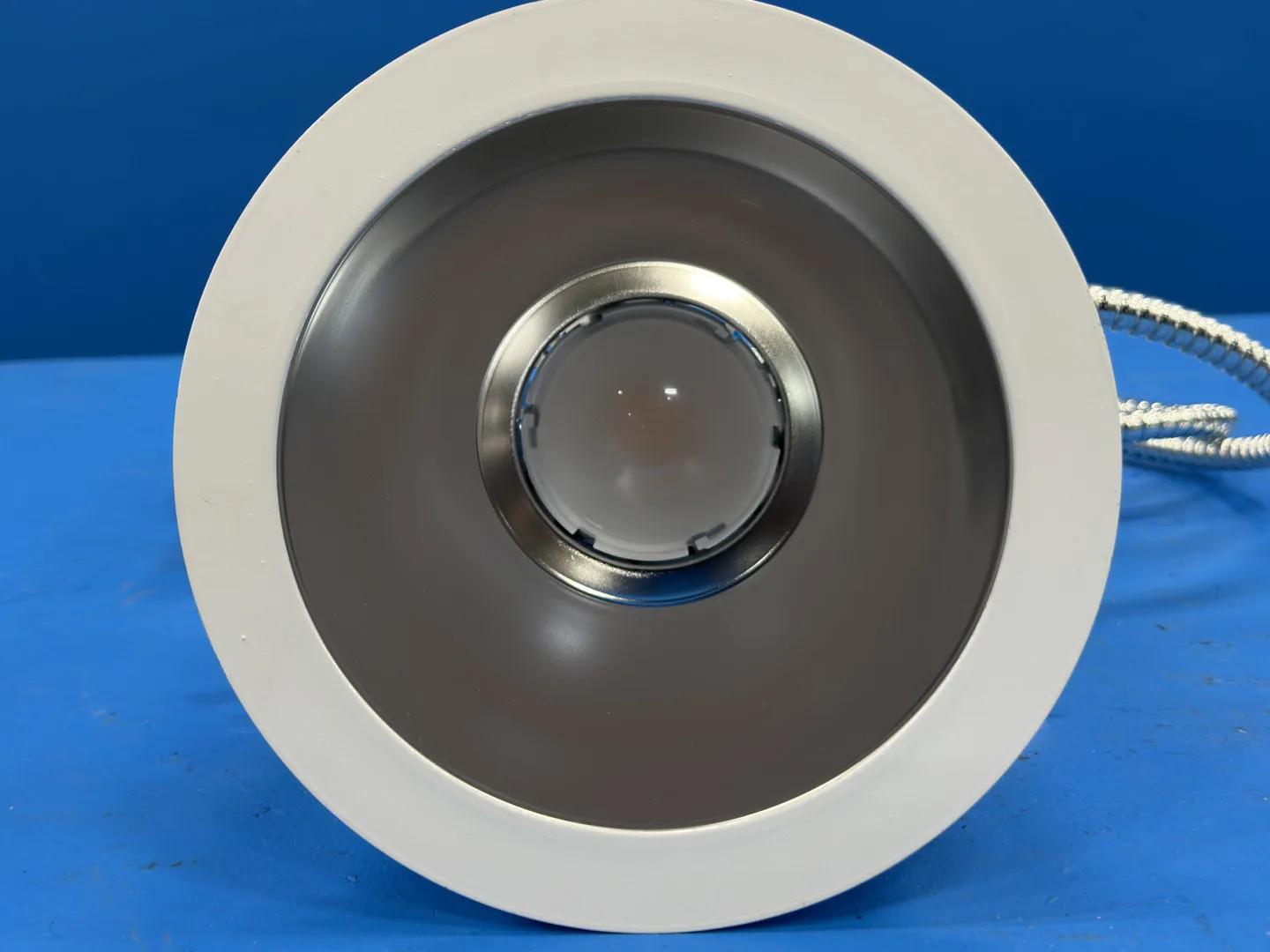

The GE Lumination LRC6RB120WDSDCLWT830VQ is a 6 inch round retrofit LED commercial downlight from the second generation LRC Series. The LRC Series was designed to convert existing commercial and industrial recessed downlights to LED, installing from below the ceiling into RC fixture housings.

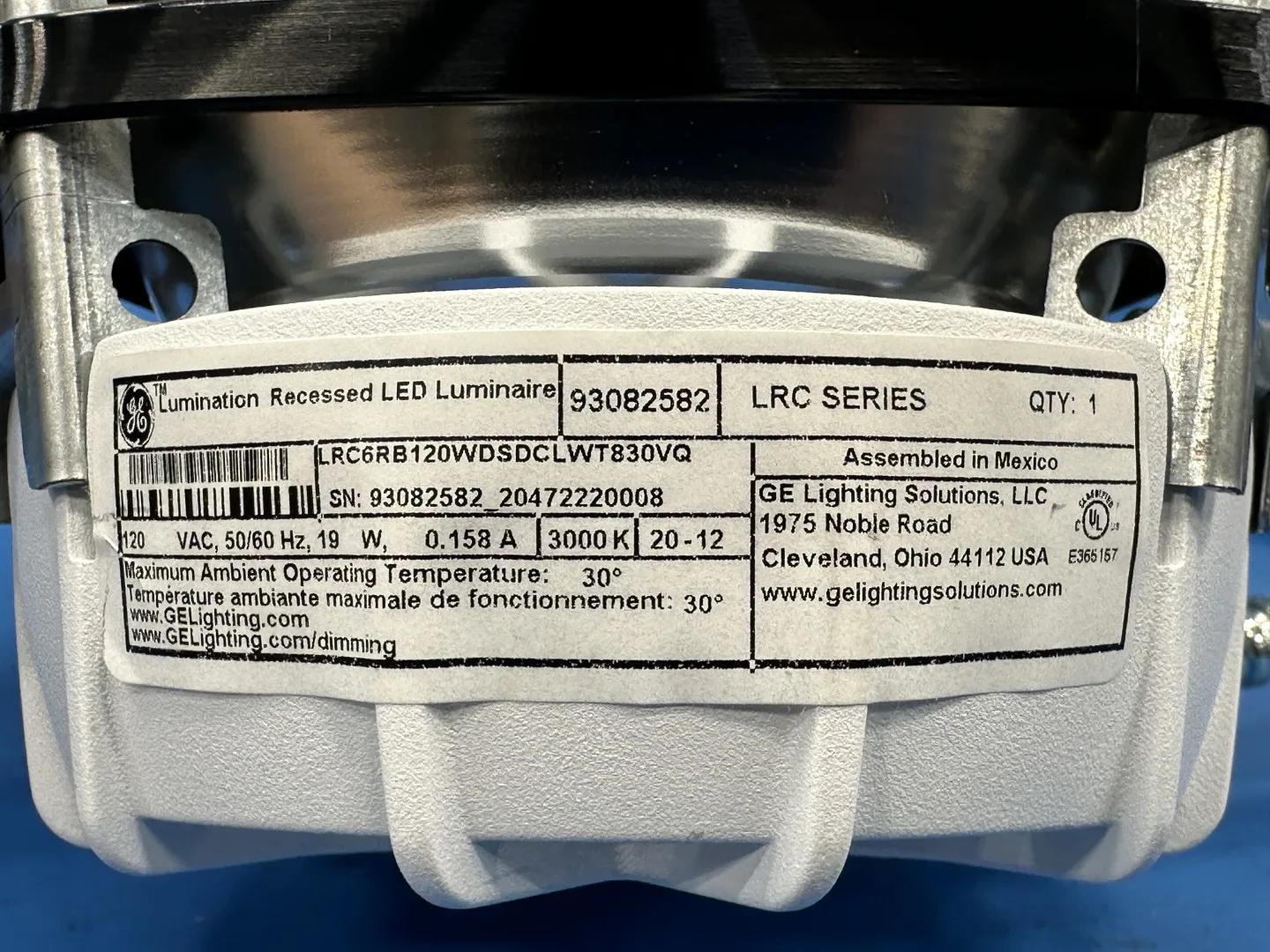

The catalog number spells out the configuration: LRC family, 6R for 6 inch round, B for 2nd generation, 1 for 120 volt input, 20 for the 2000 lumen package, WD for a wide 56 degree beam, SD and CL for a semi-diffused clear reflector, WT for a white painted flange, 8 for 83 CRI, 30 for 3000K warm white and VQ for 0-10V dimming. The nameplate rates it at 120 VAC, 0.158 A and 19 W, cUL us listed, with replacement trim PN RC6WDSDCLRWT. GE rates the series for L85 lumen maintenance at 50,000 hours.
Electrical contractors and facility managers use these downlights in offices, retail stores, schools, healthcare buildings and lobbies to replace older compact fluorescent and incandescent recessed lighting.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: GE Lighting Solutions, LLC (Lumination)
- Catalog Number: LRC6RB120WDSDCLWT830VQ
- Series: Lumination LRC retrofit commercial LED downlight, 2nd generation (B)
- Size: 6 in round (6R)
- Input Voltage: 120 VAC, 50/60 Hz (nameplate; code 1 = 120V)
- Input Current: 0.158 A (nameplate)
- Input Power: 19 W (nameplate)
- Nominal Lumen Package: 2000 lumens (code 20)
- Beam Spread: Wide, 56 degree (WD)
- Reflector: Semi-diffused finish (SD), clear color (CL)
- Flange: White paint (WT)
- Color: 83 CRI (8), 3000K (30; nameplate 3000 K)
- Dimming: 0-10V (VQ)
- Rated Lumen Maintenance: L85 at 50,000 hours
- Applicable Ceiling Hole Diameter: 6.4 to 7.2 in (datasheet, RC6)
- Height from Bottom of Ceiling: 5.9 in (datasheet, RC6 at 2000 lm)
- Maximum Ambient Operating Temperature: 30 C (nameplate)
- Listing: cUL us, file E365157 (nameplate)

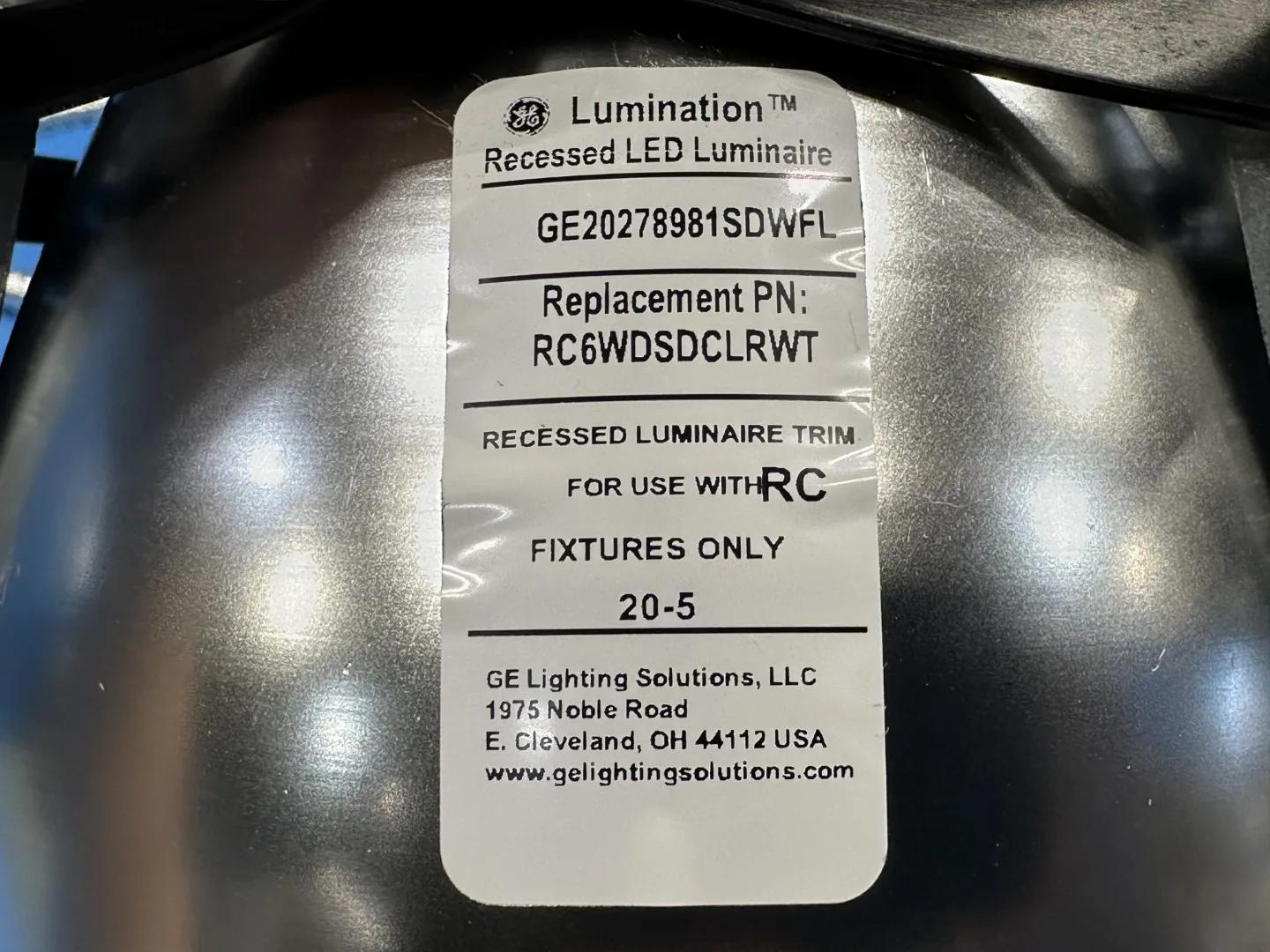

- Replacement PN: RC6WDSDCLRWT (nameplate trim label)
- Material Number: 93082582 (nameplate)
- Origin: Assembled in Mexico (nameplate)
- Spec Basis: nameplate photos (GE Lighting Solutions LRC6RB120WDSDCLWT830VQ, 120 VAC 0.158 A 19 W 3000 K); GE Lumination LED LRC Series Retrofit Commercial Downlight spec sheet https://assets.usesi.com/product-media/brochures/USESI_748702_brochure.pdf
Specifications
General Electric
LRC6RB120WDSDCLWT830VQ
93082582_20472220008
N/A
N/A
0.158
16
16
9
1
0.2
10.2
KSC1075 / 047
