General Electric Lumination LDX Series LDX4RA410T35VQ 4" LED Downlight Housing, 93082413, 14.5W 277V

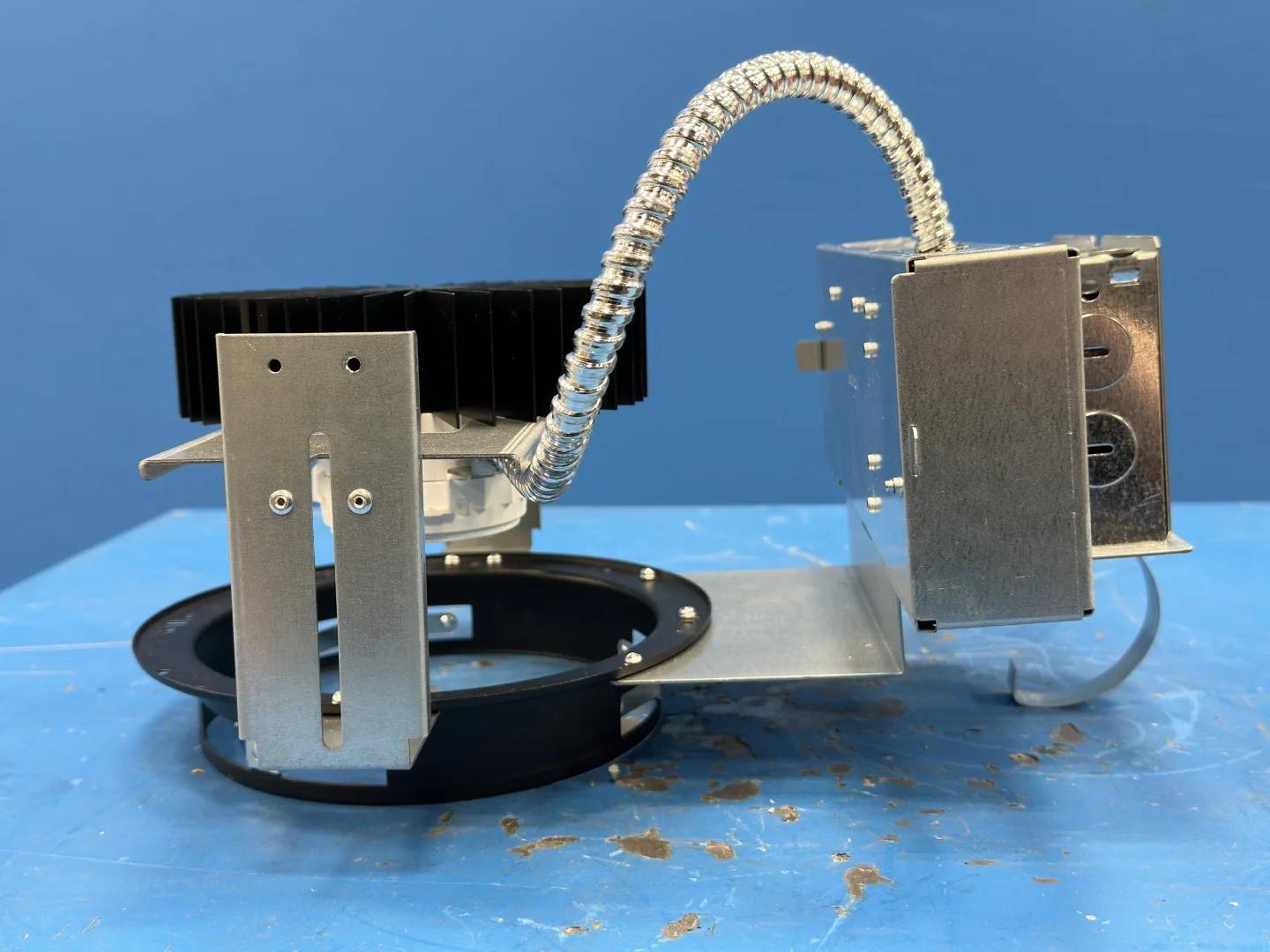

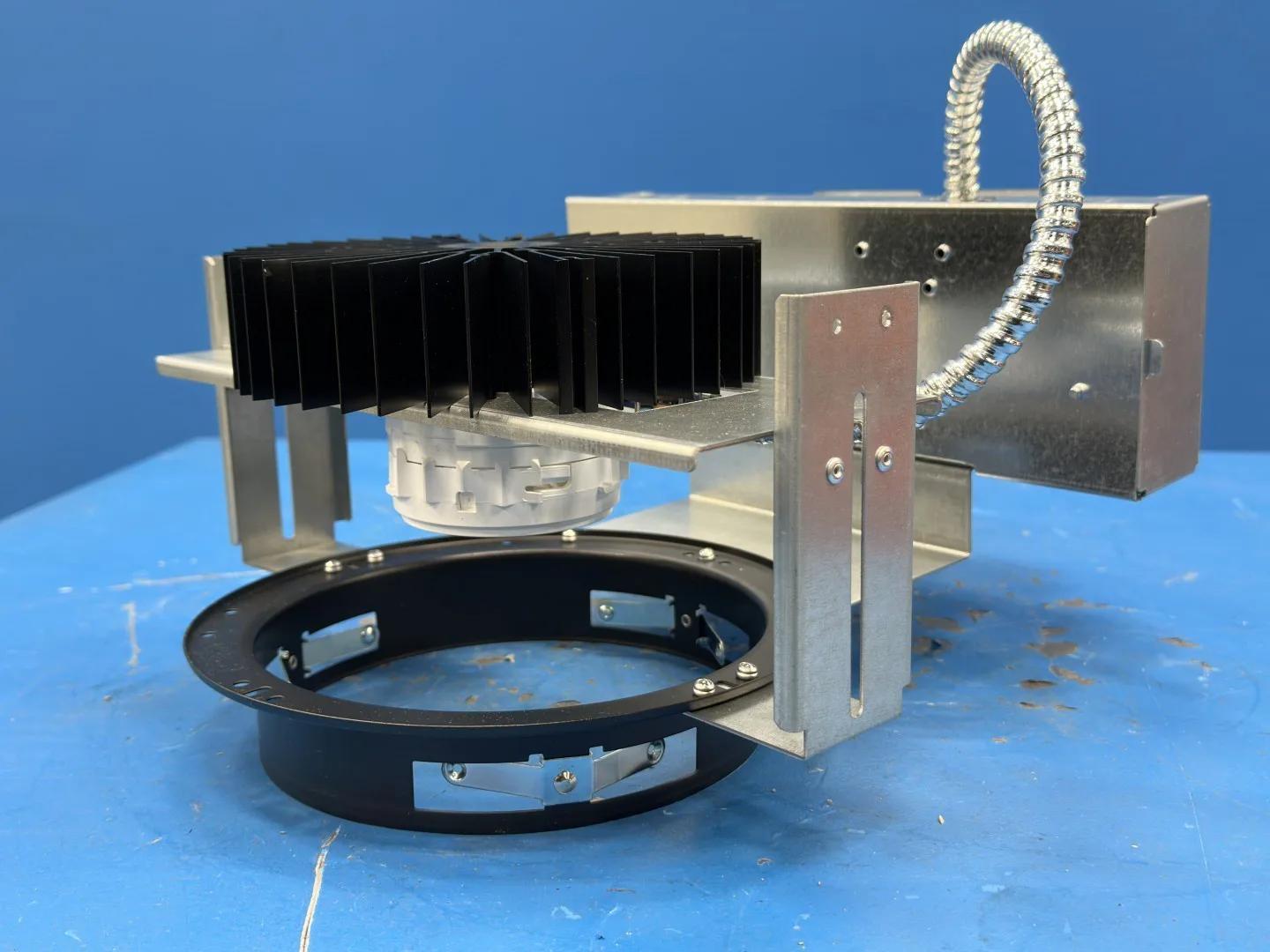

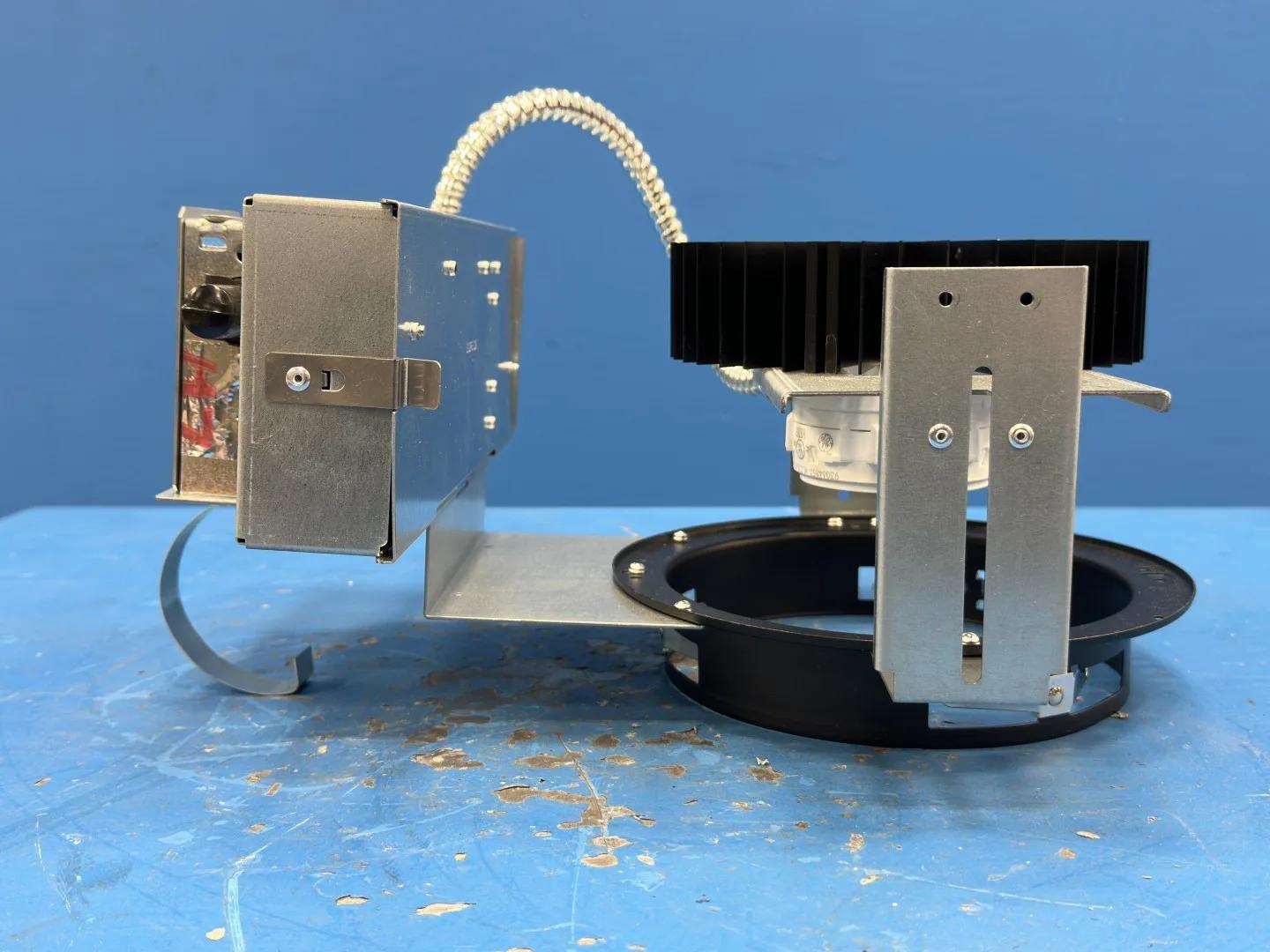

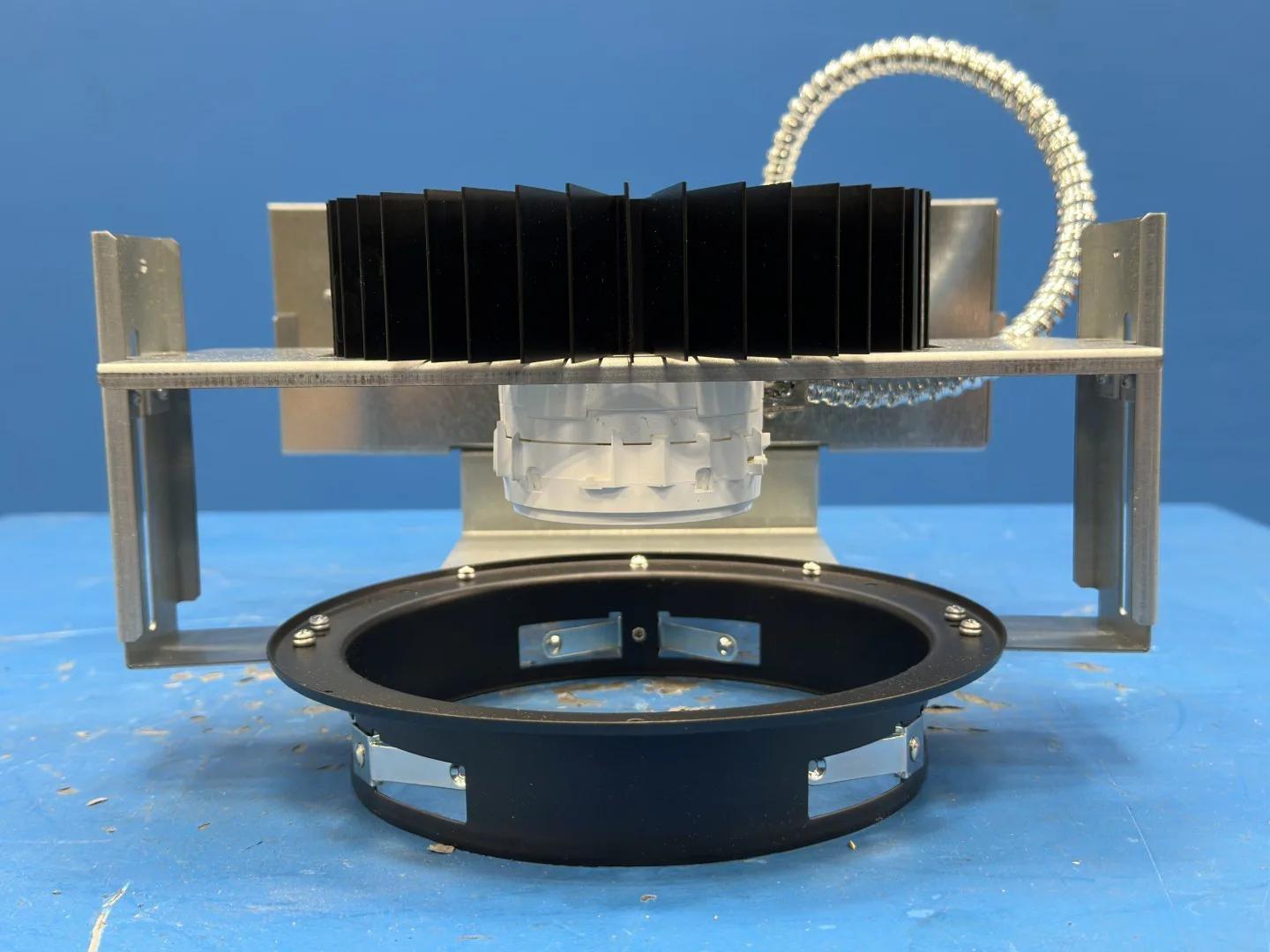

This is a GE Lumination LDX Series LED downlight housing, catalog number LDX4RA410T35VQ, material number 93082413, built by GE Lighting Solutions for 277 volt commercial ceilings. The LDX Series is GE's new construction recessed downlight line, powered by a twist-in LED downlight module that can be replaced or upgraded without tools as LED technology advances.

The catalog number follows GE's LDX ordering structure. LDX4R marks a 4 inch round housing, A is the first generation, 4 sets 277V input, 10 is the 1000 lumen nominal package, T is TriGain 90 CRI color, 35 is 3500K color temperature and VQ is 0-10V dimming. The label lists 14.5 W and 49.58 mA maximum input at 277 V, 60 Hz, and calls for supply conductors rated at least 75 C.

GE sells LDX downlights as a configured housing plus a reflector and hanger bars, so this housing pairs with a 4 inch LDX round reflector for a complete fixture. Electrical contractors and facility maintenance staff use these fixtures in commercial ceilings on 277 volt lighting circuits with 0-10V dimming controls.

Available from King Surplus inventory in Del Rio, Texas.

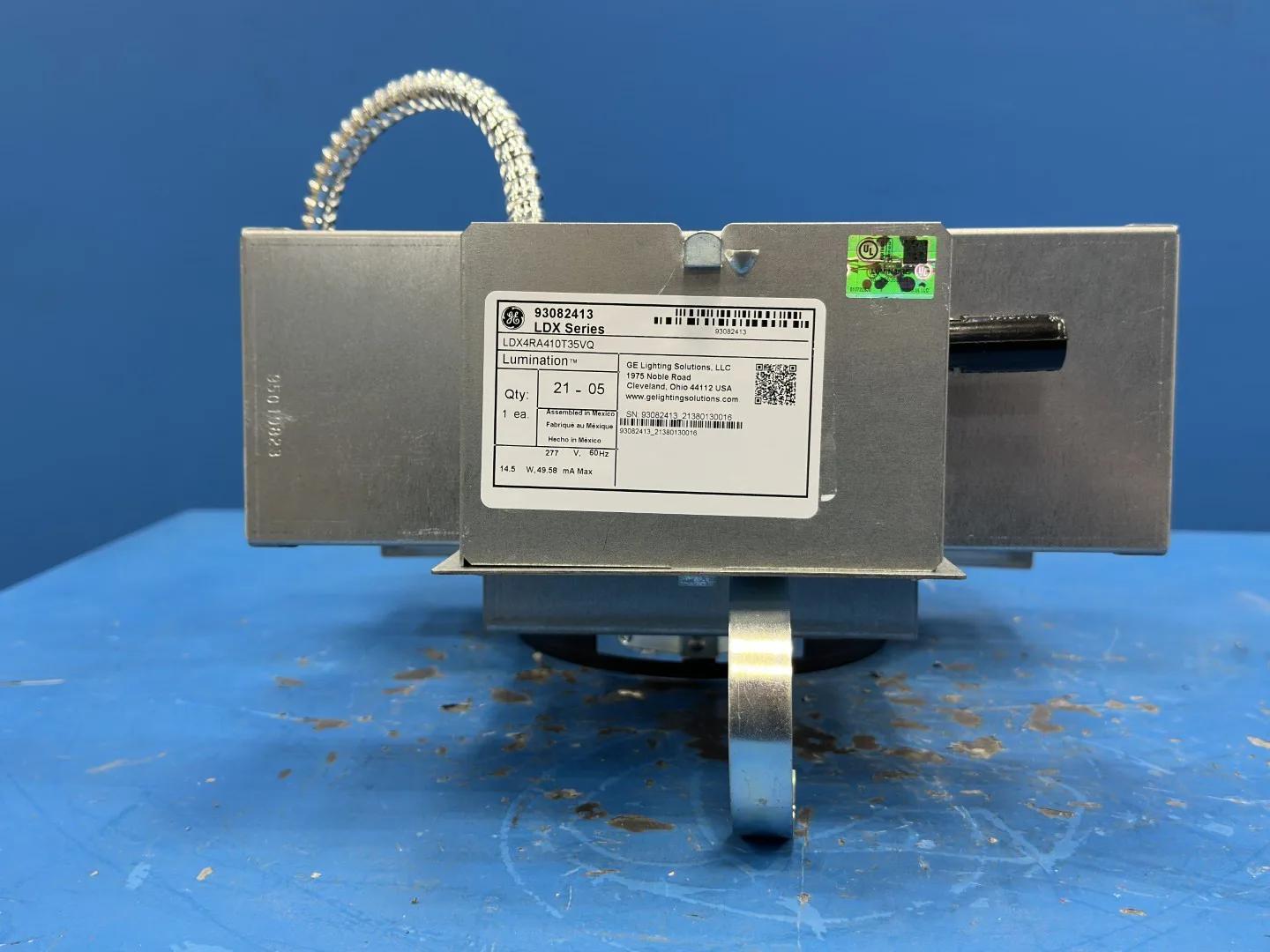

• Catalog number: LDX4RA410T35VQ; GE material number 93082413 (label photo)
• Product line: GE Lumination LDX Series LED new construction downlight housing (label photo, GE LDX spec sheet)
• Input: 277 V, 60 Hz, 14.5 W, 49.58 mA max (label photo)
• Wiring note: minimum 75 C supply conductors (label photo)
• Catalog decode: LDX = Lumination LDX; 4R = 4 inch round; A = 1st generation; 4 = 277V; 10 = 1000 lumen nominal; T = TriGain 90 CRI; 35 = 3500K; VQ = 0-10V dimming (GE LDX ordering information)

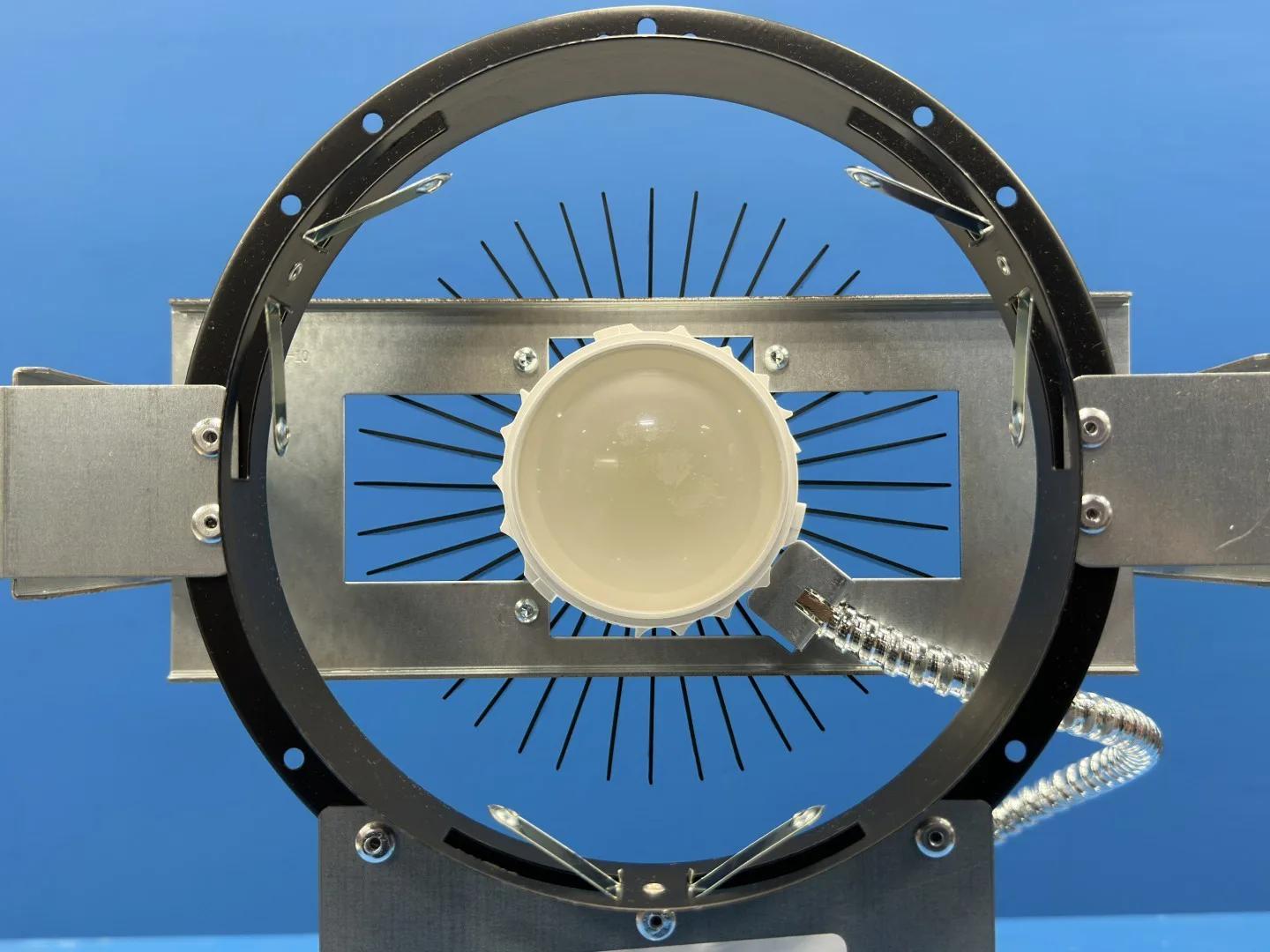

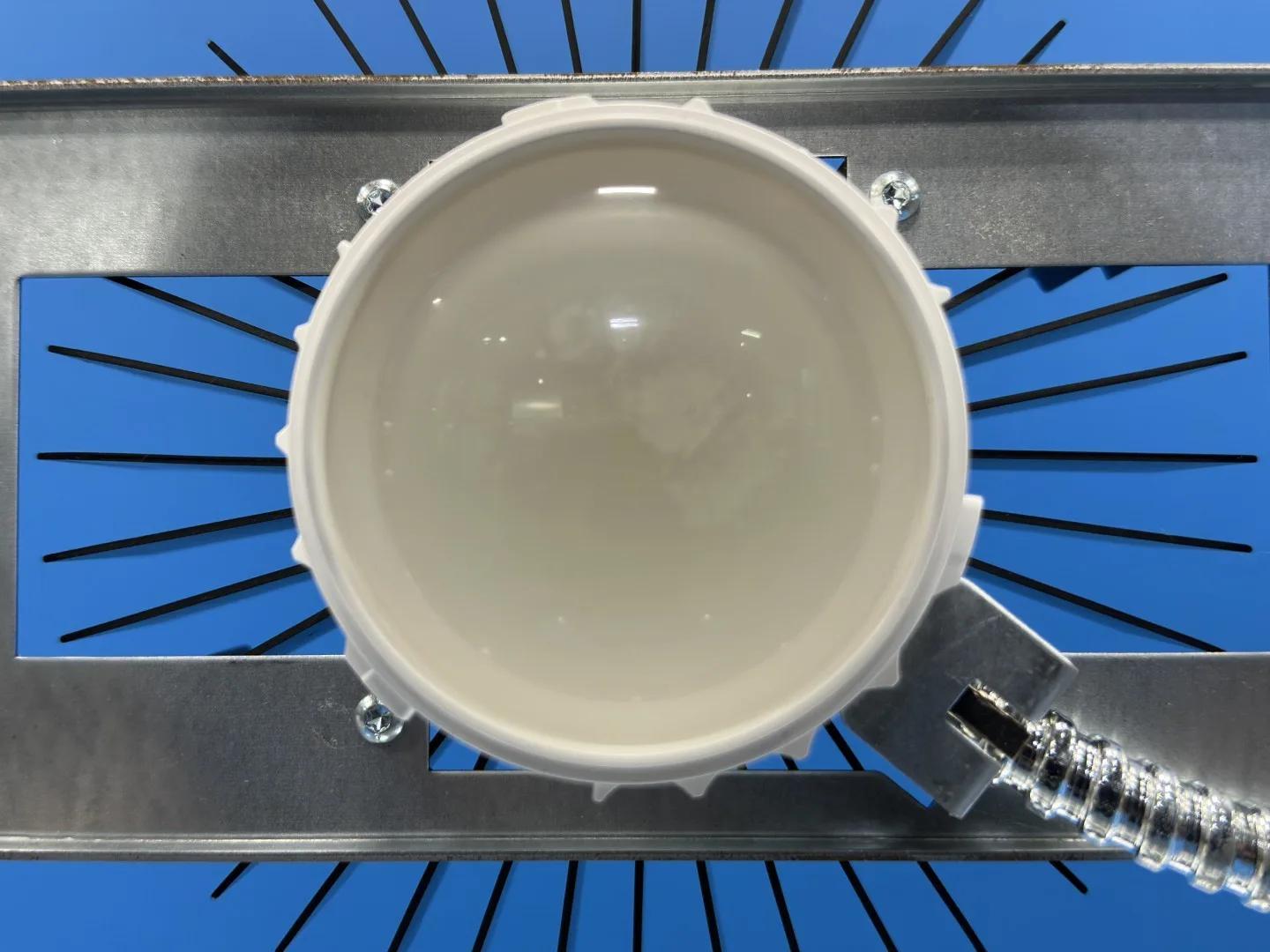

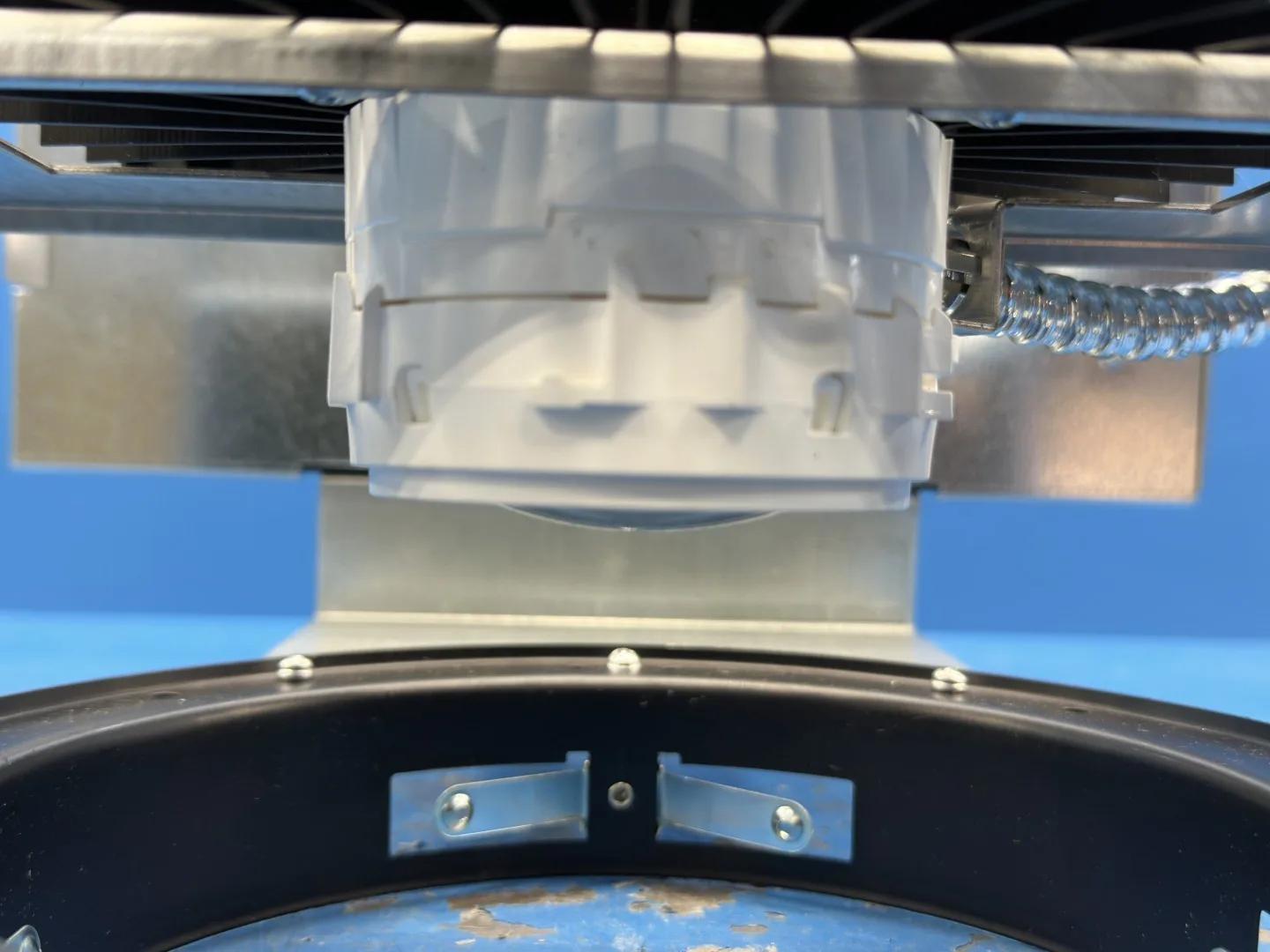

• Light source: twist-in LED downlight module, tool-free replacement (GE LDX spec sheet)
• Rated lumen depreciation: L85 at 50,000 hours (GE LDX series performance summary)
• Complete fixture requires matching reflector and hanger bars, ordered separately (GE LDX ordering information)

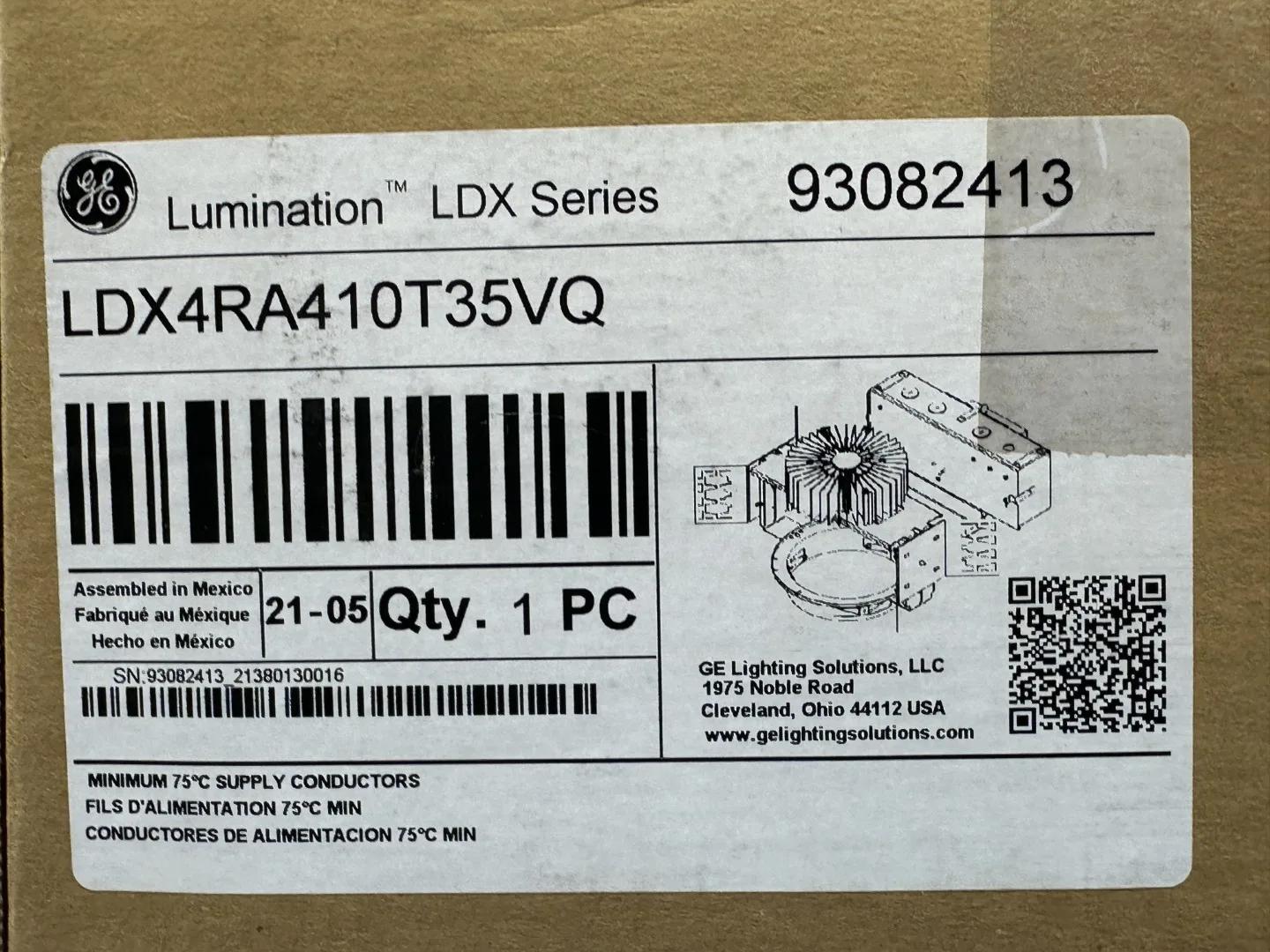

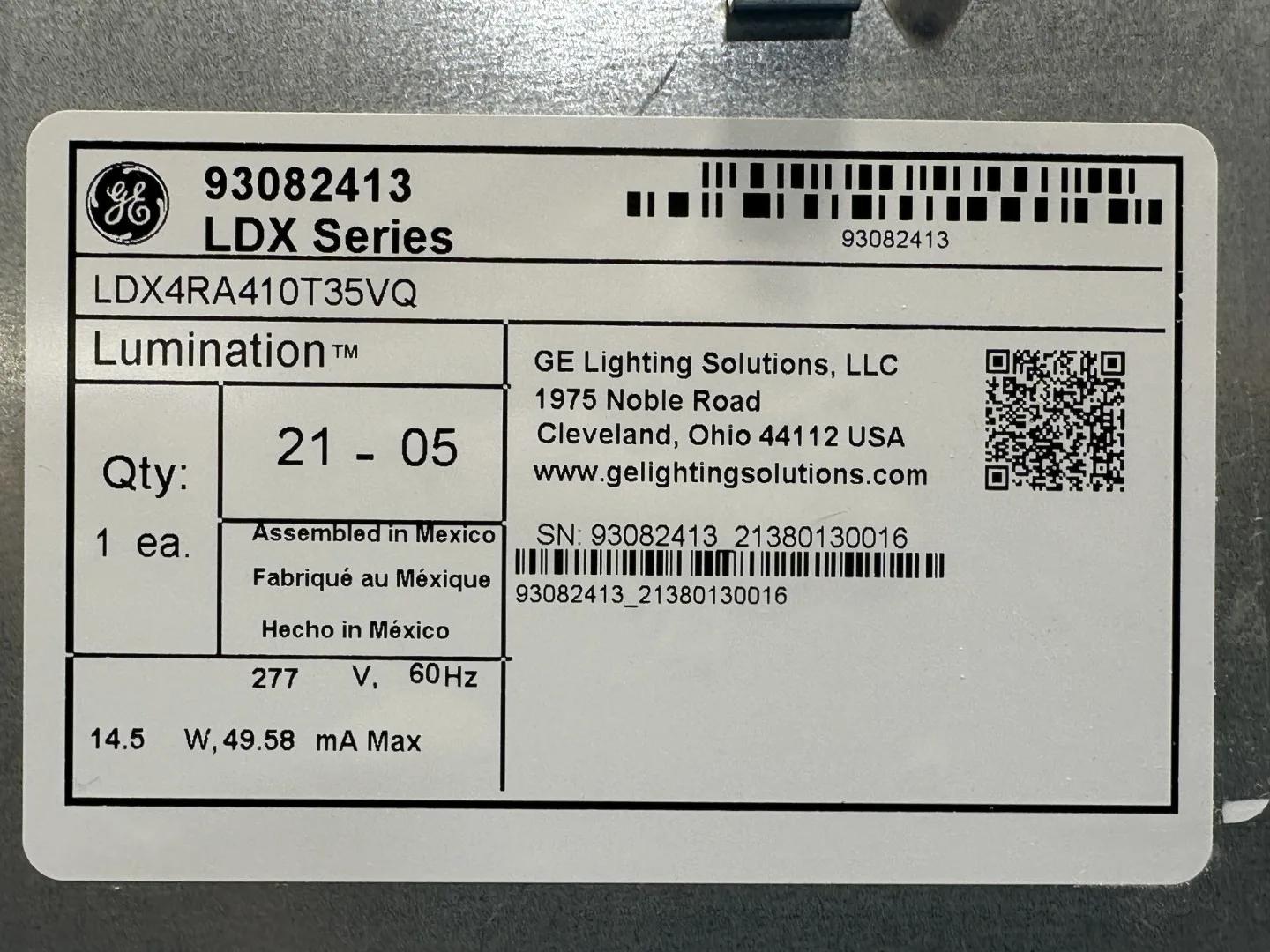

• Label: GE Lighting Solutions, LLC, Cleveland, Ohio; Assembled in Mexico; date code 21-05 (label photo)
• Spec Basis: label photo; GE Lumination LDX Square Series spec sheet IND446 (ordering code structure and series performance), copy at https://seniadz.net/catalogue/GELIGHTING/IND446.pdf; LDX Round Series spec sheet IND447 not retrievable, decode applied from the shared LDX ordering structure. Nameplate wattage 14.5 W used over catalog table values.
