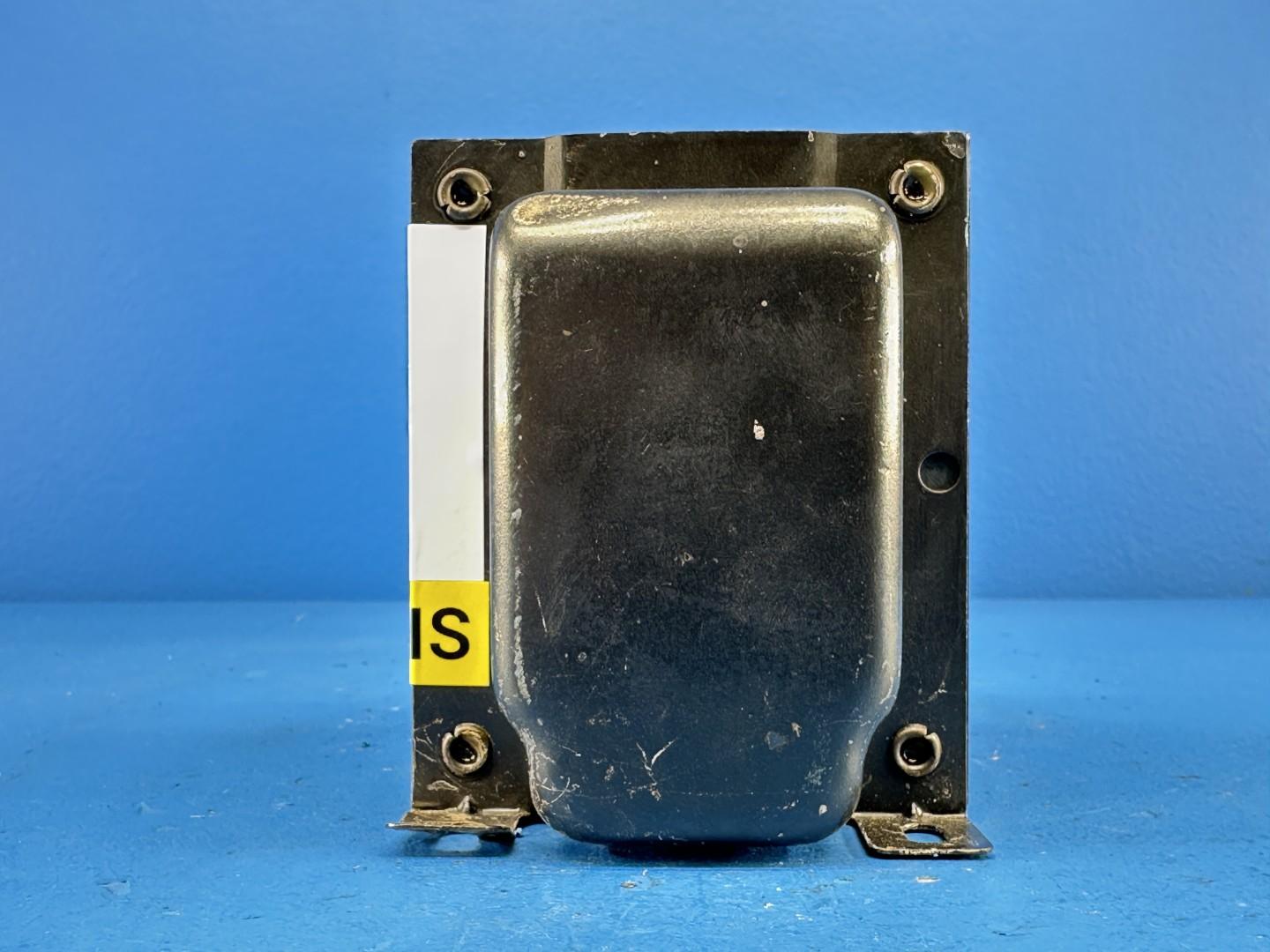

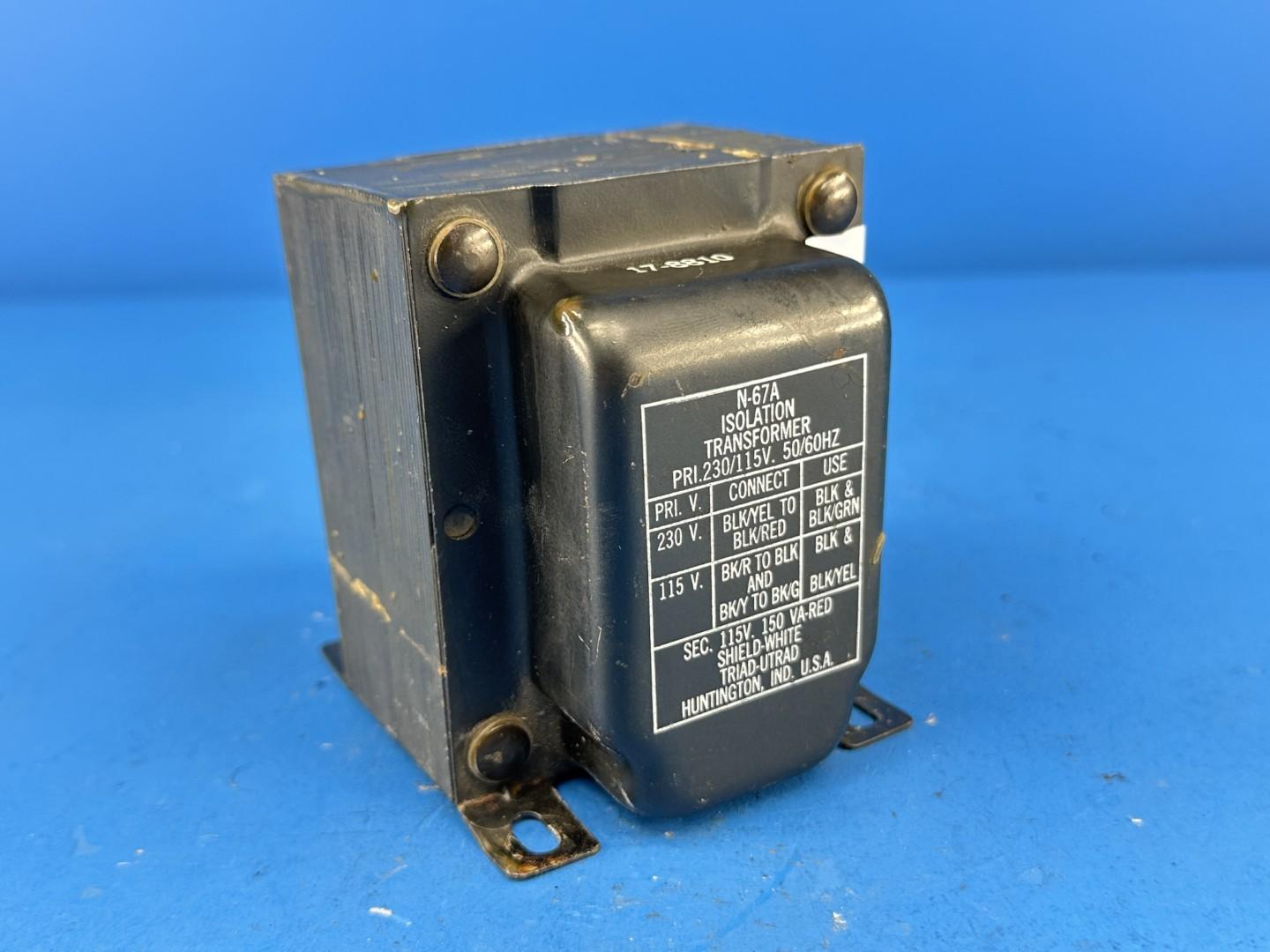

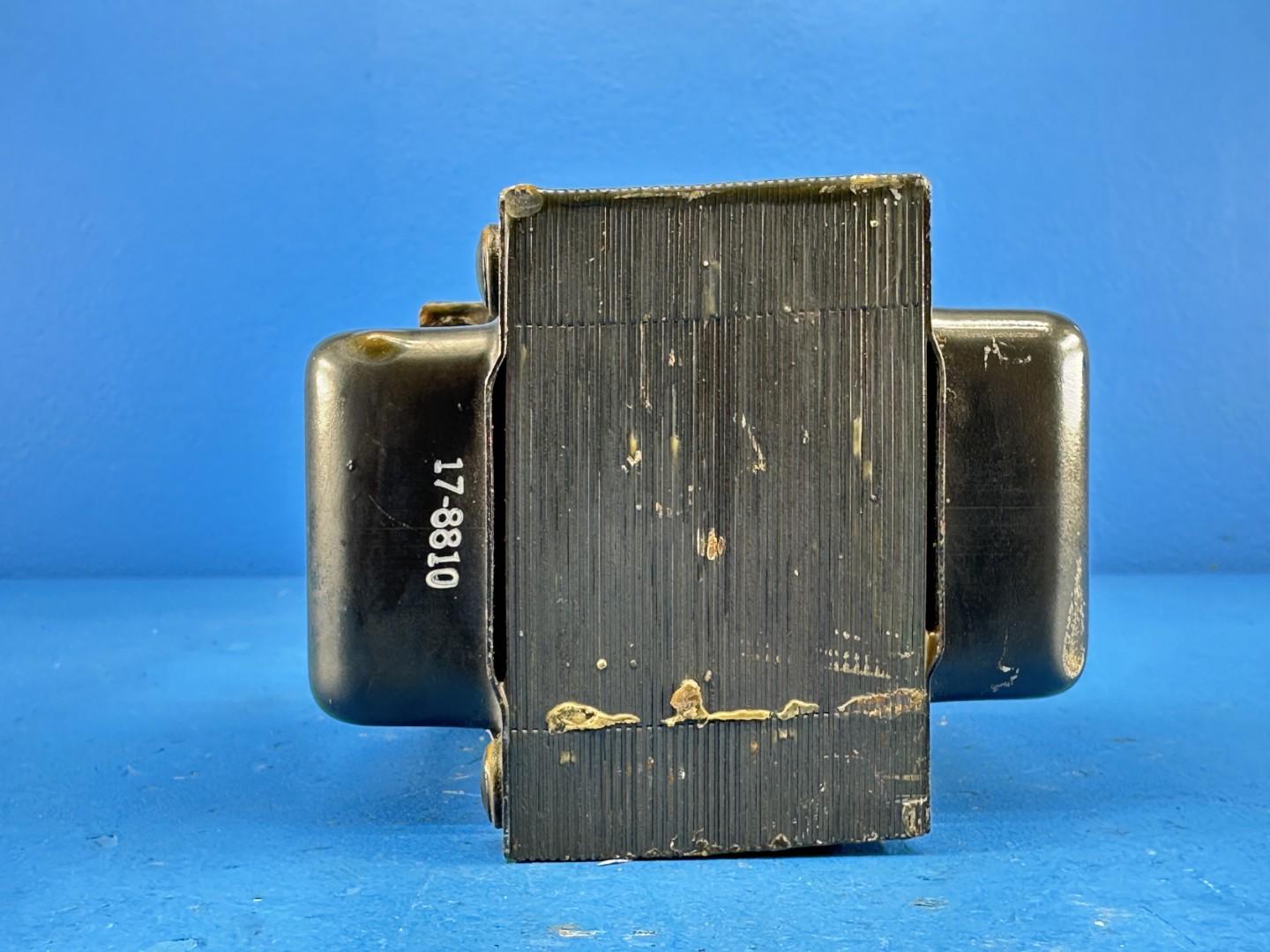

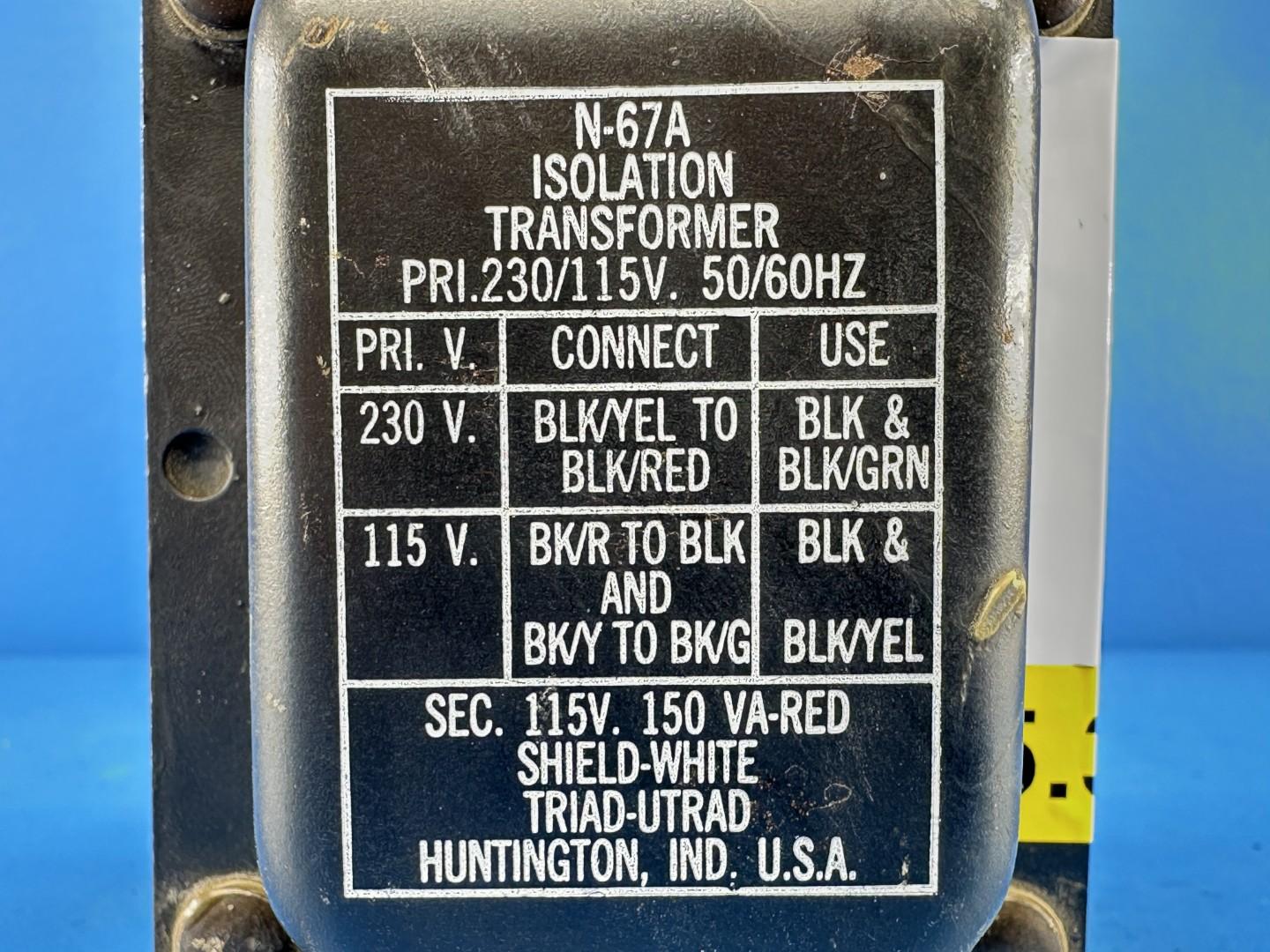

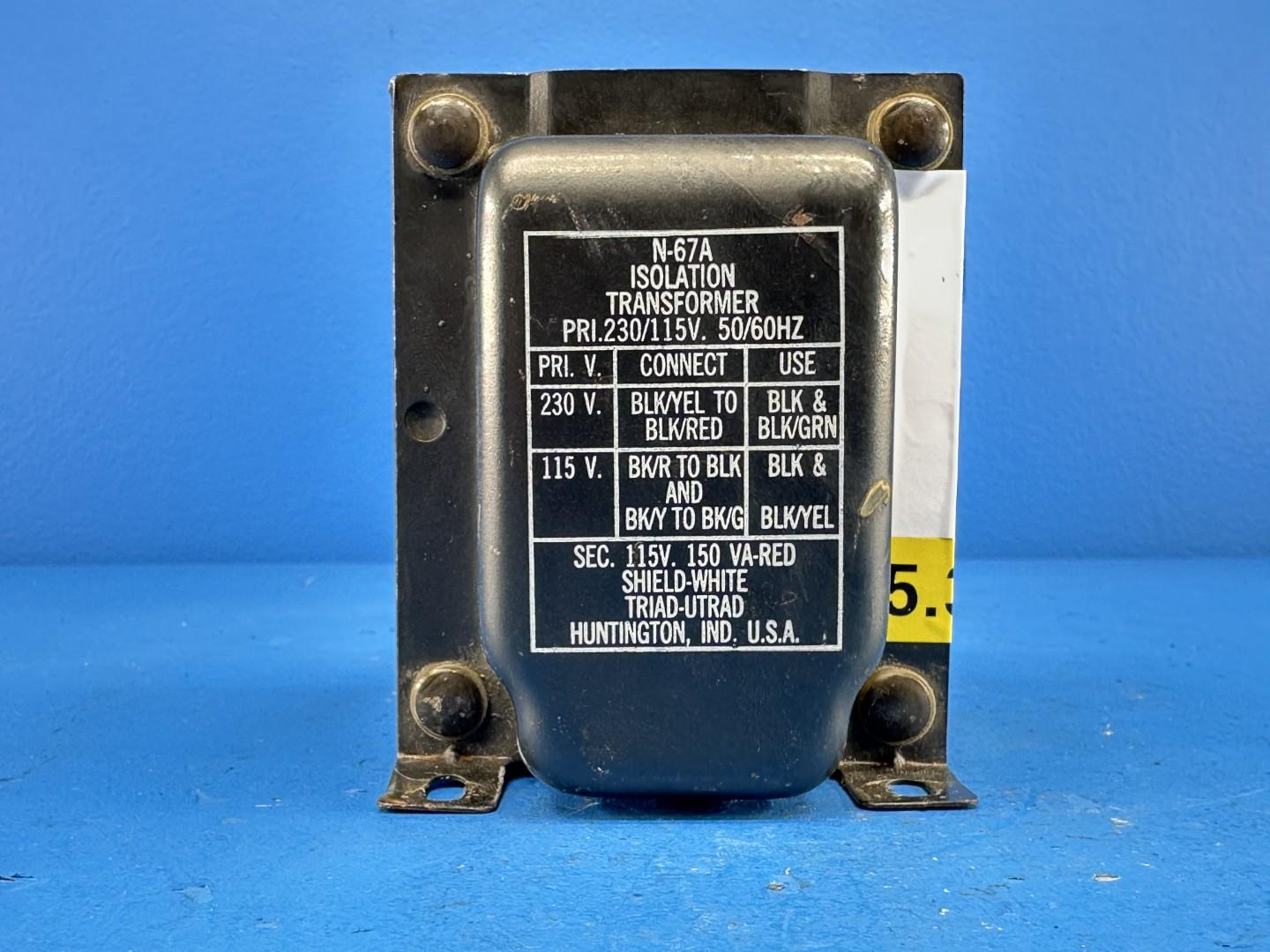

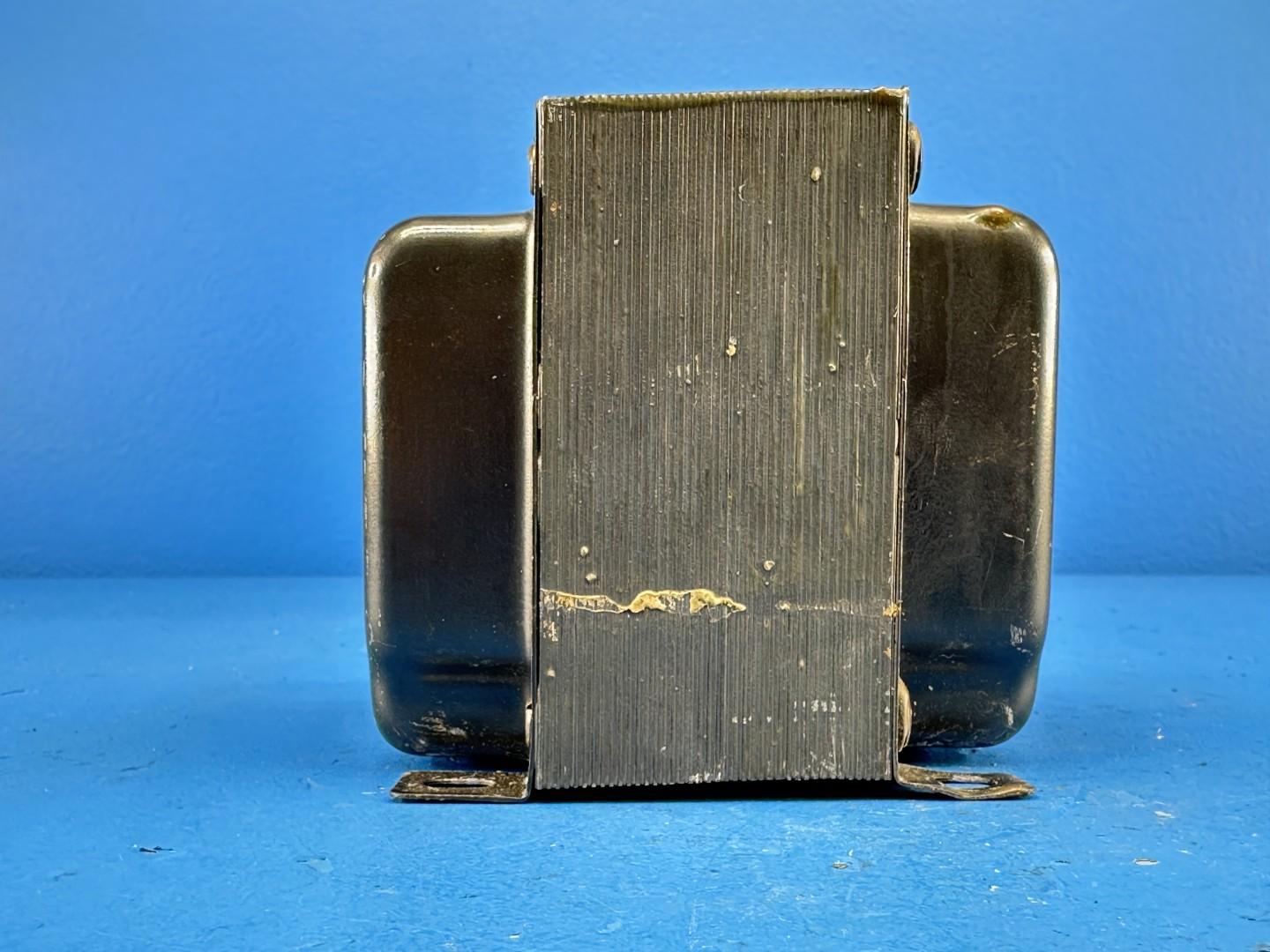

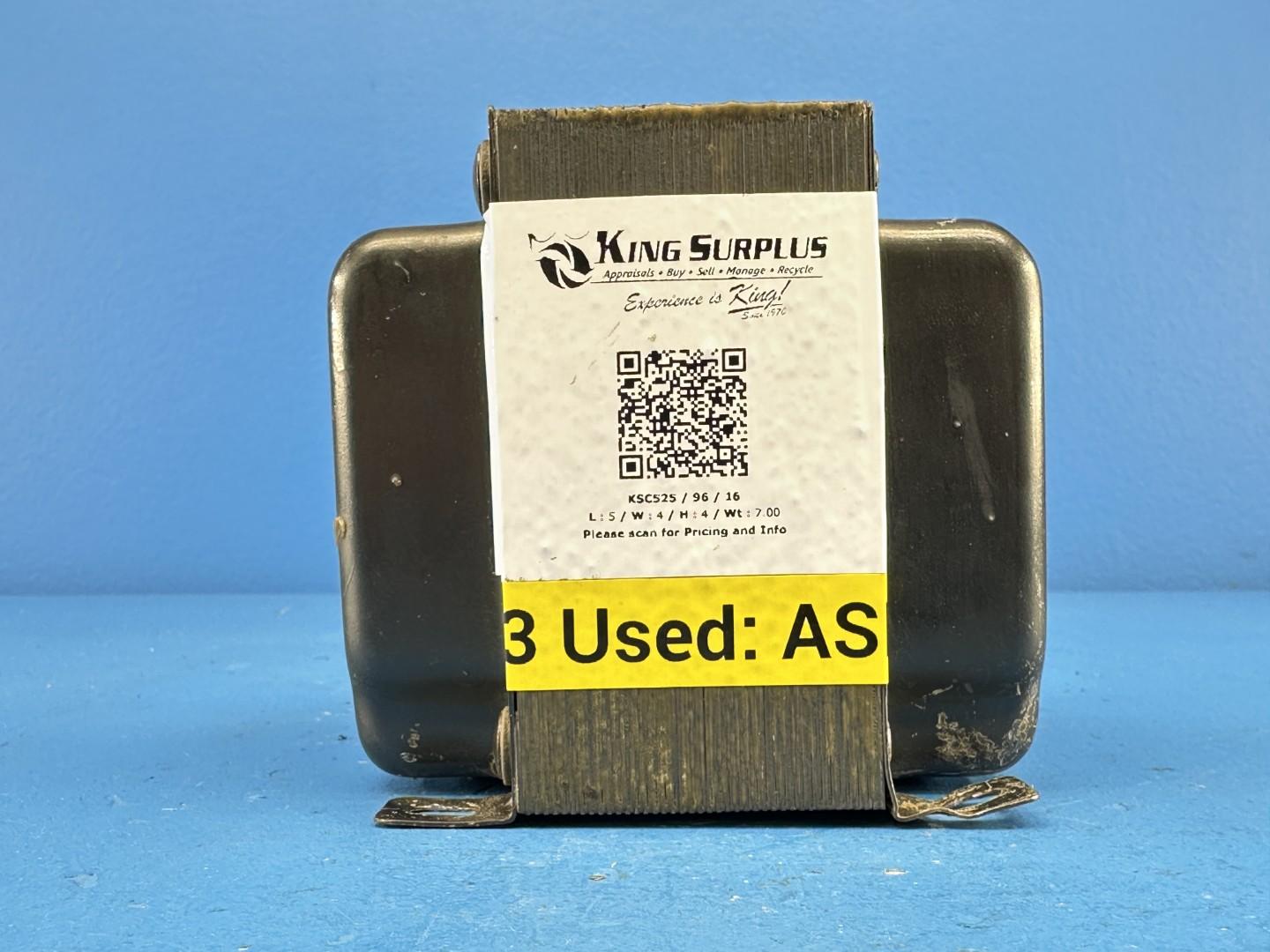

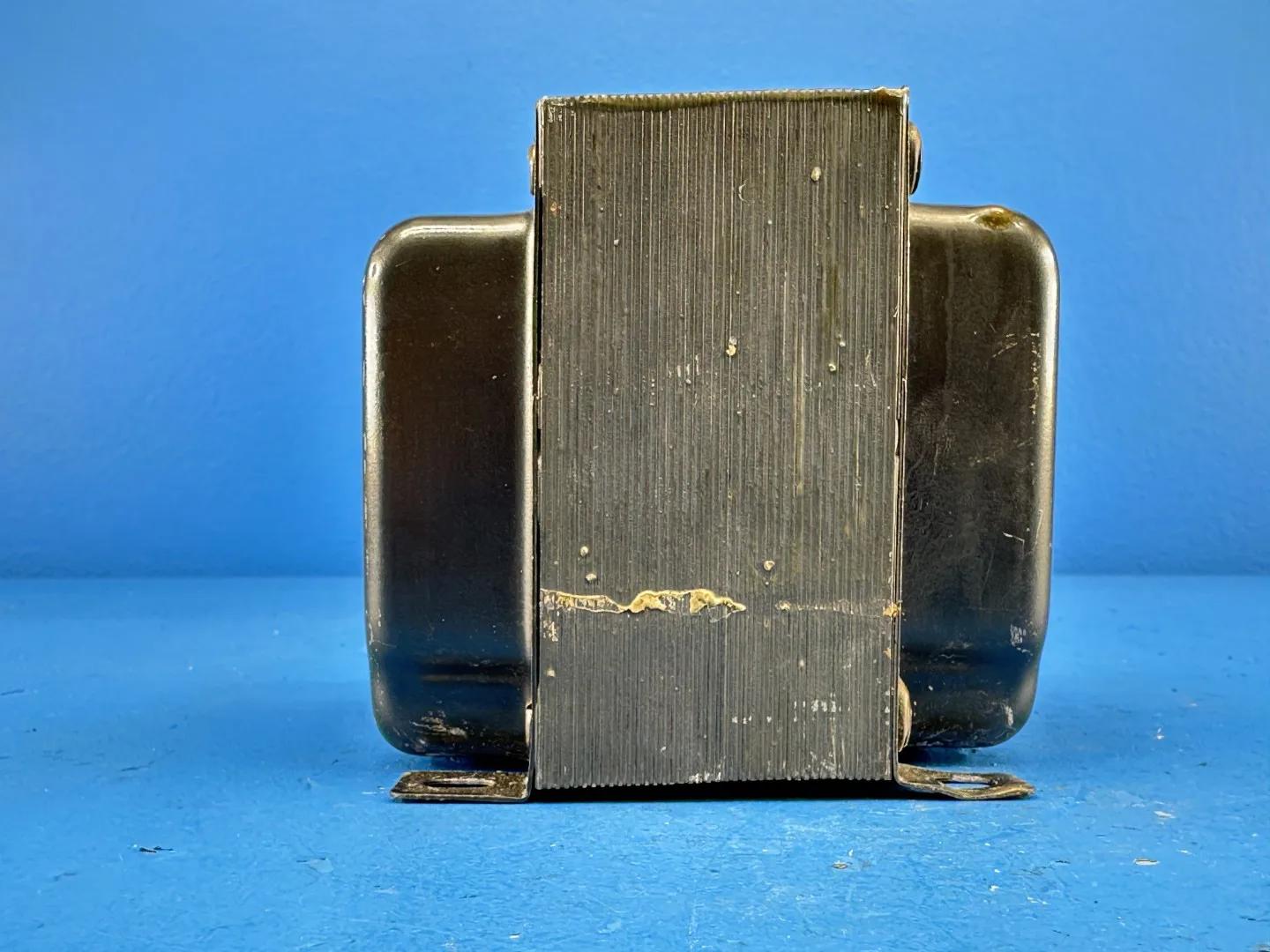

Isolation Transformer 150VA 115/230V to 115V Triad Magnetics N-67A Enclosed Chassis Mount 50/60Hz
Isolation Transformer 150VA 115/230V to 115V Triad Magnetics N-67A Enclosed Chassis Mount 50/60Hz
Isolation Transformer 150VA 115/230V to 115V Triad Magnetics N-67A Enclosed Chassis Mount 50/60Hz
1 / 7
+7
+7
1 / 7
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | N-67A |
| Condition | Used |
| Manufacturer | Triad Magnetics |
| Asset Number | KSC525 / 96 / 16 |
| Guarantee or ASIS | 3. UNKNOWN: Asset may or may not be in good condition ASIS |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.3 Cardboard $20 |
Available Qty: 1
$45.00
Basic Information
Asset #
KSC525 / 96 / 16
Available Quantity
1
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
3. UNKNOWN: Asset may or may not be in good condition ASIS
Item Description
N/A
Factory Information
- Manufacturer: Triad Magnetics
- Model: N-67A
- Type: Safety Isolating Transformer, enclosed chassis mount
- Power Rating: 150 VA
- Primary Voltage: 115 V or 230 V (dual primary), 50/60 Hz
- Secondary Voltage: 115 V (plus or minus 5%)
- Secondary Current: 1.3 A
- Dielectric Withstand: Hi-pot tested at 1,500 VRMS (winding-to-winding and winding-to-core)
- Winding Construction: Non-concentrically wound - primary and secondary on separate arbors, assembled side-by-side on laminate core with insulation between
- Height: 3-7/8 in
- Width: 3-9/32 in
- Depth: 3-7/8 in
- Weight: 7 lbs
- Connections: Leads
- Compliance: RoHS compliant
Specifications
Manufacturer
Triad Magnetics
Model
N-67A
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
150 VA
Amps
N/A
Length (Inches)
5
Width (Inches)
4
Height (Inches)
4
Phase
N/A
Estimated Packaging Weight
N/A
Estimated Total Weight
7
Asset Number
KSC525 / 96 / 16
Packaging fees
Packaging Cost
1.3 Cardboard $20
