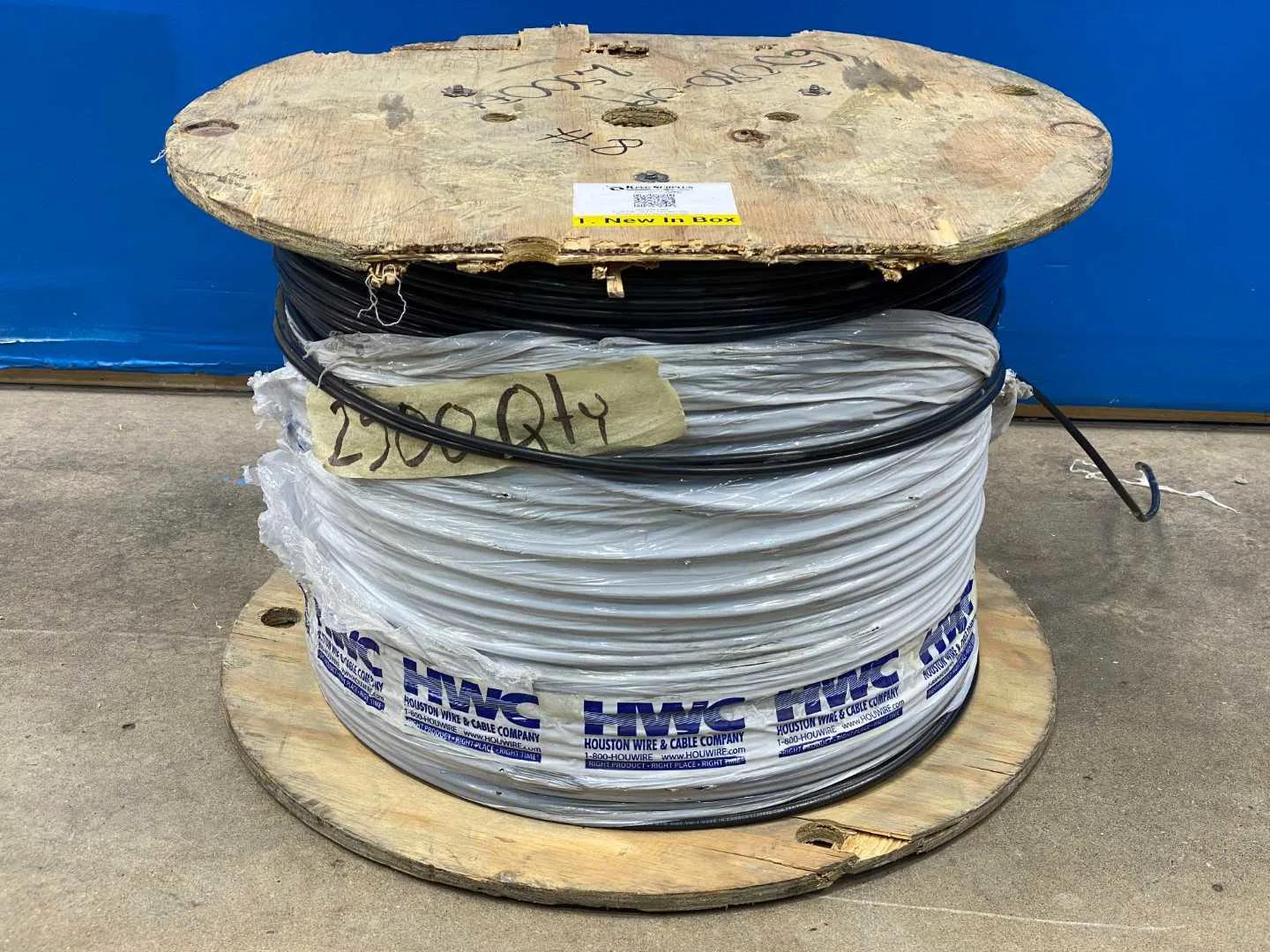

Nexans Canada T90/TWN75 (HWC) 8 AWG THHN 600V Copper Building Wire (2300 ft)
Nexans Canada T90 Nylon / TWN75 Series Wire Specifications: Gauge, Rating & Length
Electrical Applications & Quantity Included
1 / 4
+4
+4
1 / 4
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | T90 Nylon / TWN75 Series |
| Condition | New |
| Manufacturer | Nexans Canada |
| Asset Number | KSC1230 / 761 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.1 Cardboard $10 |
Available Qty: 1
$1,125.00
Basic Information
Asset #
KSC1230 / 761
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
N/A
Factory Information
- Manufacturer: Nexans Canada
- Model: T90 Nylon / TWN75 (INSTAGLIDE), 8 AWG
- Type: Single conductor building wire, THHN / THWN type construction
- Conductor: Bare copper, 19 strands, lead free
- Size: 8 AWG (8.37 mm²)
- Insulation: Thin-wall PVC, 0.030 in thickness
- Jacket: Nylon, 0.005 in thickness, FT1 rated
- Nominal Overall Diameter: 0.219 in
- Voltage Rating: 600 V
- Ampacity: 55 A (dry / damp locations)
- Temperature Rating: 90 °C dry, 75 °C wet, 60 °C when exposed to oil
- Minimum Installation Temperature: -10 °C with suitable handling
- Features: Nexans INSTAGLIDE reduced-friction surface, standard on 6 AWG and larger
- Limitation: Not sunlight resistant; not for cable tray use

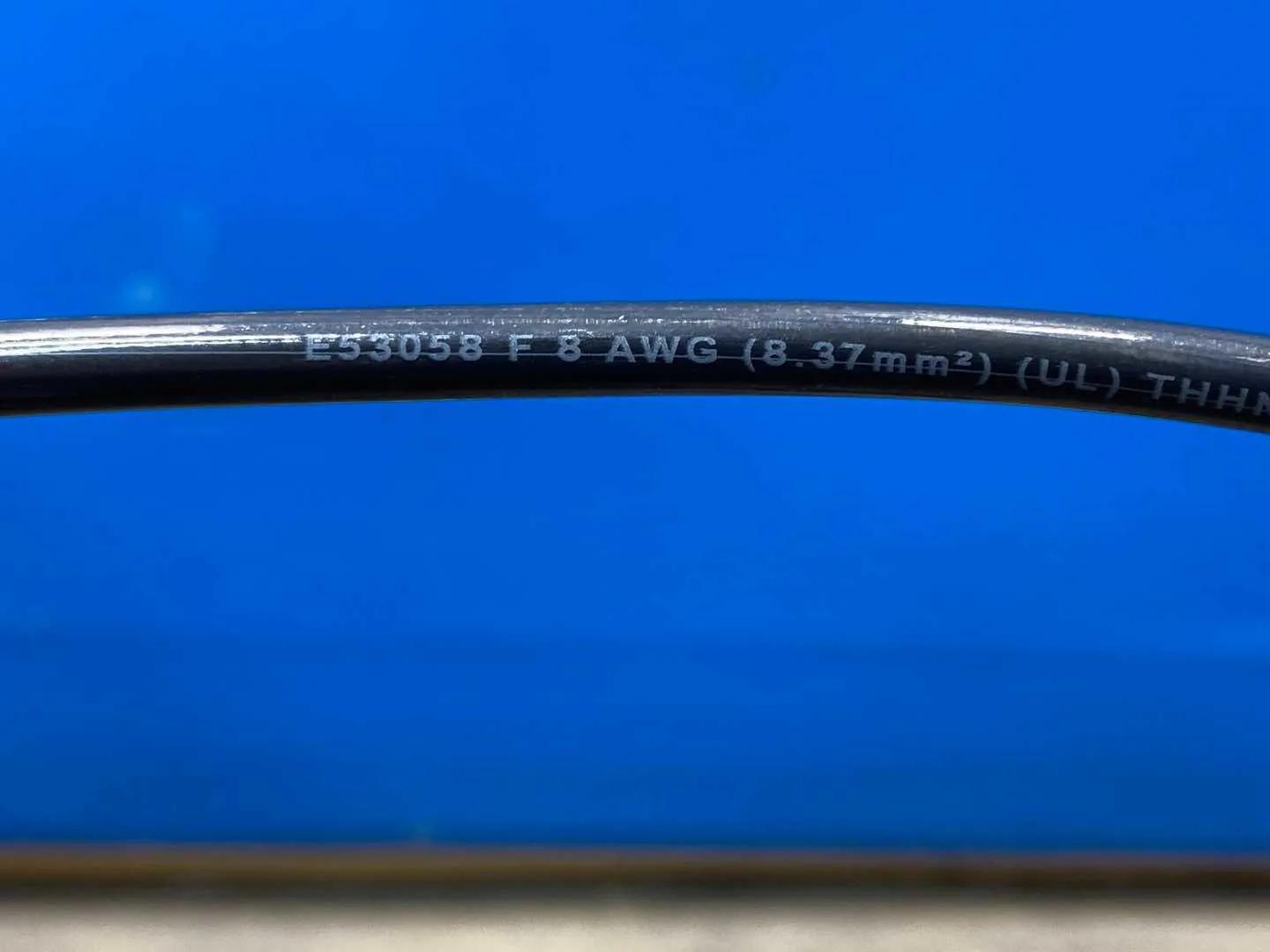

- Jacket Markings (verbatim from the reel): E53058 F 8 AWG (8.37mm²) (UL) THHN ... MTW 600V VW-1 MADE IN CANADA LL23462 CSA

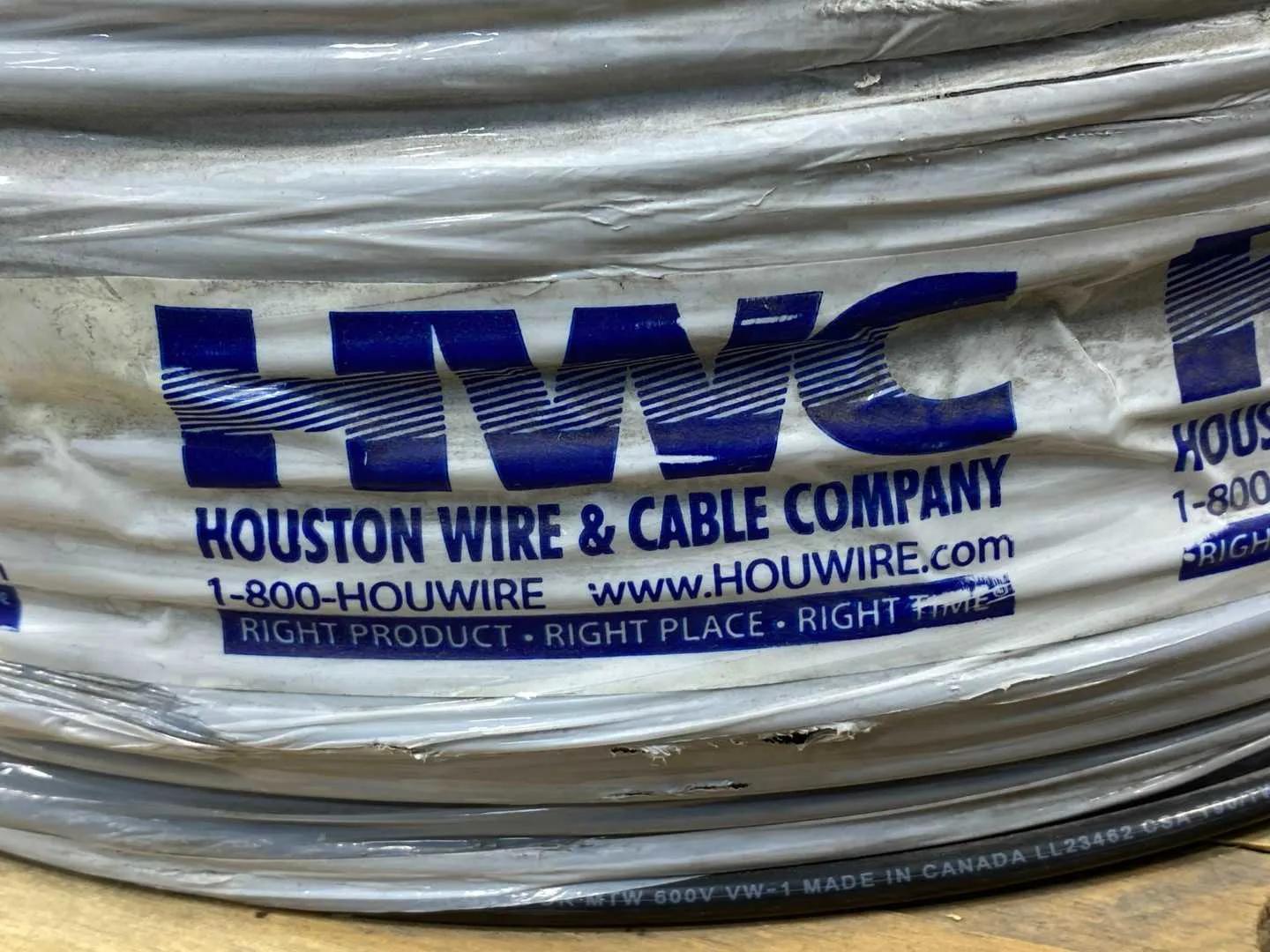

- Distributor Marking: HWC, Houston Wire & Cable Company, printed on the reel wrap
- Spec Basis: Nexans Canada published T90 Nylon / TWN75 product data sheet; jacket and wrap markings read from the photographs on this record.
Specifications
Manufacturer
Nexans Canada
Model
T90 Nylon / TWN75 Series
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
20
Width (Inches)
20
Height (Inches)
13
Phase
N/A
Estimated Packaging Weight
4
Estimated Total Weight
164
Asset Number
KSC1230 / 761
Packaging fees
Packaging Cost
1.1 Cardboard $10
