Programmable DC Power Supply 80V 60A 1200W- Electroplating Rectifier, Industrial Server Rack Enclosure
Custom Enclosure Specifications: Voltage & Power
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | N/A |
| Condition | Used |
| Manufacturer | Custom |
| Asset Number | KSC1379 / 004 |
| Guarantee or ASIS | 3. UNKNOWN: Asset may or may not be in good condition ASIS |
| Inspections - Yellow Tag | 5.2 Used: Reported to be working when removed from service |
| Packaging Cost | 7. Medium Crate $200 |
$4,639.95
Basic Information
Asset #
KSC1379 / 004
Available Quantity
1
Inspections - Yellow Tag
5.2 Used: Reported to be working when removed from service
Condition
Used
Guarantee or ASIS
3. UNKNOWN: Asset may or may not be in good condition ASIS
Item Description

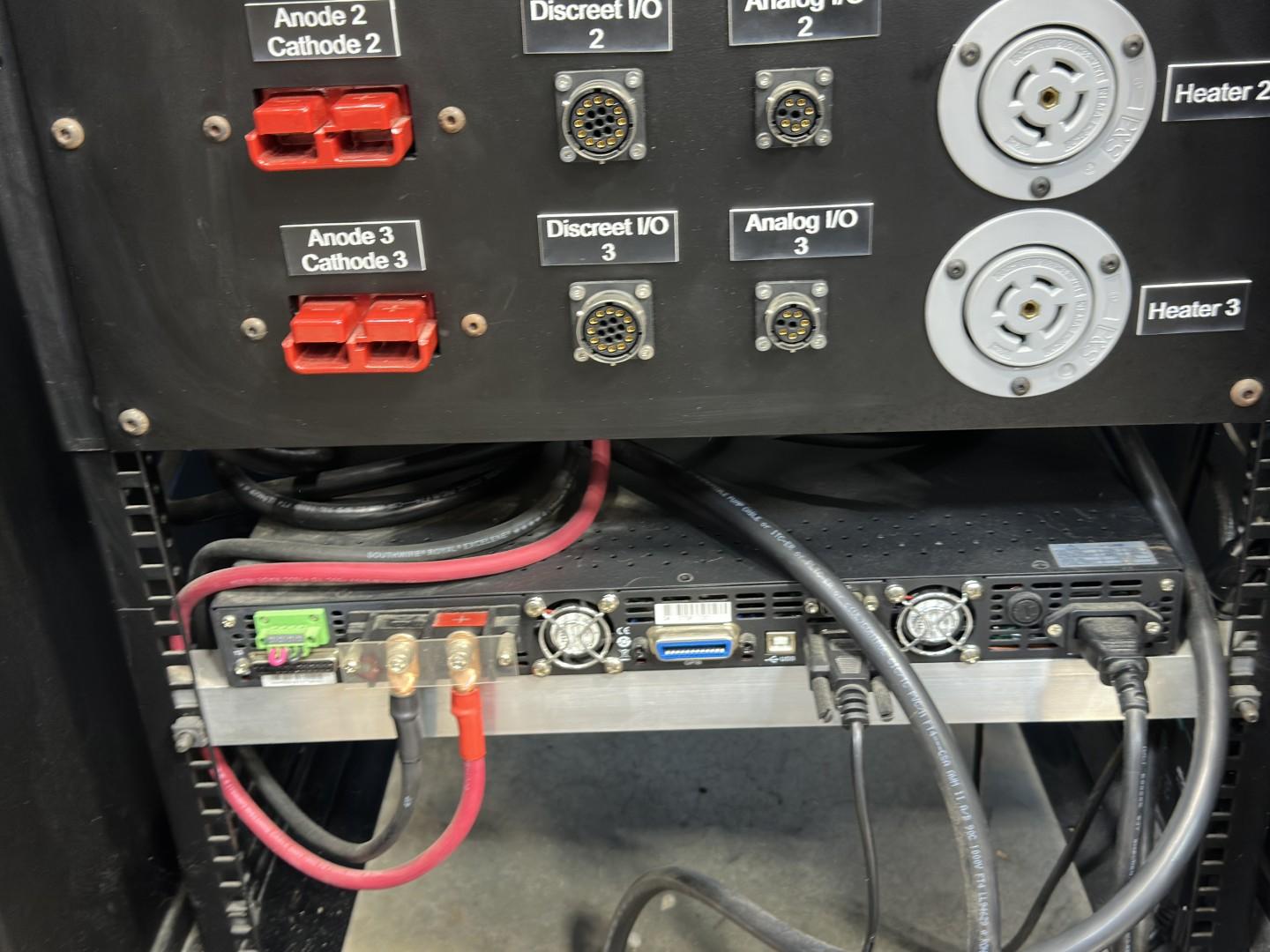

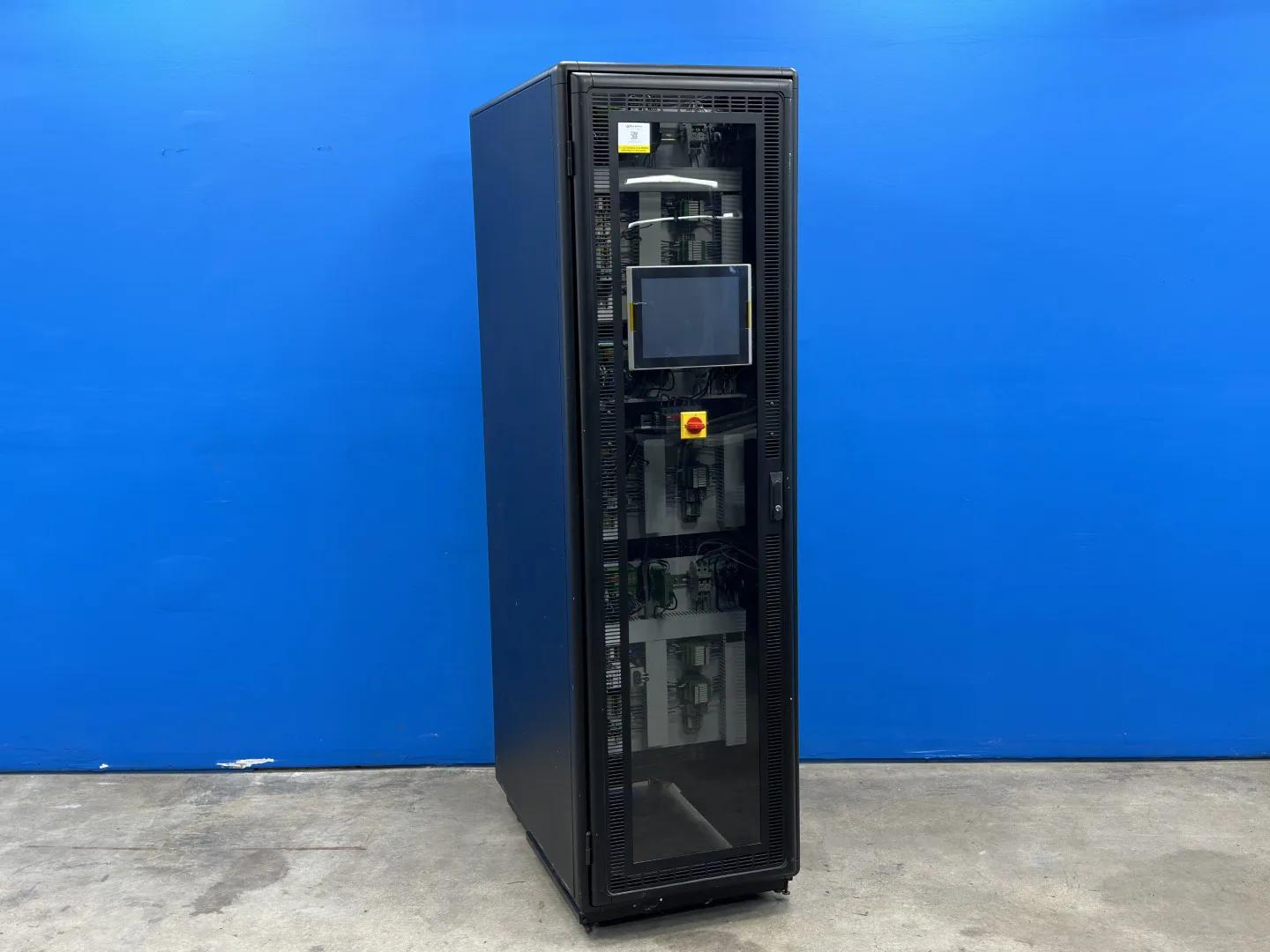

Three-station electroplating rectifier and bath control system built into an industrial server rack enclosure. Each channel provides an independent multi-range programmable DC output rated 0 to 80 VDC and 0 to 60 A at 1200 W, with anode, cathode, heater, analog I/O, and discrete I/O terminated on a machined bulkhead panel.

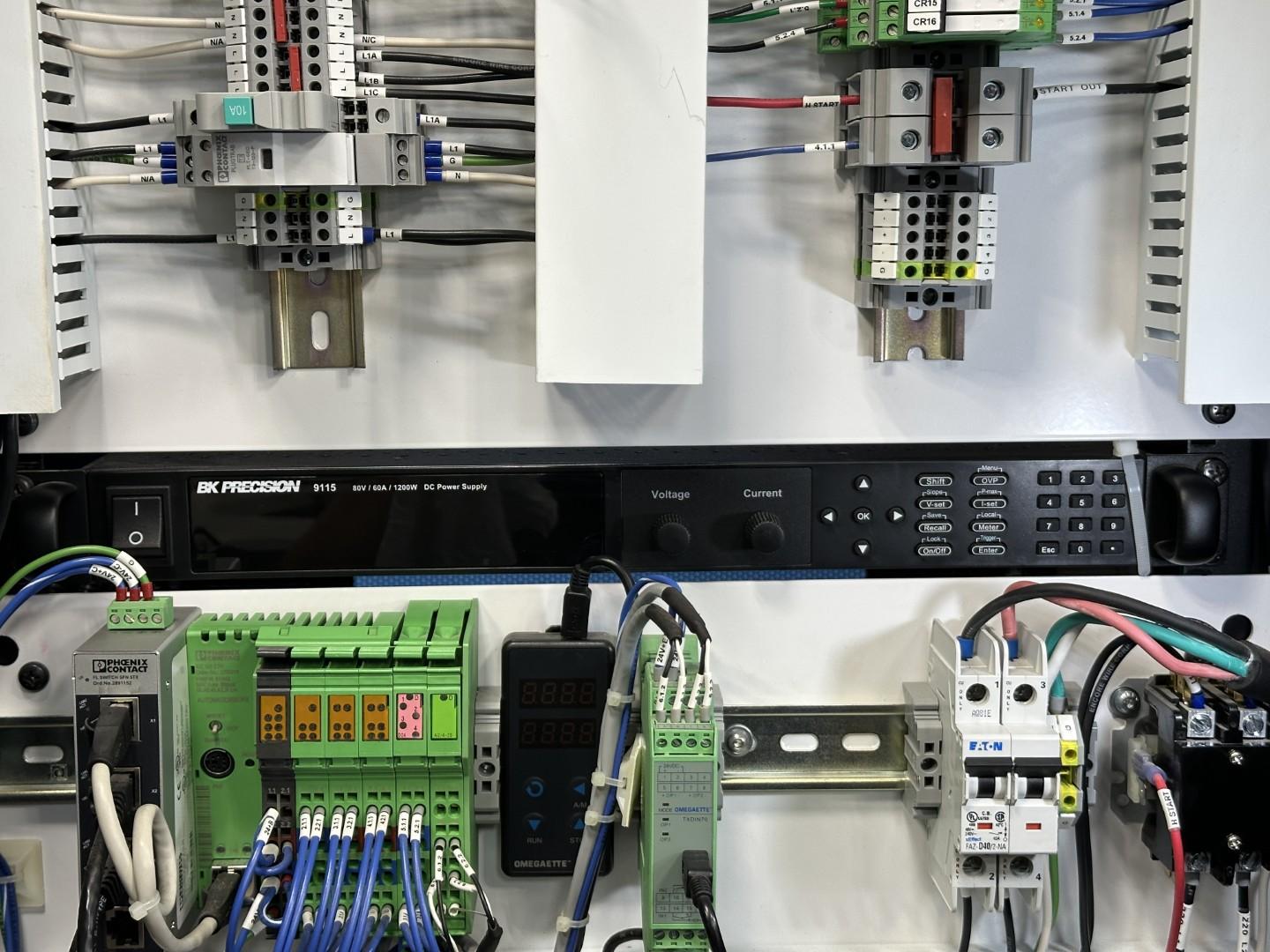

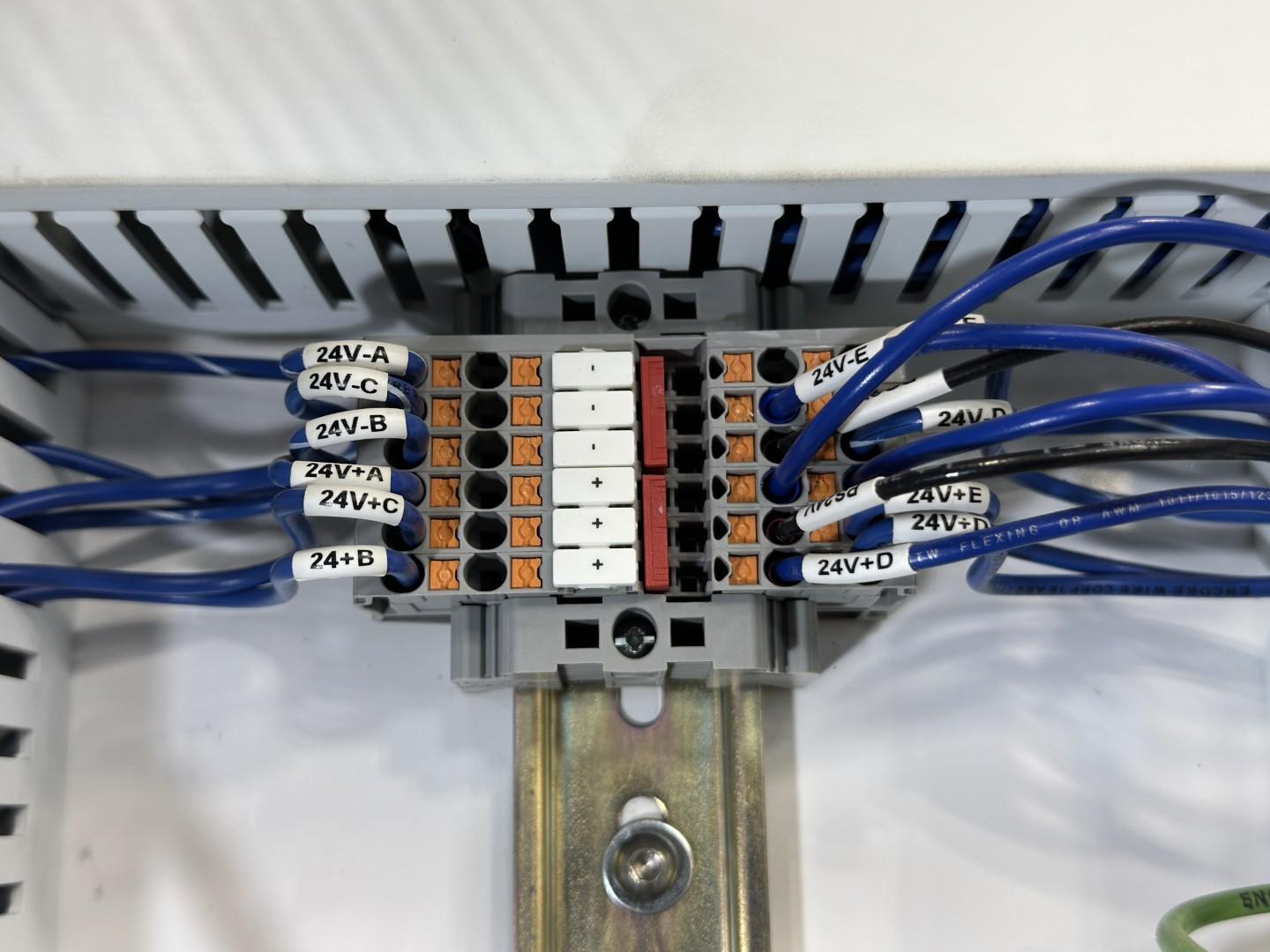

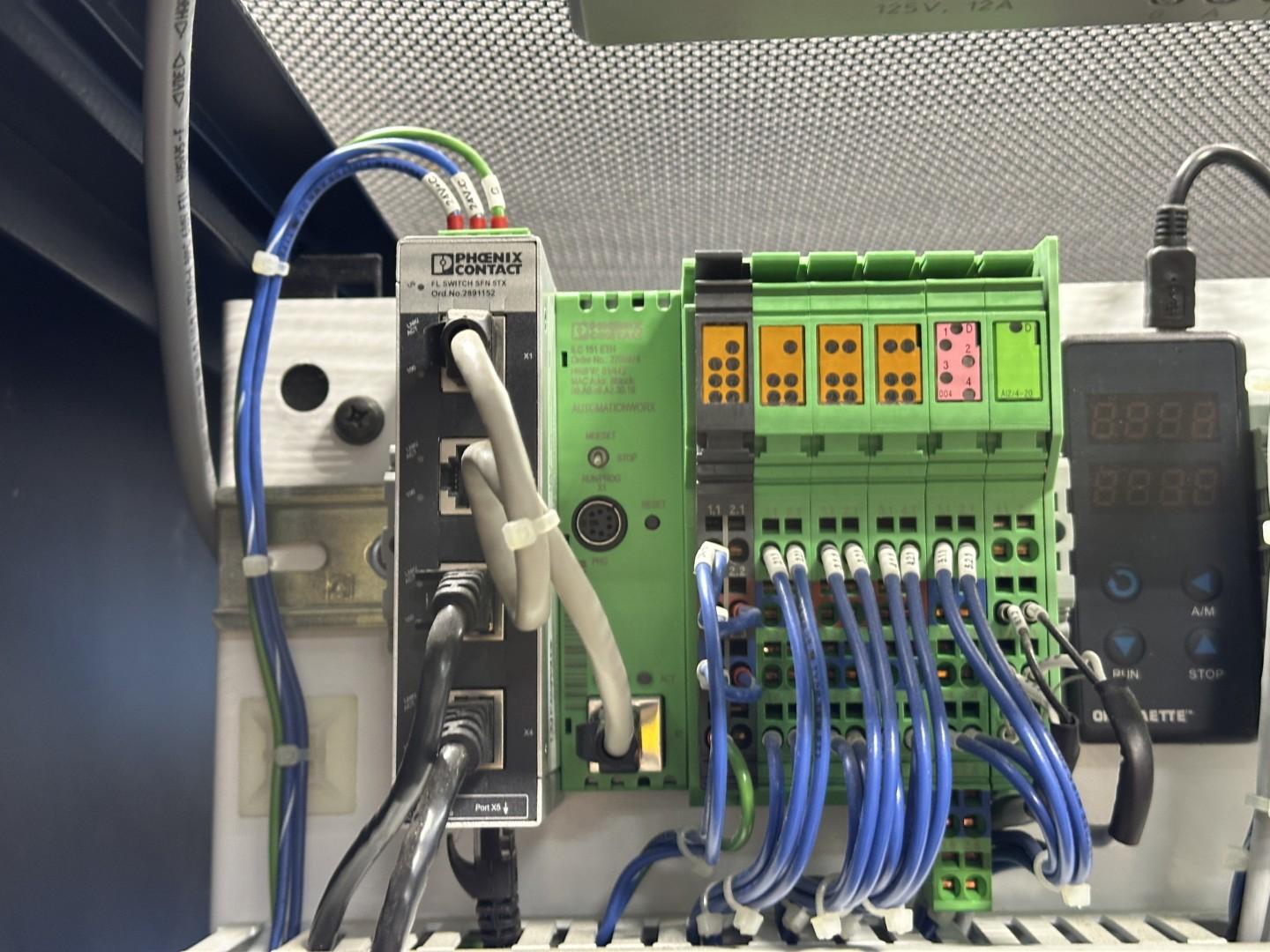

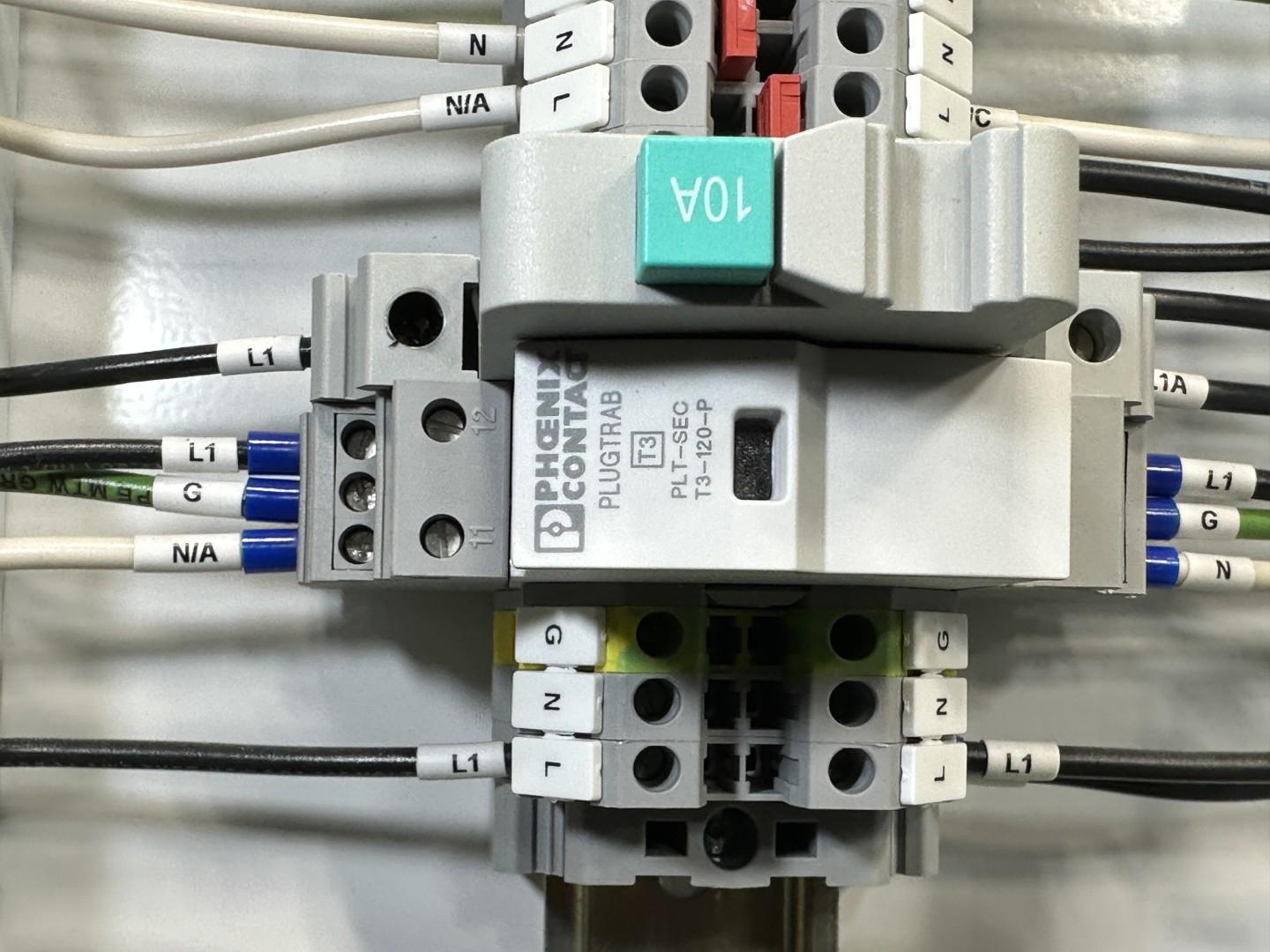

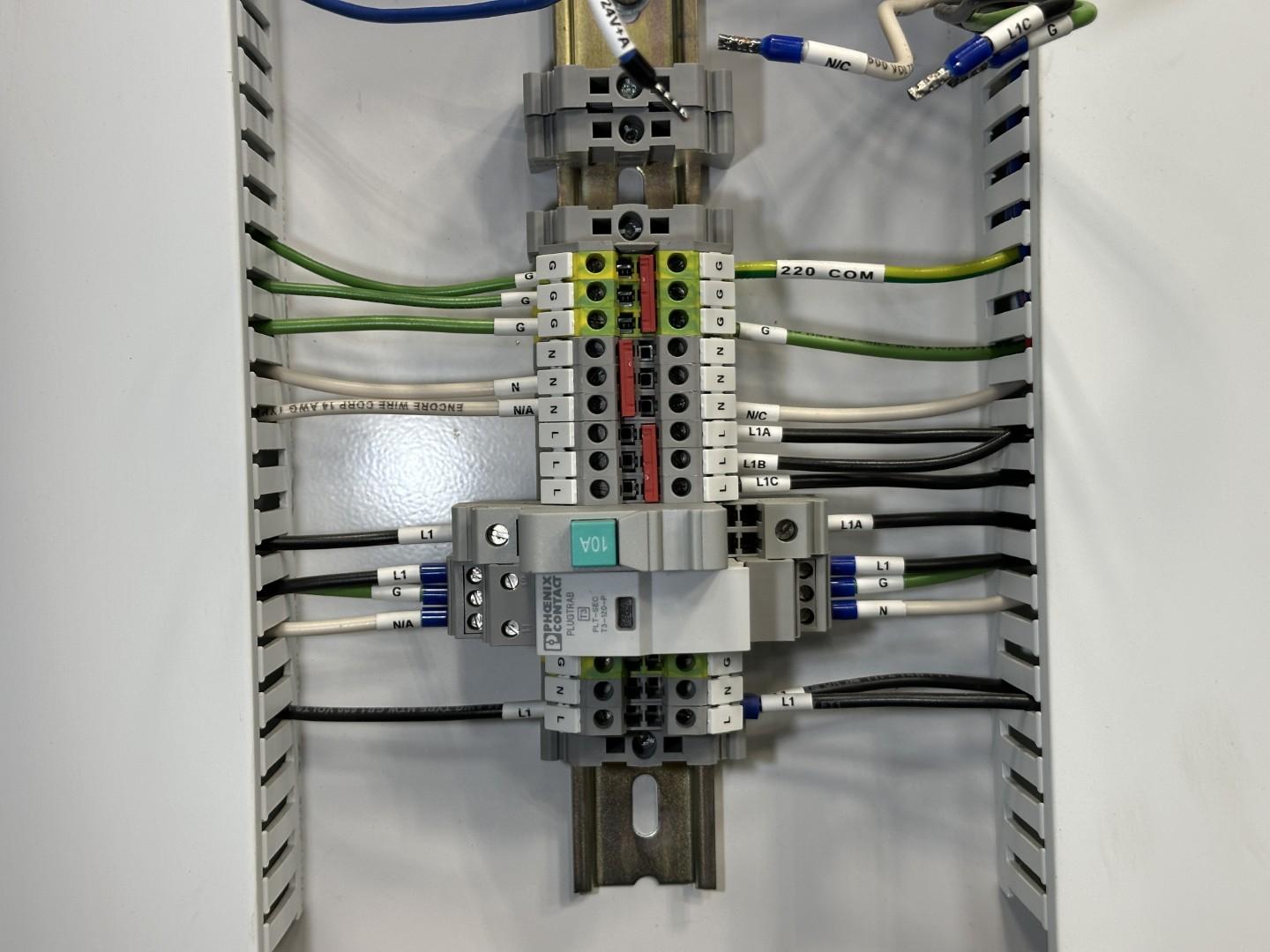

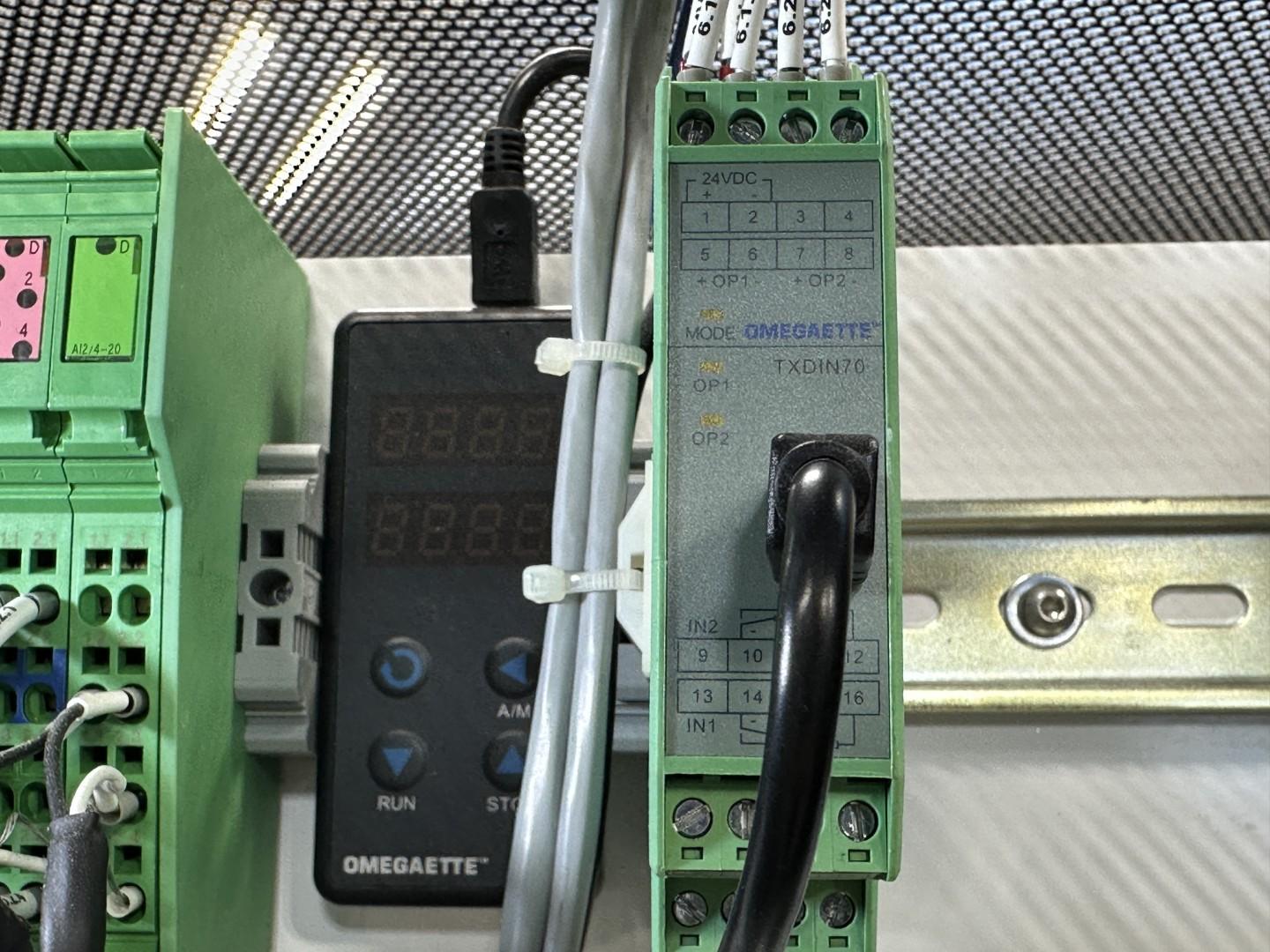

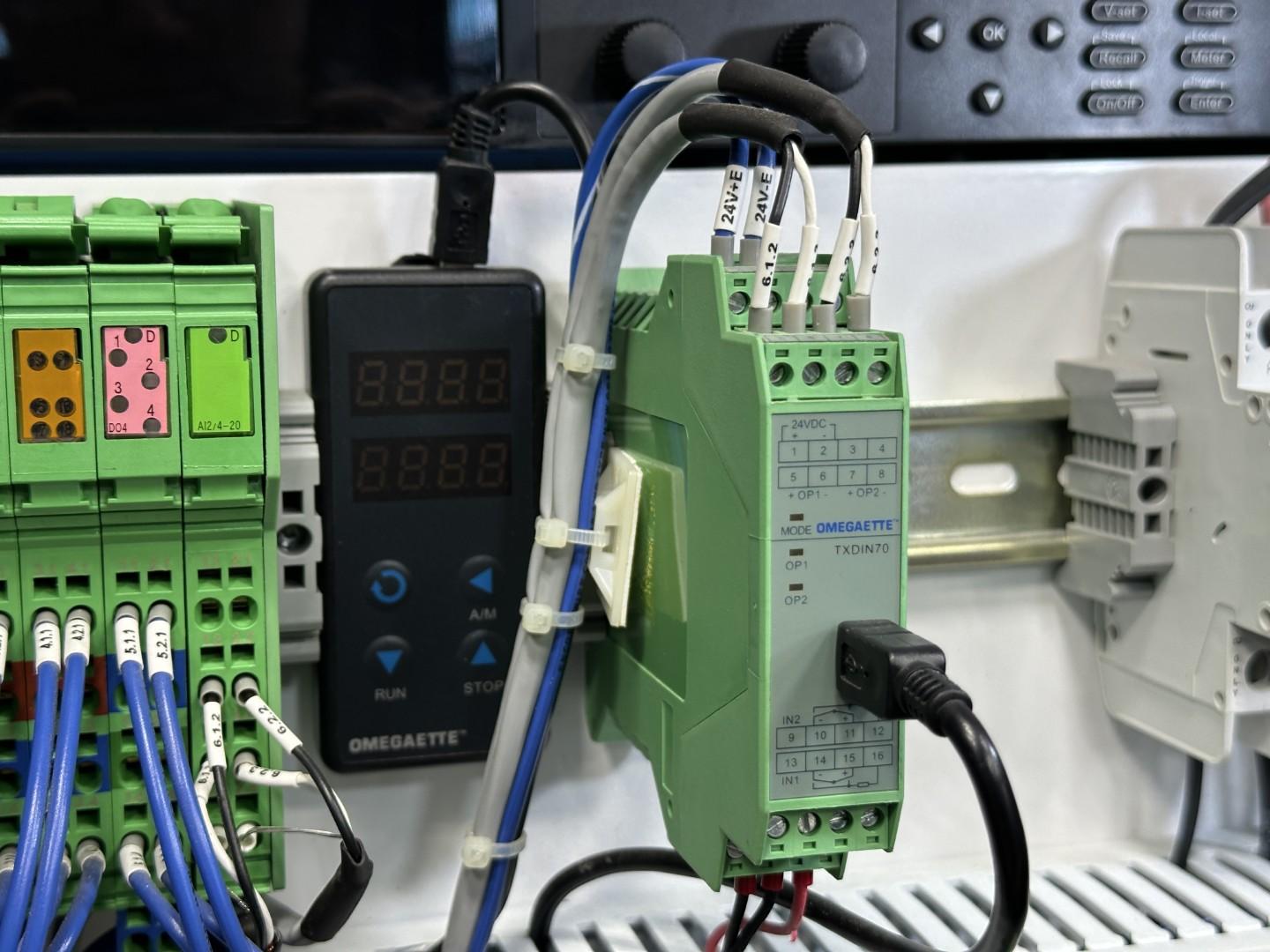

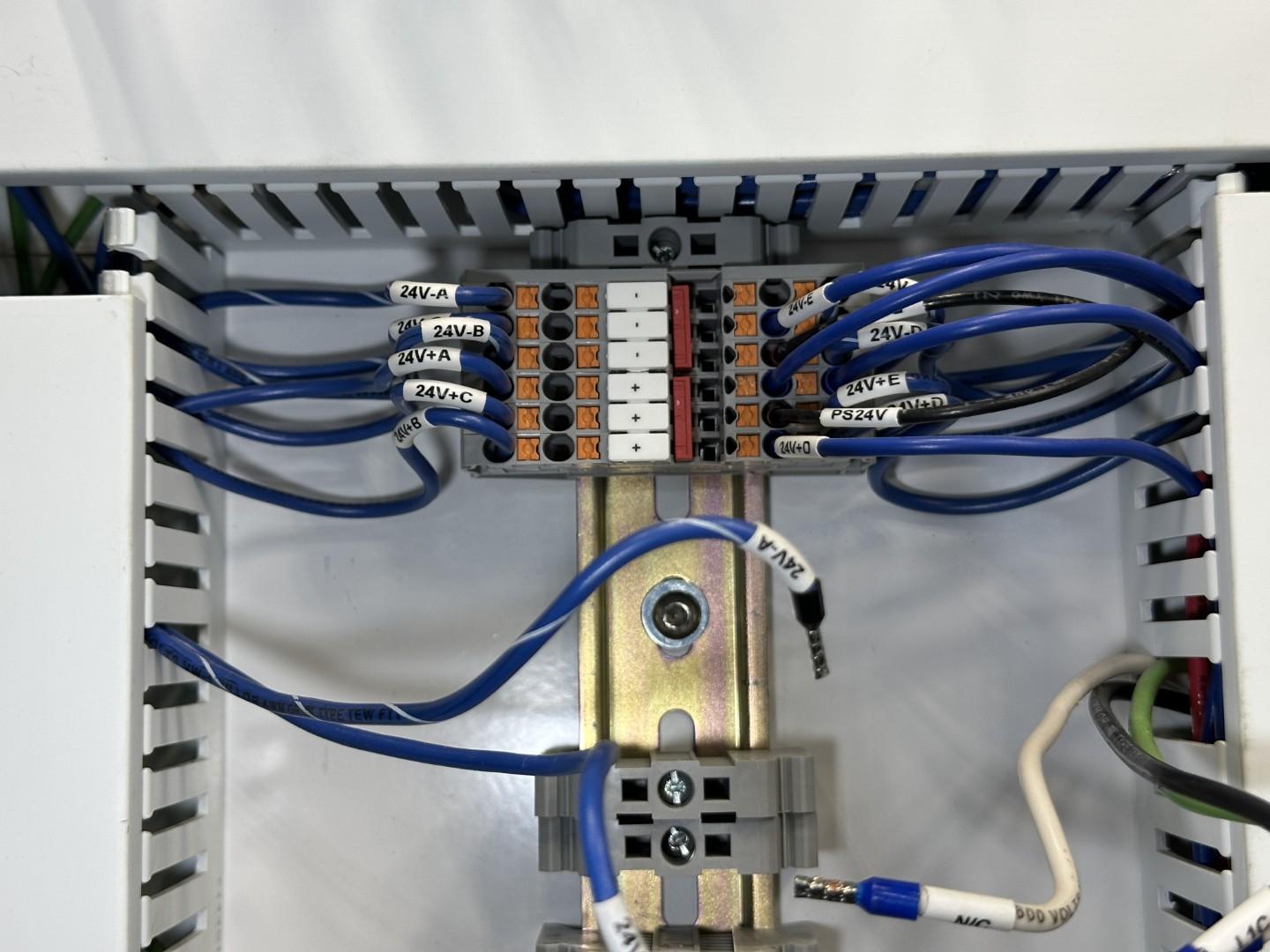

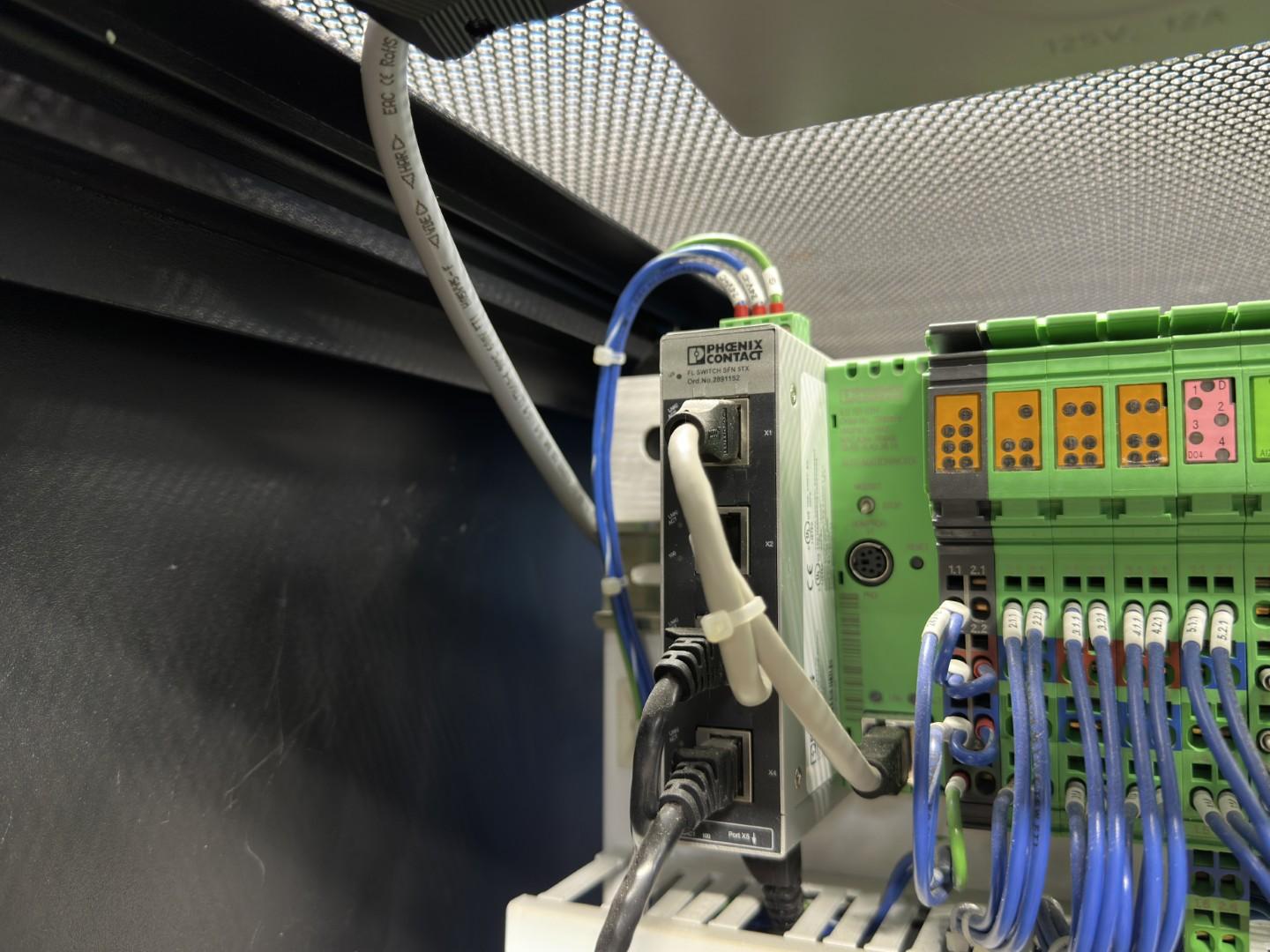

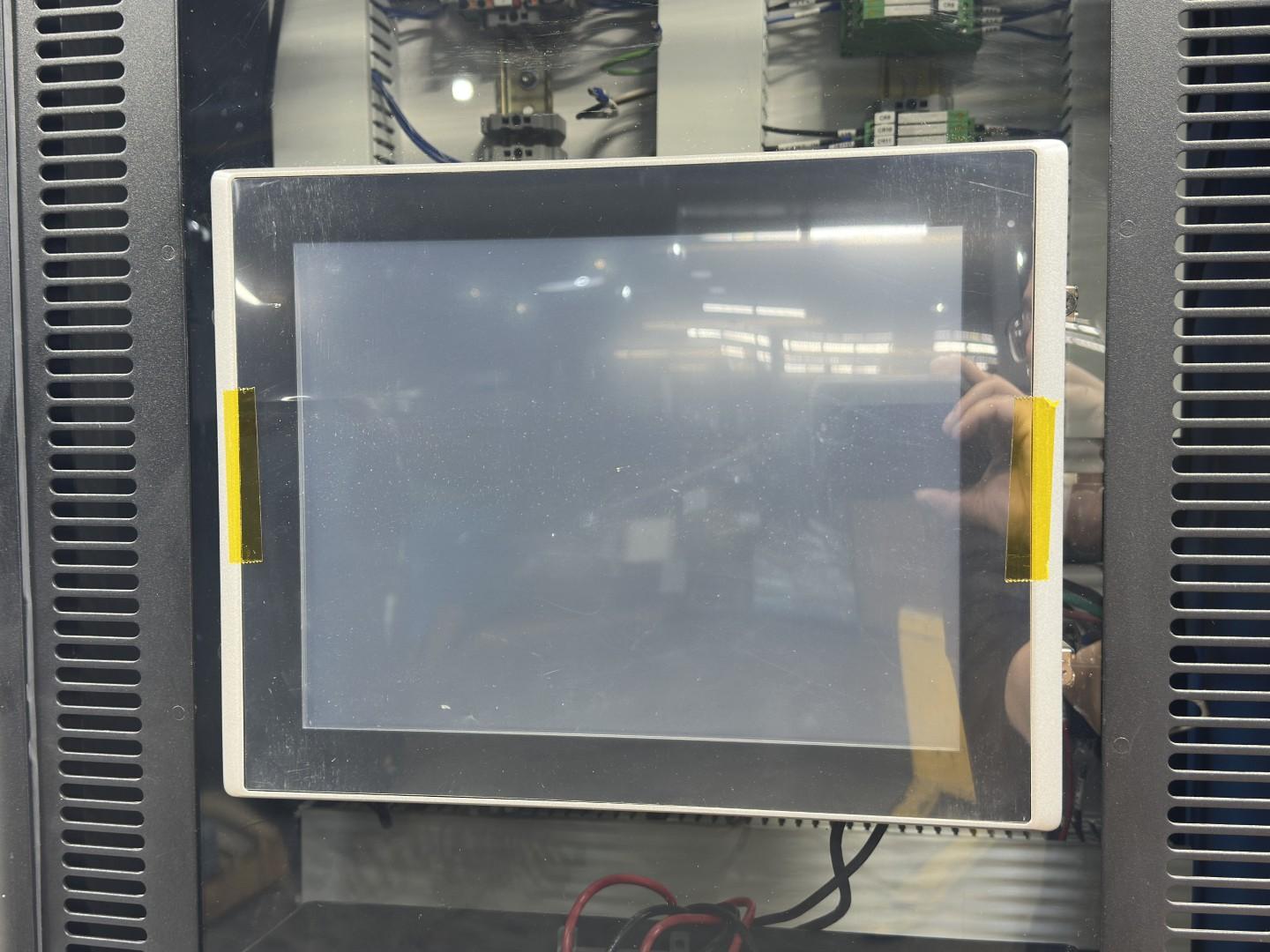

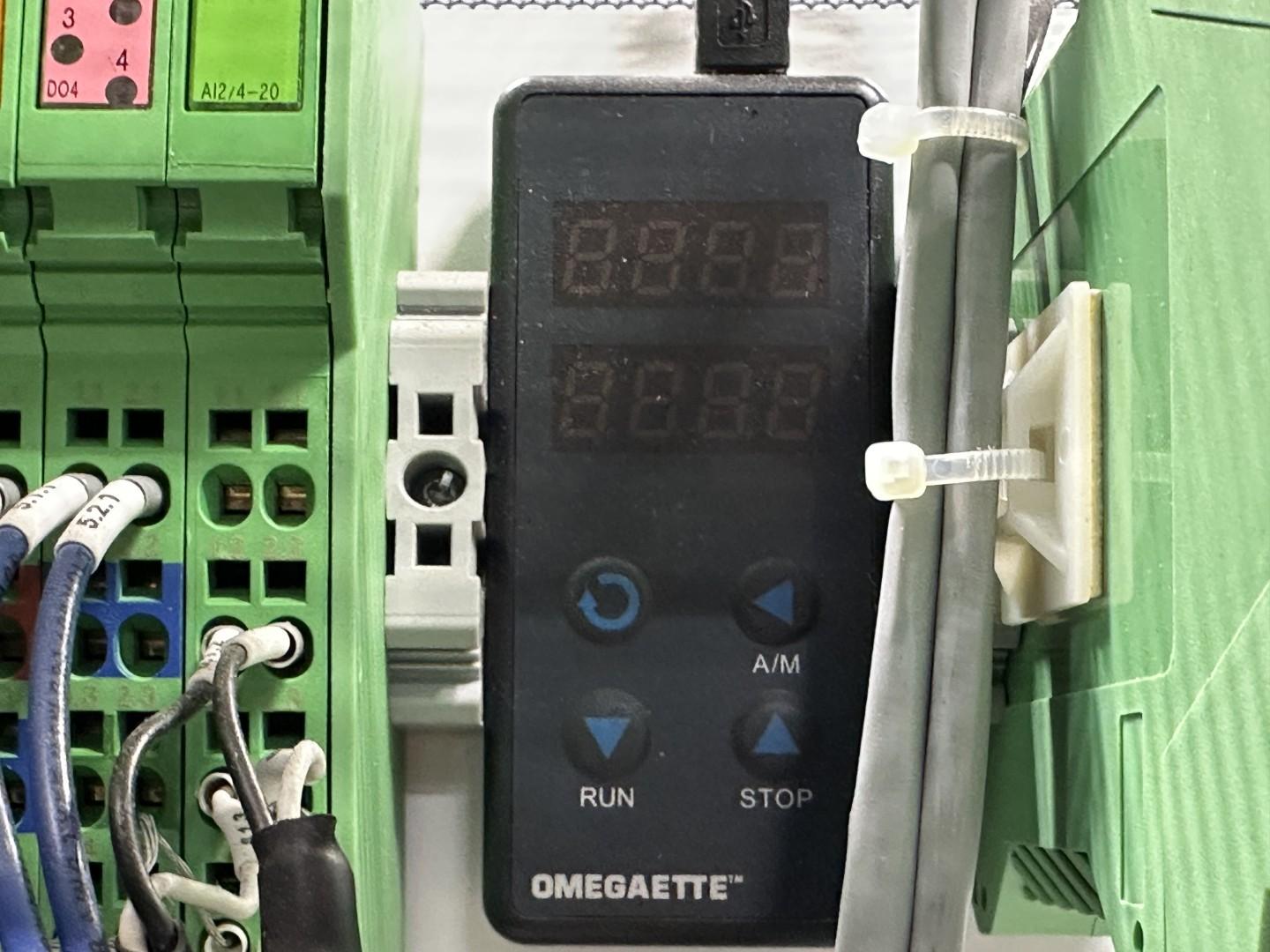

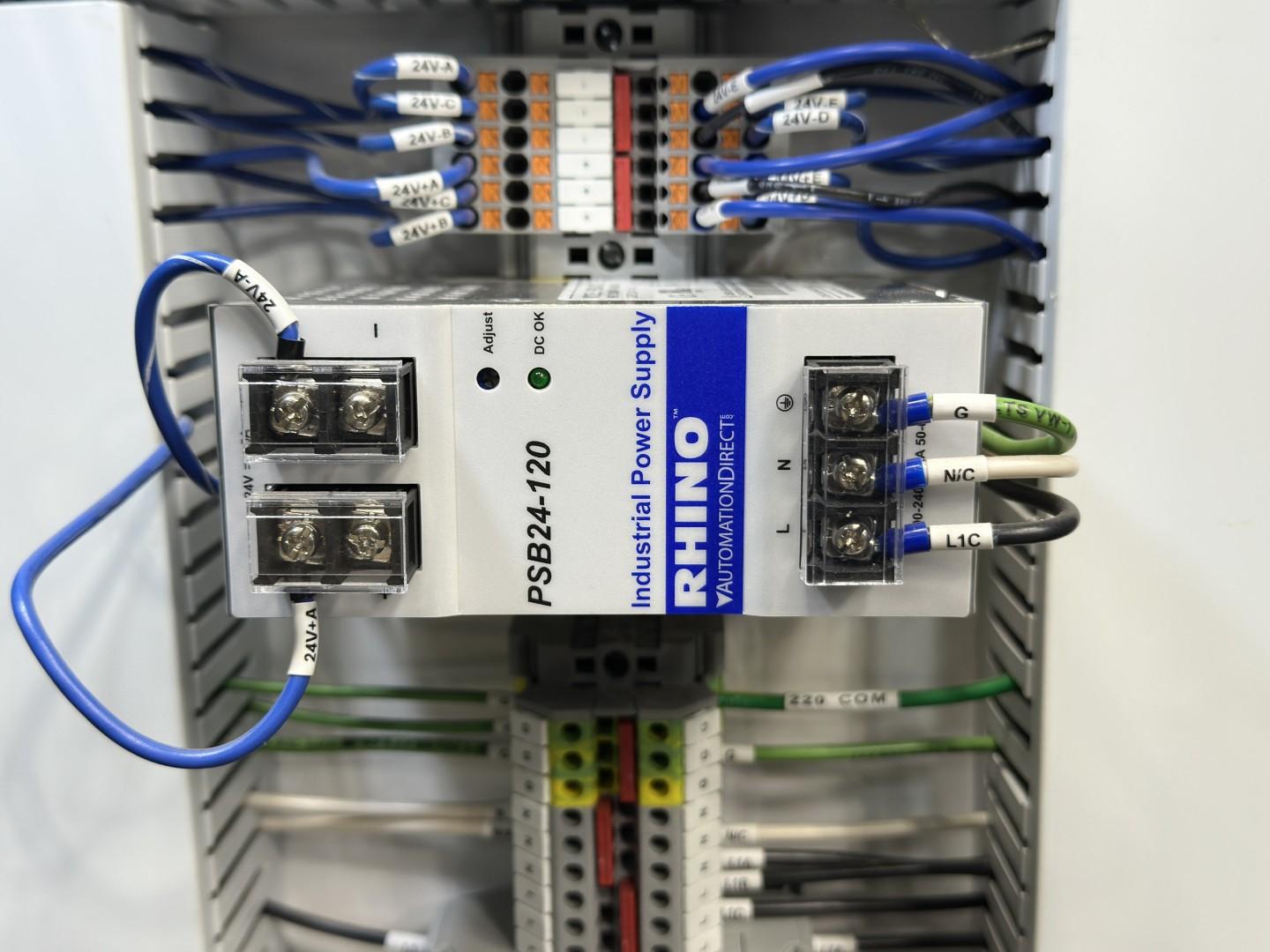

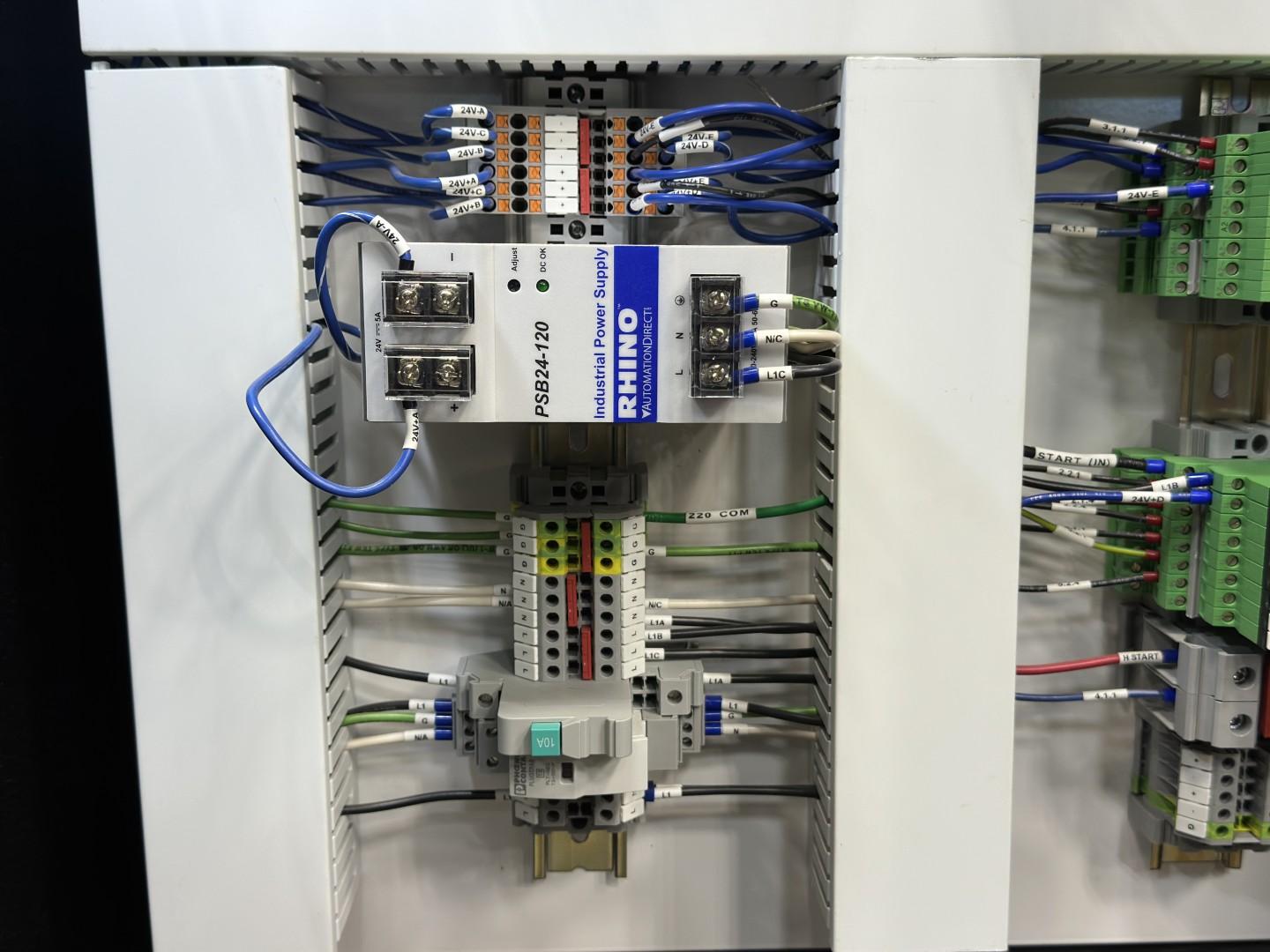

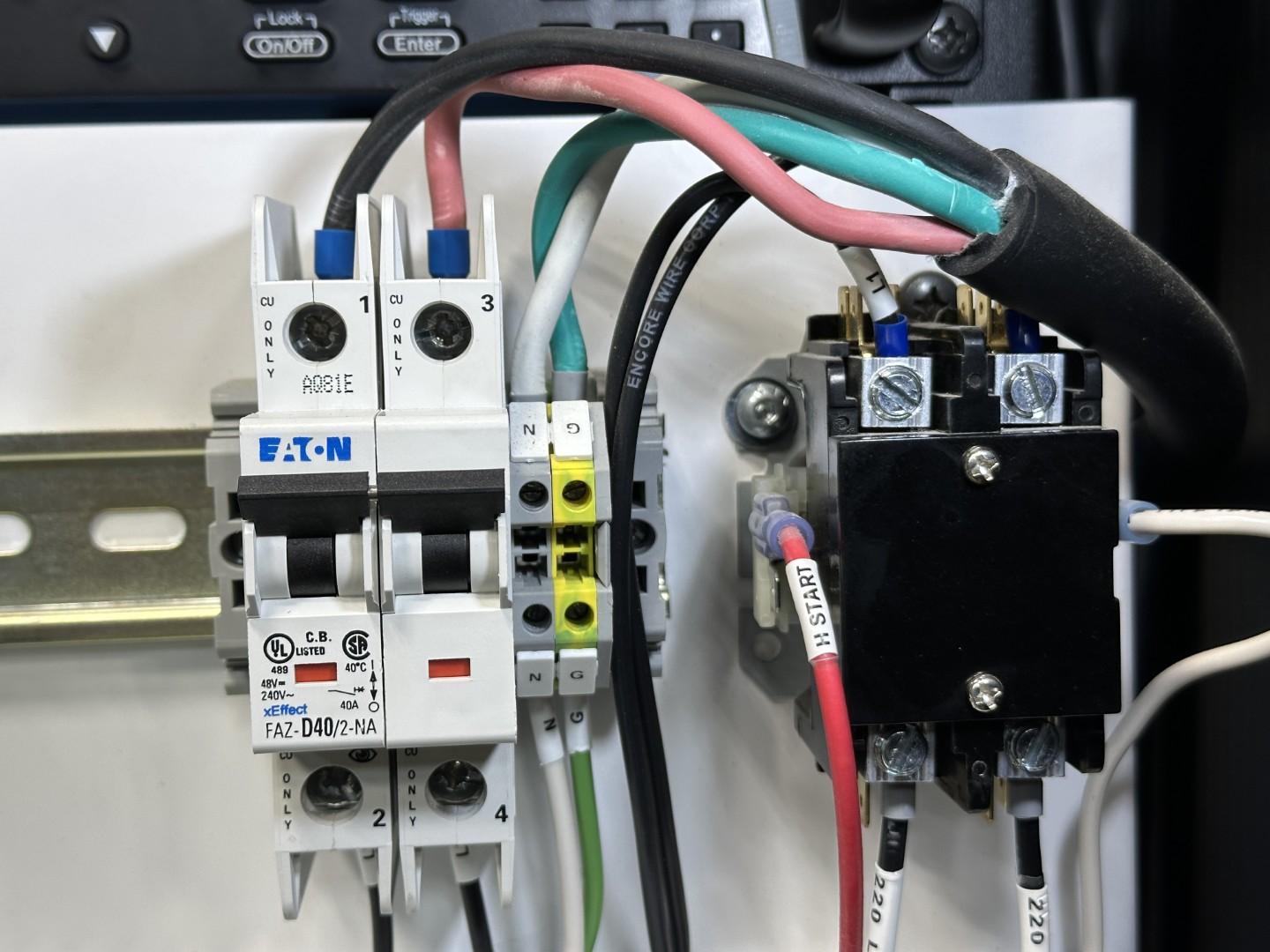

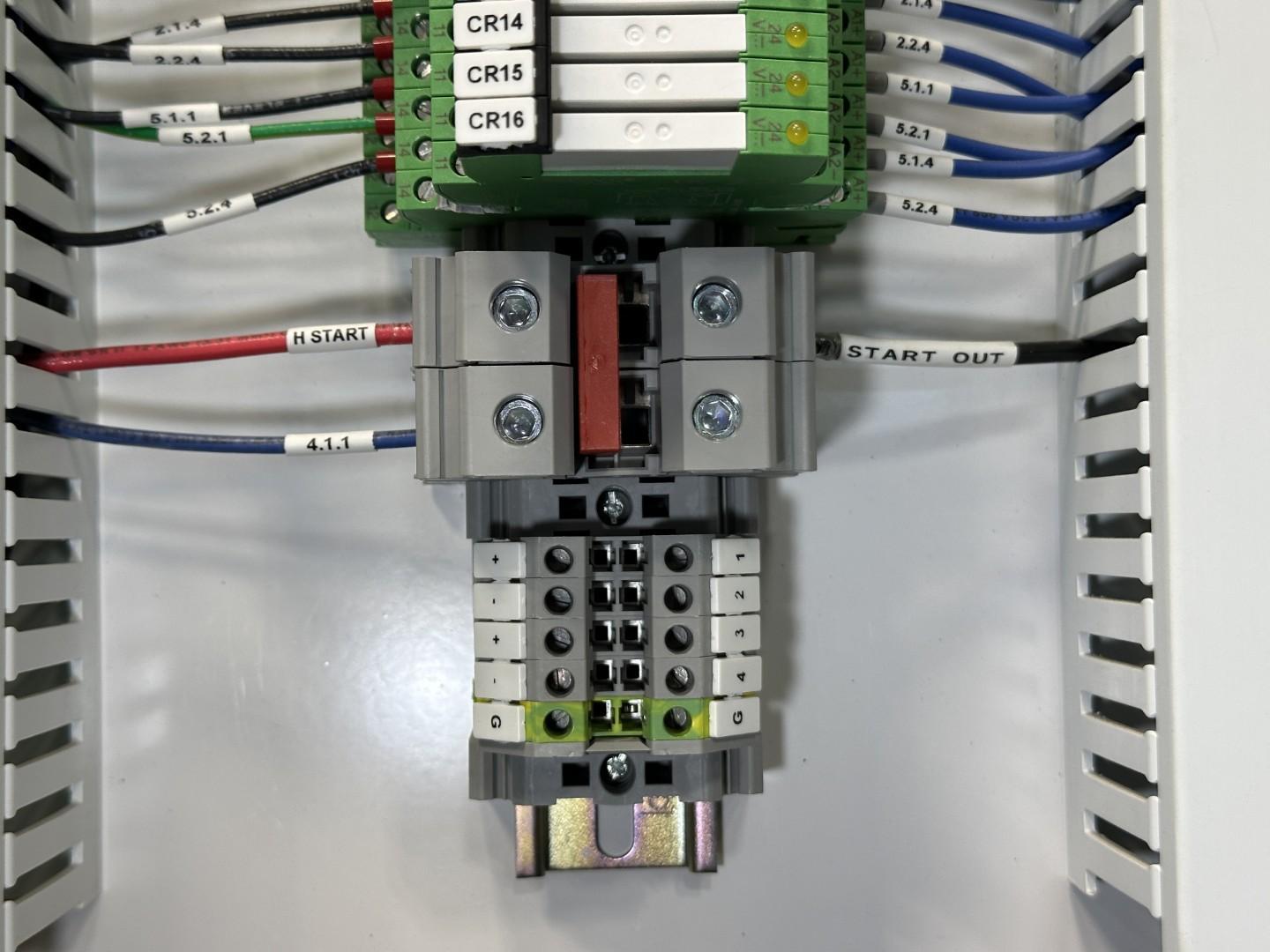

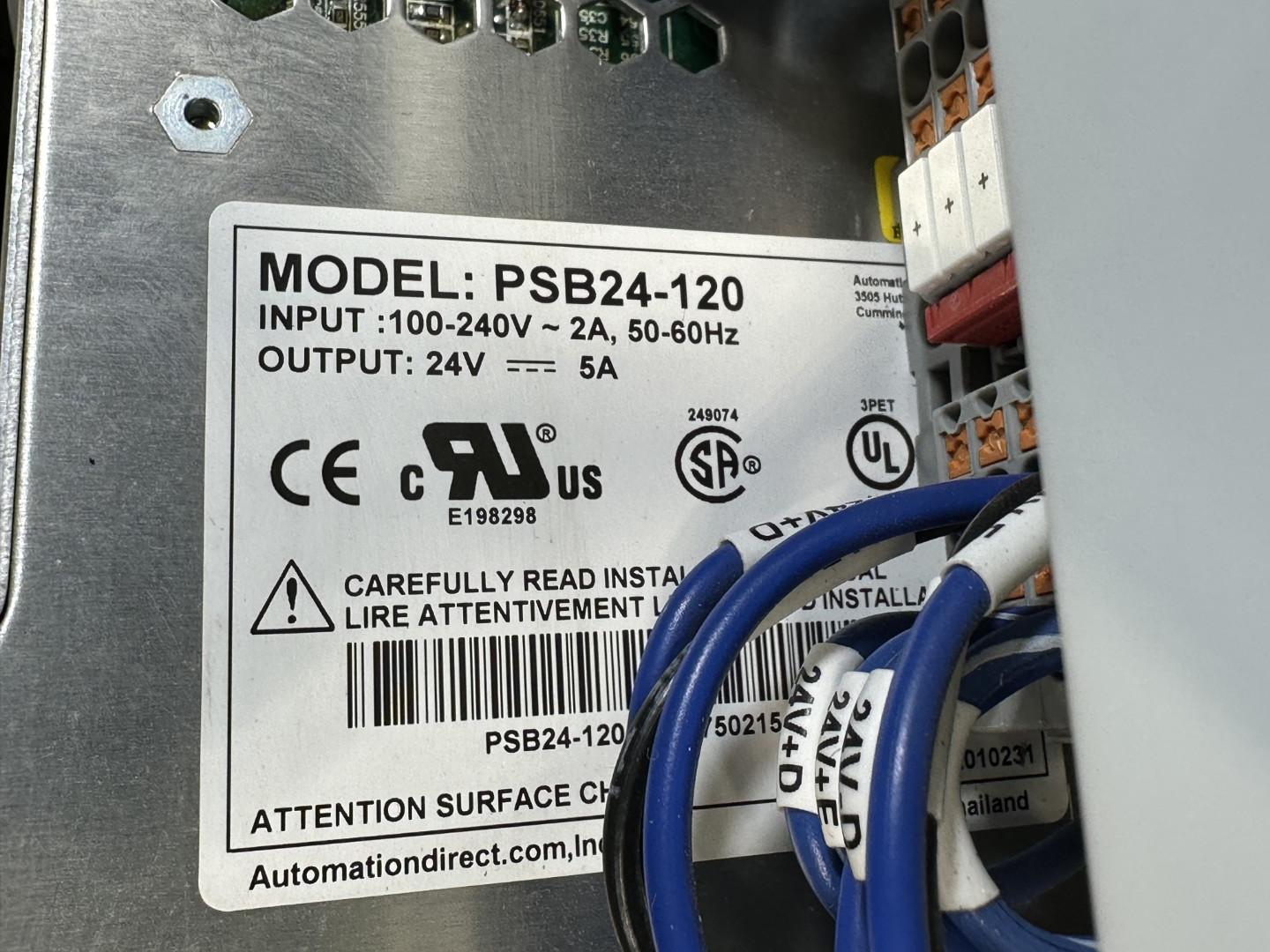

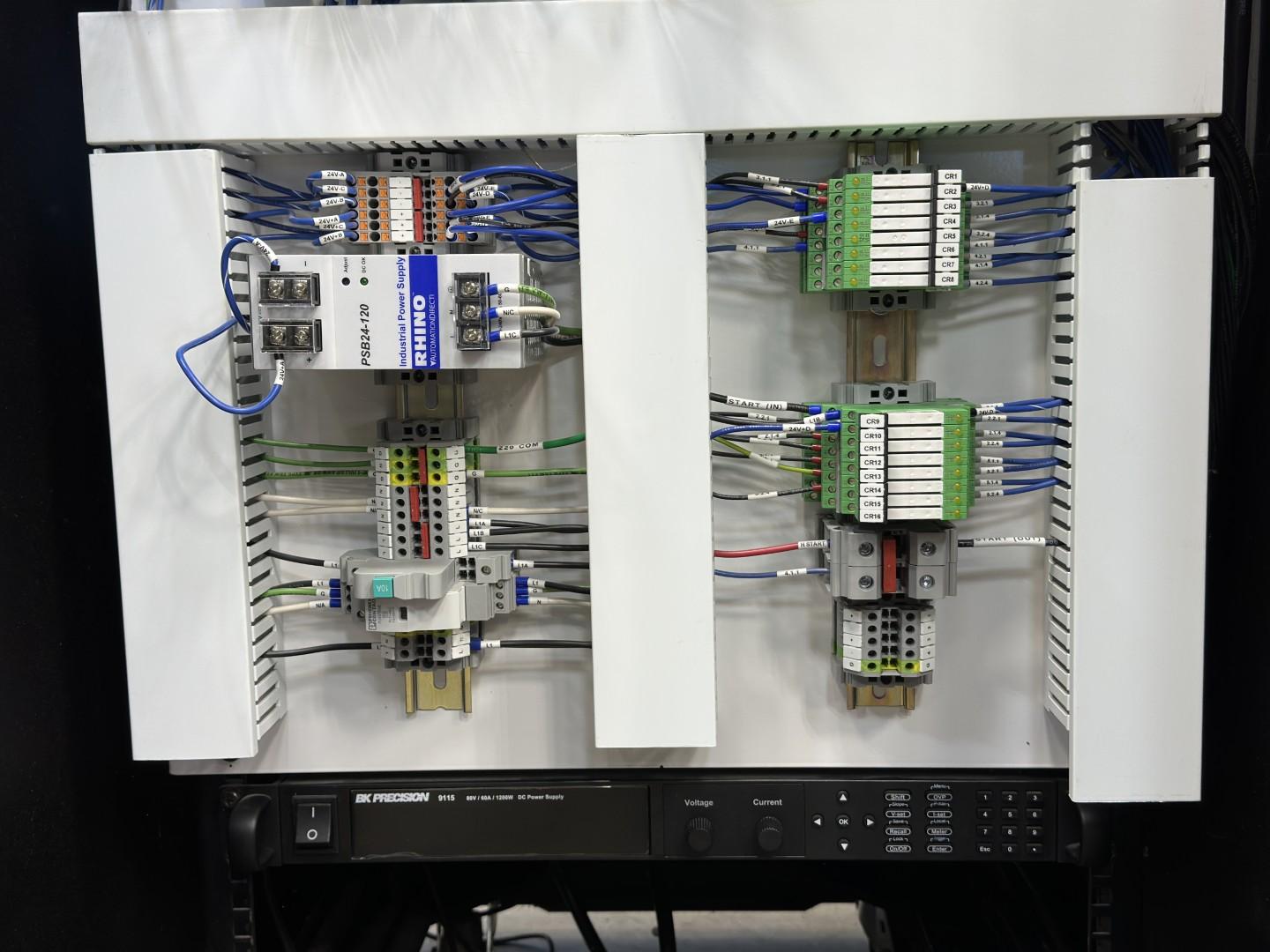

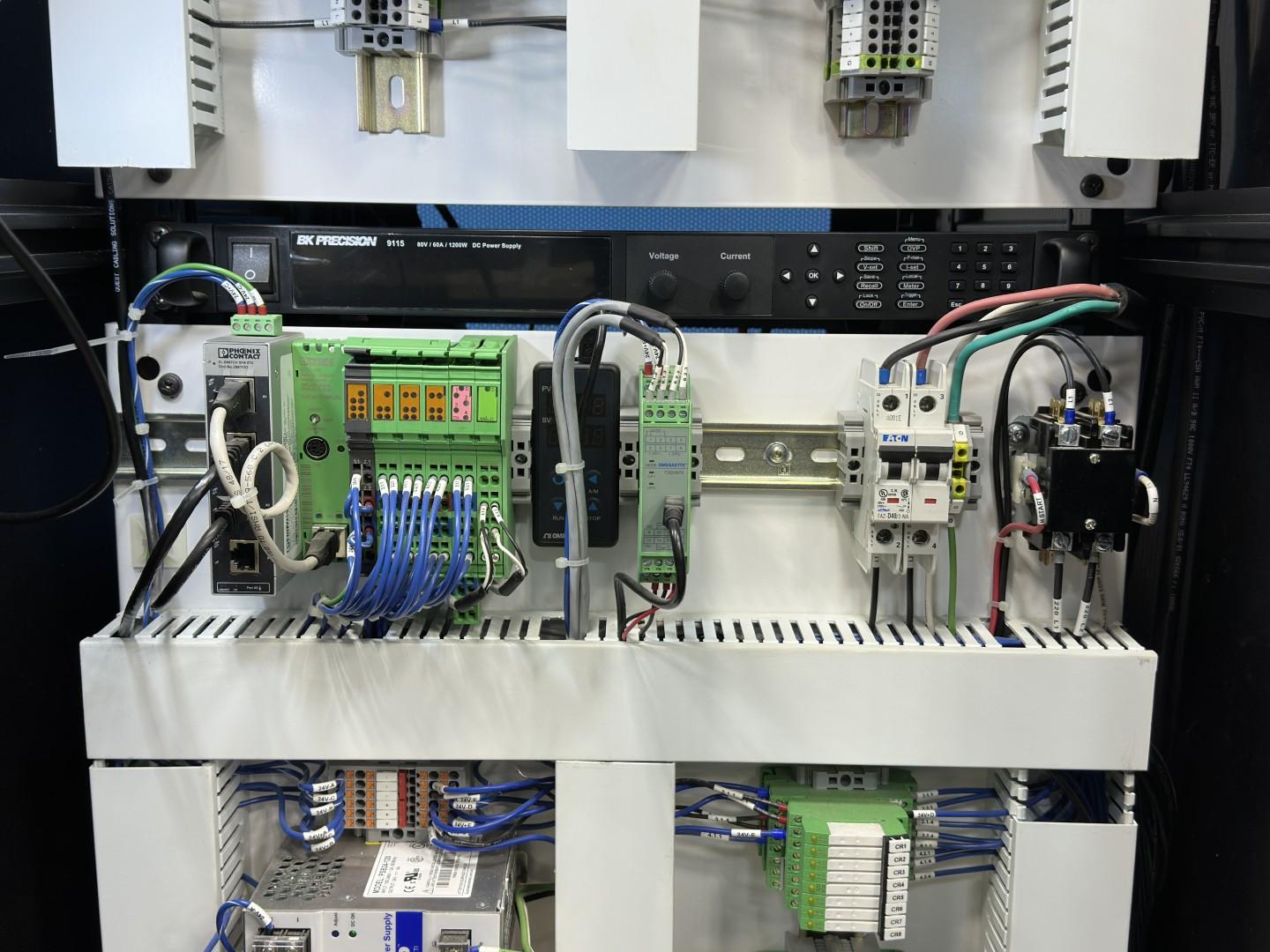

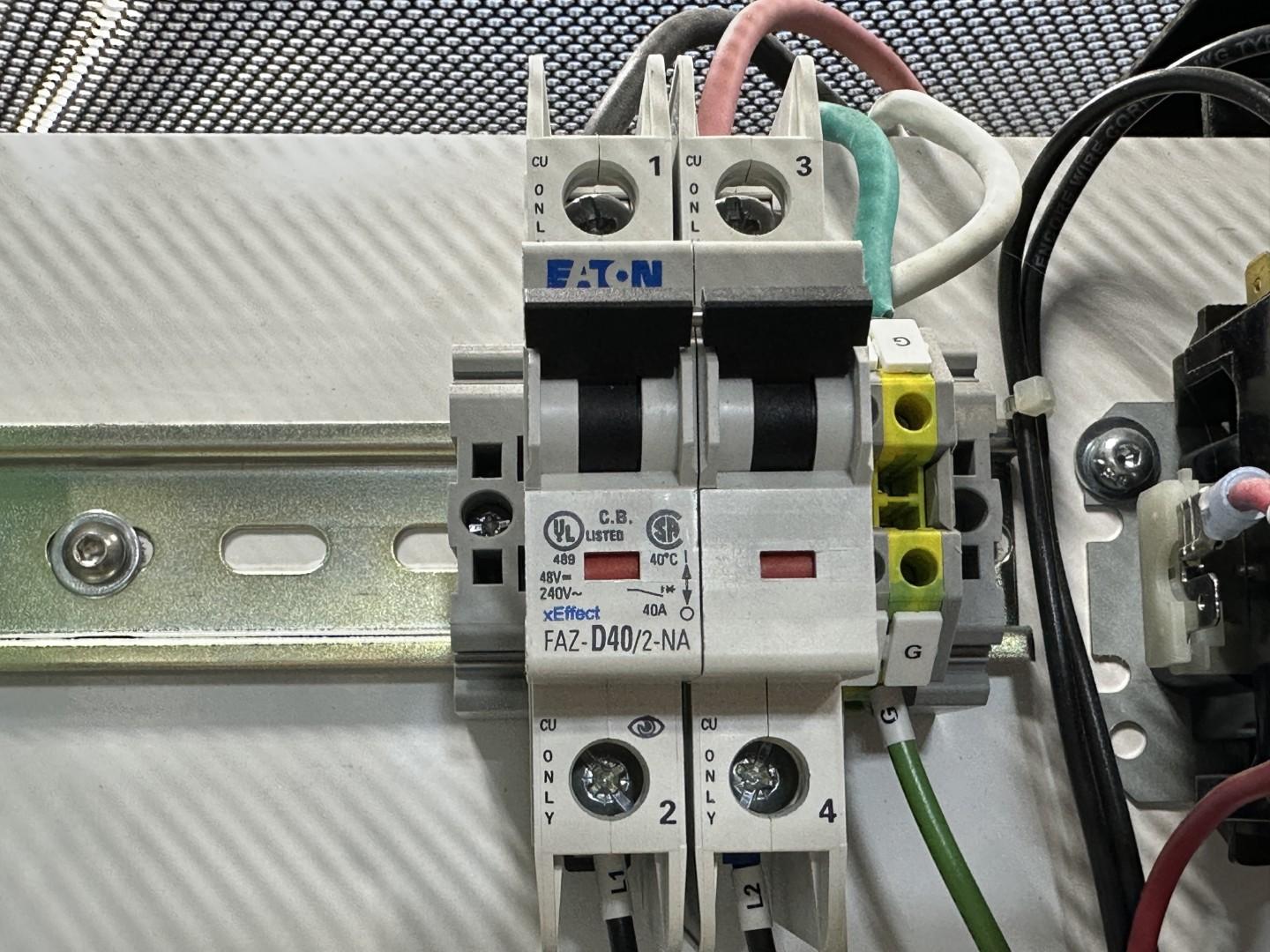

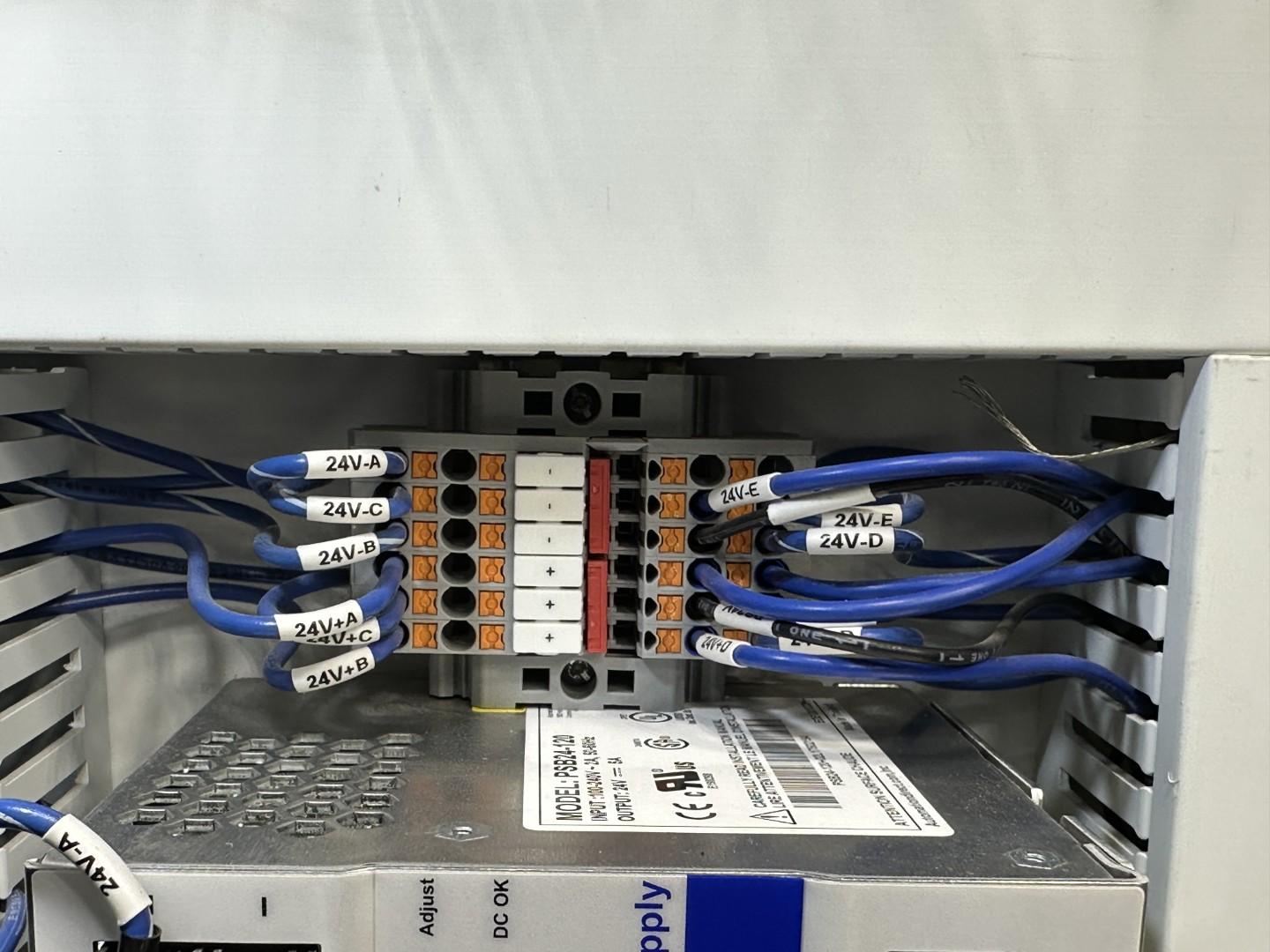

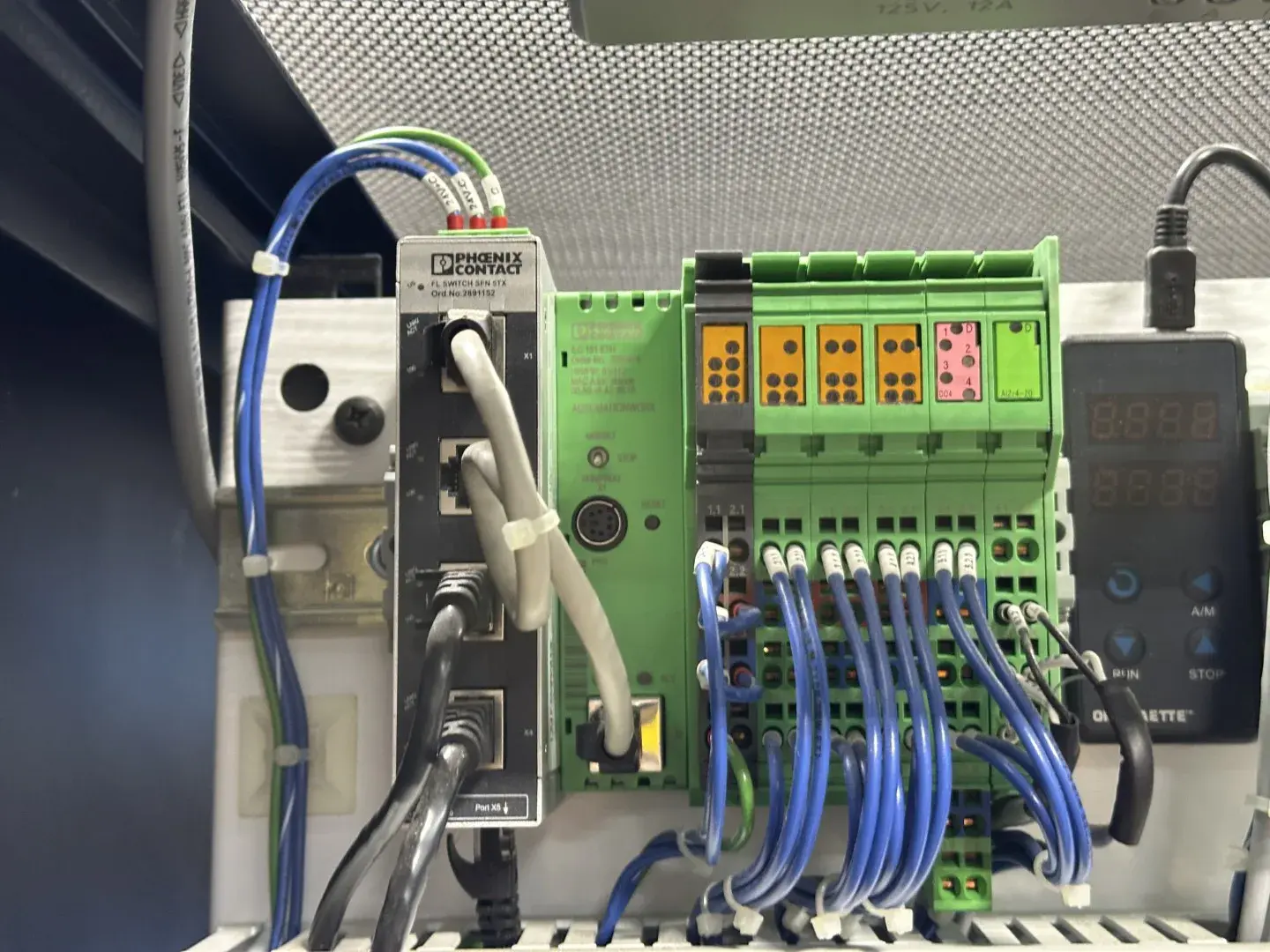

Control is handled by a Phoenix Contact ILC 151 ETH inline controller with a 12.1 inch Maple Systems OMI6812A panel PC as the operator interface, linked by a Phoenix Contact five-port industrial Ethernet switch. Bath temperature is regulated by Omegaette PID control with DIN rail signal conditioning. Sixteen Phoenix Contact plug-in relay modules carry the interlock and start sequencing logic, powered from AutomationDirect Rhino 24 VDC control supplies. Line side protection consists of an ABB OT63F6 63 A load-break disconnect, Eaton FAZ series DIN breakers, and Phoenix Contact Type 3 surge protection.
Multi-range operation delivers full rated power at any voltage and current combination within the 80 V and 60 A limits, and the list and sequence modes support pulse plating programs. Suited to jewelry and decorative finishing lines, functional plating job shops, precious metal recovery cells, anodizing and electropolishing stations, and plating process development.

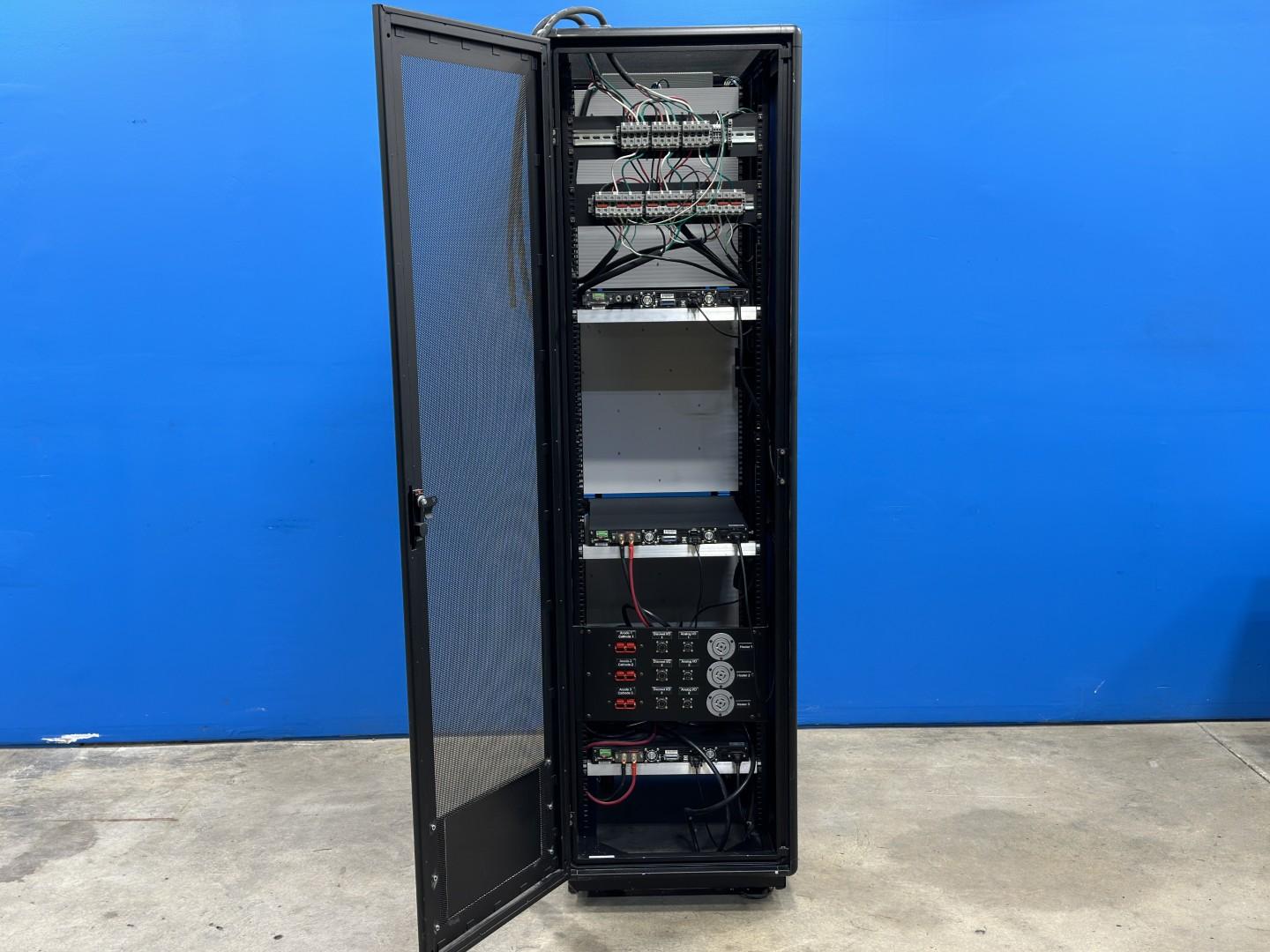

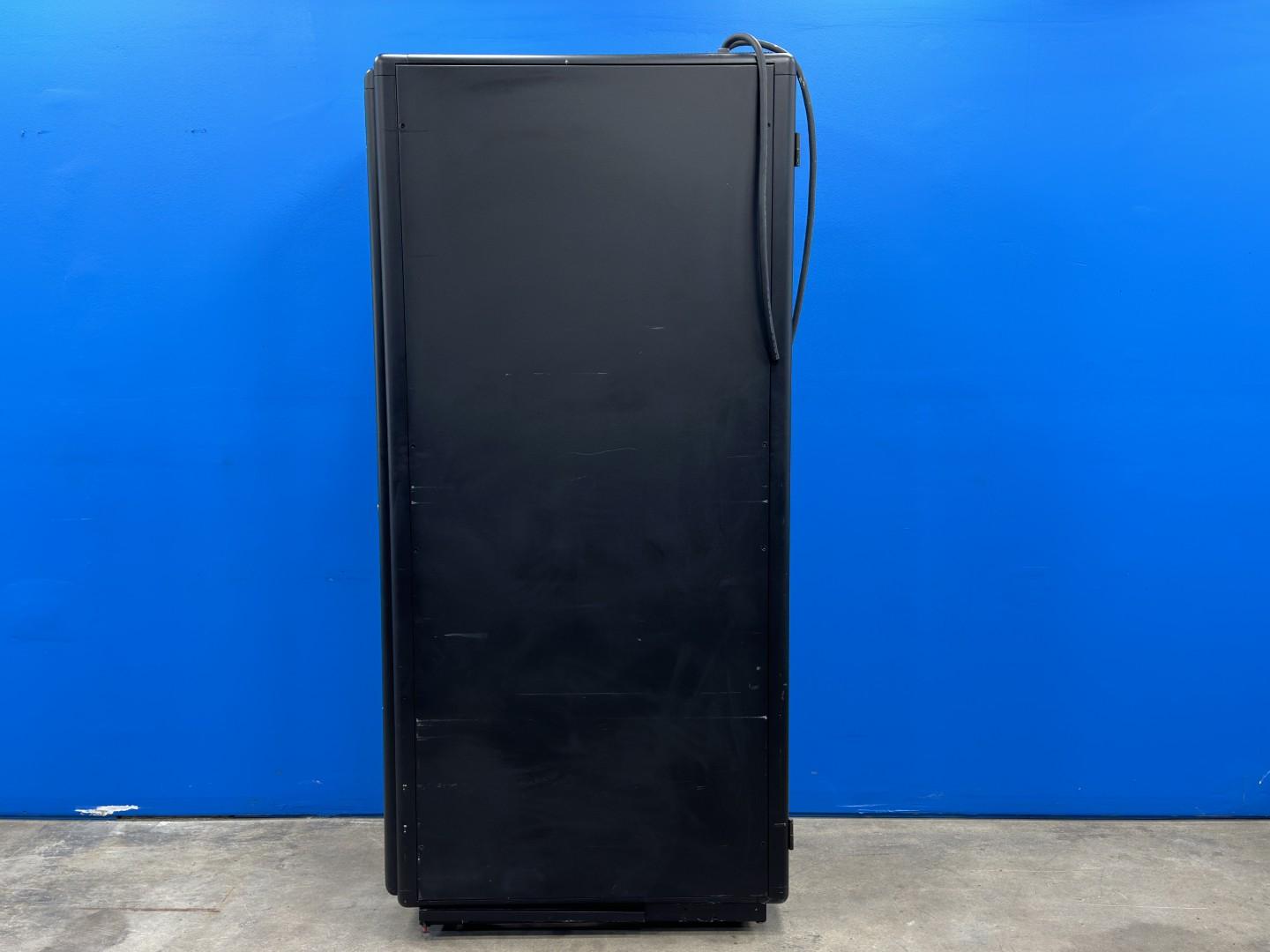

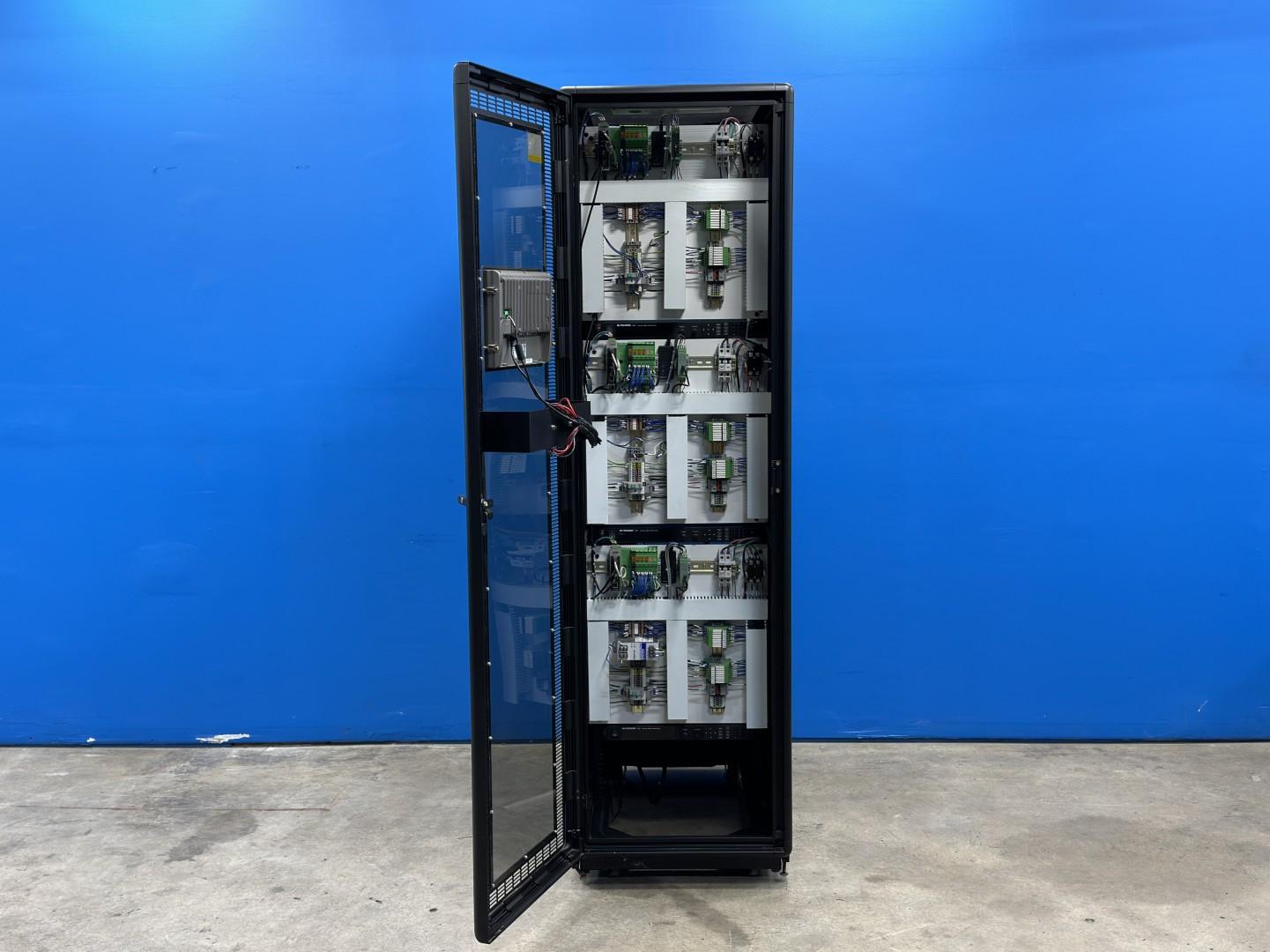

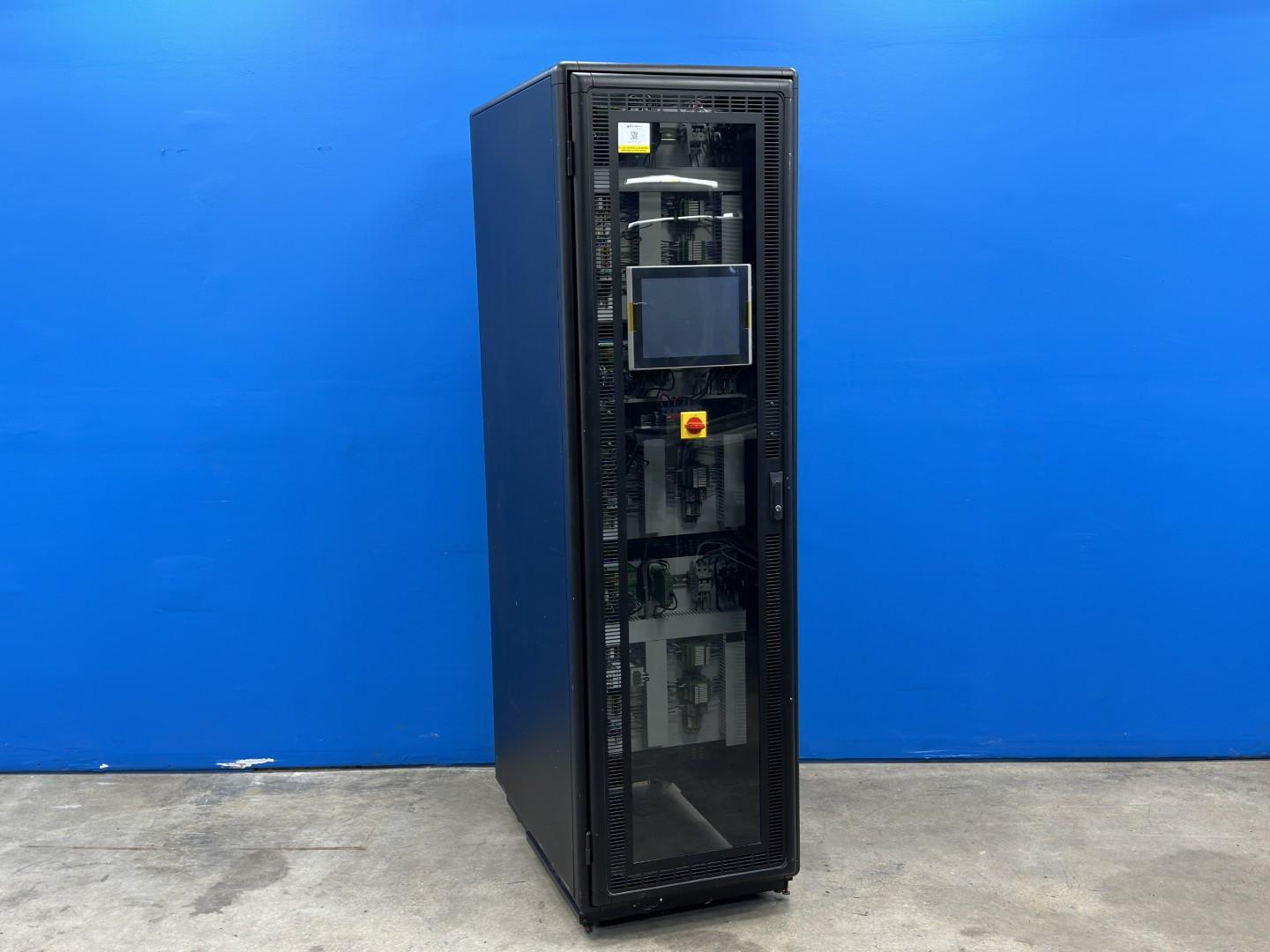

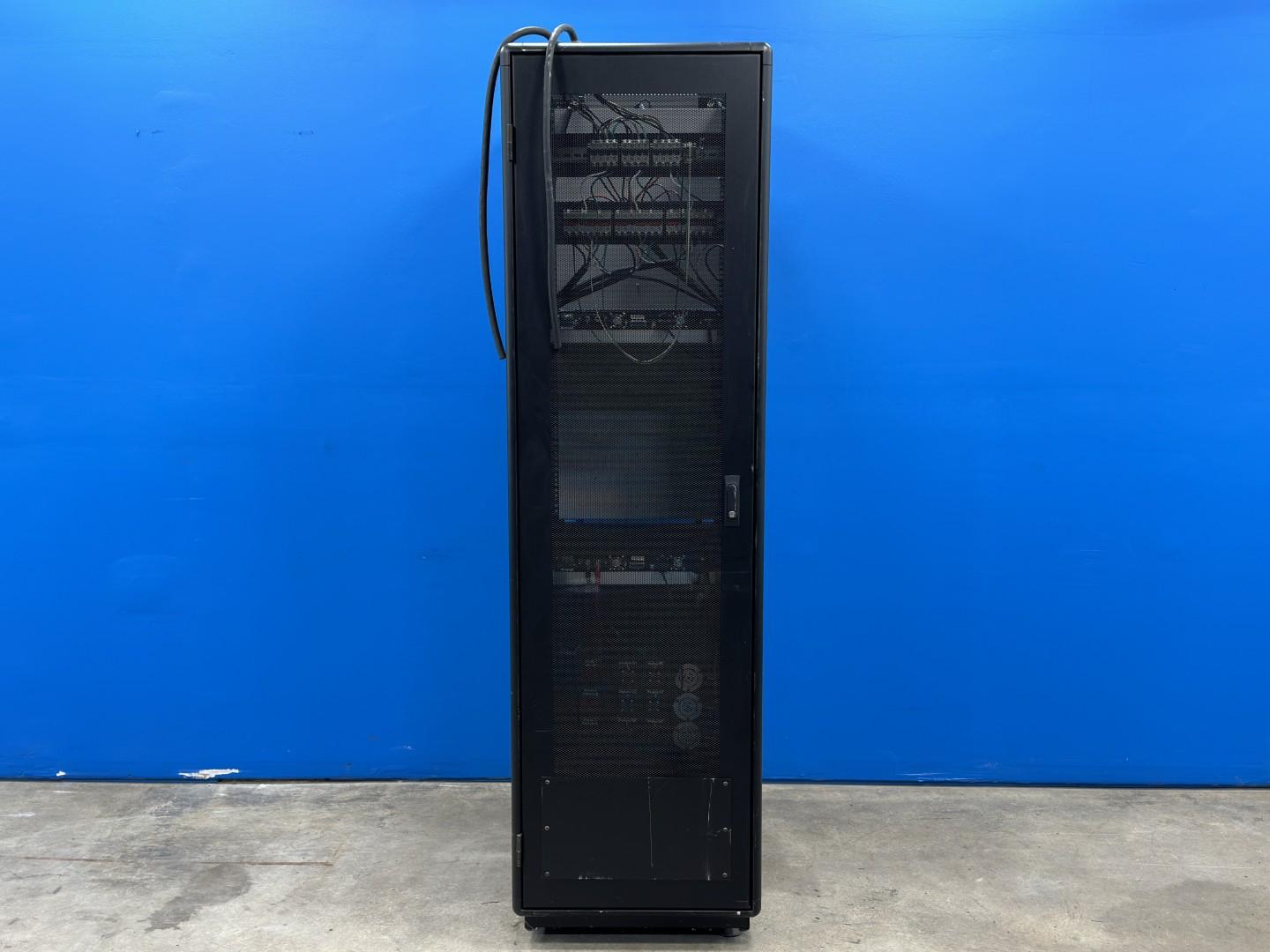

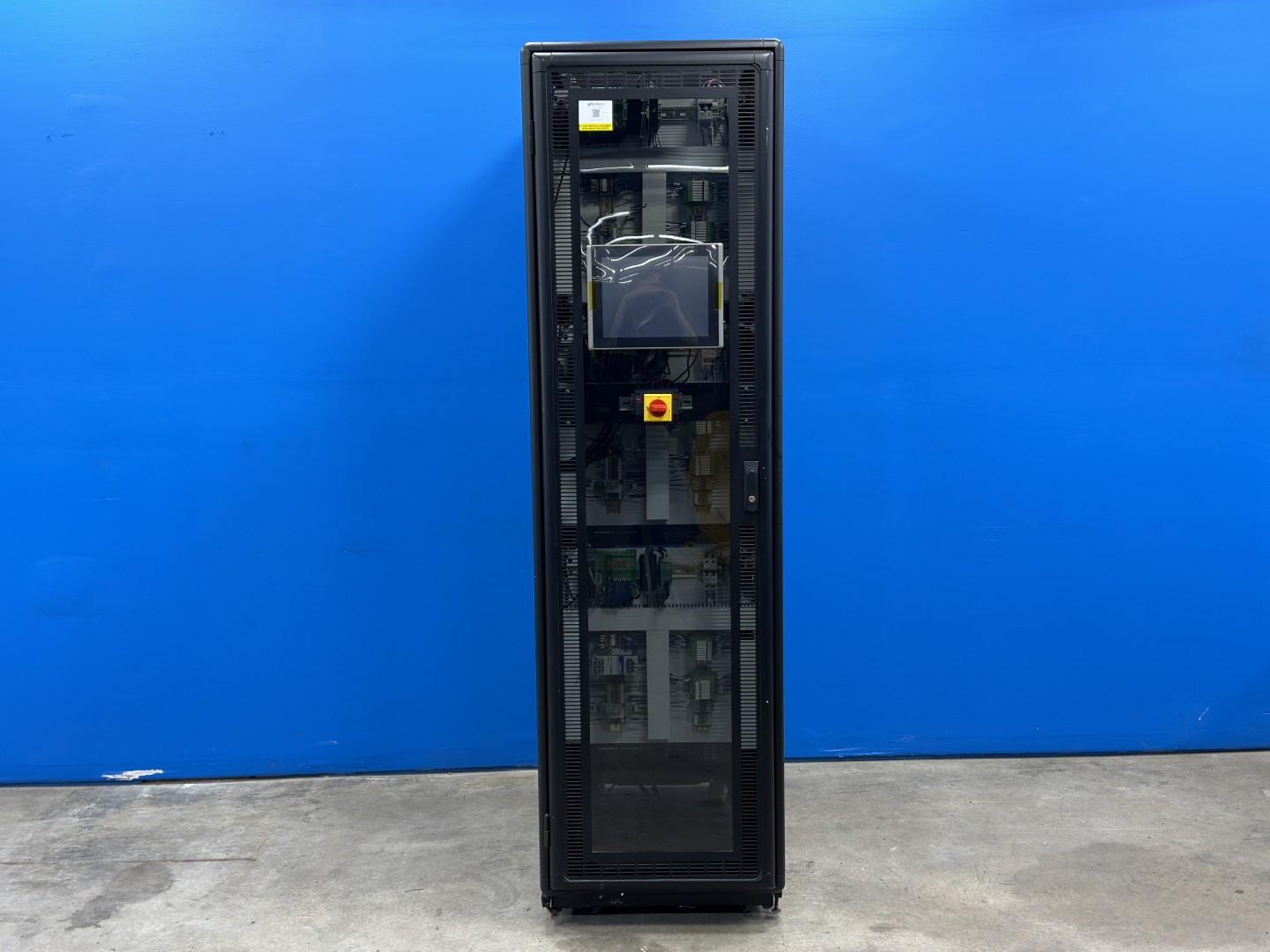

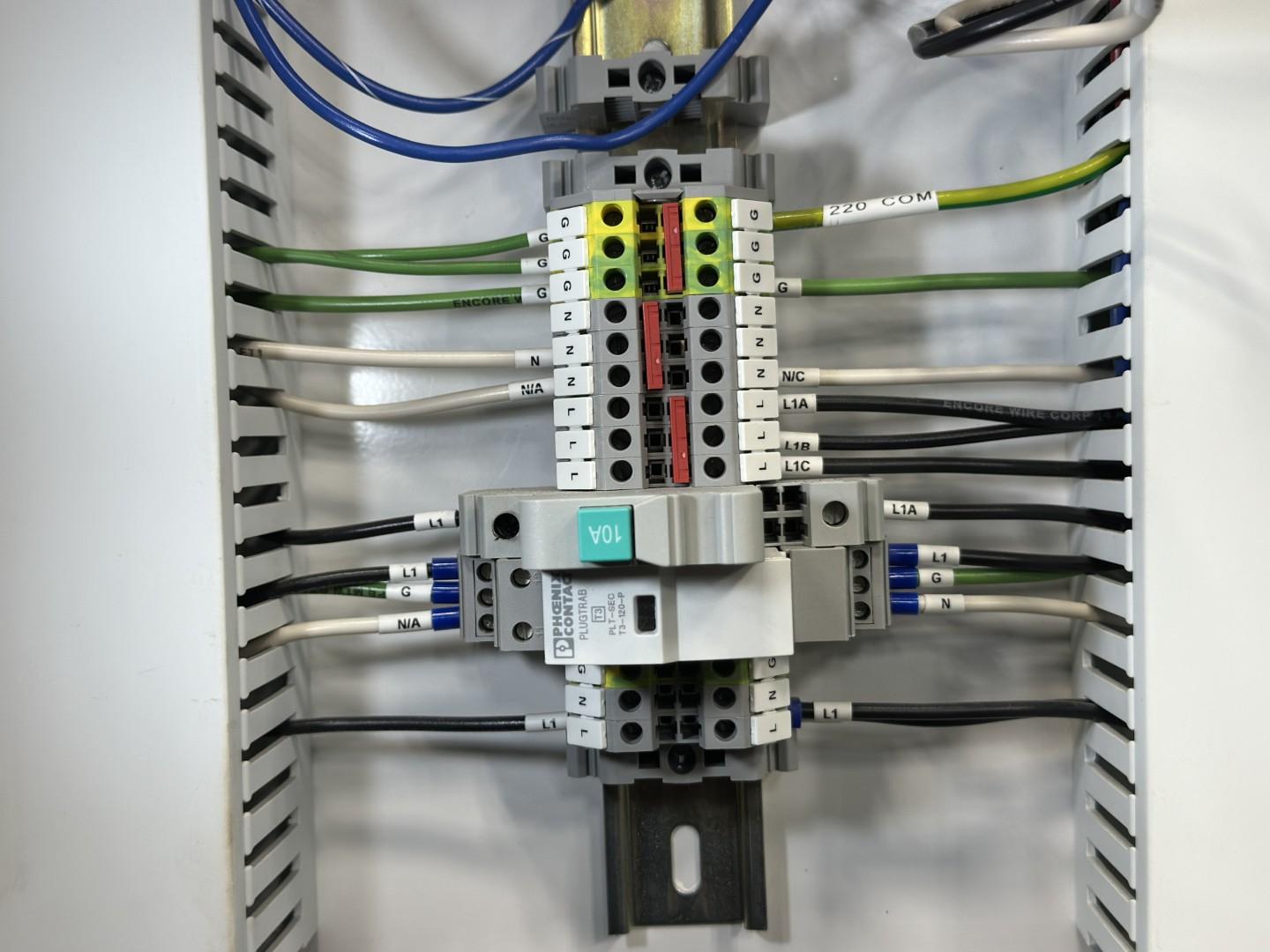

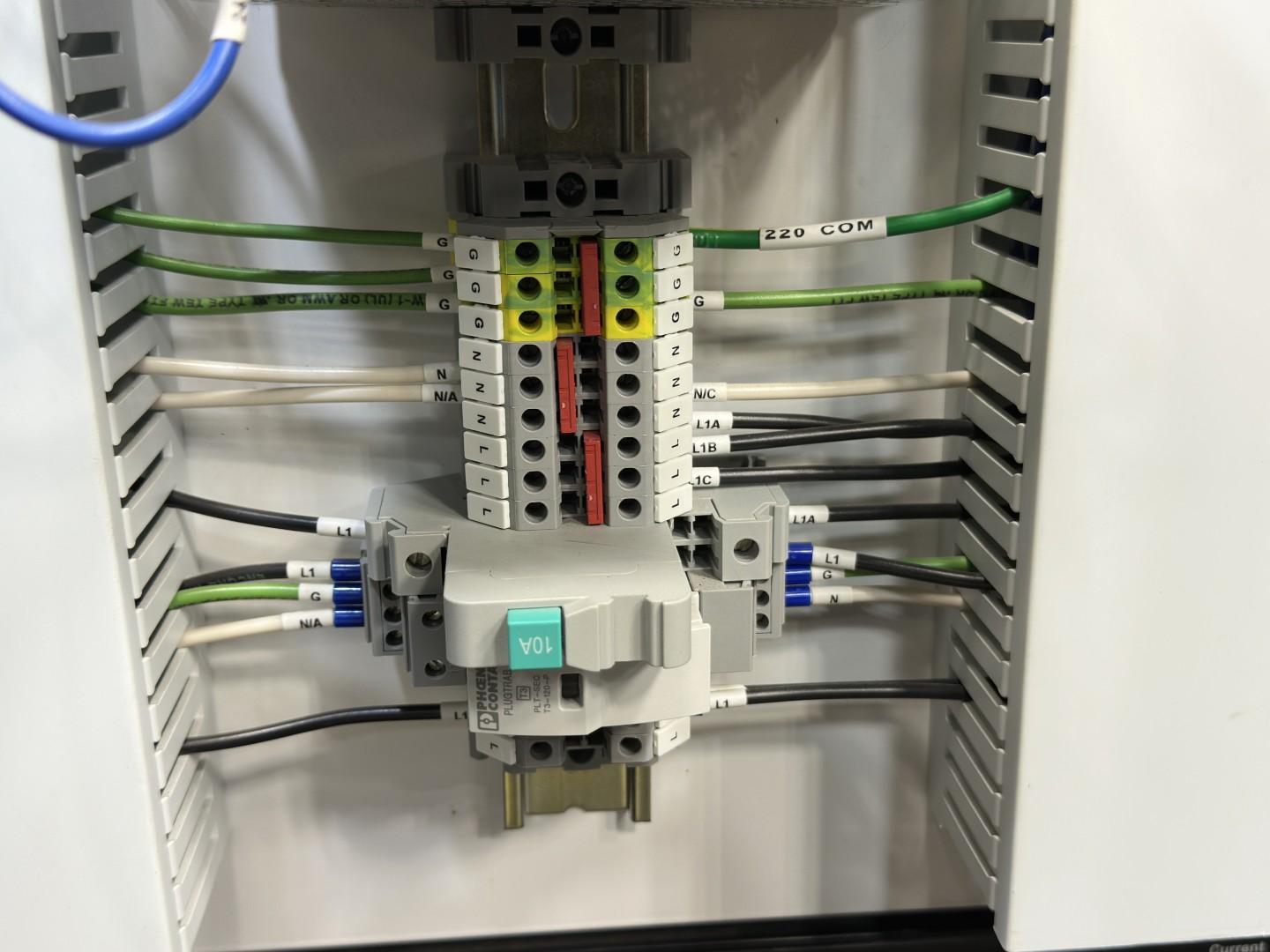

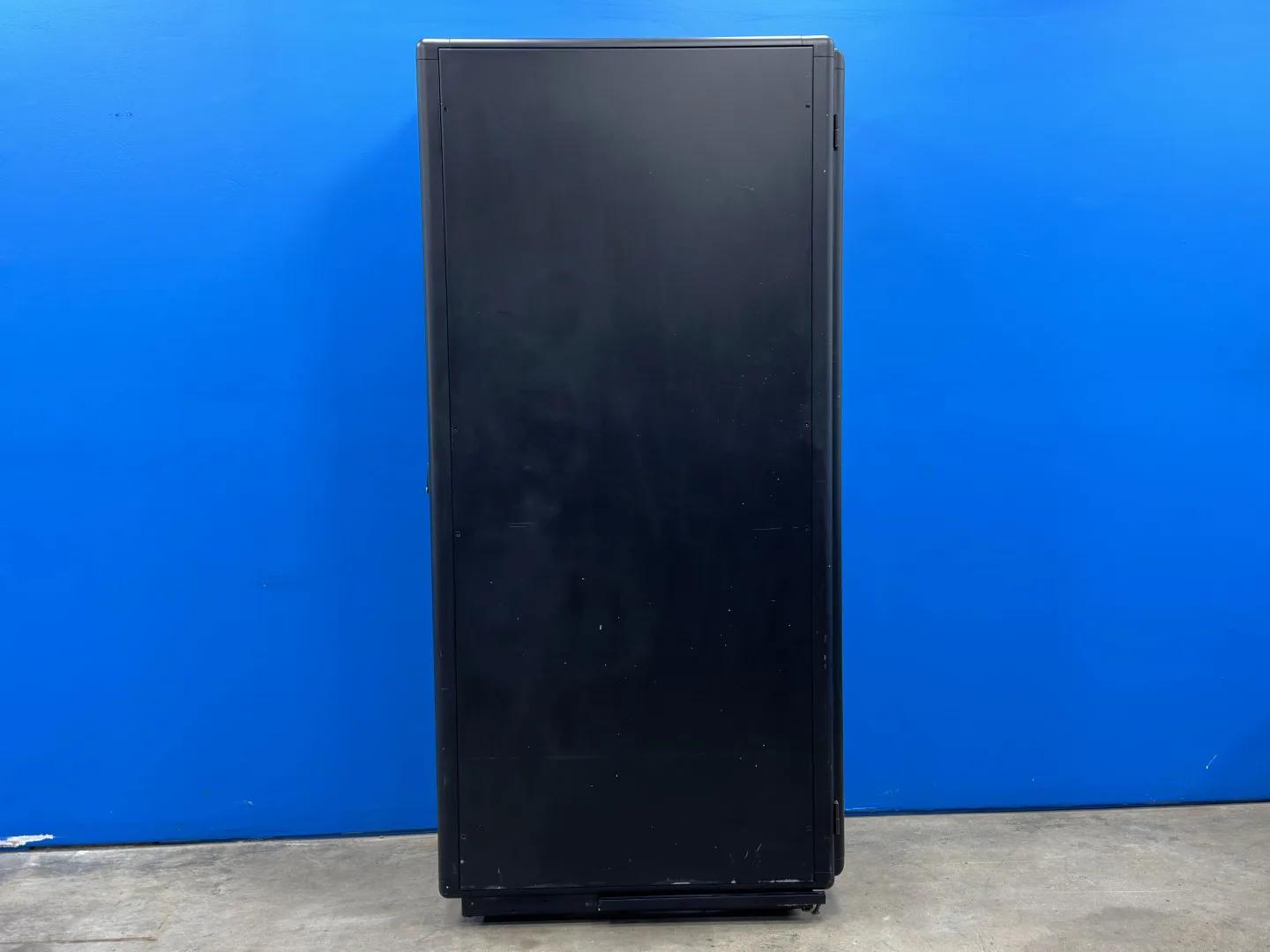

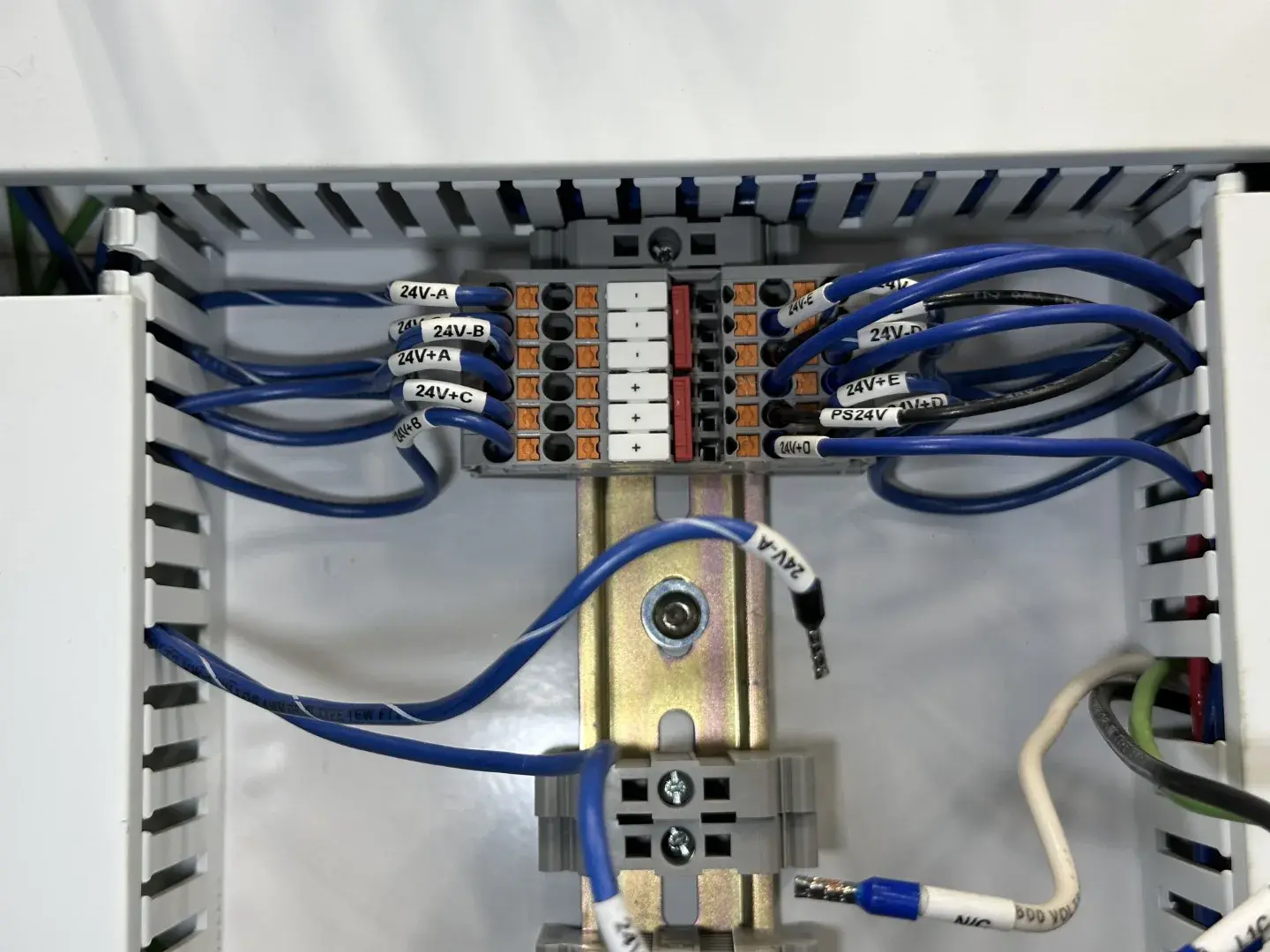

Cabinet measures 41 by 25 by 85 inches and weighs 496 lb. Perforated front door, numbered and ferruled wiring throughout, original loop labeling intact. Tagged as used and reported working when removed from service, not bench tested by King Surplus.
Sold as-is, surplus from King Surplus inventory.
Factory Information
| Qty | Component | Spec |
|---|---|---|

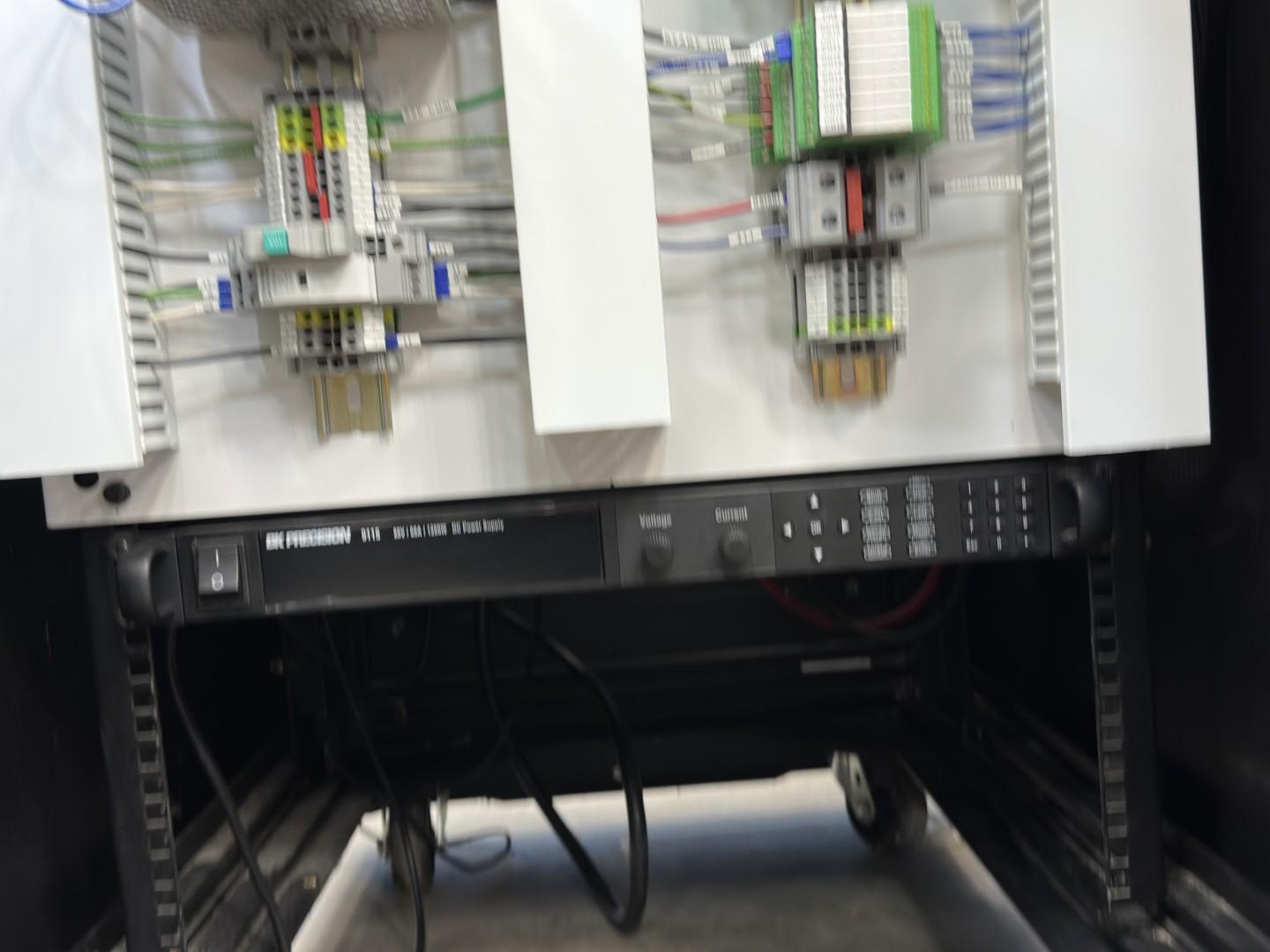

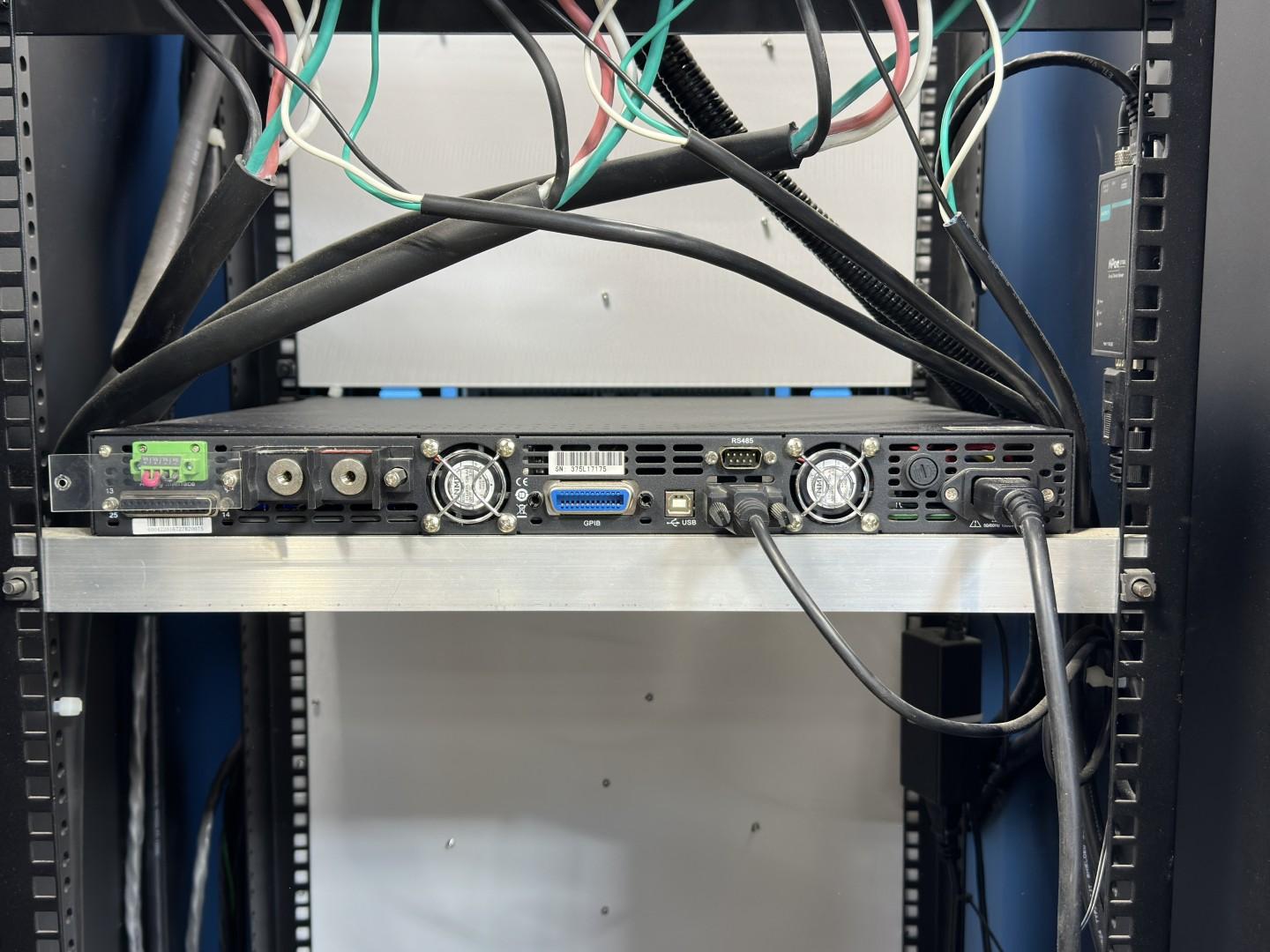

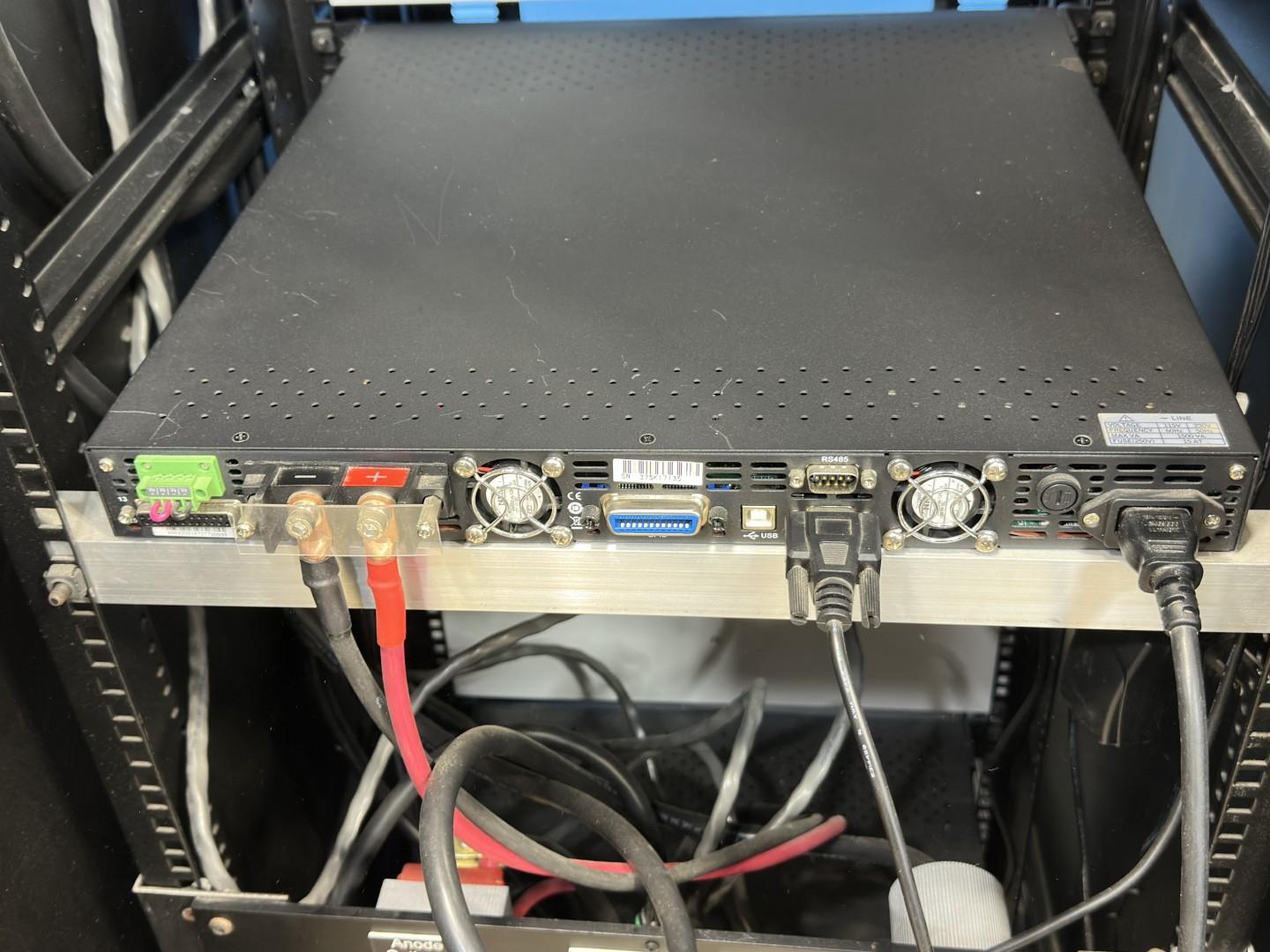

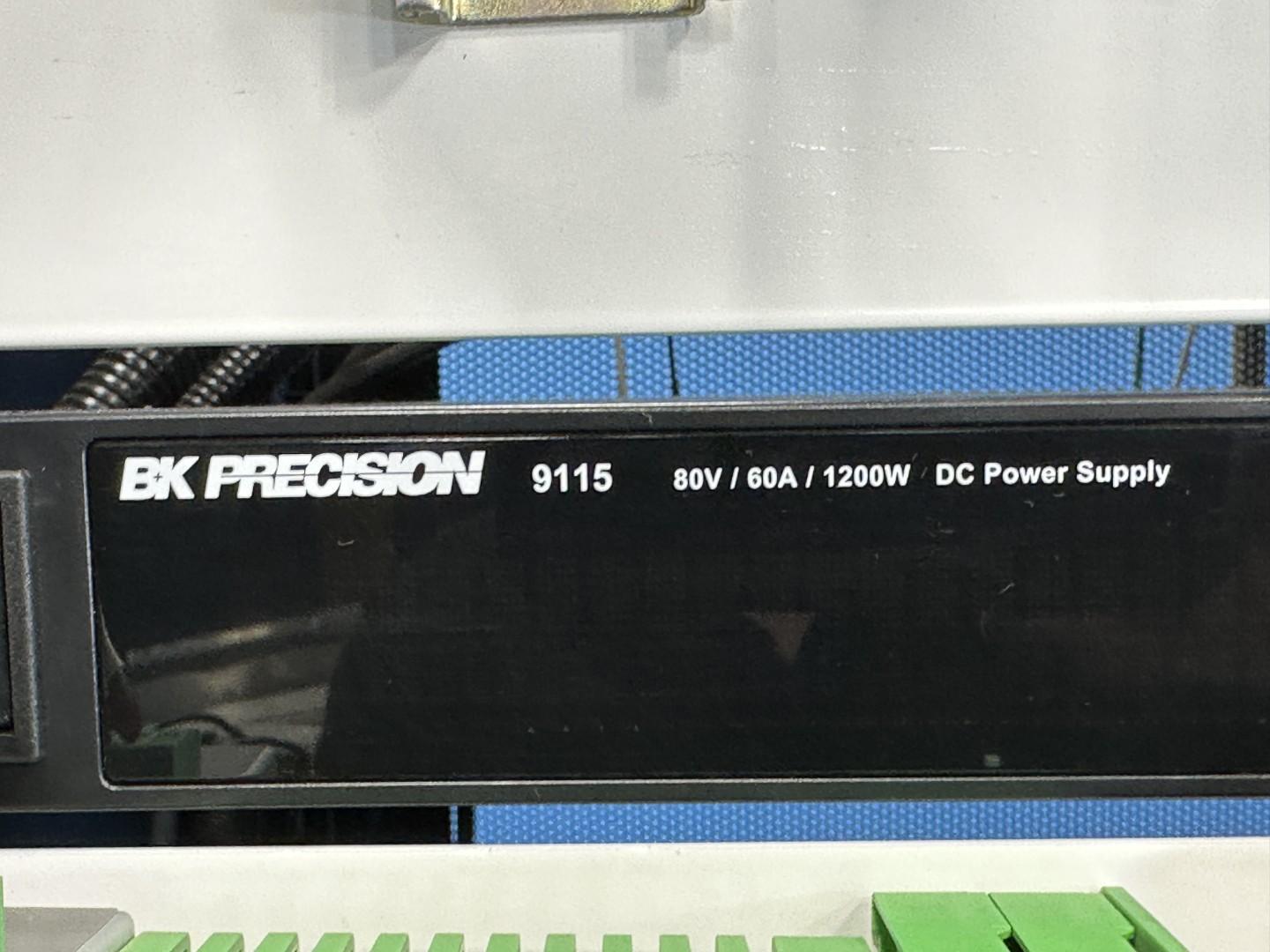

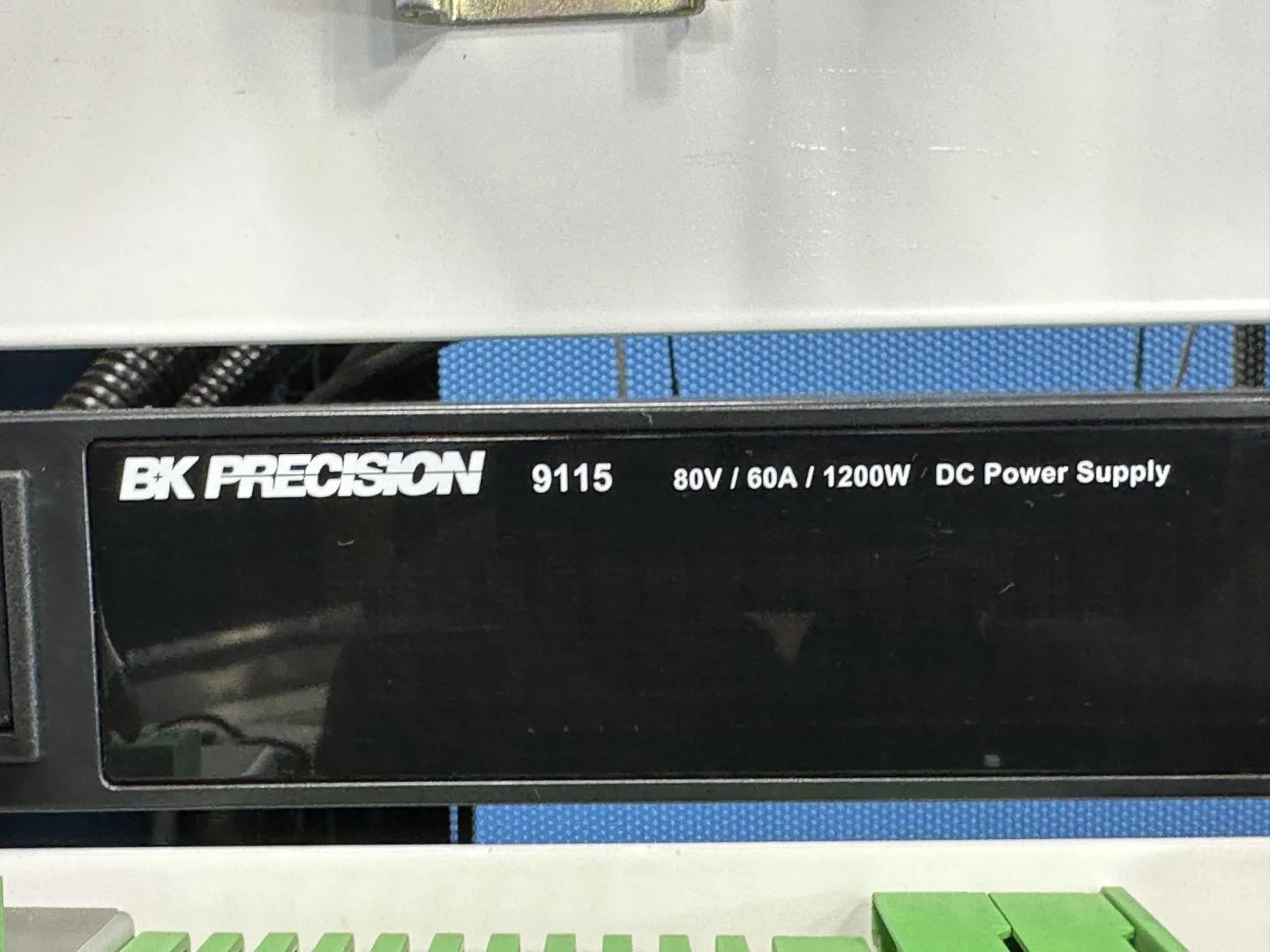

| 3 | BK Precision 9115 | Programmable DC supply, 0–80V / 0–60A / 1200W multi-range, 1U, USB/RS-232/RS-485/GPIB |

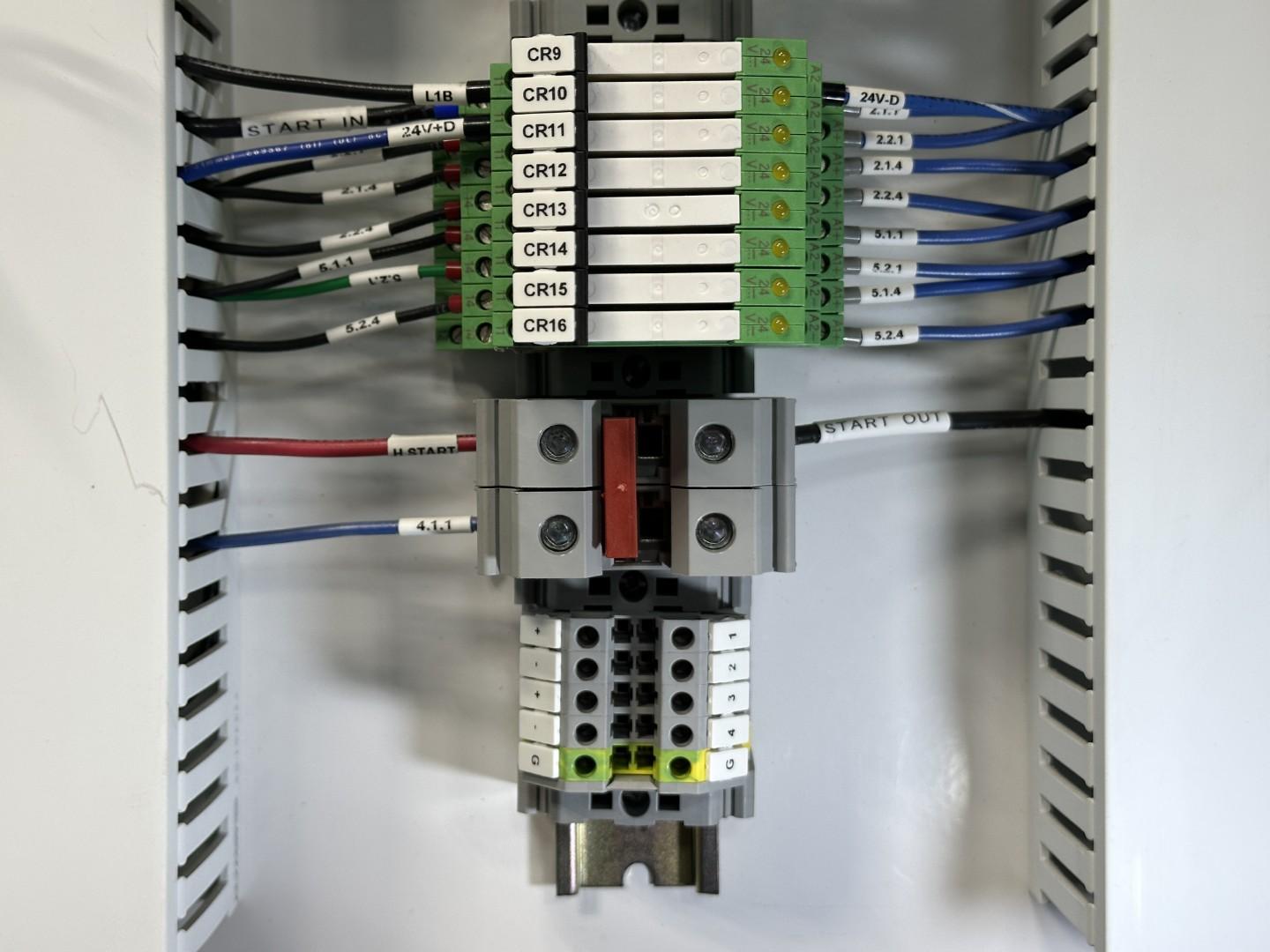

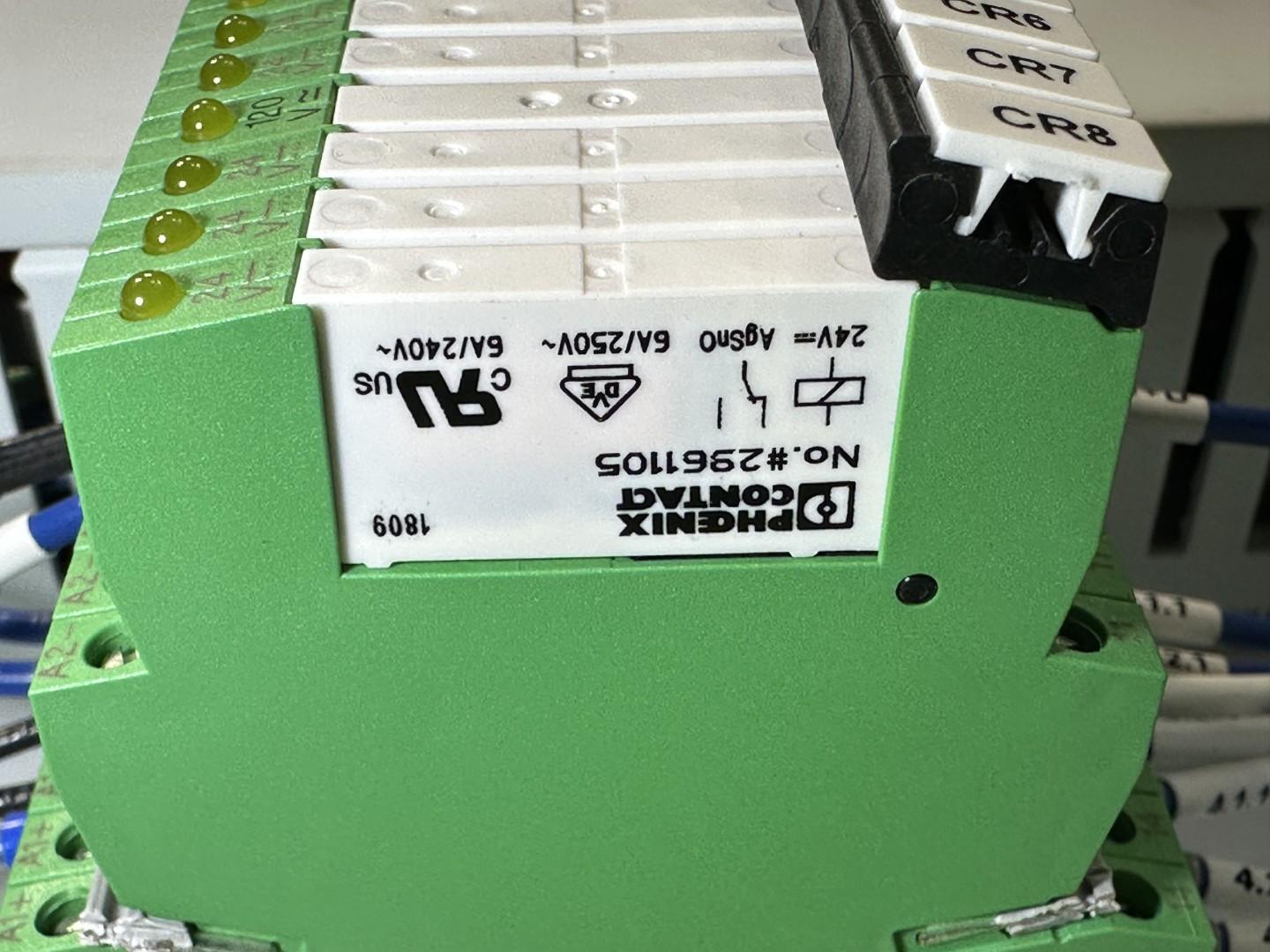

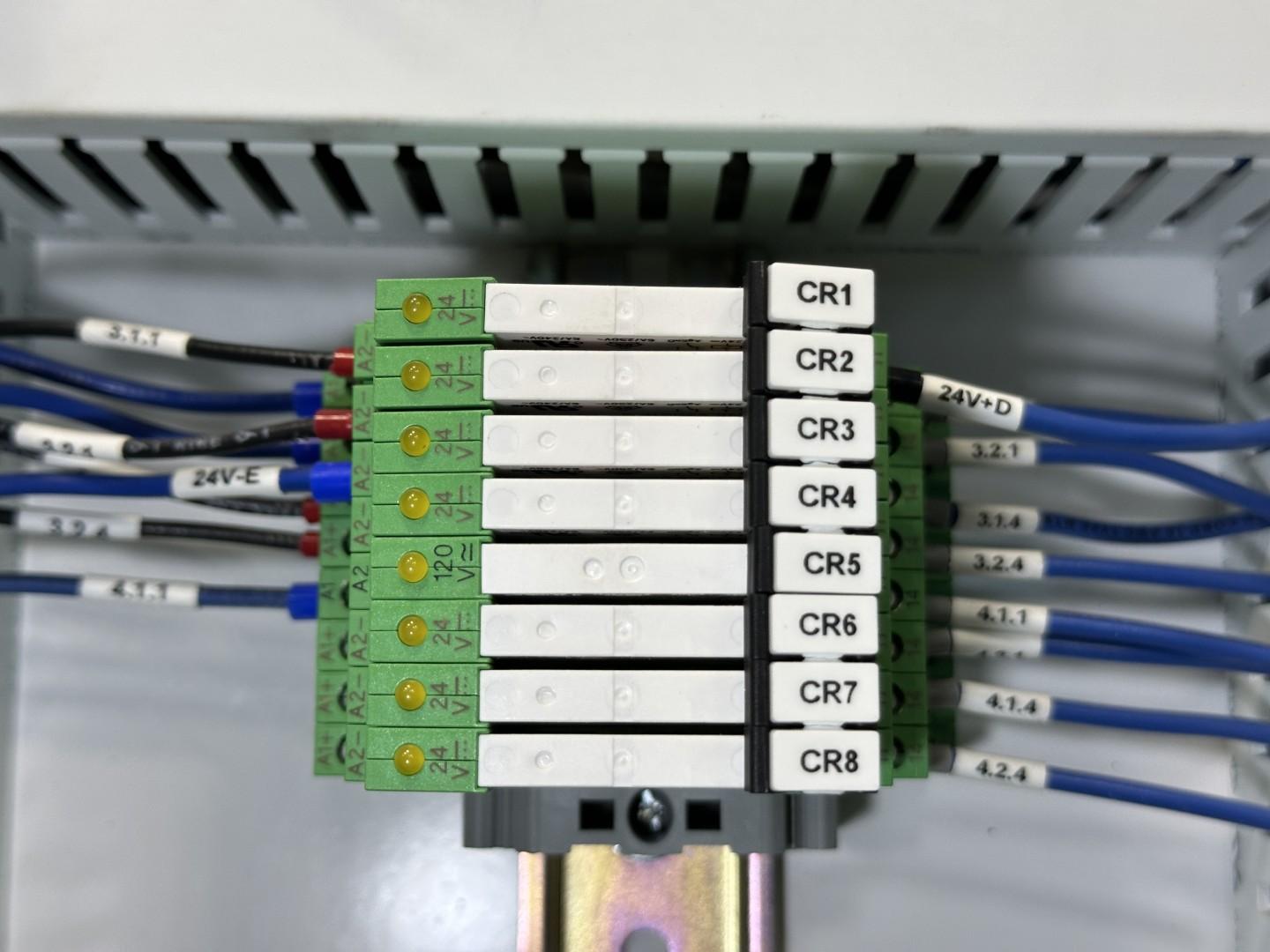

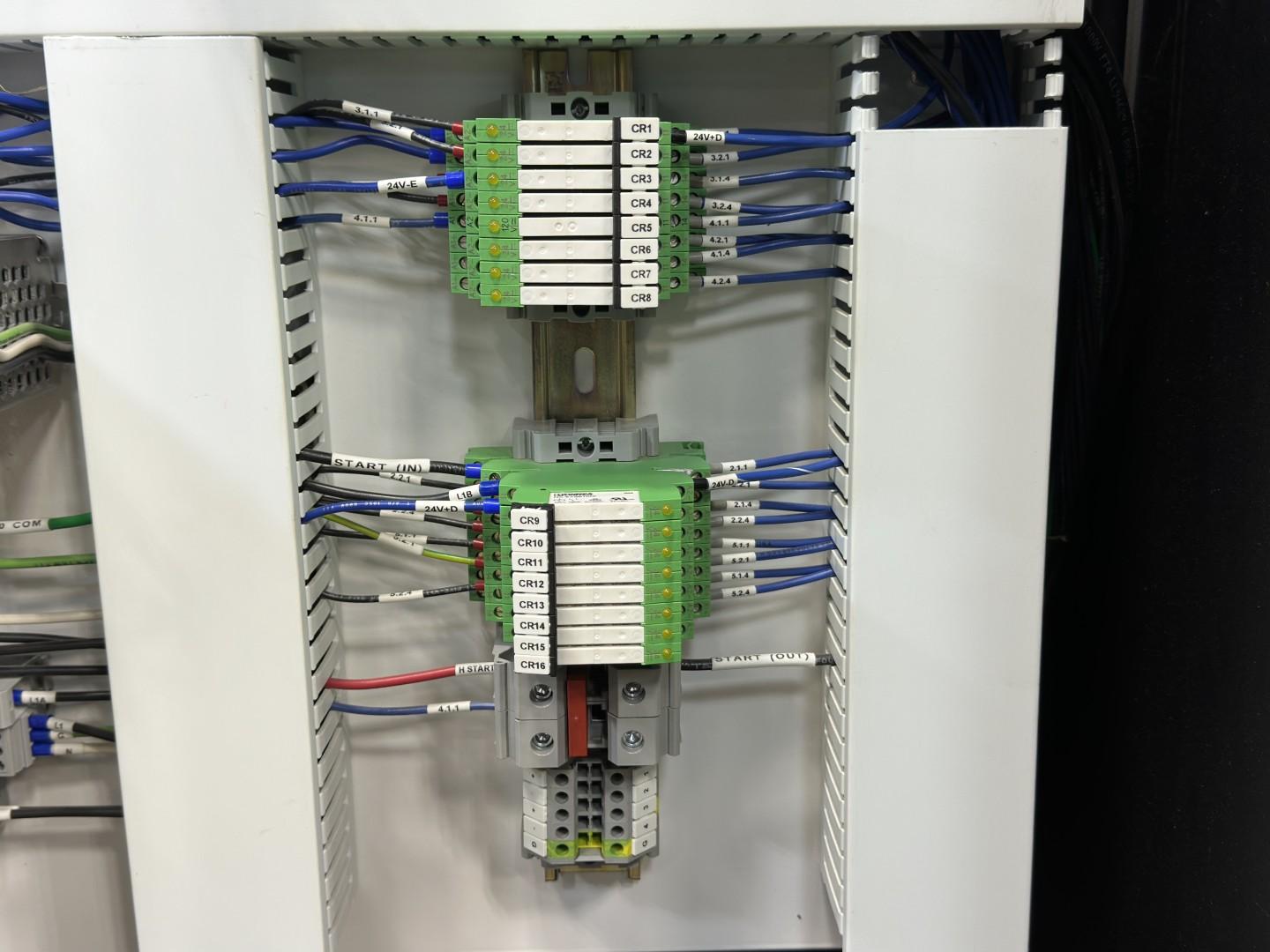

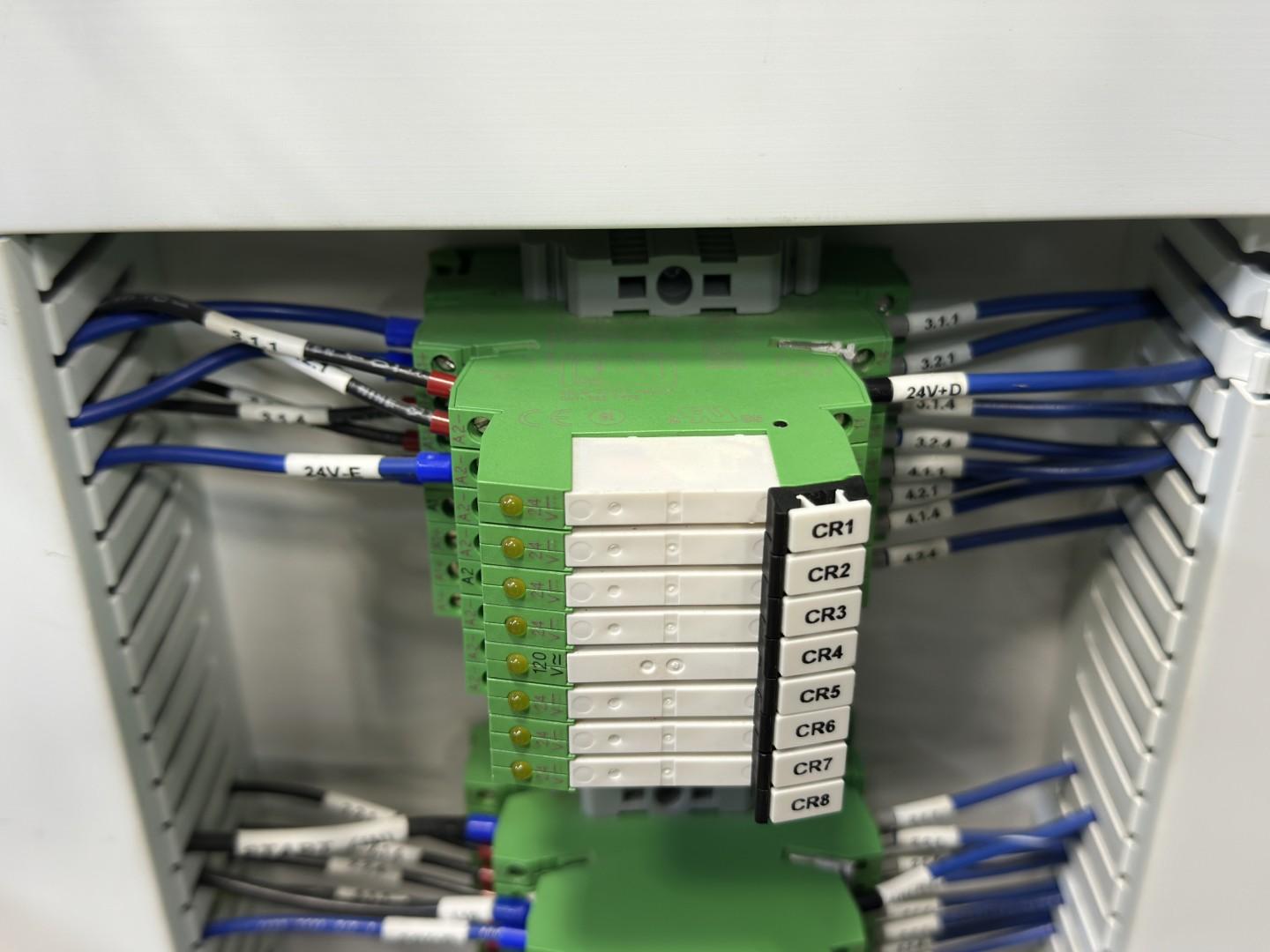

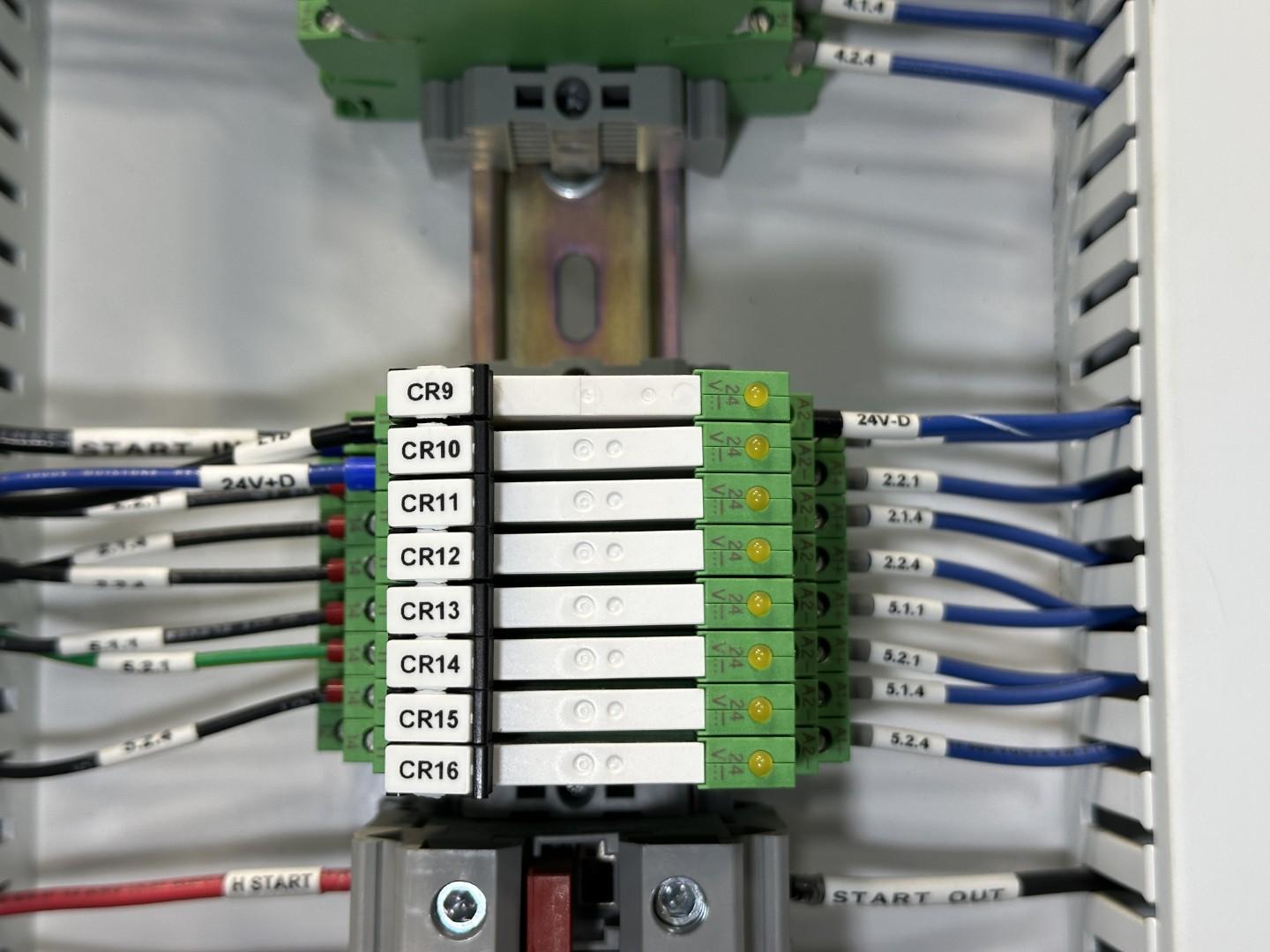

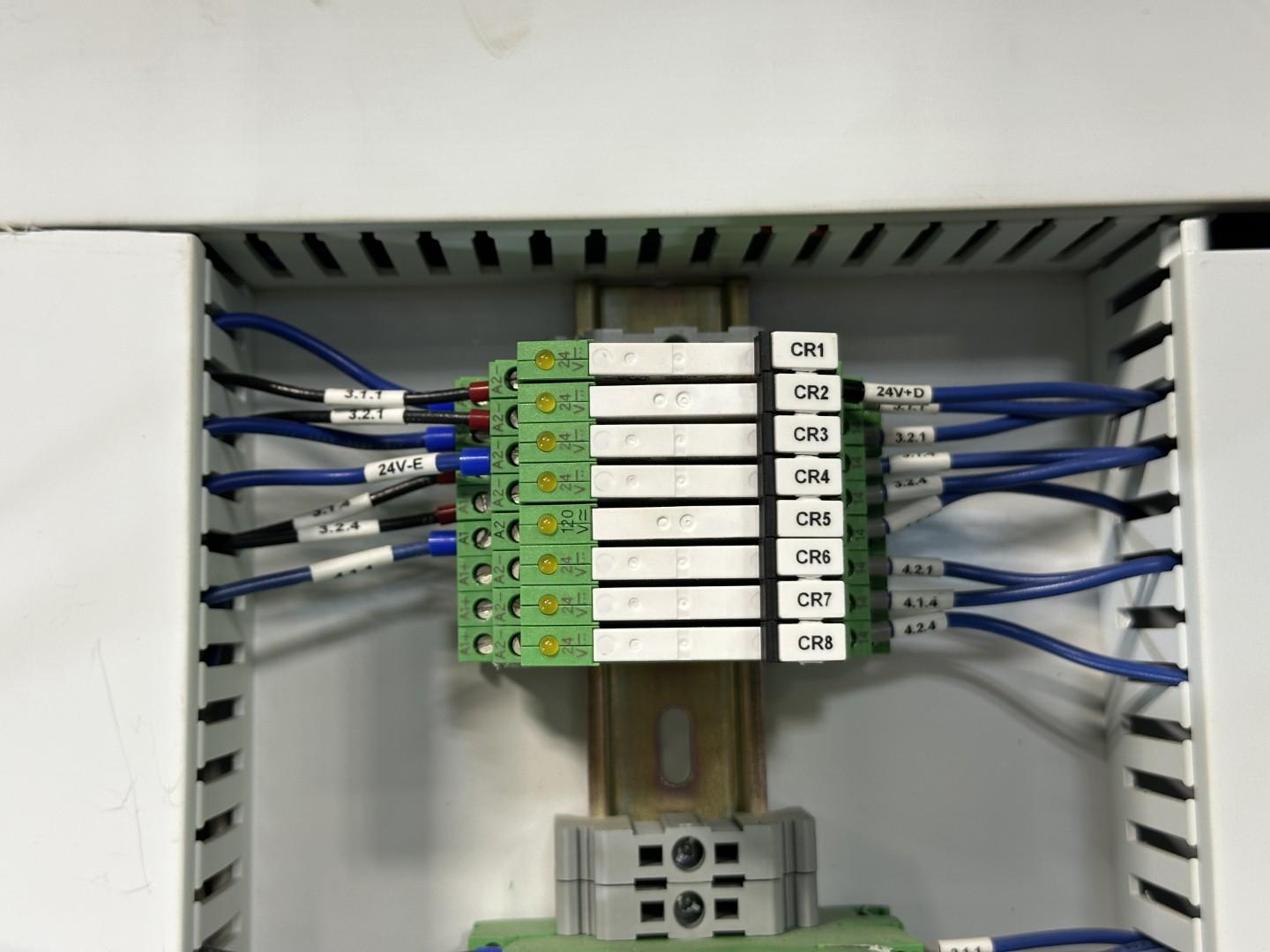

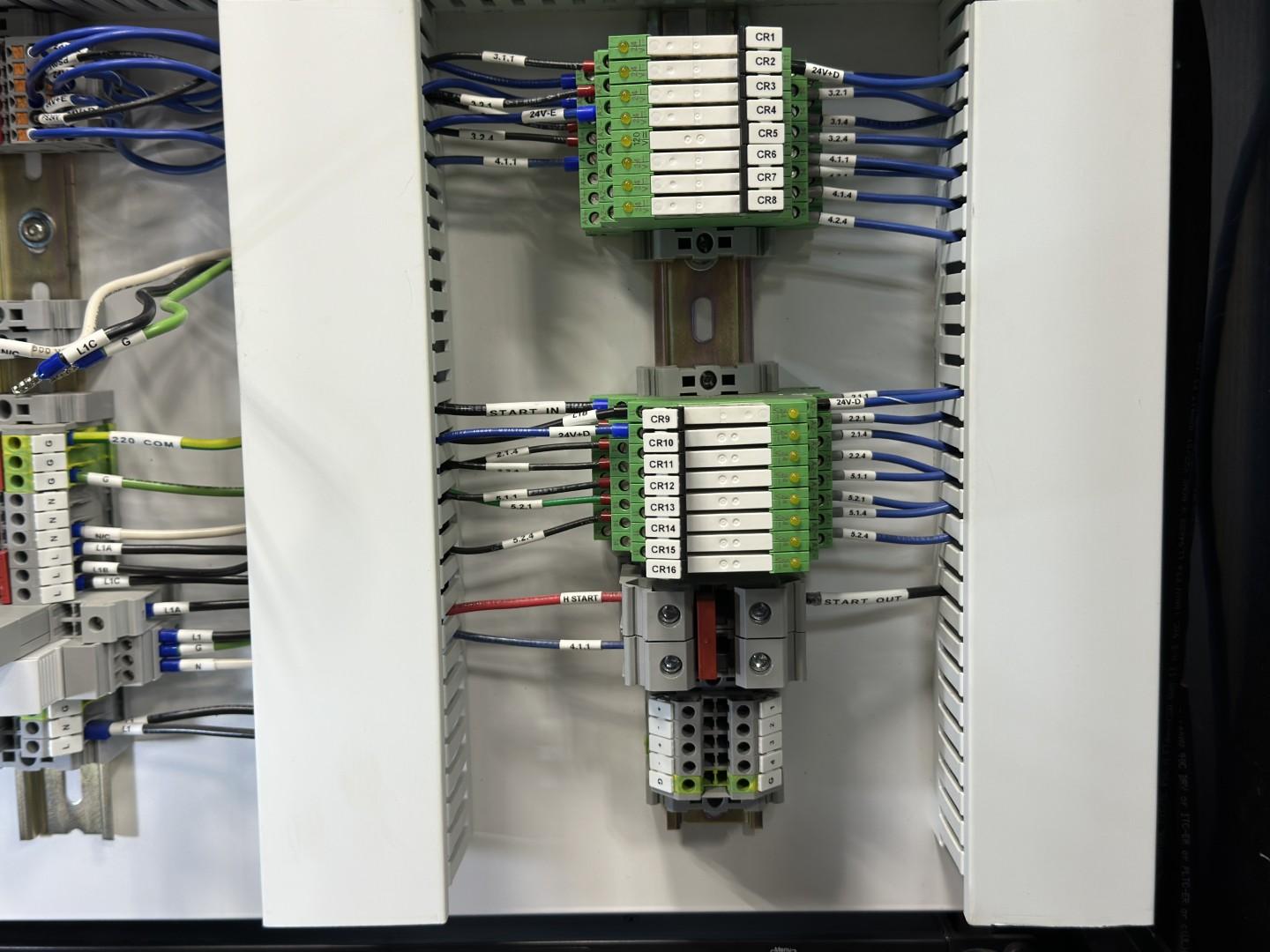

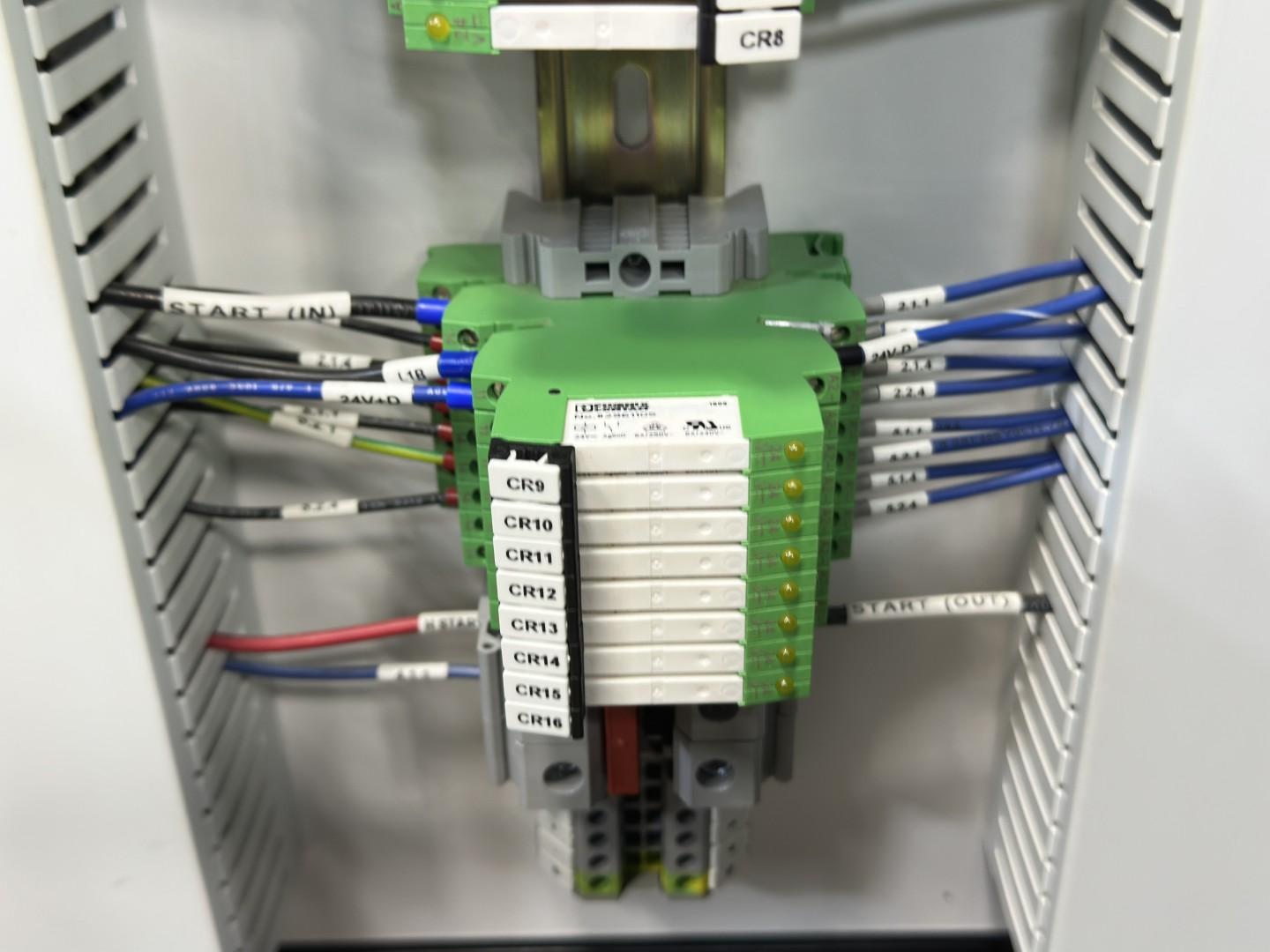

| 16 | Phoenix Contact 2961105 | PLC-RSC-24DC/21 relay module, 24VDC coil, 6A/250V AgSnO, CR1–CR16 |

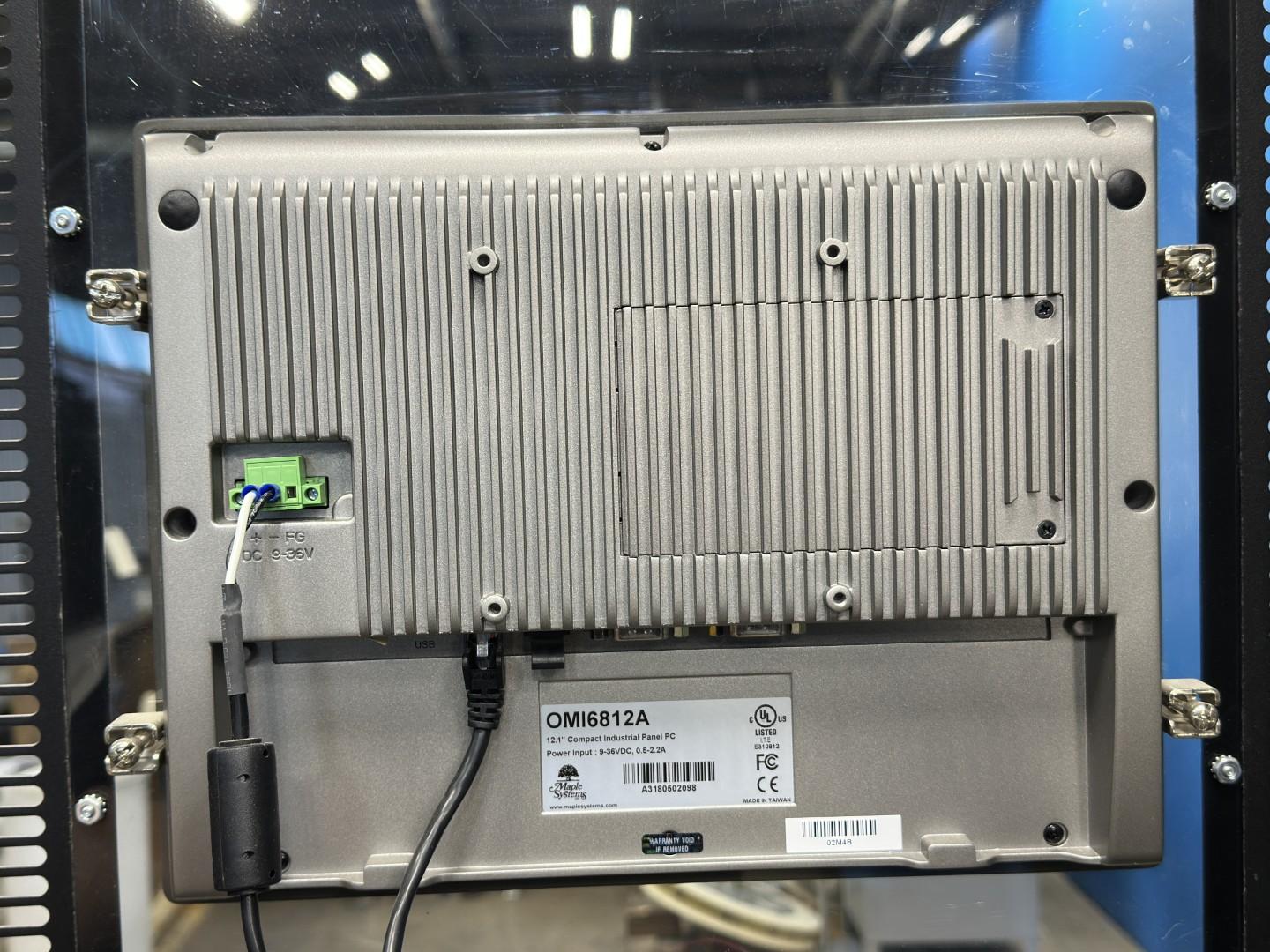

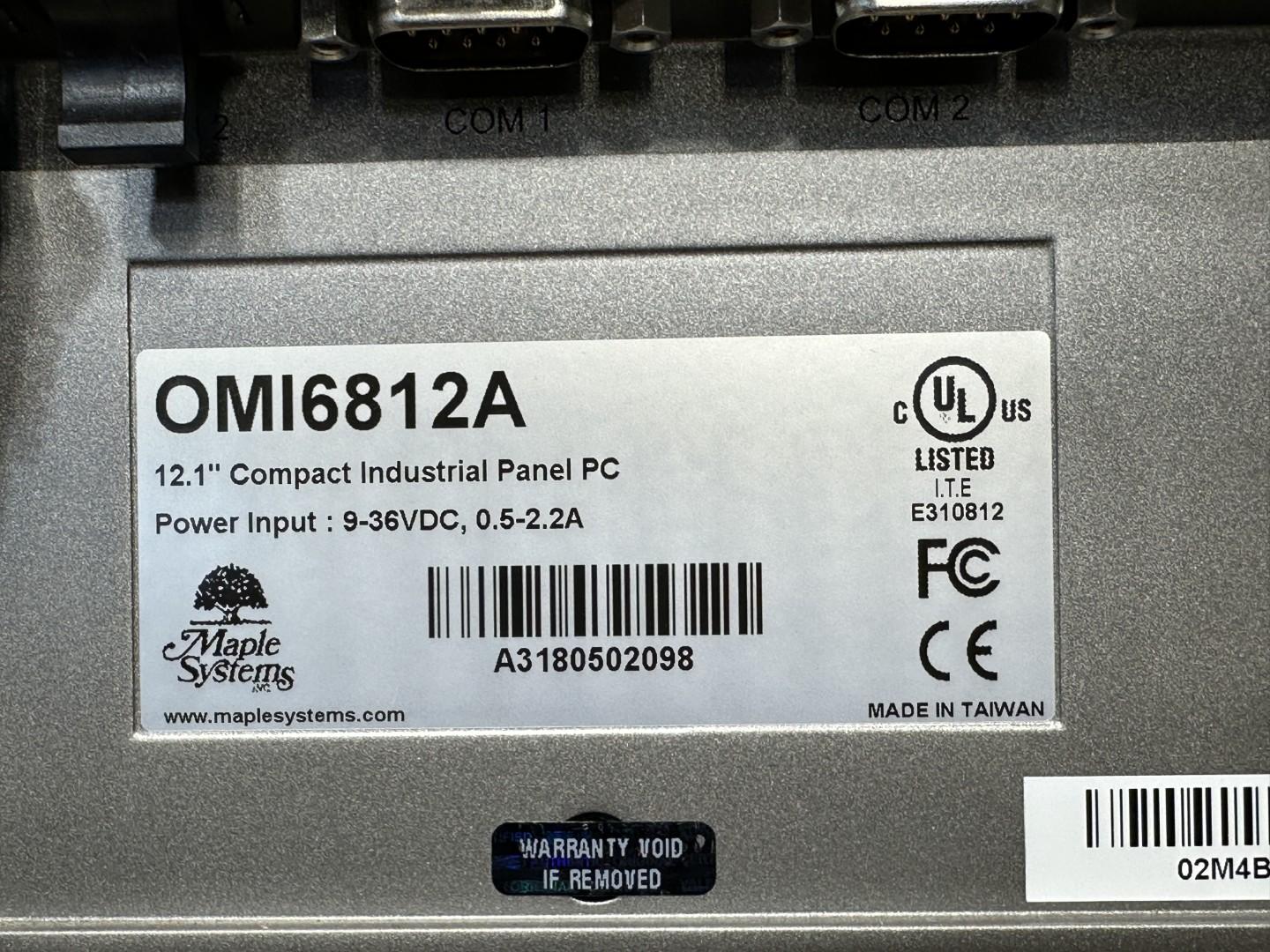

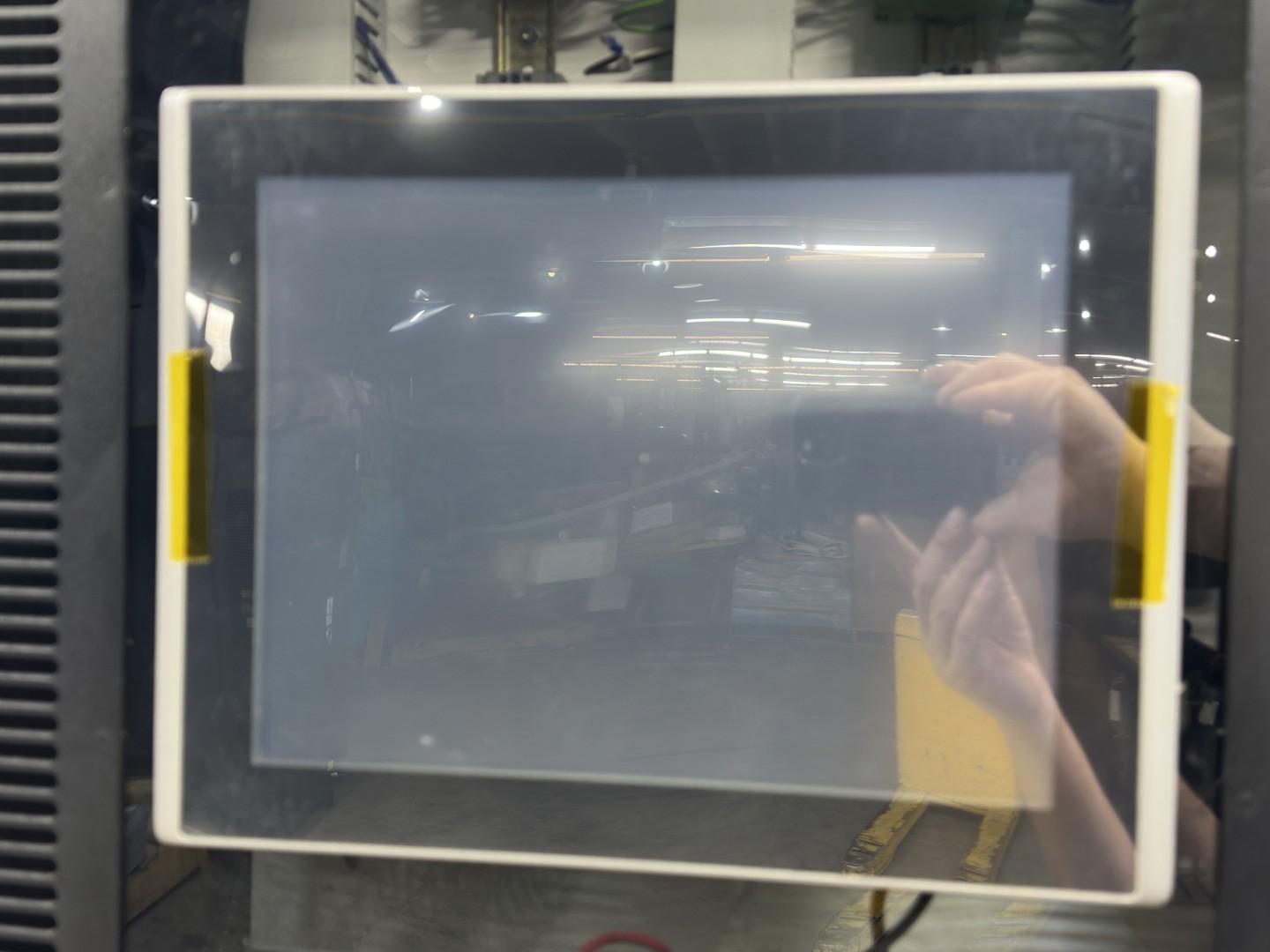

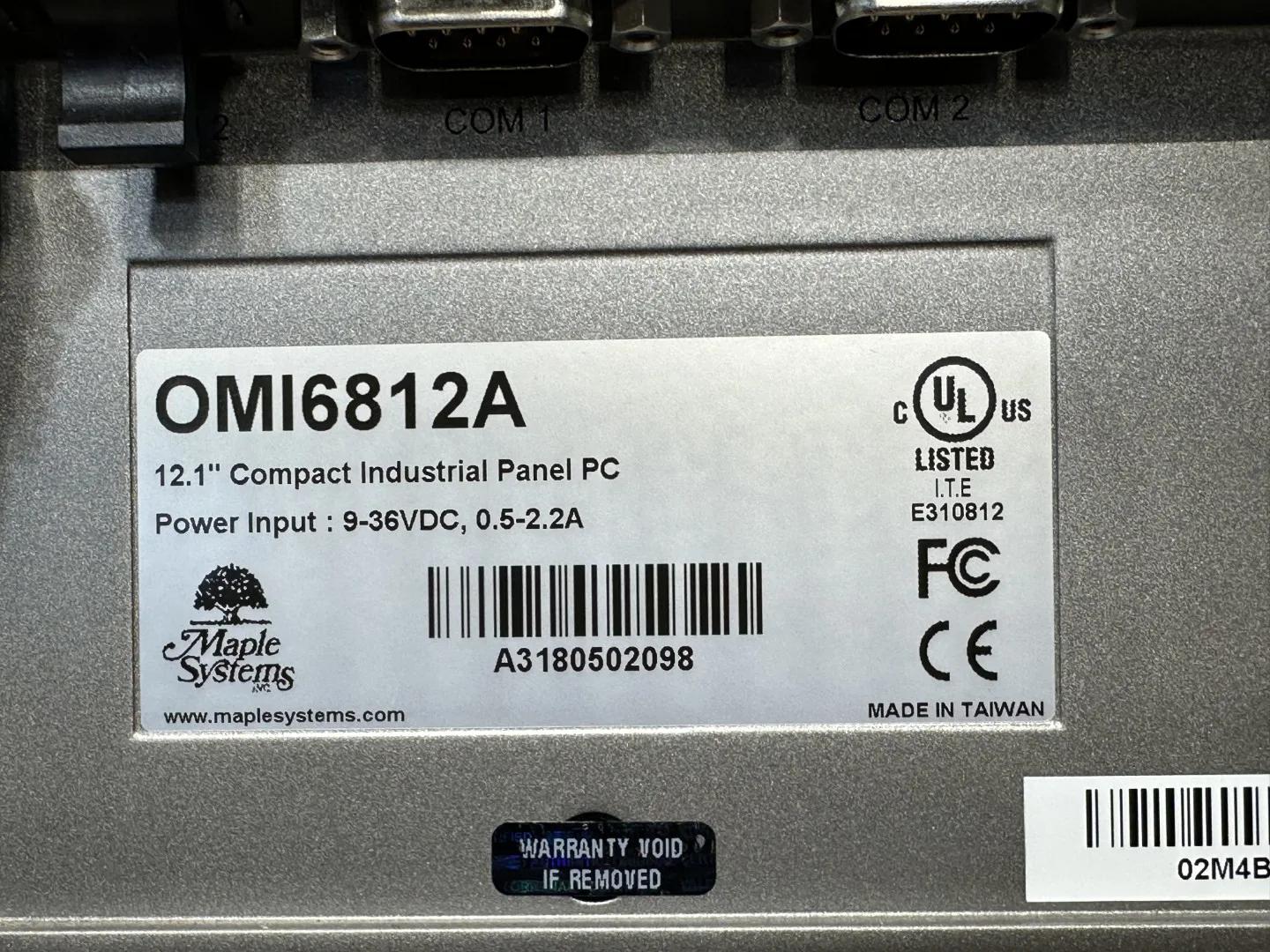

| 1 | Maple Systems OMI6812A | 12.1" industrial panel PC / HMI, 9–36VDC 0.5–2.2A, S/N A3180502098 |

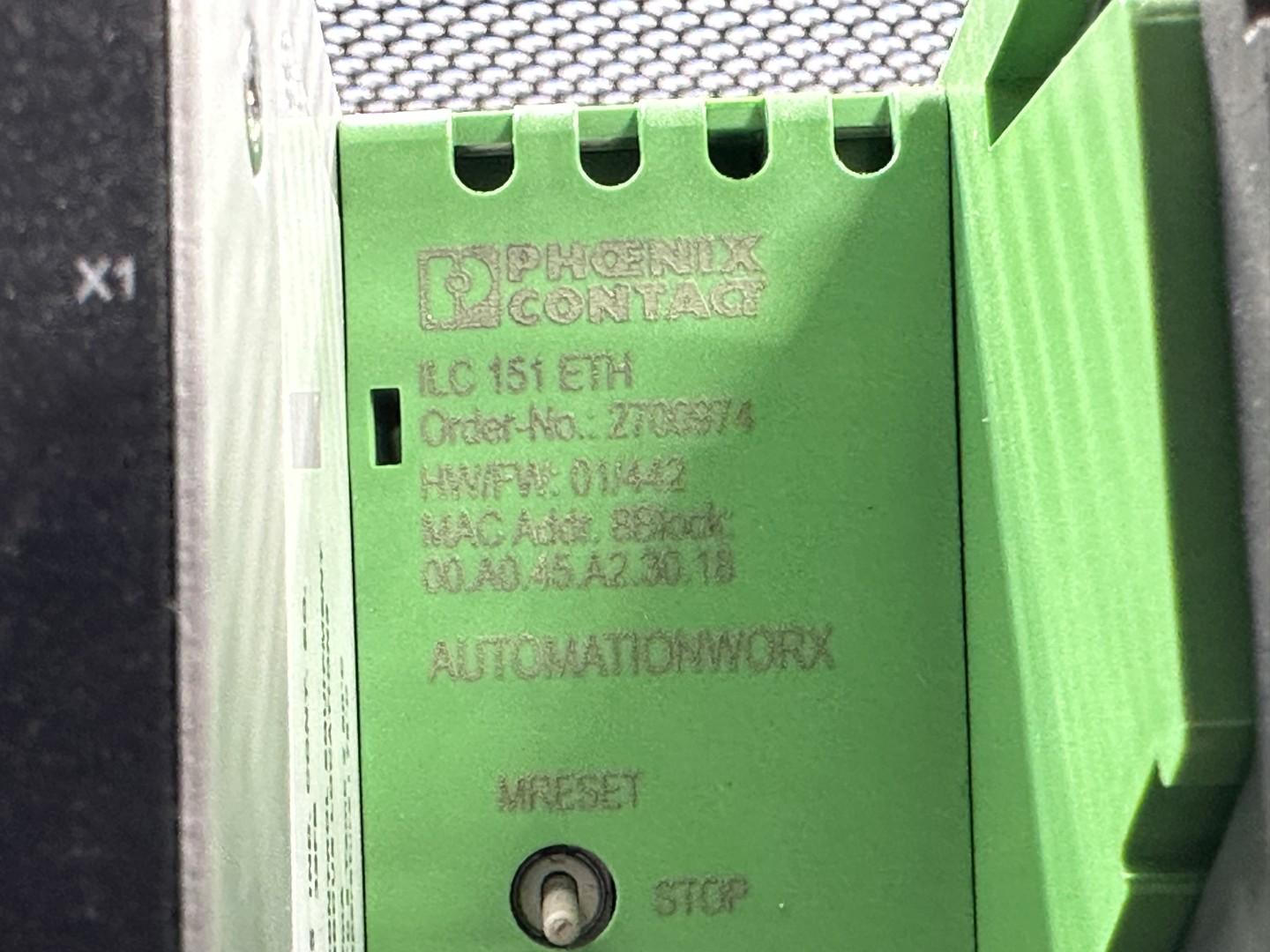

| 1 | Phoenix Contact ILC 151 ETH | Inline Controller PLC, Ord. 2700974, HW/FW 01/442 |

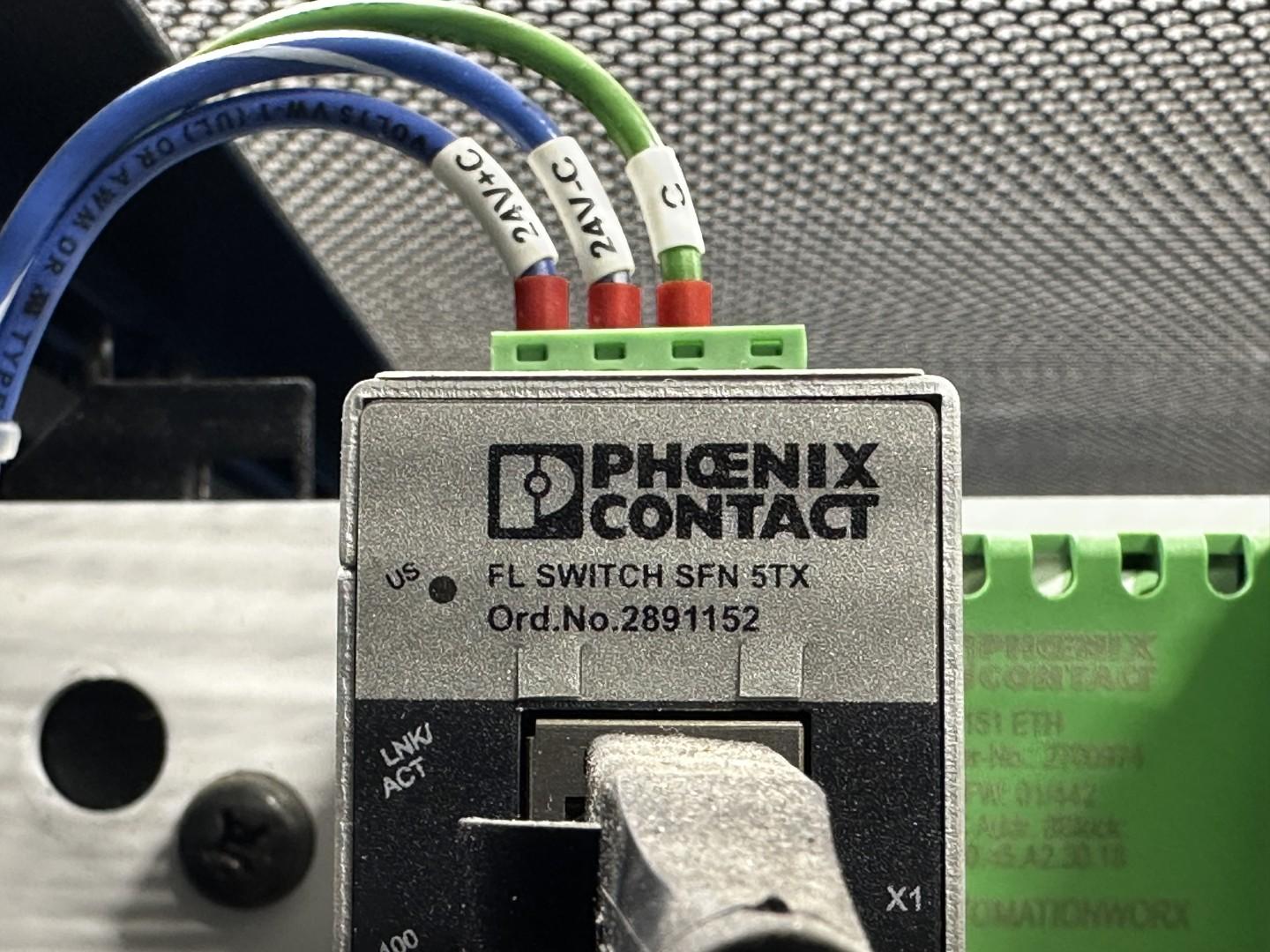

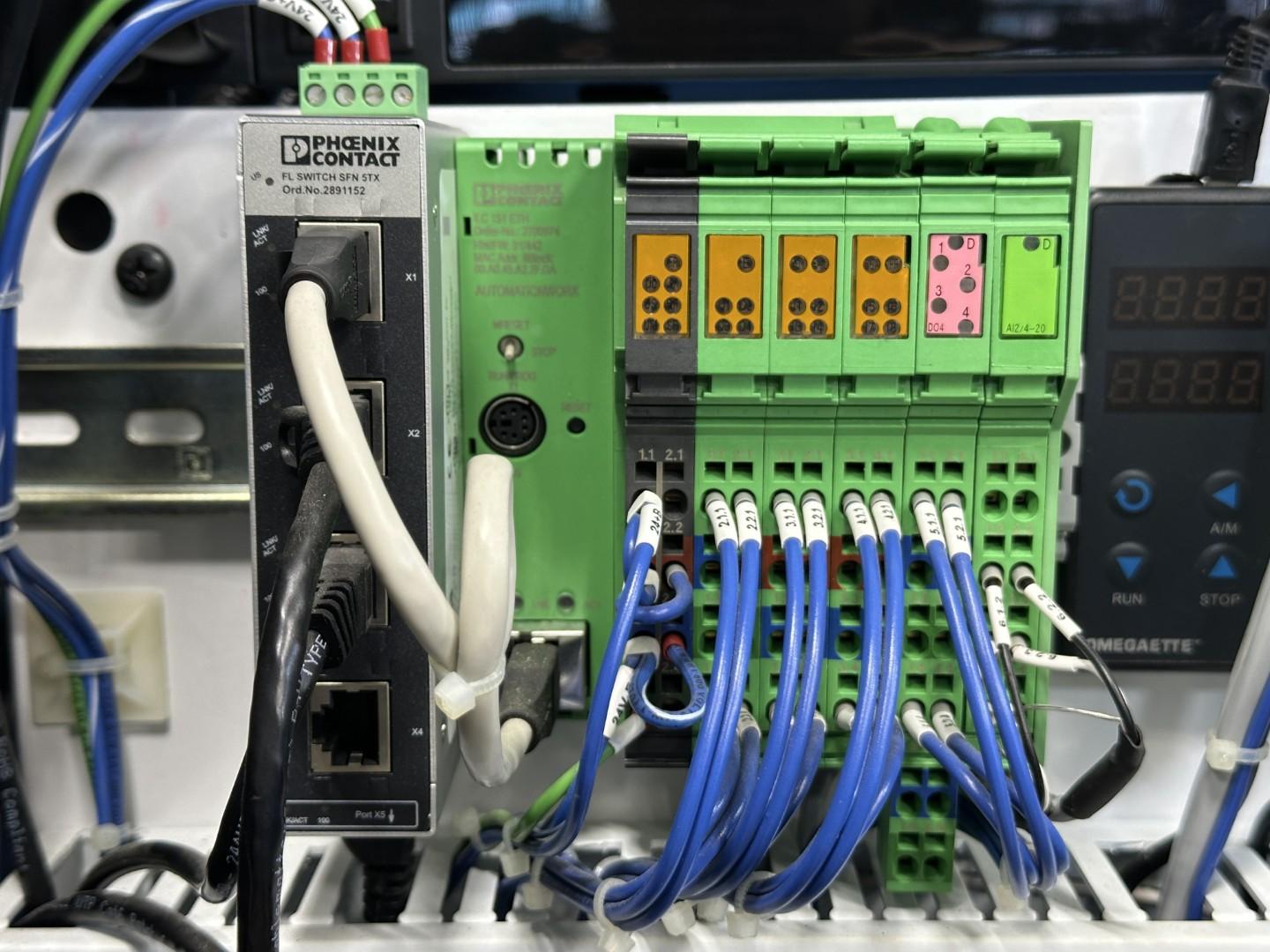

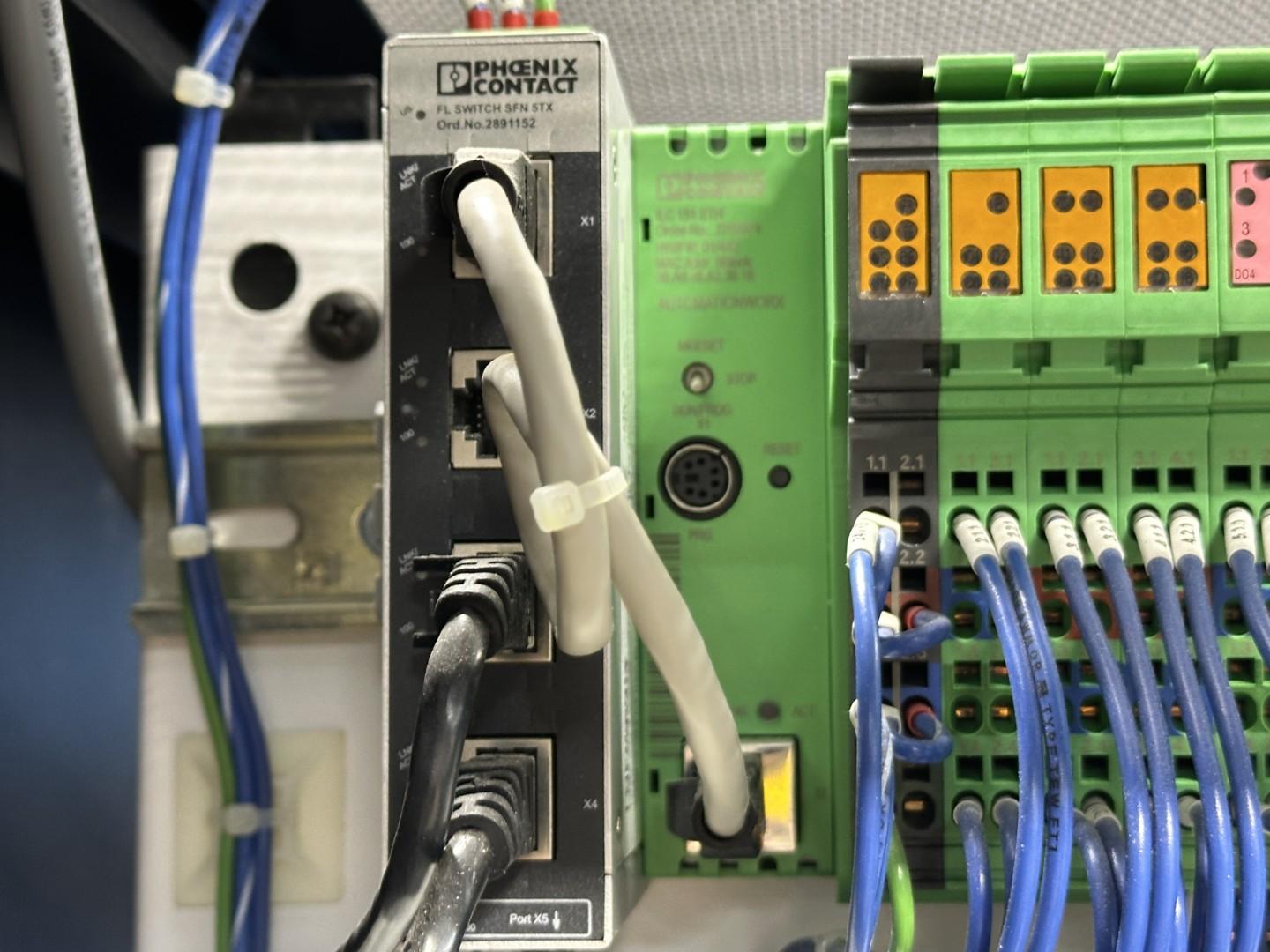

| 1 | Phoenix Contact FL SWITCH SFN 5TX | 5-port industrial Ethernet switch, Ord. 2891152 |

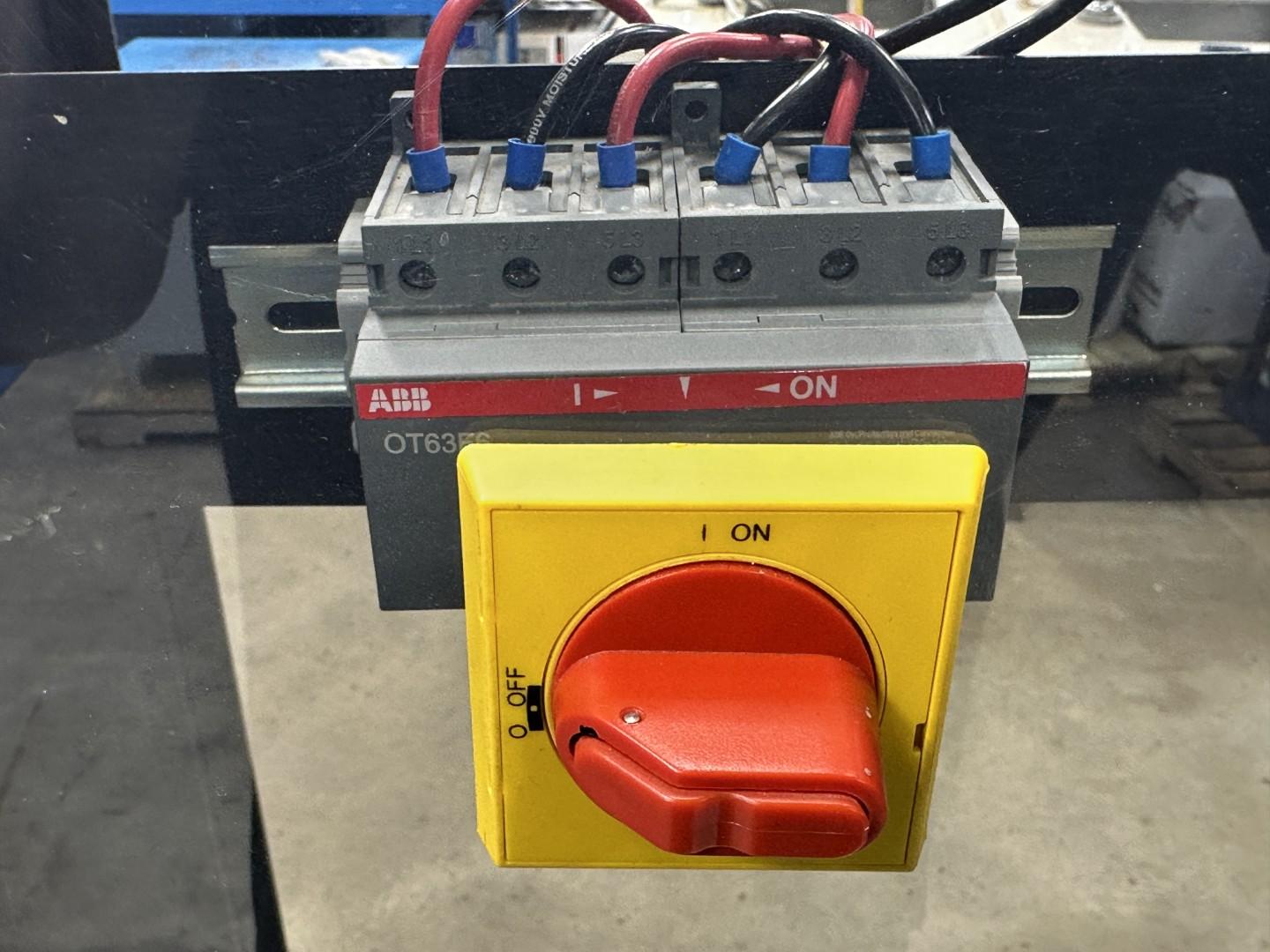

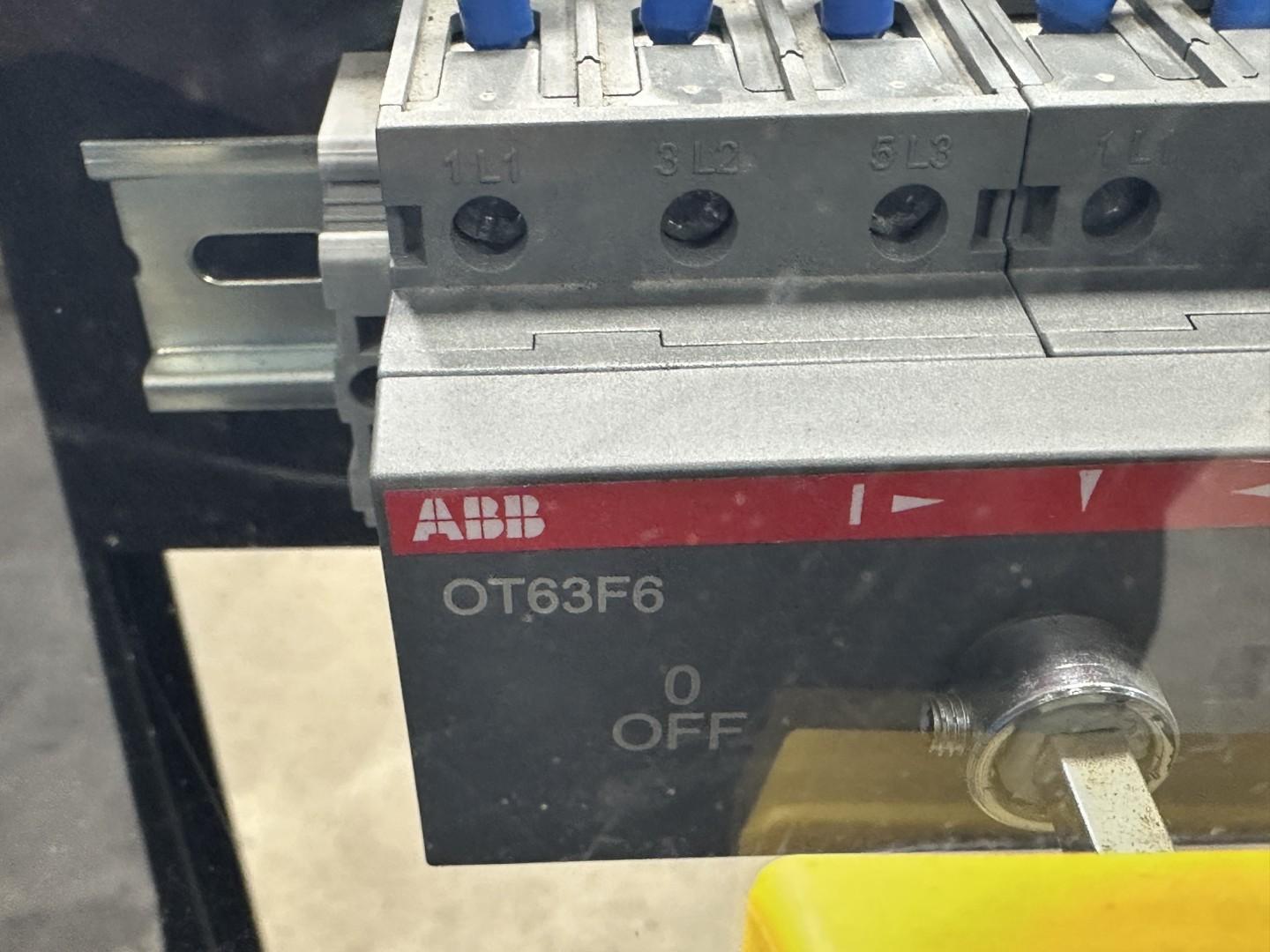

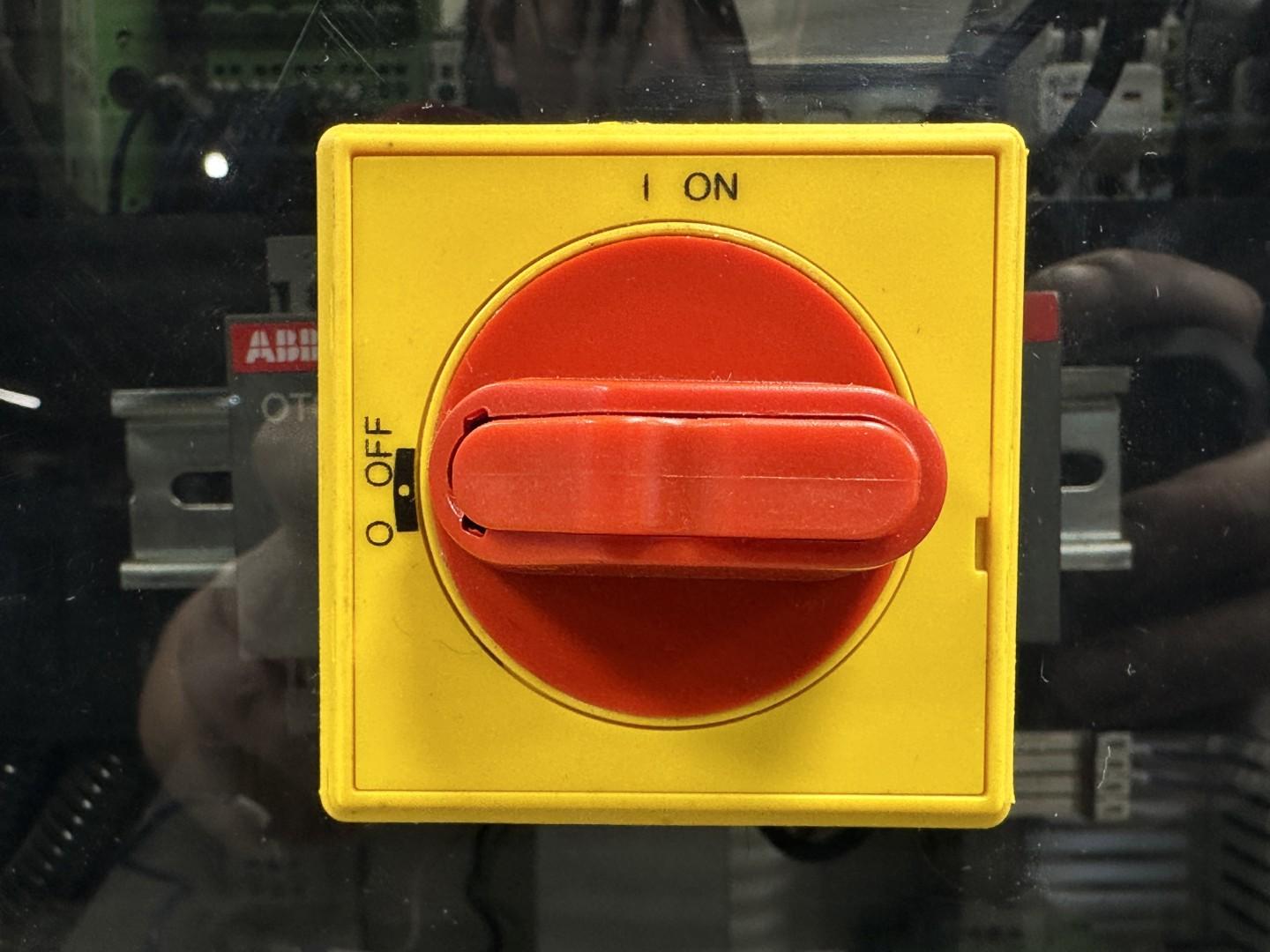

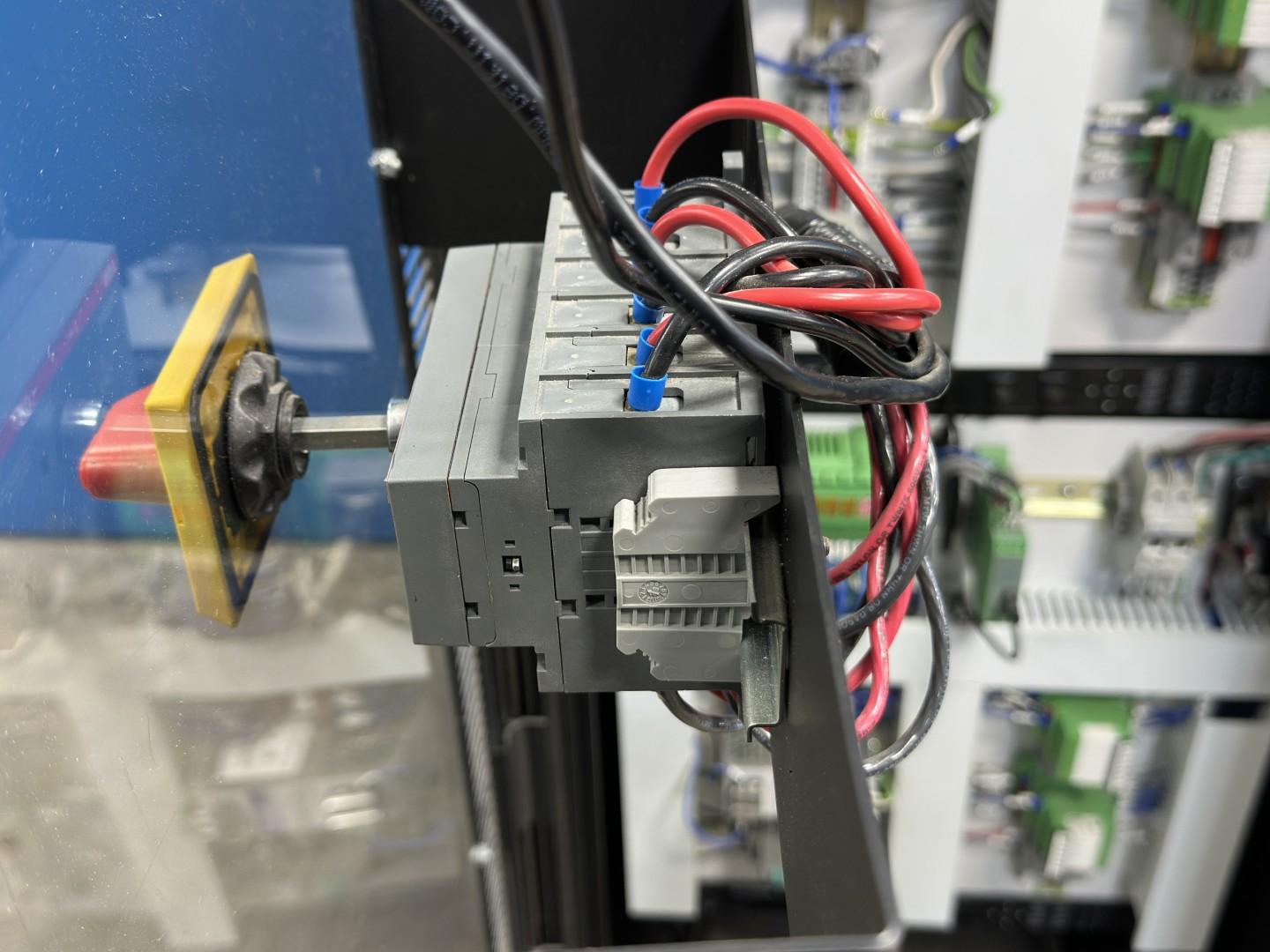

| 1 | ABB OT63F6 | 63A non-fused load-break disconnect |

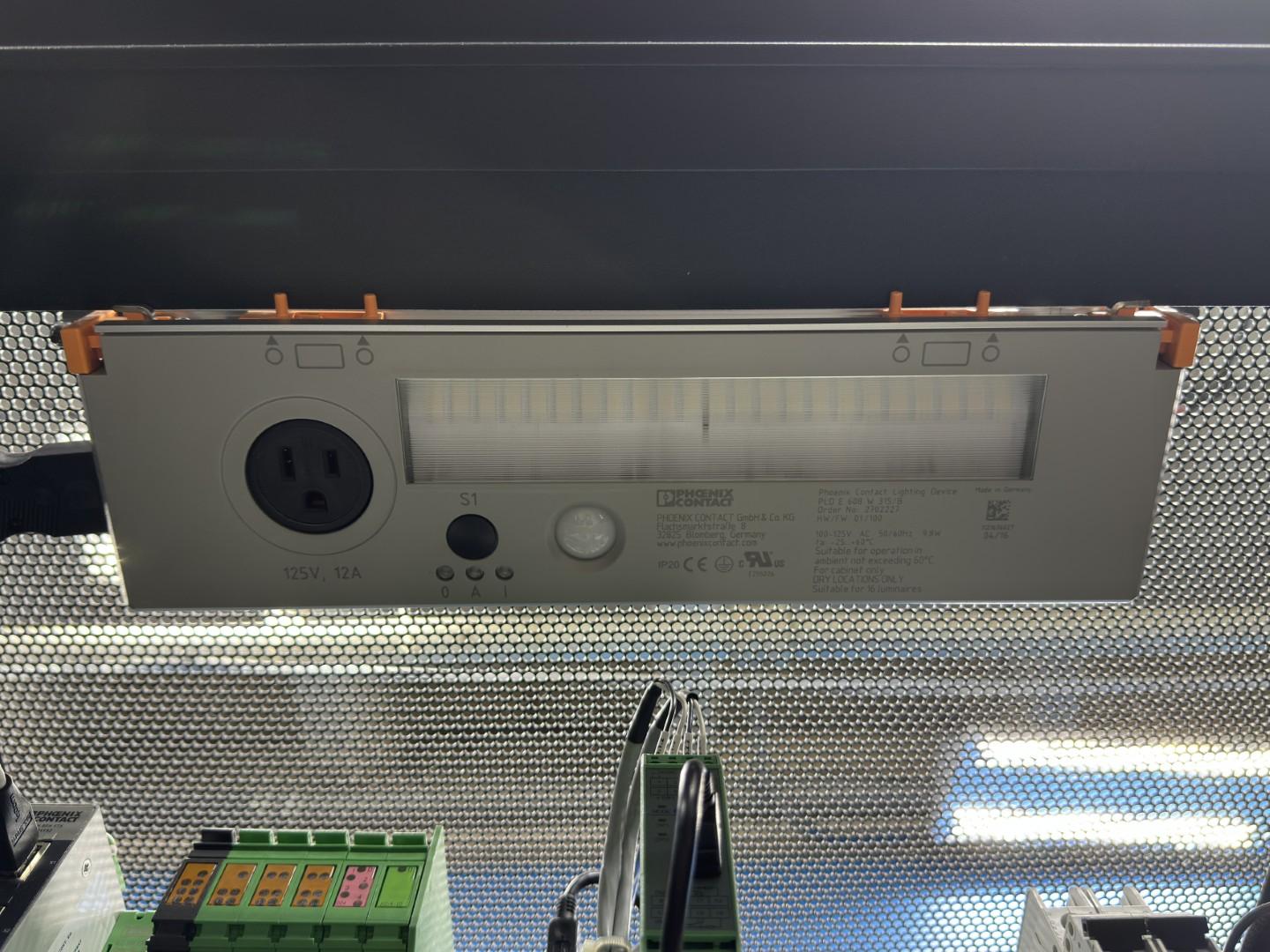

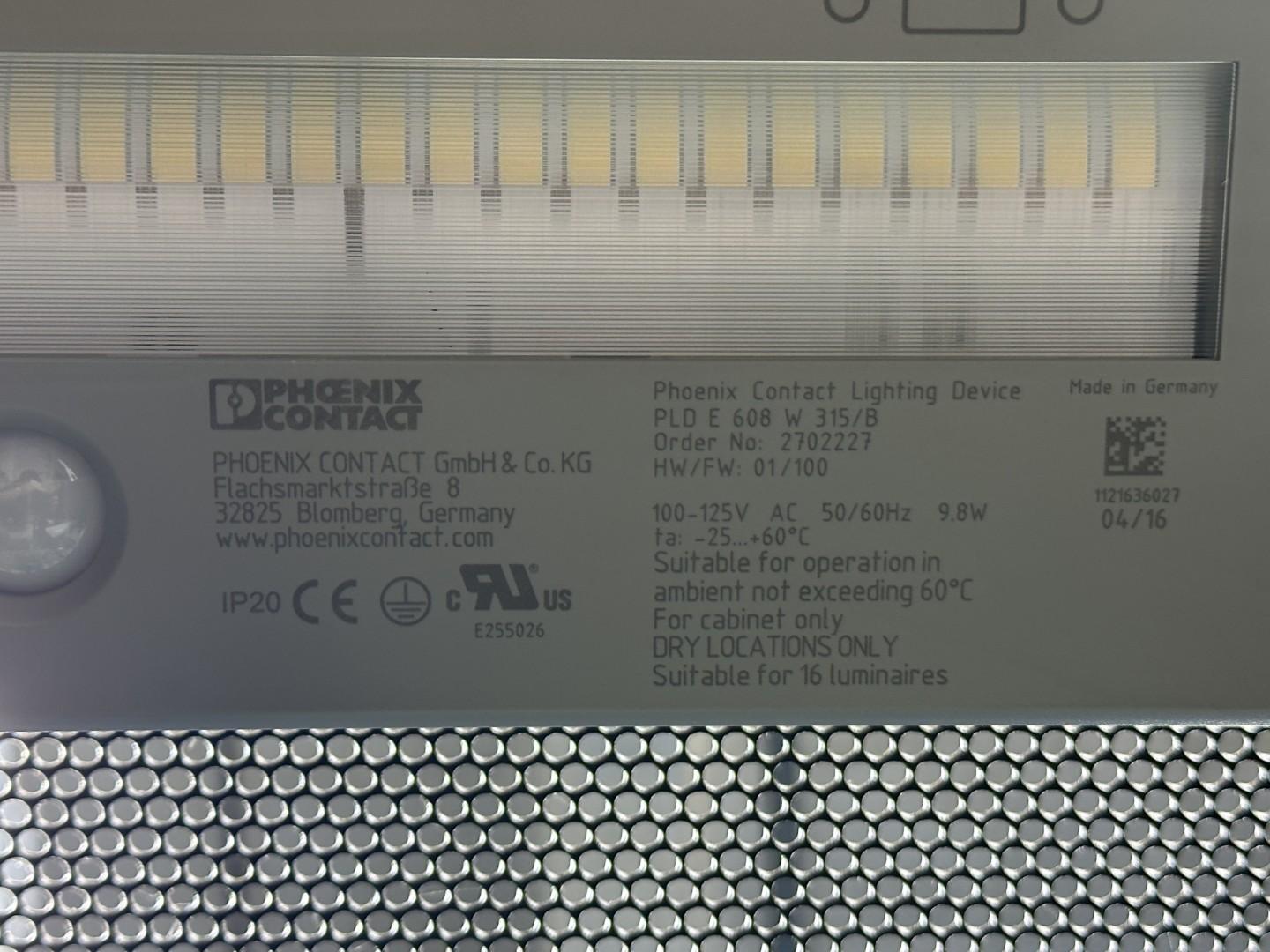

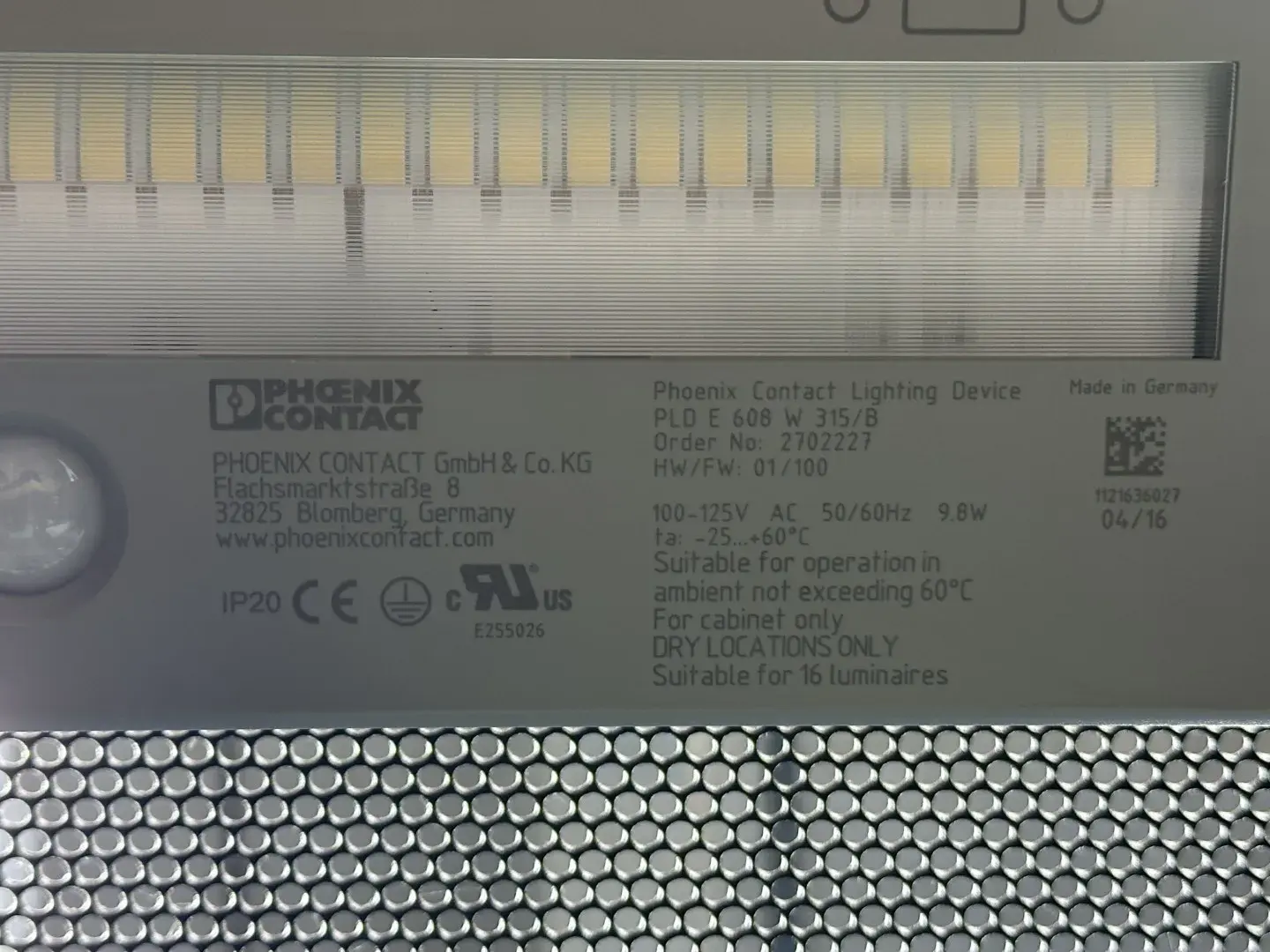

| 1 | Phoenix Contact PLD E 600 W 315/8 | Cabinet LED luminaire, Ord. 2102227, 100–125VAC 9.8W |

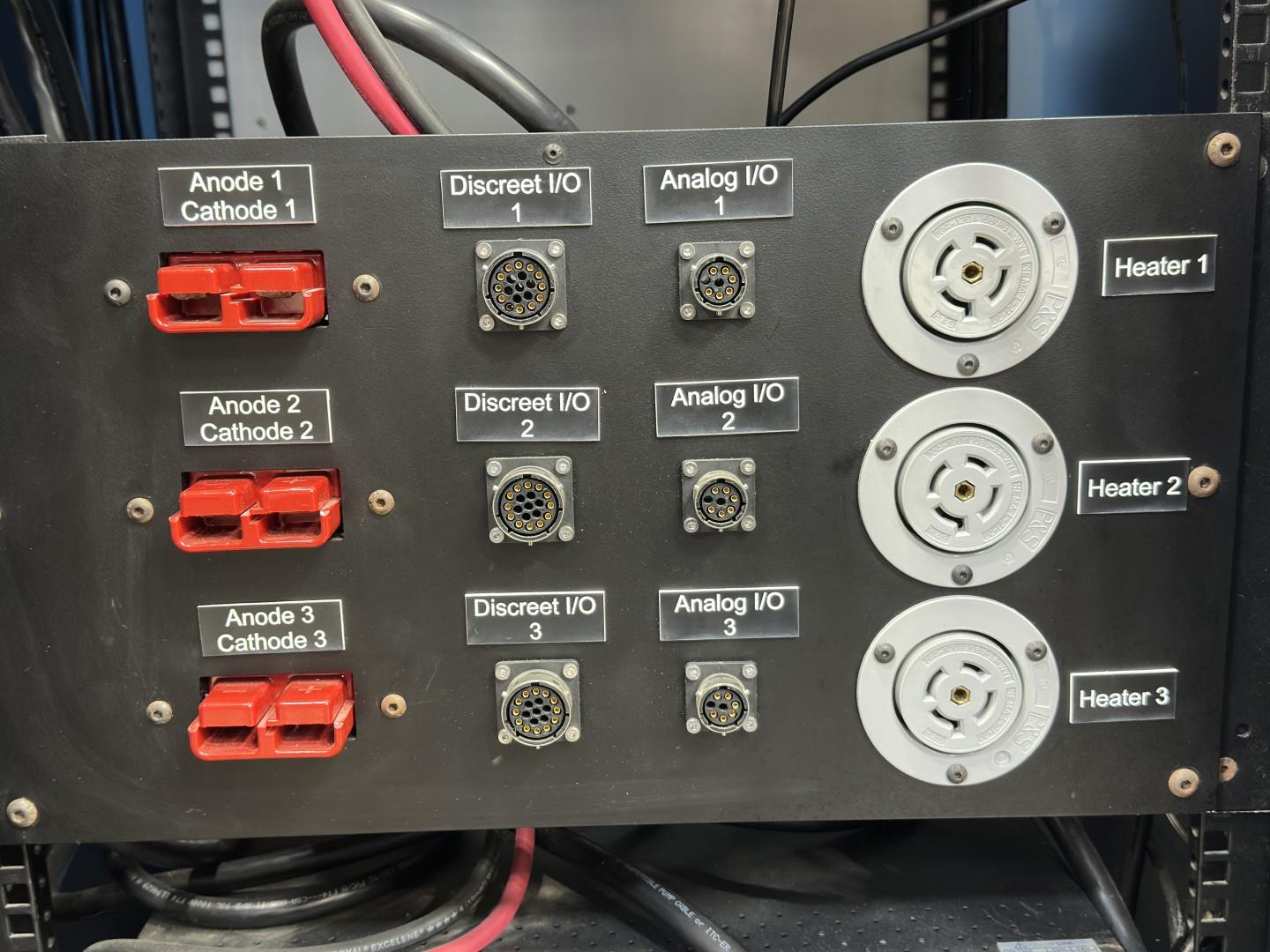

| 1 | Custom bulkhead I/O panel | Anode 1-3, Cathode 1-3, Heater 1-3, Analog I/O 1-3, Discrete I/O 1-3 |

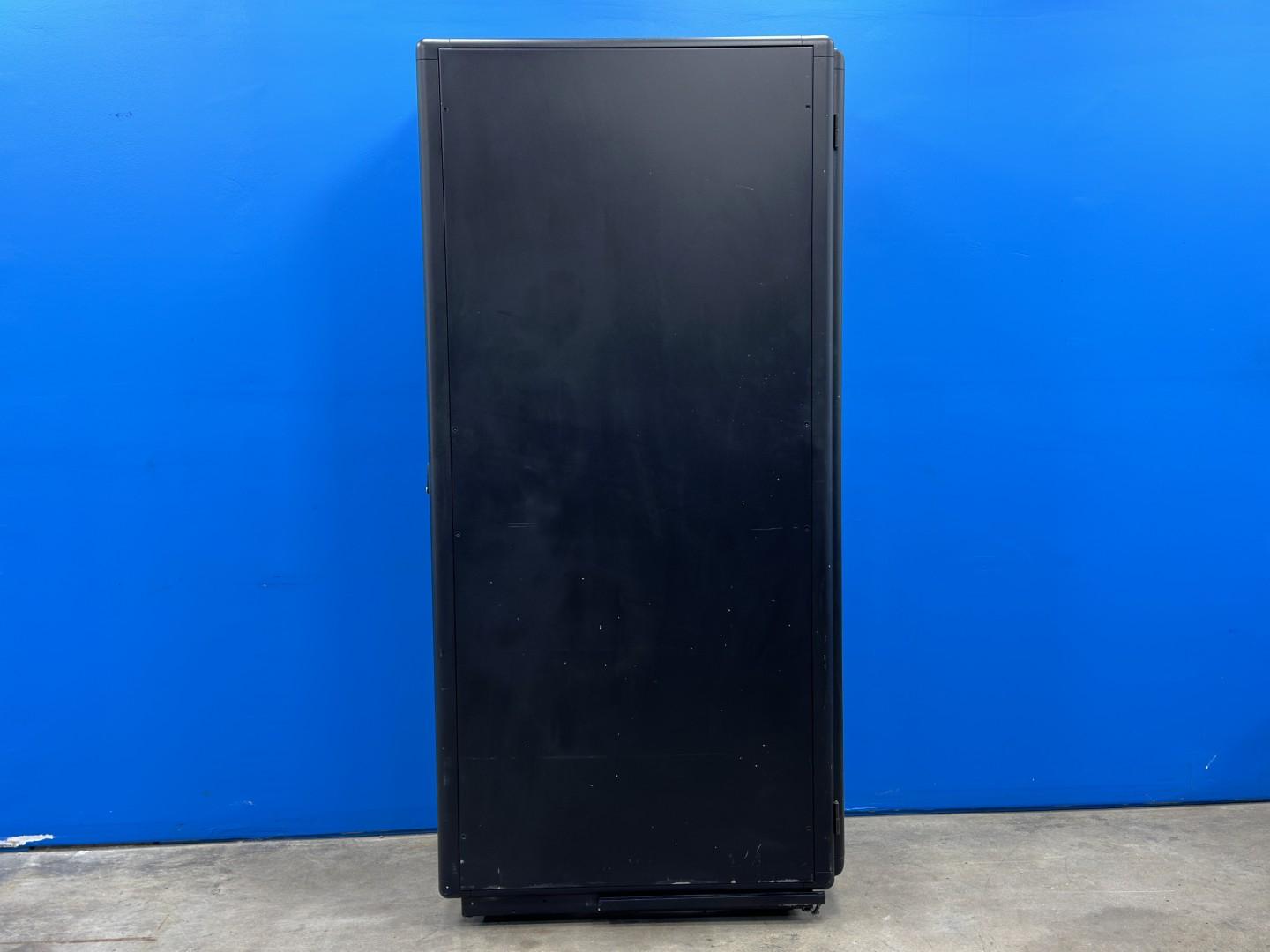

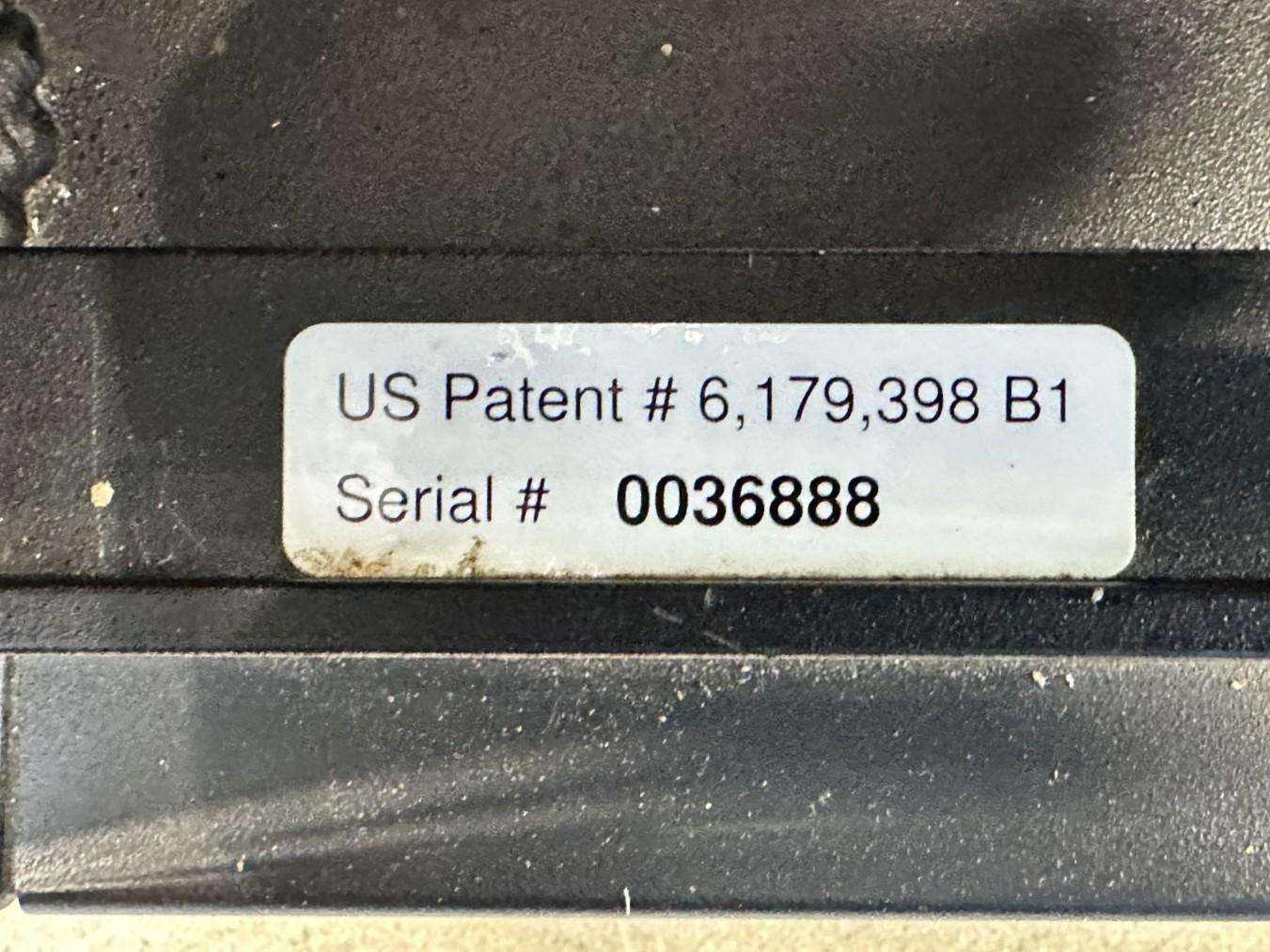

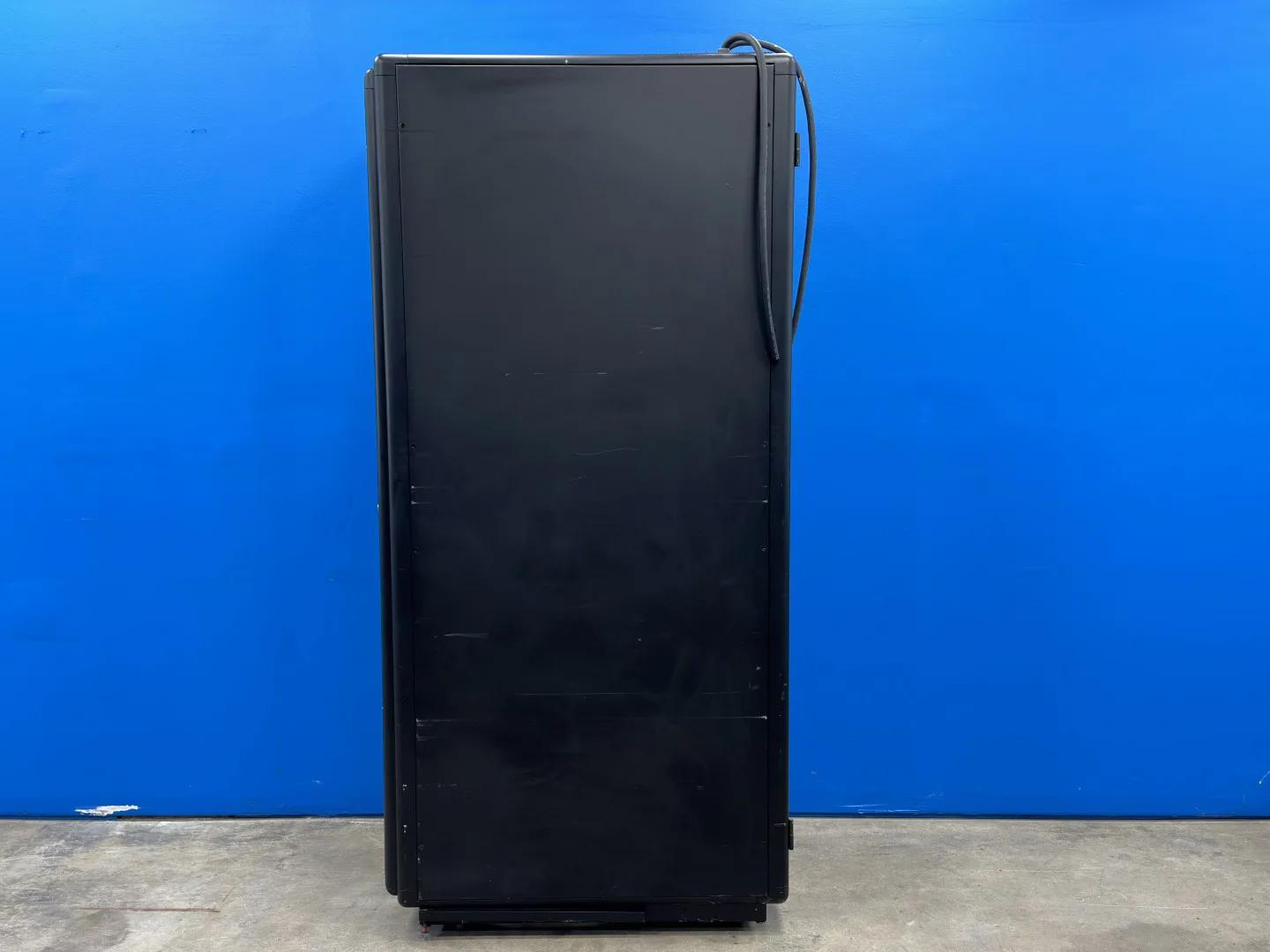

| 1 | Server rack enclosure | 41"W × 25"D × 85"H, 496 lb, perforated door, S/N 0036888 |
Specifications
Custom
N/A
0036888
N/A
1.2 kW per unit (1200 W multi-range)
0-60 A output per unit
41
25
85
N/A
200
696
KSC1379 / 004
Packaging fees
7. Medium Crate $200
Specialized Freight TransitYes
