Ross Engineering HAF71NC100ACUW Vacuum Relay Contactor 70KV 250A, Westinghouse WL-23318 Interrupter (RH7G4902E21B20)
HAF71NC100ACUW Relay Specifications: Coil Voltage, Contacts & Base
Socket & Interchange Compatibility for Ross Engineering Corp. HAF71NC100ACUW
| Description | Details |
|---|---|
| Available Quantity | 3 |
| Model | HAF71NC100ACUW |
| Condition | Used |
| Manufacturer | Ross Engineering Corp. |
| Asset Number | KSC631 / 126.4-11 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.2 Cardboard $15 |
$70.00
Basic Information
Asset #
KSC631 / 126.4-11
Available Quantity
3
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

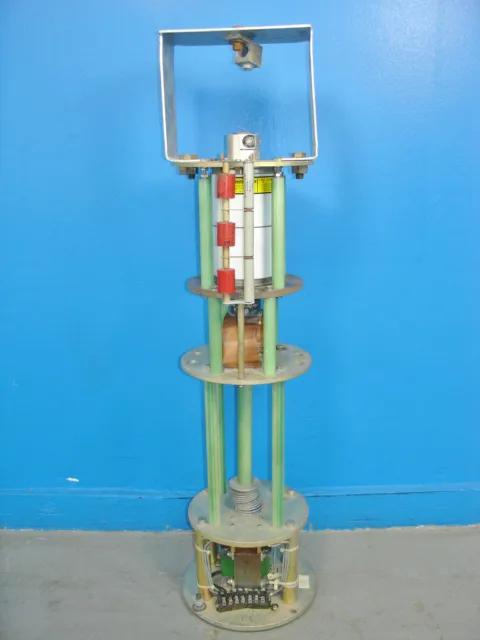

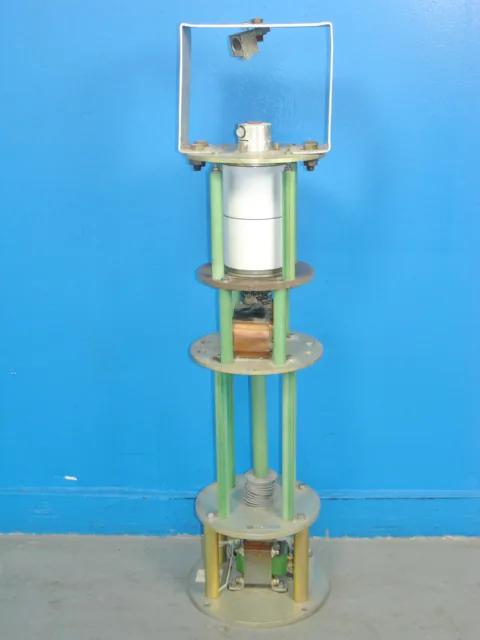

Ross Engineering Corp. HAF71NC100ACUW high-voltage vacuum relay contactor, rated 70 KV, built around a Westinghouse vacuum interrupter bottle (type WL-23318). Ross Engineering of Campbell, California builds high-voltage relays, contactors, and voltage dividers for power test and transmission work.
Vacuum relays and contactors in this class switch high-voltage circuits in power utility test labs, high-voltage test sets, X-ray and radar transmitters, capacitor banks, and induction heating equipment. The vacuum interrupter extinguishes the arc as the contacts part, which is what lets a device this size make and break at 70 KV without the contact erosion an air-break device would suffer.

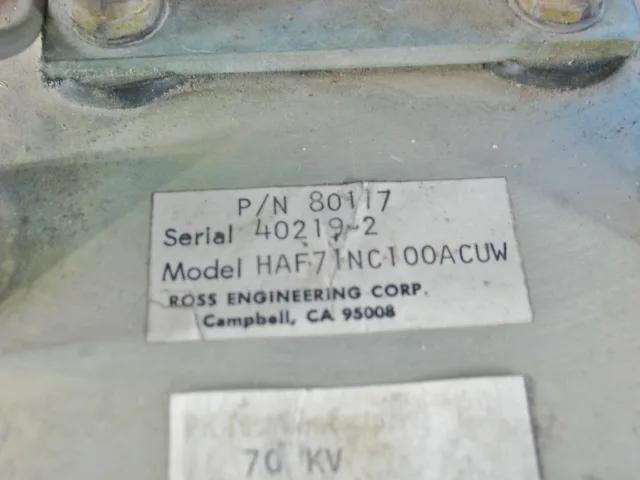

The record covers three units; the photographed unit carries nameplate HAF71NC100ACUW, serial 40219-2, P/N 80117. Legacy catalog reference RH7G4902E21B20 is retained in the title for cross-reference.
Used, sold as-is. Sold as-is, surplus from King Surplus inventory in Del Rio, Texas. Same-day shipping on orders before 3:00 PM CT.
Factory Information
- Manufacturer: Ross Engineering Corp. (Campbell, CA 95008)
- Model: HAF71NC100ACUW
- Serial: 40219-2
- Part Number: 80117
- Legacy / catalog reference: RH7G4902E21B20
- Type: High-voltage vacuum relay contactor
- Voltage Rating: 70 KV
- Current Rating: 250 A
- Rating Plate (secondary): 100/113 KV

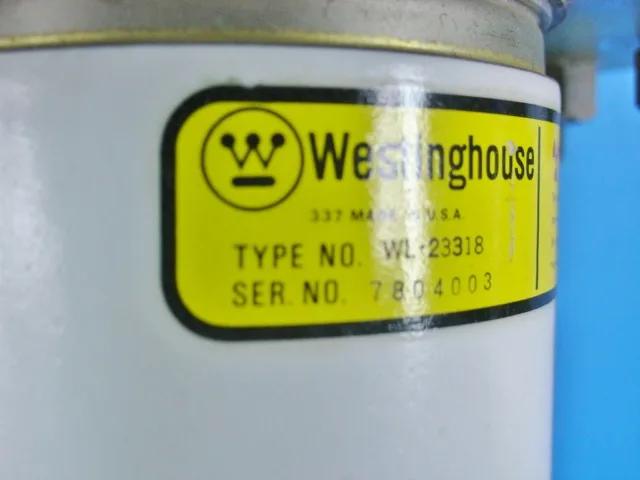

- Interrupter: Westinghouse vacuum bottle, TYPE NO. WL-23318, SER. NO. 7804003
- Dimensions: 10 x 10 x 37.5 in
- Weight: 32 lb
Specifications
Ross Engineering Corp.
HAF71NC100ACUW
40219-2
N/A
100/113 KV
250 Amp
10
10
37.5
N/A
3
35
KSC631 / 126.4-11
