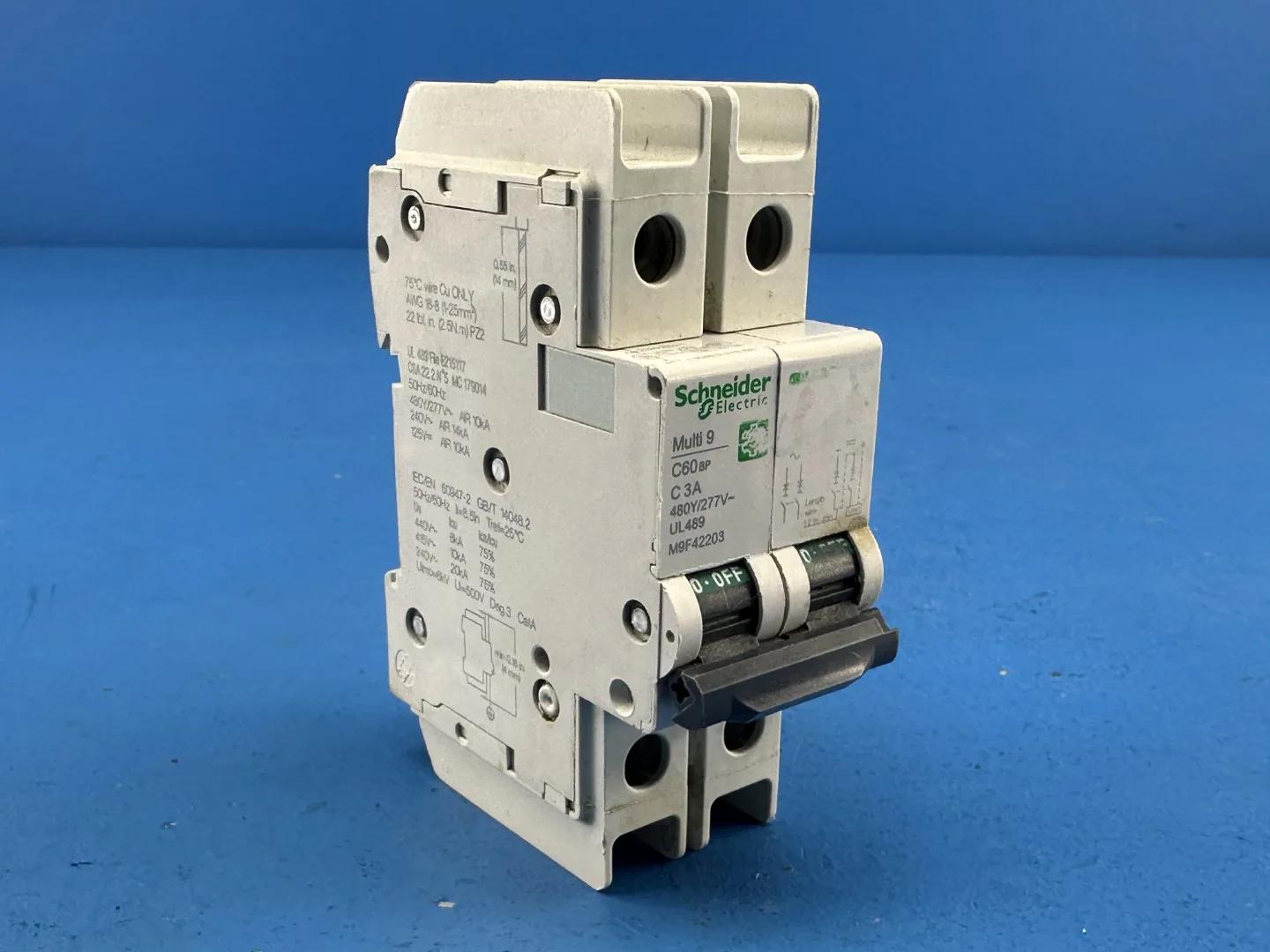

Schneider Electric M9F42203 Multi9 C60BP Miniature Circuit Breaker 2-Pole, 3A, 277VAC
M9F42203 Breaker Specifications: Amps, Poles & Voltage
Panel Compatibility & Interchange for Schneider Electric M9F42203
1 / 8
+8
+8
1 / 8
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | M9F42203 |
| Condition | Used |
| Manufacturer | Schneider Electric |
| Asset Number | KSC1230 / 1166 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
$29.95
Basic Information
Asset #
KSC1230 / 1166
Available Quantity
1
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Schneider Electric (Square D)
- Model: M9F42203
- Series: Multi 9 C60BP
- Type: Miniature circuit breaker (MCB), thermal-magnetic
- Poles: 2 (2 protected poles)
- Rated Current: 3 A
- Trip Curve: C
- Operational Voltage: 240 VAC; UL 489 rated 480Y/277 V
- Breaking Capacity: 10 kA (UL 489), 10 kA at 415 VAC (IEC/EN 60947-2)
- Mounting: DIN rail
- Electrical Endurance: Up to 10,000 cycles
- Mechanical Endurance: Up to 20,000 cycles
- Standards: UL 489, CSA C22.2 No. 5, IEC/EN 60947-2, IEC/EN 60898-1
- Spec Basis: Schneider Electric published product data for M9F42203 (catalogued as 2-pole)
Specifications
Manufacturer
Schneider Electric
Model
M9F42203
Serial

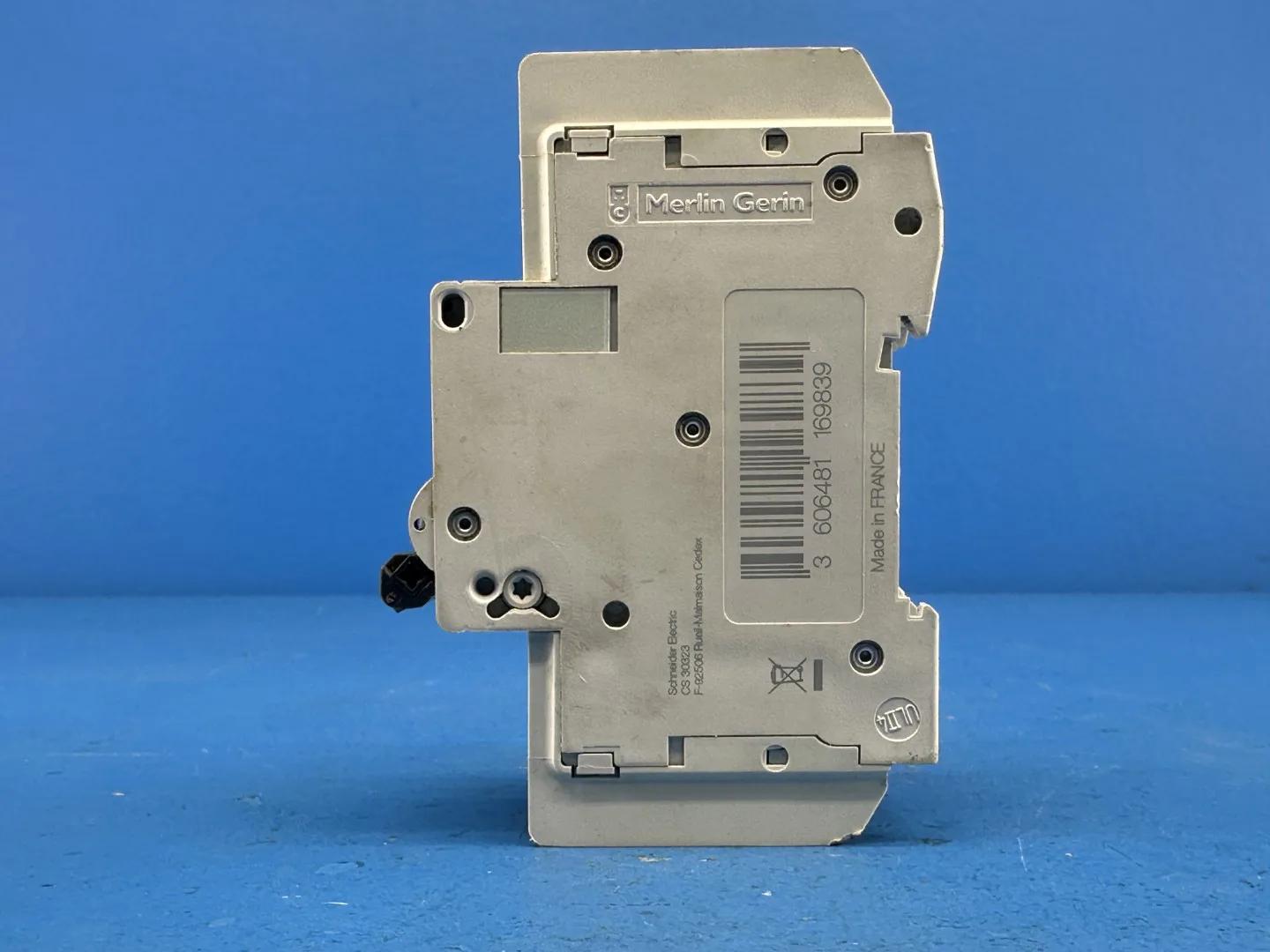

3 606481 169839
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
3
Length (Inches)
5
Width (Inches)
3
Height (Inches)
2
Phase
1
Estimated Packaging Weight
2
Estimated Total Weight
3
Asset Number
KSC1230 / 1166
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
