Schneider Electric XXZPB100 Telemecanique, (070421) Push Button Teach Accessory
XXZPB100 Switch Specifications: Rating, Contacts & Mounting
Panel Fitment & Interchange for Schneider Electric XXZPB100
| Description | Details |
|---|---|
| Available Quantity | 7 |
| Model | XXZPB100 |
| Condition | New |
| Manufacturer | Schneider Electric |
| Asset Number | KSC1290 / 871 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$44.90
Basic Information
Asset #
KSC1290 / 871
Available Quantity
7
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
Factory Information

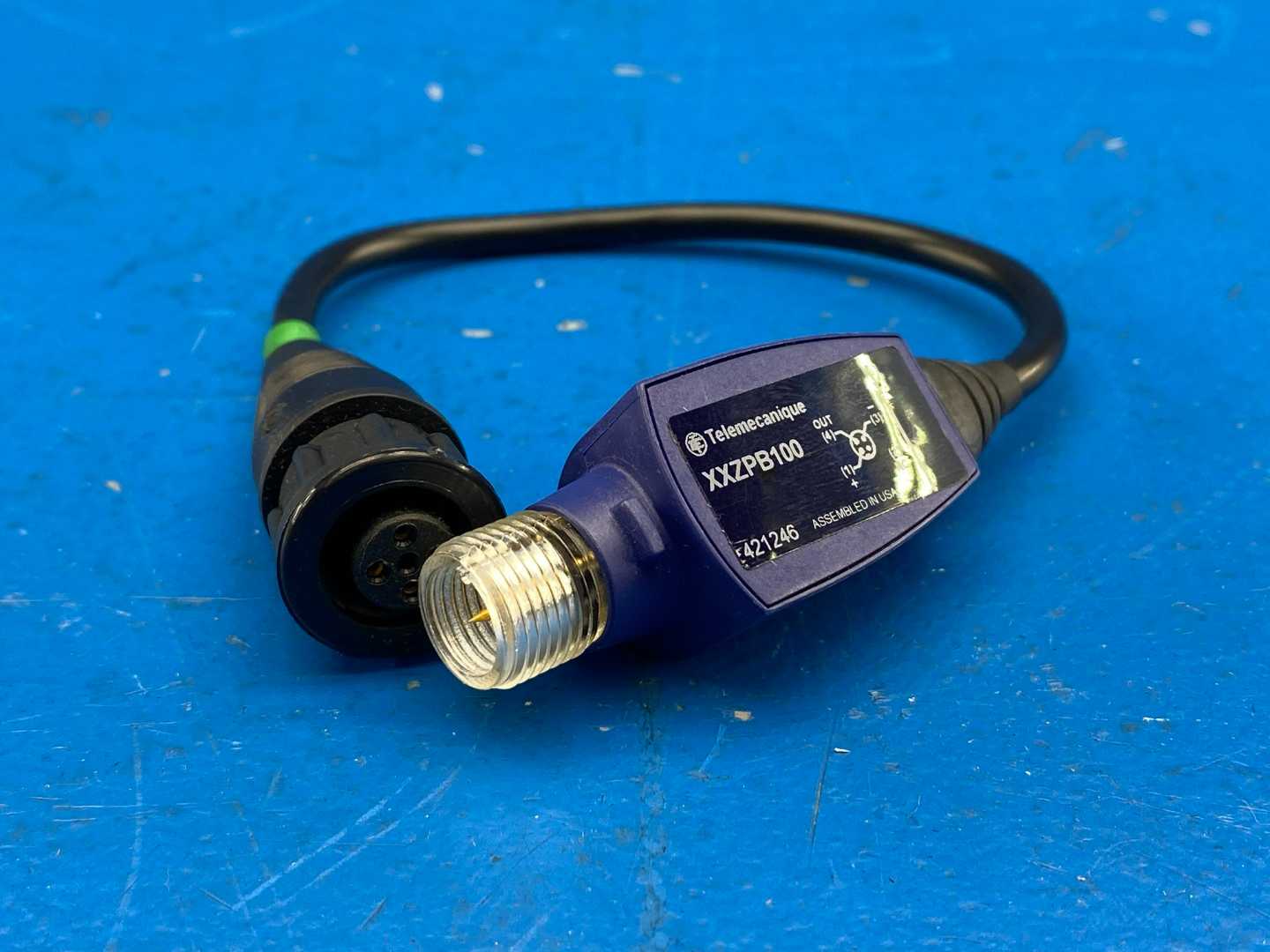

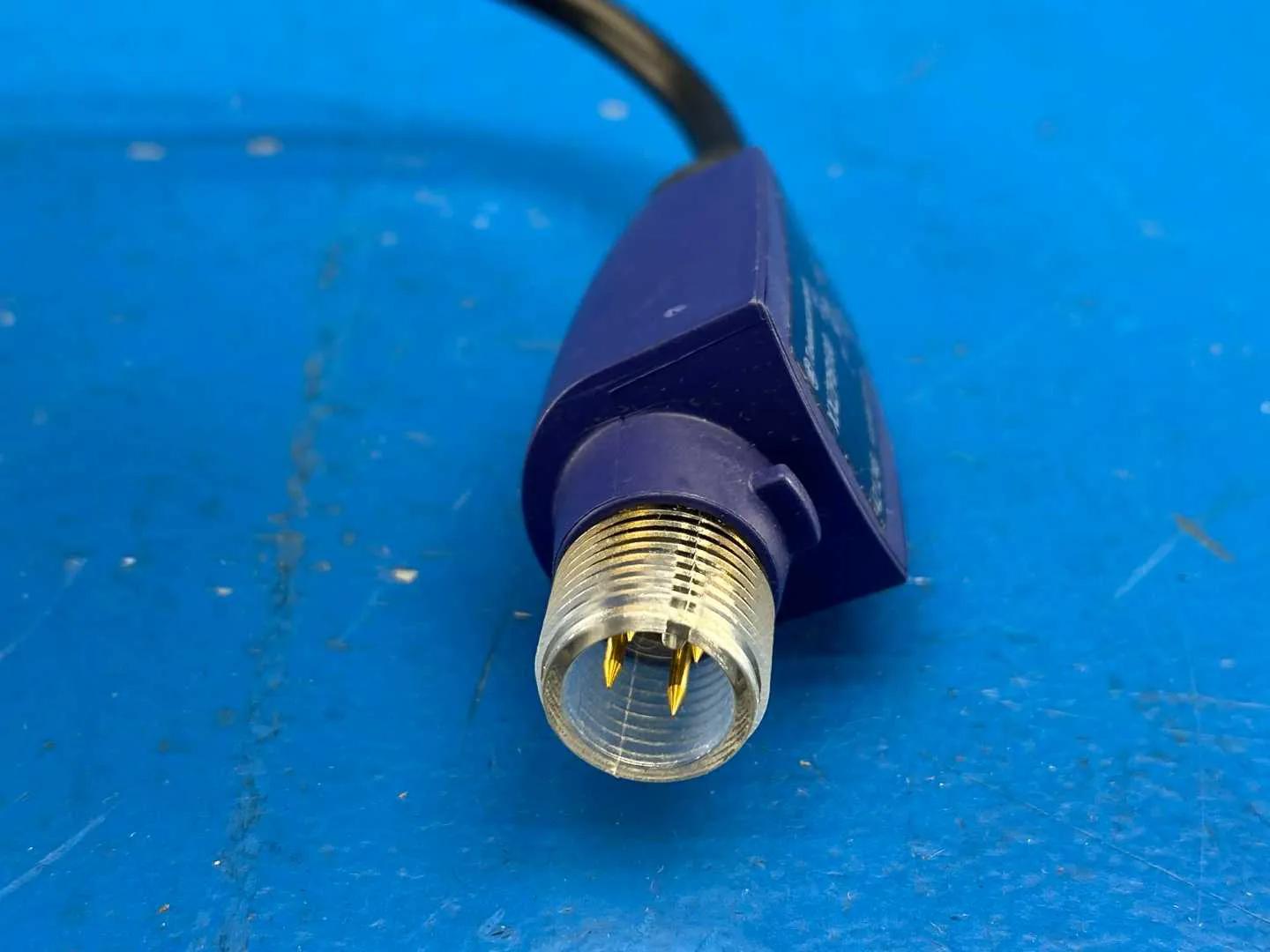

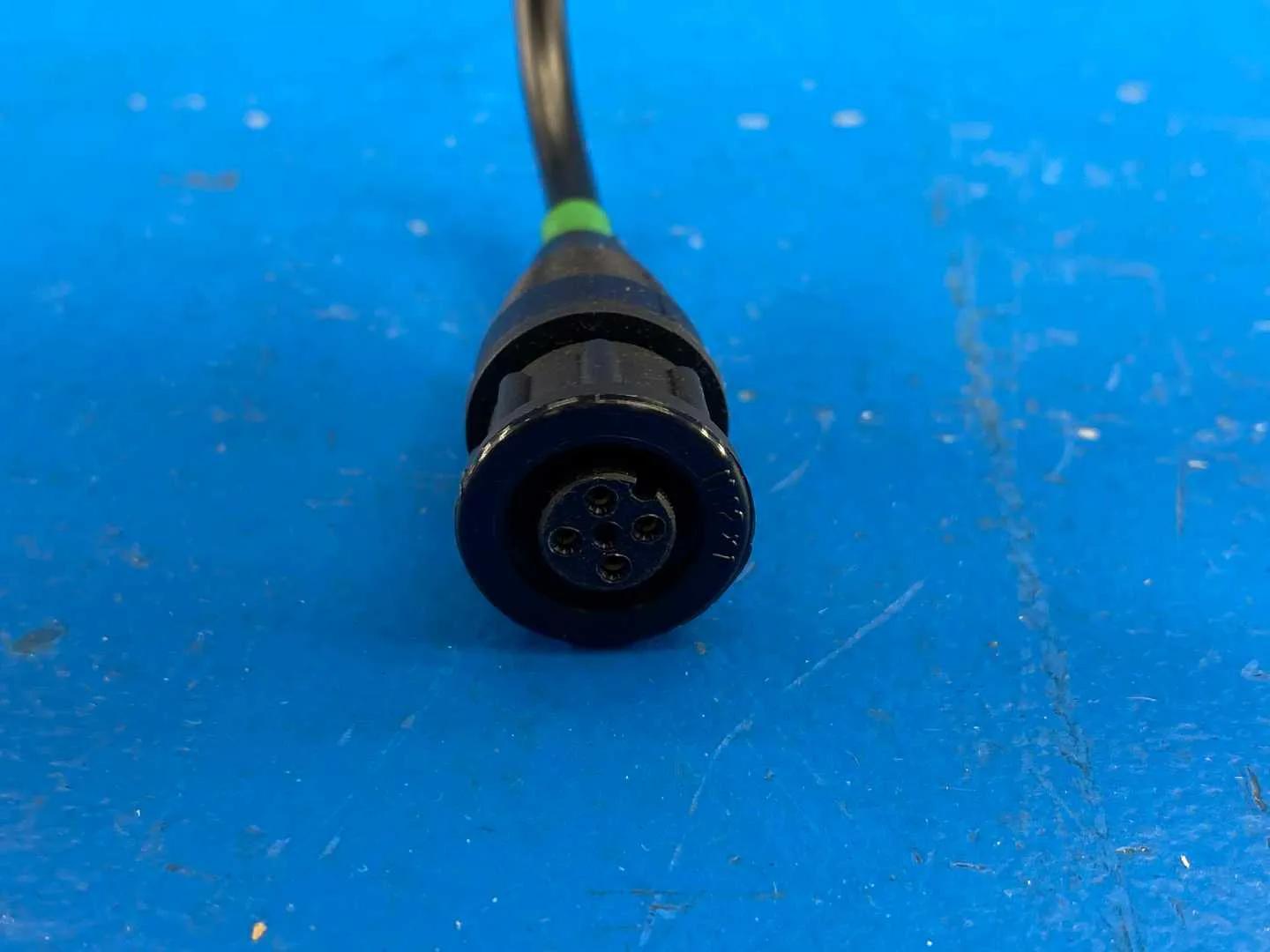

Type: OsiSense XX teach-mode pushbutton accessory. Inline connector, M12 3-pin male in / M12 5-pin female out.
Function: Pass-through device used to select the detection window on Telemecanique OsiSense XX series ultrasonic sensors. It generates no power of its own and sits in the sensor's supply line, carrying whatever the host sensor carries.

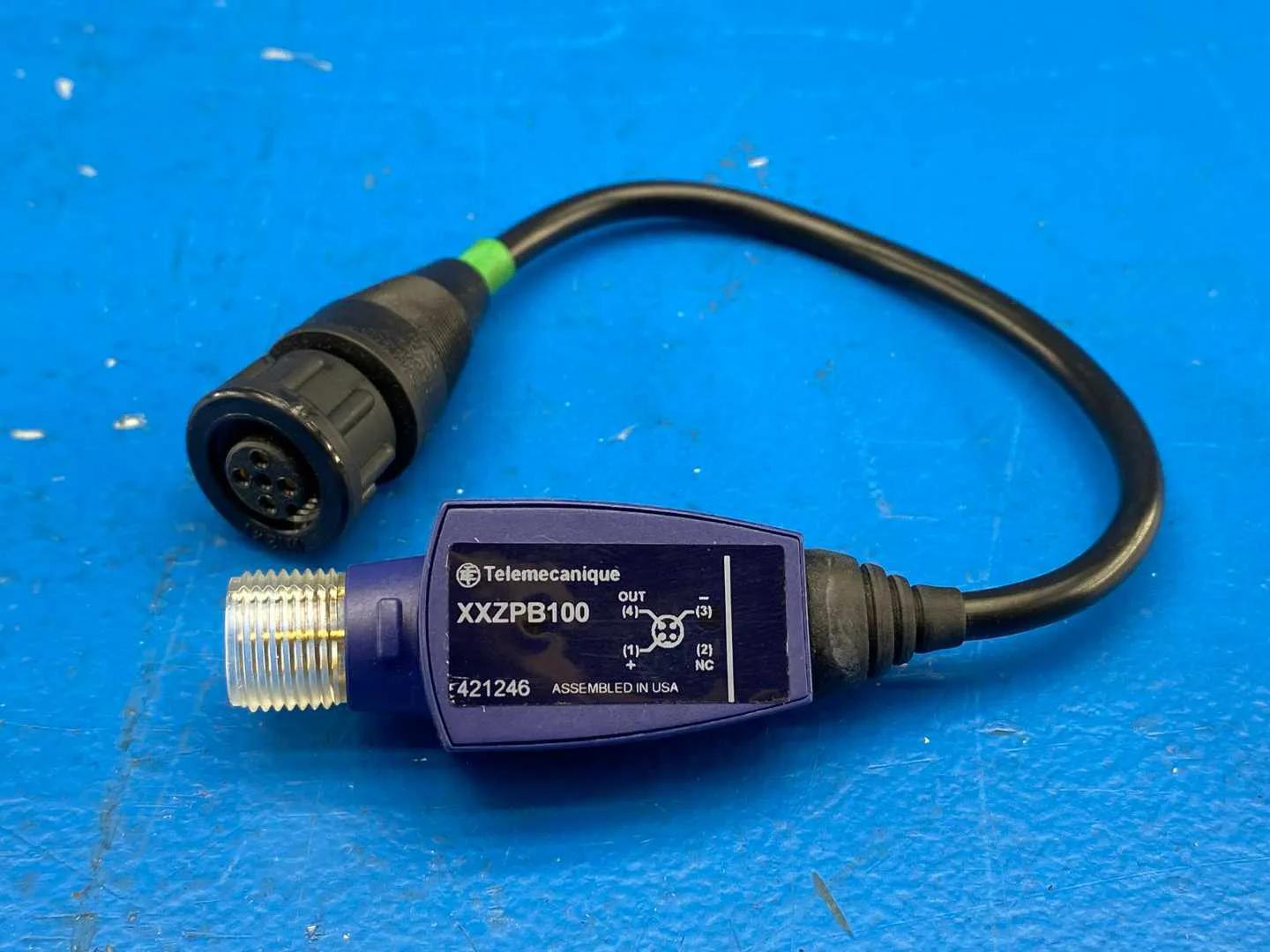

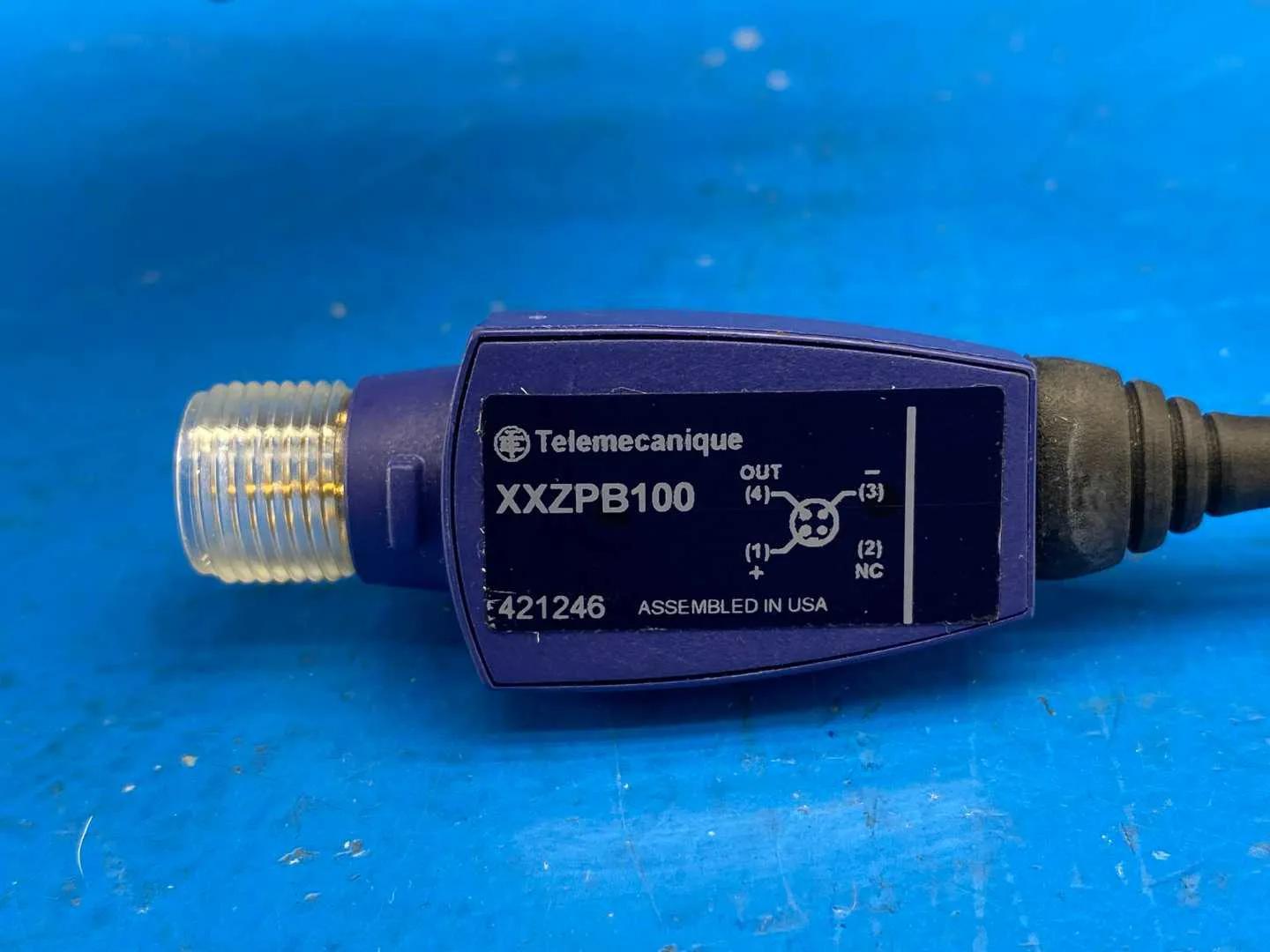

Pinout (marked on the part): (1) +, (2) NC, (3) -, (4) OUT
Electrical rating: Schneider Electric publishes NO voltage or current rating for this accessory, and none is printed on the part. The rating is set by the host sensor.
Compatible sensors: XX7V1A1PAM12 and XX518A3PAM12. Both are electrically identical: rated supply 12...24 V DC with reverse polarity protection, supply limits 10...28 V DC, current consumption 40 mA, maximum switching current 100 mA.
Approvals: UL Listed Industrial Control Equipment, category code 3KYC, UL file F421246. Listing condition, verbatim: "This Product is UL Listed if powered by a Class II Power Supply and protected by a 2.0A Max UL Listed Fuse." A Class 2 supply is bounded at 30 V and 100 VA, which rules out any mains-voltage application. CE marked. Assembled in USA.
Ordering references: XXZPB100, commercial reference 070421, EAN 3389110704211.
Spec Basis: Schneider Electric / Telemecanique Sensors published product page for XXZPB100; XX7V1A1PAM12 and XX518A3PAM12 manufacturer datasheets; Telemecanique UL 3KYC Class 2 wiring documentation. Part markings verified against record photographs.
