Signal Transformer 68-50 Power Transformer, 115V Primary, 0-17-34V Secondary Taps
68-50 Transformer Specifications: VA & Voltage
Electrical System Fitment for Signal Transformer 68-50
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 68-50 |
| Condition | Used |
| Manufacturer | Signal Transformer |
| Asset Number | KSCU / 1149 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.1 Cardboard $10 |
$19.95
Basic Information
Asset #
KSCU / 1149
Available Quantity
1
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
This is a Signal Transformer Co. model 68-50 laminated core power transformer, built at the company's former Inwood, New York address shown on the nameplate. Signal Transformer, now part of Bel Fuse as Bel Signal, makes standard and custom power transformers for electronic equipment and control panels.
A power transformer of this type steps line voltage down to a lower secondary voltage to feed rectifiers, DC power supplies, battery chargers, plating or heating loads and control circuits. In the Signal 68 series the primary has taps for 105, 115, 125 and 230 volts, and the secondary is split into two windings that give 34 volts when connected in parallel or 68 volts when connected in series. The number after the dash follows the series-connected secondary current; distributors list the 68-25, for example, at 1700 VA with 50 amps parallel or 25 amps series.

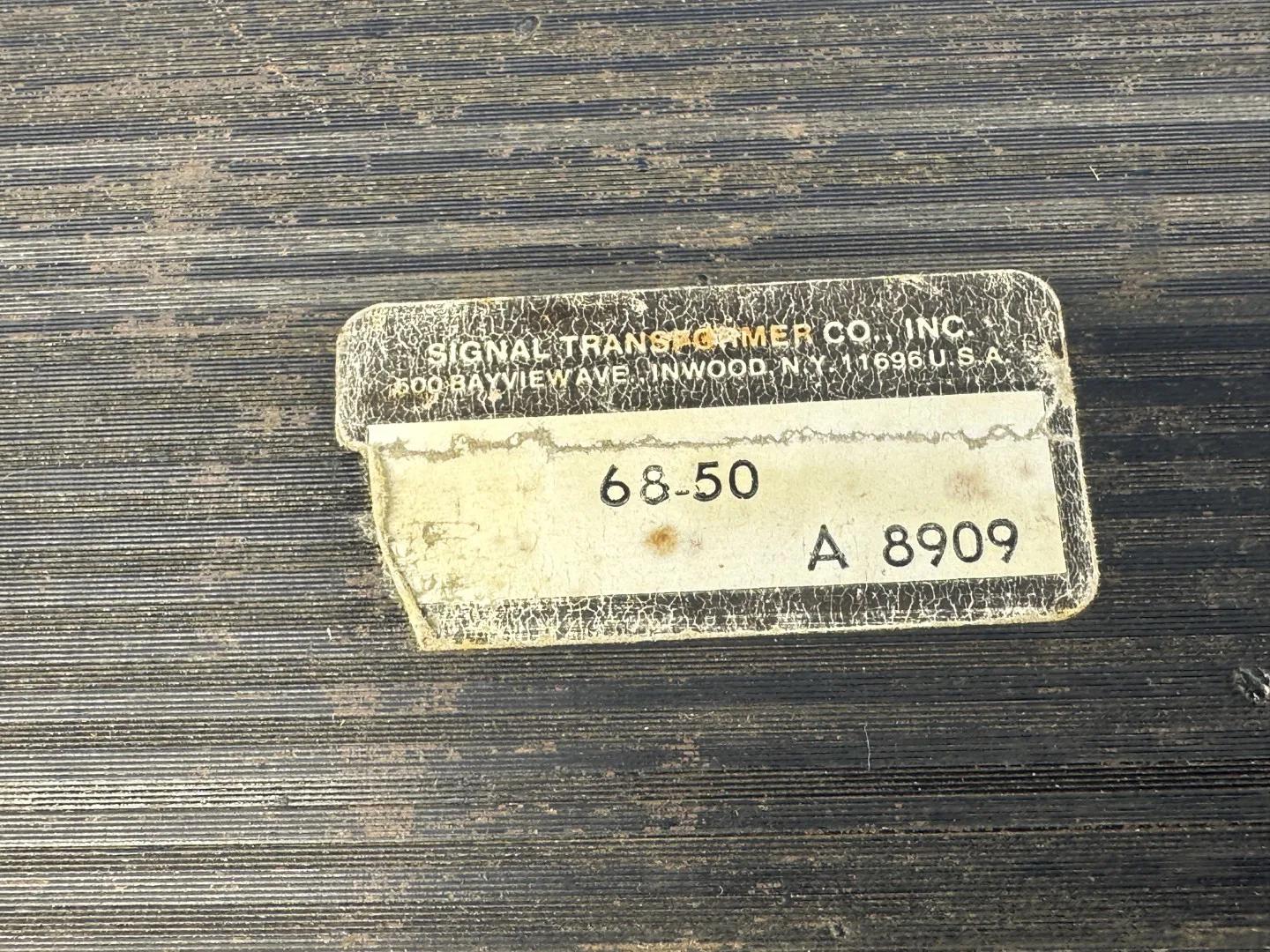

The nameplate carries the model 68-50 and code A 8909, and the terminal board shows 0 and 115 markings. Signal does not publish an accessible data sheet for the 68-50, so its exact VA rating should be confirmed on the unit before use. Engineers, panel builders and equipment repair technicians use transformers of this size in industrial power supplies and test equipment.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer (nameplate): Signal Transformer Co., Inc., 500 Bayview Ave., Inwood, N.Y. 11696 U.S.A.
- Model (nameplate): 68-50
- Serial / Code (nameplate): A 8909

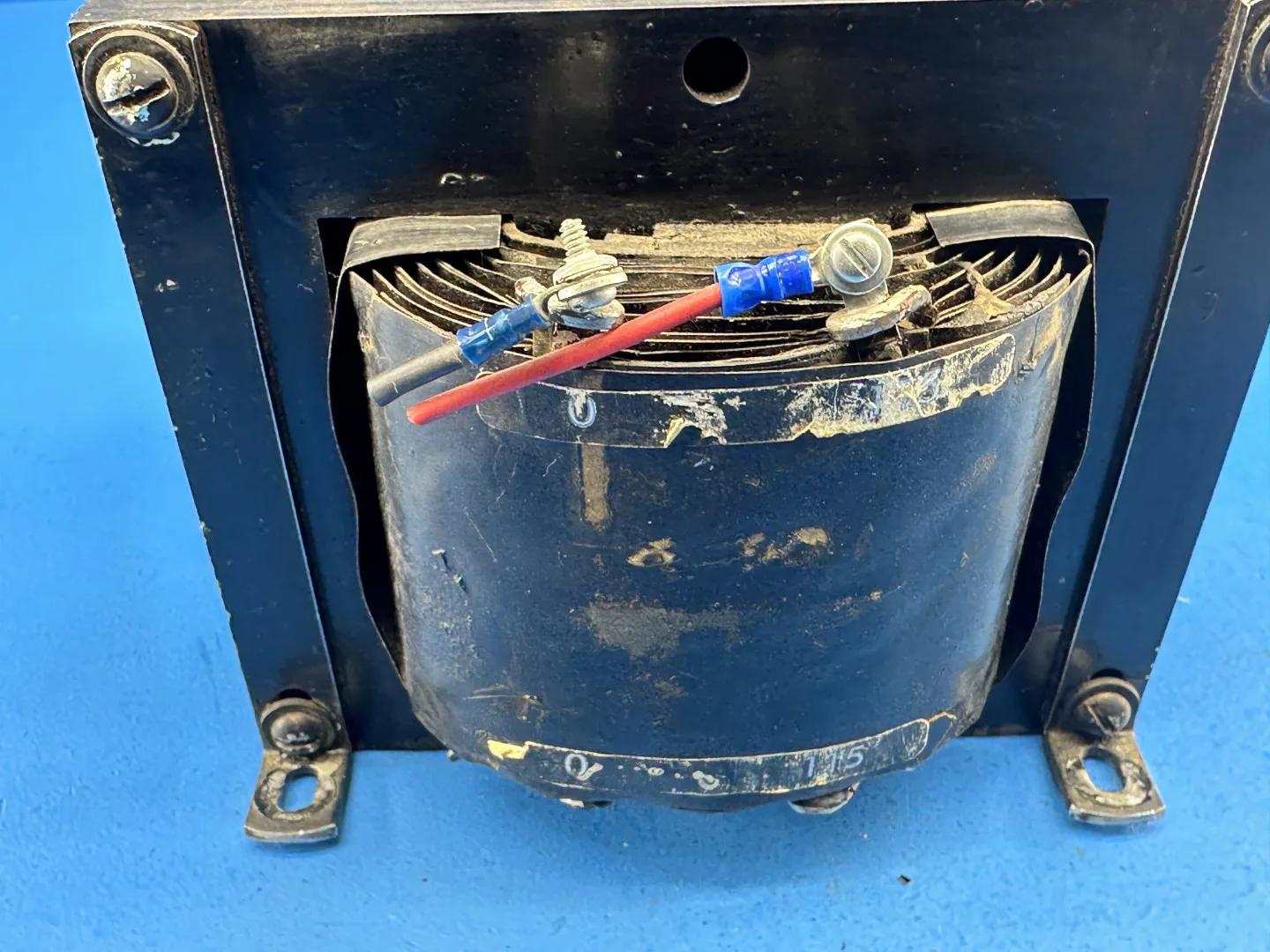

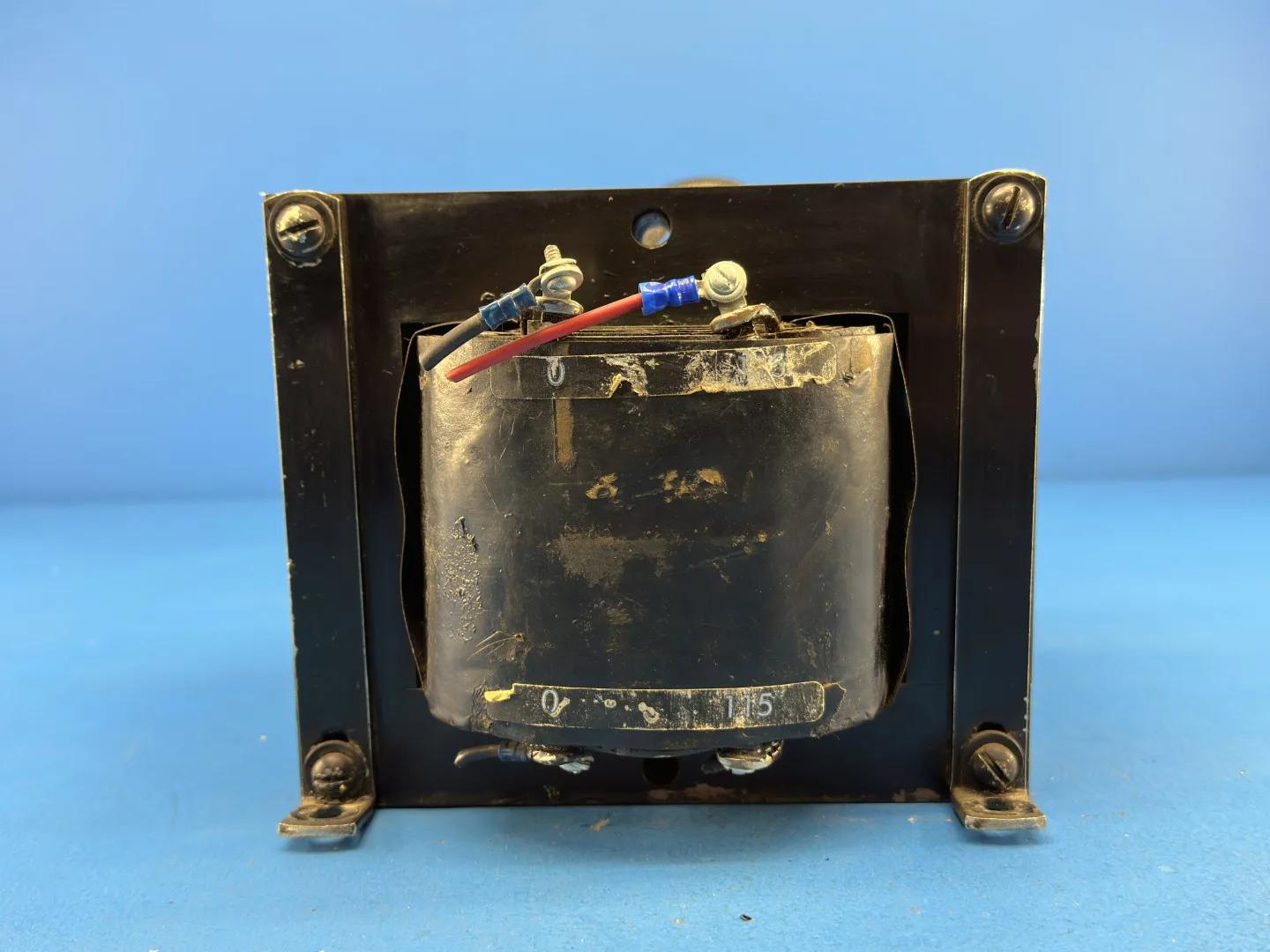

- Terminal Markings (photo): 0 and 115 on one winding; 0 and 13 on another (partial read)
- Construction: Laminated core power transformer (68 series)
- Series Data (68 series, distributor listings for 68-1, 68-6, 68-25): 105V, 115V, 125V and 230V primary taps; 34V secondary with windings in parallel, 68V with windings in series; the number after 68 matches the series-connected secondary current in amps (68-25 is listed at 1700VA, 50A parallel / 25A series, chassis mount)
- Note: VA and current ratings for 68-50 are not published in an accessible source and are not stated here
- Spec Basis: nameplate photo; DigiKey Signal Transformer 68-25 listing (https://www.digikey.com/en/products/detail/signal-transformer/68-25/1984779) and 68-6 listing (https://www.digikey.com/en/products/detail/signal-transformer/68-6/1984781)
