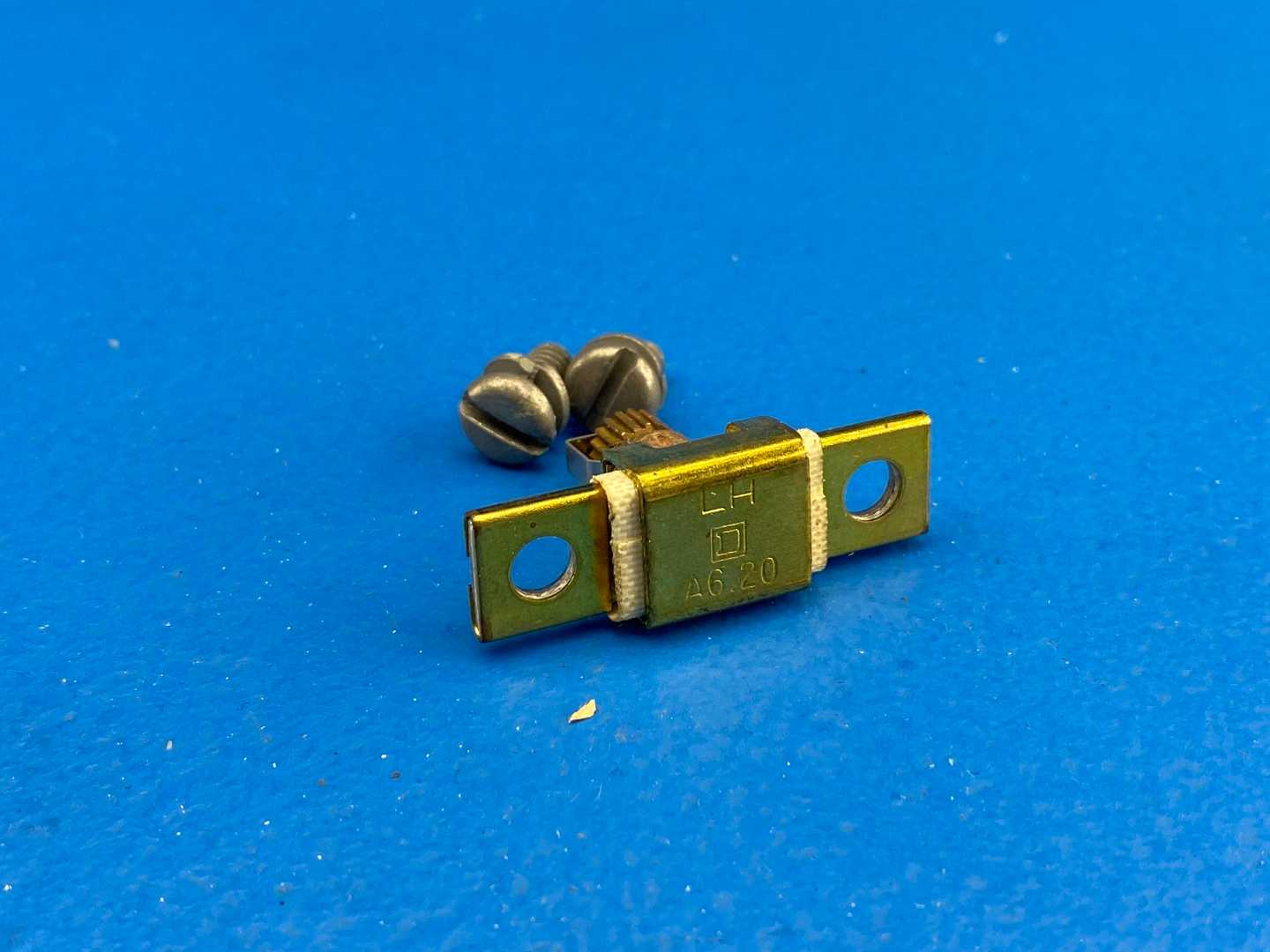

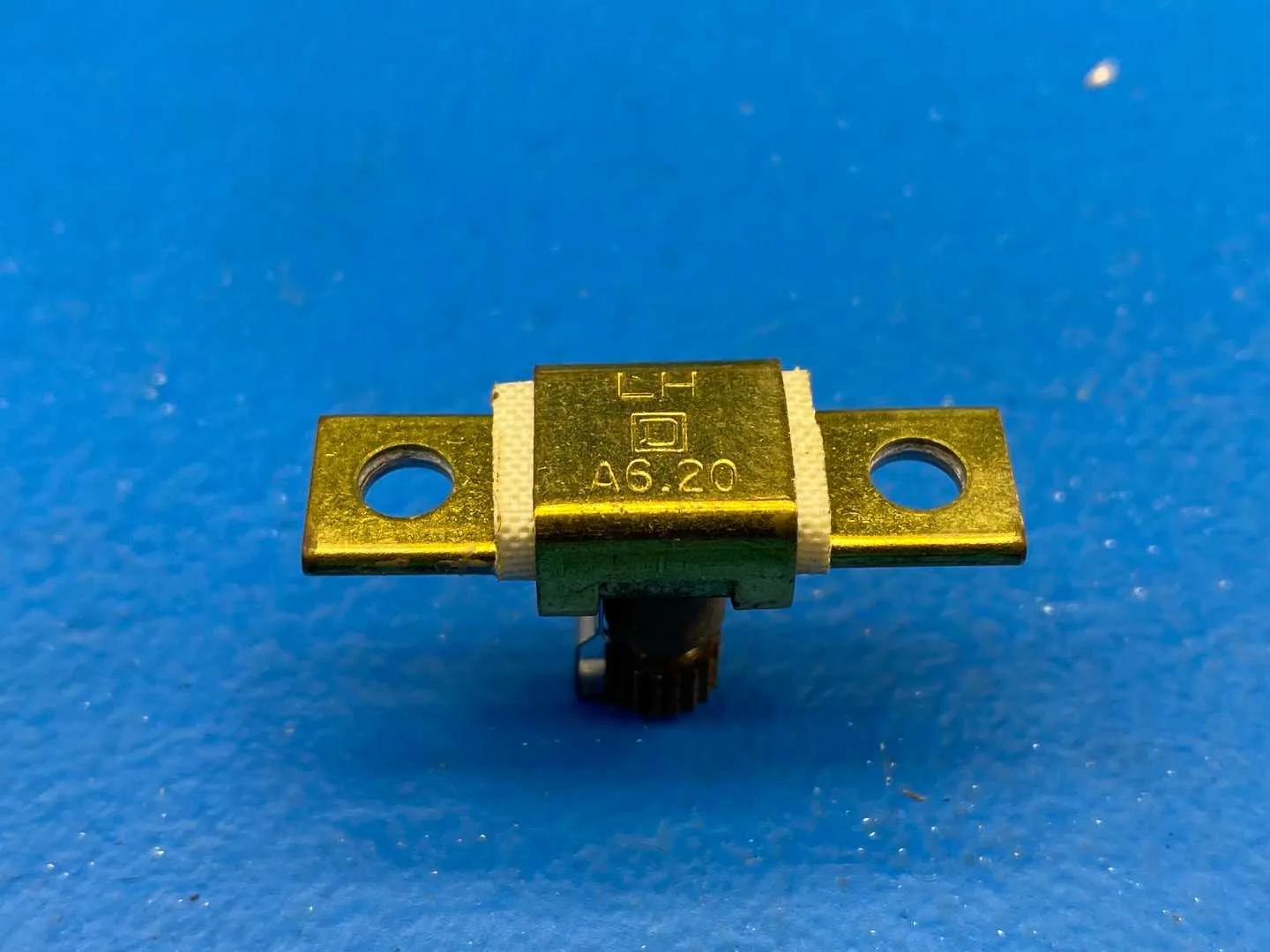

Square D A6.20 (LP) Thermal Unit Overview

The Square D A6.20 (LP) Thermal Unit is a critical component in industrial circuit protection systems, primarily designed for overload protection in motors. This thermal unit is engineered to provide reliable and efficient protection against motor overheating, helping to prevent equipment damage and ensuring safety in electrical systems. Historically, Square D has been a leading manufacturer of electrical distribution and control products, known for their innovative designs and commitment to quality. The A6.20 model features precise calibration for current ratings between 5.79 to 6.23 Amperes, making it suitable for a variety of motor applications across different industries, including manufacturing, automation, and HVAC systems. One of the unique features of the A6.20 thermal unit is its Class 20 rating, which indicates its performance in responding to overload conditions. This class rating ensures that the unit can handle a specific start-up or locked rotor scenario safely, providing improved motor life and operational reliability. The A6.20 unit is designed to be easily integrated into existing electrical setups, promoting flexibility and ease of maintenance. Additionally, the A6.20 thermal unit stands out for its durable construction, capable of withstanding harsh industrial environments, which is essential for maintaining long-lasting performance in challenging conditions.

Current Rating: 5.79 - 6.23A Temperature Class: Class 20 Application: Overload Protection for Electric Motors
