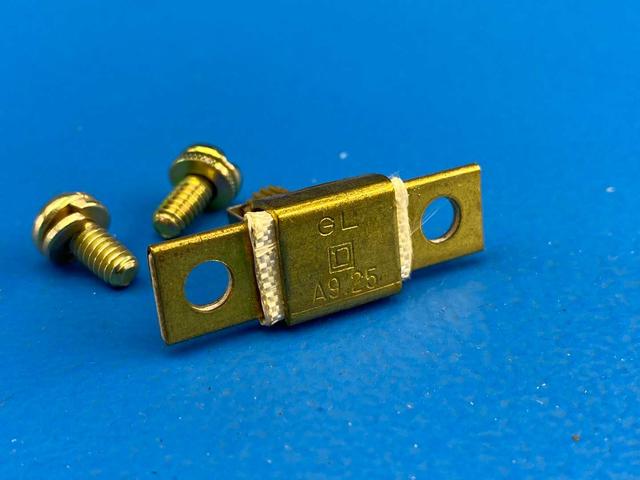

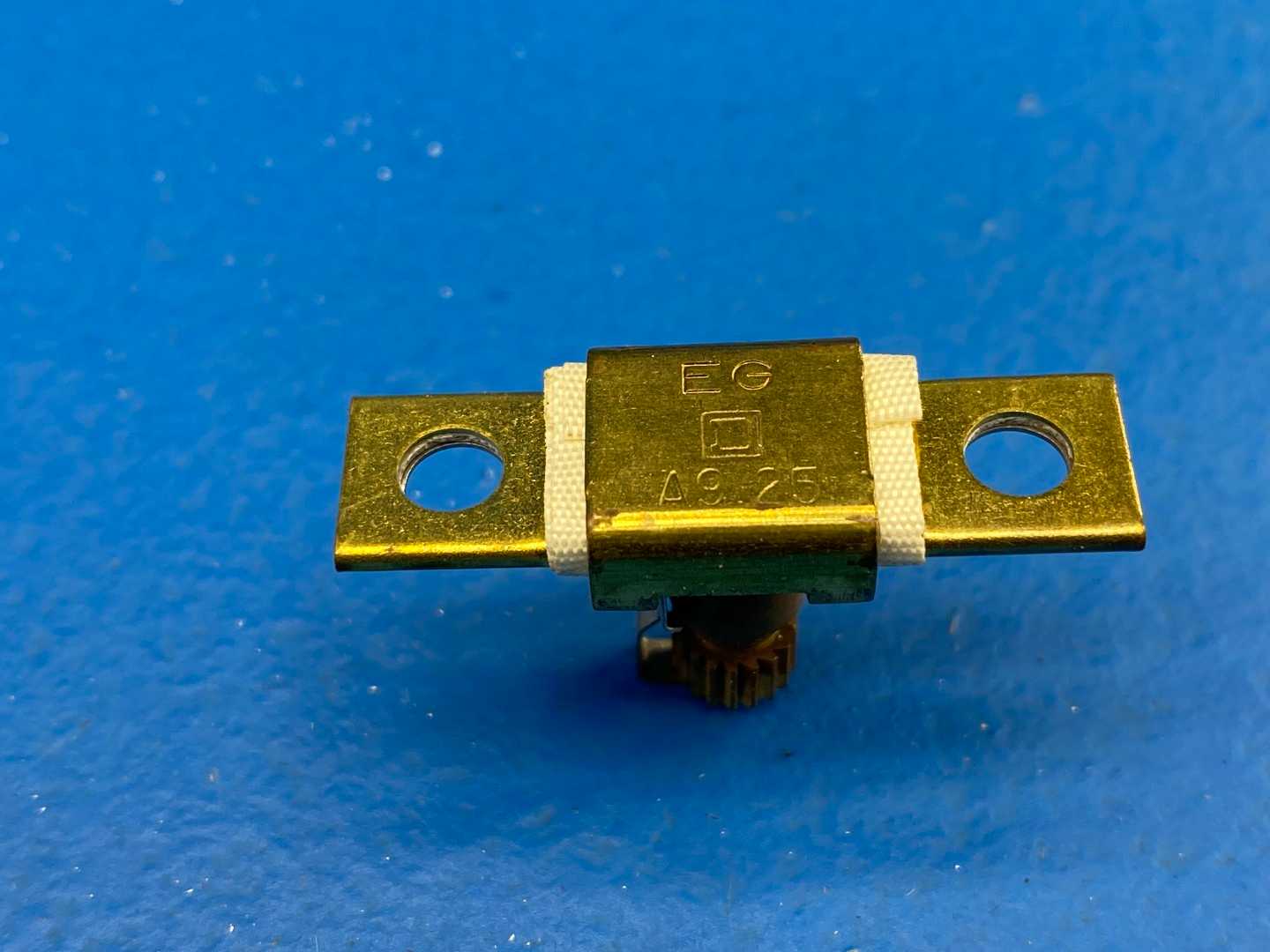

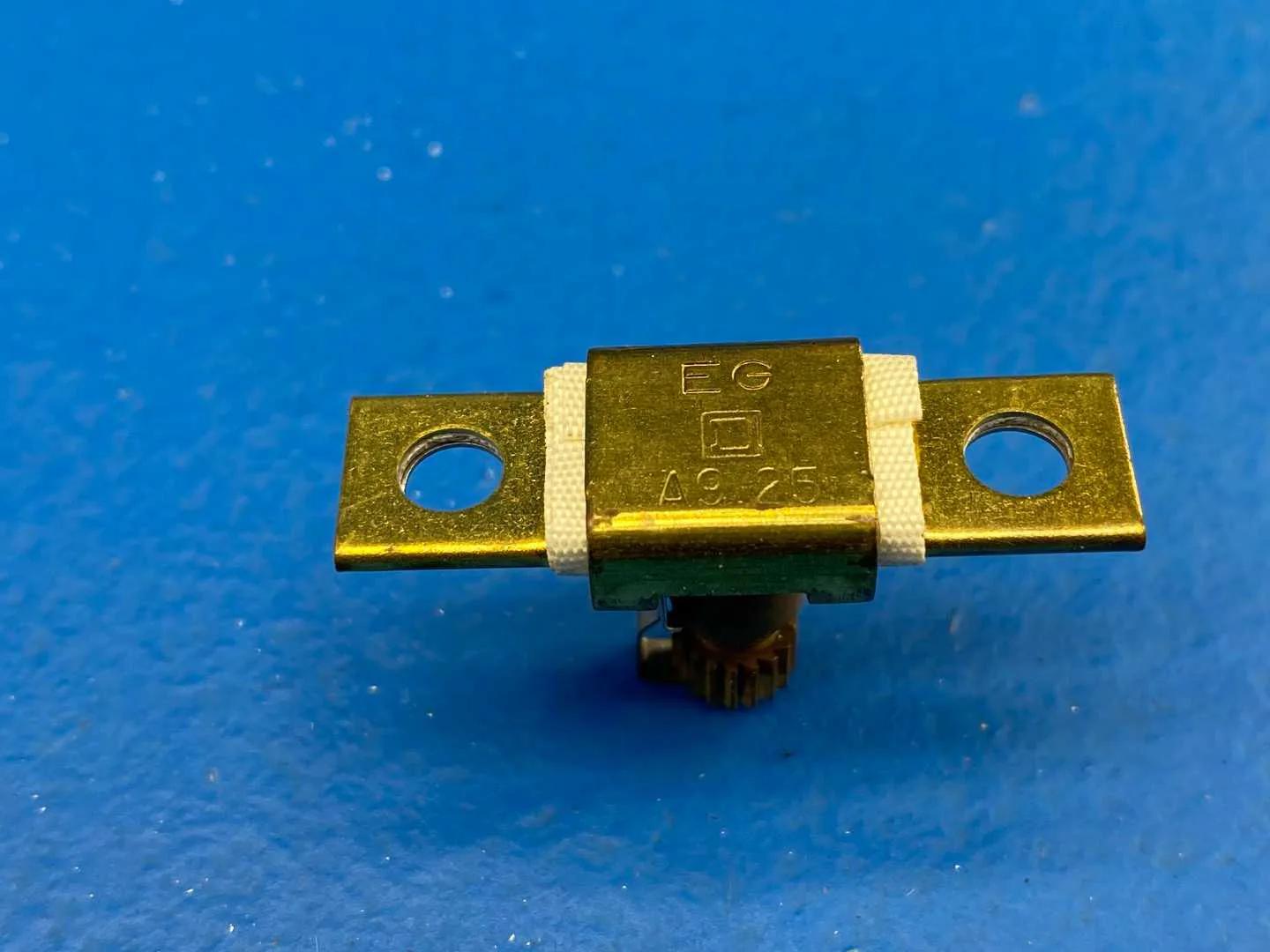

The Square D A9.25 (EG) Thermal Unit is a precision component designed for use in motor protection applications within industrial and commercial environments. This thermal overload relay is utilized to safeguard electric motors from damage caused by overcurrent situations, effectively extending the equipment's lifespan and improving overall system reliability. Originally developed by Square D, a leader in electrical distribution and circuit protection equipment, the A9.25 is engineered to monitor the current flowing through the motor and respond to overload conditions. This unit operates within a specific current range of 8.24 to 9.31 Amperes, aligning with Class 20 thermal characteristics for moderate thermal response in load changes. Key features include a bi-metallic strip design that provides an accurate response to varying temperatures, which ensures that the motor only shuts down when necessary. The straightforward installation process makes it highly compatible with various Square D motor starter products and enhances operational efficiency. The A9.25 thermal unit is widely used across multiple industries such as manufacturing, HVAC, and pumping systems, where electric motors play a crucial role. This unit also contributes to energy efficiency by preventing unnecessary motor shutdowns due to false alarms from overcurrent detection.

Current Range: 8.24–9.31A Class: 20 Device Type: Thermal overload relay Design: Bi-metallic strip for current detection Compatibility: Square D motor starters Application: Motor protection in industrial and commercial settings
