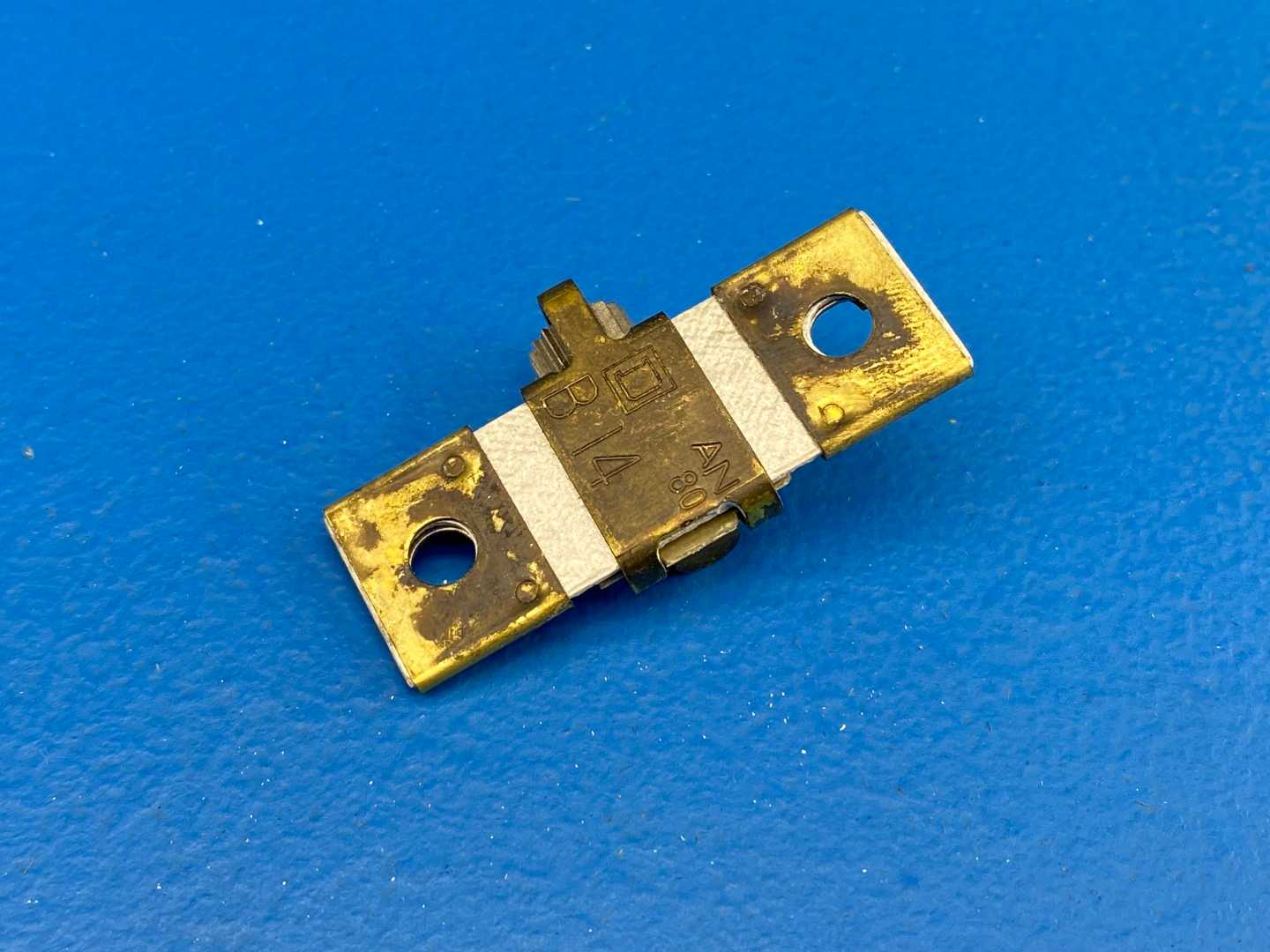

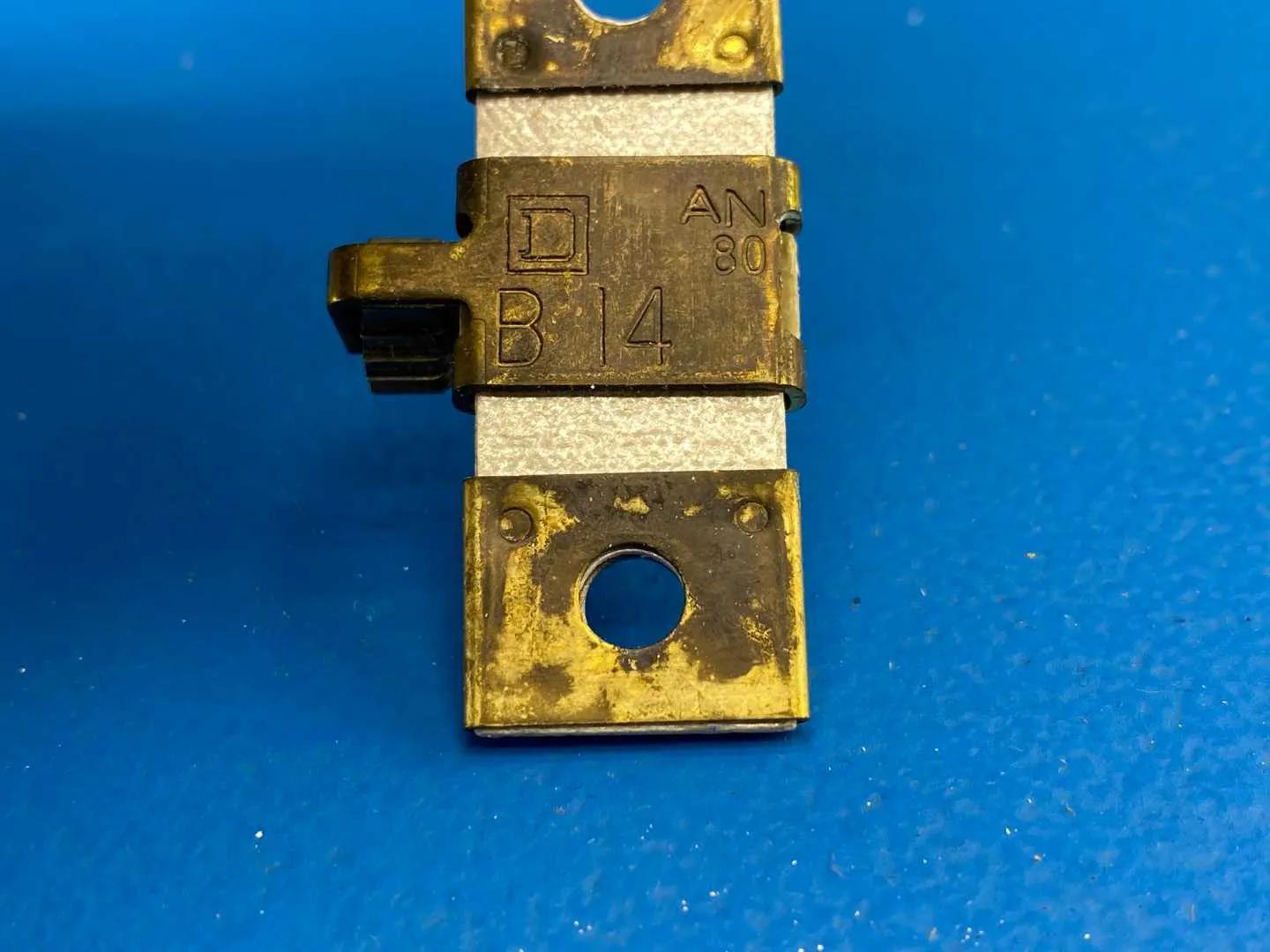

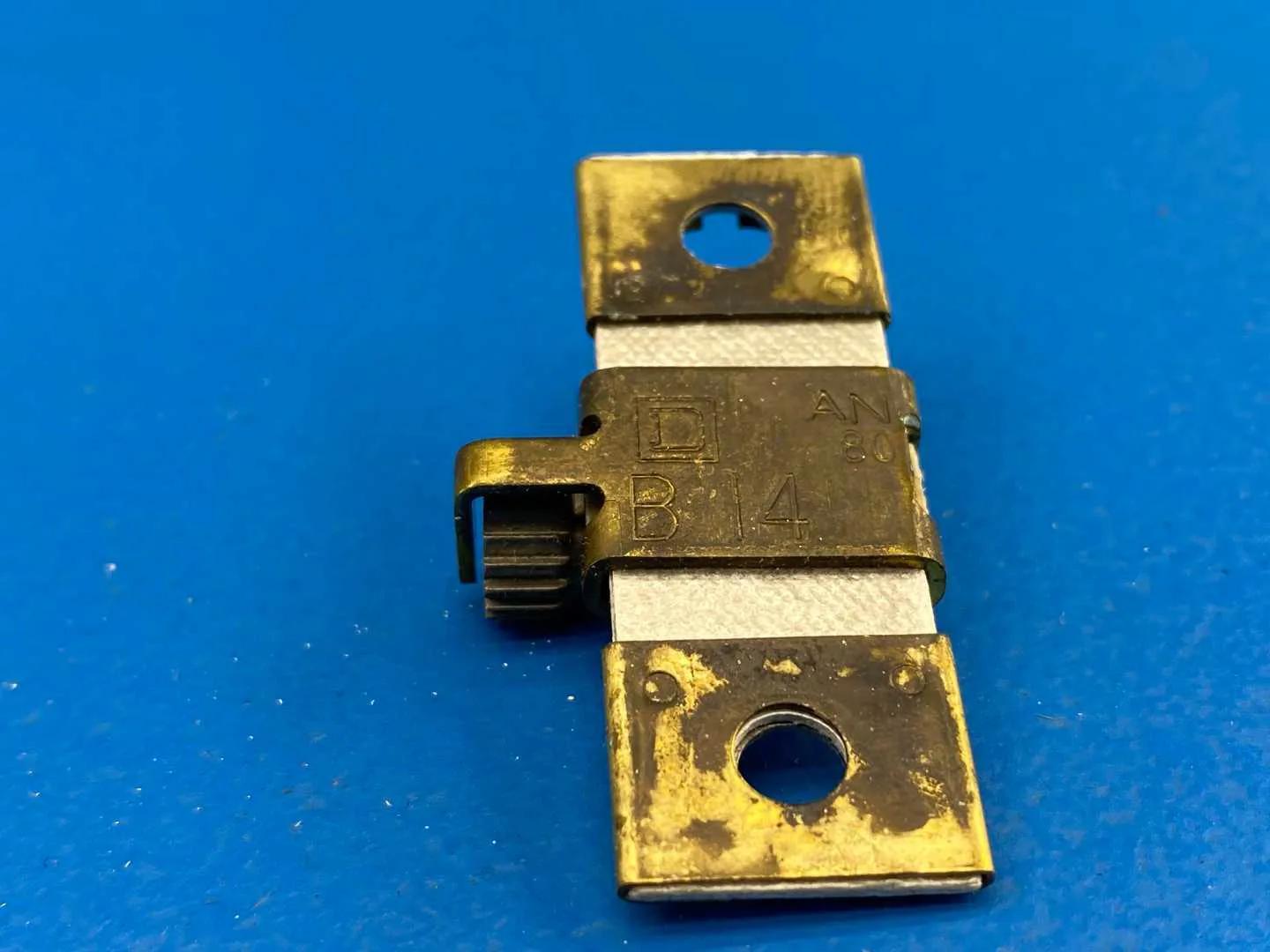

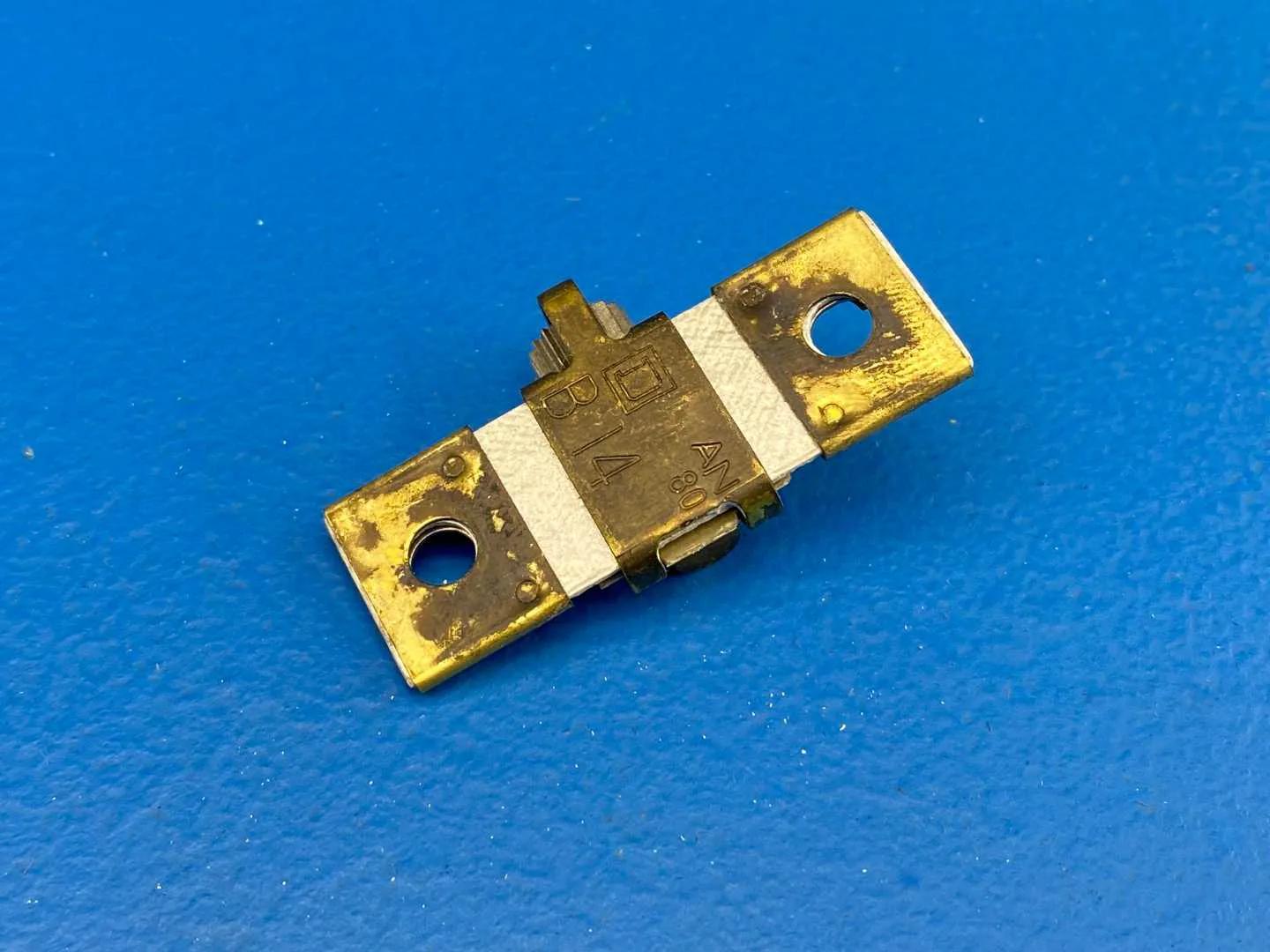

Square D B14.0 Thermal Unit Overview

The Square D B14.0 thermal unit is a component designed for use in motor protection applications, particularly in conjunction with motor starters. Developed by Schneider Electric under the Square D brand, the B14.0 unit is engineered to provide reliable overload protection for electric motors operating at 600 volts AC. This thermal unit operates within a current range of 17.24 to 18.35 amps and falls under the Class 20 category, which indicates its specific characteristics and time delay features for overload protection. Its purpose is to prevent damage to motors due to extended overload conditions, ensuring that motors operate efficiently and effectively without suffering from burnout or thermal damage. The B14.0 is widely used across various industries, including manufacturing, material handling, and HVAC systems, where electric motors play a critical role in operational processes. The unit's design includes thermal elements that respond to varying load conditions, thus providing a protective mechanism that resets automatically once the overload condition passes. Unique features of the Square D B14.0 thermal unit include its compatibility with a range of motor starters and its ability to integrate seamlessly into existing electrical systems. Its reliable performance and robust construction make it a preferred choice among electrical professionals for safeguarding motors from overload situations, enhancing the longevity and reliability of equipment.
