Square D Class 8502 Type PE 4.00 E Contactor

Square D Company (Deutschland) GmbH - contactor made in Germany

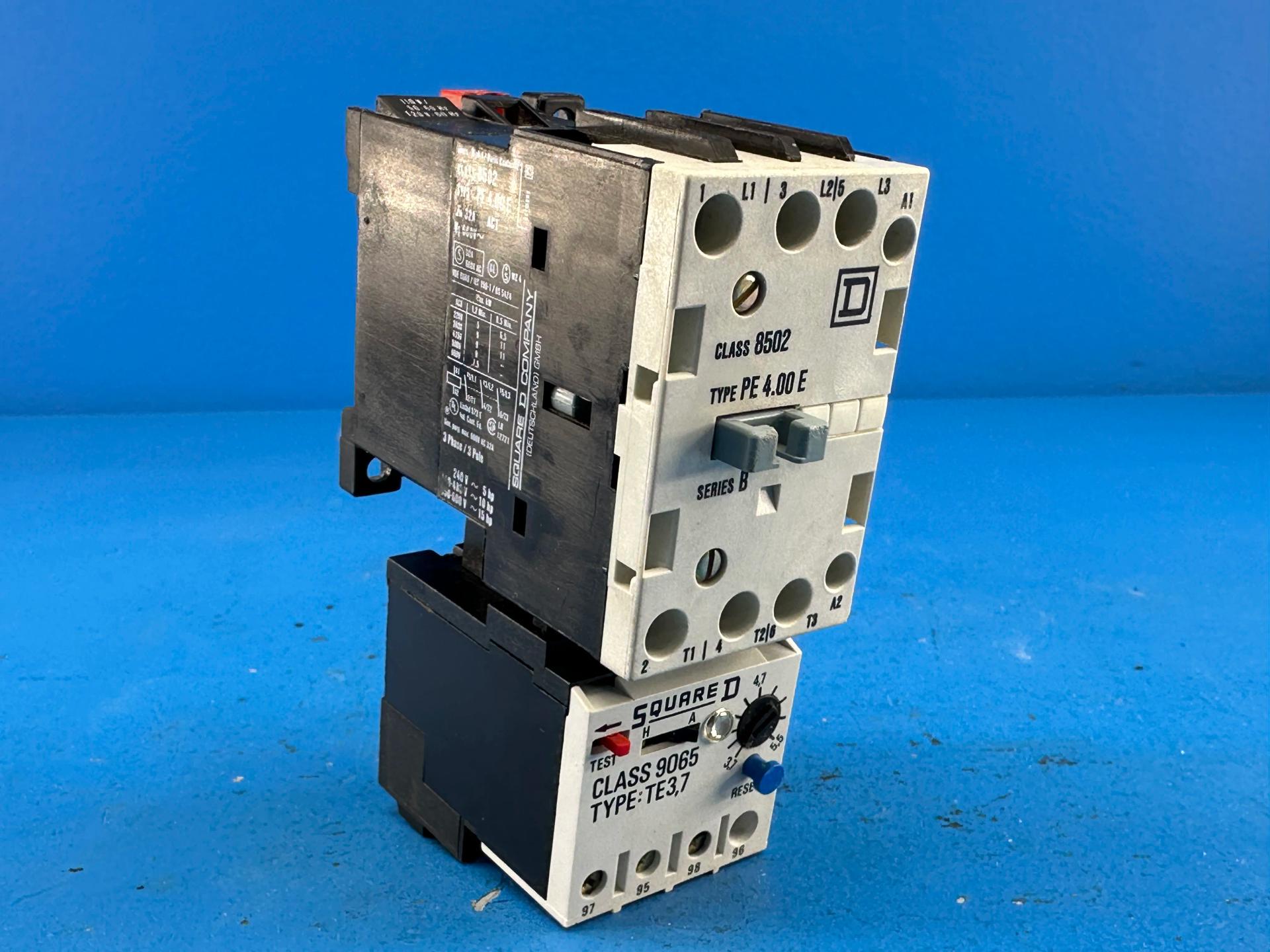

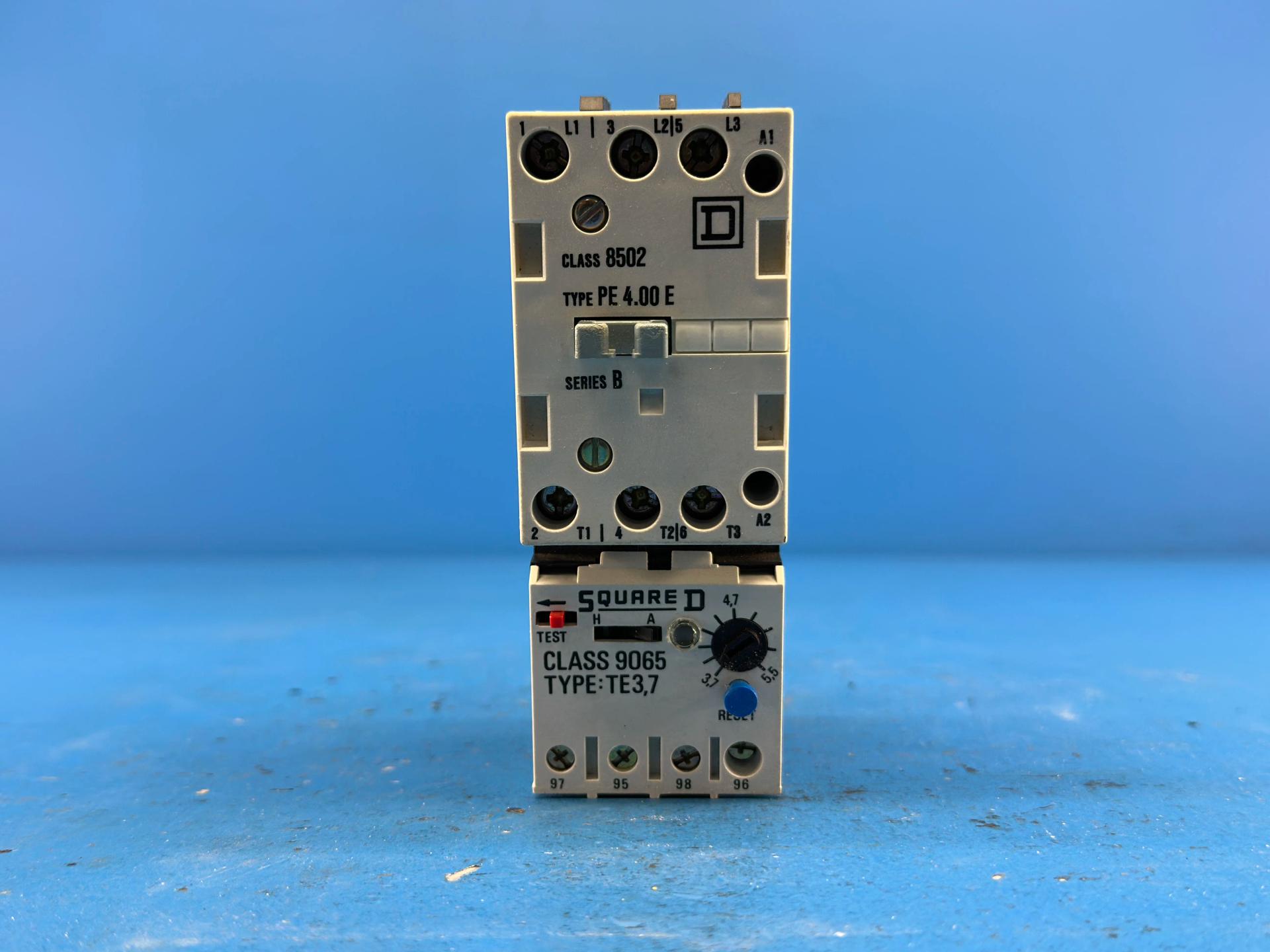

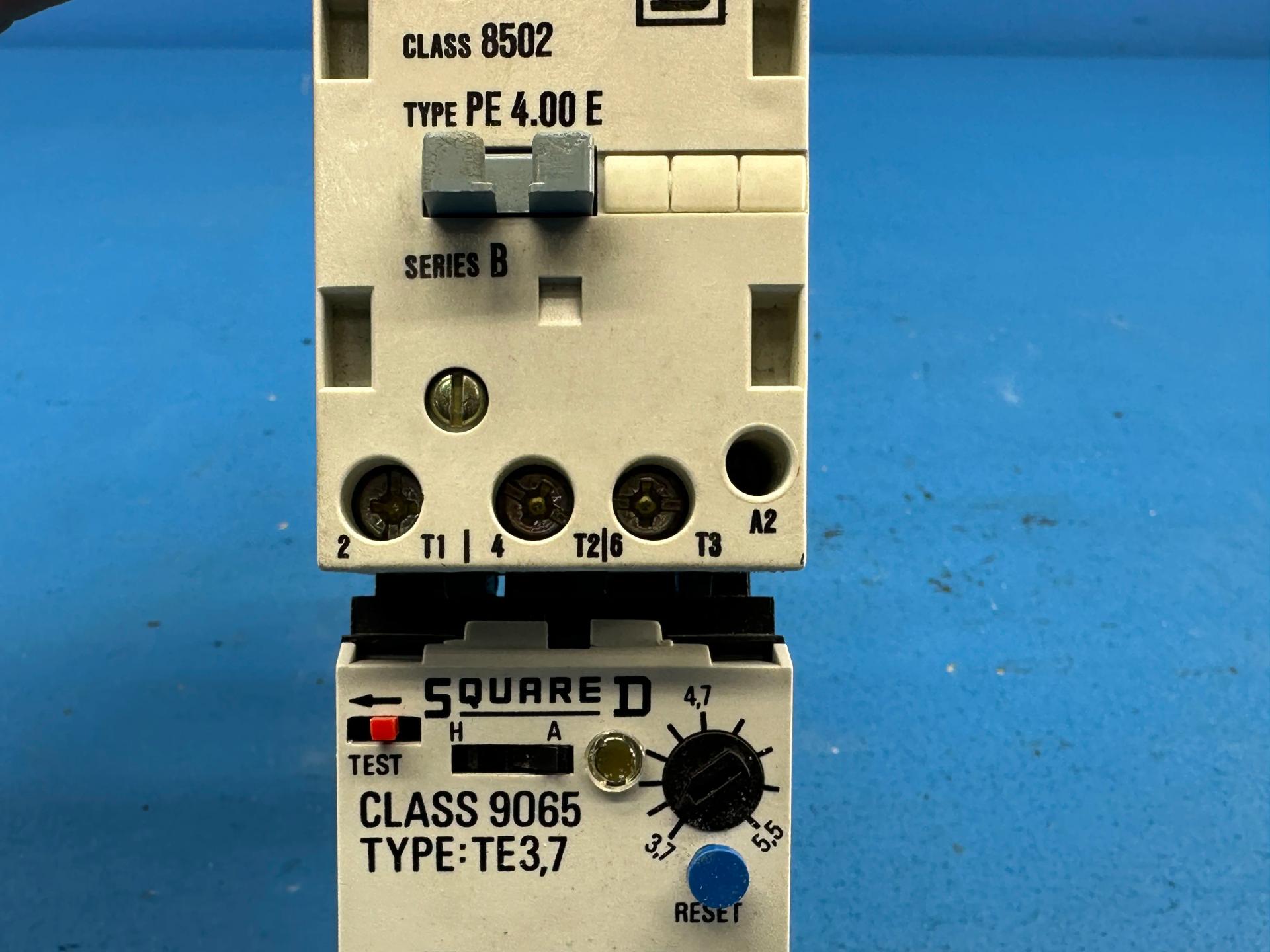

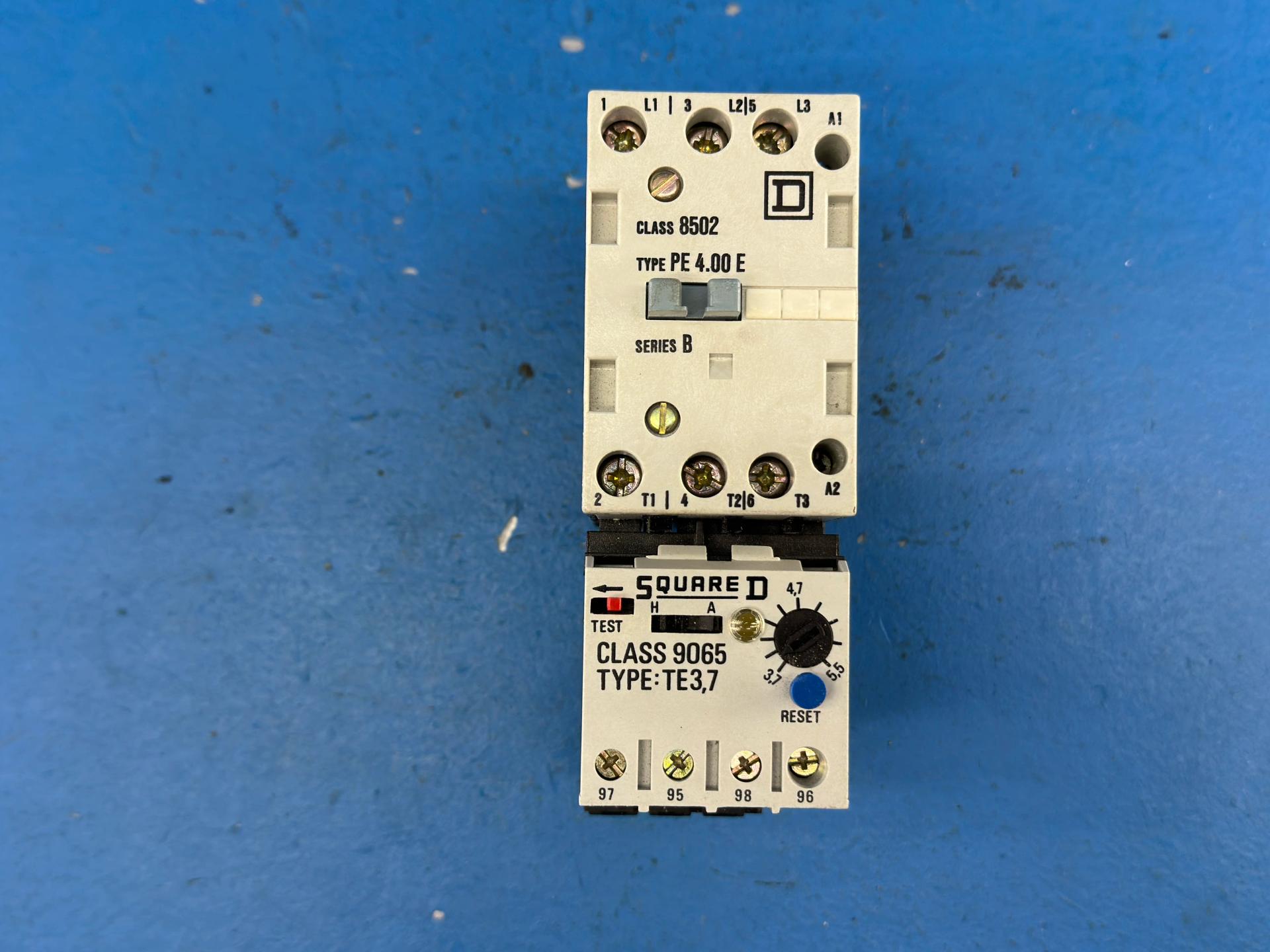

CONTACTOR

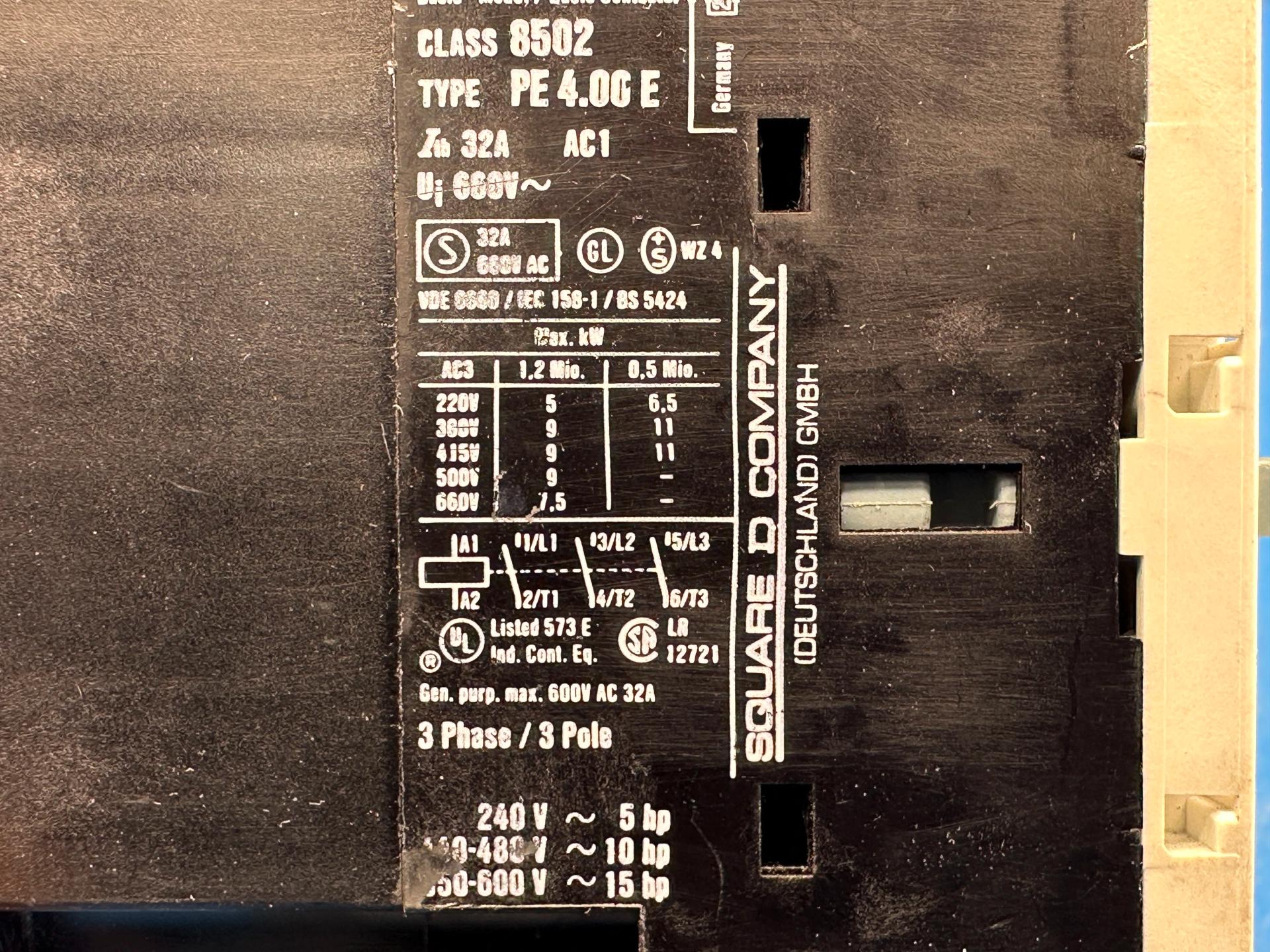

Class: 8502    Type: PE 4.00 E    Series: B
Ith: 32 A (AC1)
Ui: 660 V ~
General Purpose: max. 600 V AC, 32 A
Construction: 3 phase / 3 pole
Terminals: 1/L1-2/T1, 3/L2-4/T2, 5/L3-6/T3 | Coil: A1, A2

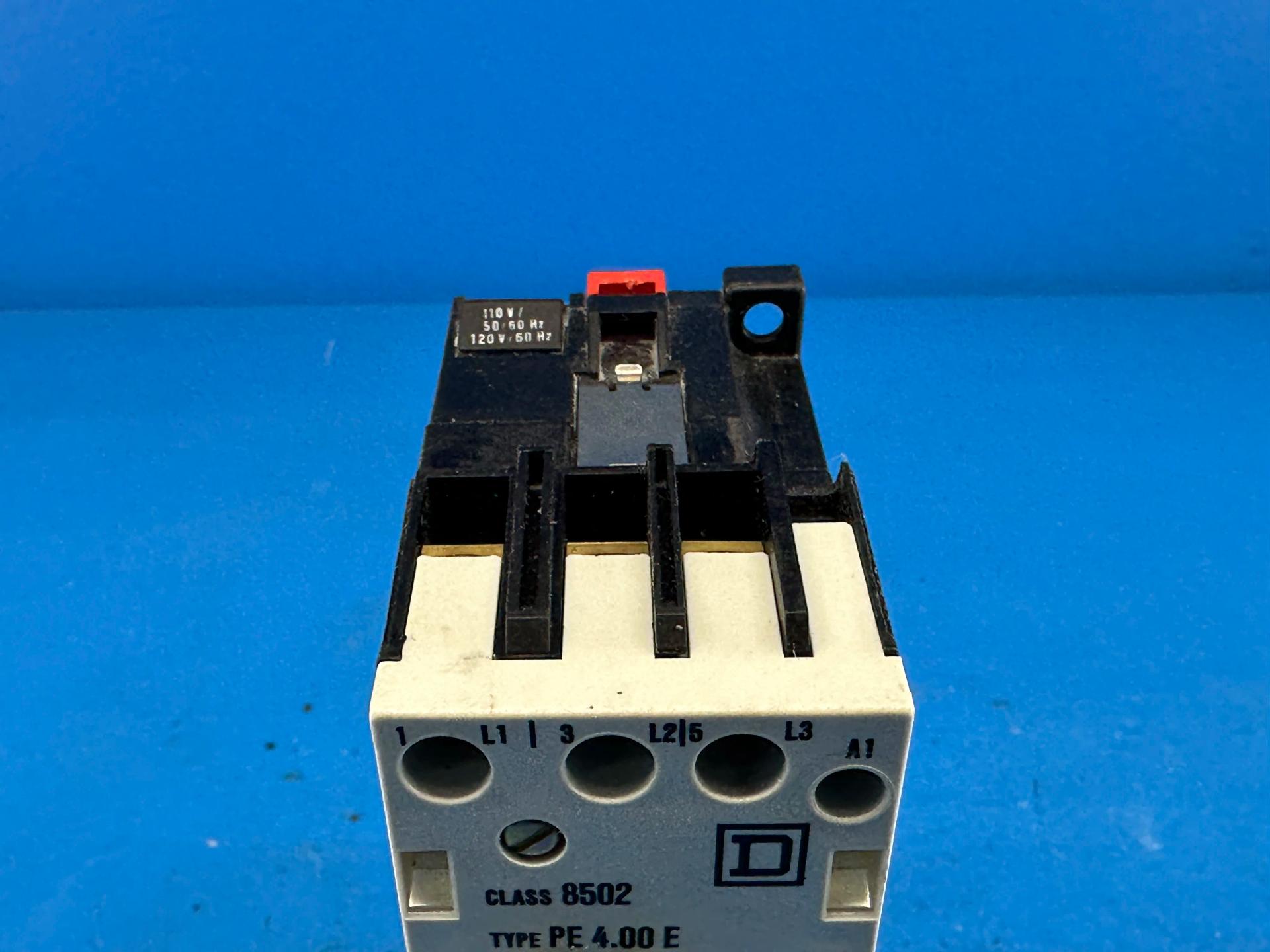

Coil marking on unit: 110V/50-60Hz, 120V/60Hz

AC3 MAX kW RATING (as printed)
220 V ... 5 / 6.5
380 V ... 9 / 11
415 V ... 9 / 11
500 V ... 9 / -
660 V ... 7.5 / -

HORSEPOWER
240 V ~ ........... 5 HP
440-480 V ~ ...... 10 HP
550-600 V ~ ...... 15 HP

STANDARDS: VDE 0660 / IEC 158-1 / BS 5424
APPROVALS: UL Listed 573 E Ind. Cont. Eq. | CSA LR 12721 | 32 A 660 V AC | GL | WZ 4

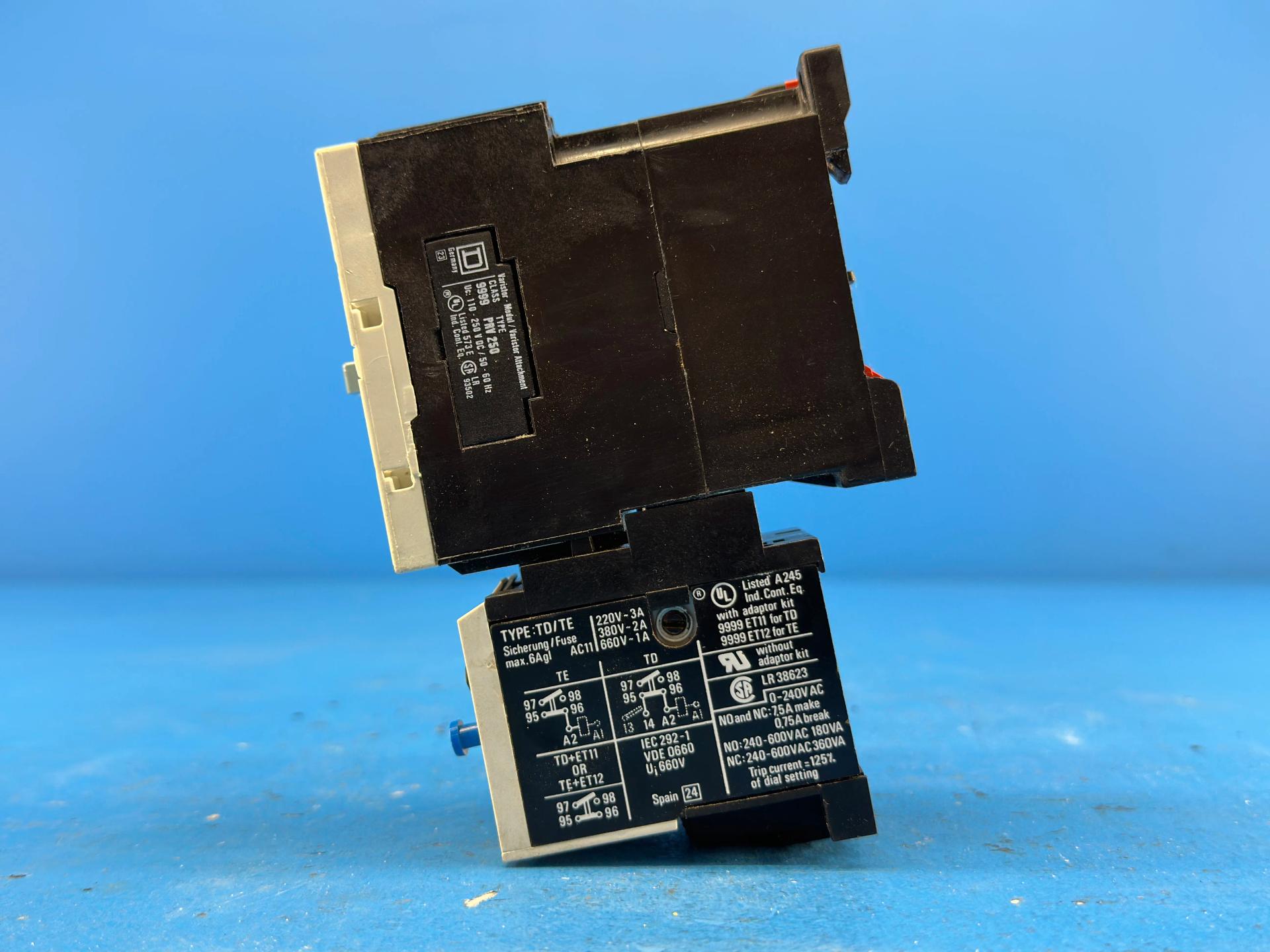

SURGE SUPPRESSOR MODULE (mounted)
Class: 9999    Type: see note below
Varistor module
Uc: 110-250 V, 50/60 Hz
Listed 573 E Ind. Cont. Eq. | CSA LR 93502

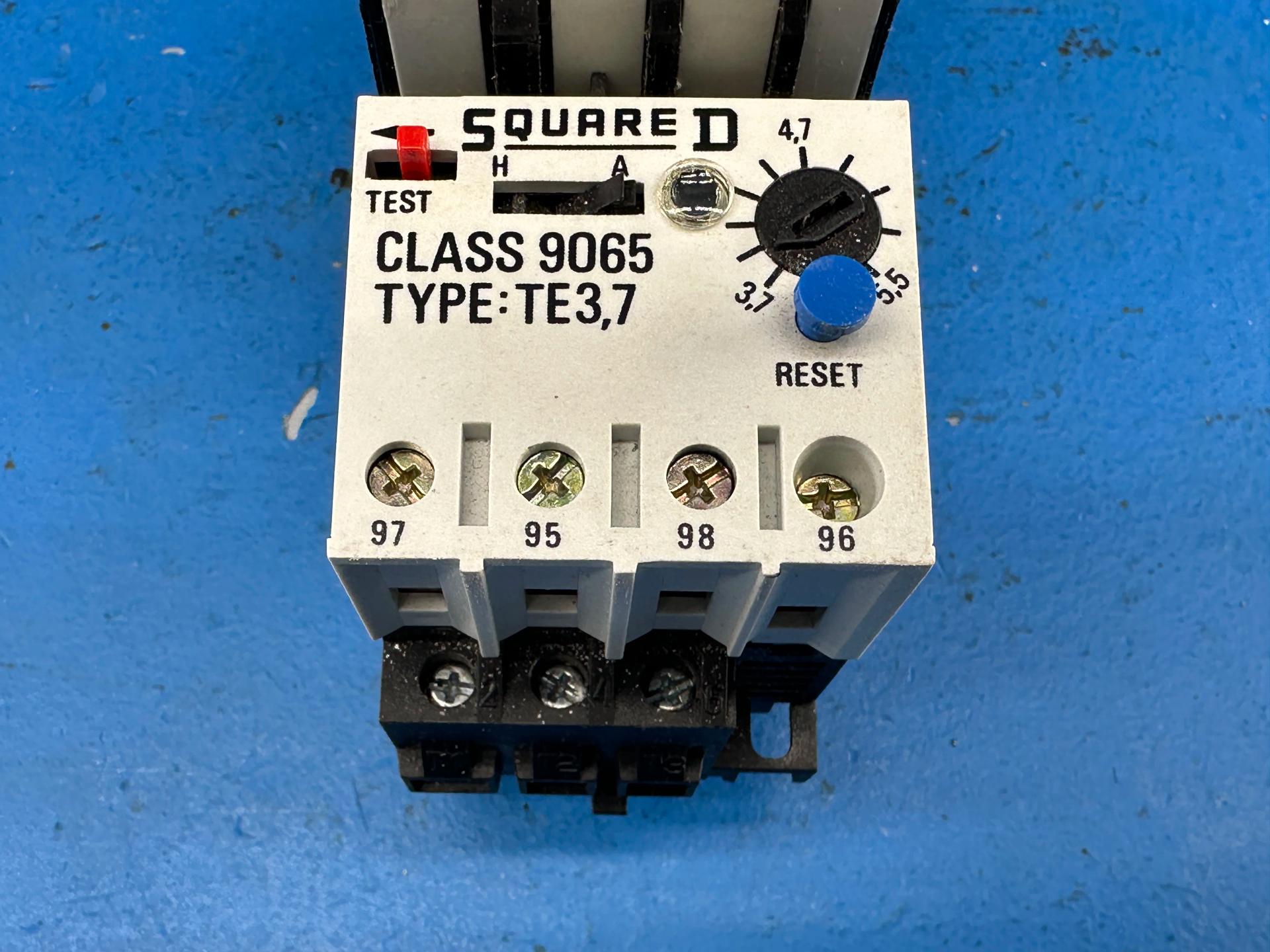

OVERLOAD RELAY - made in Spain
Class: 9065    Type: TE3,7 (TD/TE family)
Current Range: 3.7 - 5.5 A adjustable
Trip Current: 125% of dial setting
Reset: manual (H) / automatic (A) selectable
Max Fuse: 6 A gL
AC11: 220 V 3 A | 380 V 2 A | 660 V 1 A
Ui: 660 V
Aux Contacts: 97/98 (NO), 95/96 (NC)
Contact Ratings: 0-240 V AC, NO and NC: 7.5 A make, 0.75 A break
                NO: 240-600 V AC 180 VA | NC: 240-600 V AC 360 VA
Auxiliary type marking: TD/TE 220V~3A, 380V~2A, 660V~1A, AC11
STANDARDS: IEC 292-1 / VDE 0660
APPROVALS: UL Listed A245 Ind. Cont. Eq. (with adaptor kit 9999 ET11 for TD, 9999 ET12 for TE) | CSA LR 38623

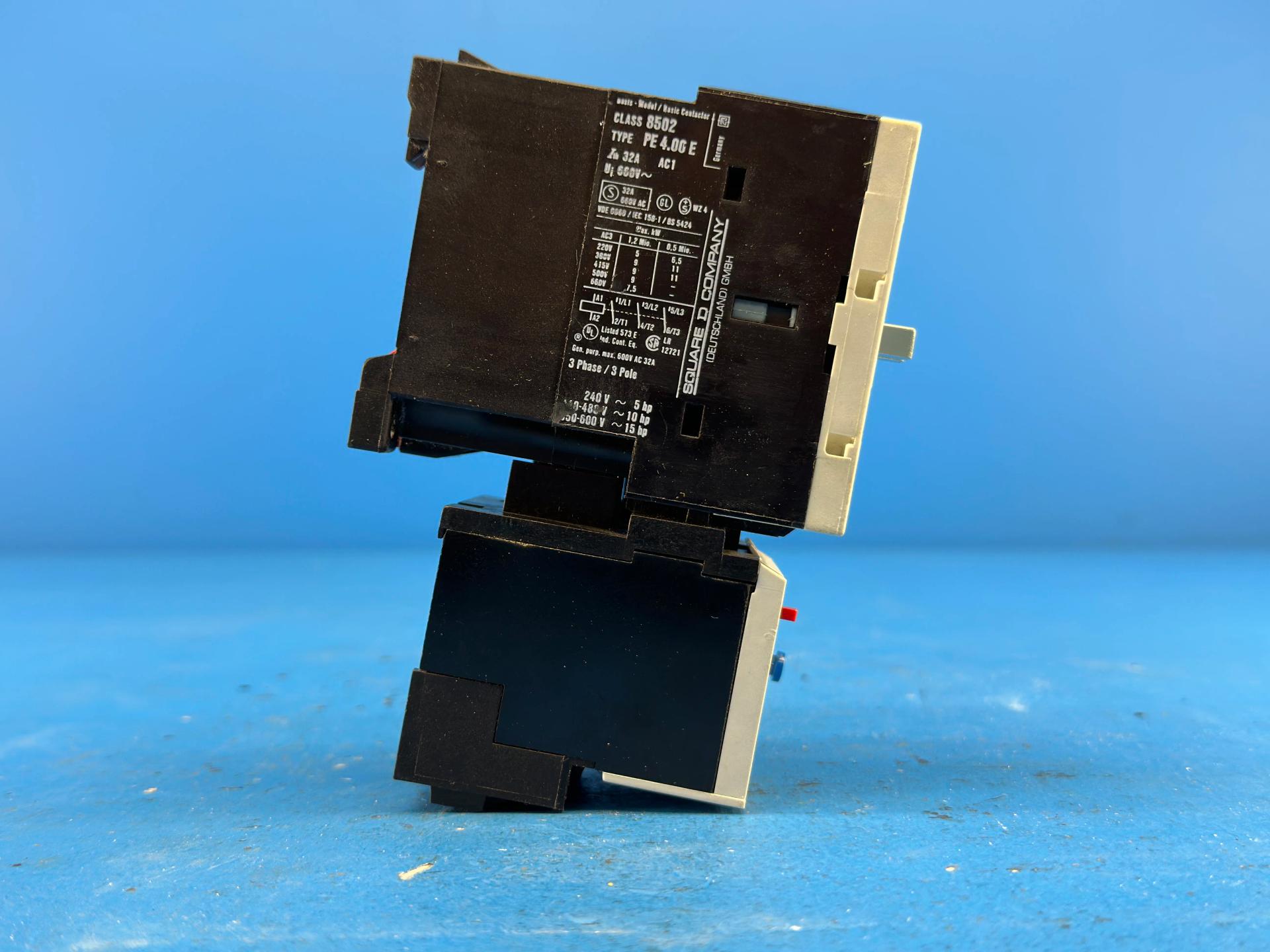

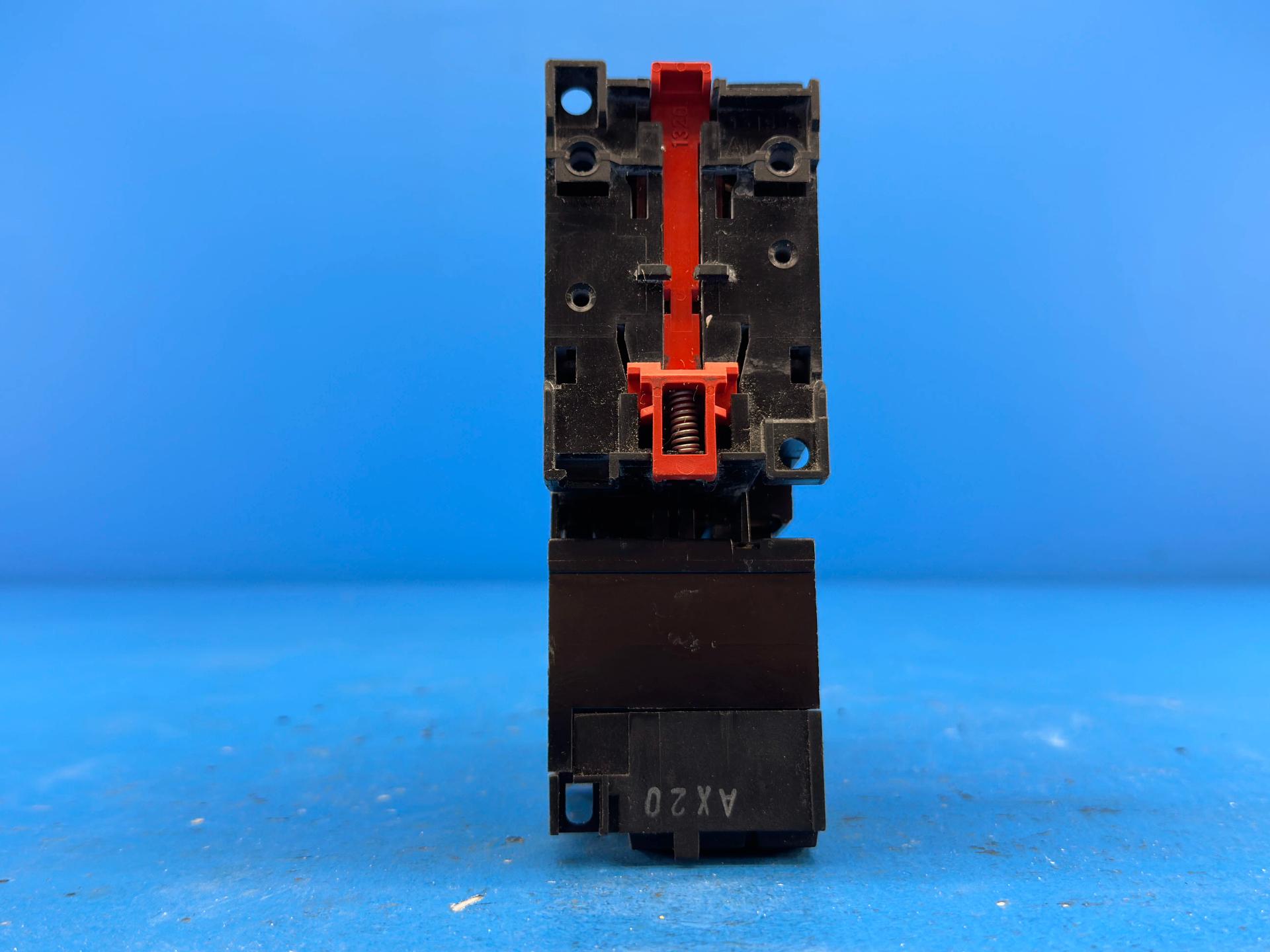

Spec Basis: verified 2026-09-16 against this record's own photographs (11 read), transcribing the contactor nameplate, the overload relay label and the suppressor module label directly. Agrees with record manufacturer (FID 56 Square D) and model (FID 57). The type is PE 4.00 E, a 32 A IEC 3-pole contactor - it is not a NEMA "size 4" and is not described as one anywhere in this entry.

THREE CORRECTIONS - THIS ENTRY WAS TREATED AS A KNOWN-GOOD EXEMPLAR AND IT WAS NOT CLEAN:

1. OVERLOAD CURRENT RANGE was recorded as "2.6 - 4.7 A". That is wrong. The relay's own dial is marked 3.7, 4.7, 5.5, and Square D catalogues the 9065 TD/TE "3,7" unit as a 3.7-5.5 A device. Corrected to 3.7 - 5.5 A. This is the setting range of a motor protection relay, so the wrong figure would have sent a buyer to the wrong motor.
2. AUXILIARY CONTACT MAKE RATING was recorded as "75A make, 0.75A break". The label reads 7.5 A make, 0.75 A break. A 75 A make against a 0.75 A break is a hundred-to-one ratio and is not a rating any pilot-duty contact carries. Corrected to 7.5 A.
3. SUPPRESSOR MODULE was recorded as "Type: PM 250 ... Uc: 110-240 VAC". The label's type characters are not confidently legible in the photographs - they read as PW 250, and Square D's Class 9999 varistor module in this voltage band is catalogued as PRV 250; PM 250 is not supported by either. The type is therefore left unstated rather than guessed. The printed Uc is 110-250 V, 50/60 Hz, not 110-240 V AC; the narrower AC-only range was not on the unit.

Everything else in the previous entry - class, type, series, Ith, Ui, the AC3 kW table, the horsepower table, standards, approvals, fuse, AC11 ratings, auxiliary contact numbering and the Spain origin of the relay - checked out verbatim against the labels.
