Square D Heavy Duty Safety Switch HU361
HU361 Disconnect Specifications: Amps, Voltage & NEMA Rating
Interchange & Panel Applications for Square D HU361
| Description | Details |
|---|---|
| Available Quantity | 3 |
| Model | HU361 |
| Condition | Used |
| Manufacturer | Square D |
| Asset Number | KSC1379 / 006 |
| Guarantee or ASIS | 3. UNKNOWN: Asset may or may not be in good condition ASIS |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$39.95
Basic Information
Asset #
KSC1379 / 006
Available Quantity
3
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
3. UNKNOWN: Asset may or may not be in good condition ASIS
Item Description

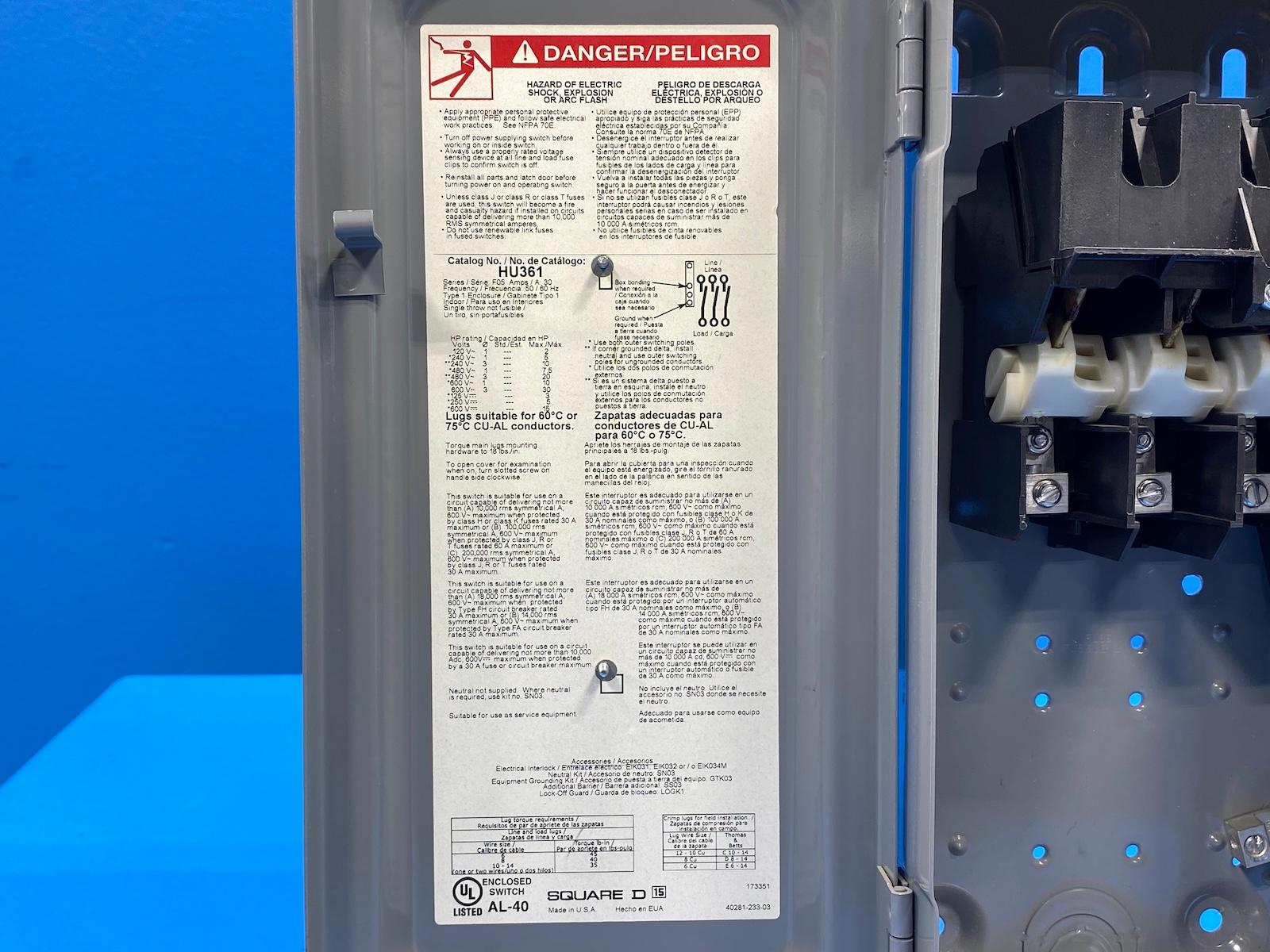

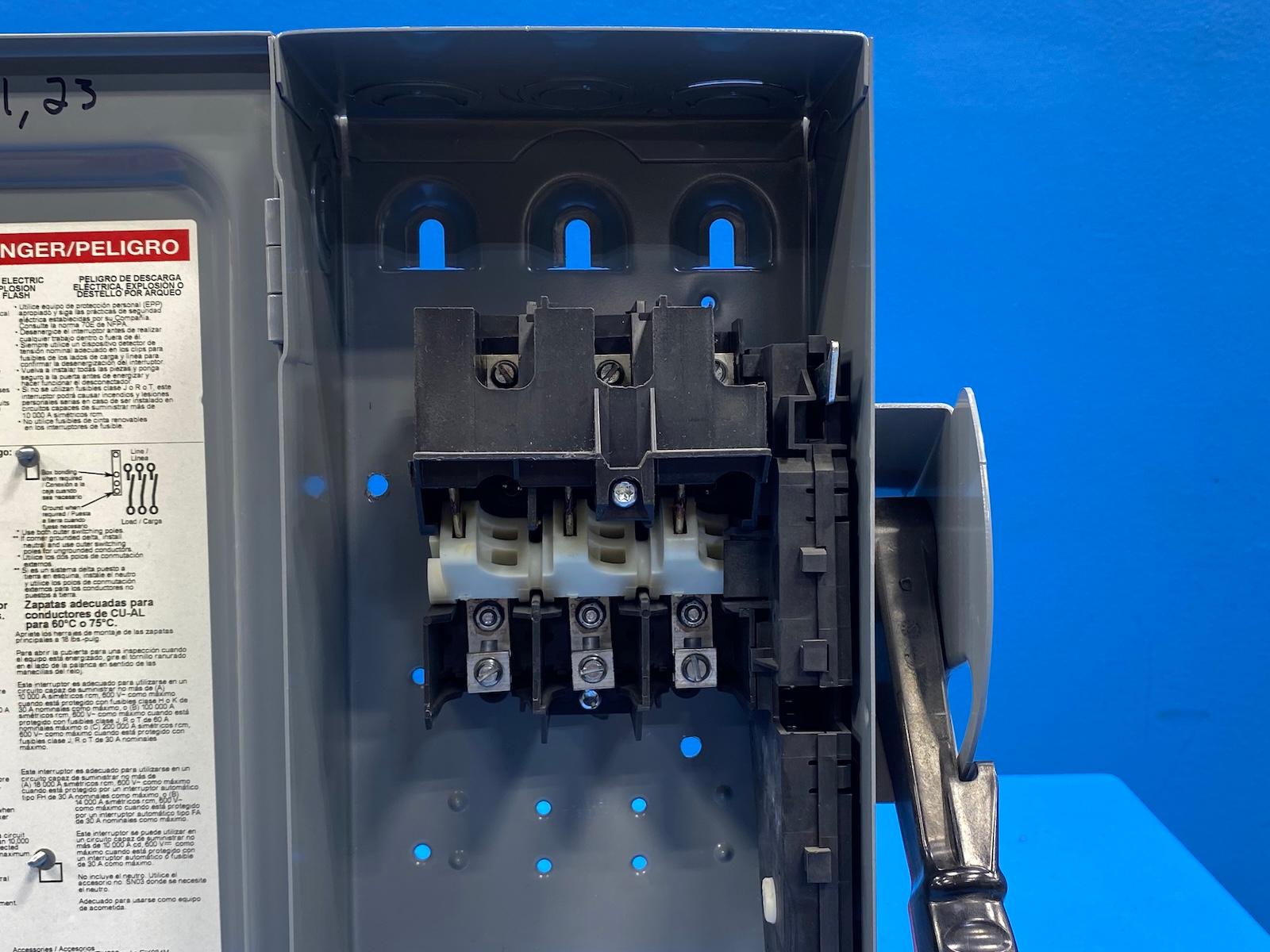

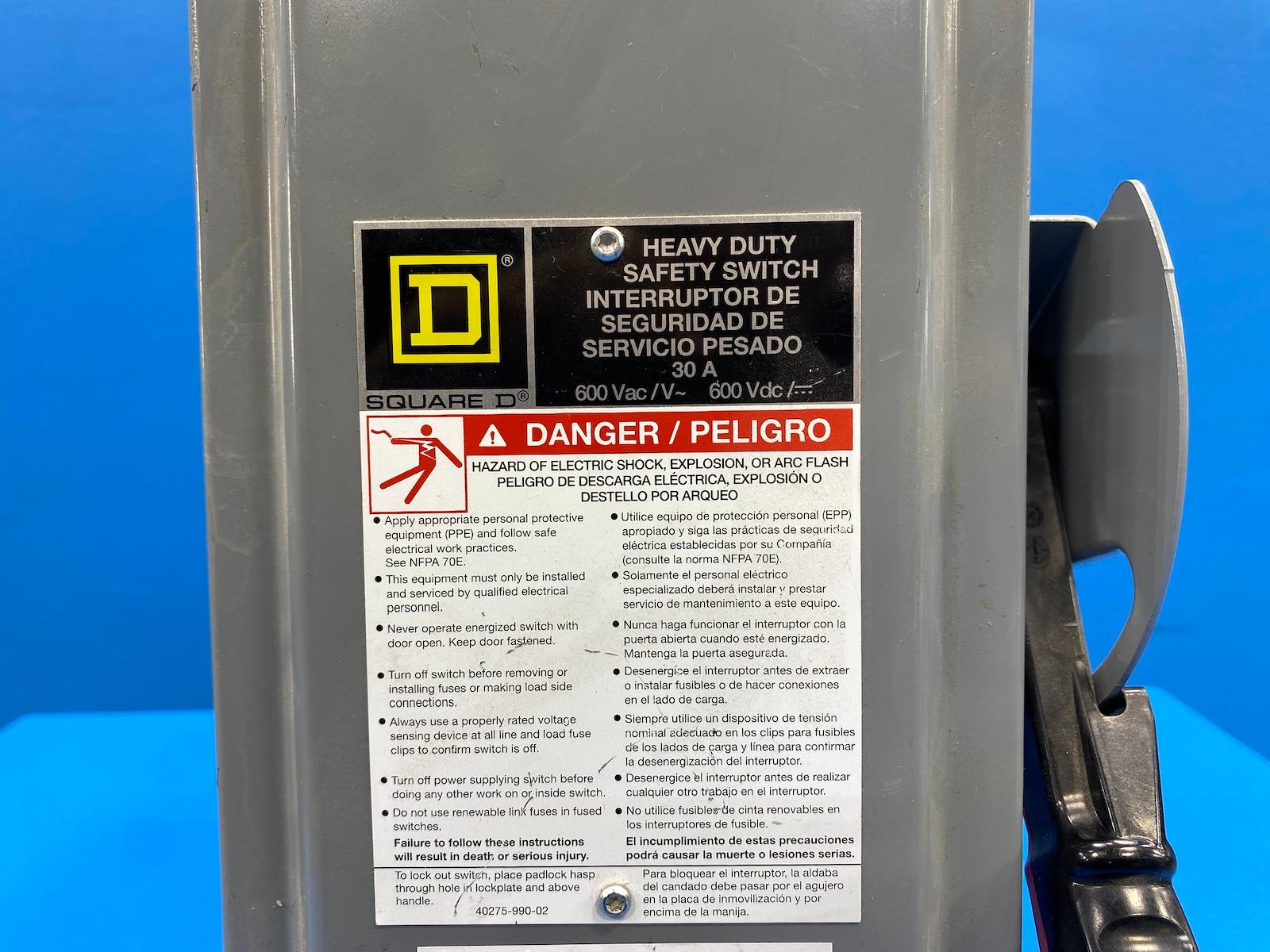

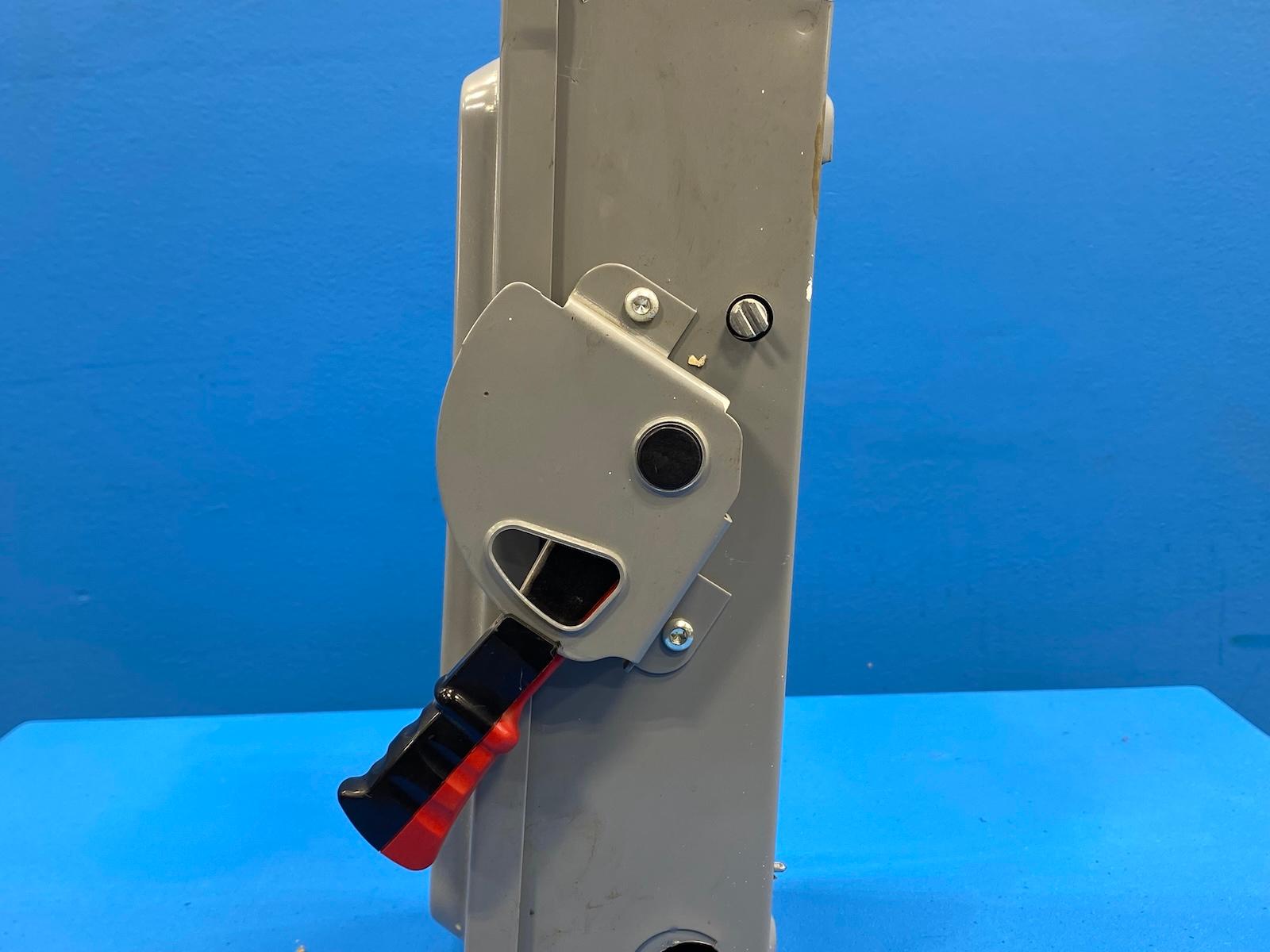

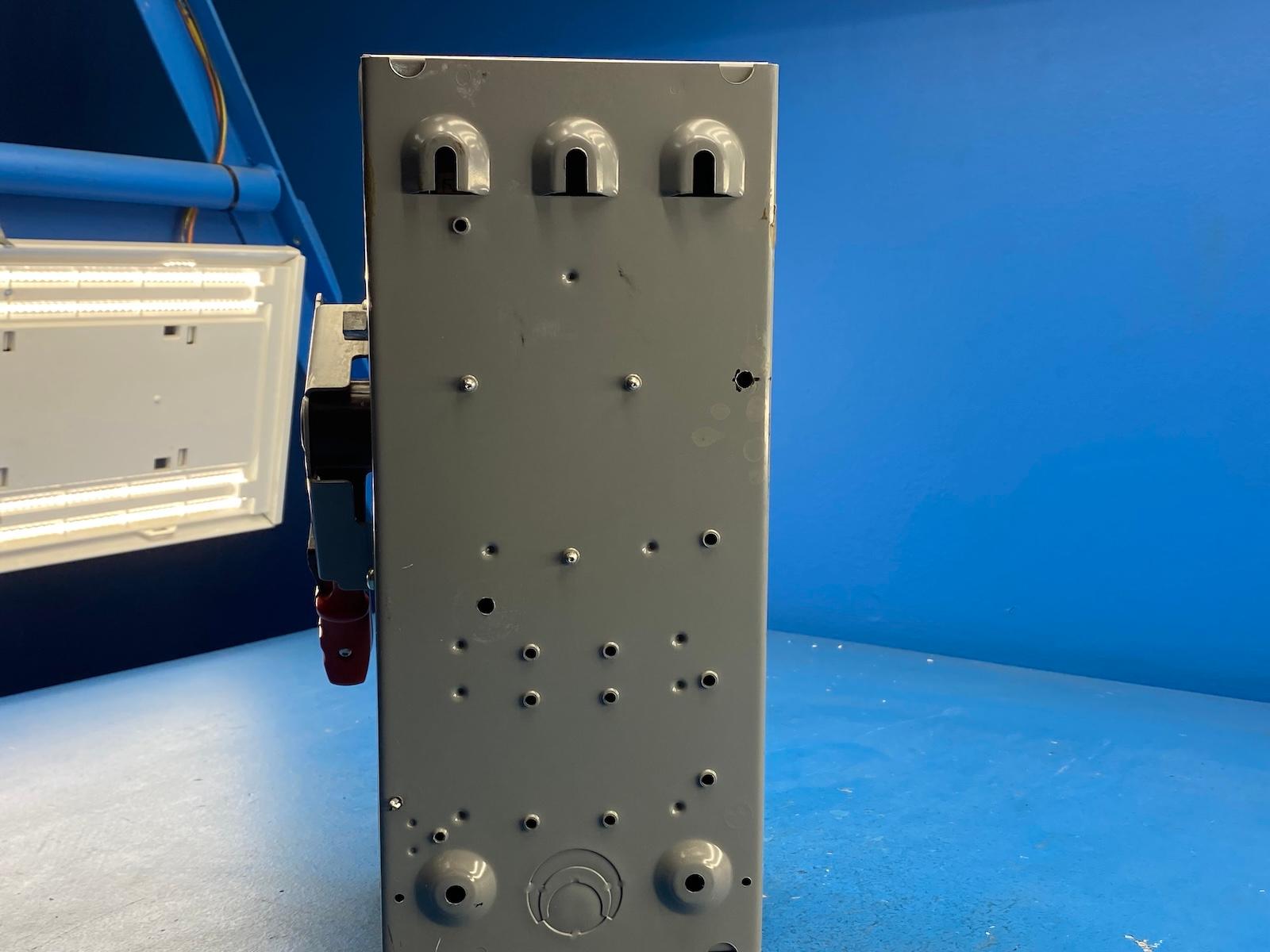

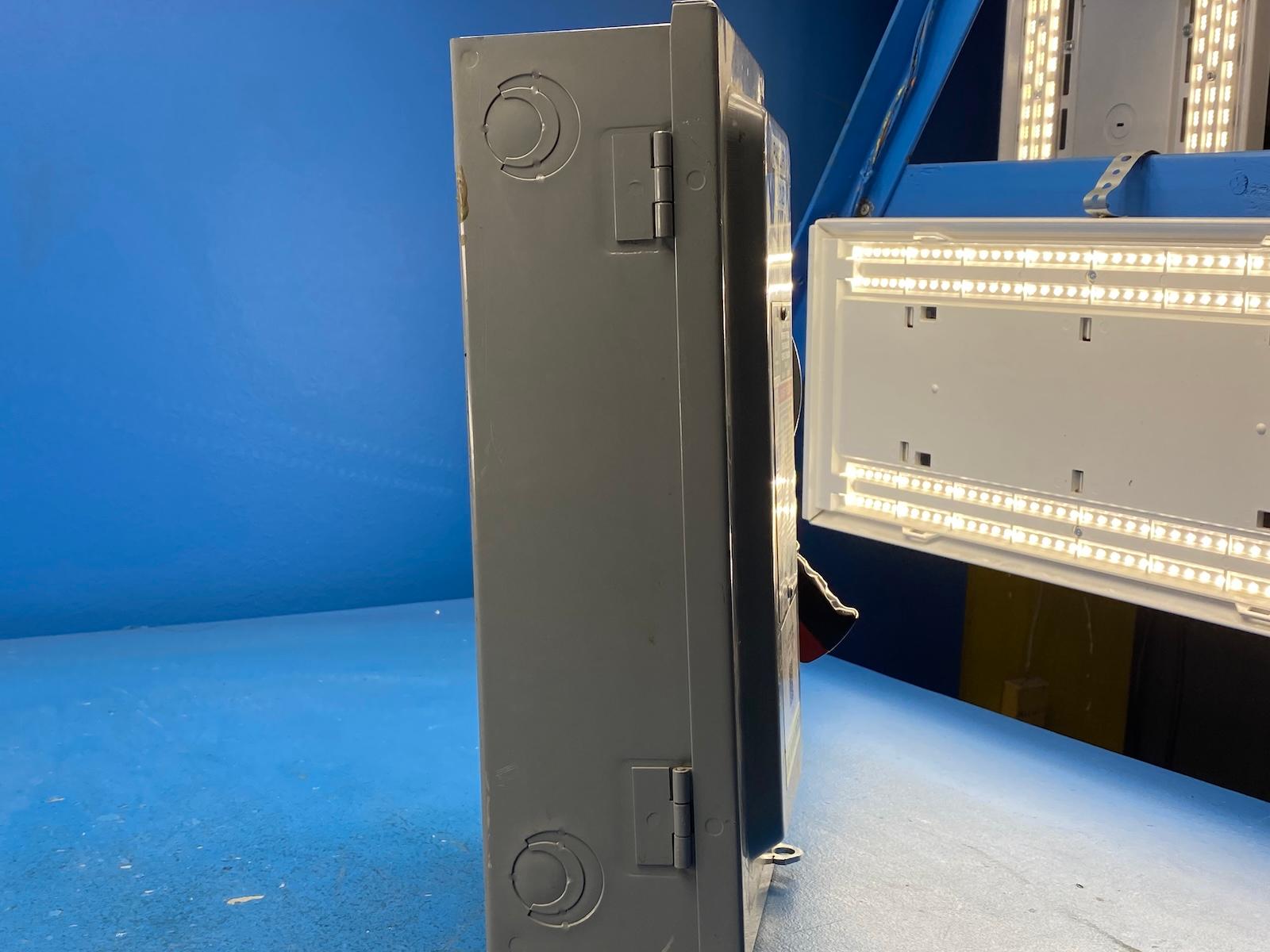

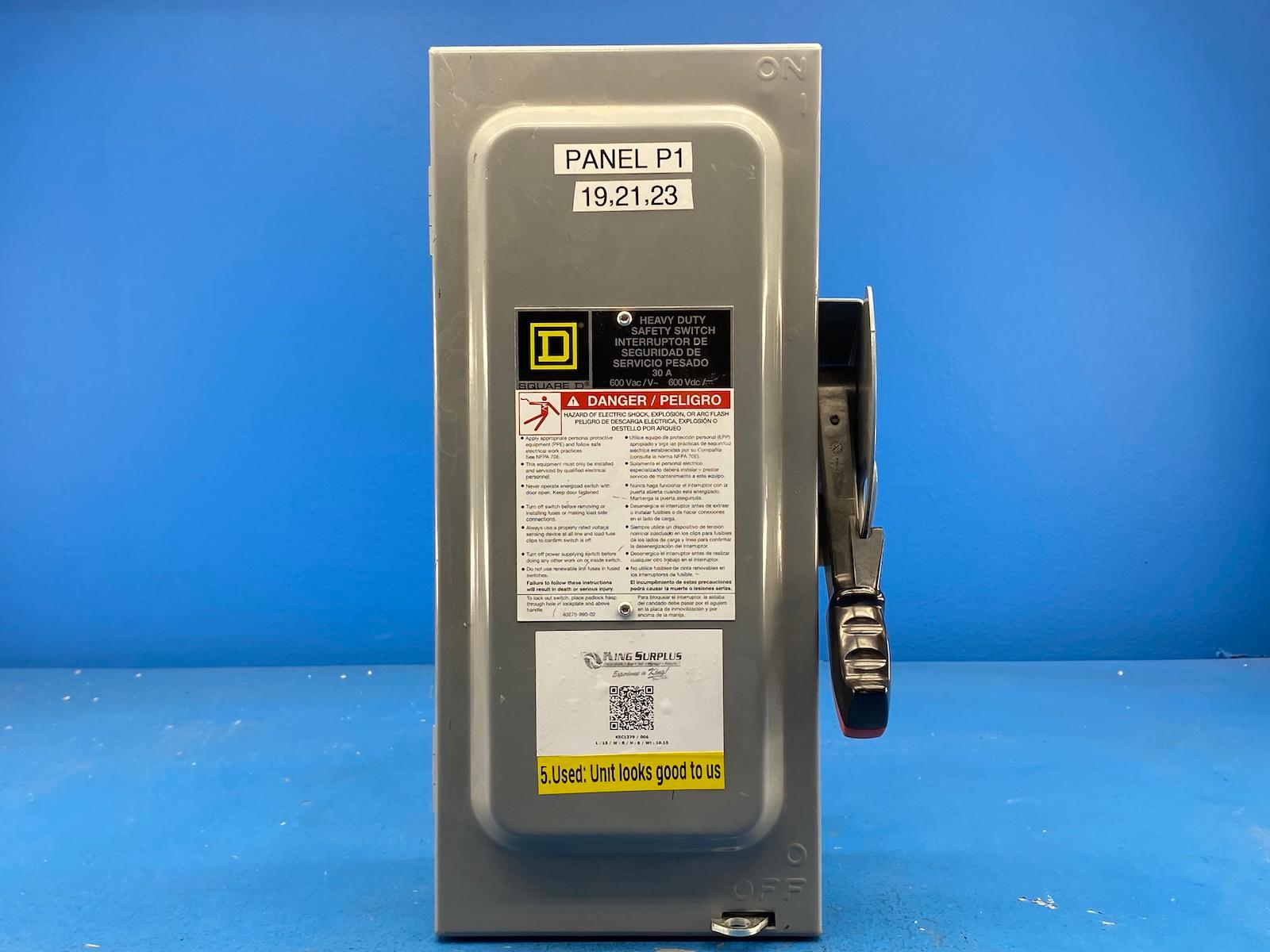

A Square D HU361 heavy duty safety switch provides manual disconnect protection for a 600VAC/VDC, 30 amp, three-phase circuit. Square D, now part of Schneider Electric, has manufactured switchgear and disconnects in North America since 1903, and the H-series heavy duty line is a common fixture in industrial and commercial electrical rooms. This unit is non-fusible, 3-pole, 3-wire, with a quick-make quick-break single-throw mechanism, a dual cover interlock, and a 200kAIC interrupting rating at 600V. The NEMA 1 steel enclosure is rated for indoor, surface-mount installation and accepts 14-6 AWG copper or 12-6 AWG aluminum conductors via lug terminals. Sold as-is, surplus from King Surplus inventory in Del Rio, Texas. Same-day shipping on orders before 3:00 PM CT.
Factory Information
Manufacturer: Square D (Schneider Electric) Model / Catalog #: HU361 Type: Heavy Duty Safety Switch, Non-Fusible, Single Throw Voltage Rating: 600 VAC/VDC Current Rating: 30A Pole Count: 3-Pole, 3-Wire NEMA Enclosure Rating: NEMA 1 (indoor, surface mount) Interrupting Rating: 200kAIC at 600V Wire Range: 14-6 AWG (Cu), 12-6 AWG (Al) Dimensions: 14.6 in H x 7.55 in W x 4.87 in D Condition: Used, surplus (sold as-is)
Specifications
Square D
HU361
N/A
N/A
30
30
15
8
6
Three Phase
2
10.15
KSC1379 / 006
Packaging fees
1.6 6x10 CH $3.00
