WECO 560 2-Pole Steatite Ceramic Terminal Block 380V 2.5mm2, UL 300V 20A
560 Terminal Block Specifications: Amps, Voltage & Wire Range
DIN Rail & Wiring Compatibility for WECO 560
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 560 |
| Condition | New |
| Manufacturer | WECO |
| Asset Number | KSC1230 / 1098 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$9.95
Basic Information
Asset #
KSC1230 / 1098
Available Quantity
1
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

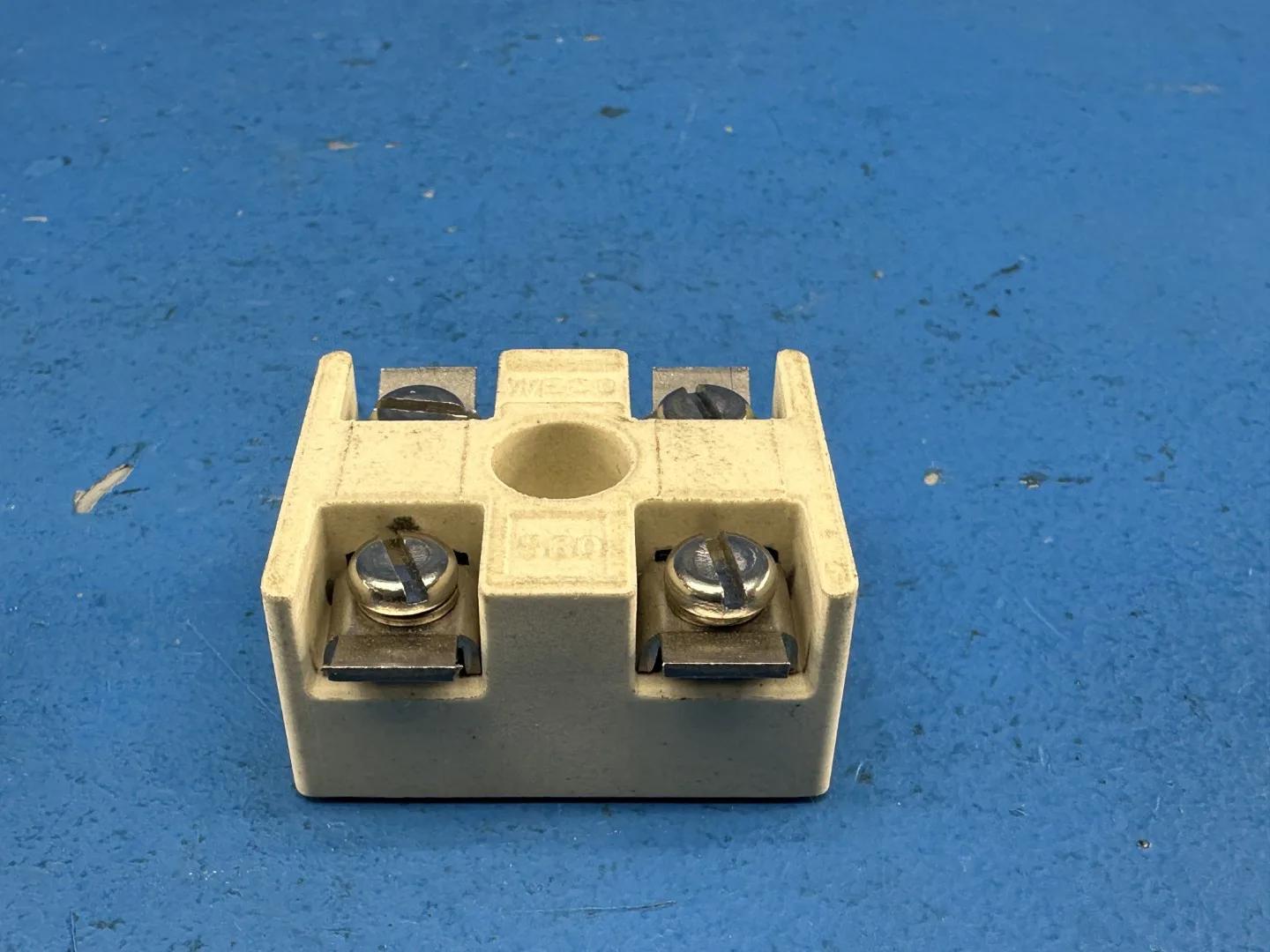

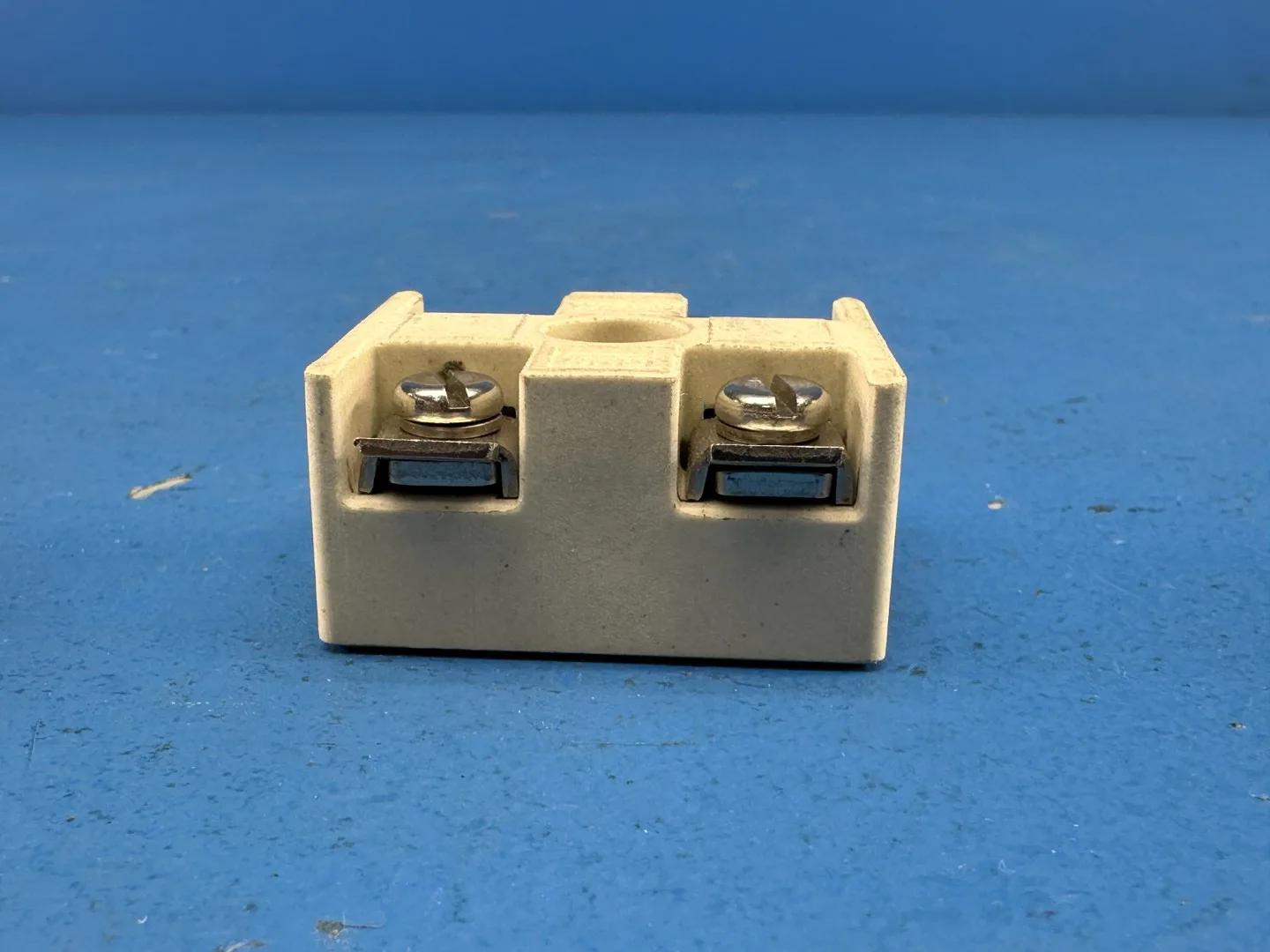

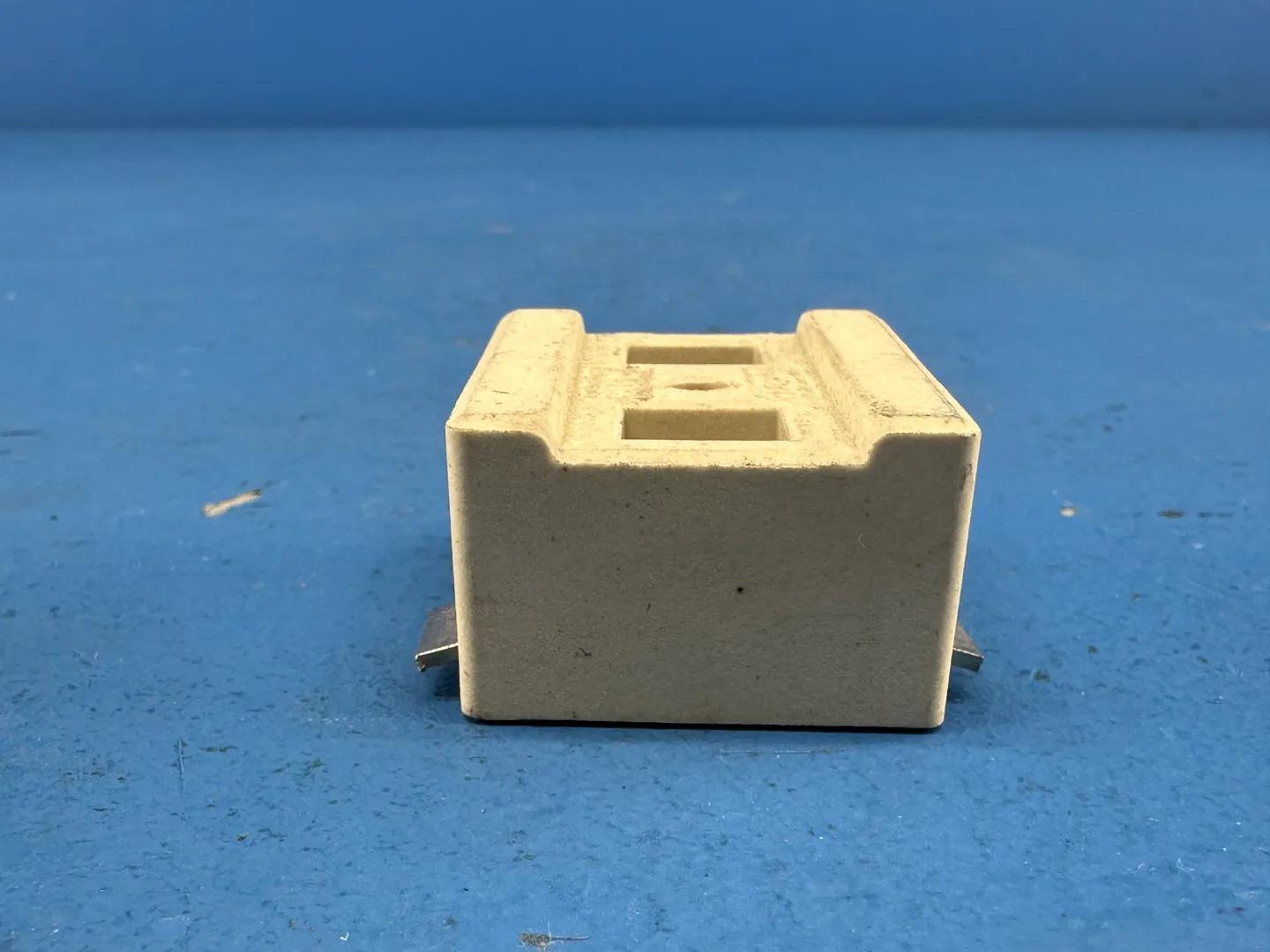

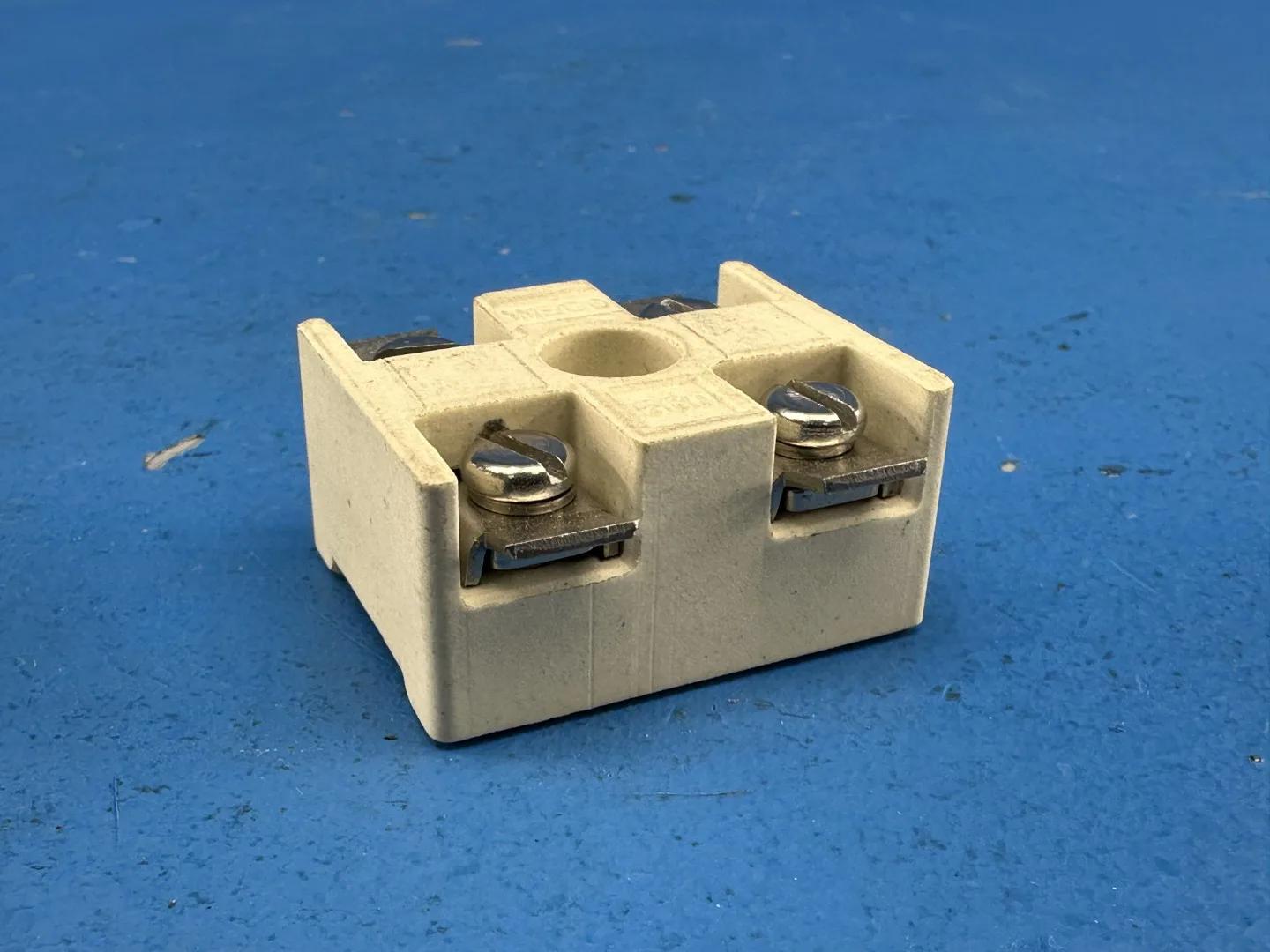

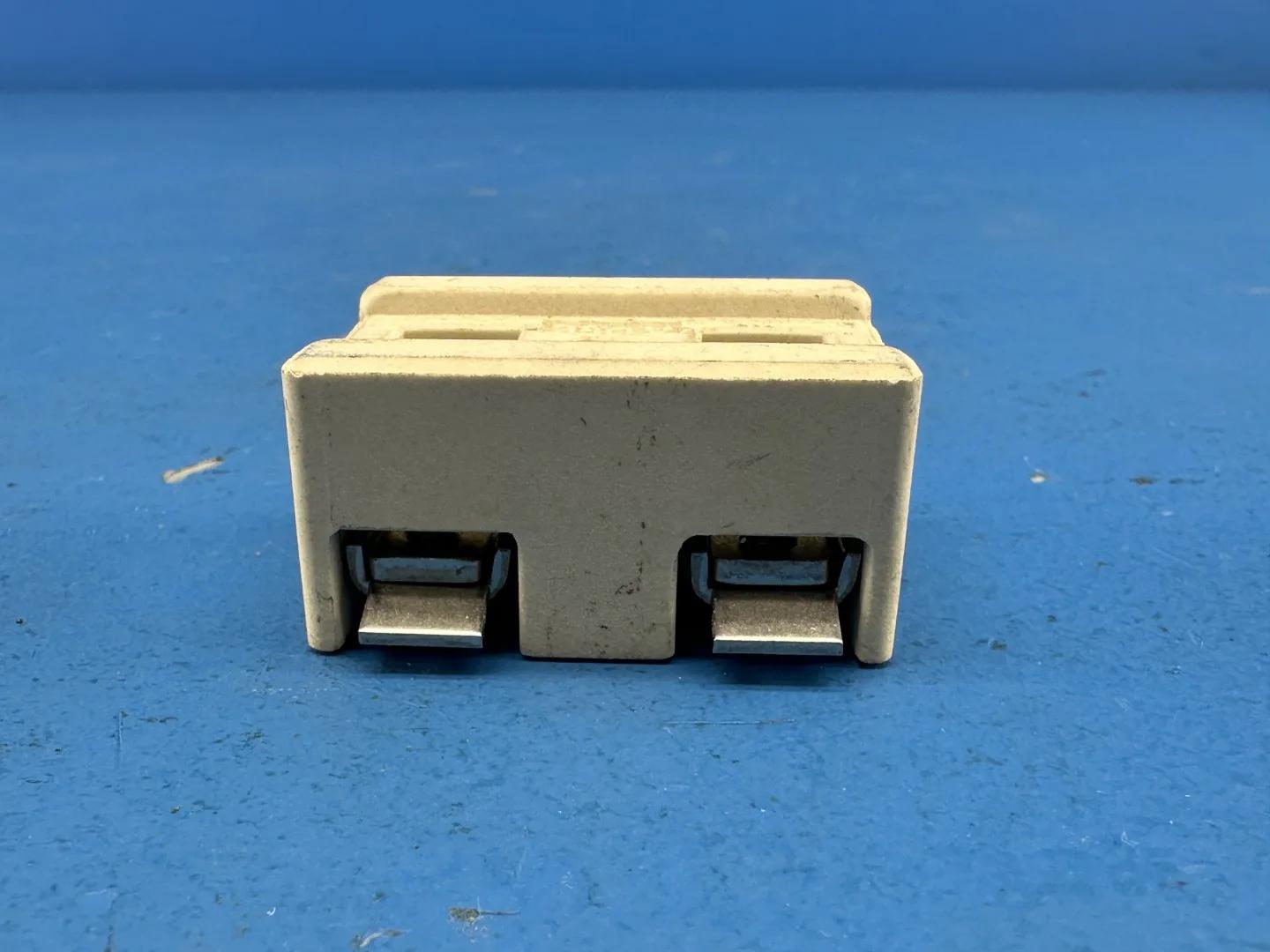

This is a WECO Series 560 ceramic terminal block, a two pole connector with a glazed steatite body and screw terminals. The part is marked 560 and 380 V with its metric wire size. WECO rates the 560 series at 300 V and 20 A for wire from 20 to 12 AWG under UL, and 600 V and 25 A under CSA, with 22.5 mm center to center spacing. Standard types use nickel plated brass terminals and are rated to 240 C, while the 560-K4DF-V2A version uses stainless steel parts and is rated to 500 C.
Ceramic terminal blocks are used where ordinary plastic terminal strips would soften, char or melt. The steatite body holds its shape and insulating properties at high temperature, so these blocks join power leads to heating elements and internal wiring in industrial ovens, kilns, furnaces, heat treating equipment, process heaters, commercial cooking equipment and lighting fixtures. The two riveted terminals are secured against twisting when the screws are tightened.
Electrical maintenance technicians, heating equipment builders and appliance service shops use the 560 series to replace heat damaged connections on existing equipment.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: WECO
- Series: 560 ceramic terminal block, 2 pole

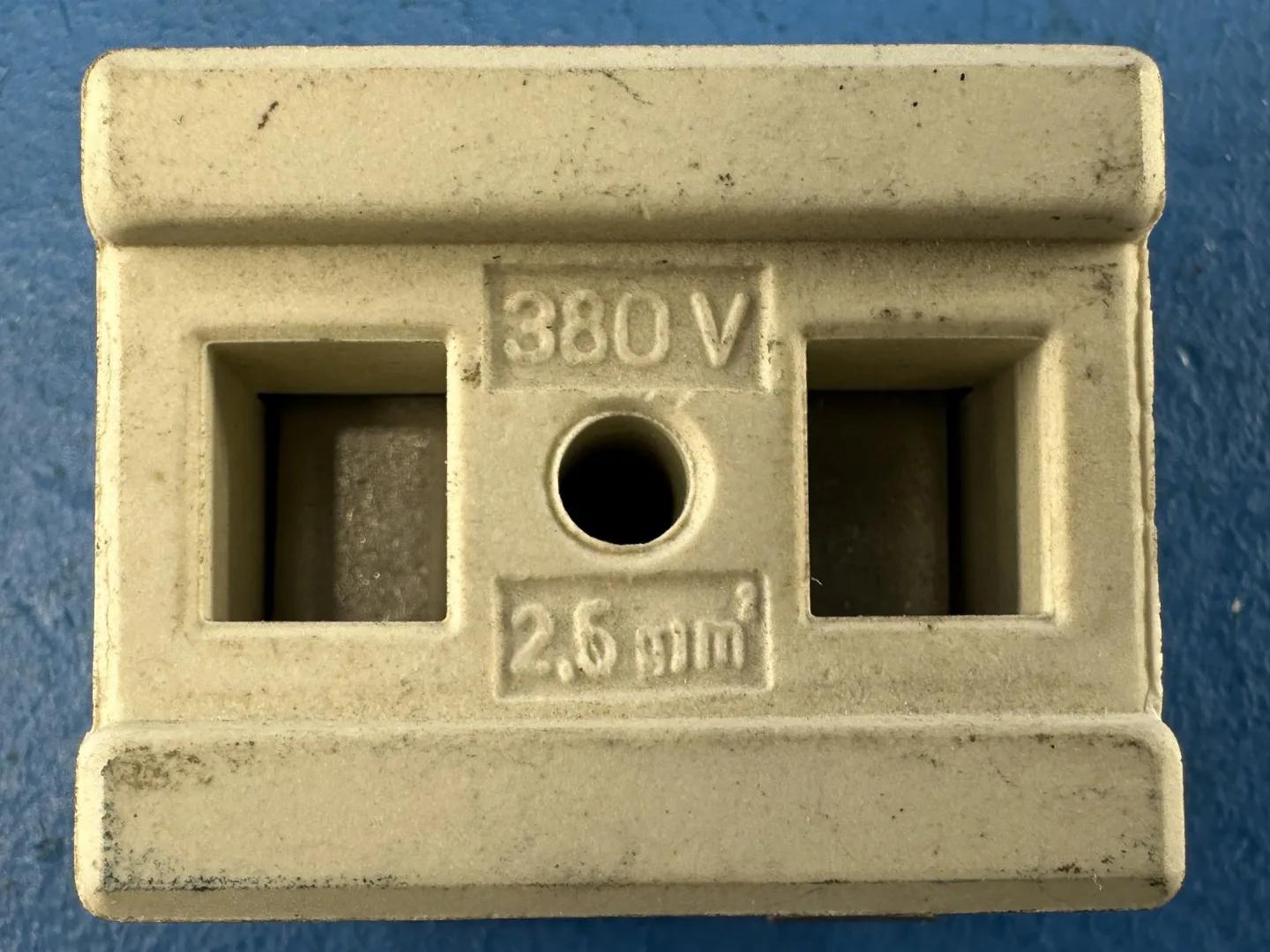

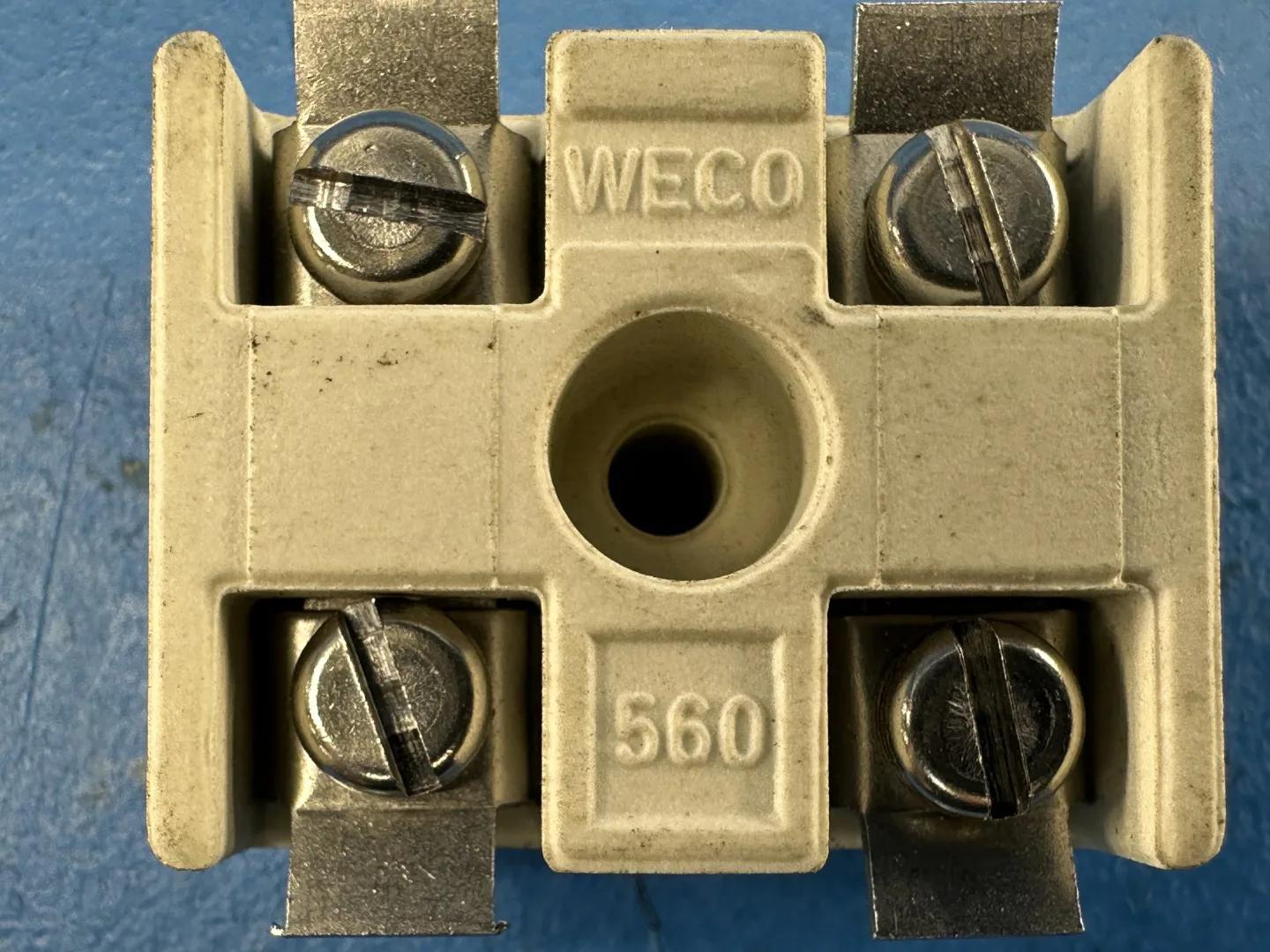

- Marking on Part: 560, 380 V, 2.5 mm2 (photo read 2.6 mm2)
- UL Rating: 300 V, 20 A, AWG 20-12
- CSA Rating: 600 V, 25 A, AWG 20-12
- Wire Cross Section: 2.5 mm2 with binding clip, 4 mm2 without
- Center to Center Spacing: 22.5 mm (0.886 in)
- Wire Stripping Length: 8 mm (0.31 in)
- Insulating Body: steatite, KER 220 DIN 40685, white
- Standard Type: nickel plated brass terminals, upper temperature limit 240 C (464 F)
- High Temperature Version 560-K4DF-V2A: stainless steel metal parts, upper limit 500 C; which version this is was not confirmed from photos
- Approvals: UL File E69841, CSA File LR24322
- Spec Basis: nameplate photo (marking 560 / 380 V / mm2); Connex Electronics Weco Series 560 specification page https://www.connex-electronics.com/html/products/weco/productspecs/560.html; RS Americas WECO 560-K4DF-V2A listing https://us.rs-online.com/product/weco/560-k4df-v2a/70212134/
