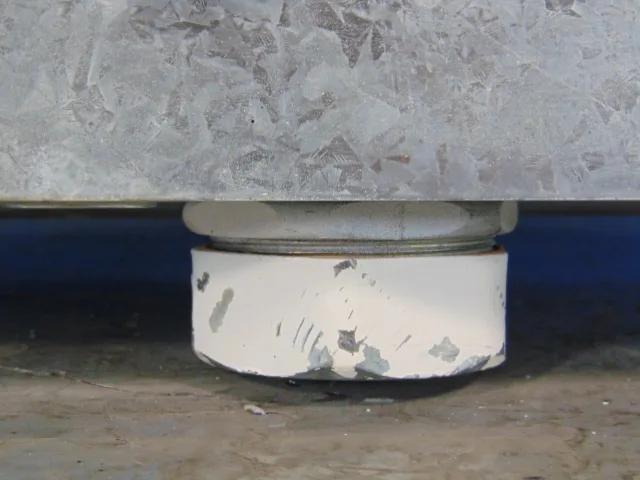

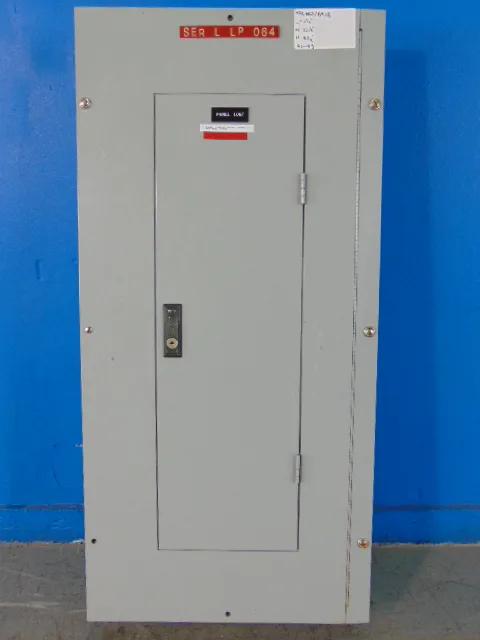

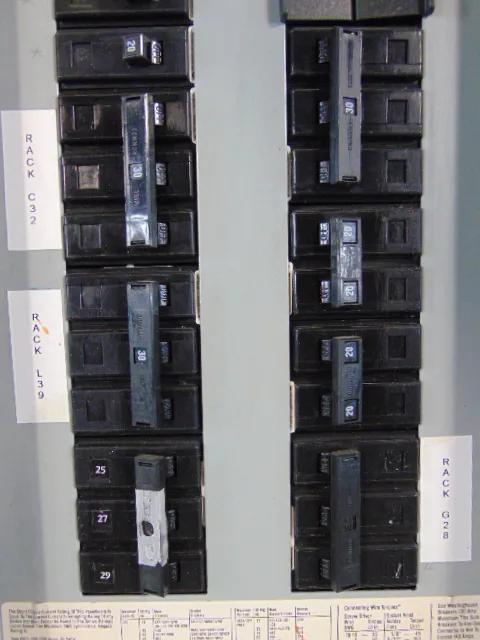

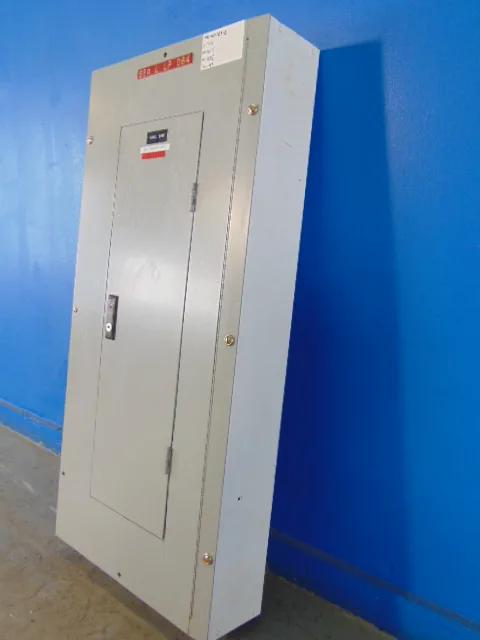

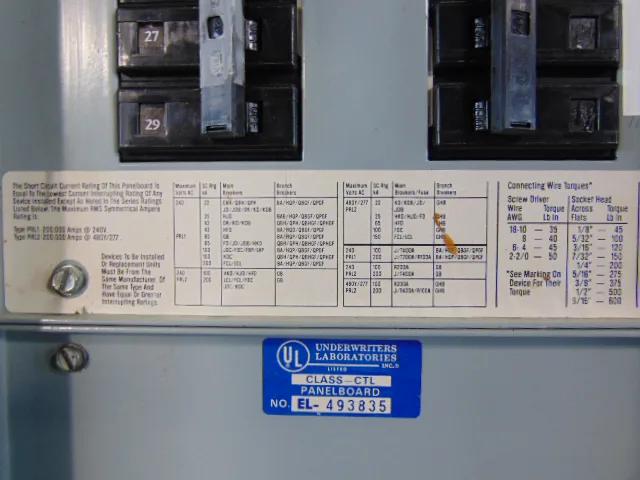

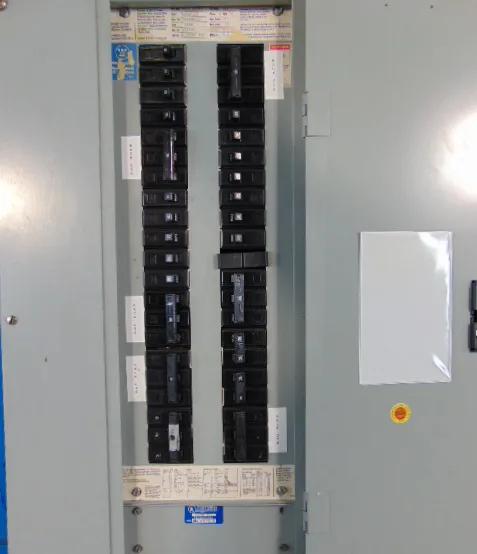

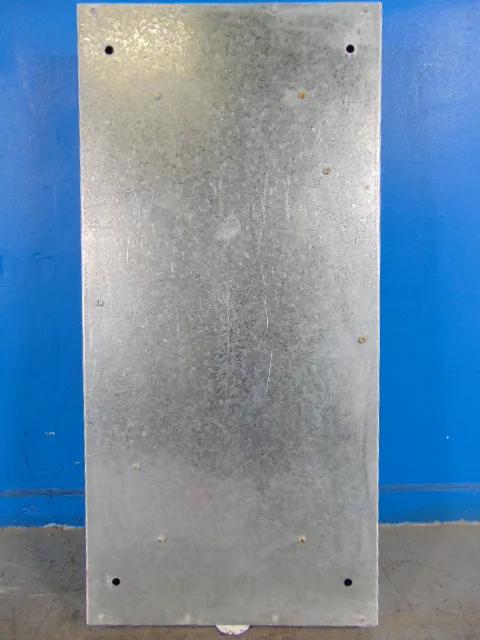

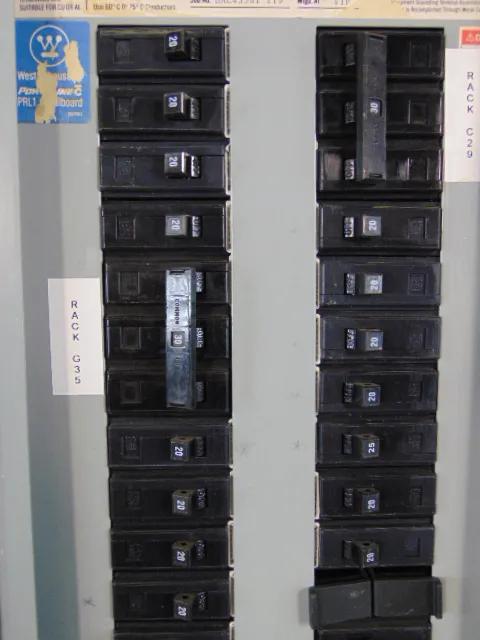

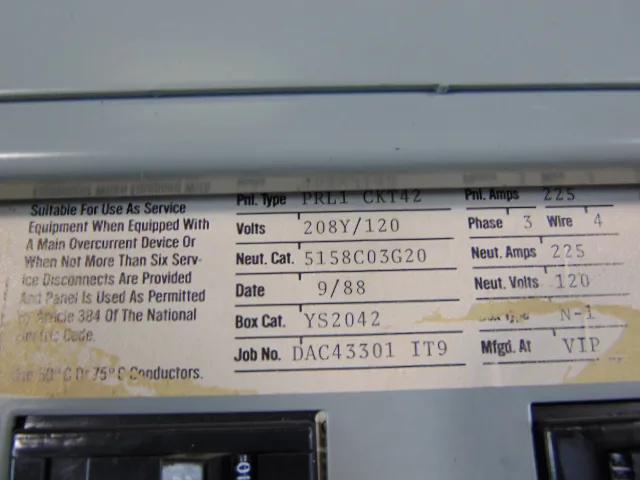

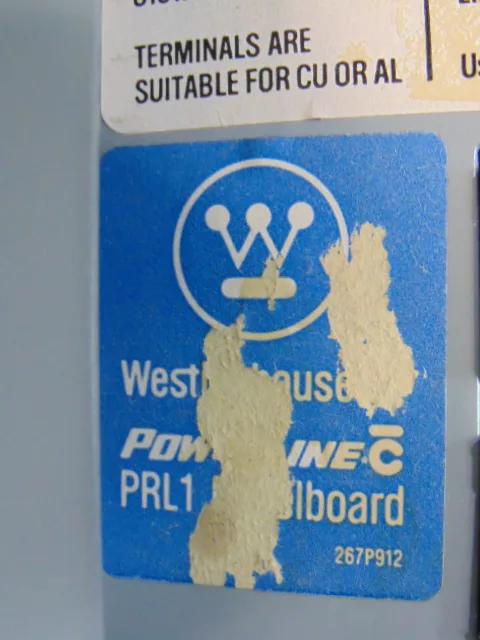

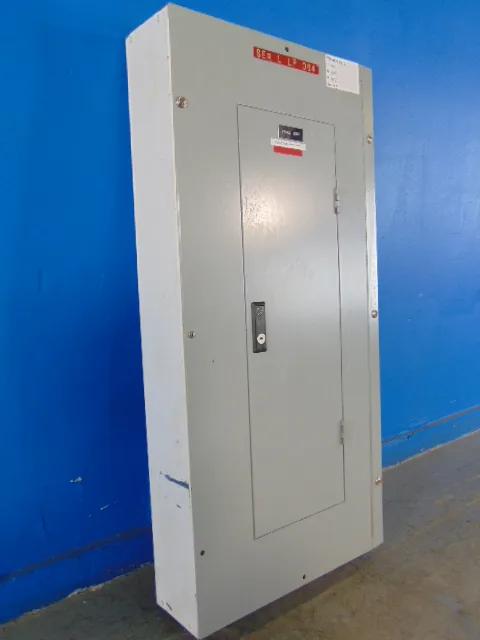

This Westinghouse Pow-R-Line C panelboard is a Type PRL1 CKT42 unit rated 225 amps at 208Y/120V, 3-phase, 4-wire. It is a main lug panelboard (no main breaker) in a surface enclosure, supplied loaded with a full set of Westinghouse bolt-on branch breakers across 42 circuit spaces. Installed breaker complement: eight 20 amp single-pole, thirteen 20 amp two-pole, and four 30 amp two-pole. Box catalog YS2042, neutral assembly 5158C03G20. Westinghouse PRL1 panelboards are a widely installed commercial and industrial platform compatible with Westinghouse and Cutler-Hammer bolt-on breakers. The panel is used and in good condition. The enclosure and door show minor cosmetic wear, the nameplate has light paint splatter, and the rear panel shows light surface oxidation. Sold as surplus, condition per the inspection tag.

Manufacturer: Westinghouse Product Line: Pow-R-Line C, Type PRL1 CKT42 Box Catalog No.: YS2042 Neutral Catalog No.: 5158C03G20 Panel Rating: 225 Amp Voltage: 208Y/120V Phase / Wire: 3-Phase, 4-Wire Circuit Spaces: 42 Configuration: Main lug (no main breaker), enclosed, surface mount Installed Breakers: 8x 20A 1-pole, 13x 20A 2-pole, 4x 30A 2-pole (Westinghouse bolt-on) Condition: Used, good Dimensions (in): approx. 43.5 H x 20.5 W x 6.5 D Weight: approx. 93 lbs
