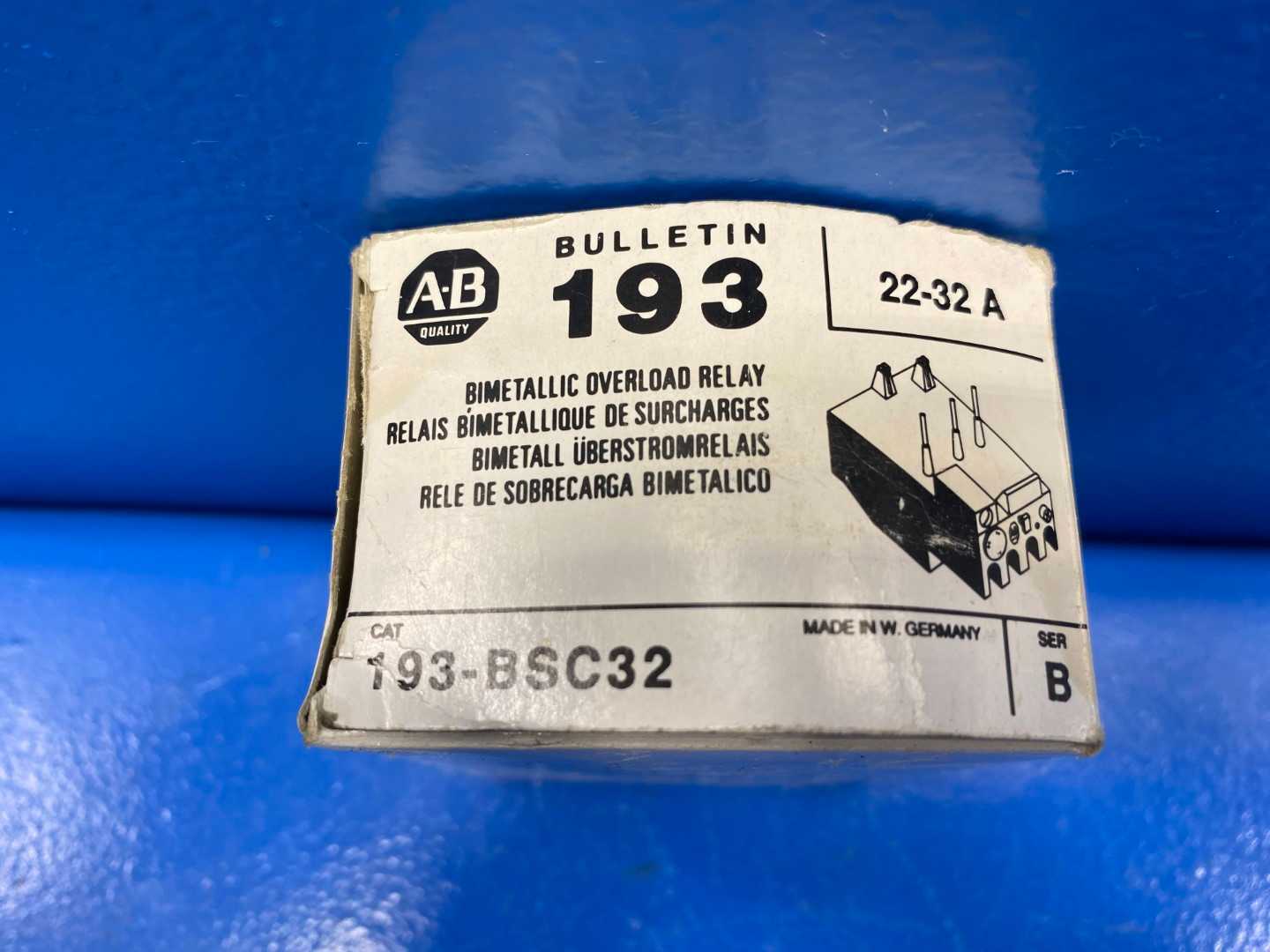

Allen-Bradley 193-BSC32 Bimetallic Overload Relay 22-32 Amps Series B
193-BSC32 Relay Specifications: Coil Voltage, Contacts & Base
Socket & Interchange Compatibility for Allen-Bradley 193-BSC32
1 / 8
+8
+8
1 / 8
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 193-BSC32 |
| Condition | New |
| Manufacturer | Allen-Bradley |
| Asset Number | KSC877 / 432 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
Free Shipping
$84.00
Basic Information
Asset #
KSC877 / 432
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
The Allen-Bradley Bulletin 193-BSC32 is a part of the PowerFlex 700 series, designed for variable frequency drive applications.
This product is commonly used in various industries, including manufacturing, water treatment, and HVAC systems.
The primary purpose of the Bulletin 193 series is to control the speed and torque of electric motors, enabling efficient energy usage and improved process control.
Key features of the Bulletin 193-BSC32 include:
- Advanced motor control capabilities that enhance operational efficiency.
- Robust protection features, including overload and short-circuit protection.
- User-friendly interface for easy setup and operation.
- Comprehensive compatibility with a wide array of drives and motors, providing flexibility in applications.
The Bulletin 193-BSC32 is acknowledged for its reliability and performance, making it a preferred choice among engineers and technicians in various sectors.
Factory Information
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Catalog Number: 193-BSC32
- Bulletin: 193
- Series: B
- Type: IEC bimetallic (thermal) overload relay, ambient compensated
- Current Adjustment Range: 22 to 32 A, adjustable over the motor full load current range
- Trip Class: Class 10
- Heater Elements: integral. No separate heater elements are required.
- Single Phase Sensitivity: differential mechanism for sensitivity to single phasing conditions

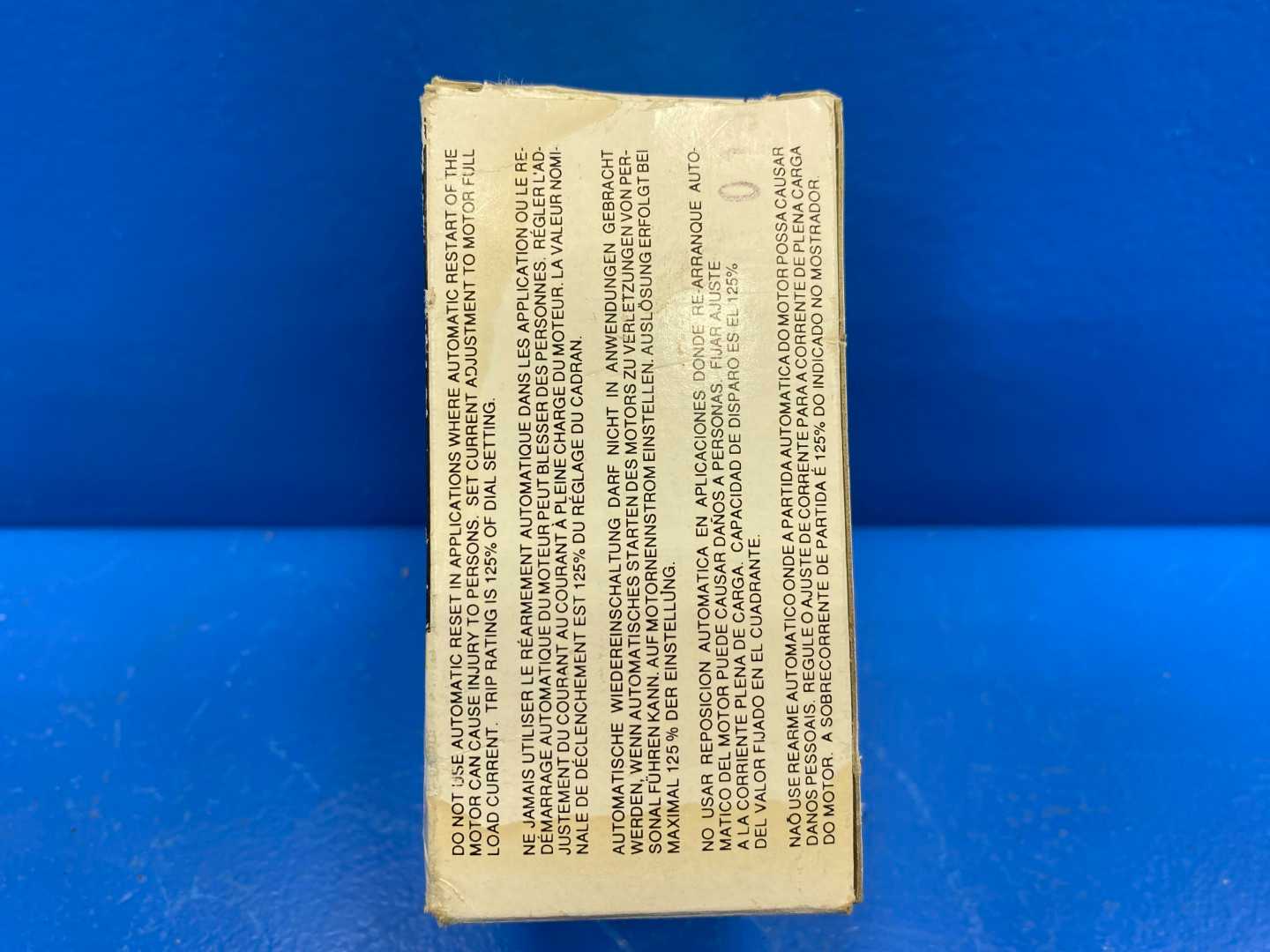

- Reset: selectable manual or automatic
- Auxiliary Contacts: 1 N.O. and 1 N.C. isolated contacts (same polarity above 300V). Trip contact 95-96 N.C., alarm contact 97-98 N.O.
- Rated Thermal Current Ith (contacts): 5 A
- Rated Insulation Voltage Ui: 660 V IEC / 600 V UL
- Contact Rating AC15: 3.0 A at 12-120 V; 1.5 A at 220-240 V; 0.75 A at 380-480 V; 0.60 A at 500-600 V (same for trip and alarm)
- Contact Rating DC13 (L/R = 15 ms): 1.1 A at 24 V; 0.4 A at 110 V; 0.2 A at 220 V; 0.08 A at 440 V
- Dielectric Strength: 2500 V for 1 minute

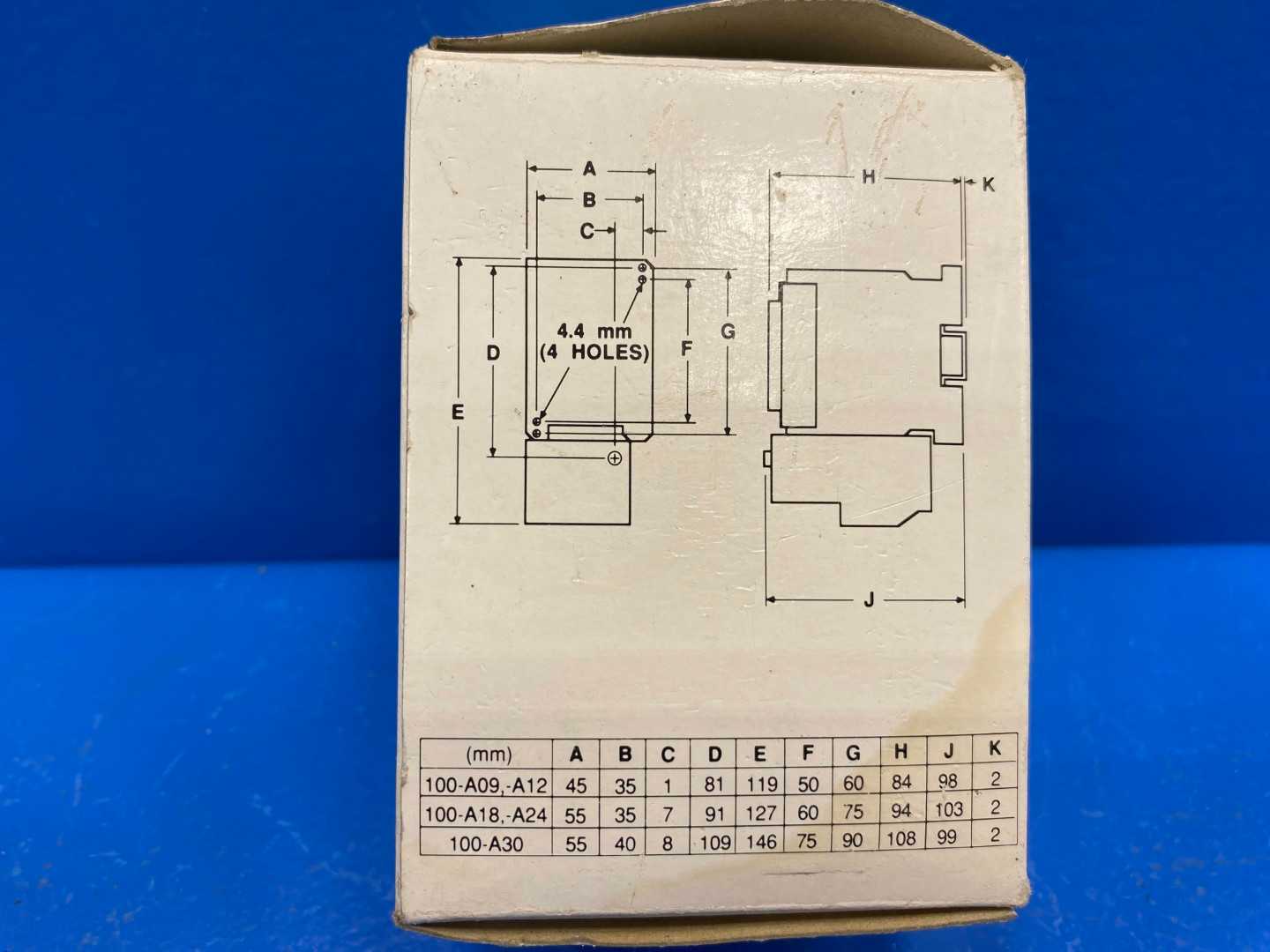

- Mounting: directly to contactor terminals, or panel and rail mounting with an adaptor (193-BPM1 DIN rail / panel adaptor)

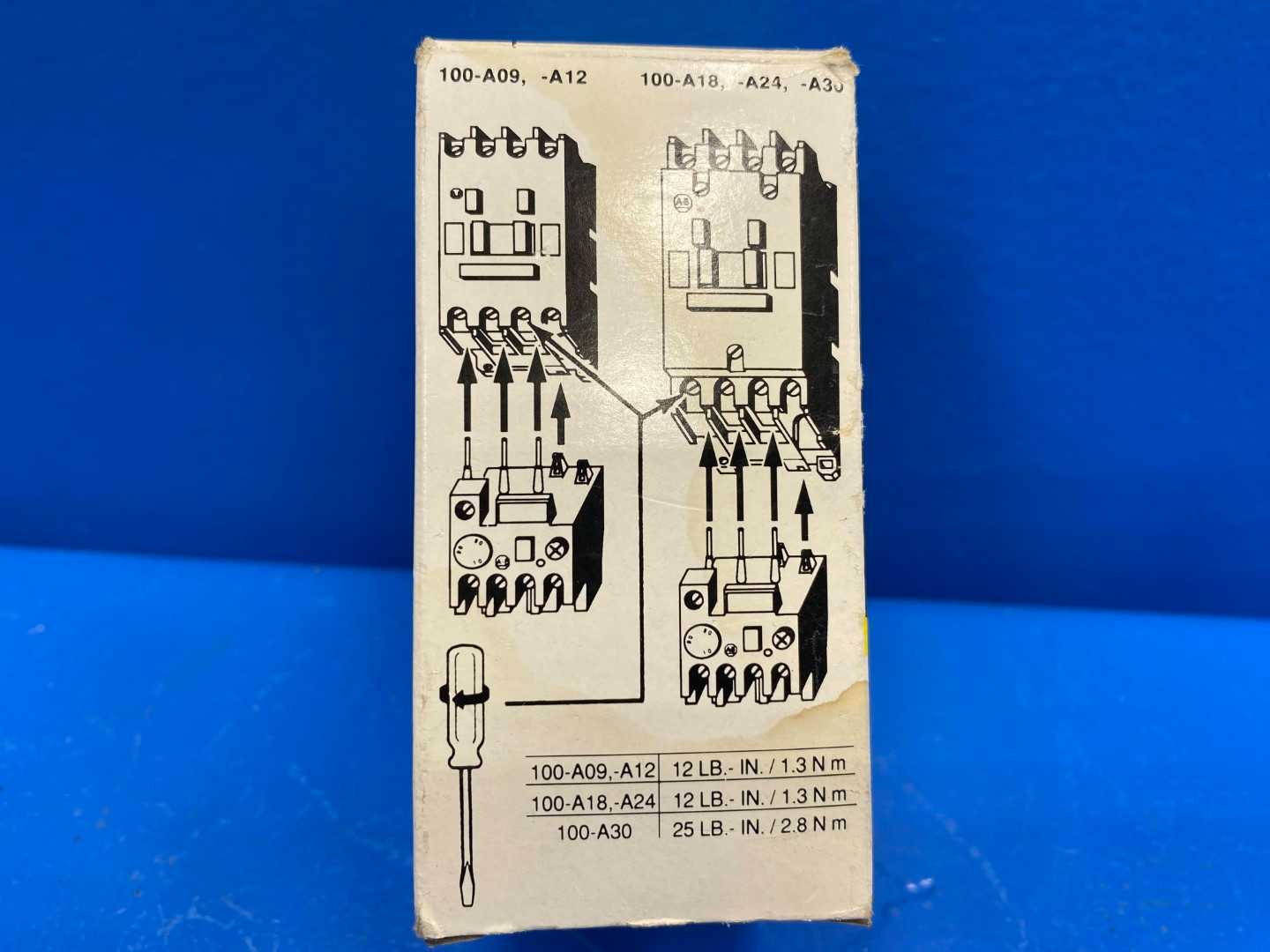

- Designed For Use With: Bulletin 100 contactors and Bulletin 104 reversing contactors; the BSC frame mounts directly to 100 and 104-A09 through -A30
- Bimetal Heating Method: direct
- Maximum Power Terminal Cable Size: 10 mm2 (#8 AWG)
- Trip and Alarm Terminal Cable Size: 2 to 2.5 mm2 (2 x #14 AWG)
- Tightening Torque: power terminals 1.8 N-m (16 lb-in); trip and alarm terminals 1.8 N-m (16 lb-in)
- Degree of Protection to IEC 529: IP20 power terminals; IP20 trip and alarm contacts
- Operating Position: plus or minus 22.5 degrees from normal
- Body Material: thermoset plastic
- Contact Material: fine silver
- Terminal Markings: CENELEC EN 50 005 and NEMA
- Operating Temperature: -5 C to +40 C (-23 F to +104 F)
- Storage Temperature: -50 C to +70 C (-58 F to +158 F)
- Temperature Compensation: within a range of -5 C to +40 C
- Altitude: 2000 m per IEC 947-4
- Conformity to Standards: IEC 947-4; BS 5424; VDE 0660; IEC 947-4 Type 2 Coordination (UL and ASTA certified); UL 508; CSA C22.2 No. 14
- Approvals: CE Marked per EU Low Voltage Directive 73/23/EEC and 93/68/EEC; CSA Certified File No. LR1234; UL Listed File No. E14840, Guide No. NKCR
- Accessories: 193-BC1 and 193-BC3 anti-tamper shields; 193-RA1 external reset adapter; 193-ER1 electrically operated remote reset
- Origin: Made in W. Germany (per nameplate)
- Spec Basis: unit nameplate photographs on this record, plus the Allen-Bradley Bulletin 193 IEC Bimetallic Overload Relays catalogue section, Specifications pages 3-97 to 3-100
