Banner MGCA-4A machine-guard control box 115 V
MGCA-4A Controller Specifications: I/O, Voltage & Communication
Compatible Systems & Applications for Banner MGCA-4A
1 / 17
+17
+17
1 / 17
| Description | Details |
|---|---|
| Available Quantity | 8 |
| Model | MGCA-4A |
| Condition | Used |
| Manufacturer | Banner |
| Asset Number | KSCU / 110 / 59 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 8
Free Shipping
$99.95
Basic Information
Asset #
KSCU / 110 / 59
Available Quantity
8
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

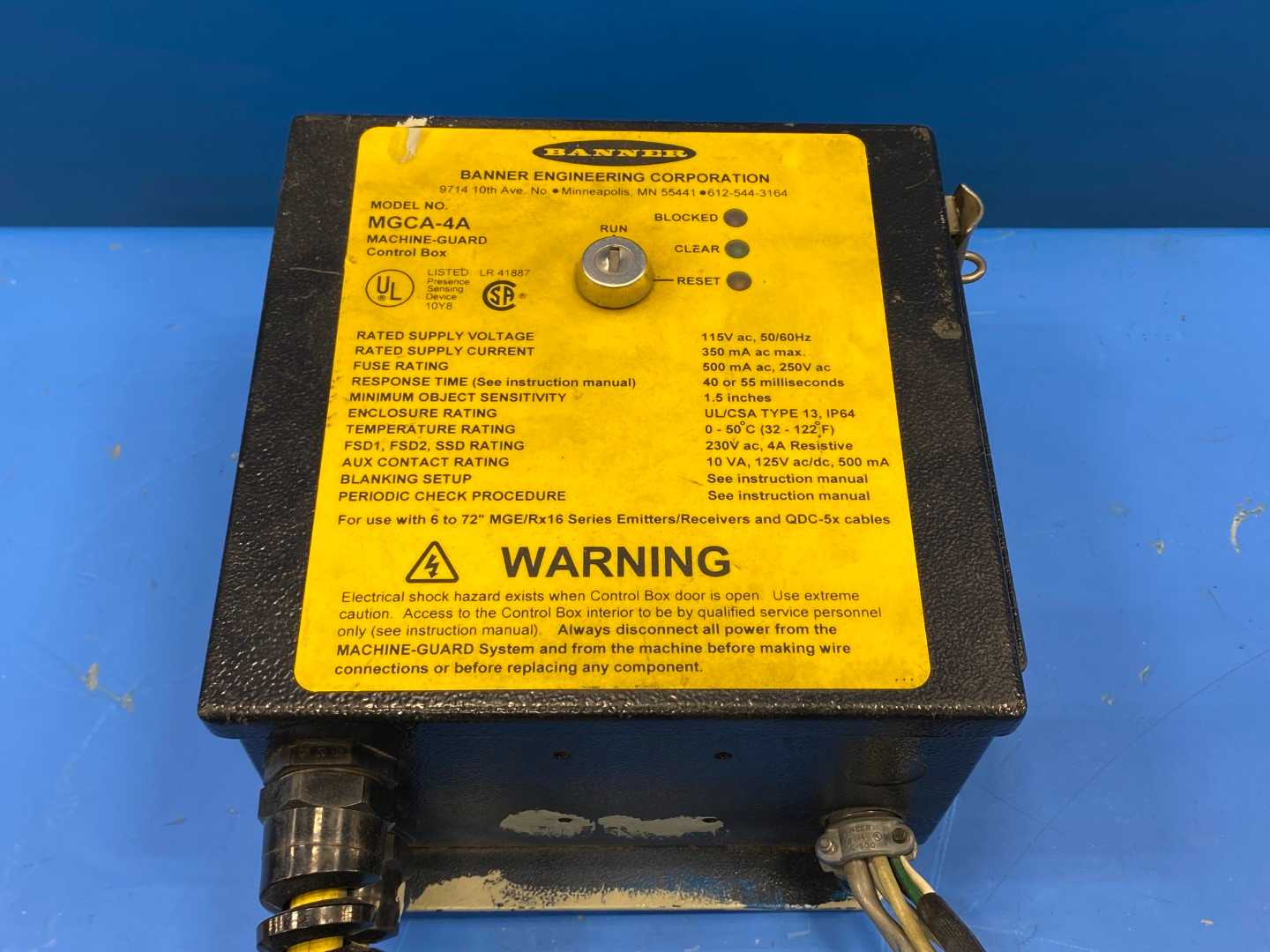

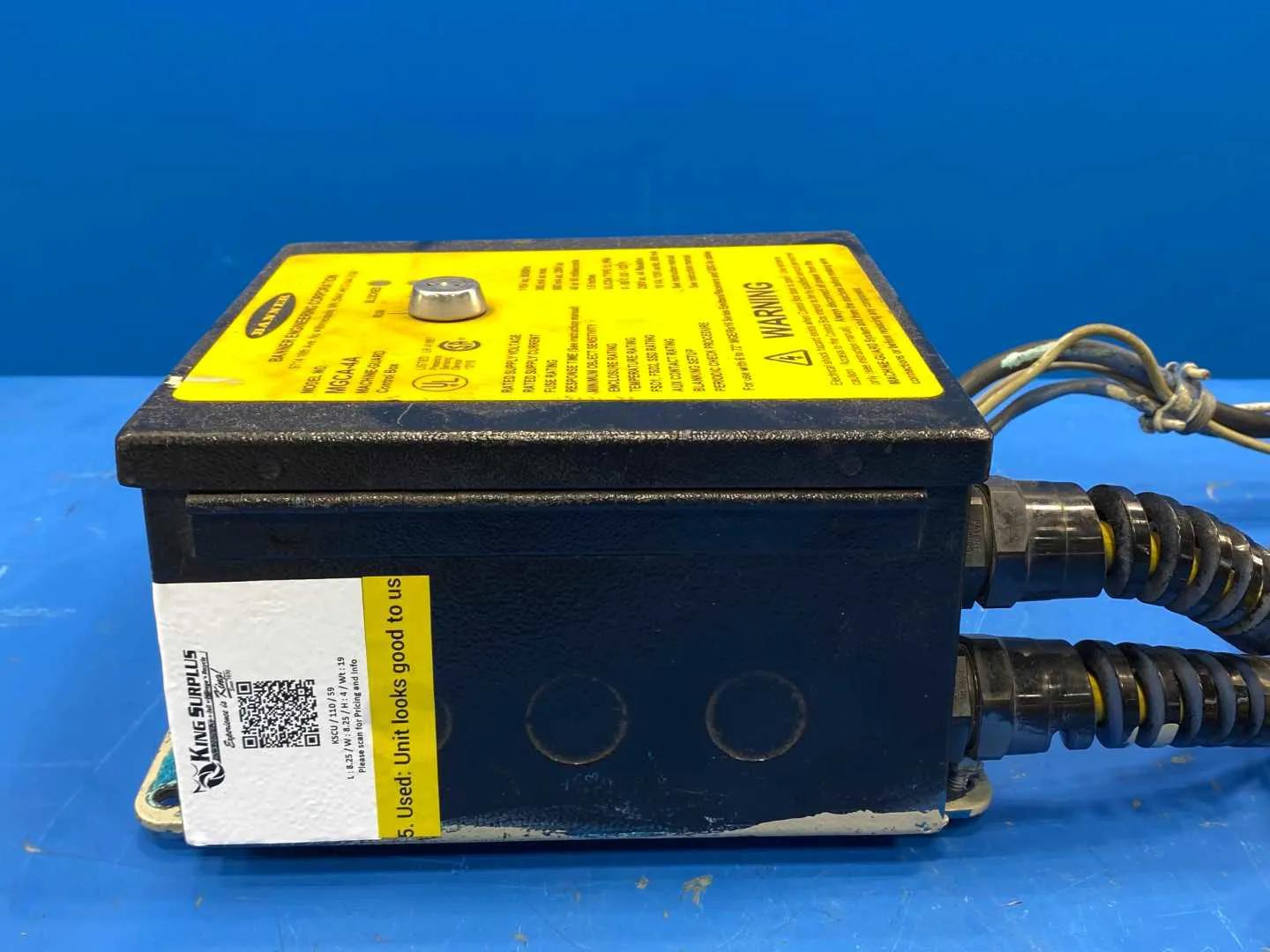

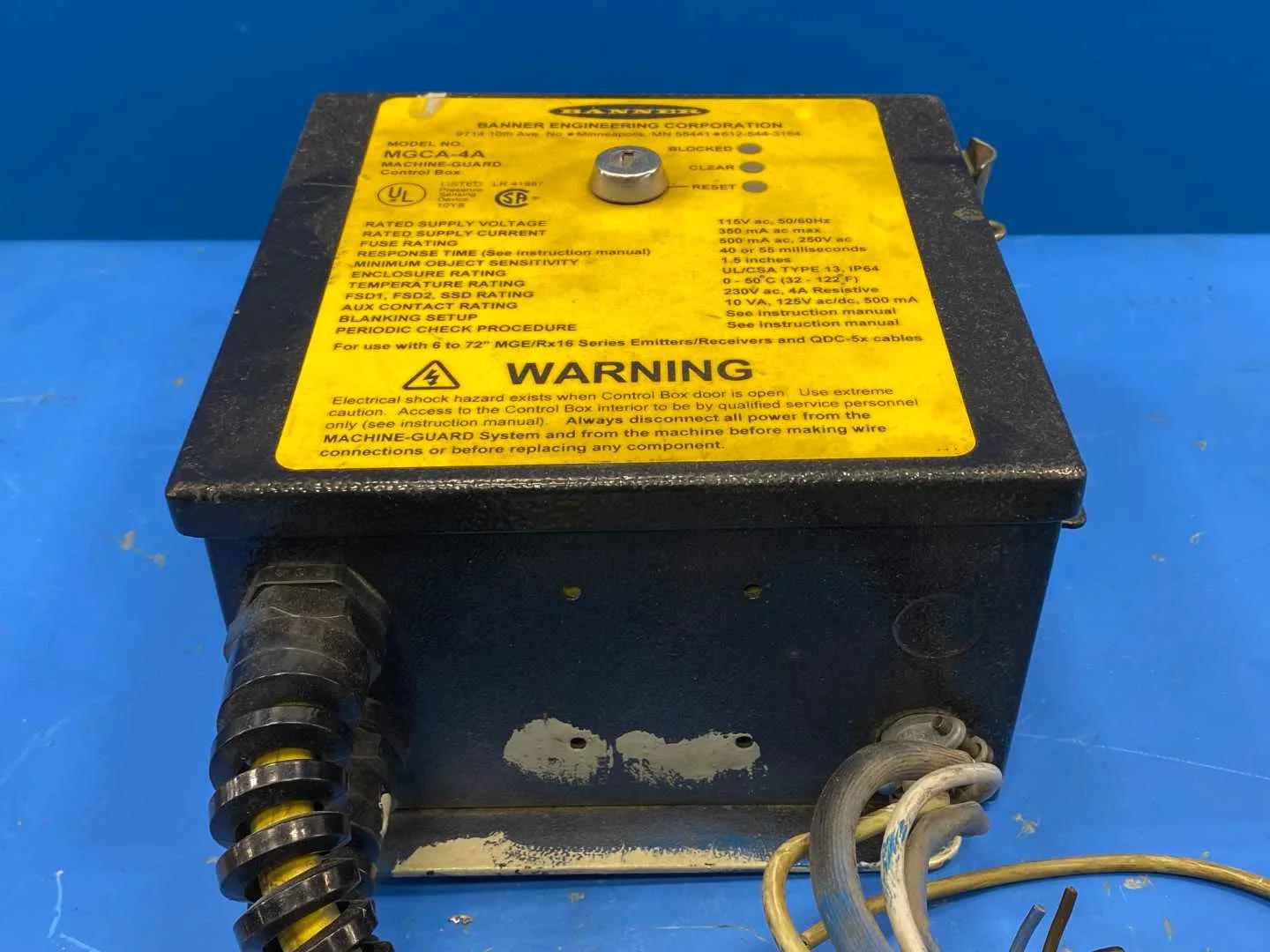

The BANNER MGCA-4A is a machine-guard control box developed by Banner Engineering Corporation, a leader in the field of sensor and automation technology.
Designed for use in industrial environments, this product serves as a key safety component that supports the operation of safety-related systems.
The MGCA-4A control box is crucial for protecting machinery and personnel in settings where automated equipment is present.
Industries such as manufacturing, packaging, and distribution rely on such devices to ensure a safe working environment.
The MGCA-4A operates at 115V, making it compatible with standard electrical systems found in many facilities.
One of its distinguishing features includes the ability to integrate seamlessly with various safety devices, including light curtains and safety interlocks, providing a comprehensive safety solution.
Furthermore, the control box is built to withstand the demands of rugged industrial conditions, ensuring long-term reliability and performance.

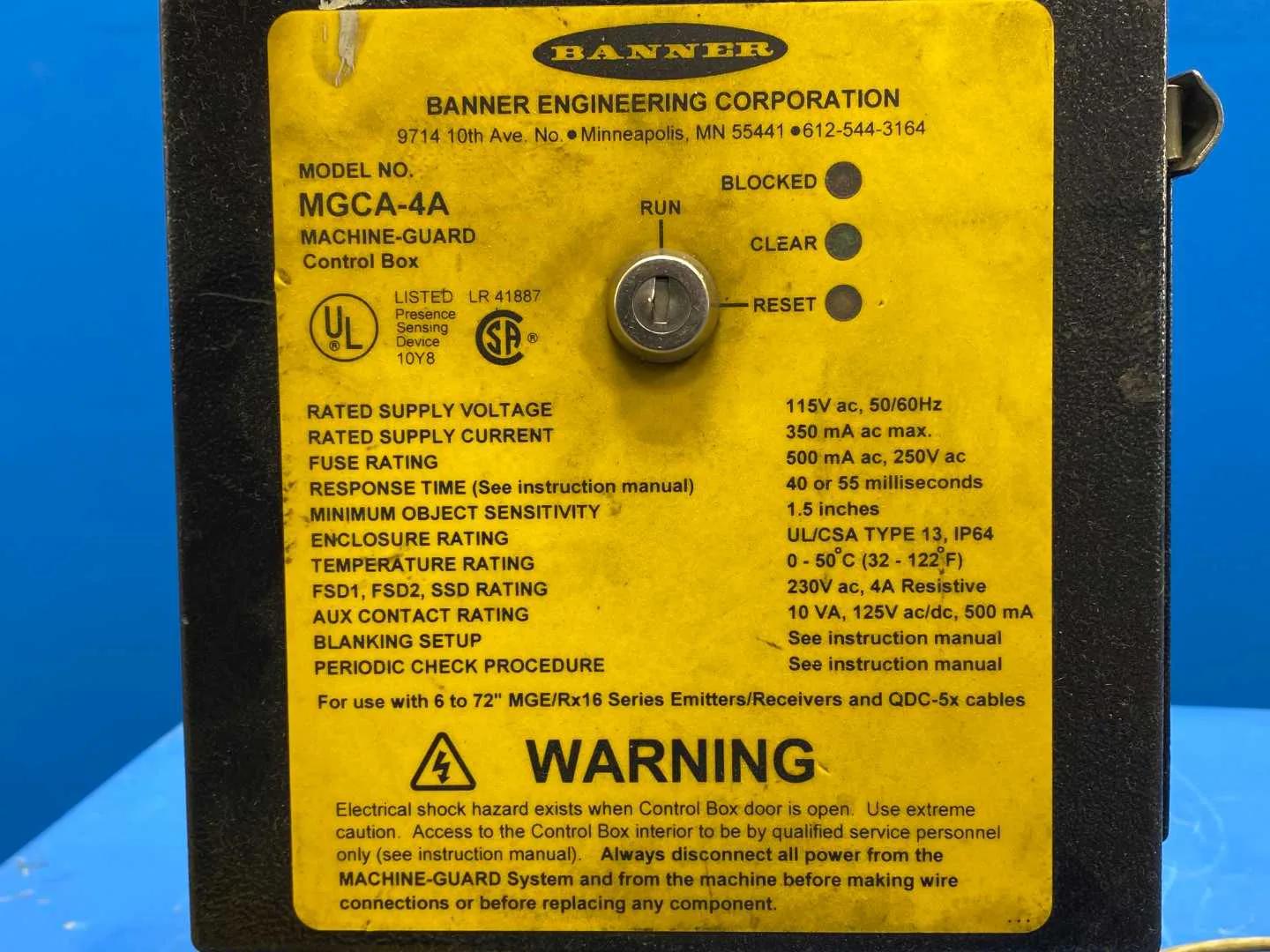

Factory Information
- Manufacturer: Banner Engineering Corporation
- Model: MGCA-4A
- System: MACHINE-GUARD System control box
- Type: Safety light curtain controller; one control box per system, paired with an MGE Series emitter and MGR Series receiver
- Supply Voltage: 115V AC, 50/60 Hz. The 230V AC equivalent is a different model, the MGCB-4A.
- Power: 50 VA
- Fuse: 1/2 amp, 250V AC, 3AG slow blow

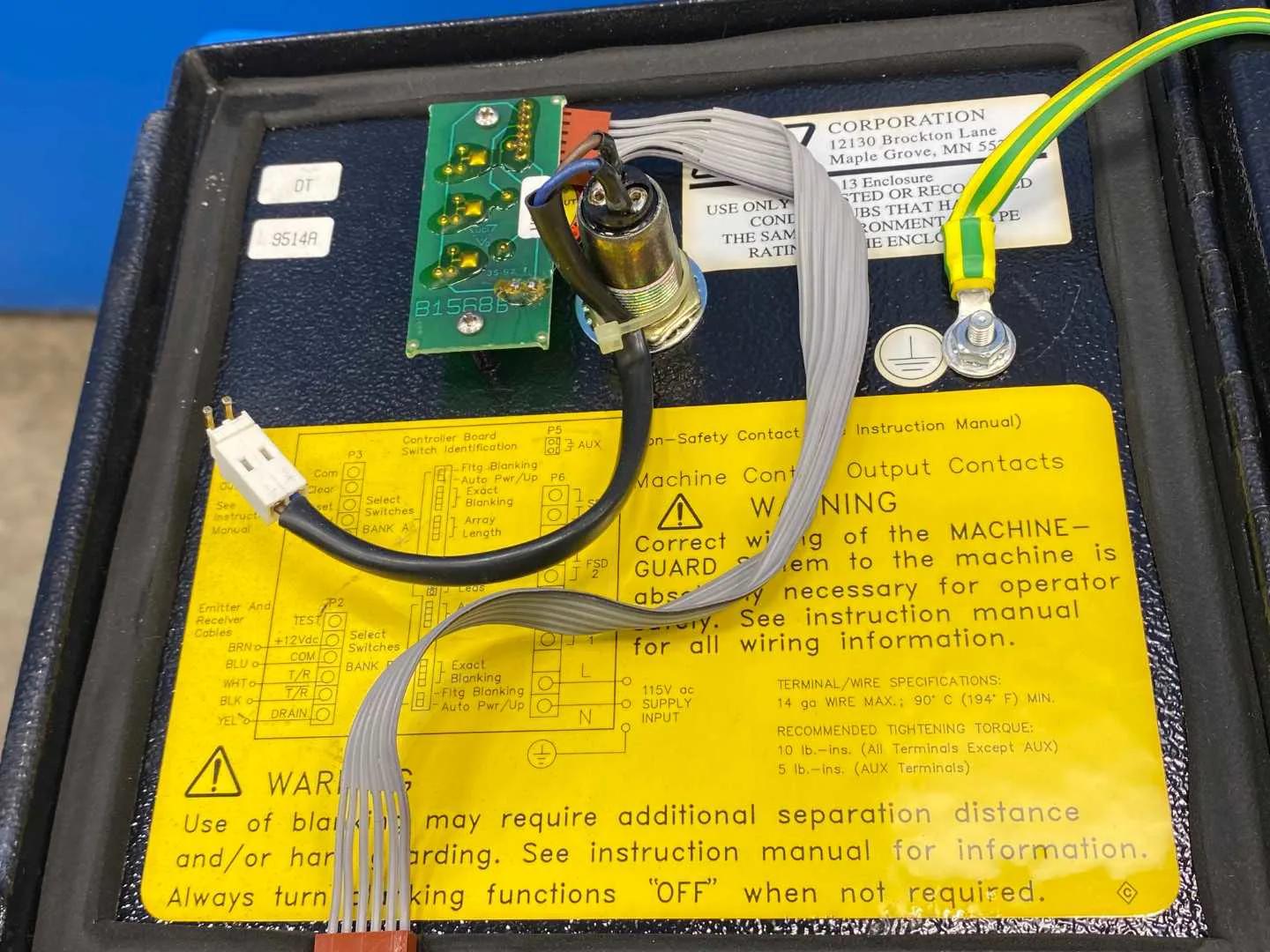

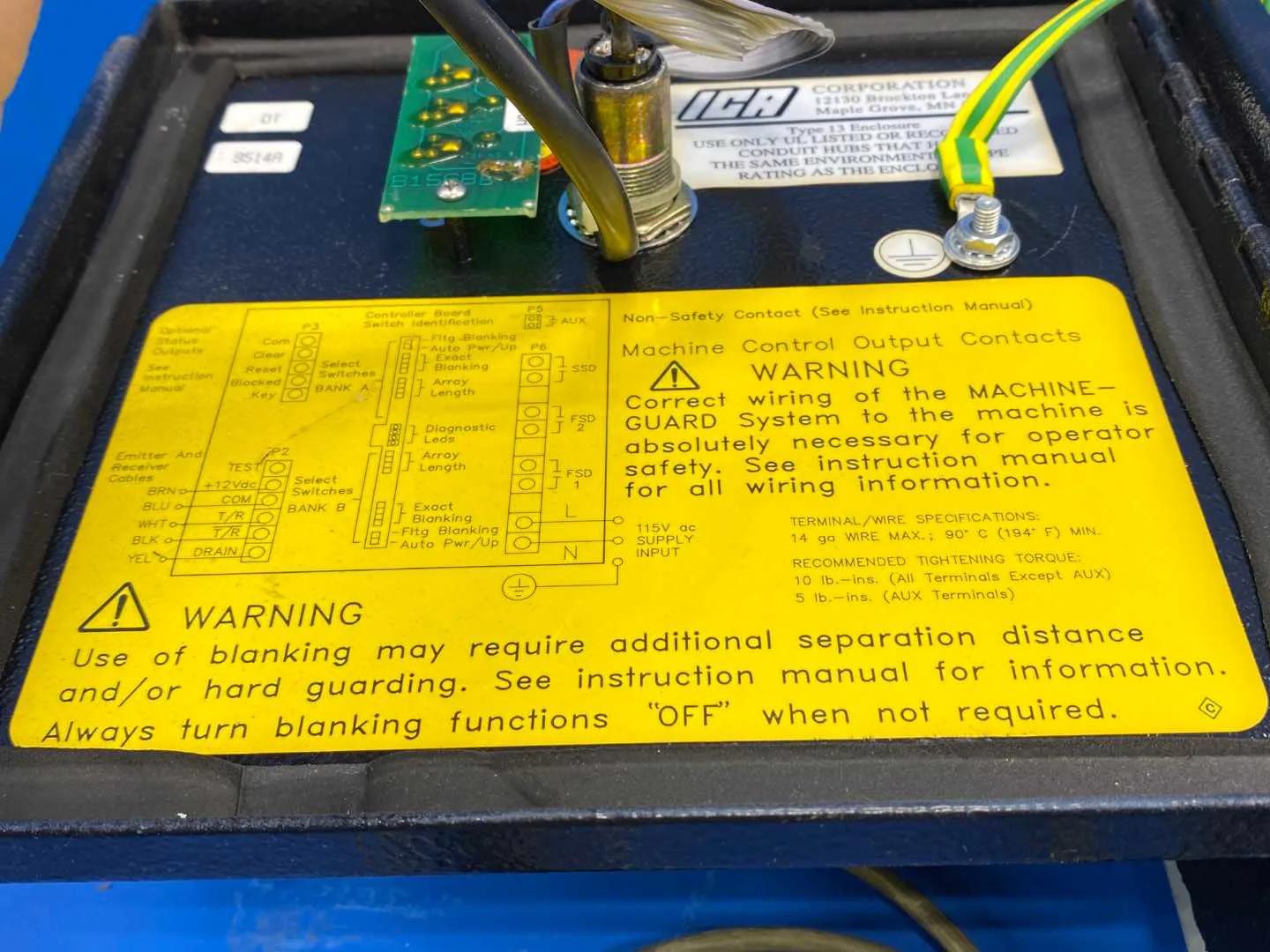

- AC Connection: three-wire (hot, neutral, earth ground) at wiring barrier P6, terminals L and N. Must not be operated without an earth ground.

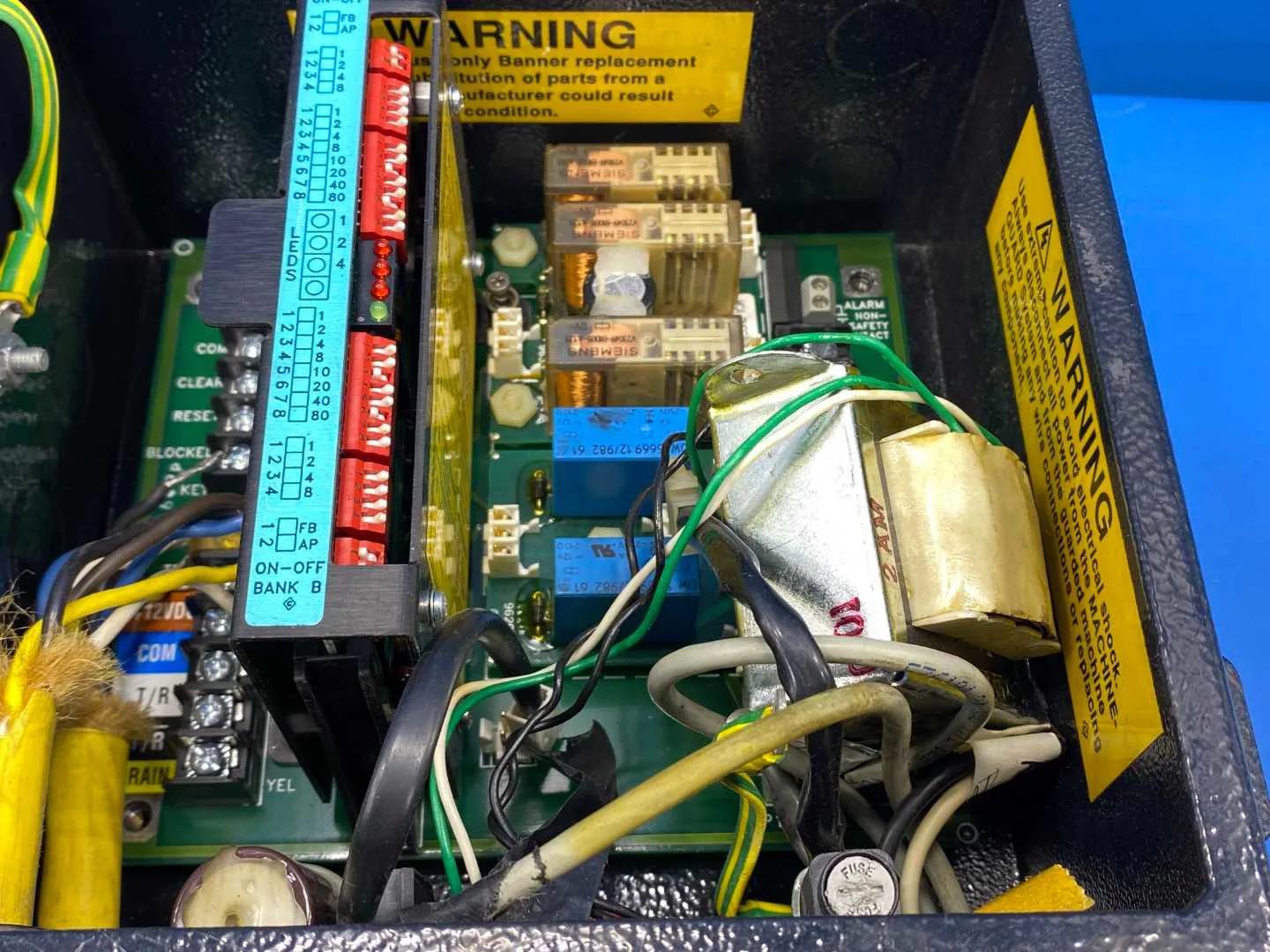

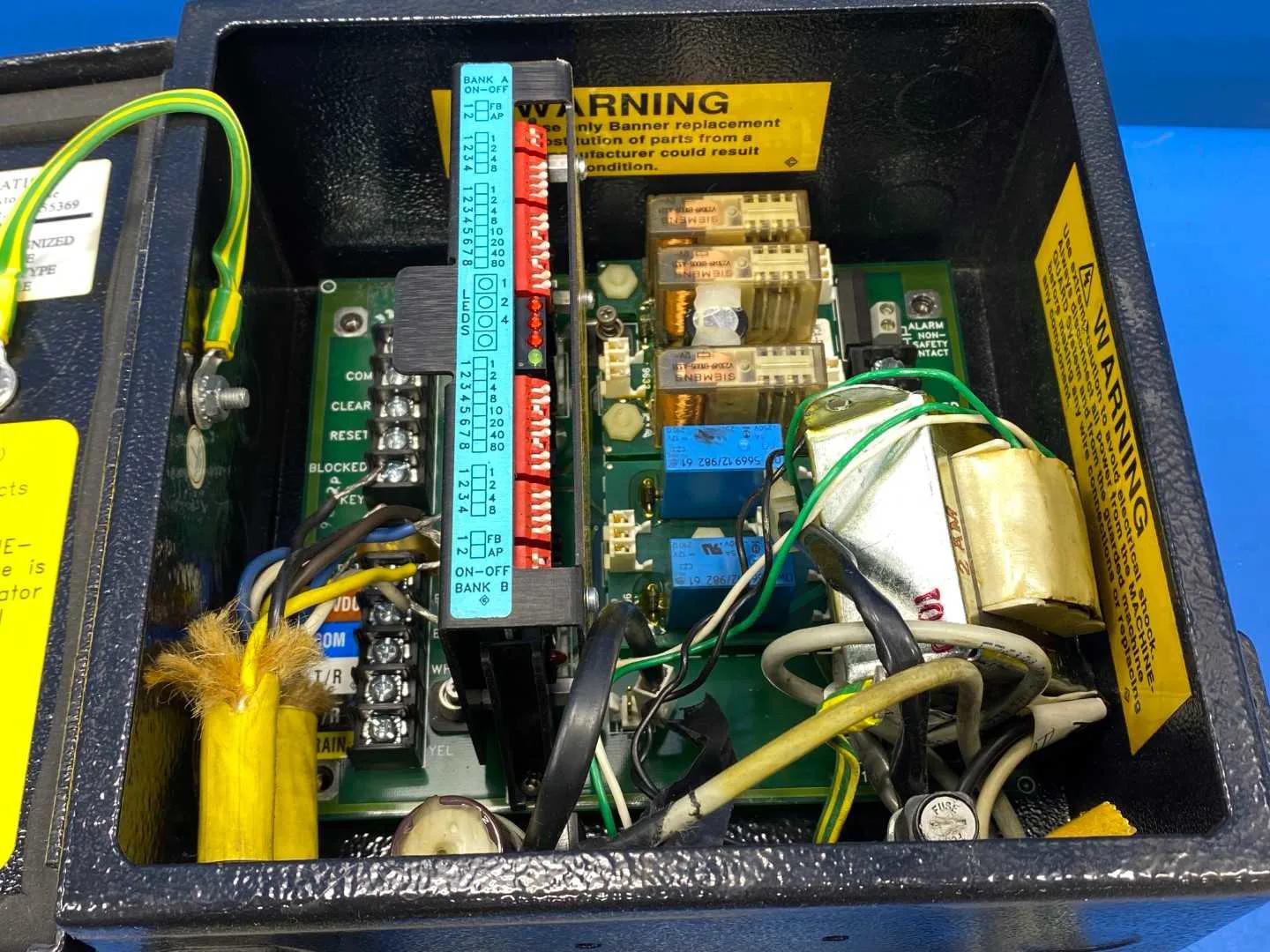

- Output Relays (FSD1, FSD2, SSD): forced-guided contact relays, 250V AC max, 4 A max resistive
- Output Relay Life: mechanical 10,000,000 operations minimum; electrical 100,000 operations typical at full rated load
- Auxiliary Monitor Relay: reed relay, 125V AC or DC max, 500 mA max, 10 VA max resistive. Non-safety contact, at wiring barrier P5.
- Response Time: less than 40 ms with emitter and receiver up to 48 in; less than 55 ms with 54 in to 72 in
- Self-Checking Interval: 20 ms
- Minimum Object Sensitivity: 1.50 in (38.1 mm), assuming no floating blanking
- Ambient Light Immunity: greater than 10,000 lux at 5 degree angle of incidence

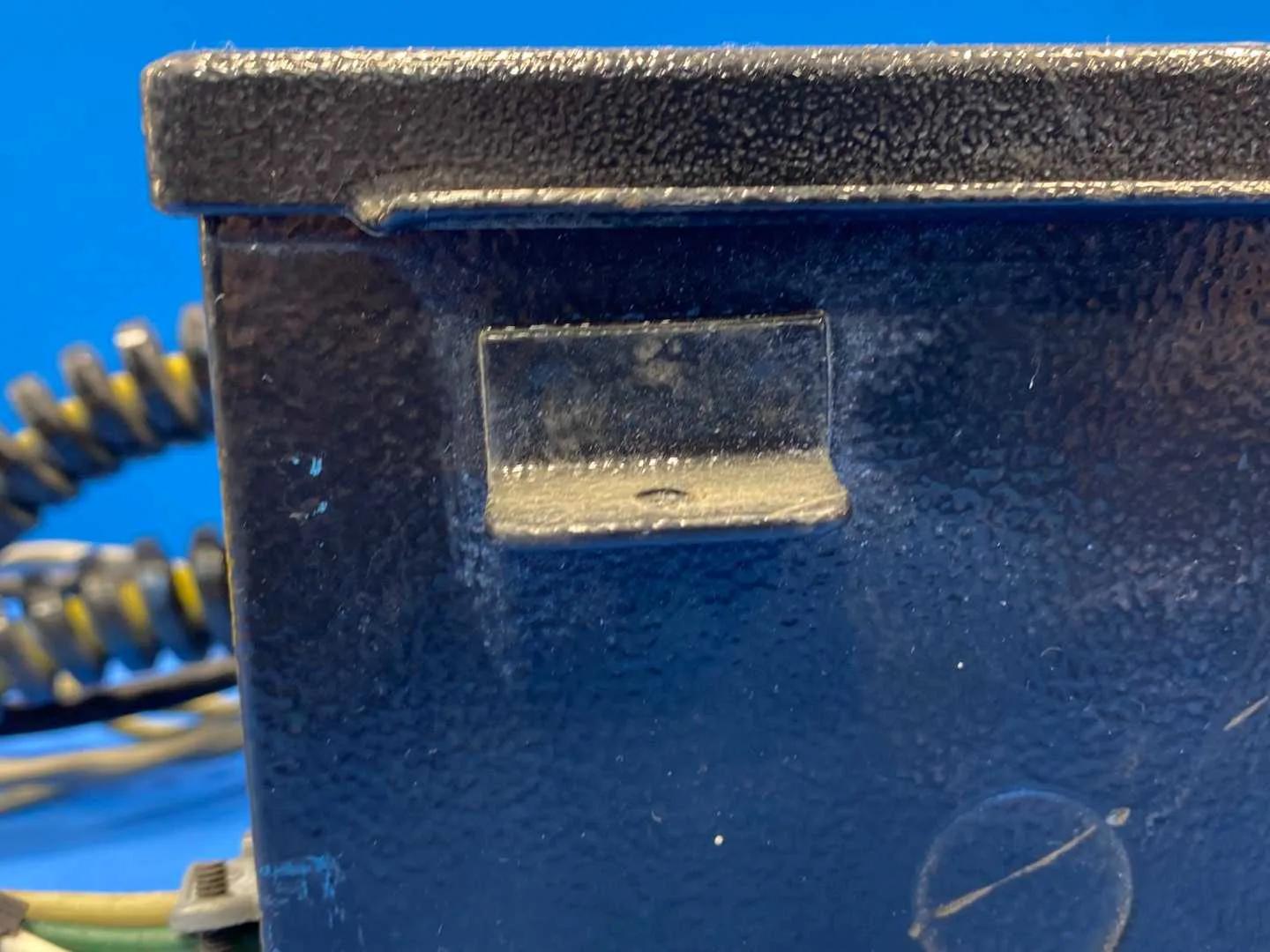

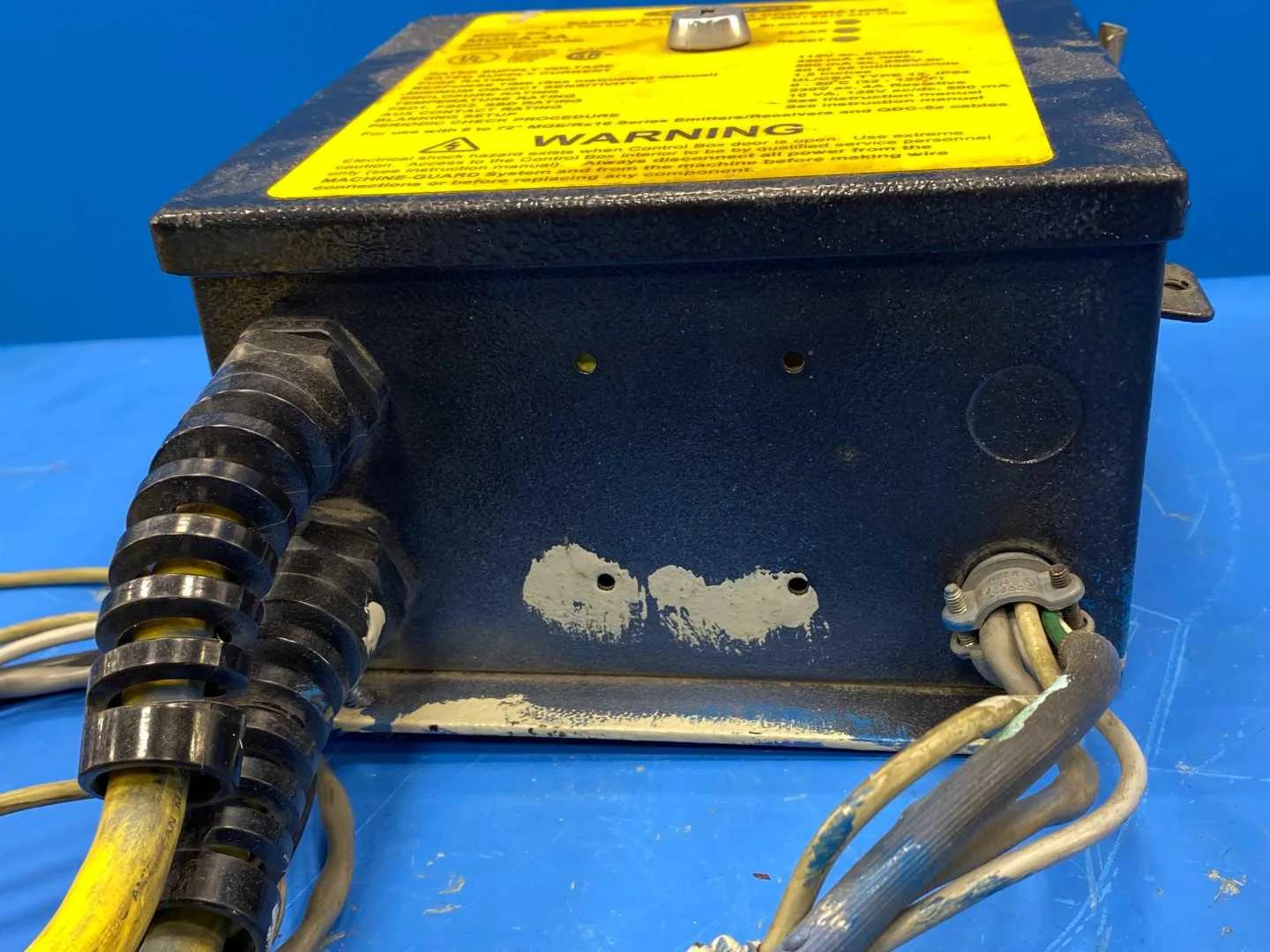

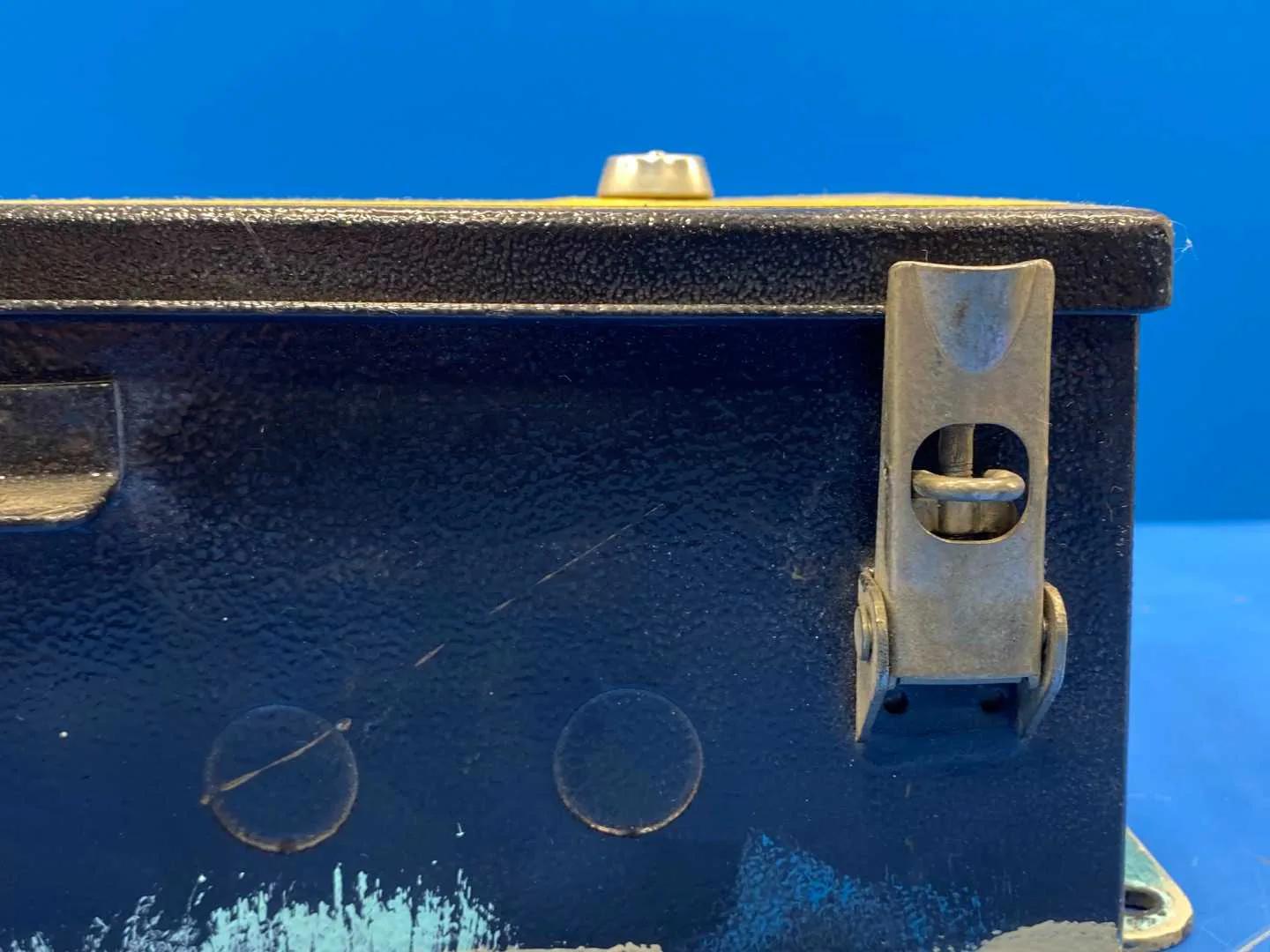

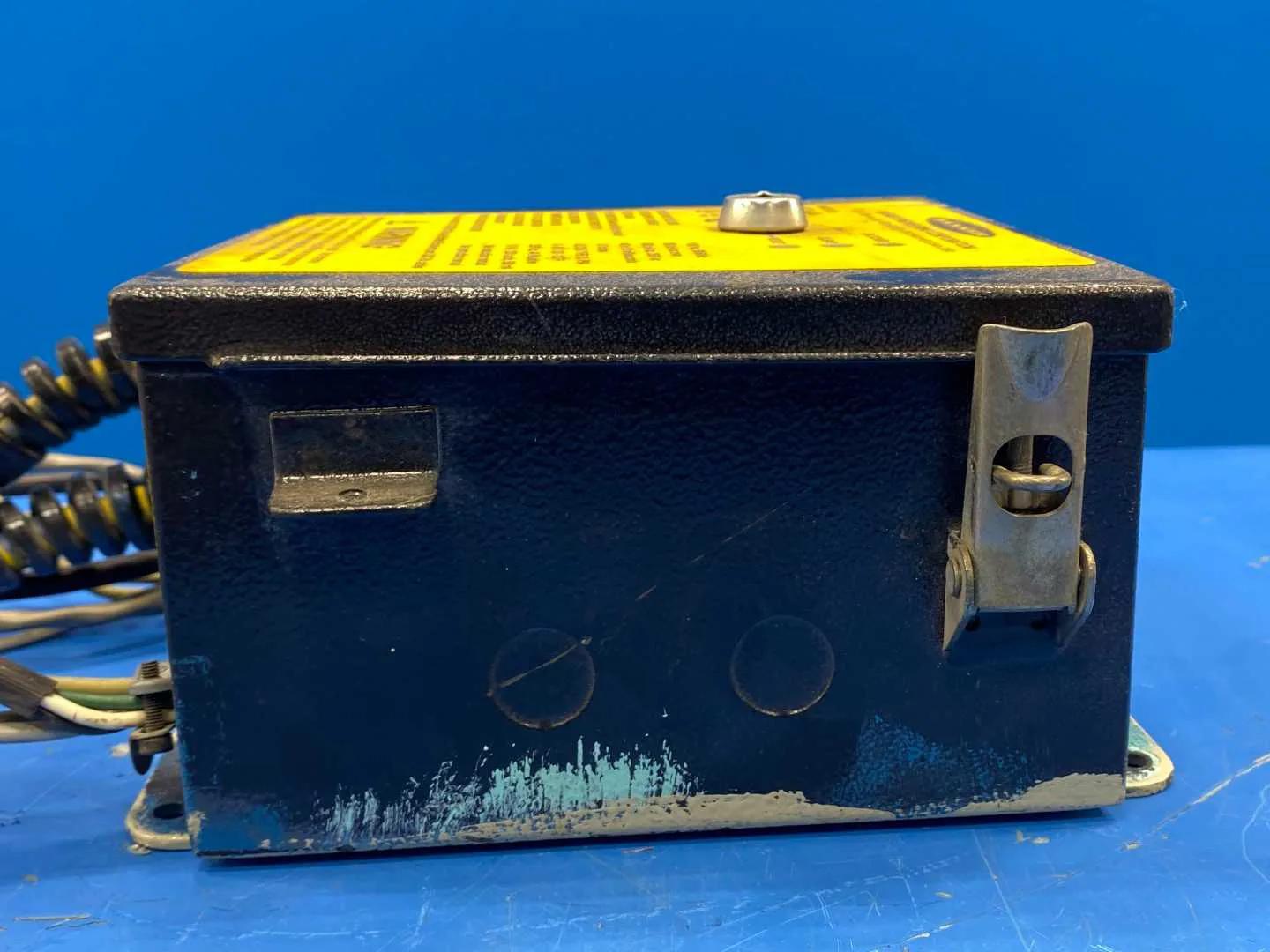

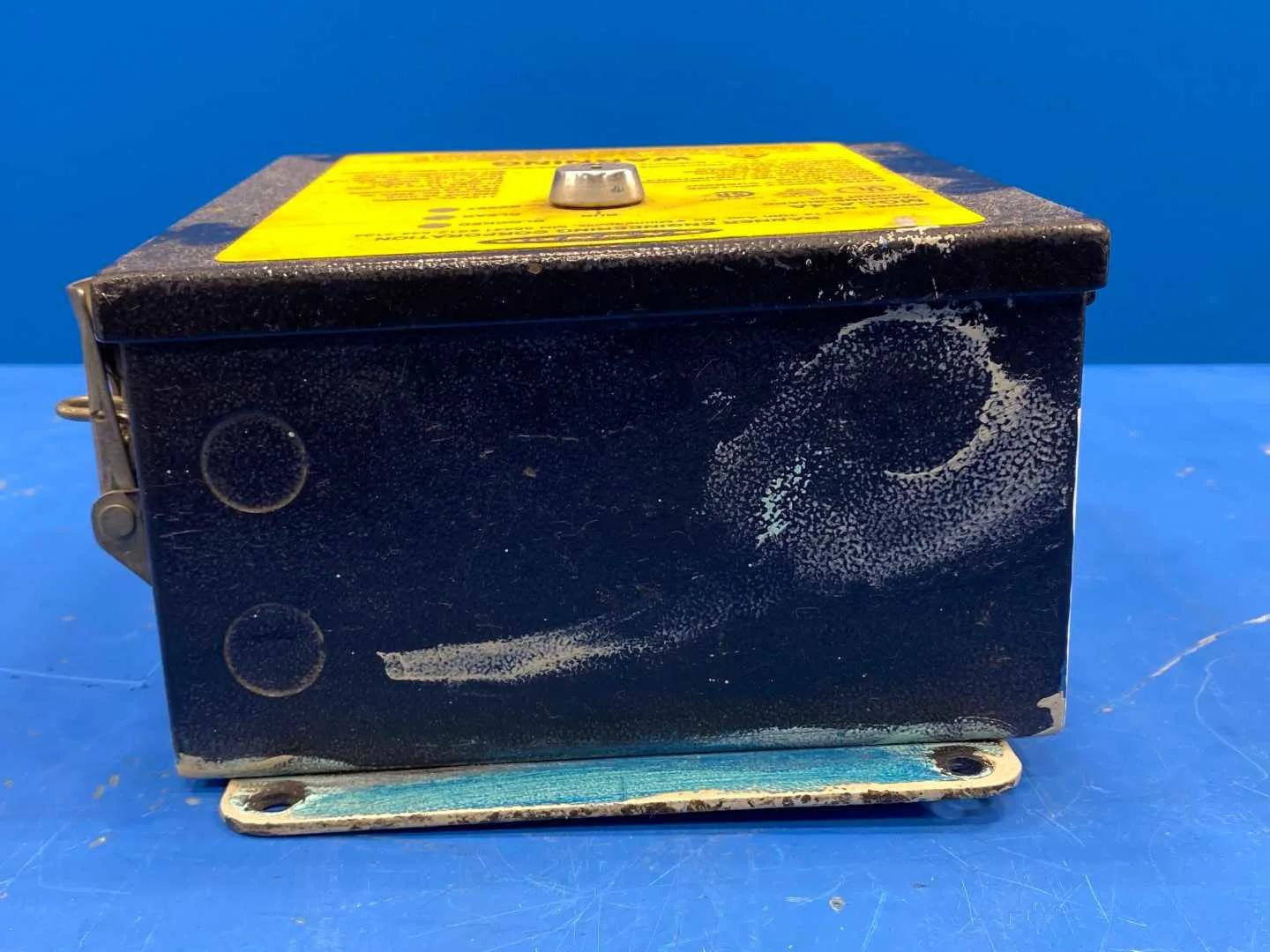

- Enclosure Material: welded steel box, black polyester powder paint finish

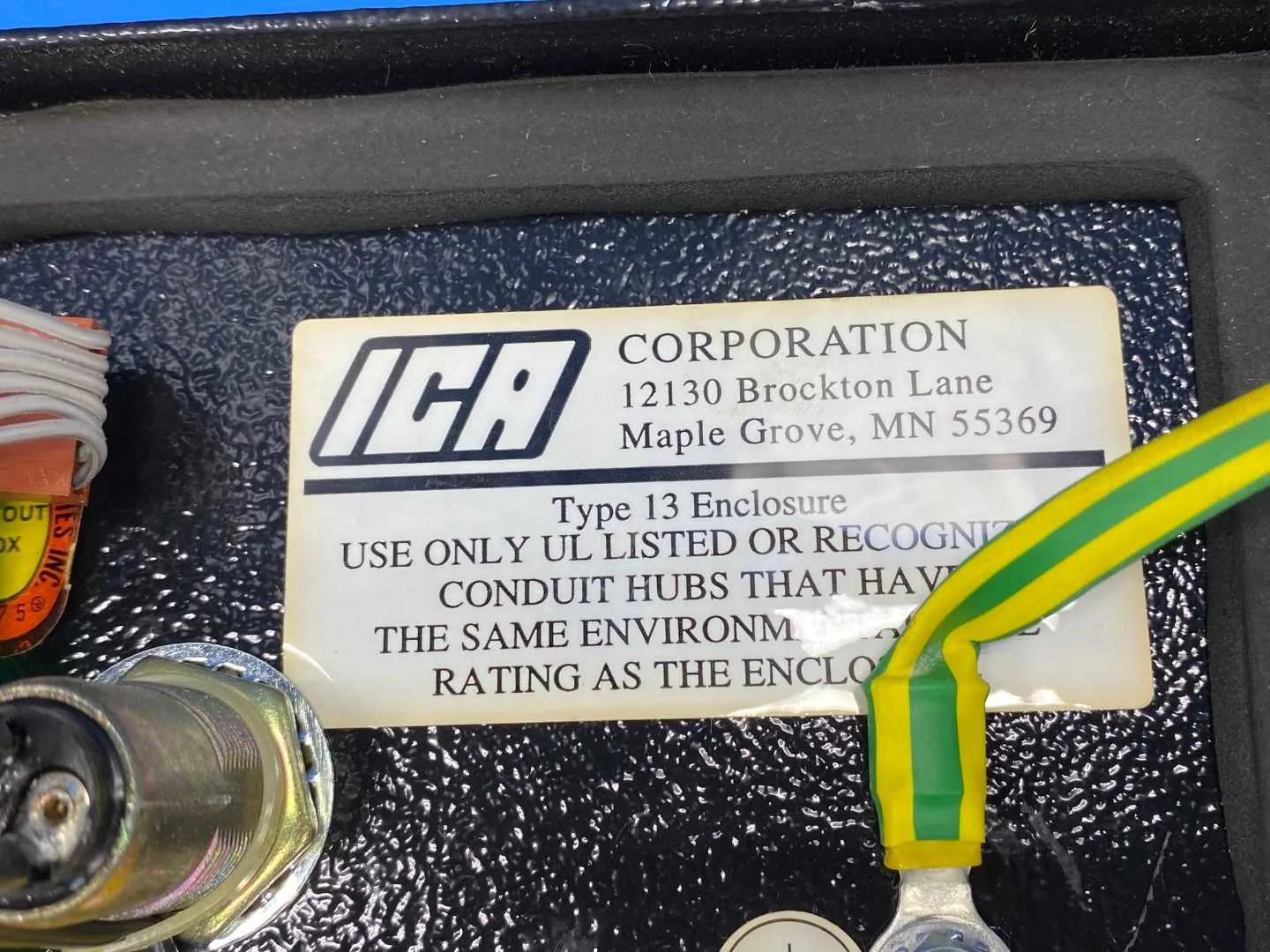

- Enclosure Rating: NEMA 13 (IP 64)
- Operating Temperature: 0 to +50 C (+32 to +122 F)
- Relative Humidity: 95% maximum, non-condensing
- Controls: keyed RESET of lockout conditions, ARRAY LENGTH selection switches, BLANKING function selection switches, AUTO POWER UP on/off switches
- Status Indicators: red = BLOCKED, green = CLEAR, yellow = RESET; flashing red = LOCKOUT, flashing green = BLANKING on, flashing yellow = waiting for power-up key reset
- Diagnostics: four LEDs indicating seven system status conditions

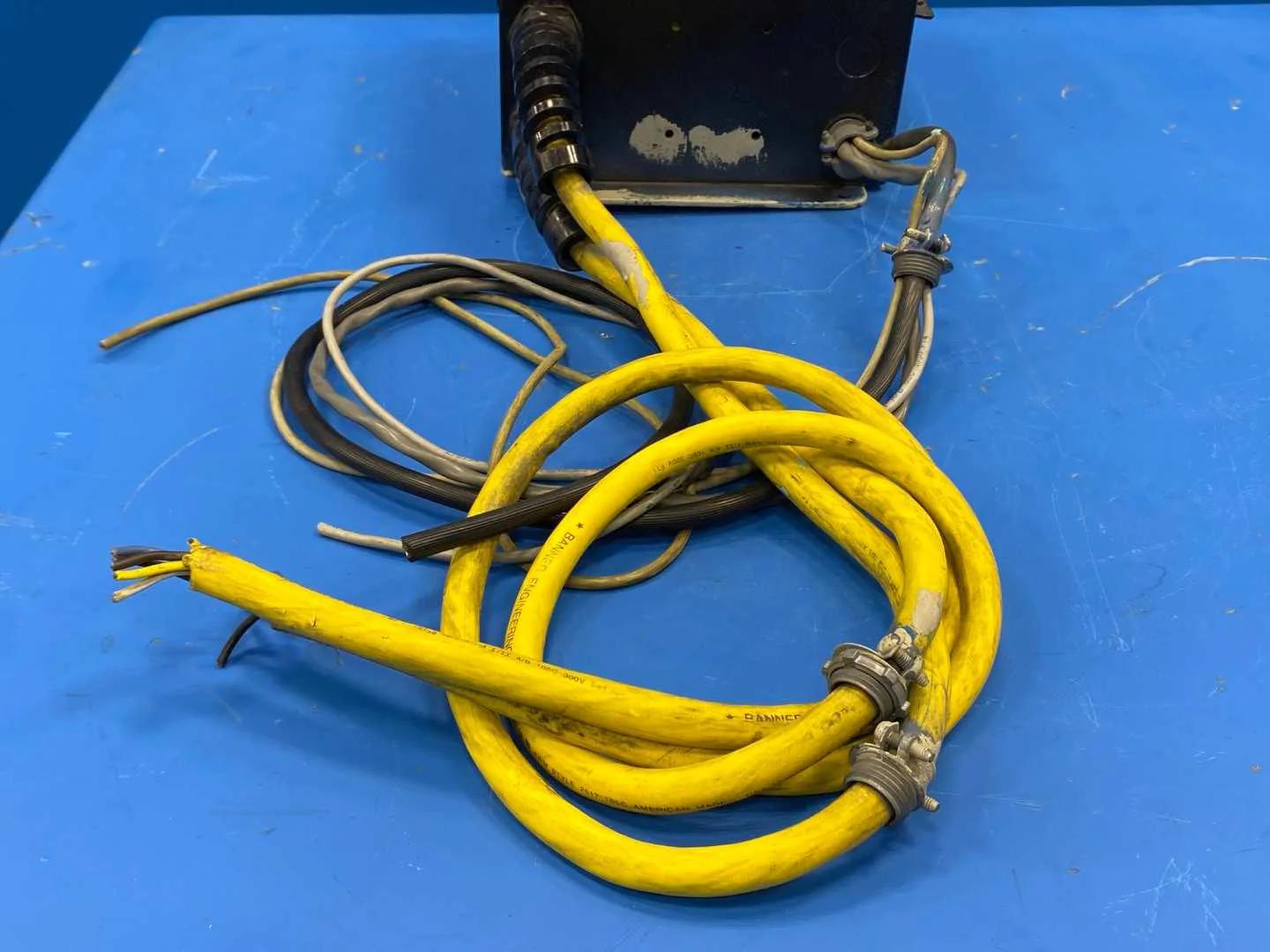

- Cabling: Banner twisted-pair cables only; total emitter plus receiver cable length may not exceed 175 ft
- Listings: Listed Presence Sensing Device LR 41887, 10Y8 SA8959; FMEA tested per the requirements of the proposed first edition of UL 491 Standards, Section SA4
- Application Restriction (per the manual): MACHINE-GUARD Systems may not be used as tripping devices to initiate machine motion (PSDI applications) on mechanical power presses, per OSHA regulation
- Spec Basis: Banner Engineering MACHINE-GUARD System Instruction Manual P/N 33130, Specifications and Model Listings
Specifications
Manufacturer
Banner
Model
MGCA-4A
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
50 VA
Amps
N/A
Length (Inches)
8.25
Width (Inches)
8.25
Height (Inches)
4
Phase
1
Estimated Packaging Weight
2
Estimated Total Weight
15
Asset Number
KSCU / 110 / 59
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
