Galil Motion Control IOC-7007 Custom Multi-Axis Automation Control Cabinet, 120V, Mean Well 24V PSU, Parker Pneumatics

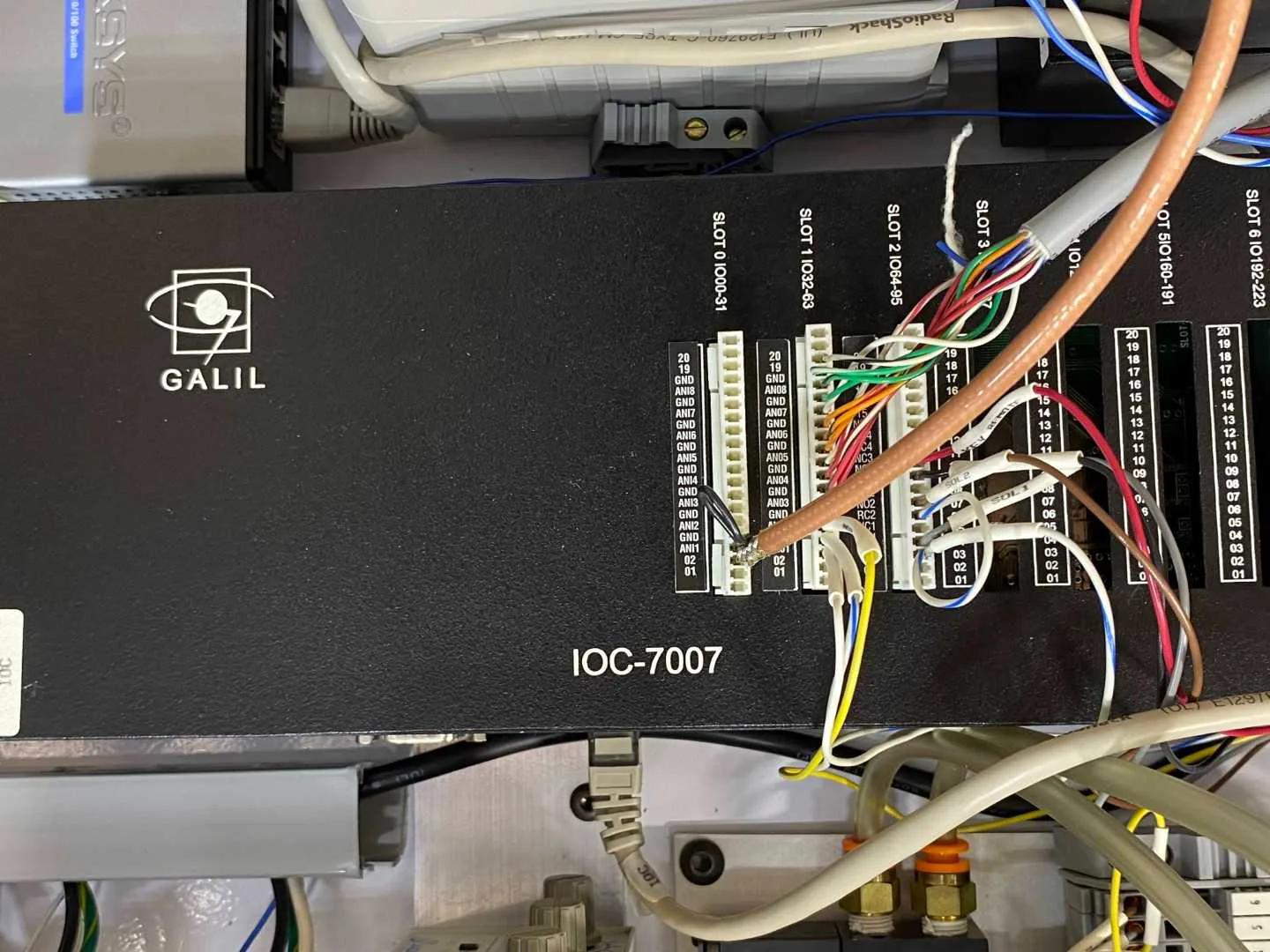

Custom multi-axis automation control cabinet built around a Galil Motion Control IOC-7007 Ethernet I/O controller, serial 128867-0609017215. The IOC-7007 carries seven populated I/O slots addressed IO00-31, IO32-63, IO64-95, and on up through IO192-223, giving the cabinet more than two hundred discrete I/O points plus analog inputs.

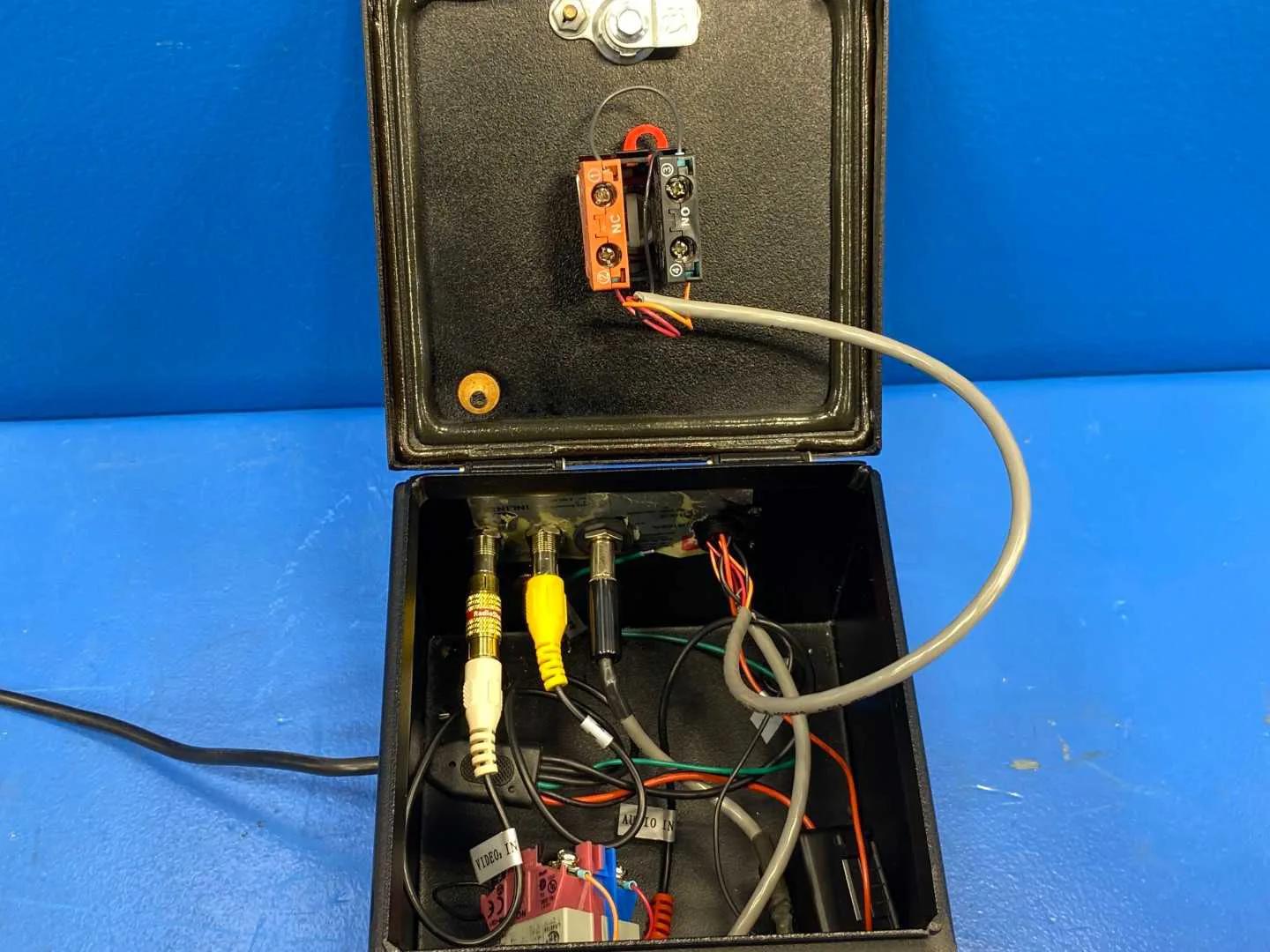

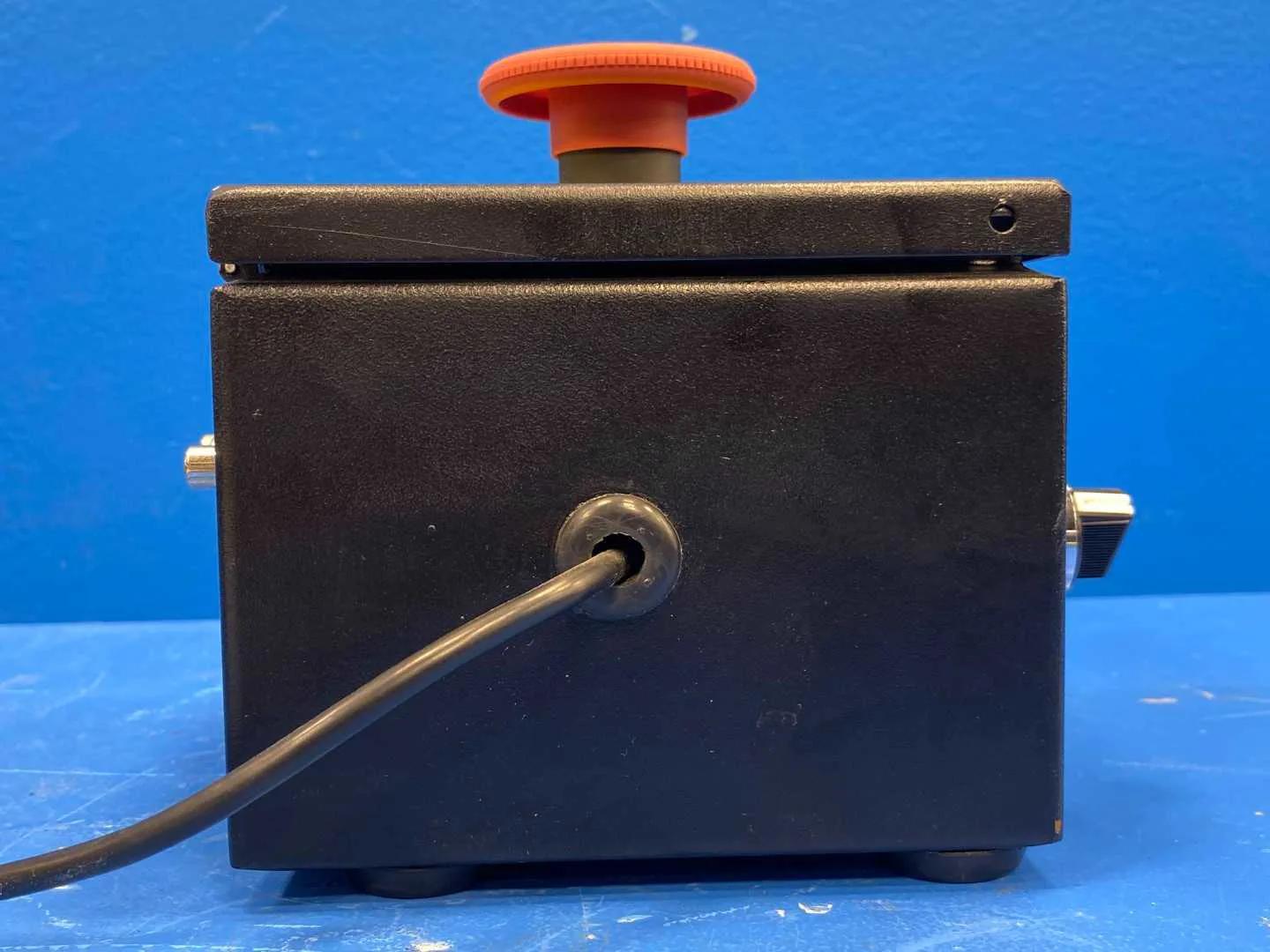

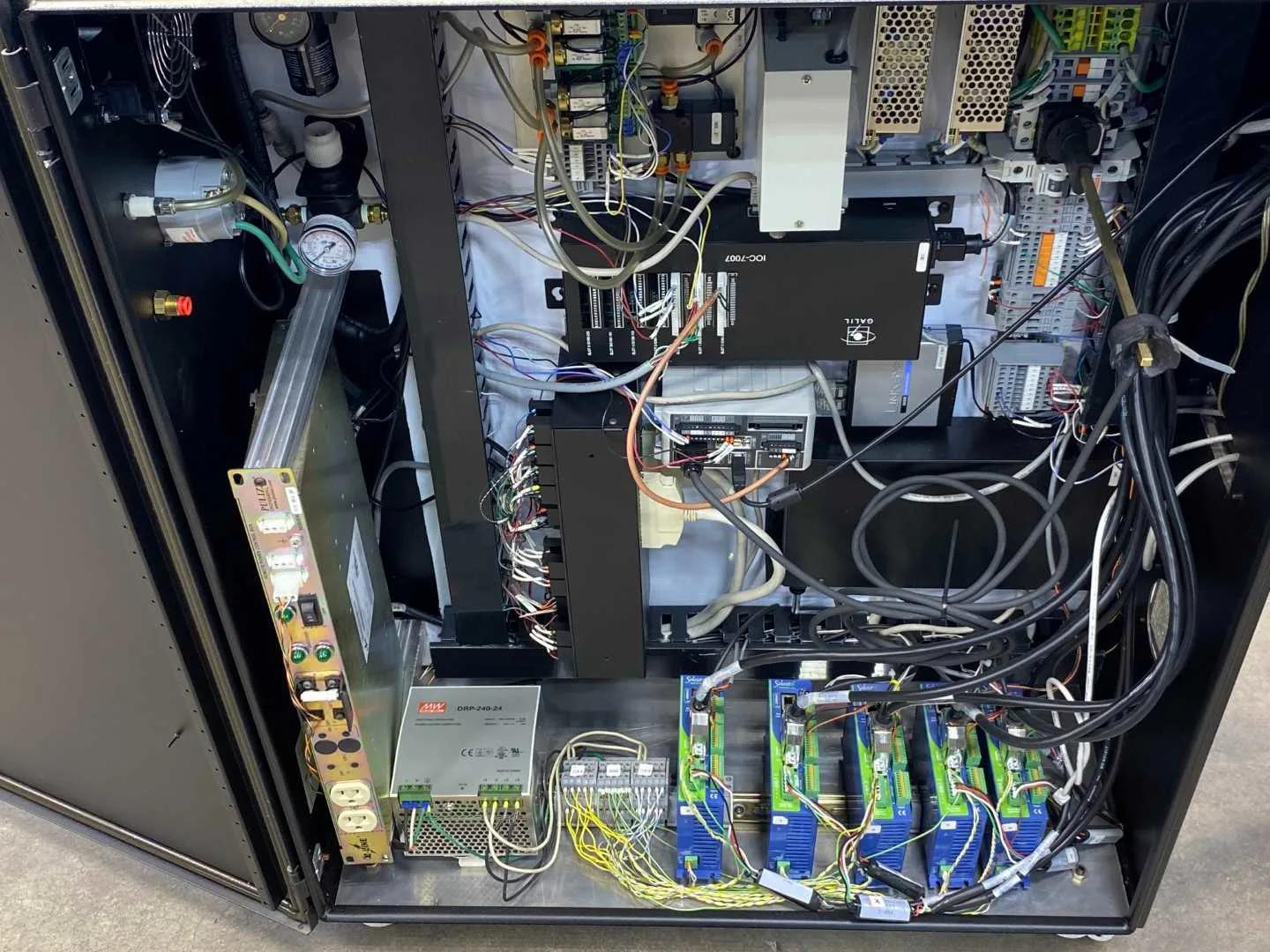

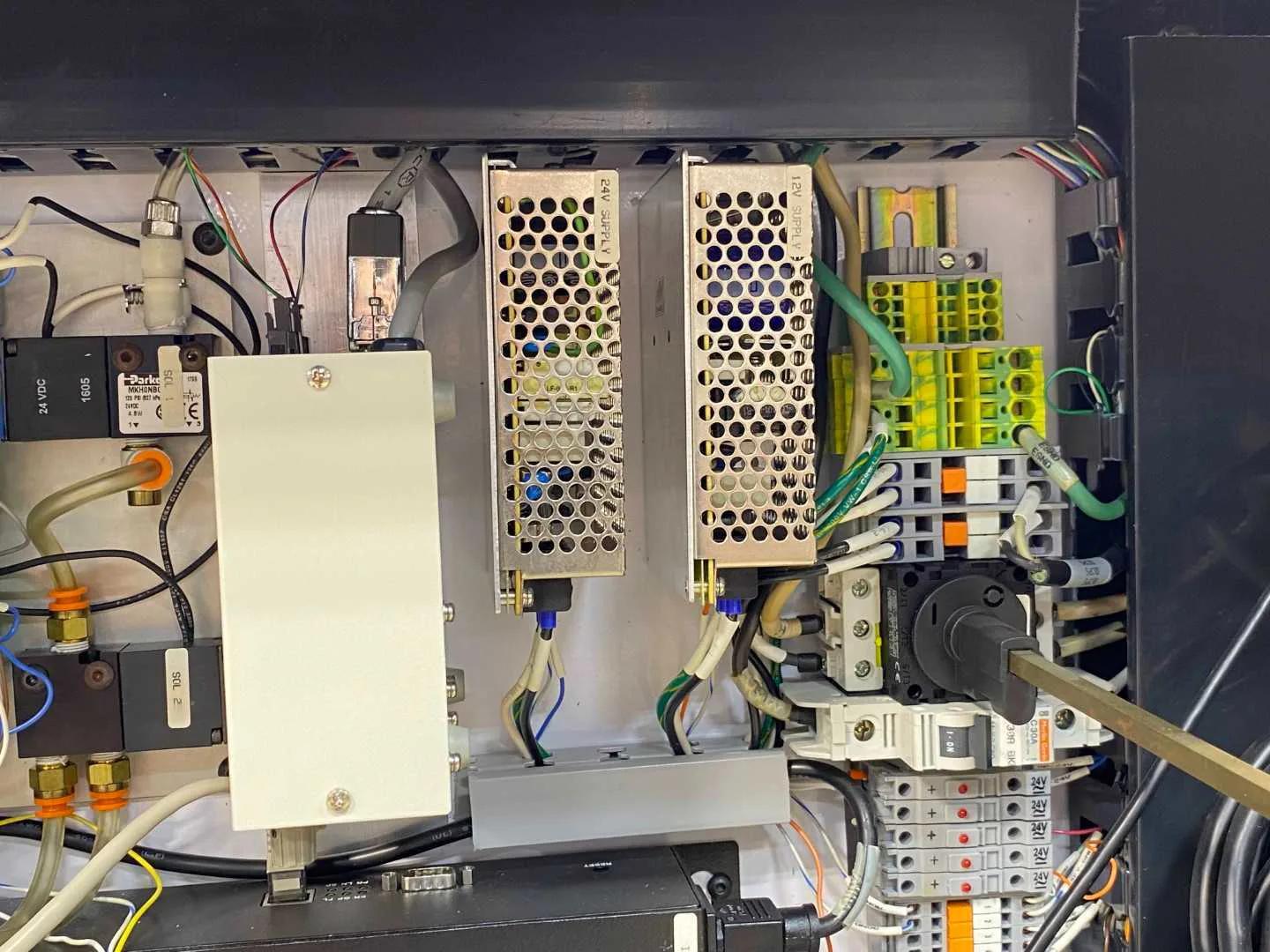

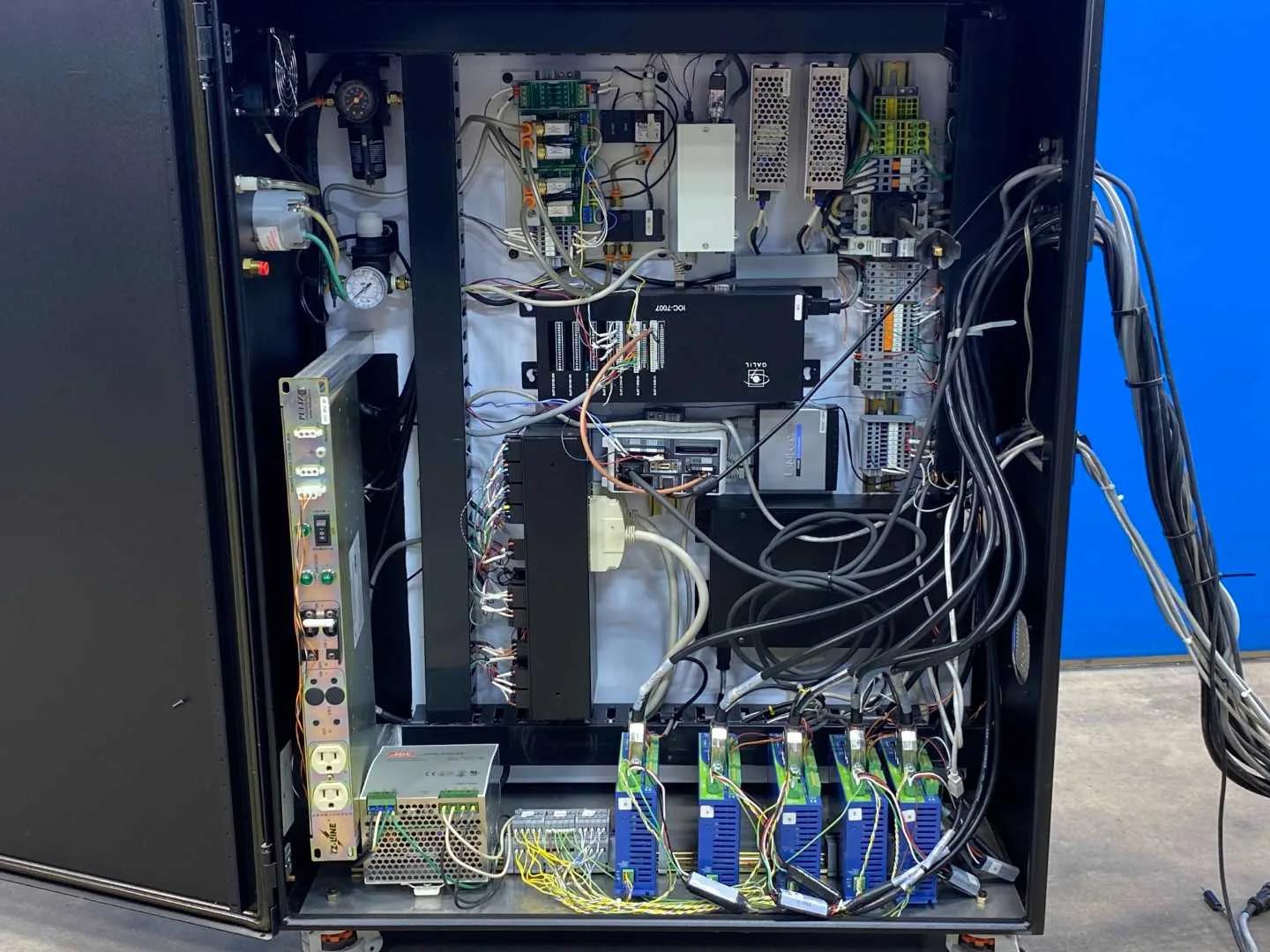

Inside the enclosure: a Mean Well DRP-240-24 switching supply (100-240VAC in, 24V 10A out, power factor corrected), Parker 24VDC pneumatic solenoid valving rated 120 PSI, DIN-rail terminal blocks, and a Linksys 10/100 network switch for the controller's Ethernet link. The cabinet front carries a fused AC disconnect and a pendant control box with an emergency stop and an OFF/ON/START drive-power selector. It rolls on casters and ships with its cable harness of DB-style machine connectors.

Cabinets like this are the control half of a purpose-built machine: semiconductor and electronics assembly, test stands, laboratory automation, and custom production equipment where a Galil controller sequences servos, pneumatics, and sensors. Buyers take these for the controller and the integration hardware, or to keep an existing Galil-based machine running.

Used; unit looks good to us. Sold complete as photographed with its cable set. Sold as-is, surplus from King Surplus inventory in Del Rio, Texas. Same-day shipping on orders before 3:00 PM CT.

Verified from the unit's own nameplates and labels

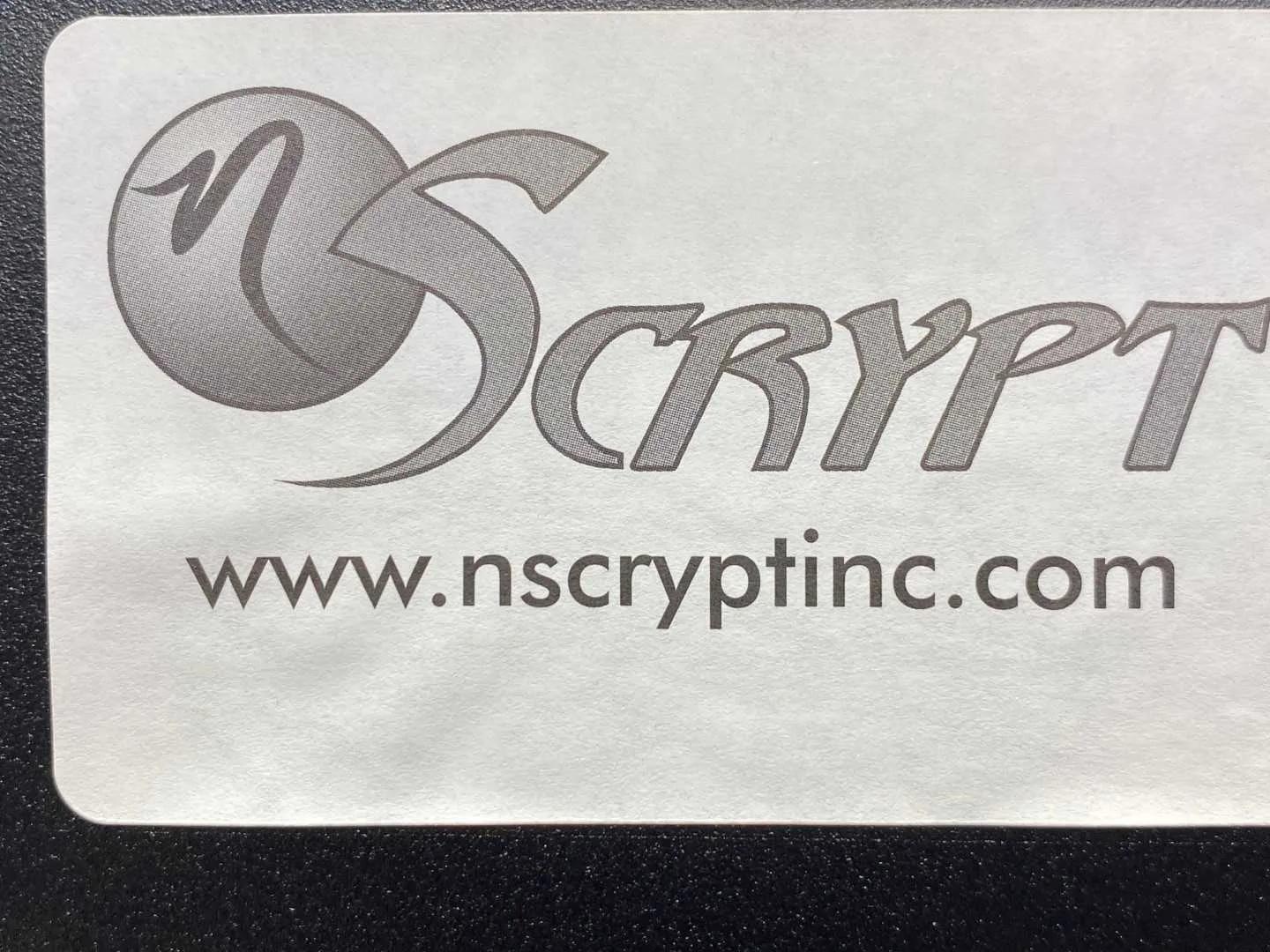

• Cabinet branding: nScrypt (www.nscryptinc.com), carried on the enclosure itself. The cabinet is an nScrypt-built machine control cabinet.

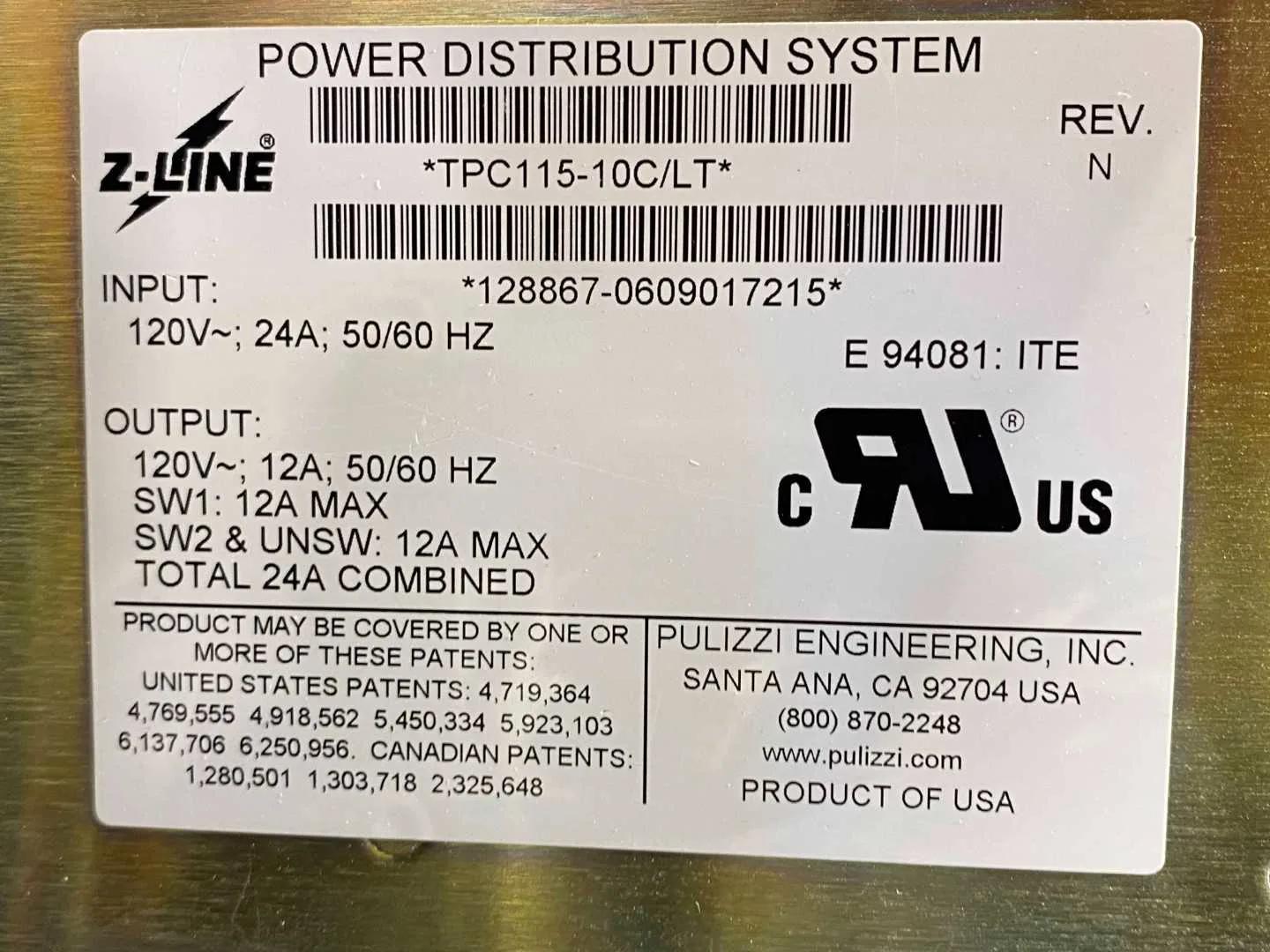

• Internal power distribution system: Z-LINE, model TPC115-10C/LT, REV. N, serial 128867-0609017215, built by Pulizzi Engineering, Inc., Santa Ana, CA 92704 USA, Product of USA
• Power distribution input: 120V~, 24A, 50/60 Hz
• Power distribution output: 120V~, 12A, 50/60 Hz. SW1 12A max; SW2 and unswitched 12A max; 24A total combined.
• Power distribution agency listing: E 94081, ITE

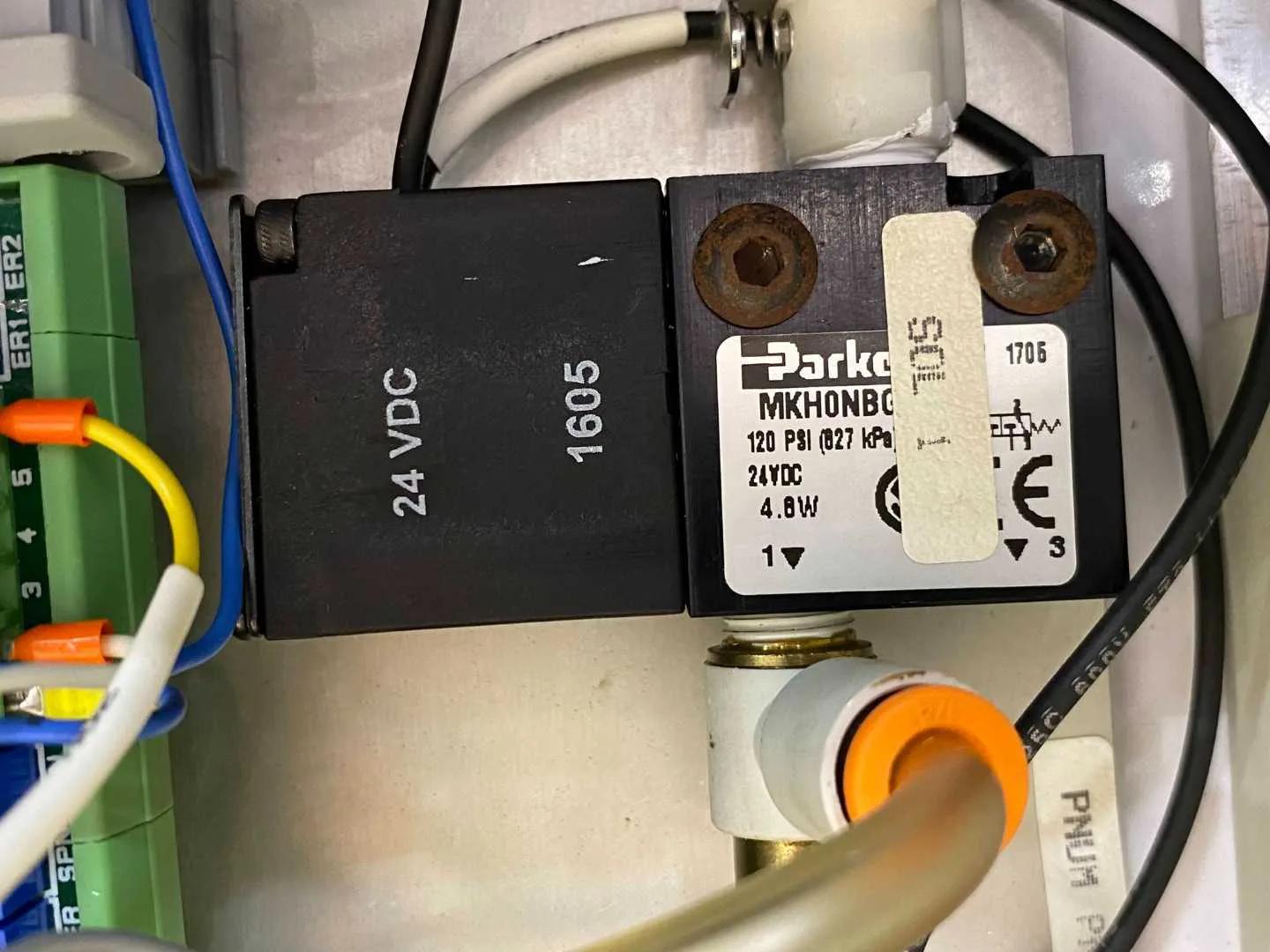

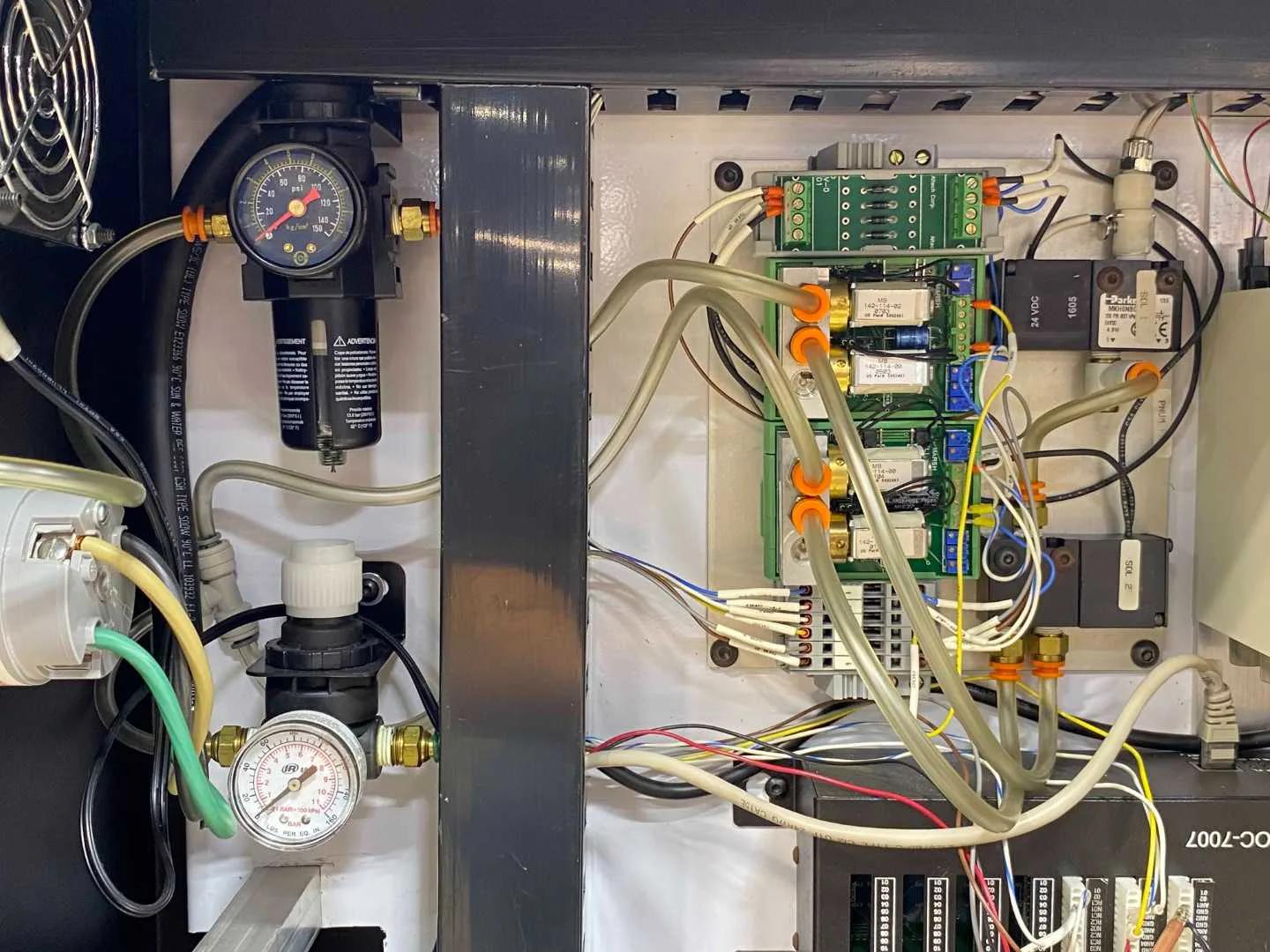

• Pneumatic valving: Parker, model partly obscured (MKHONB0...), 120 PSI (827 kPa), 24VDC, 4.8W

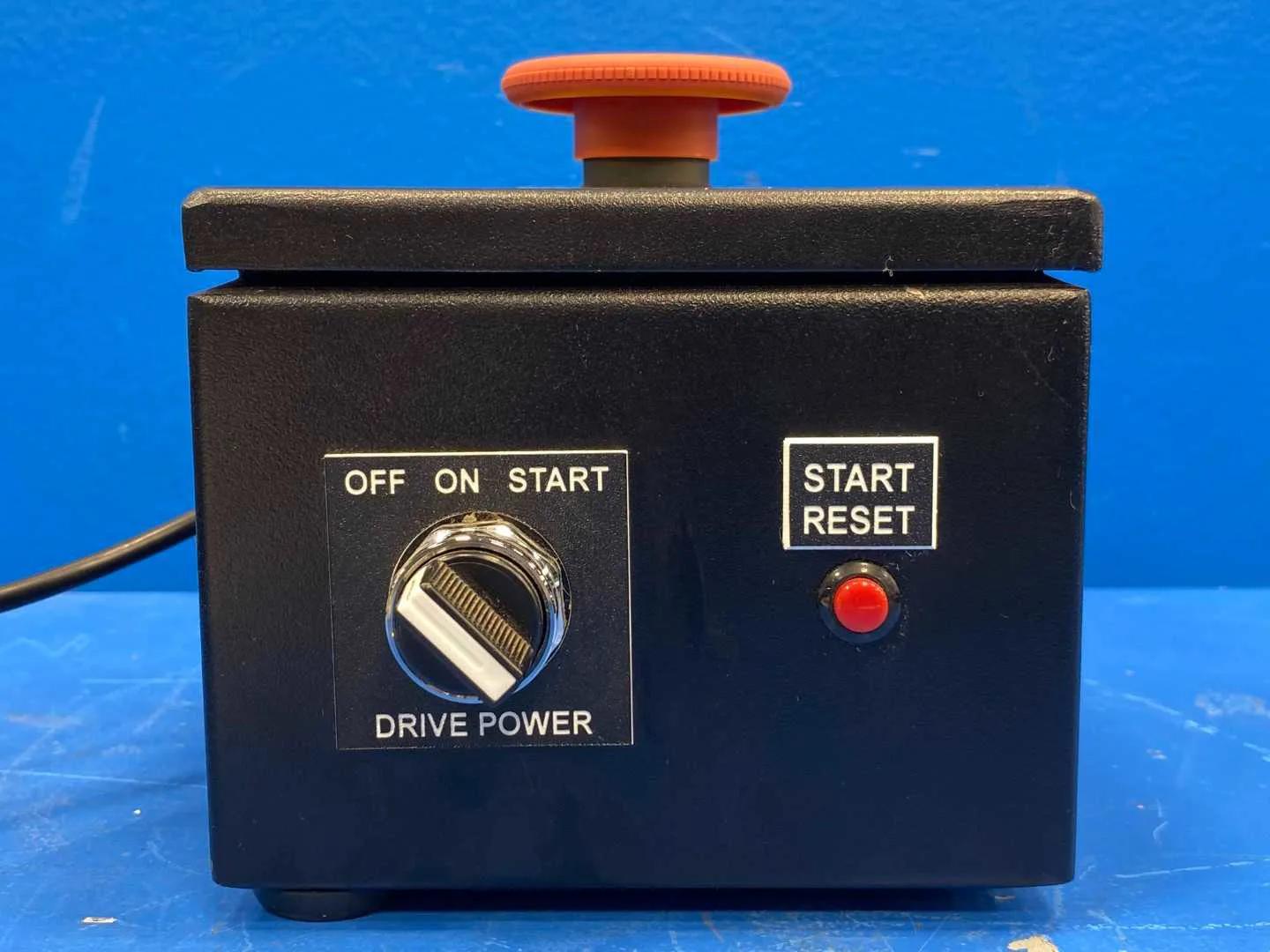

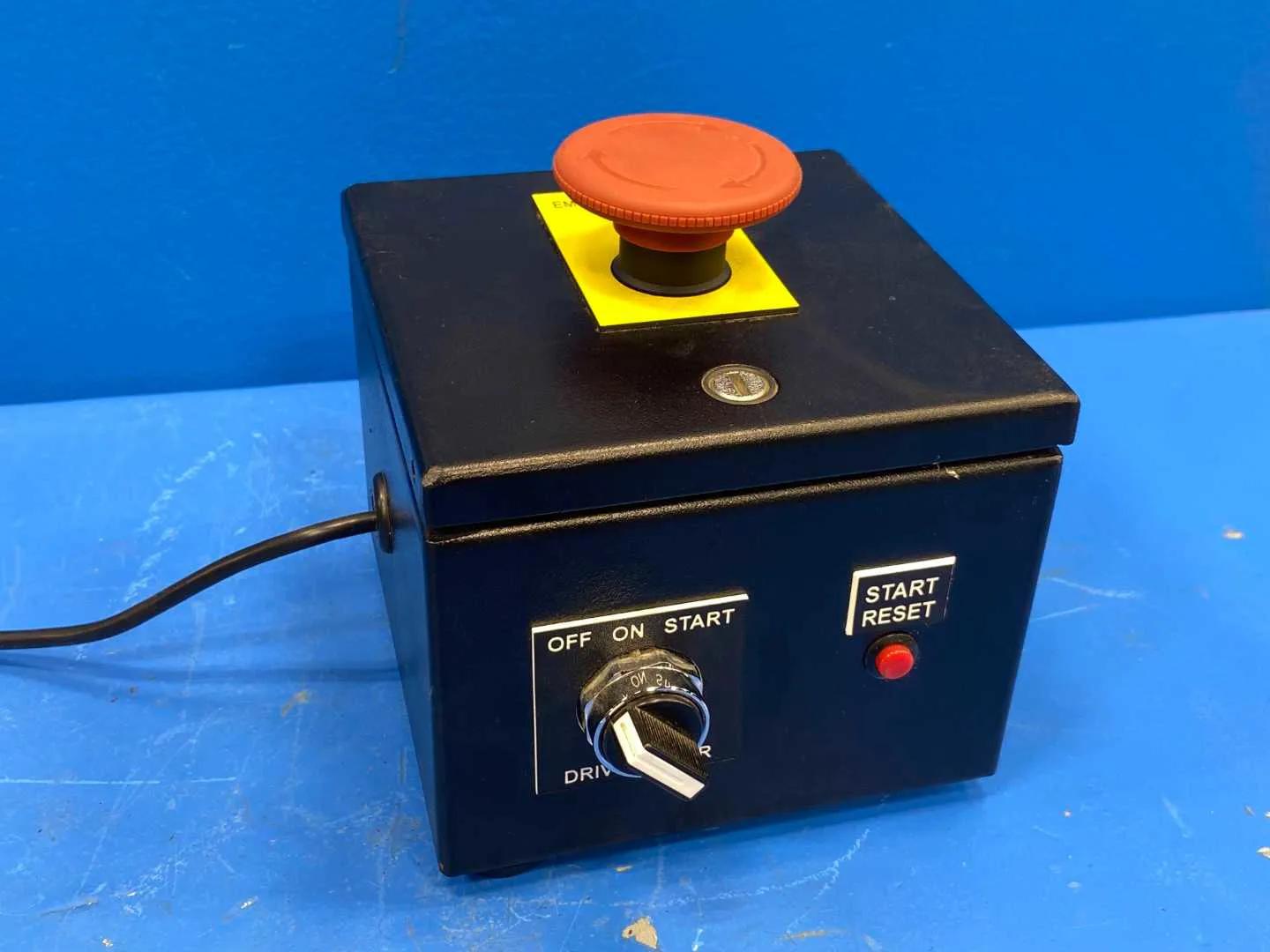

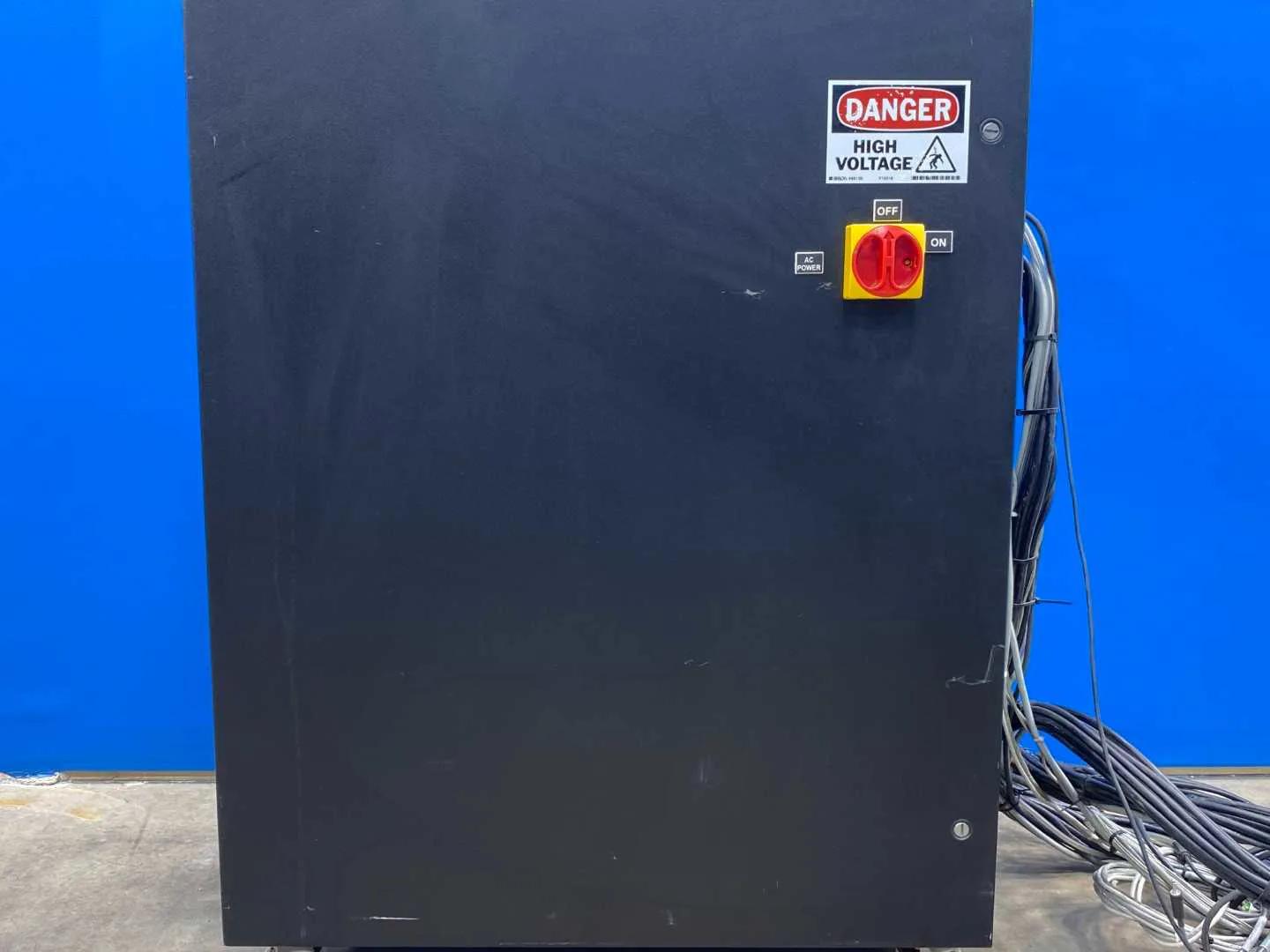

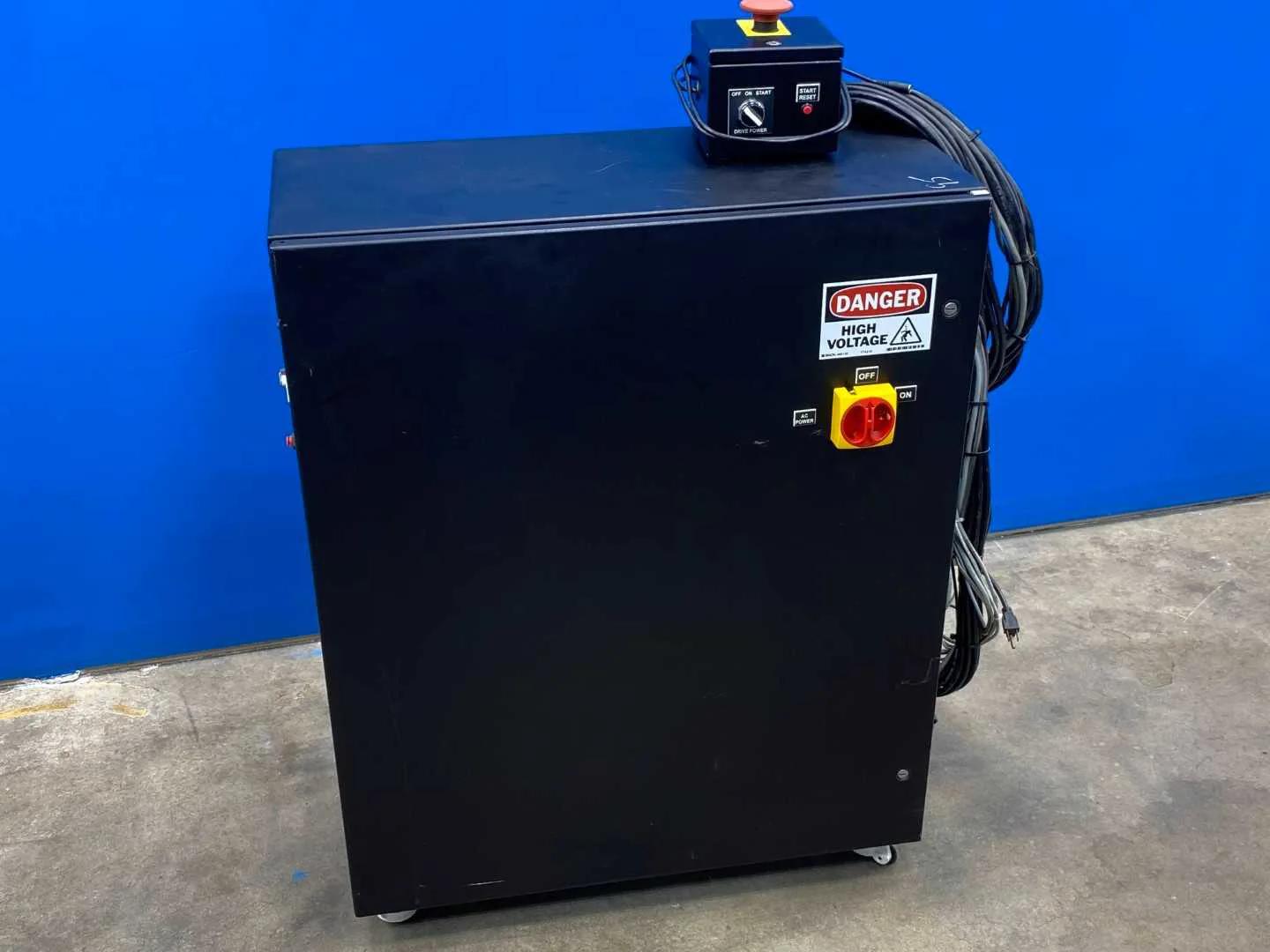

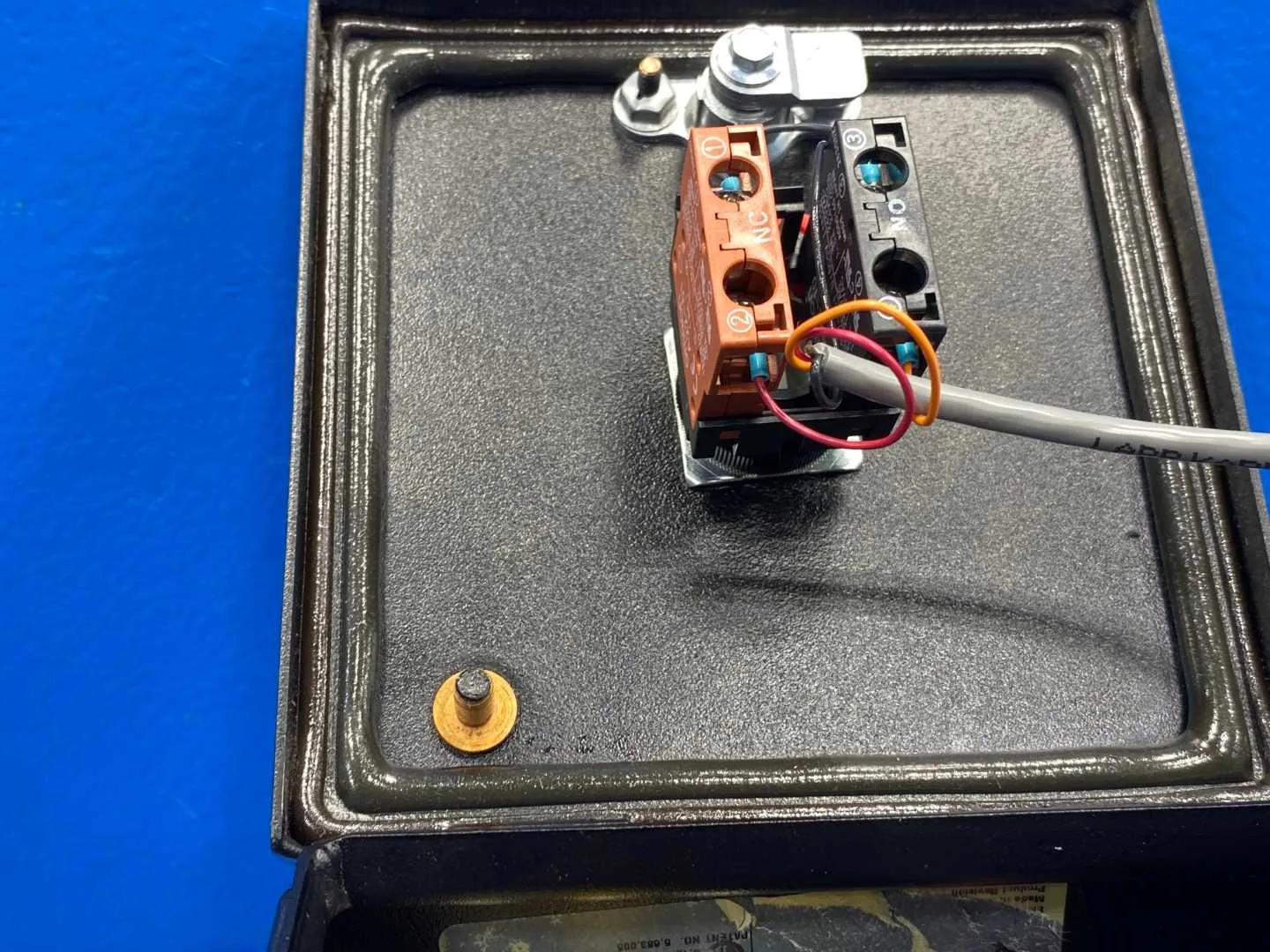

• Operator controls: emergency stop, OFF / ON / START, START / RESET, DRIVE POWER, and an AC POWER OFF / ON disconnect. A DANGER HIGH VOLTAGE label is fitted.

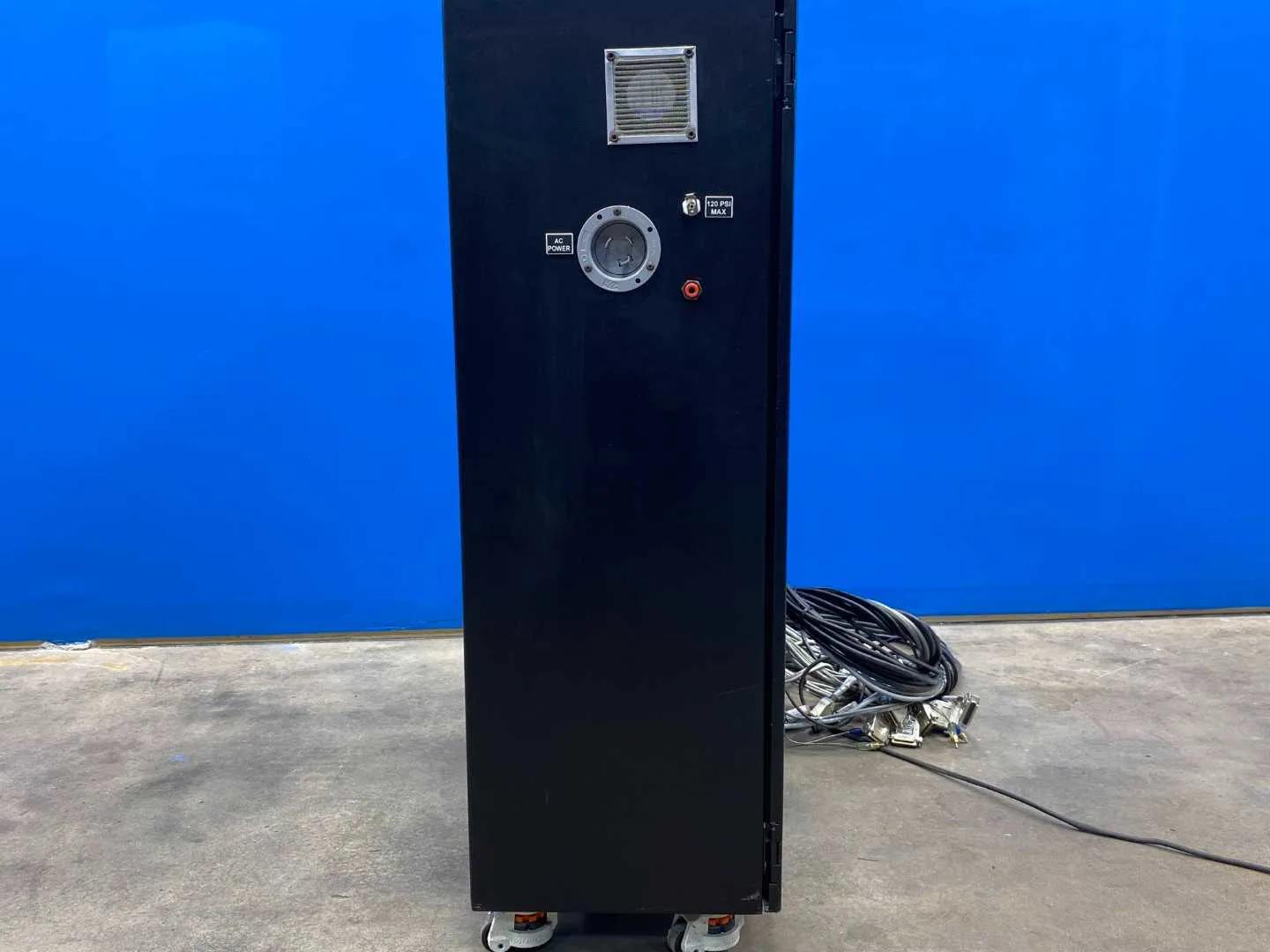

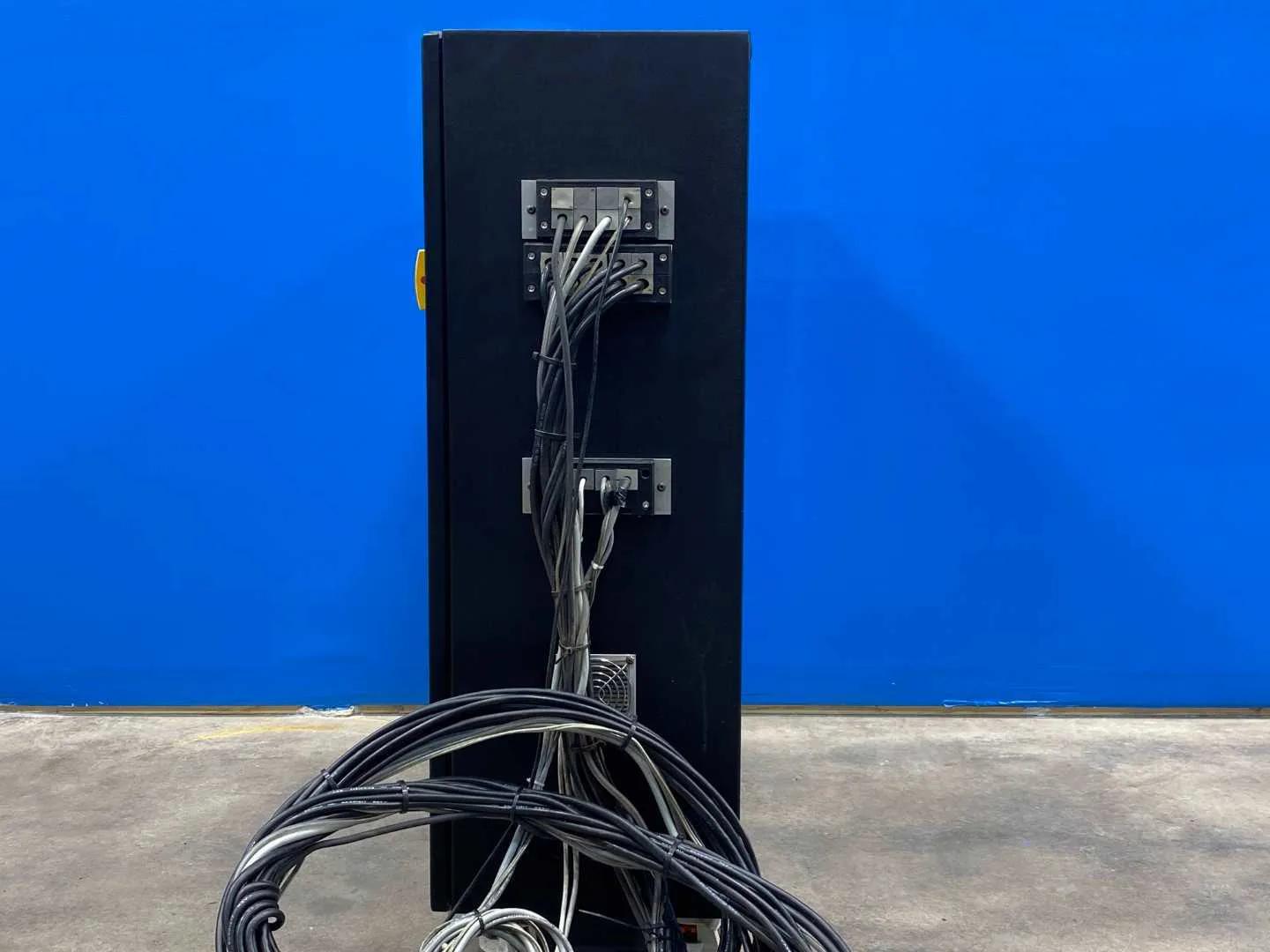

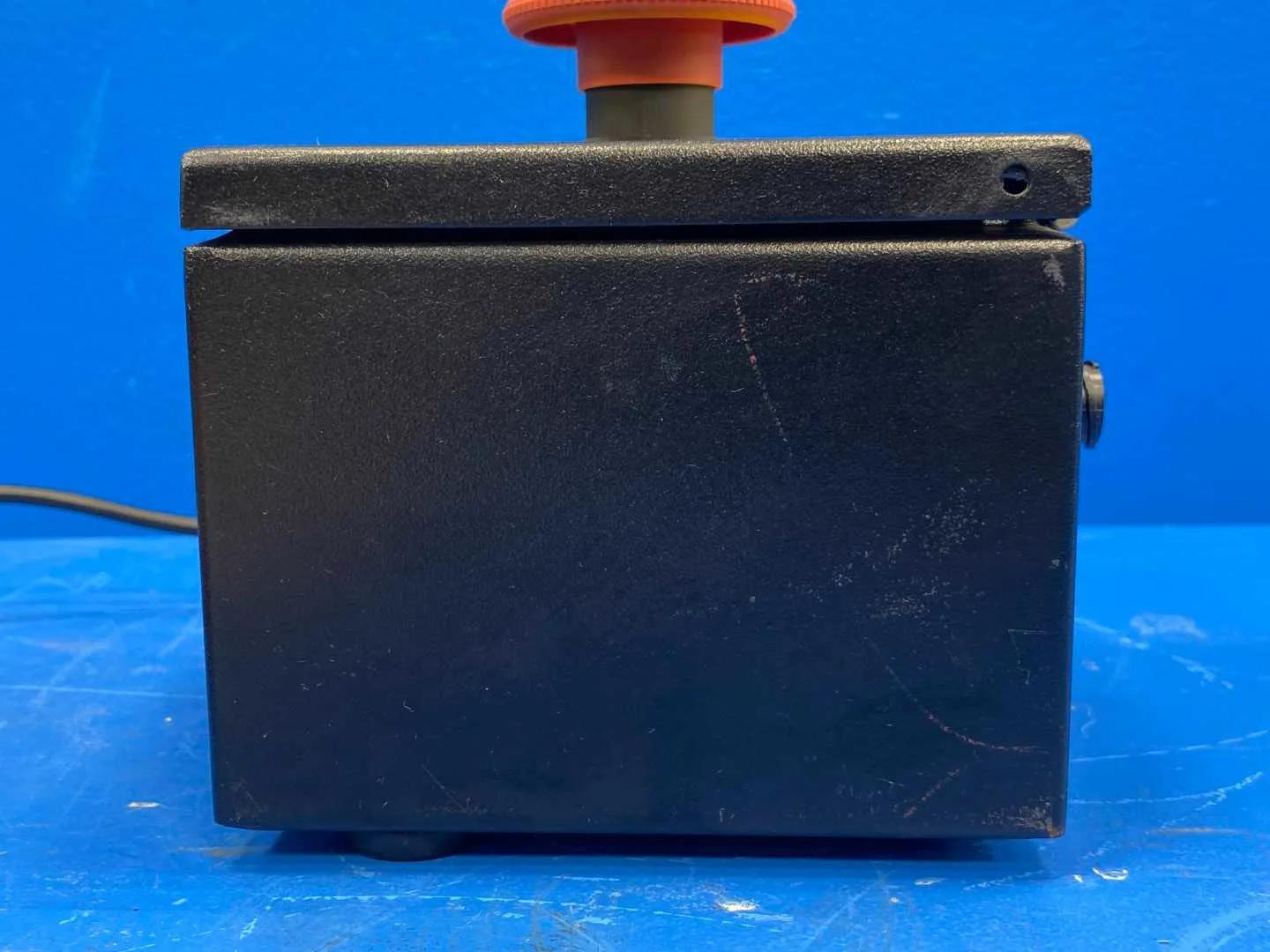

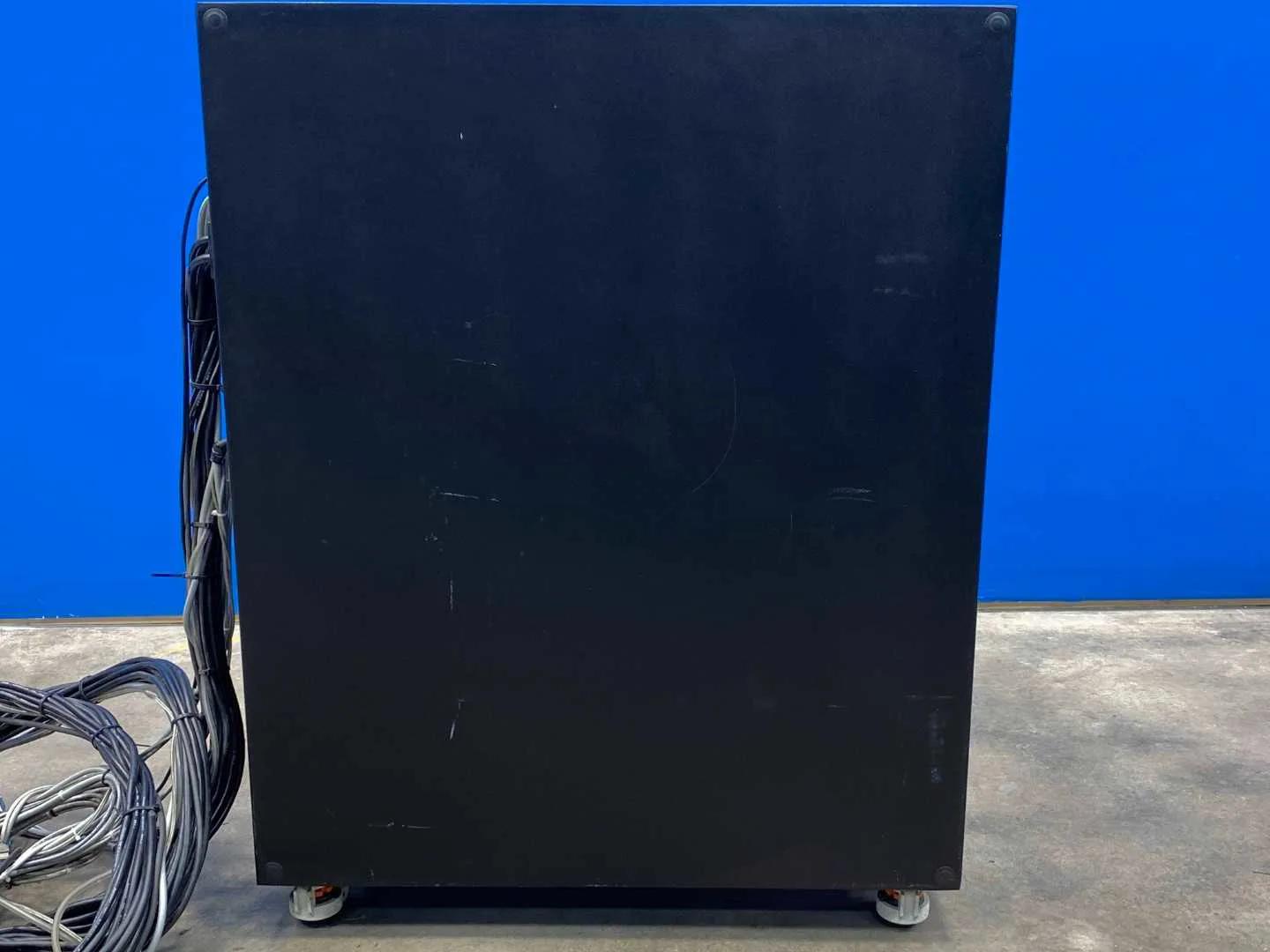

• Enclosure: black steel cabinet with a top-mounted operator control box and a side-mounted disconnect switch
• Phase is not indicated on the Z-Line nameplate and is not stated here.

Carried over from the prior entry but NOT confirmed in this pass - the photo reader on this record returns results only for the first six gallery images, and the remaining 23 photographs could not be read. The following claims were in the previous text, are not visible in the six readable photographs, and are recorded here as unconfirmed rather than as specifications. The next pass should check each against the interior photographs.

• Galil Motion Control IOC-7007 controller, and the seven-slot I/O map IO00-31 through IO192-223 plus analog inputs ANI1-ANI8. No Galil label is visible in the readable photographs.

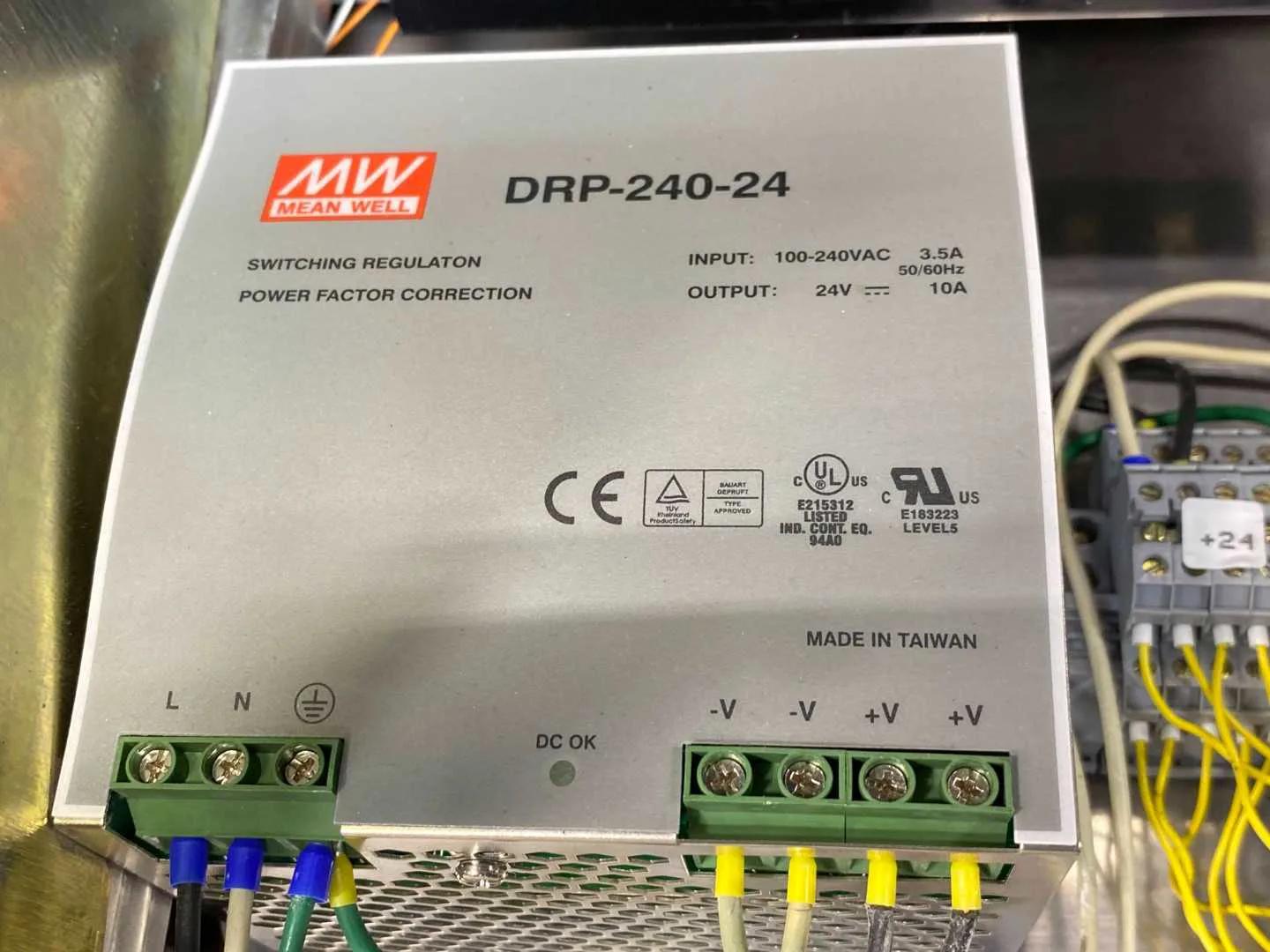

• Mean Well DRP-240-24 supply, 100-240VAC 3.5A 50/60Hz input, 24VDC 10A output, power factor corrected

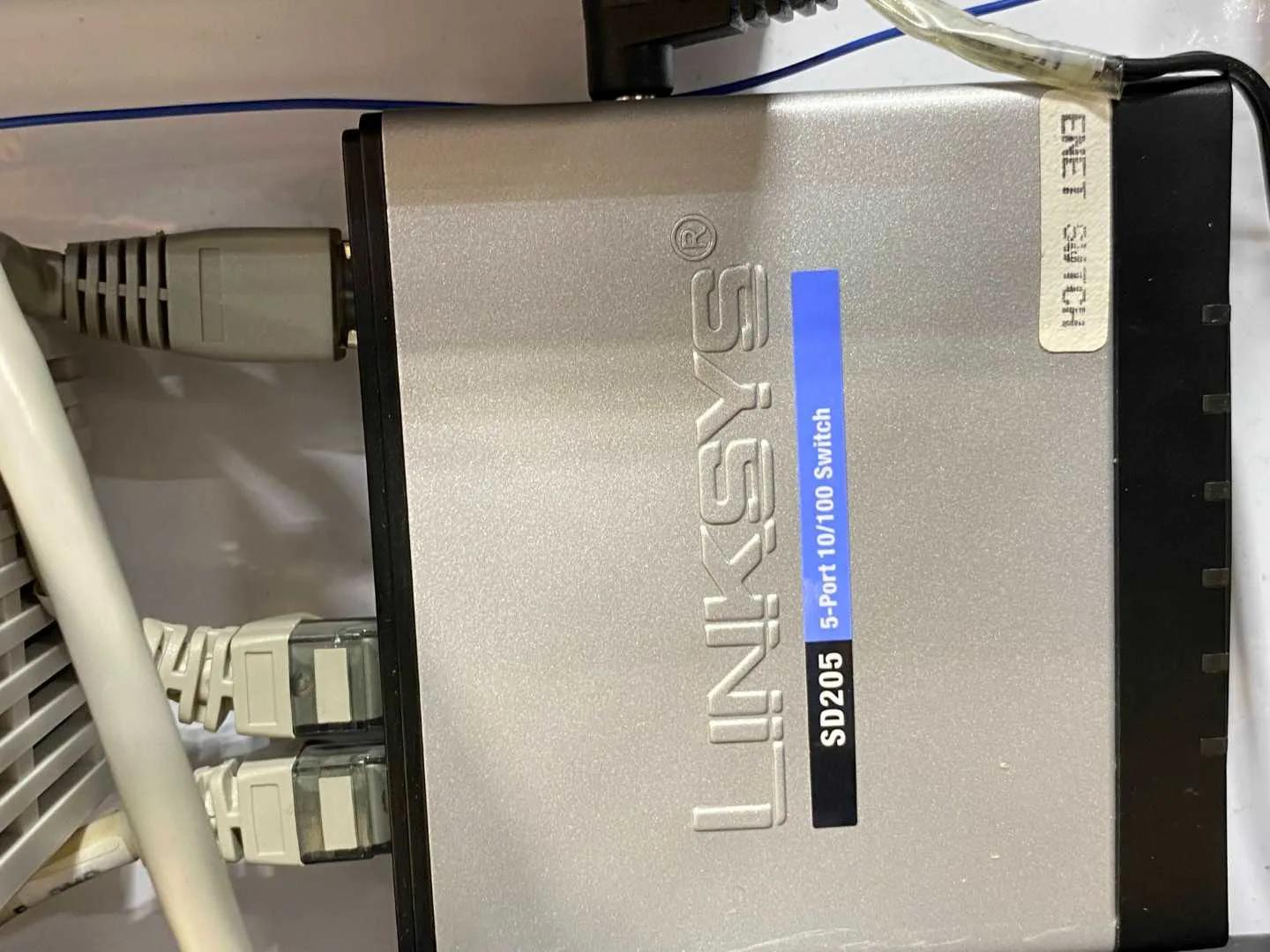

• Linksys 10/100 network switch

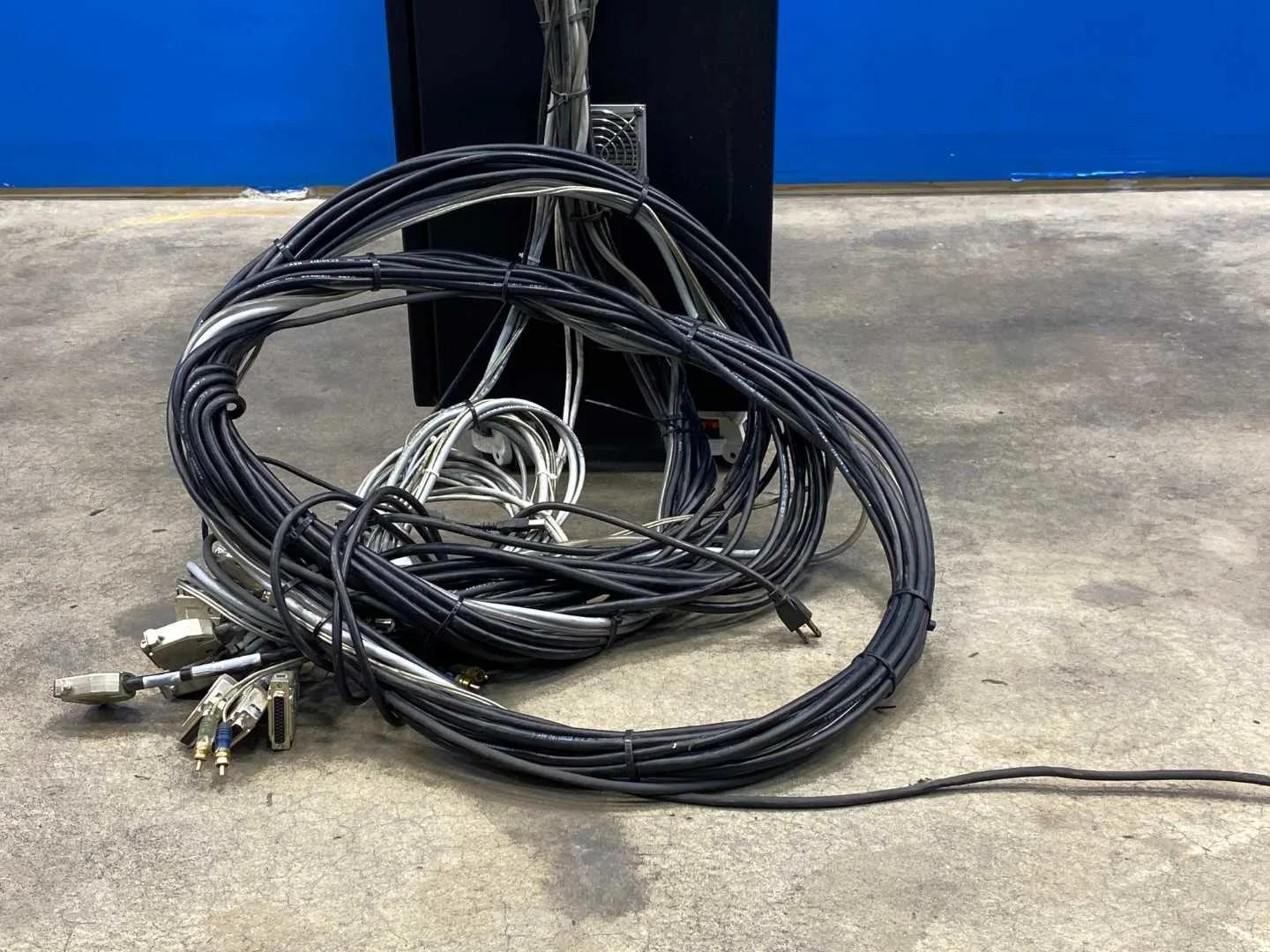

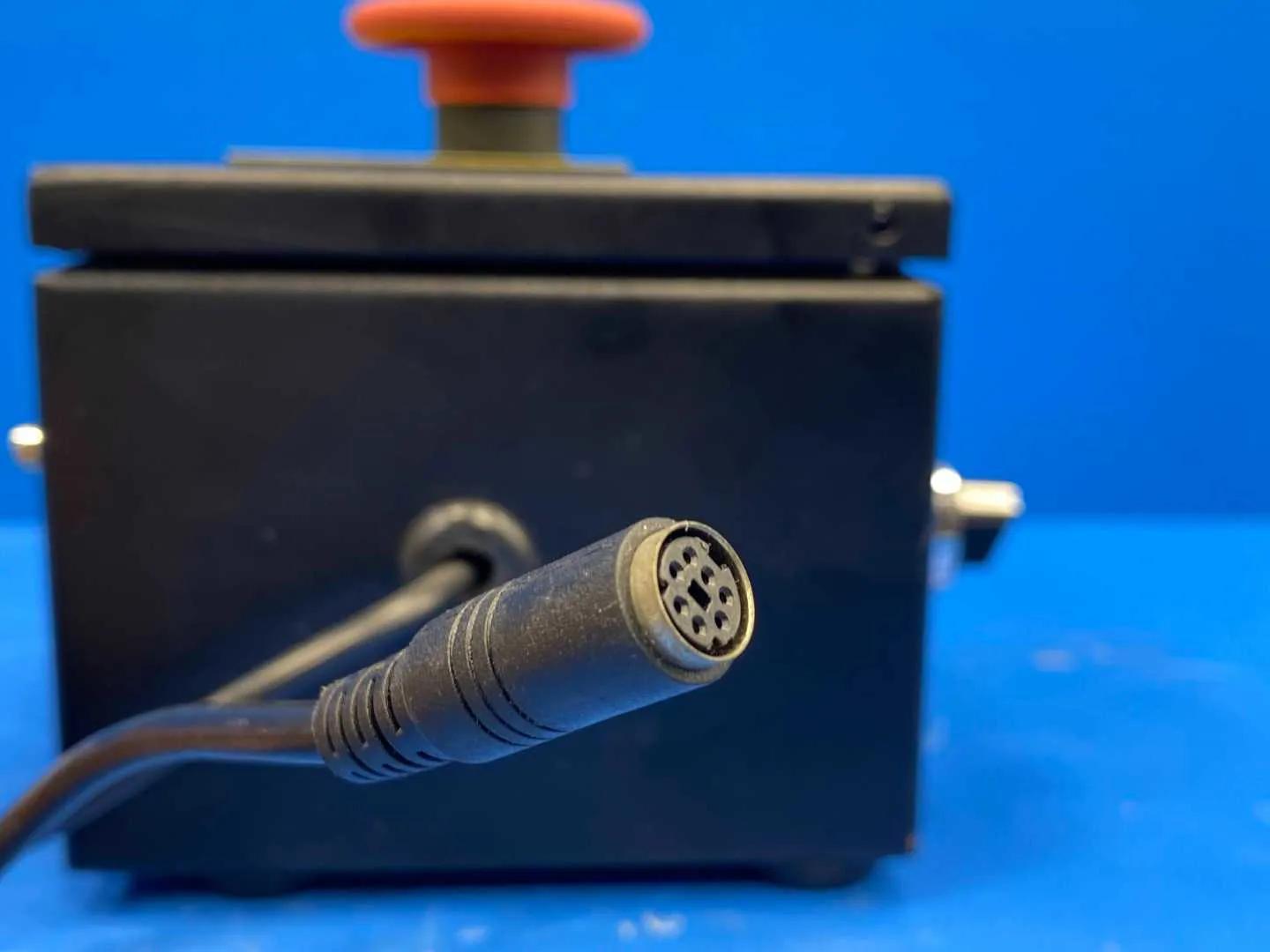

• Caster mounting and the DB-style machine cable harness

Spec Basis: Partially verified 2026-09-16 against this cabinet's own nameplate photographs (nScrypt cabinet label, Z-Line / Pulizzi TPC115-10C/LT power distribution nameplate, Parker valve label, KSC record 8261). Three corrections were needed. First, serial 128867-0609017215 was presented as the serial of a Galil IOC-7007; it is in fact the serial on the Z-Line / Pulizzi power distribution unit inside the cabinet, and it is now attributed to that unit. Second, "Supply Voltage: 120V / Current: 12A" stated the power distribution unit's OUTPUT rating as though it were the cabinet's supply; the input rating is 120V 24A. Third, the entry's "Dimensions: 14 x 31 x 38 in", "Weight: 204 lb" and "Freight Class: 50, ships on a pallet" were our own shipping figures, taken from our yellow tag and logistics fields, not factory specifications. Manufacturer (FID 56) and Model (FID 57) carry Galil Motion Controls / IOC-7007, which this pass could neither confirm nor rule out; that identification needs a person at the cabinet.
