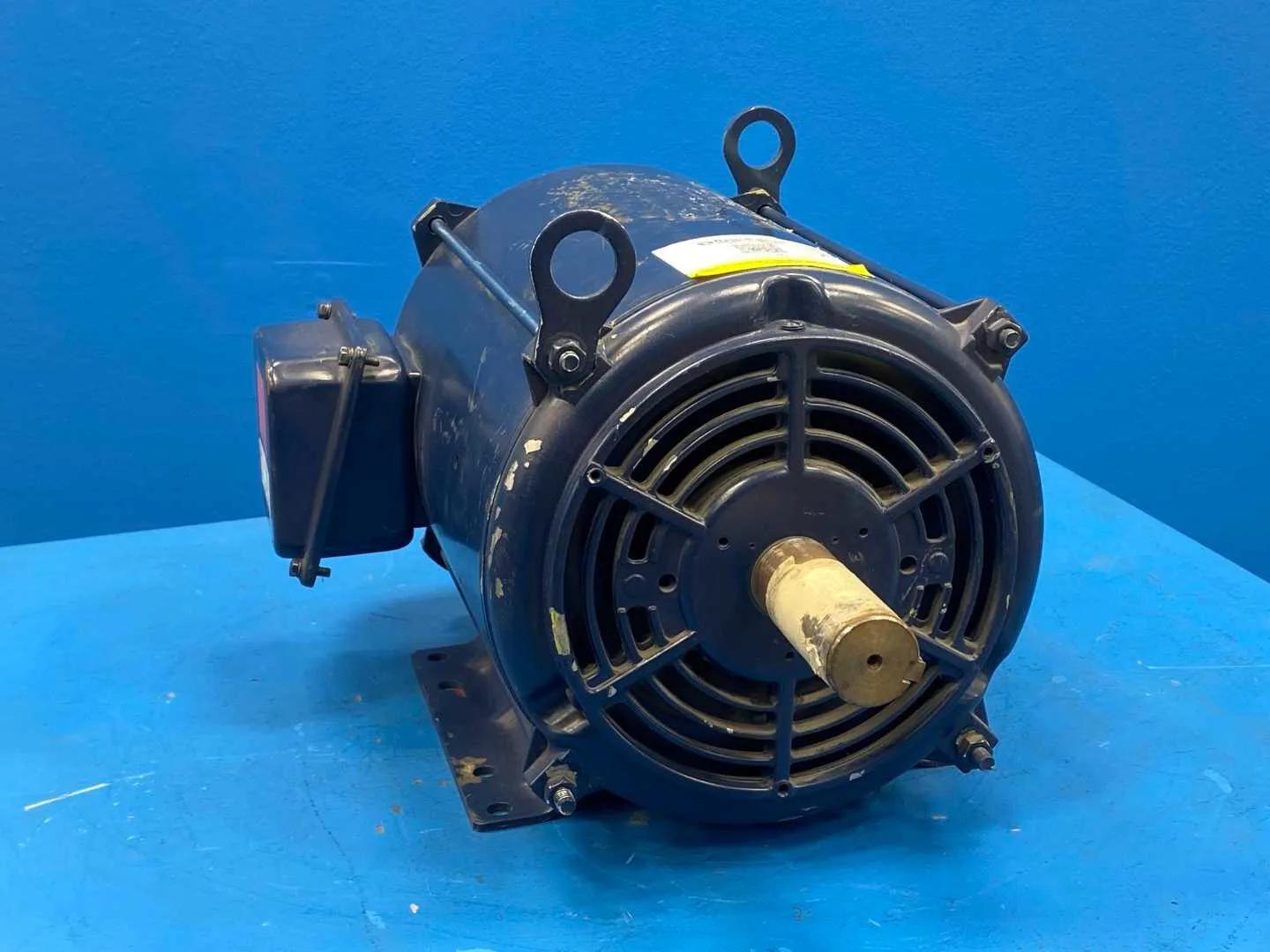

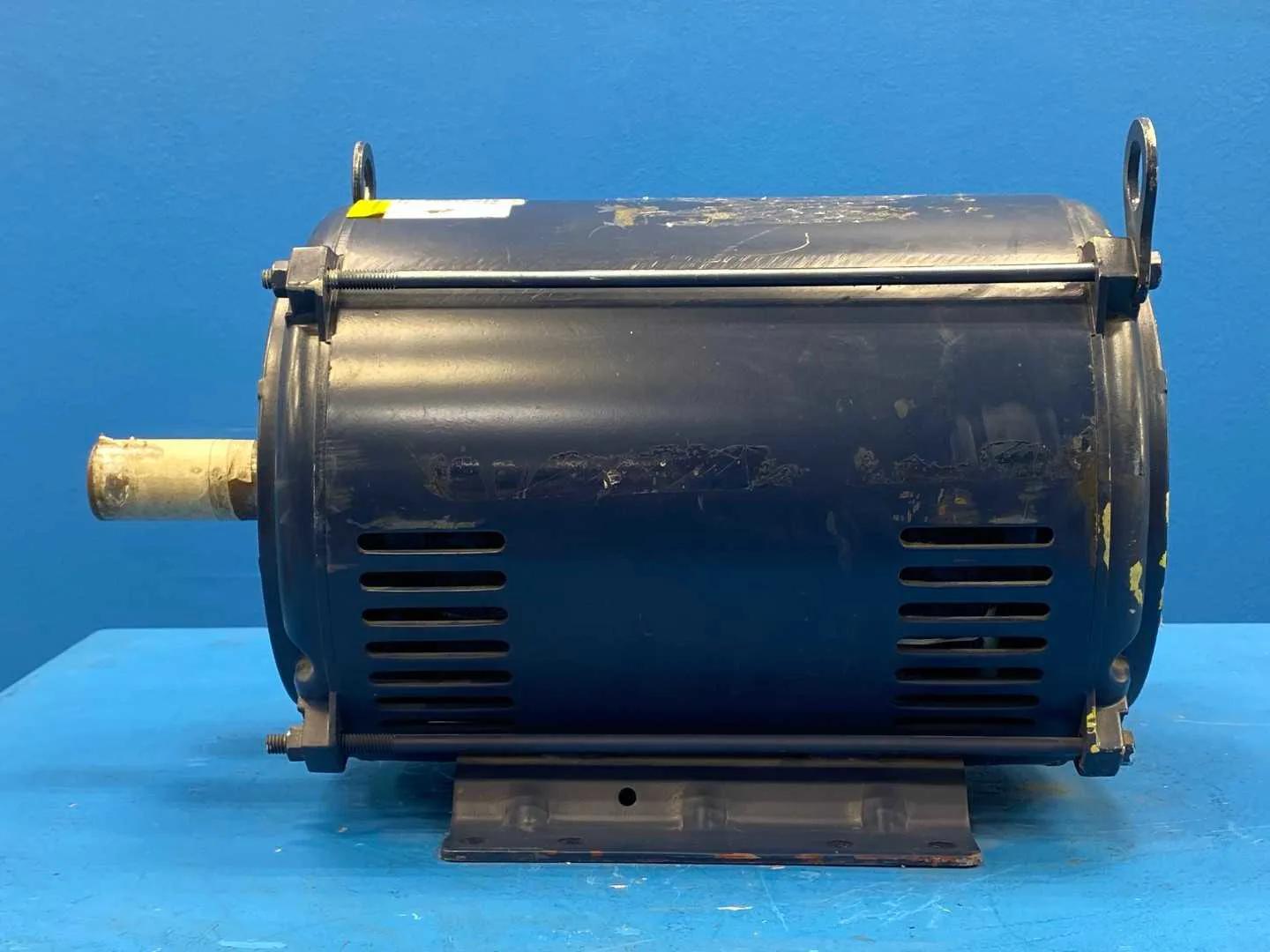

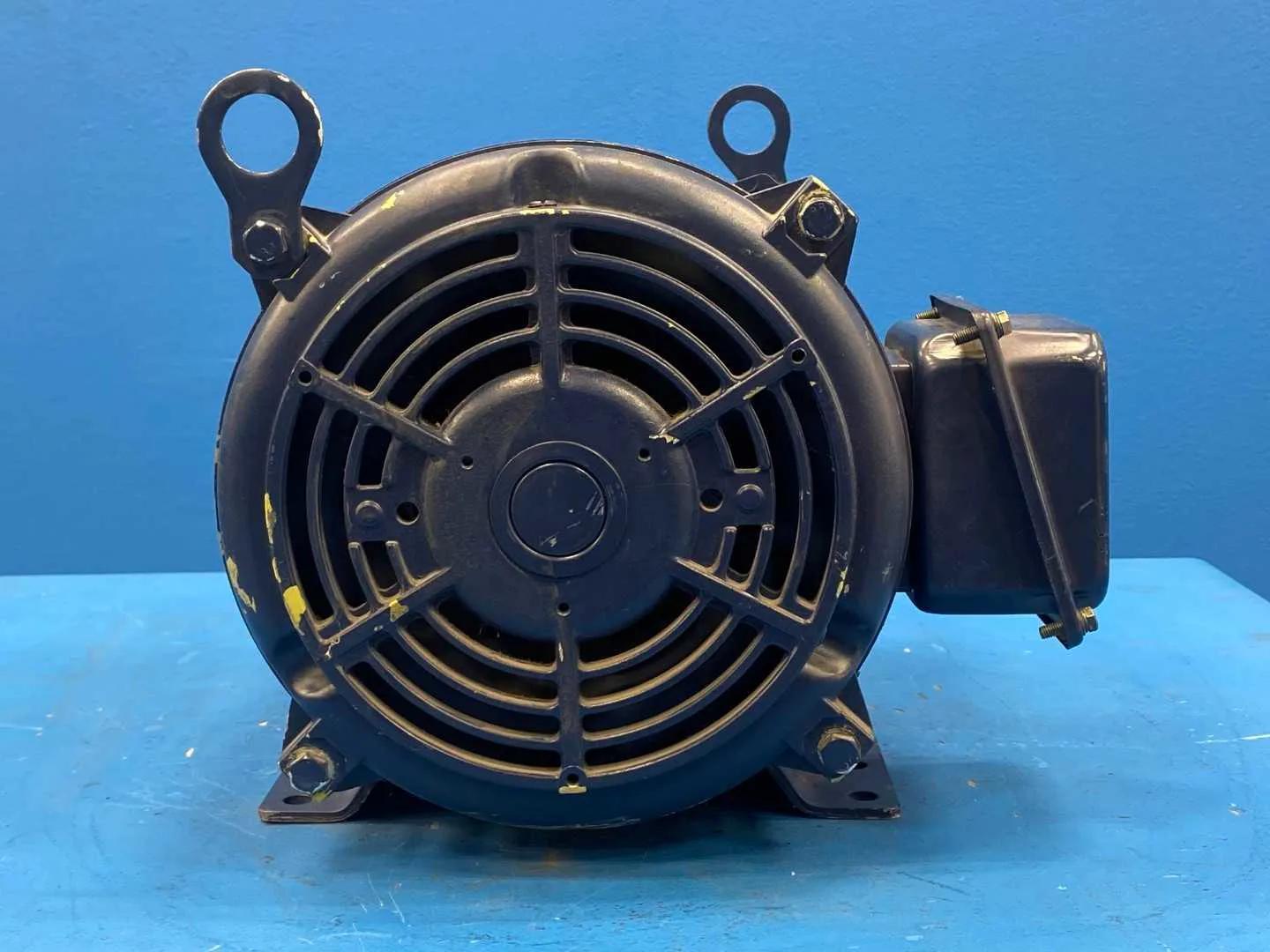

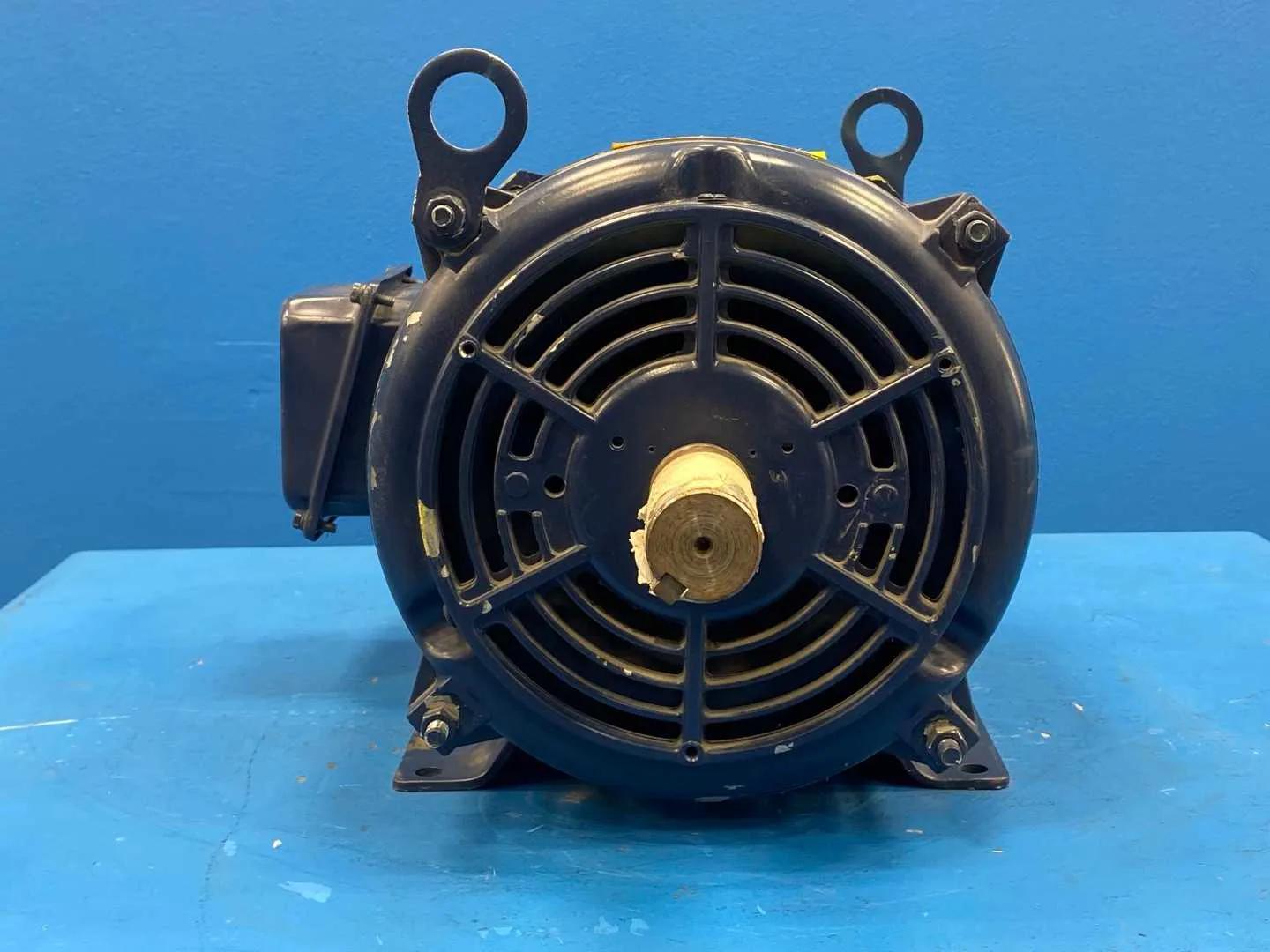

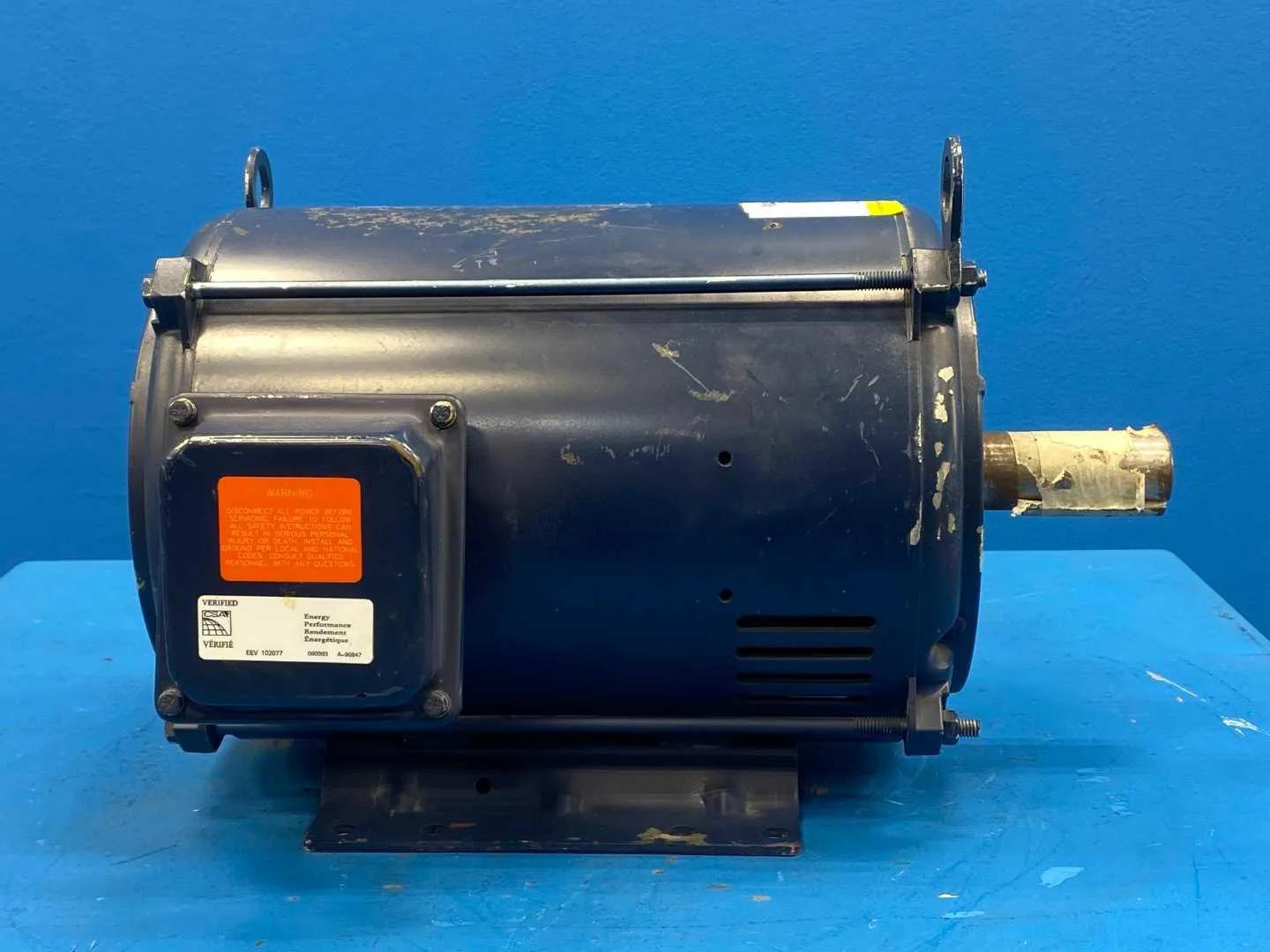

Marathon Electric GT0013A General Purpose AC Motor, 5HP, 1800 RPM, 3-Phase, 230/460, 184T Frame, ODP
GT0013A Motor Specifications: HP & Voltage
Condition & What's Included
1 / 12
+12
+12
1 / 12
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | GT0013A |
| Condition | Used |
| Manufacturer | Marathon Electric |
| Asset Number | KSC1230 / 908 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 4. Used: Powered up in our shop and appears to be functional |
| Packaging Cost | 4. Small Crate $50 |
Available Qty: 1
$510.00
Basic Information
Asset #
KSC1230 / 908
Available Quantity
1
Inspections - Yellow Tag
4. Used: Powered up in our shop and appears to be functional
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Marathon Electric (Regal Rexnord) - Globetrotter series
- Model: GT0013A (motor model 184TTDBD6026)
- Type: General purpose three-phase AC induction motor
- Output: 5 HP at 60 Hz (3 HP at 50 Hz)
- Speed: 1800 RPM synchronous at 60 Hz (1500 RPM at 50 Hz)
- Voltage: 208-230/460 V at 60 Hz (190/380 V at 50 Hz)
- Full Load Amps: 12.6 / 6.3 A at 230/460 V
- Phase: 3
- Frame: 184T, rigid base mount
- Enclosure: ODP (open drip proof)
- Service Factor: 1.15
- Insulation Class: F

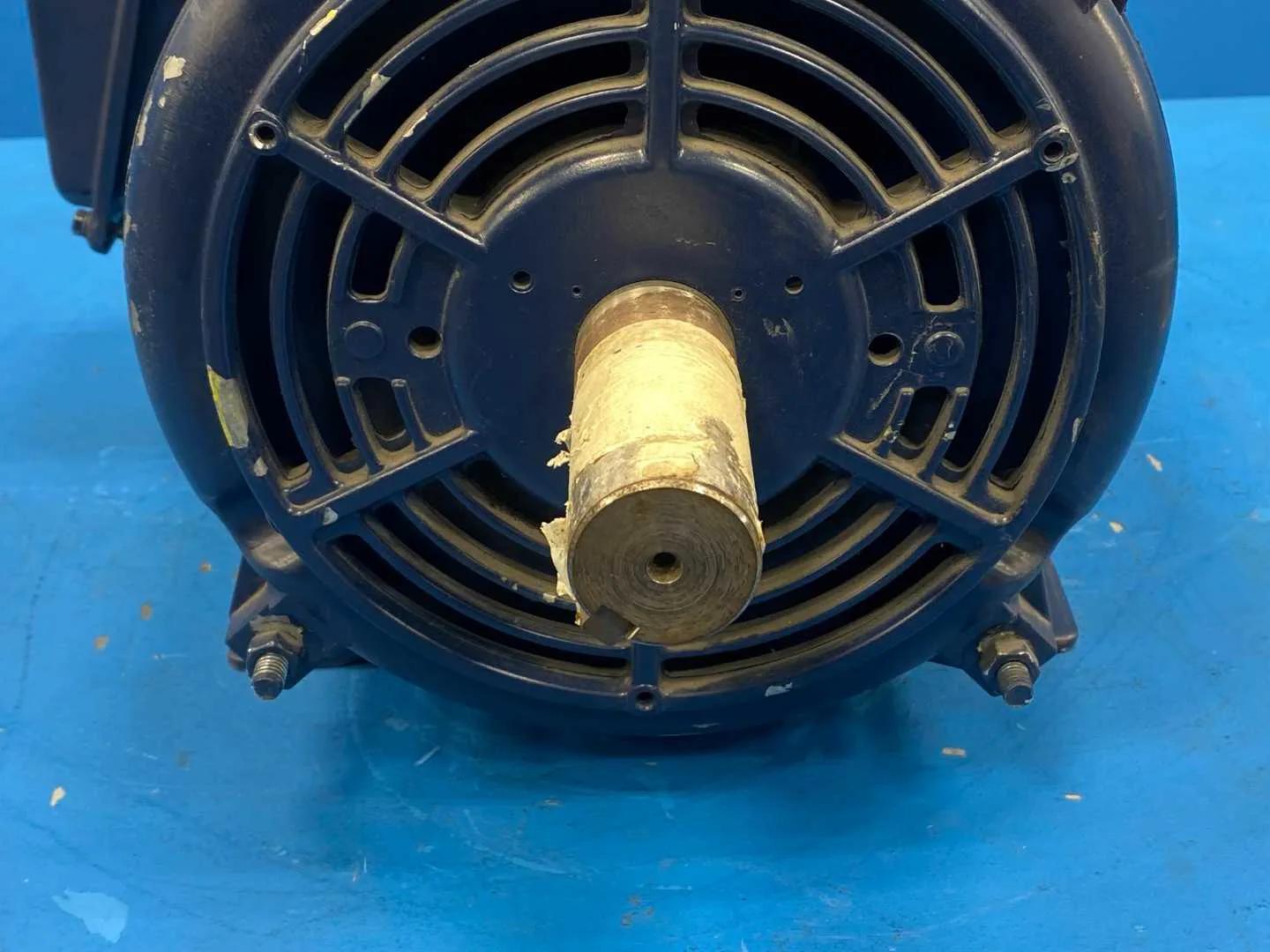

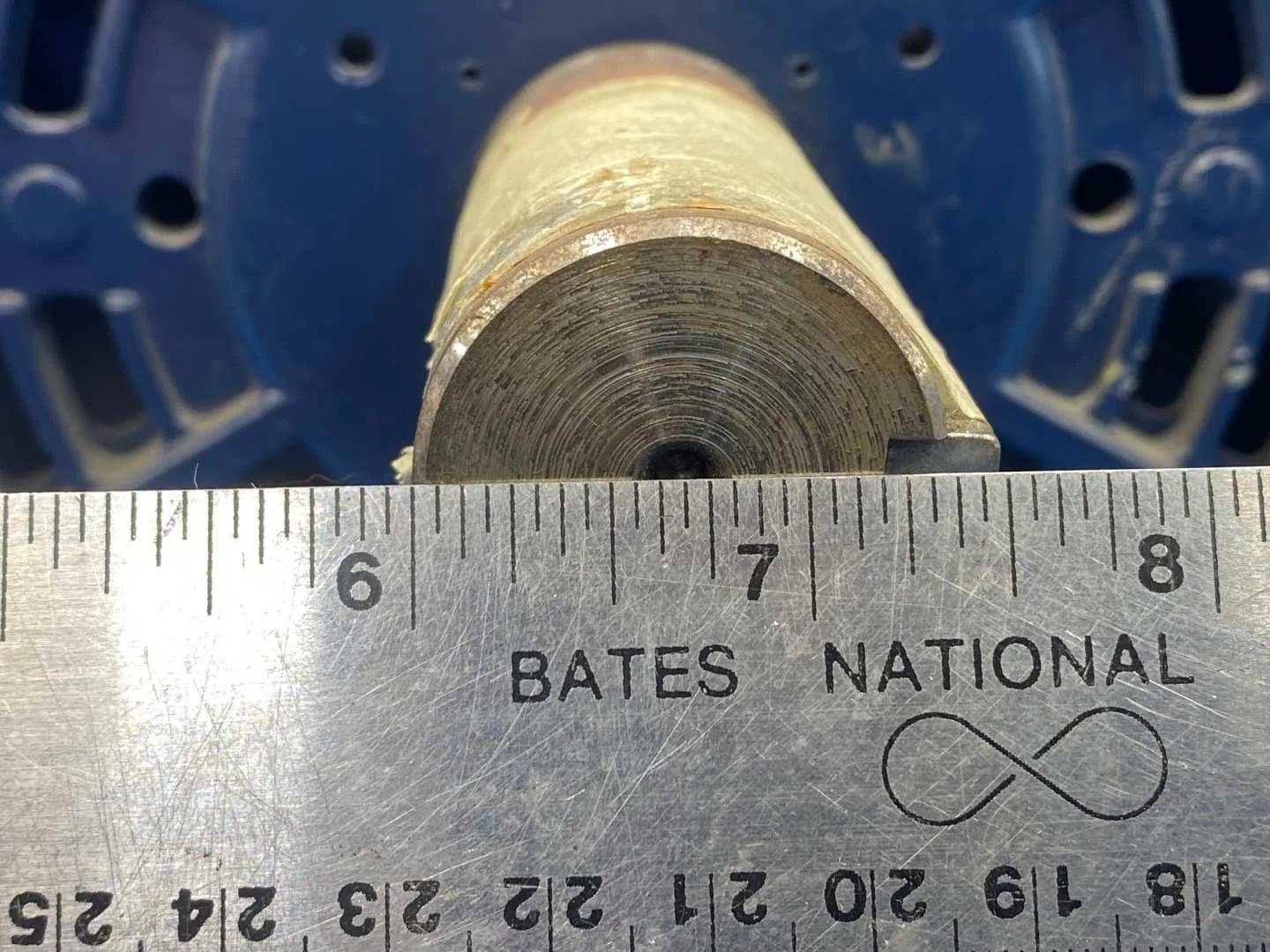

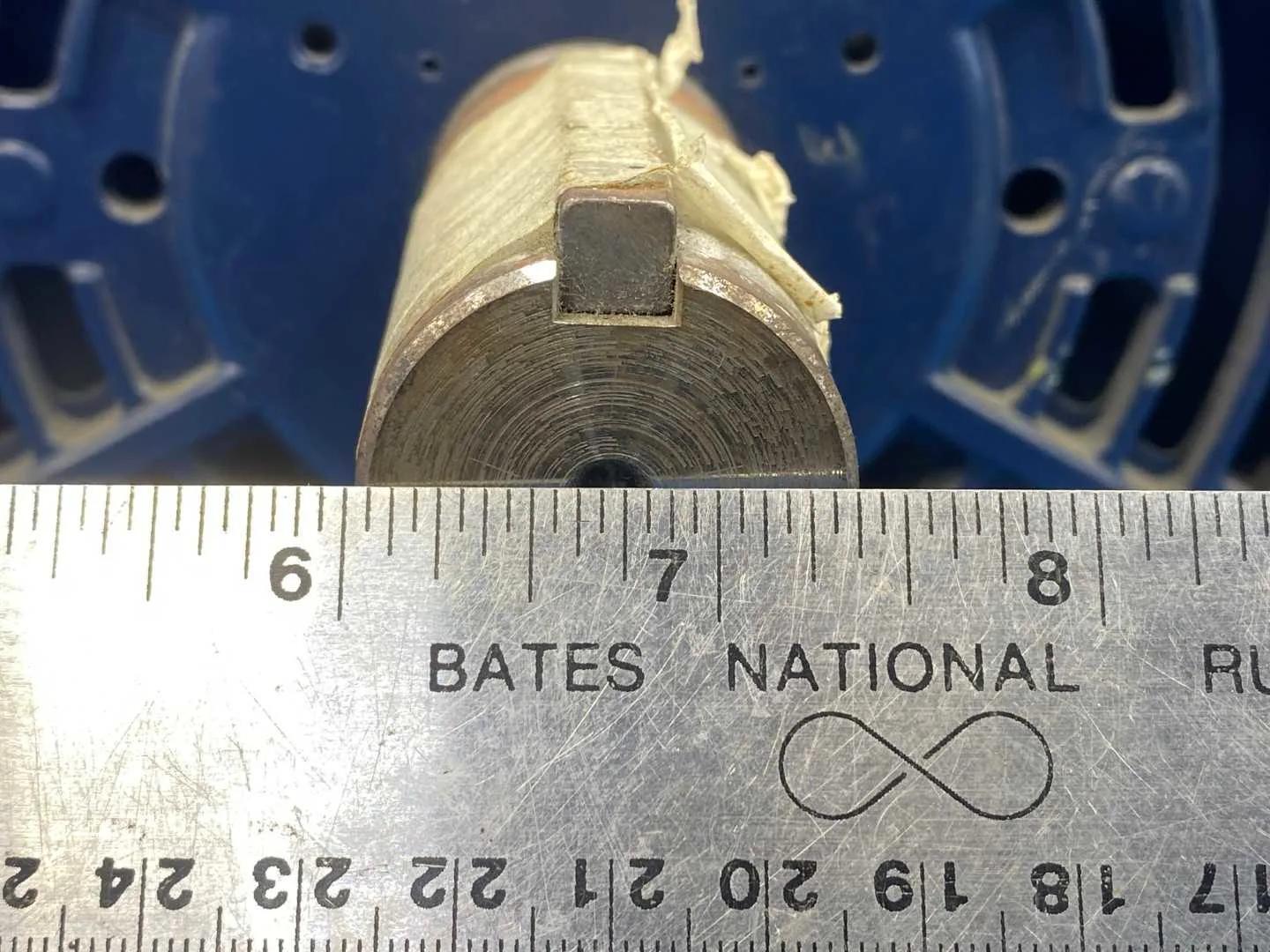

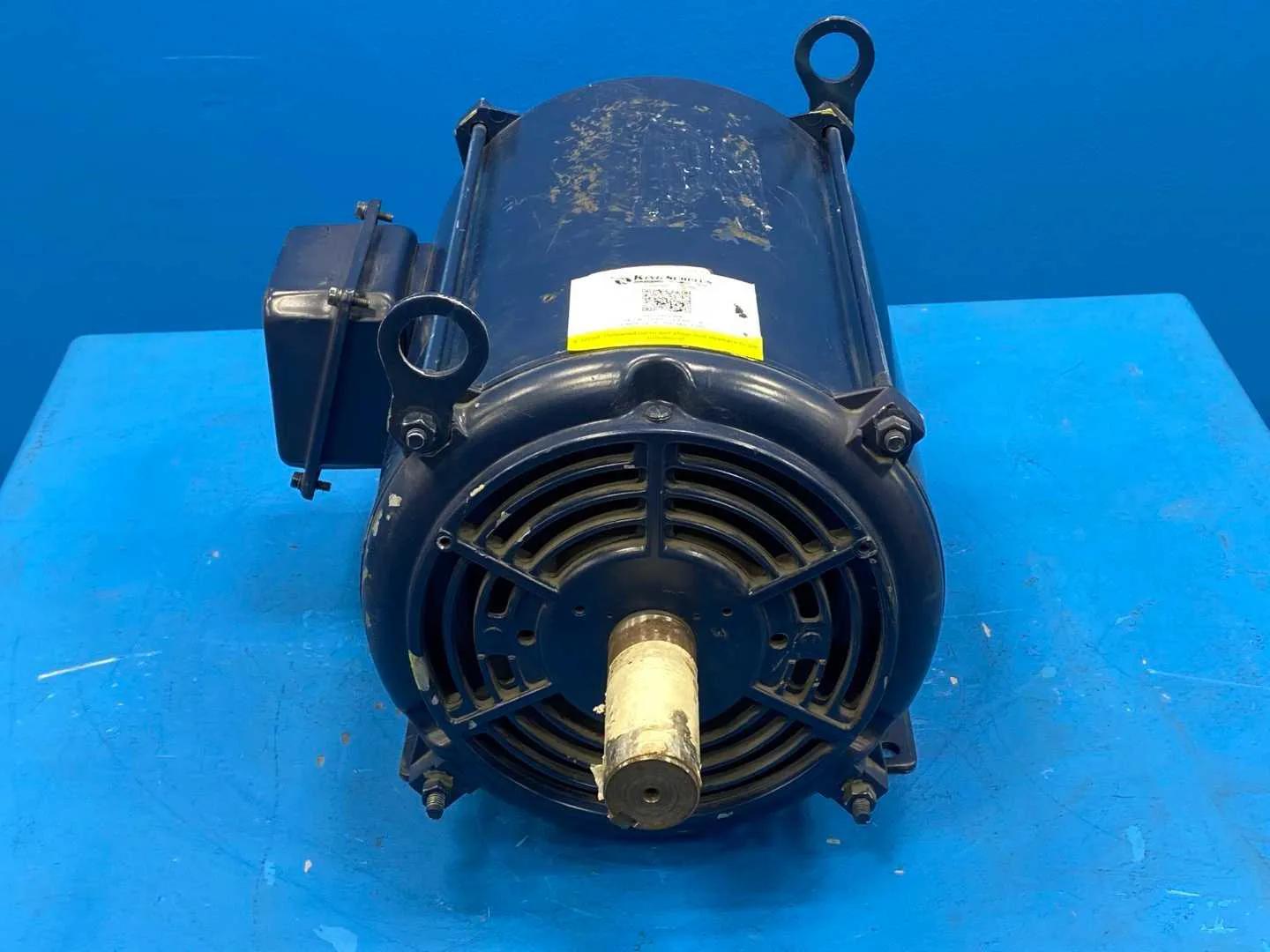

- Shaft: 1-1/8 in diameter x 2-3/4 in, keyed
- Bearings: Ball
- Rotation: Reversible

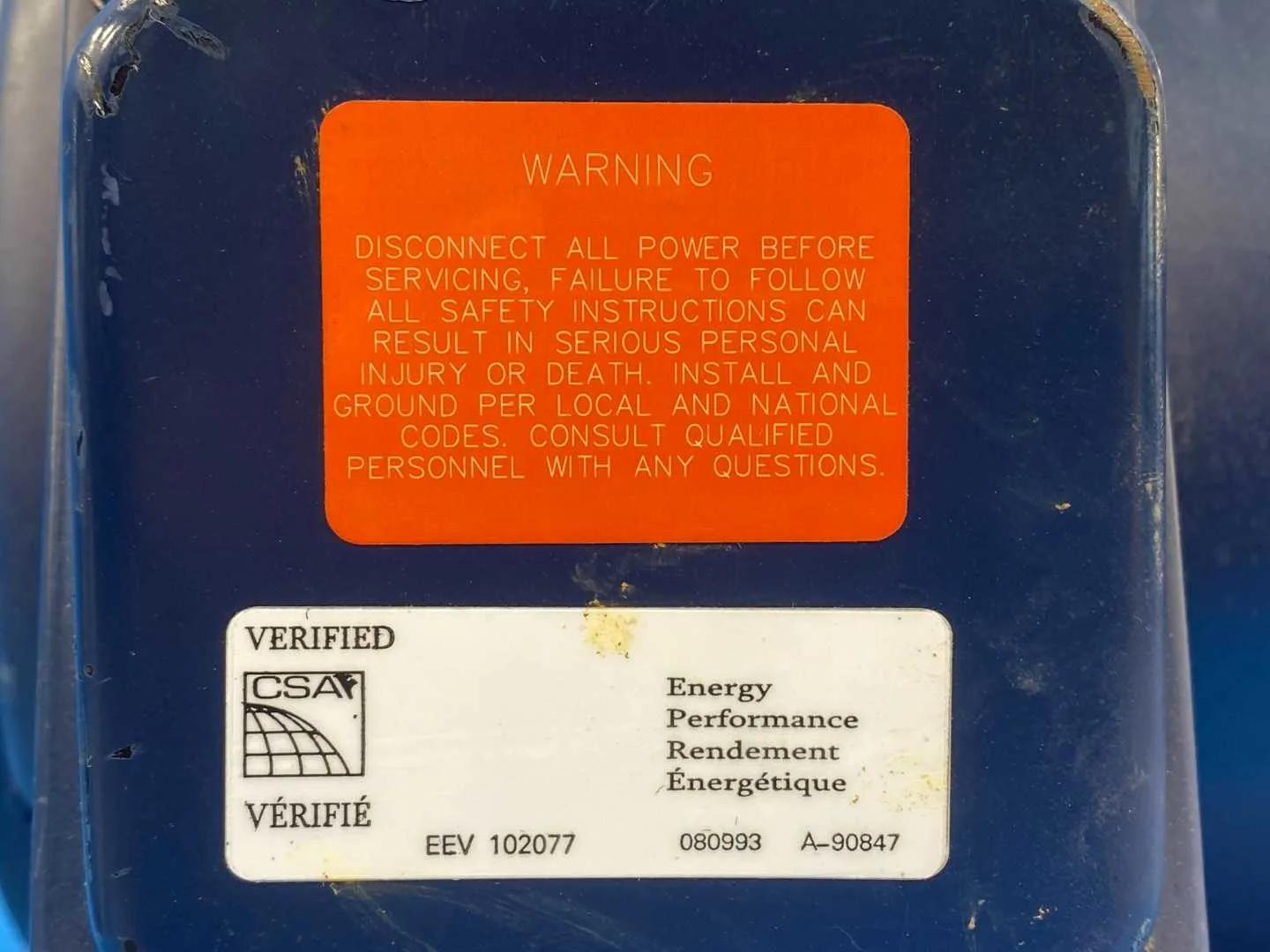

- Approvals: UL Recognized, CSA Certified, CE Marked
- Spec Basis: Marathon Electric / Regal Rexnord published Globetrotter motor data for GT0013A, via Regal Rexnord and MRO Supply
Specifications
Manufacturer
Marathon Electric
Model
GT0013A
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
18
Width (Inches)
12
Height (Inches)
12
Phase
3
Estimated Packaging Weight
50
Estimated Total Weight
150
Asset Number
KSC1230 / 908
Packaging fees
Packaging Cost
4. Small Crate $50
