Air Curtain Motor Double Shaft Blower Assembly Dayton 6E820A 1/2 HP 120V 1745 RPM Single Phase 3800 FPM
Air Curtain Motor Double Shaft Blower Assembly Dayton 6E820A 1/2 HP 120V 1745 RPM Single Phase 3800 FPM
Air Curtain Motor Double Shaft Blower Assembly Dayton 6E820A 1/2 HP 120V 1745 RPM Single Phase 3800 FPM
Air Curtain Motor Double Shaft Blower Assembly Dayton 6E820A 1/2 HP 120V 1745 RPM Single Phase 3800 FPM
| Description | Details |
|---|---|
| Available Quantity | 3 |
| Model | 6E820A |
| Condition | New |
| Manufacturer | Dayton |
| Asset Number | KSC1230 / 1066 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.3 Cardboard $20 |
$549.95
Basic Information
Asset #
KSC1230 / 1066
Available Quantity
3
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

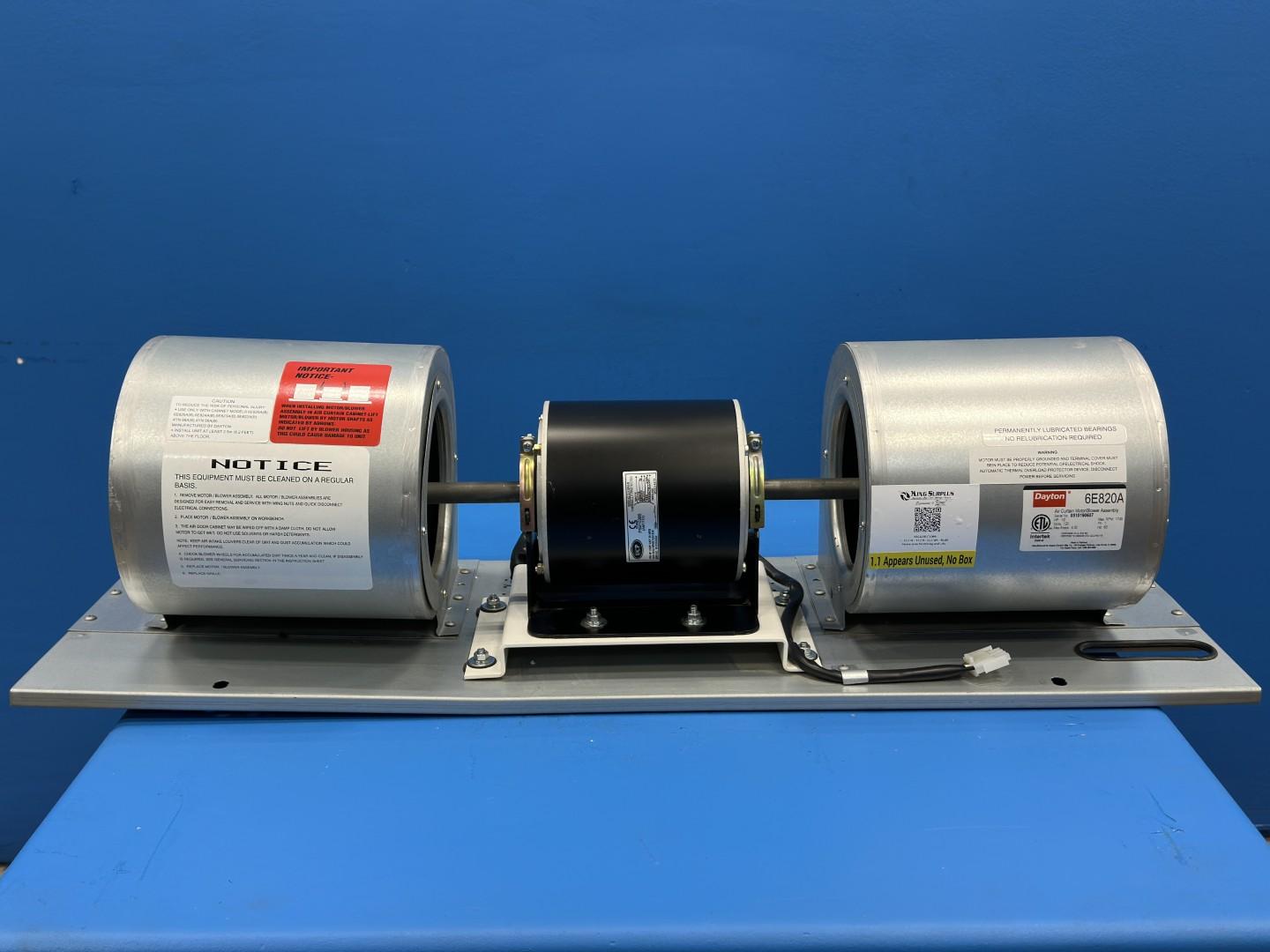

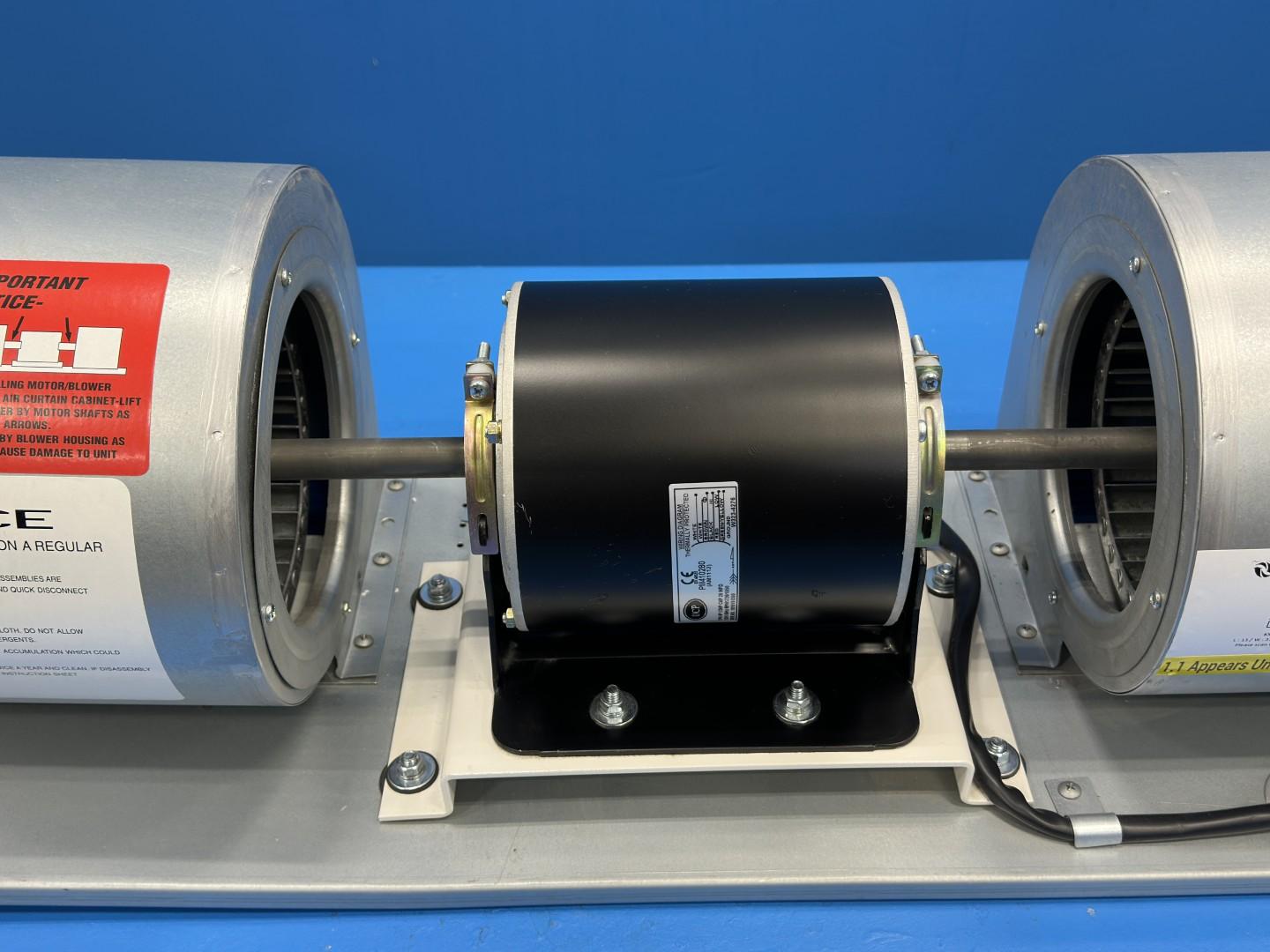

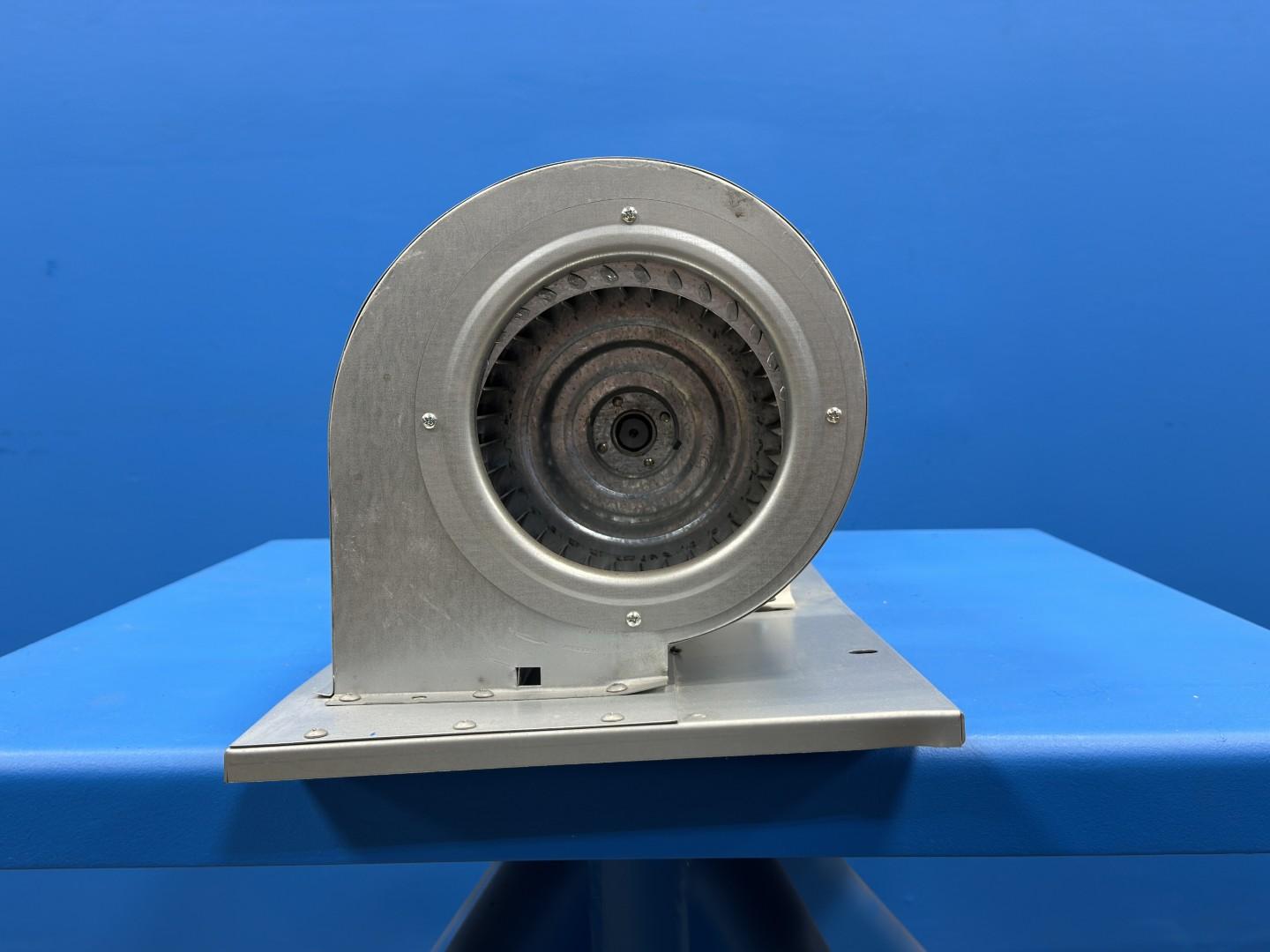

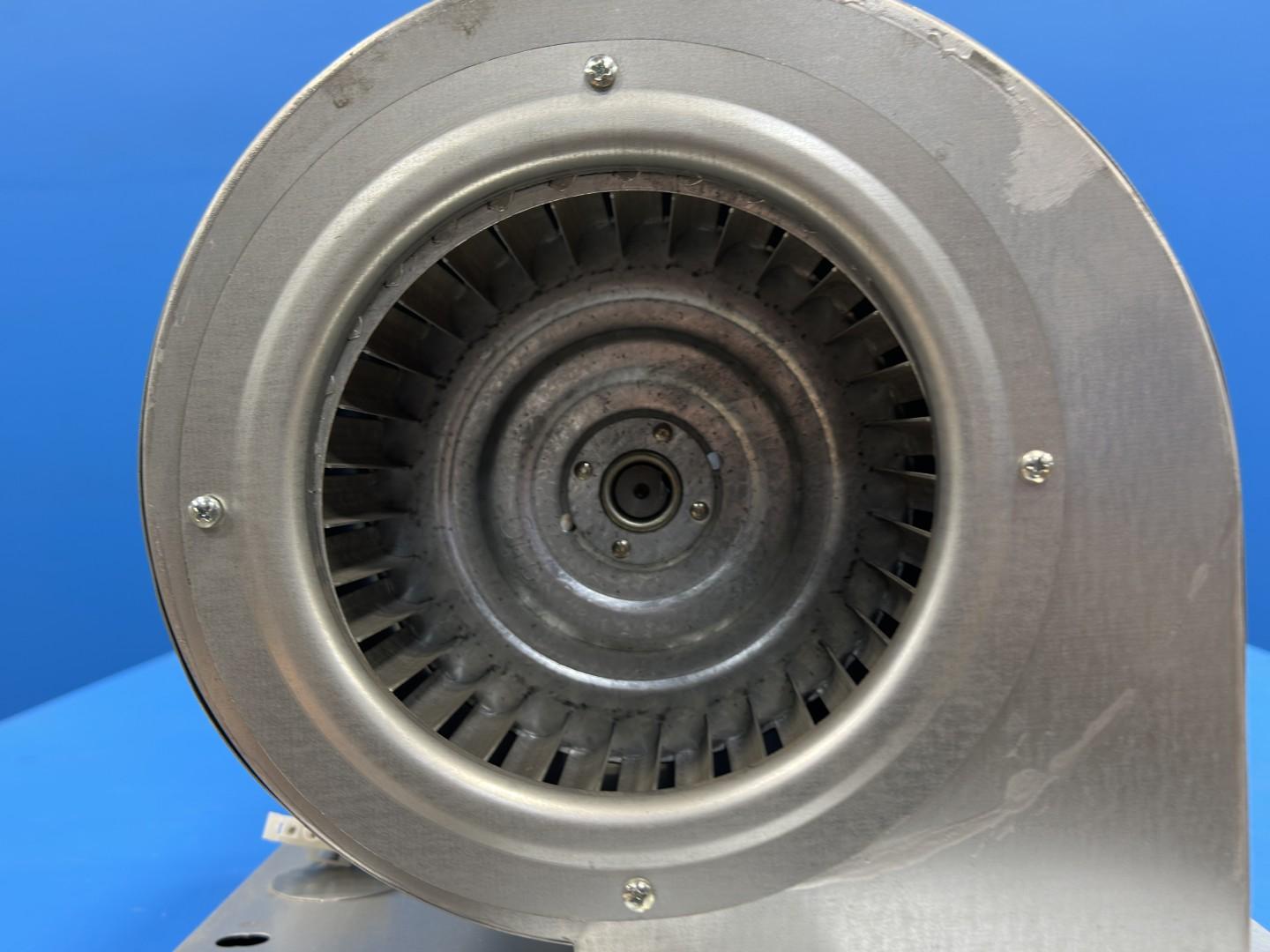

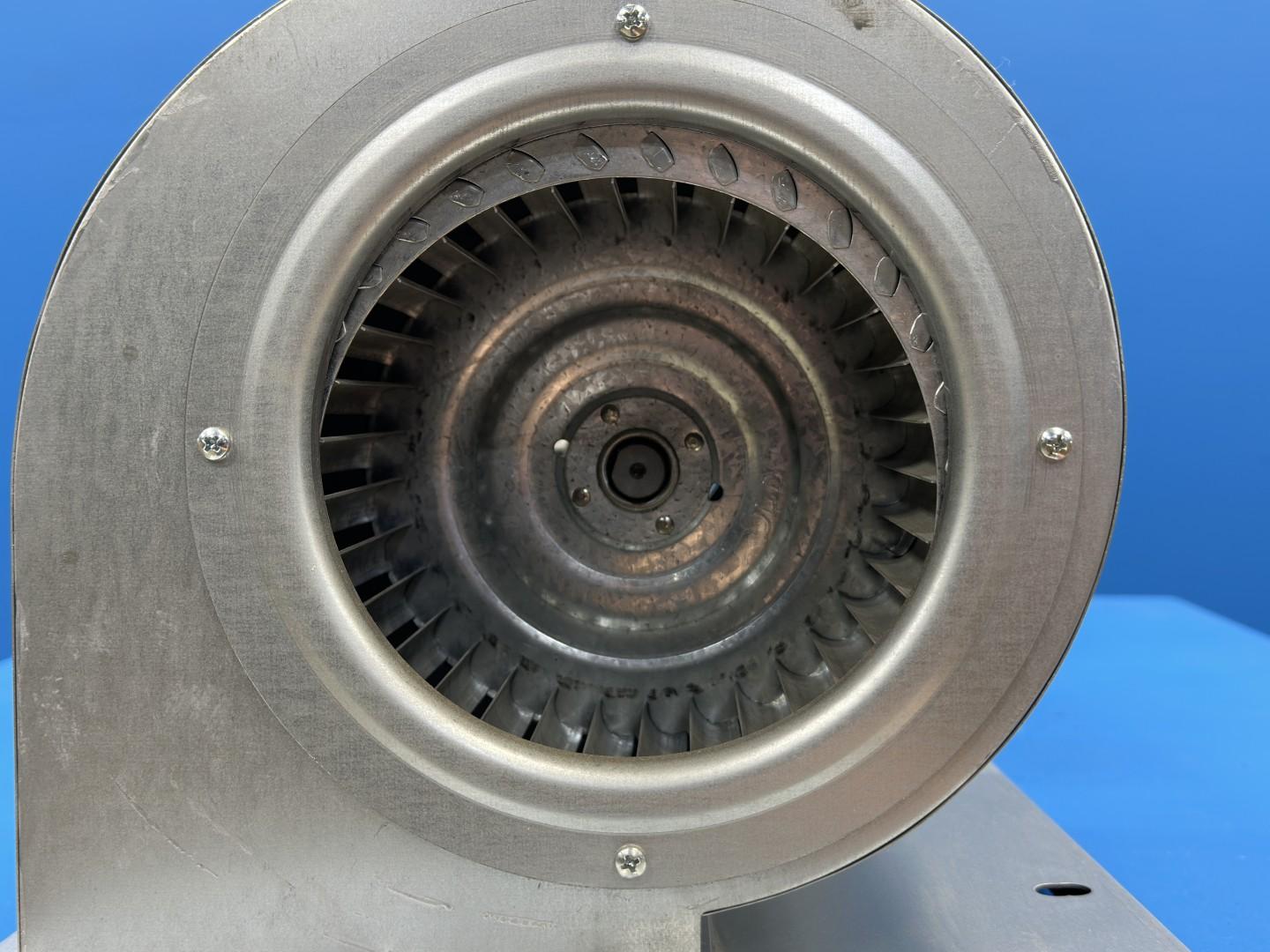

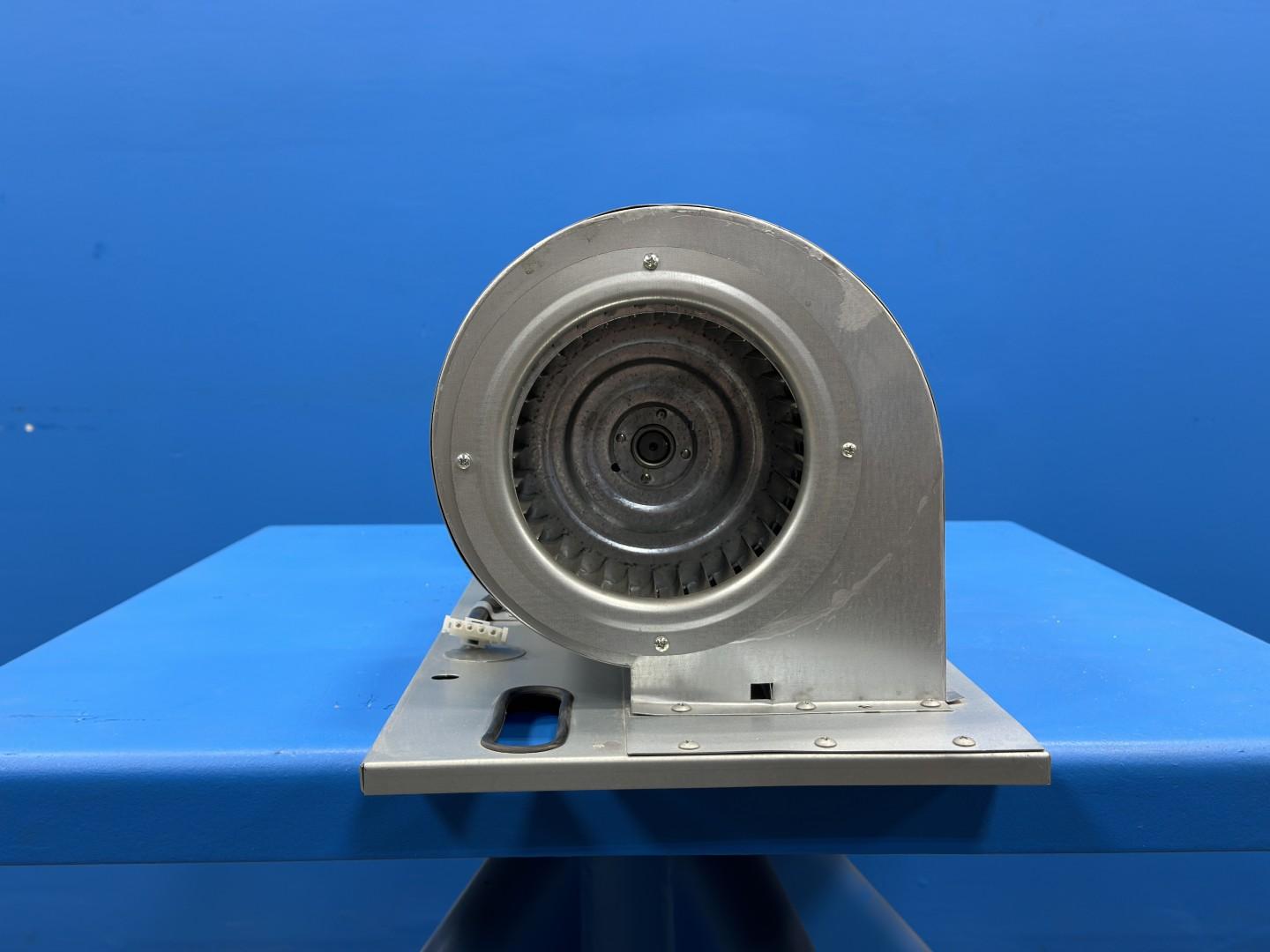

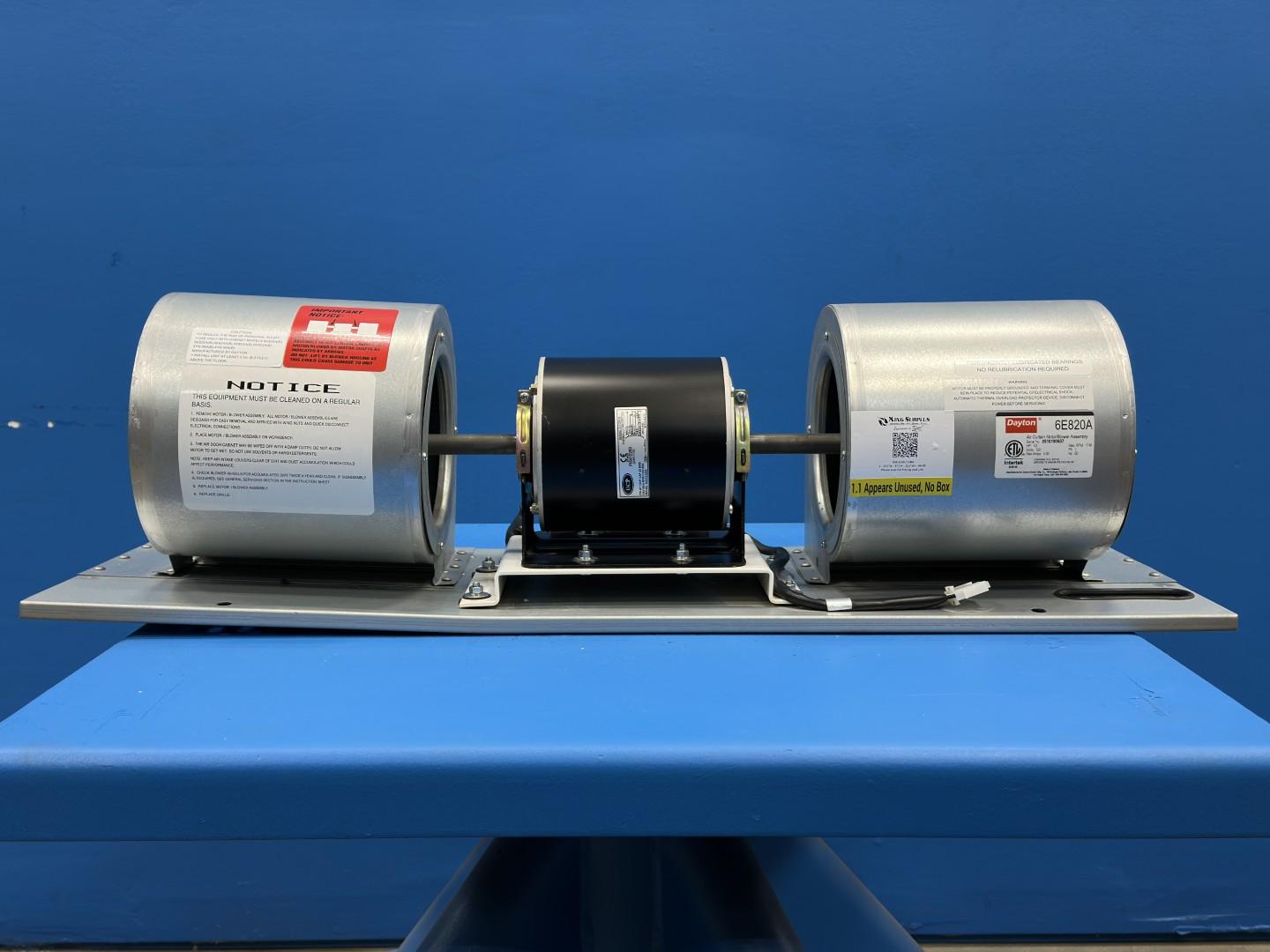

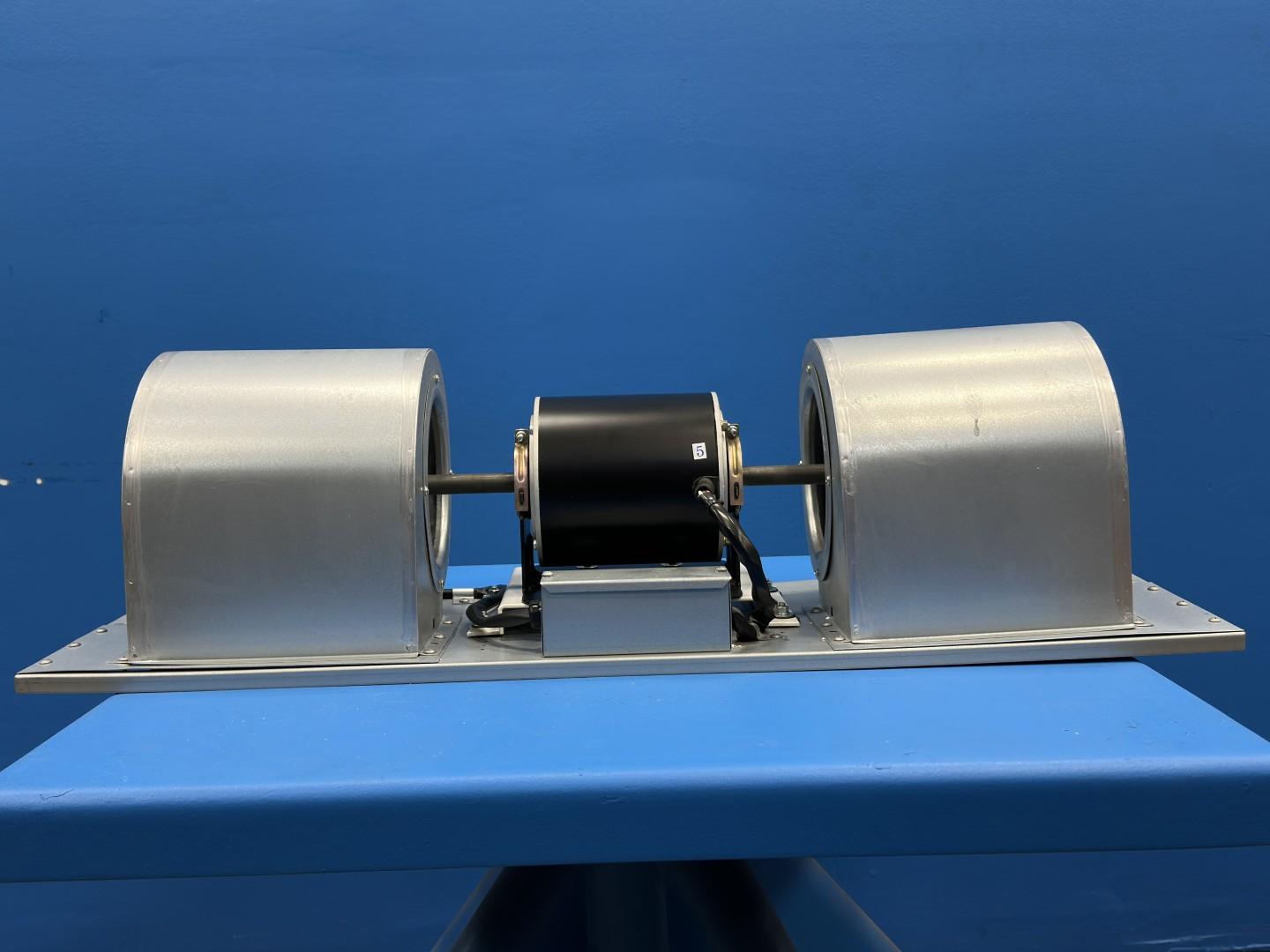

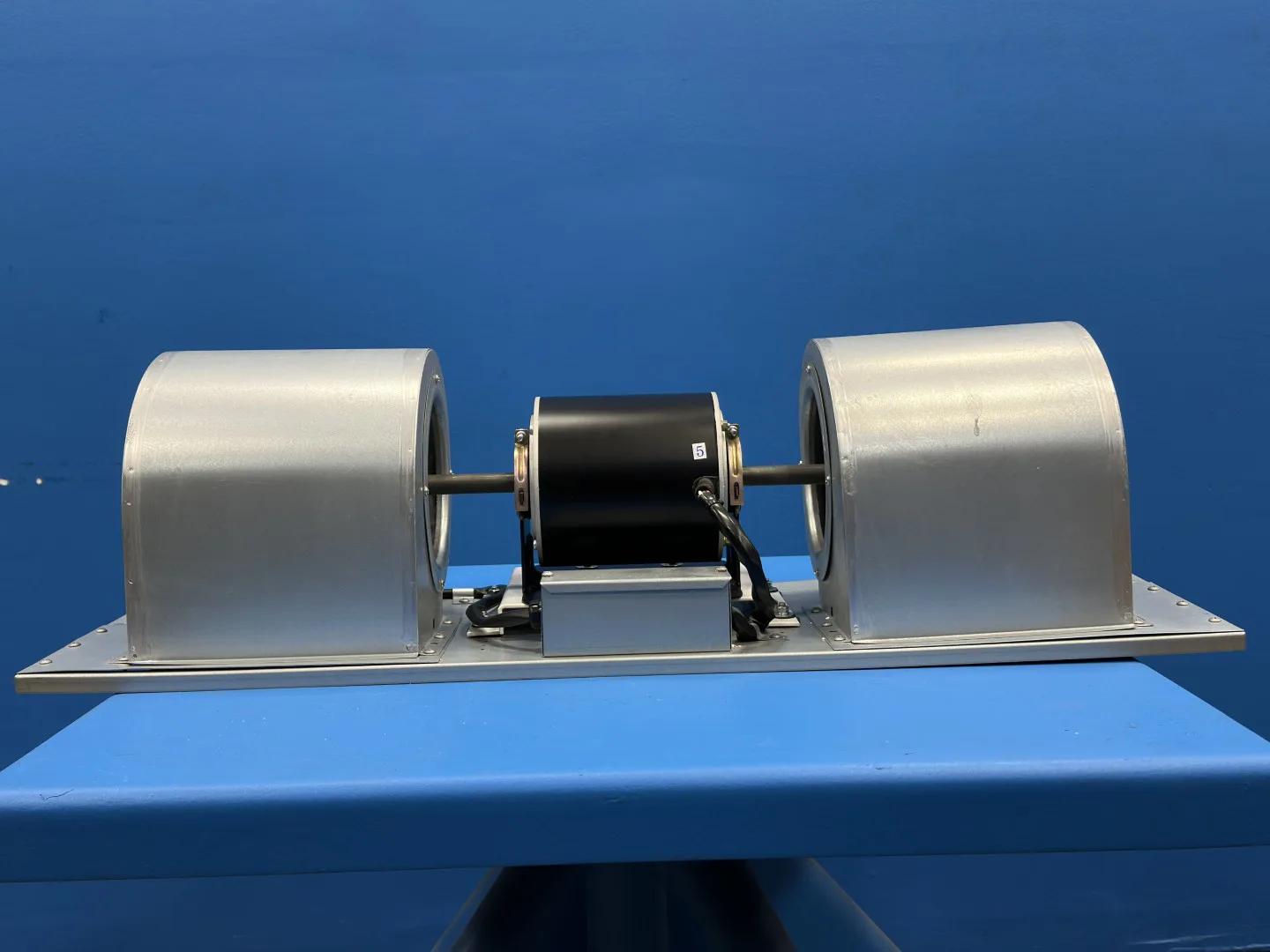

The Dayton 6E820A is an air curtain blower assembly, the powered head unit that pairs with a Dayton air curtain cabinet to form a complete unheated air curtain. Air curtains create a continuous high velocity sheet of air across an open doorway, forming a thermal and contaminant barrier that holds conditioned air inside while keeping outside air, dust, and flying insects out. They are common over freezer and cooler doors, loading dock entries, and high traffic commercial and industrial doorways where doors need to stay open. This unit drives a 1/2 HP, two speed, single phase motor and pushes a 3,800 FPM air stream, suited for doorways up to 5 ft wide and mounting heights up to 10 ft.
Factory Information
| Specification | Value |
|---|---|
| Manufacturer | Dayton (Grainger) |
| Model / Stock No. | 6E820A |
| Product Type | Air Curtain Blower Assembly |
| Motor Horsepower | 1/2 HP |
| Number of Motors | 1 |
| Number of Speeds | 2 |
| Air Velocity | 3,800 FPM |
| Airflow (36 in cabinet) | 3,075 CFM |
| Airflow (38 in cabinet) | 3,250 CFM |
| Airflow (42 in cabinet) | 3,600 CFM |
| Nameplate Voltage | 115 V AC |
| Phase | Single-phase |
| Frequency | 60 Hz |
| Full Load Amps | ~5.5 A (estimated, pending nameplate) |
| Max. Door Width | 5 ft |
| Max. Mounting Height | 10 ft |
| Housing Material | Galvanized steel, 24 ga |
| Overall Dimensions (W x H x D) | 35 in x 9 3/4 in x 11 in |
| Country of Origin | Thailand |

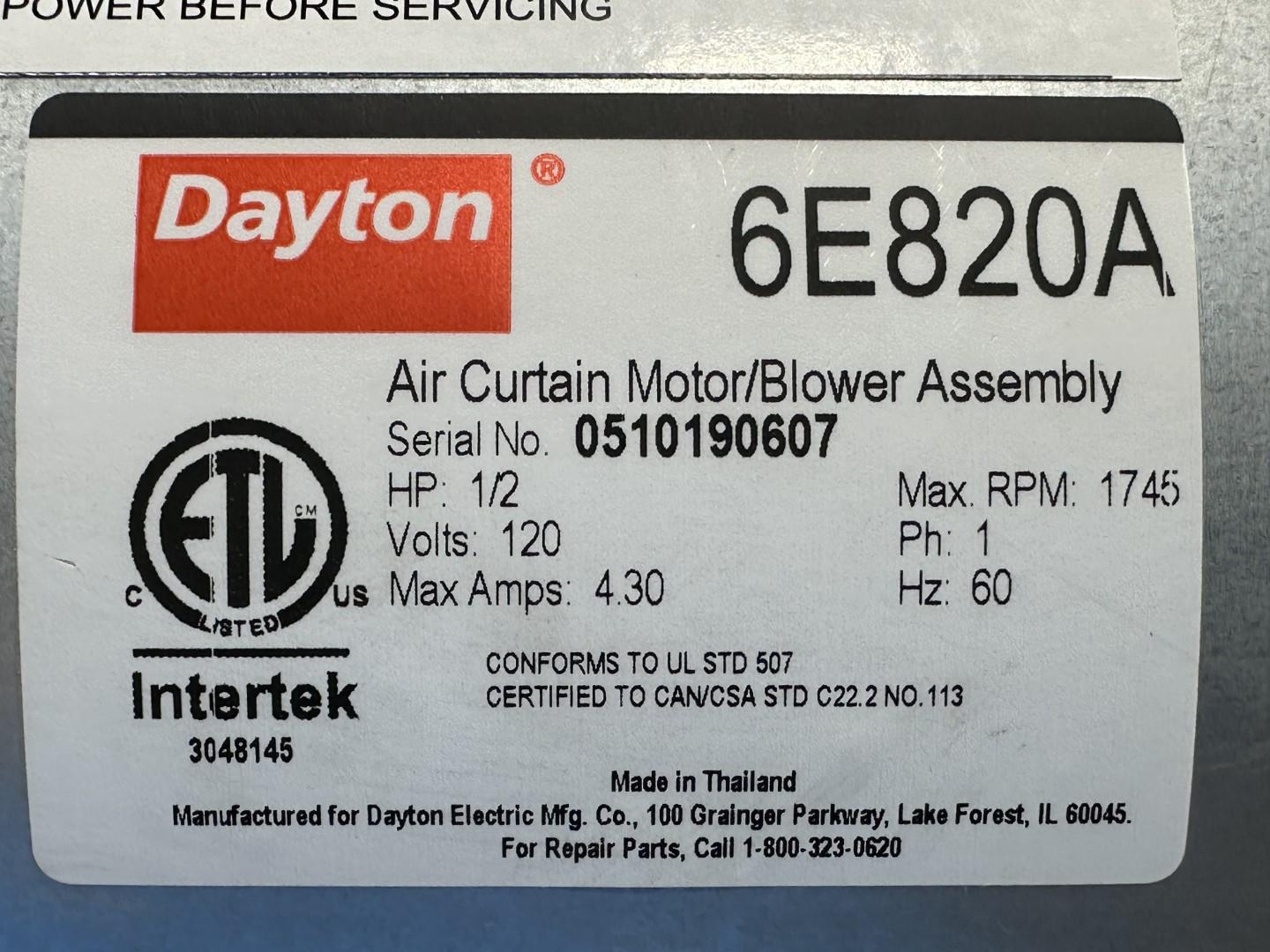

Specifications
Dayton
6E820A
0510190607
N/A

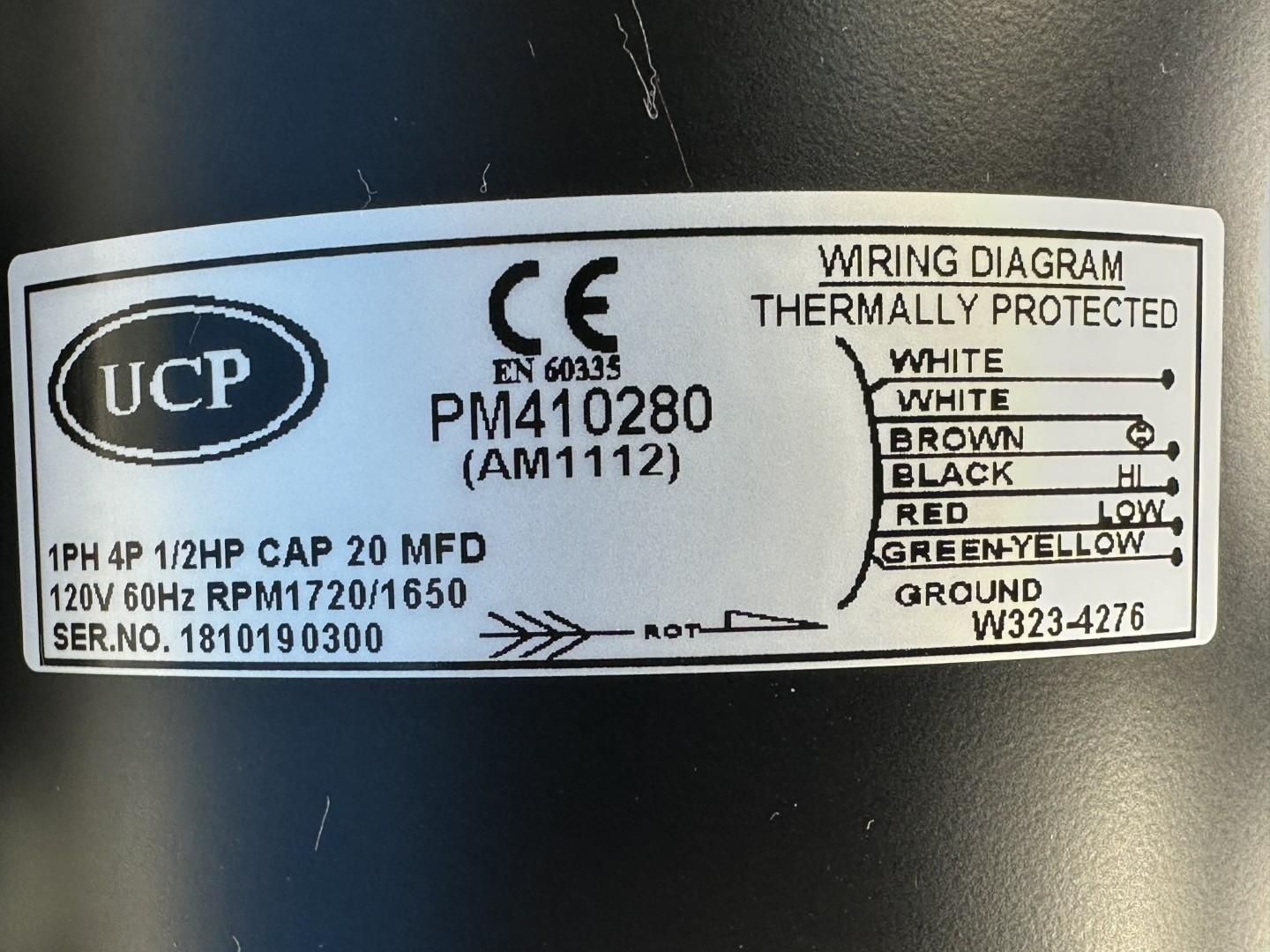

1/2 HP / 4.30 Amp / 60Hz
4.30
13
37
11
1
N/A
46
KSC1230 / 1066
