Brazed Plate Heat Exchanger 38 Plate 653 PSI Refrigerant R410A R404A R134a Onda S09 H-38 316L Stainless Steel HVAC Refrigeration Evaporator Condenser

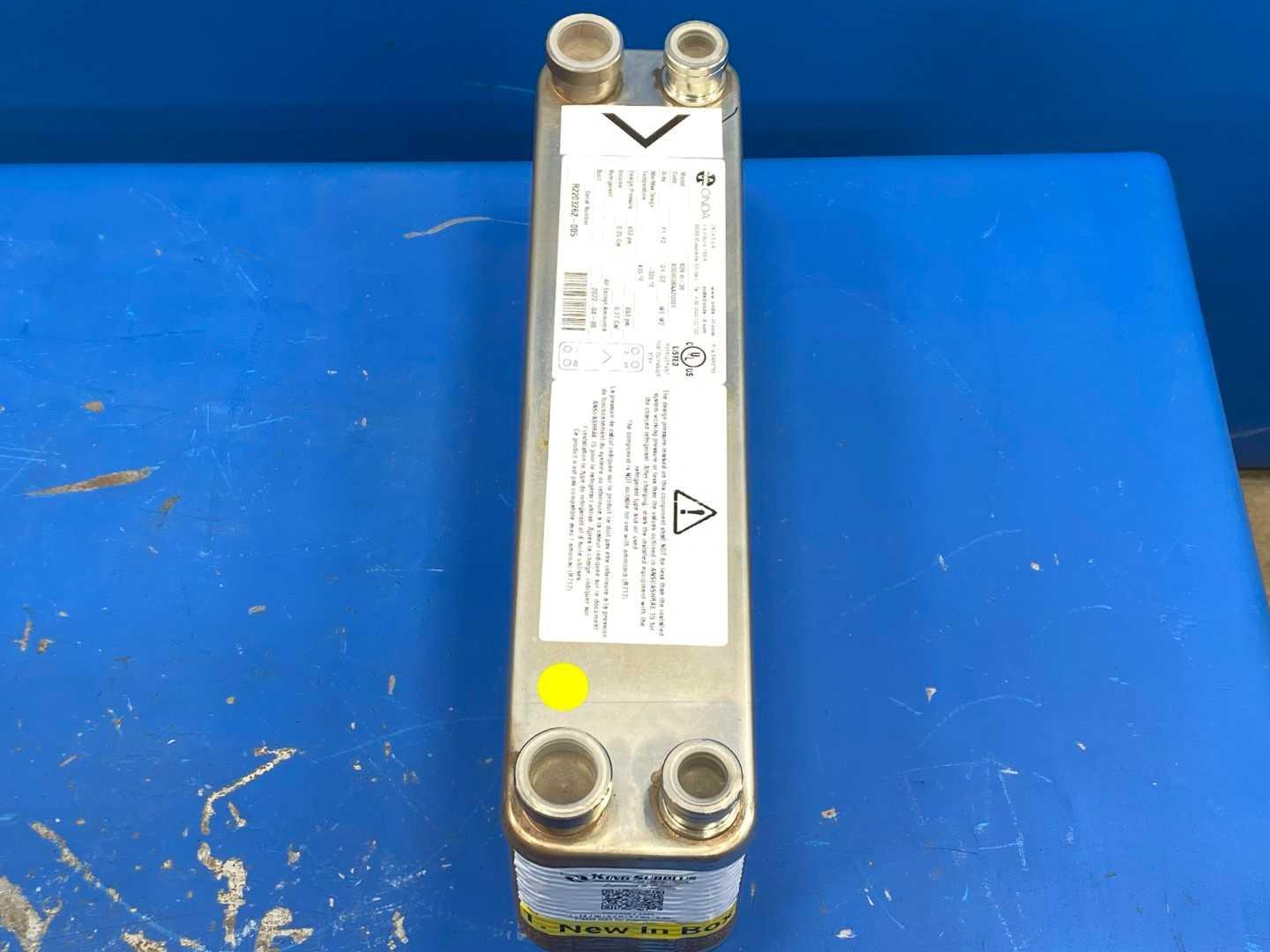

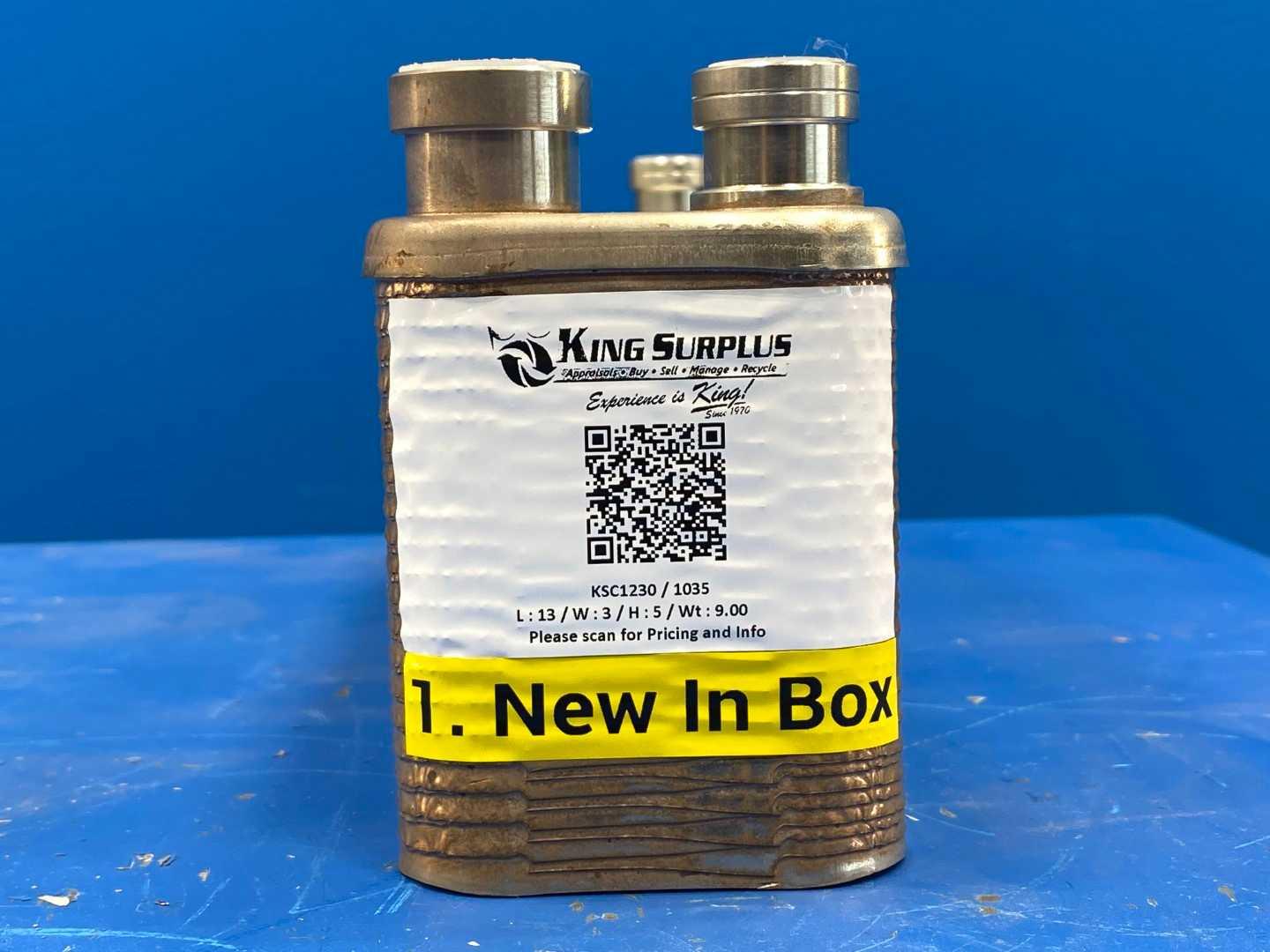

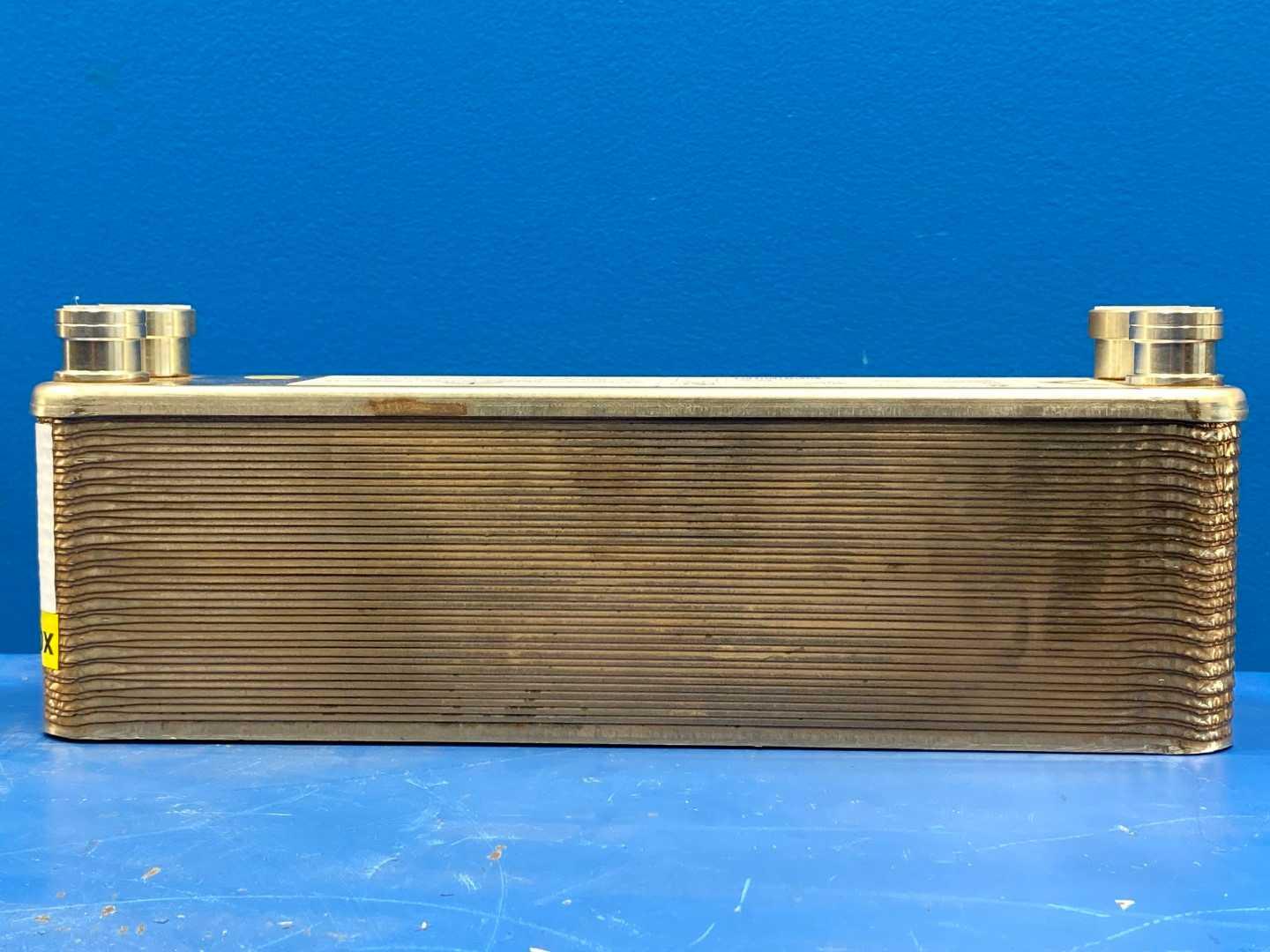

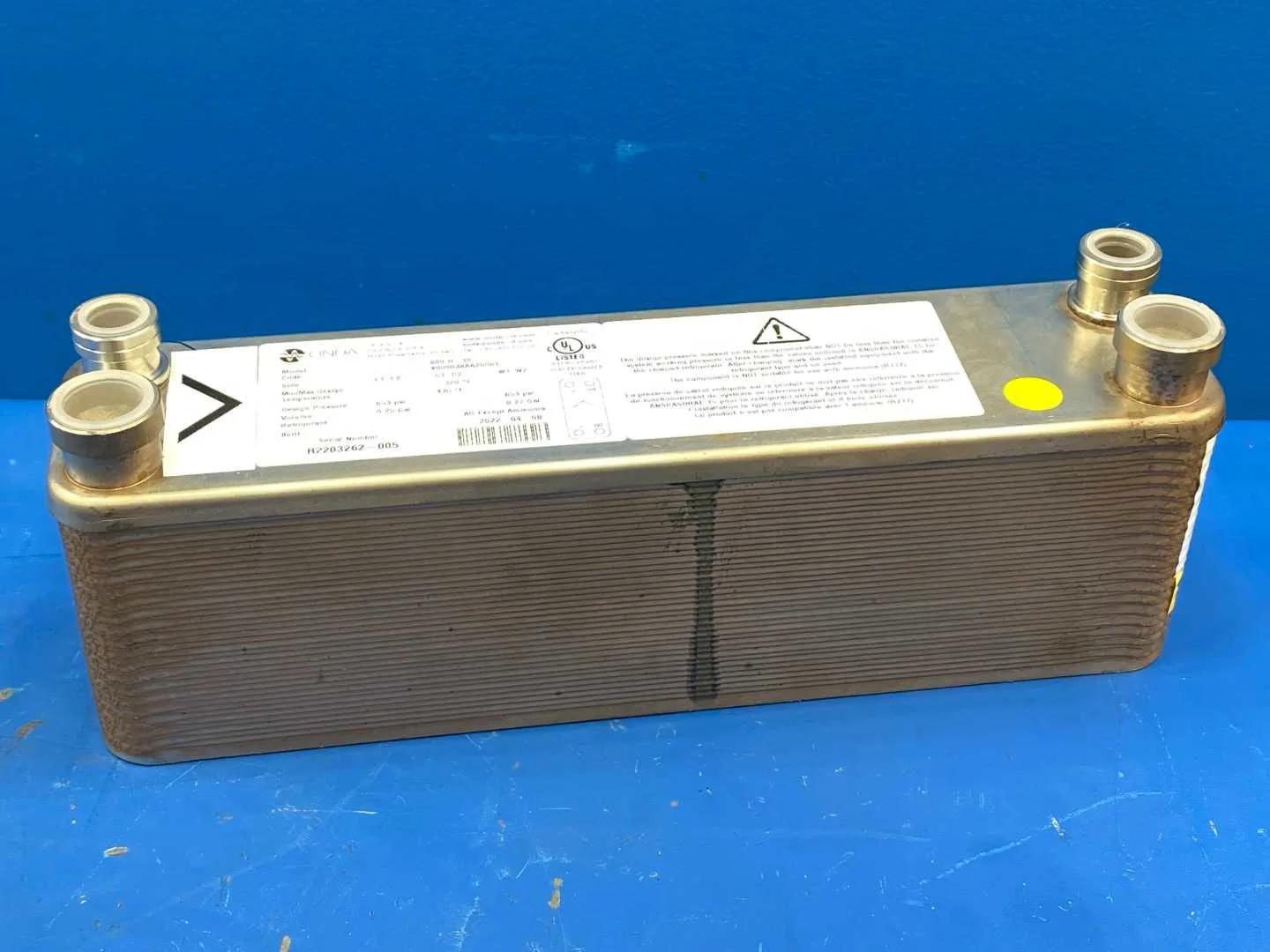

This Onda S.p.A. S09 H-38 brazed plate heat exchanger is a new-in-box, 38-plate single-circuit unit for refrigeration and HVAC heat transfer. It uses 316L stainless steel plates copper-brazed for corrosion resistance and thermal efficiency, carries a 653 PSI design rating on both sides, and handles all common refrigerants except ammonia, including R410A, R404A, R134a, and R22. At roughly 13 in long by 3 in wide by 5 in deep (9 lb), it suits condensing units, heat pumps, chillers, and water-to-refrigerant applications around 2.9 tons. Connections follow the standard Onda S09 single-circuit layout (config AA, four ports F1-F2-W1-W2): refrigerant inlet F1 at 5/8 in solder, refrigerant outlet F2 at 3/4 in solder, and secondary-fluid ports W1/W2 at 1/2 in gas thread. Confirm port type against the physical unit before brazing, as Onda builds special-connection variants. The unit is cULus Listed (file SA32759), built under PED and ISO 9001, and ships new in box. OEM code X009038AA20001, serial R2203262-005, built 2022. King Surplus offers this as a high-confidence item backed by a 100 percent 14-day money-back guarantee less shipping. Surplus pricing well below new distributor list makes this an efficient replacement or spare for refrigeration technicians, OEM builders, and maintenance operations.

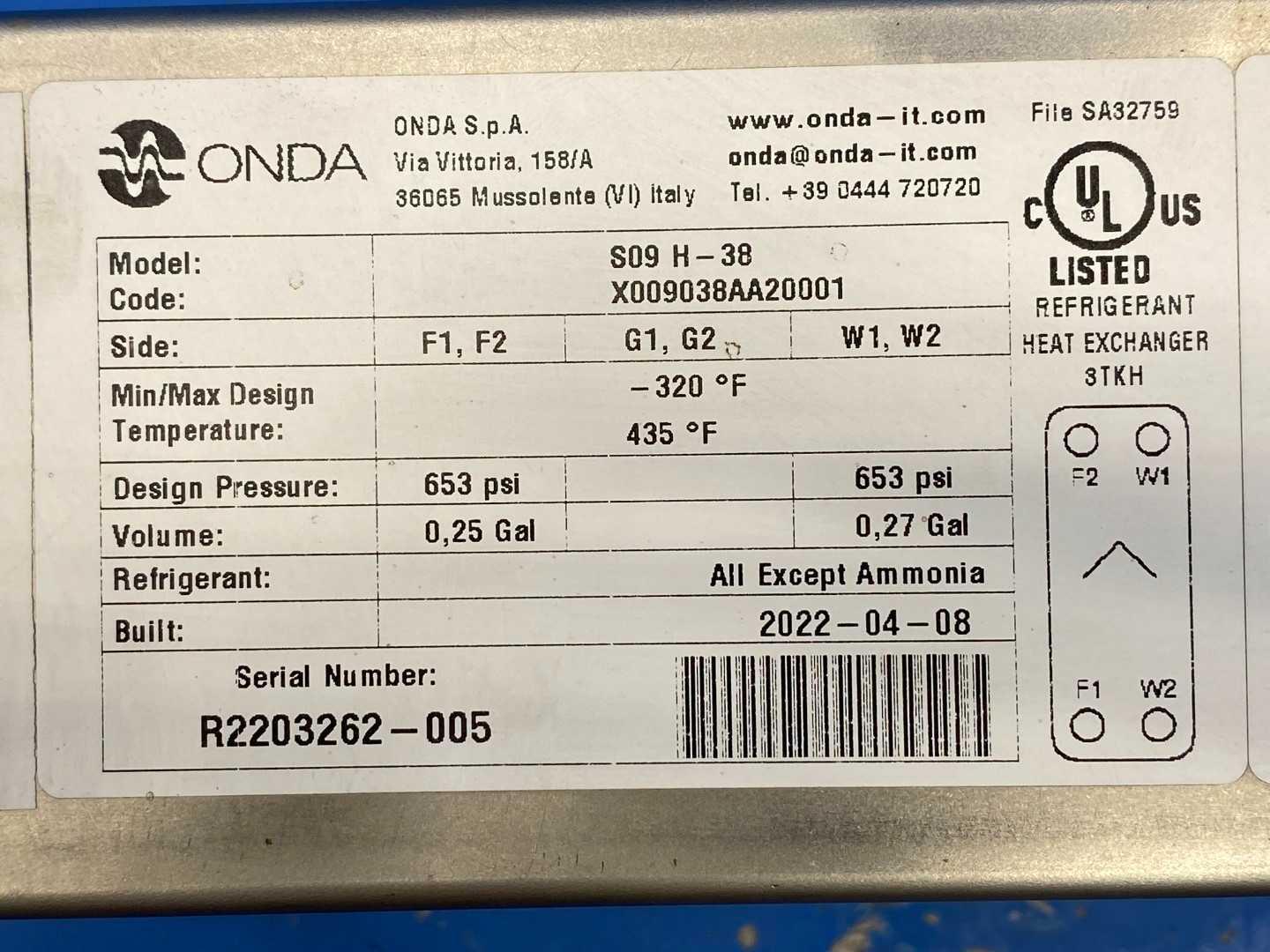

FACTORY SPECIFICATIONS - Onda S.p.A. S09 H-38 Brazed Plate Heat Exchanger Manufacturer: Onda S.p.A. (Mussolente, Italy) Model: S09 H-38 (S09 family, High Pressure, 38 plates) OEM Code: X009038AA20001 Serial Number: R2203262-005 Built: 2022 Construction: - Plate material: 316L stainless steel - Brazing material: Copper (Cu) - Configuration: Single circuit, 38 plates, config AA (F1-F2-W1-W2) Performance: - Design pressure: 653 PSI (per UL nameplate) - Temperature range: -320 F to 435 F - Channel volume: 0.25 / 0.27 Gal - Refrigerants: All except ammonia (R410A, R404A, R134a, R22, HCFC/HFC) - Approximate capacity: 2.9 tons (application-dependent) Connections (standard S09 config, confirm against physical unit before brazing): - F1 refrigerant inlet: S18 solder, 18 mm (approx 5/8 in OD) - F2 refrigerant outlet: S20 solder, 20 mm (approx 3/4 in OD) - W1/W2 secondary fluid: C22 conical male gas thread, 22 mm (approx 1/2 in GAS) Certifications: cULus Listed file SA32759, PED 2014/68/EU, ISO 9001 Dimensions: approx 13 in L x 3 in W x 5 in H, 9 lb Condition: New in box
