Brazed Plate Heat Exchanger 62 Plate 653 PSI Refrigerant R410A R404A R134a Onda S09 H-62 316L Stainless Steel HVAC Refrigeration Evaporator Condenser

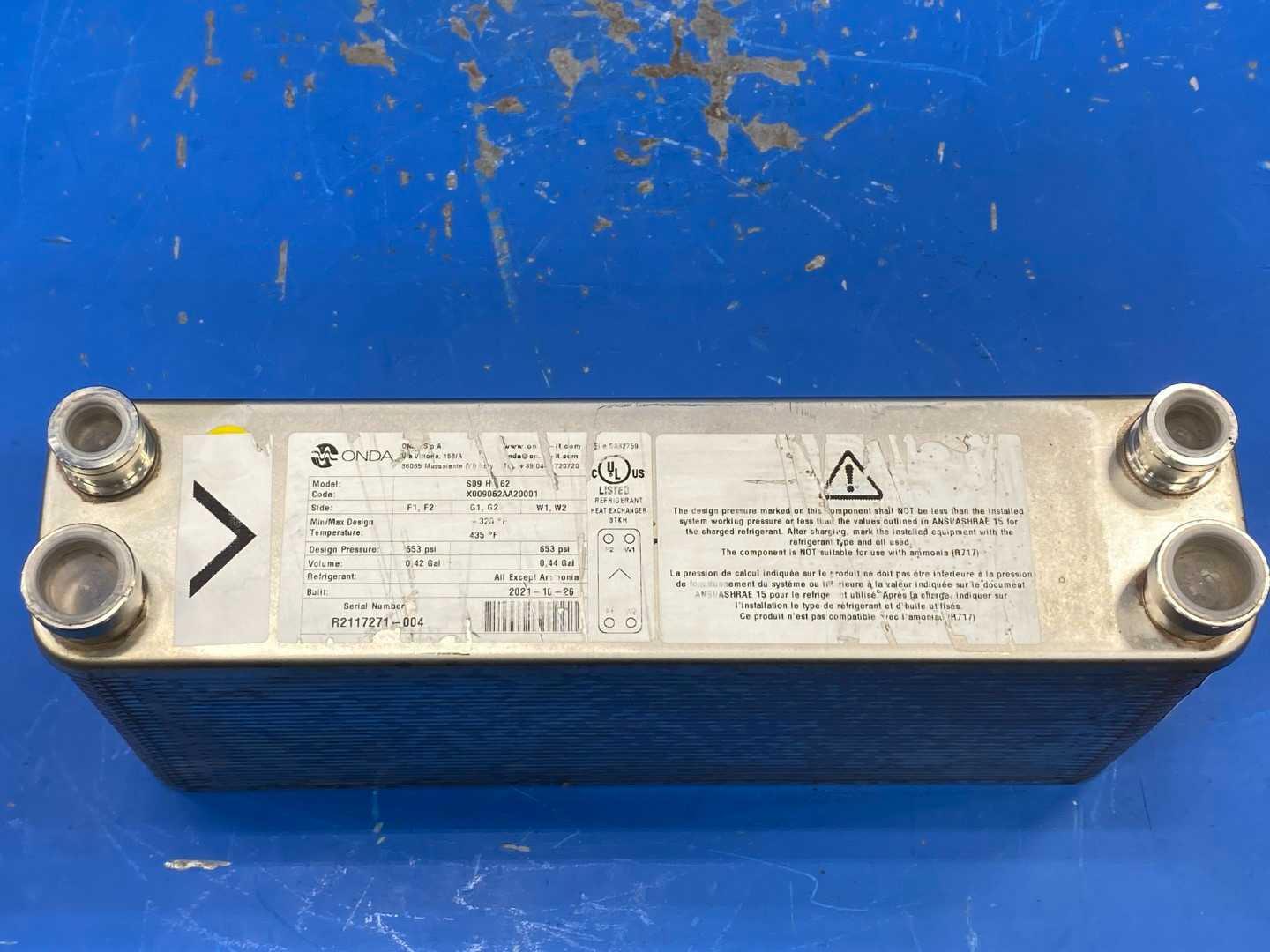

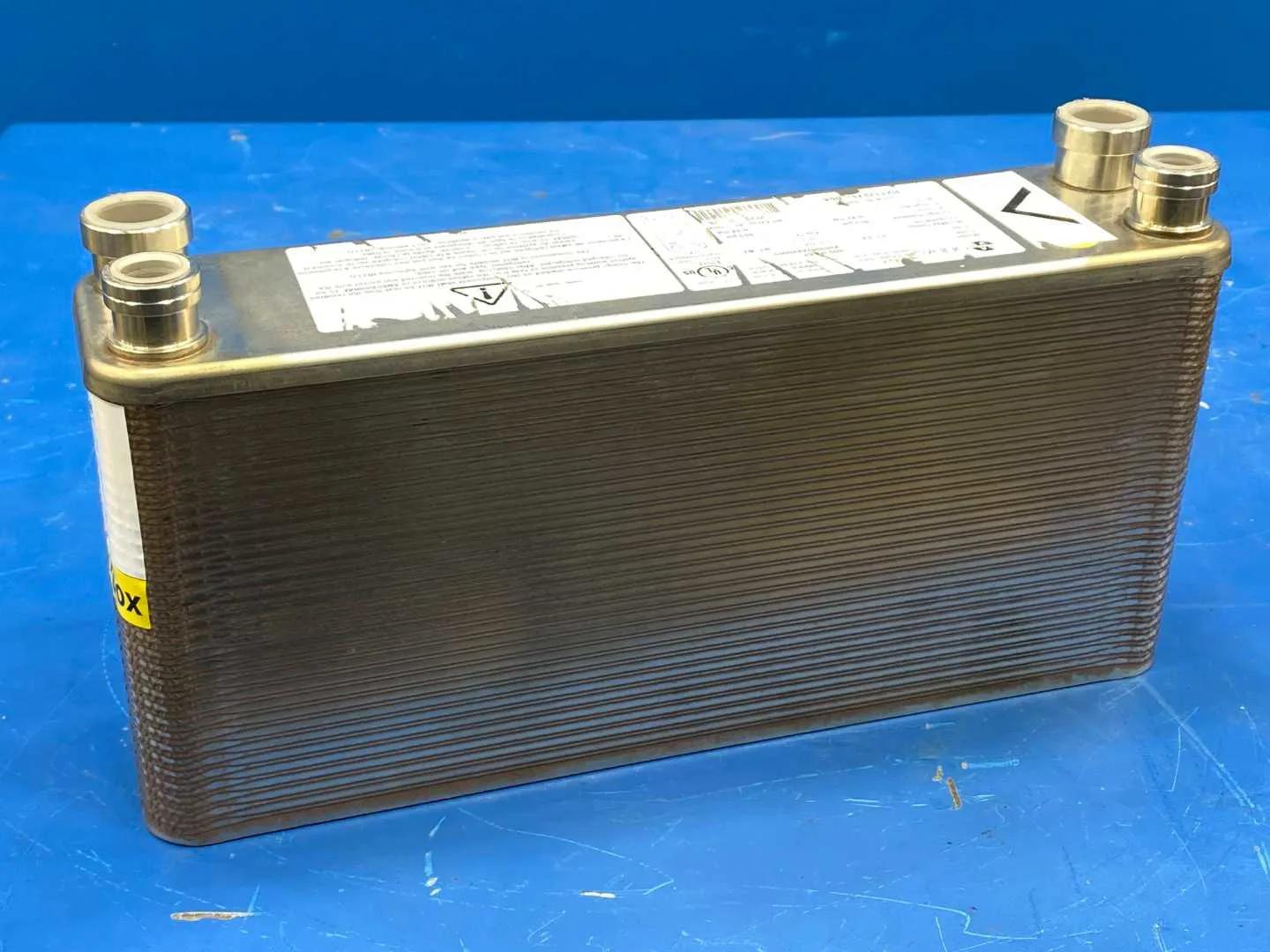

This Onda S.p.A. S09 H-62 brazed plate heat exchanger is a 62-plate single-circuit unit for refrigeration and HVAC heat transfer. It uses 316L stainless steel plates copper-brazed for corrosion resistance and thermal efficiency, carries a 653 PSI design rating on both sides, and handles all common refrigerants except ammonia, including R410A, R404A, R134a, and R22. At roughly 13 in long by 3 in wide by 7 in deep (13 lb), it suits condensing units, heat pumps, chillers, and water-to-refrigerant applications around 4.8 tons. This unit shows light cosmetic wear consistent with prior handling or storage: surface tarnish on the plates and wear on the nameplate. It is fully intact and functional, sold as a sound used unit. Connections follow the standard Onda S09 single-circuit layout (config AA, four ports F1-F2-W1-W2): refrigerant inlet F1 at 5/8 in solder, refrigerant outlet F2 at 3/4 in solder, and secondary-fluid ports W1/W2 at 1/2 in gas thread. Confirm port type against the physical unit before brazing, as Onda builds special-connection variants. The unit is cULus Listed. OEM code X009062AA20001, serial R2117271-004, built 2021. King Surplus offers this as a high-confidence item backed by a 100 percent 14-day money-back guarantee less shipping. Surplus pricing well below new distributor list makes this an efficient replacement or spare for refrigeration technicians, OEM builders, and maintenance operations.

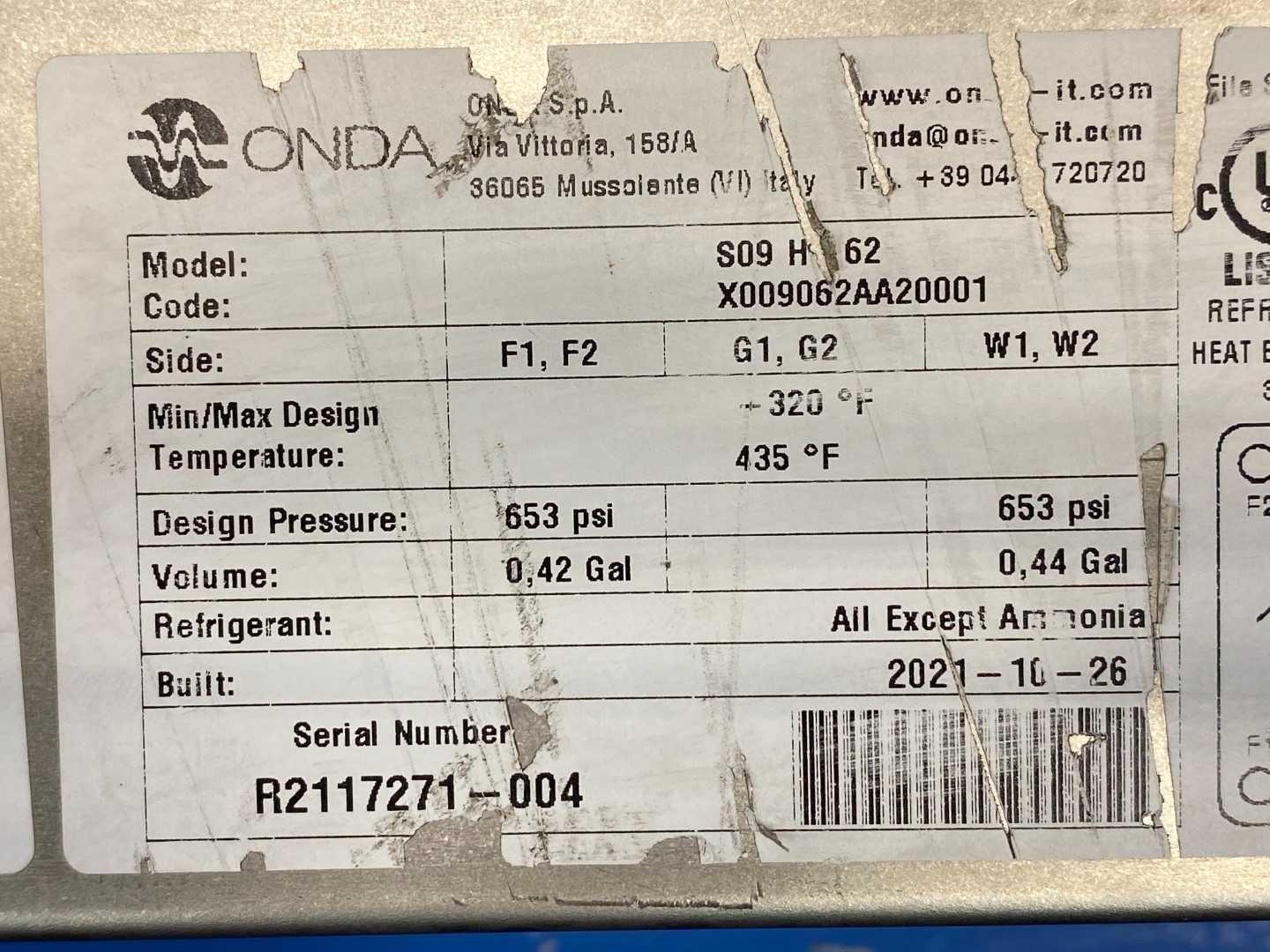

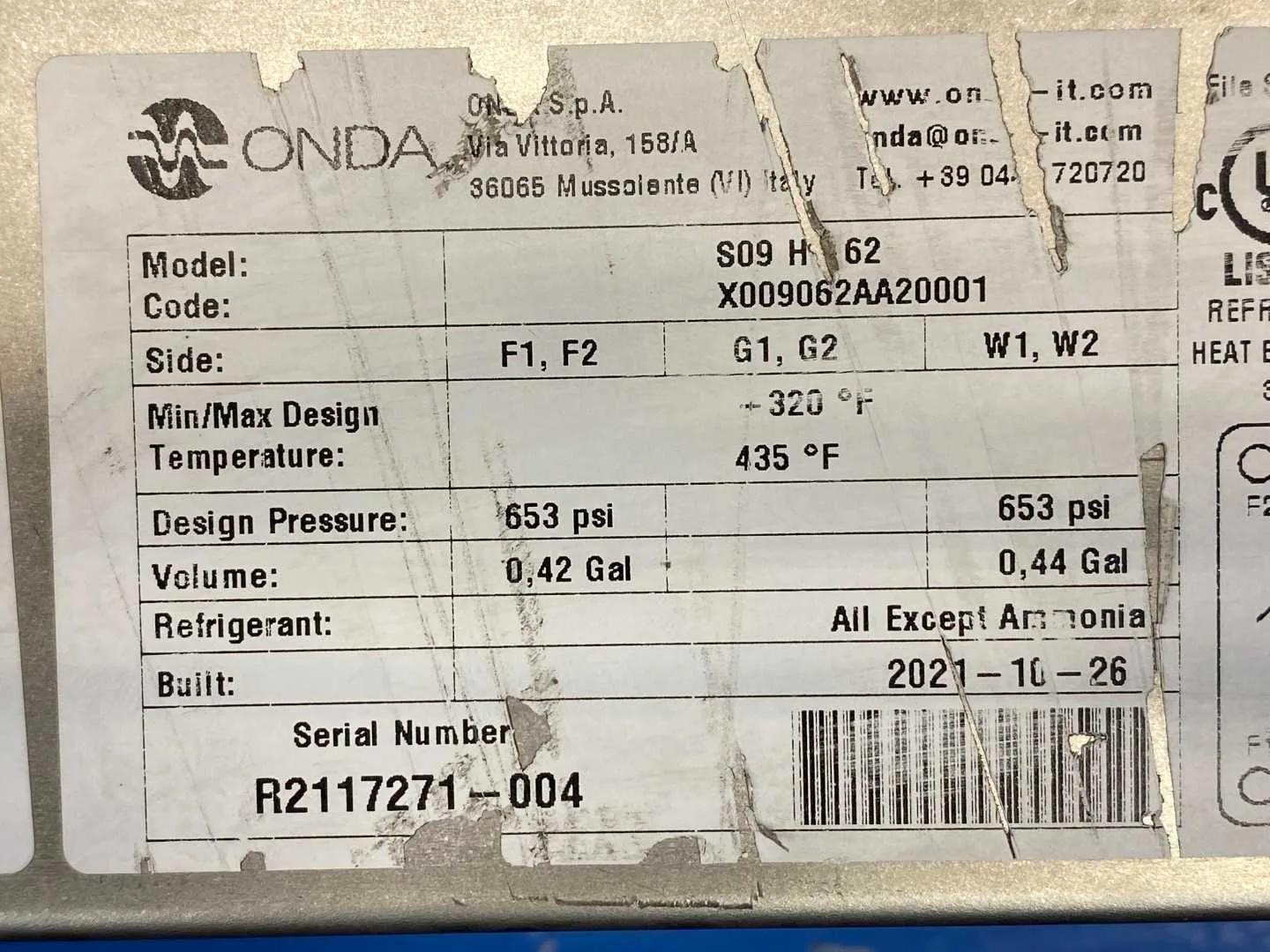

FACTORY SPECIFICATIONS - Onda S.p.A. S09 H-62 Brazed Plate Heat Exchanger Manufacturer: Onda S.p.A. (Mussolente, Italy) Model: S09 H-62 (S09 family, High Pressure, 62 plates) OEM Code: X009062AA20001 Serial Number: R2117271-004 Built: 2021 Construction: - Plate material: 316L stainless steel - Brazing material: Copper (Cu) - Configuration: Single circuit, 62 plates, config AA (F1-F2-W1-W2) Performance: - Design pressure: 653 PSI (per UL nameplate) - Temperature range: -320 F to 435 F - Channel volume: 0.42 / 0.44 Gal - Refrigerants: All except ammonia (R410A, R404A, R134a, R22, HCFC/HFC) - Approximate capacity: 4.8 tons (application-dependent) Connections (standard S09 config, confirm against physical unit before brazing): - F1 refrigerant inlet: S18 solder, 18 mm (approx 5/8 in OD) - F2 refrigerant outlet: S20 solder, 20 mm (approx 3/4 in OD) - W1/W2 secondary fluid: C22 conical male gas thread, 22 mm (approx 1/2 in GAS) Certifications: cULus Listed, PED 2014/68/EU, ISO 9001 Dimensions: approx 13 in L x 3 in W x 7 in H, 13 lb Condition: Used - light cosmetic wear (plate tarnish, nameplate wear), intact and functional
