Century 316P760 AC Motor 115V, 1725 RPM, 7.2A, (4UE85)
316P760 Motor Specifications: Voltage & Phase
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 316P760 |
| Condition | Used |
| Manufacturer | Century |
| Asset Number | KSC1230 / 1058 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$199.95
Basic Information
Asset #
KSC1230 / 1058
Available Quantity
1
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

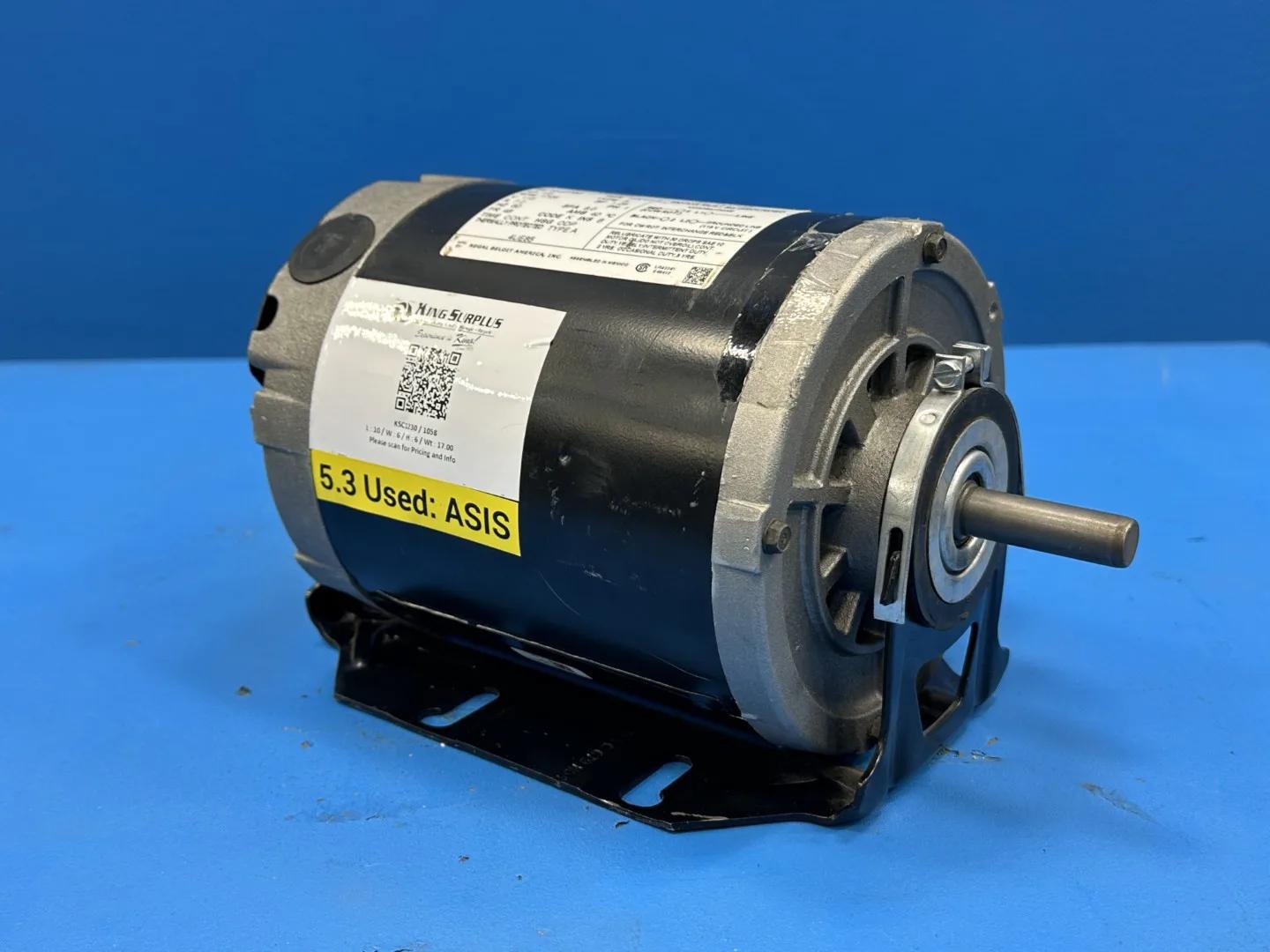

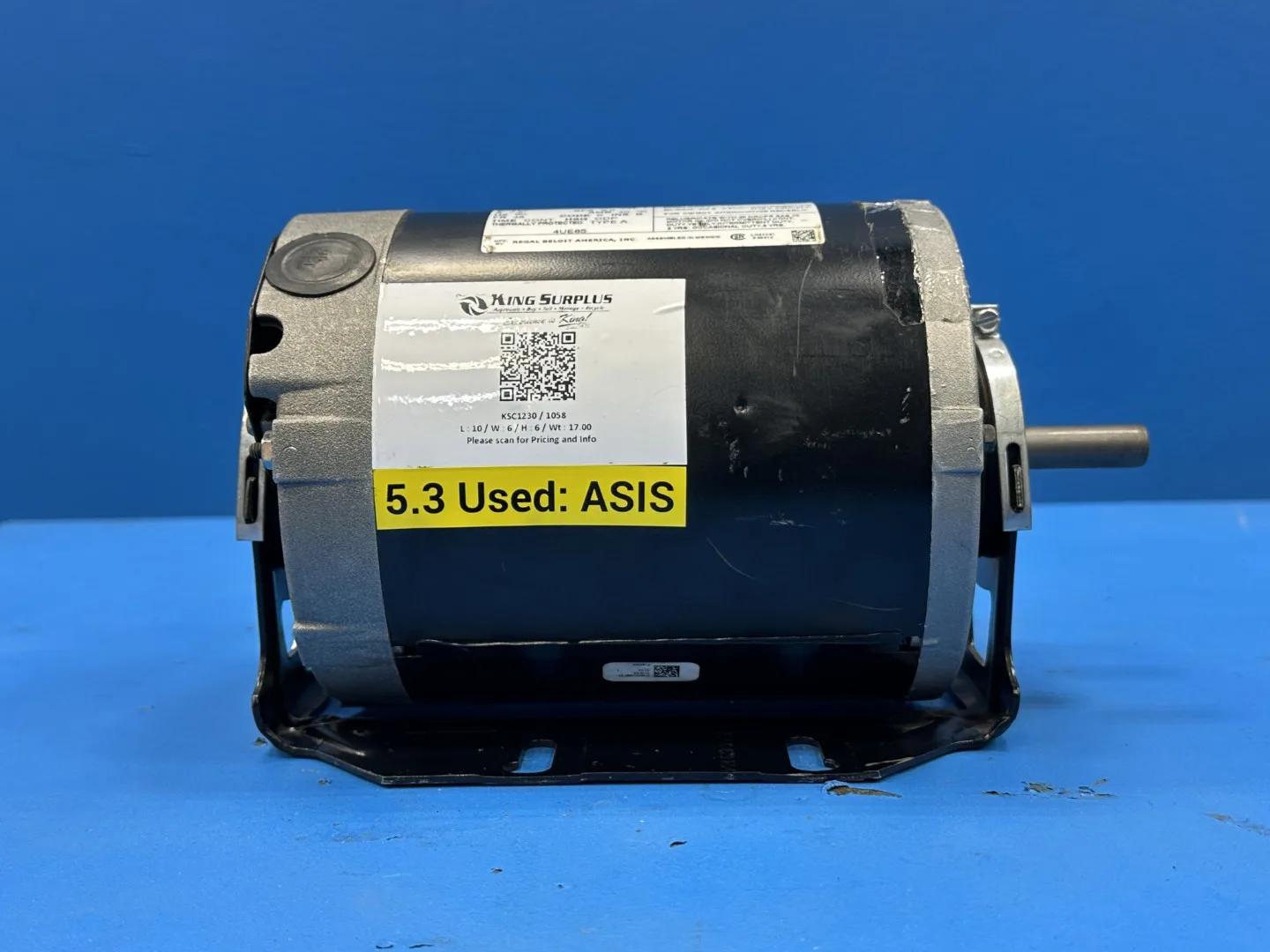

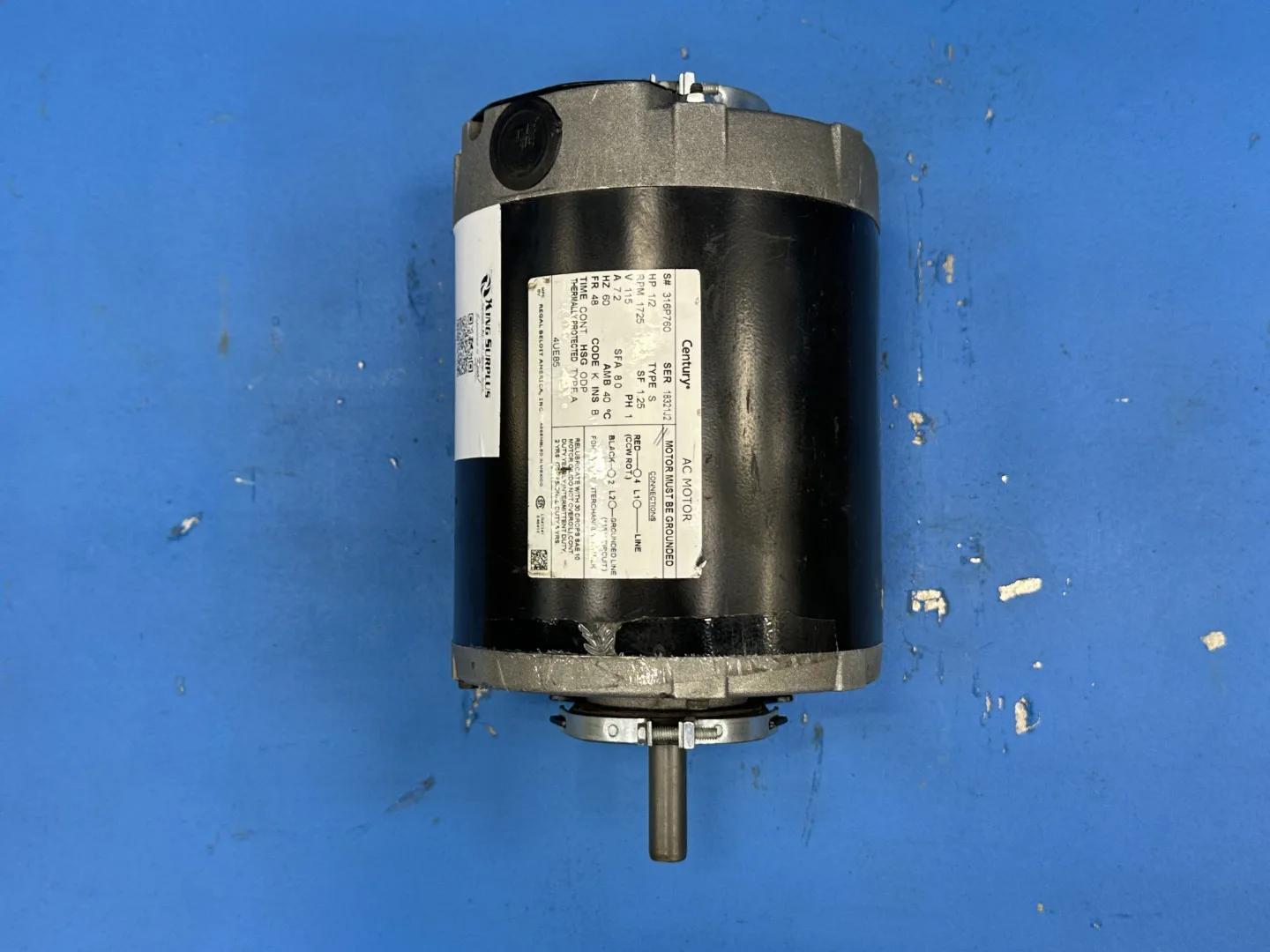

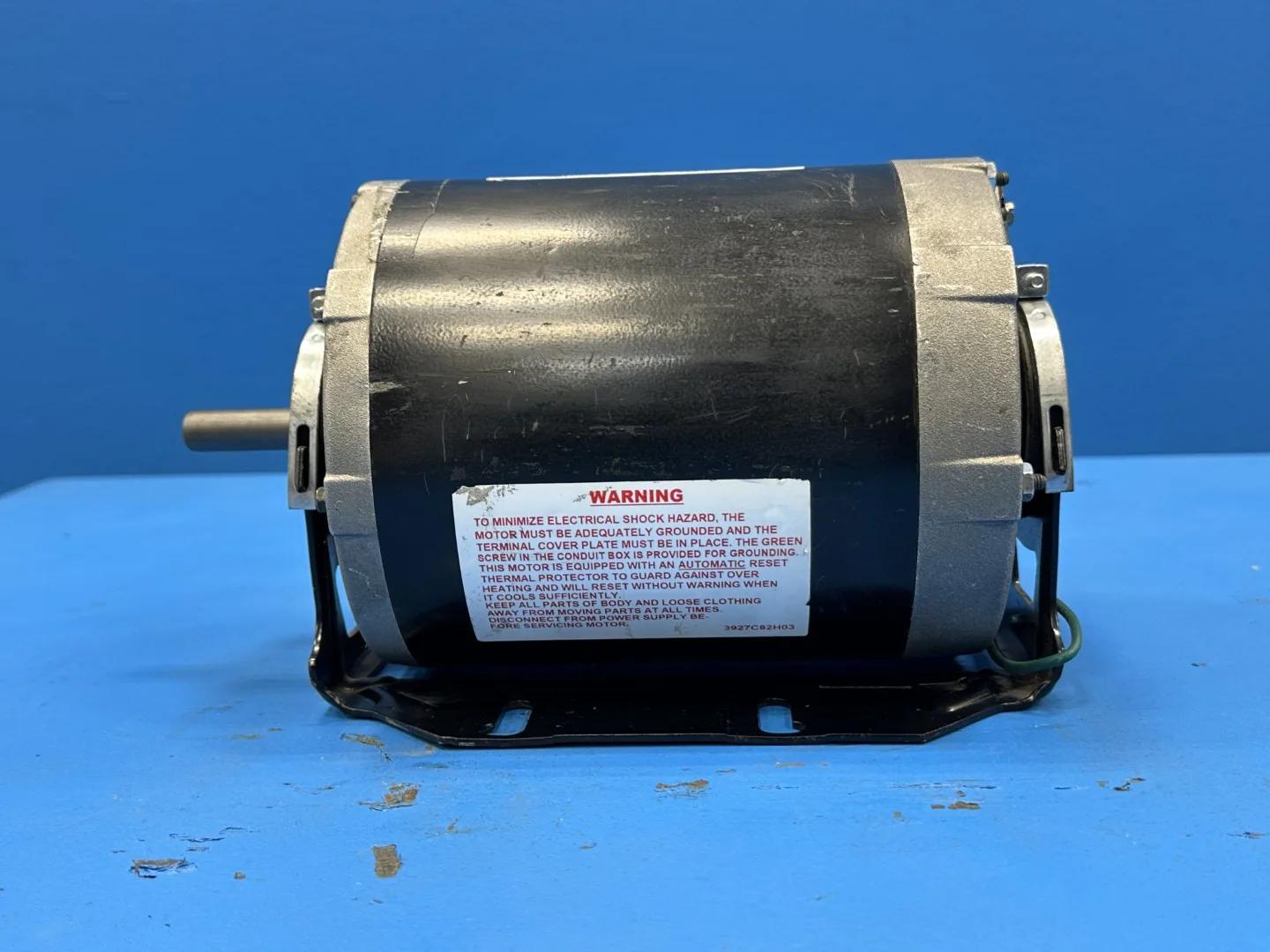

This is a Century 316P760 fractional horsepower AC motor, manufactured by Regal Beloit America and sold under Century catalog number GF2054. The nameplate rates it at 1/2 HP, 115 volts, single phase, 60 Hz, 7.2 full load amps and 1725 RPM on a 48 frame, with an open drip proof housing, Class B insulation, 1.25 service factor, continuous duty and automatic thermal protection. It also carries the cross reference number 4UE85.
The 316P760 is a split phase belt drive blower motor on a resilient cradle base, the type used to turn the blower wheel in residential and light commercial gas furnaces, air handlers and evaporative coolers. Distributors list it as a replacement for original A.O. Smith and Century furnace motors of the same rating. The resilient mount isolates motor vibration from the cabinet, and the rotation is reversible by swapping the red and black leads. Sleeve bearings are oiled through ports, and the nameplate calls for 30 drops of SAE 10 motor oil yearly in continuous duty.
HVAC service technicians, property maintenance staff and equipment repair shops buy this motor to replace a failed belt drive blower motor of matching horsepower, speed, frame and shaft.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer (nameplate): Century, mfg. by Regal Beloit America, Inc.
- Model: 316P760
- Century Catalog No. (distributor cross reference): GF2054
- Nameplate Cross Reference: 4UE85
- Horsepower: 1/2 HP
- Voltage: 115 V
- Full Load Amps: 7.2 A
- Service Factor / SF Amps: 1.25 / 8.0 A
- Phase / Frequency: 1 phase, 60 Hz
- Speed: 1725 RPM
- Motor Type: Type S, split phase (catalog)
- Frame: 48
- Enclosure: ODP (open drip proof)
- Insulation Class / KVA Code: B / K
- Ambient / Duty: 40 C, continuous
- Thermal Protection: thermally protected, Type A (automatic)
- Rotation: CCW as wired, reversible (for CW interchange red and black leads)

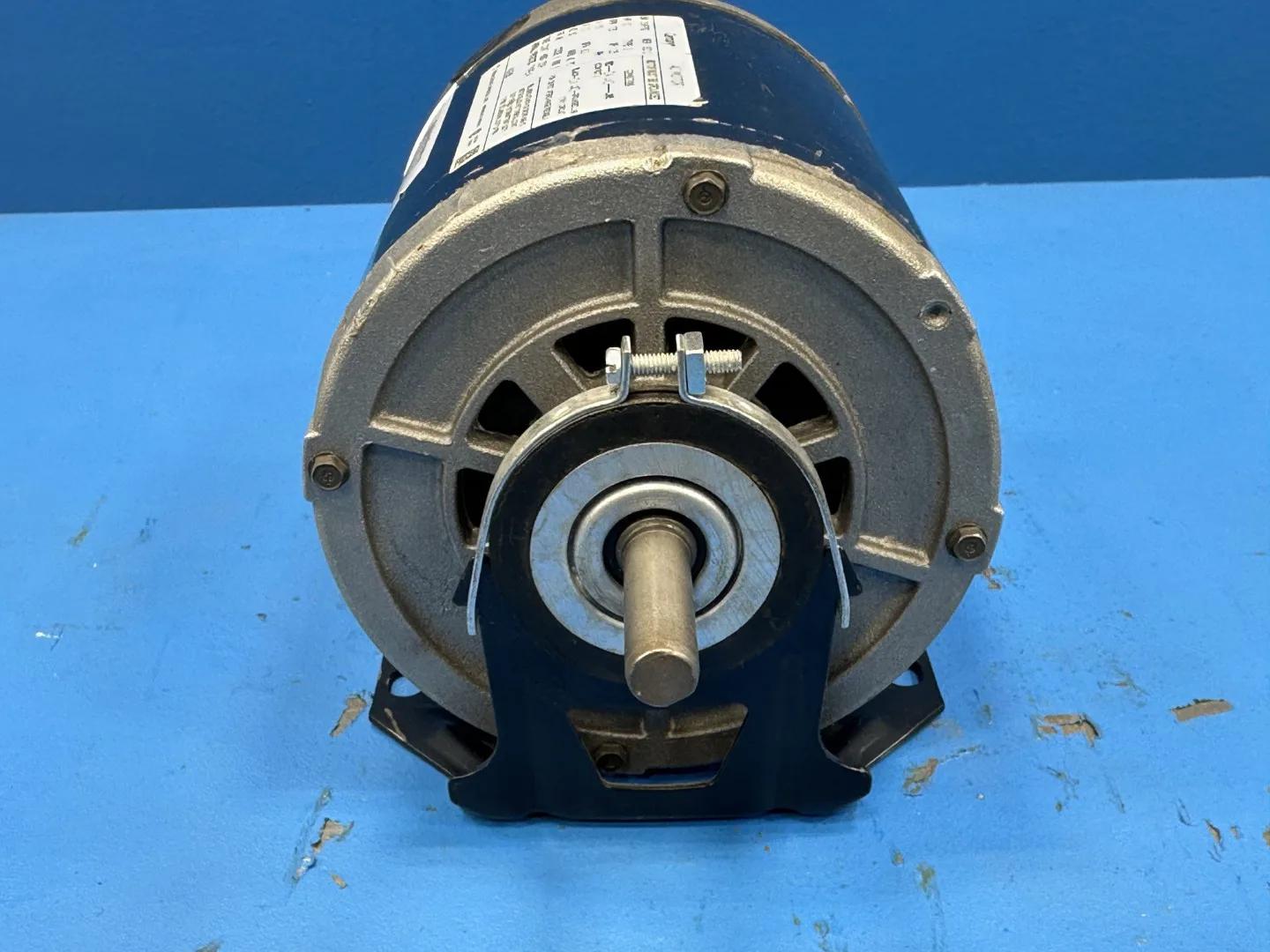

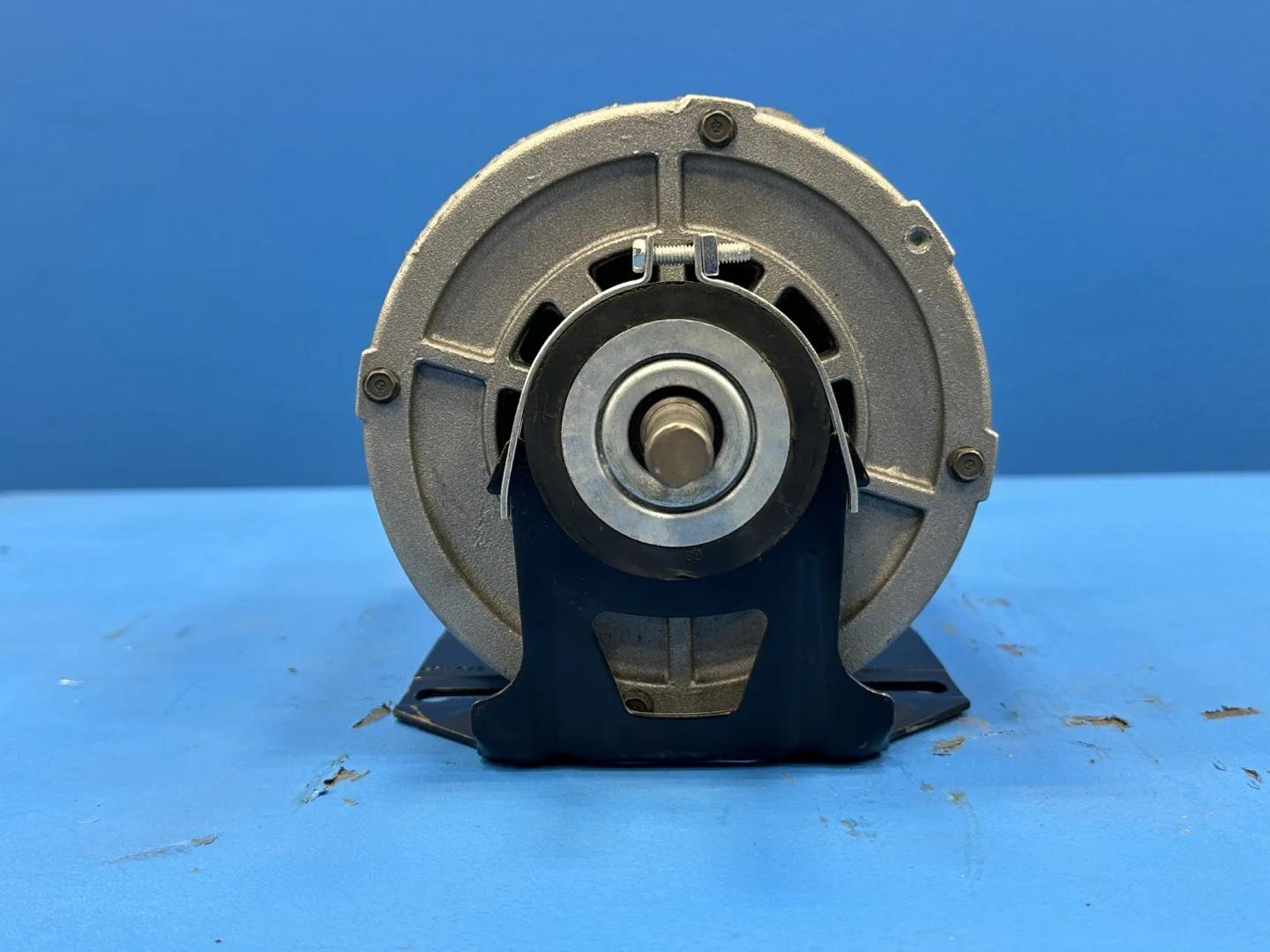

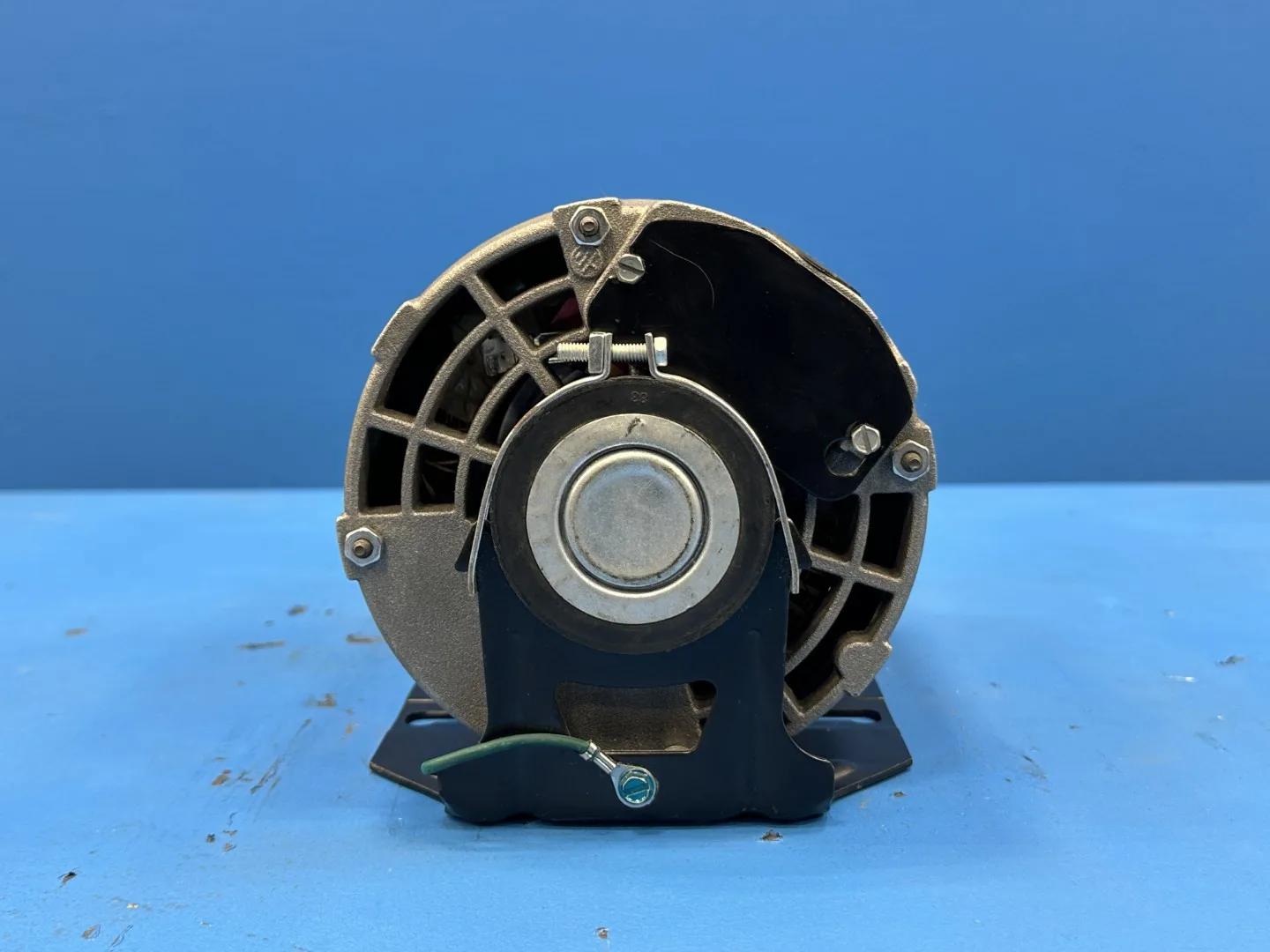

- Mounting (catalog): resilient cradle base
- Bearings (catalog): sleeve; relubricate with 30 drops SAE 10 motor oil yearly for continuous duty (nameplate)

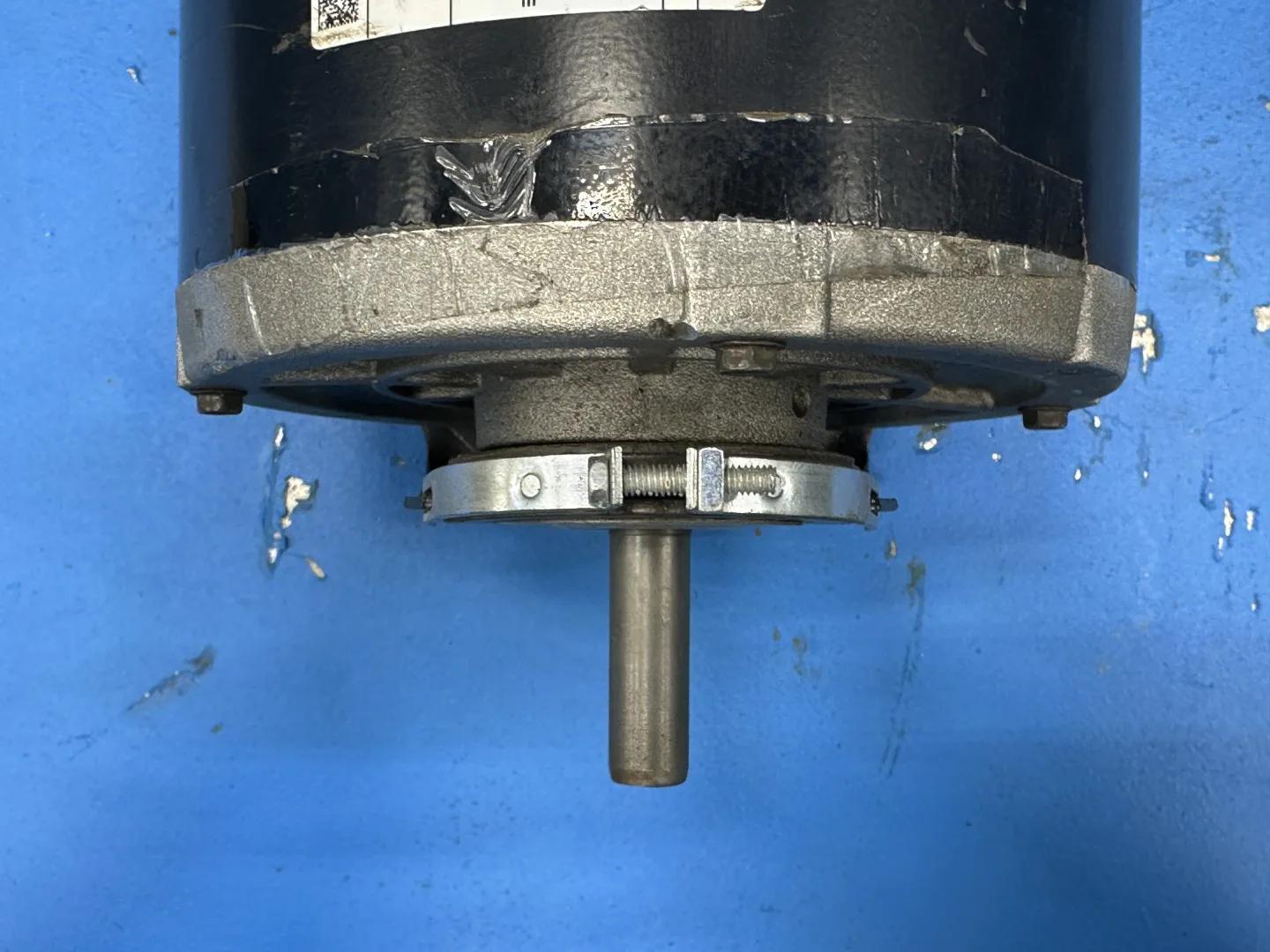

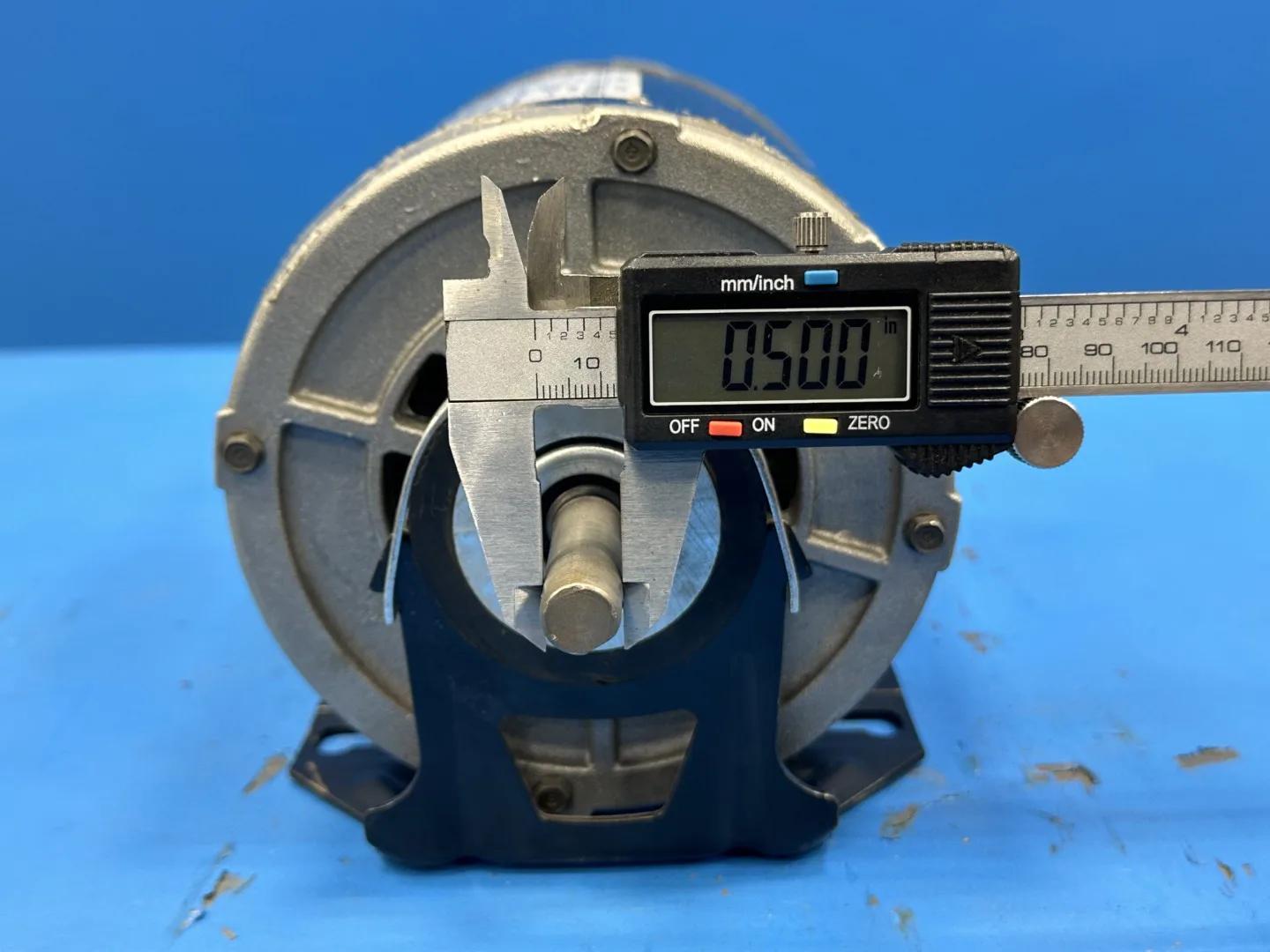

- Shaft (catalog): 1/2 in diameter x 1-1/2 in, with adapter for 5/8 in
- Agency Marks (nameplate): CSA LR43341, UL file E46412
- Country of Origin (nameplate): Assembled in Mexico

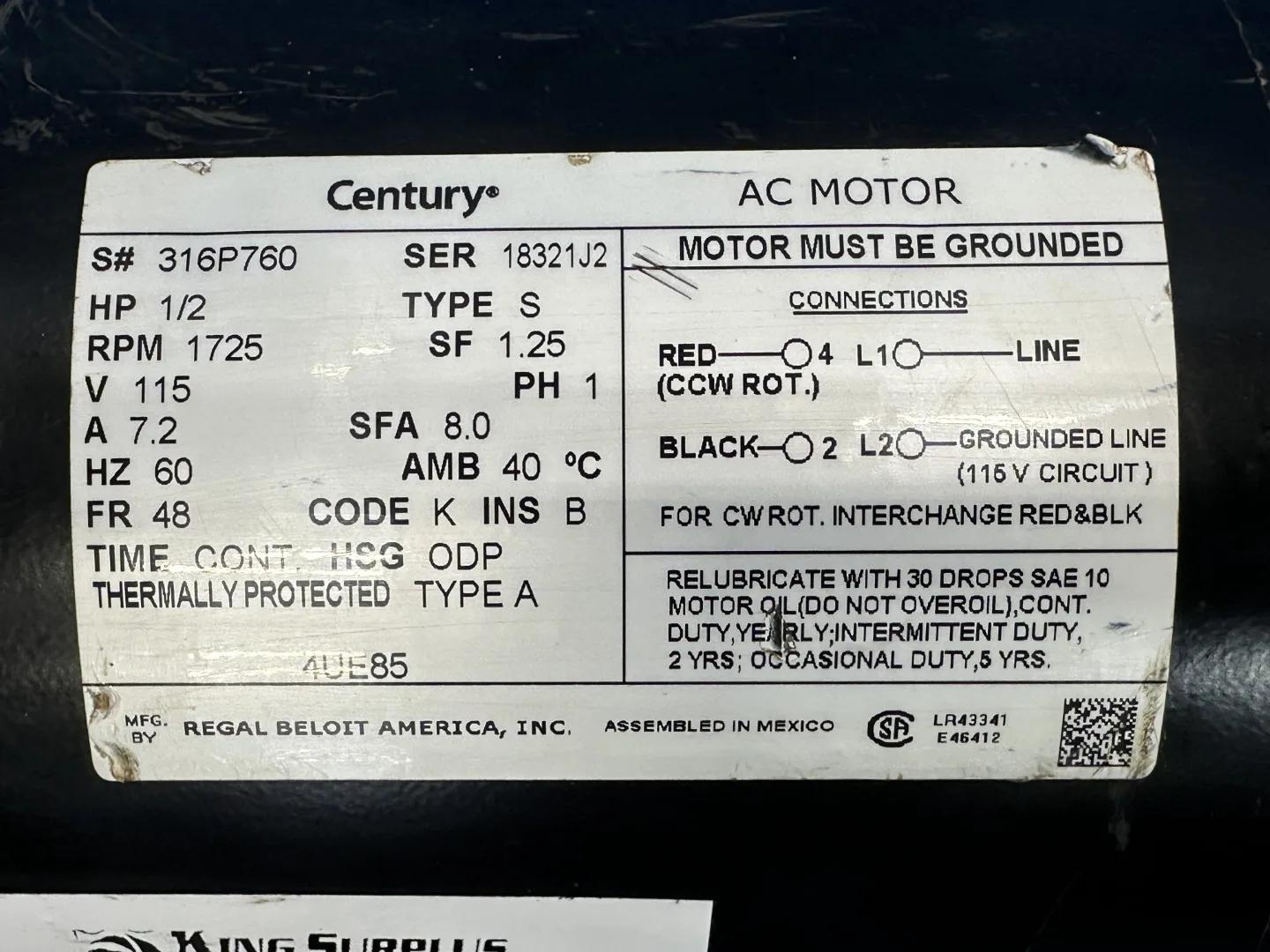

- Spec Basis: nameplate photo (S/N 18321J2); Electric Motor Warehouse Century GF2054 page https://electricmotorwarehouse.com/1-2-hp-1725-rpm-48-frame-115v-belt-drive-furnace-motor-century-gf2054/; Bullseye Industrial Century 316P760 page https://bullseyeindustrialsales.com/century-316p760-1-2hp-split-phase-resilient-base-electric-motor-115v-1725rpm-113698
Specifications
Century
316P760
18321J2
N/A
Fractional (Enter in Description)
7.2
10
6
6
1
2
19
KSC1230 / 1058
Packaging fees
1.6 6x10 CH $3.00
