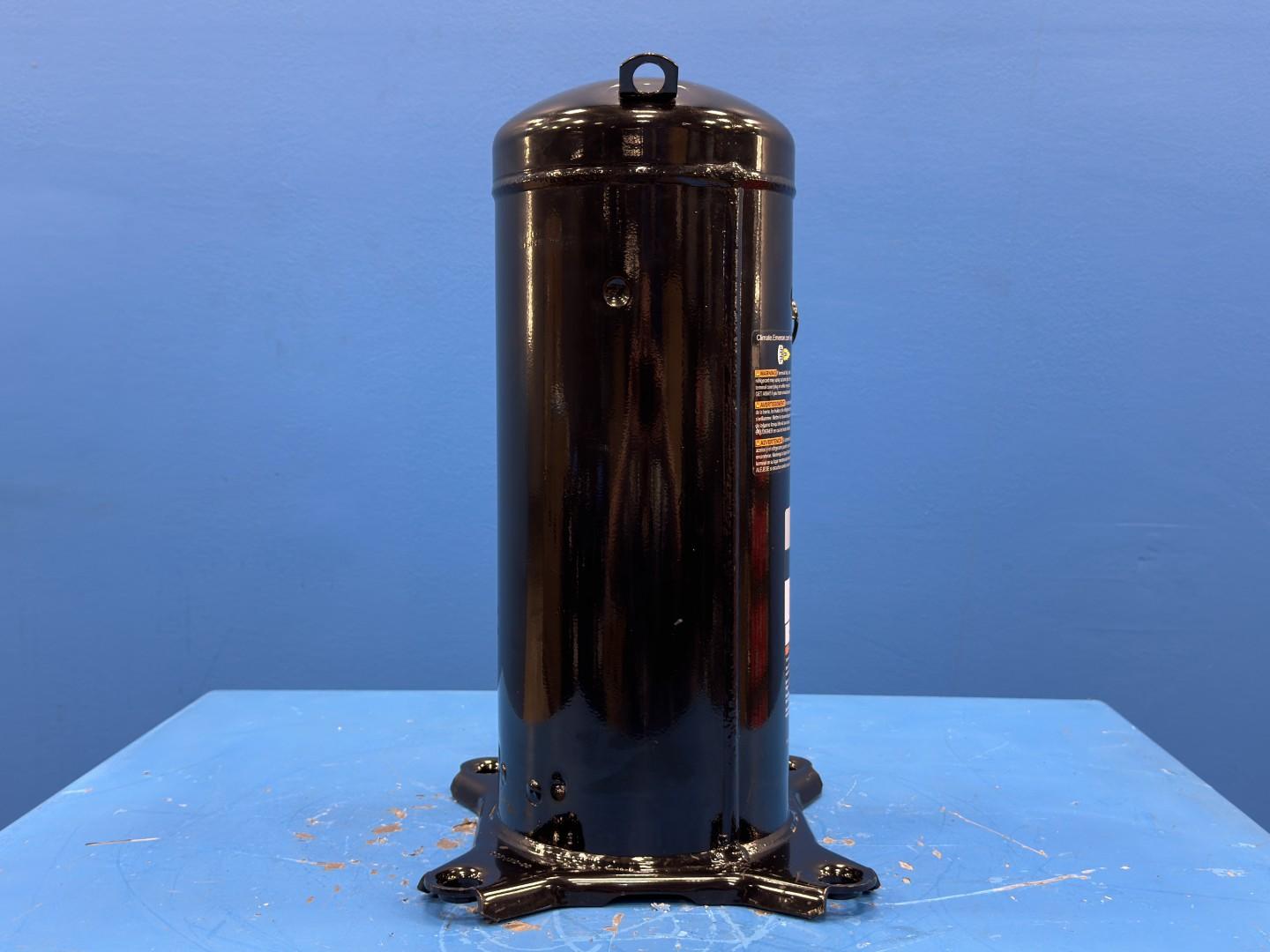

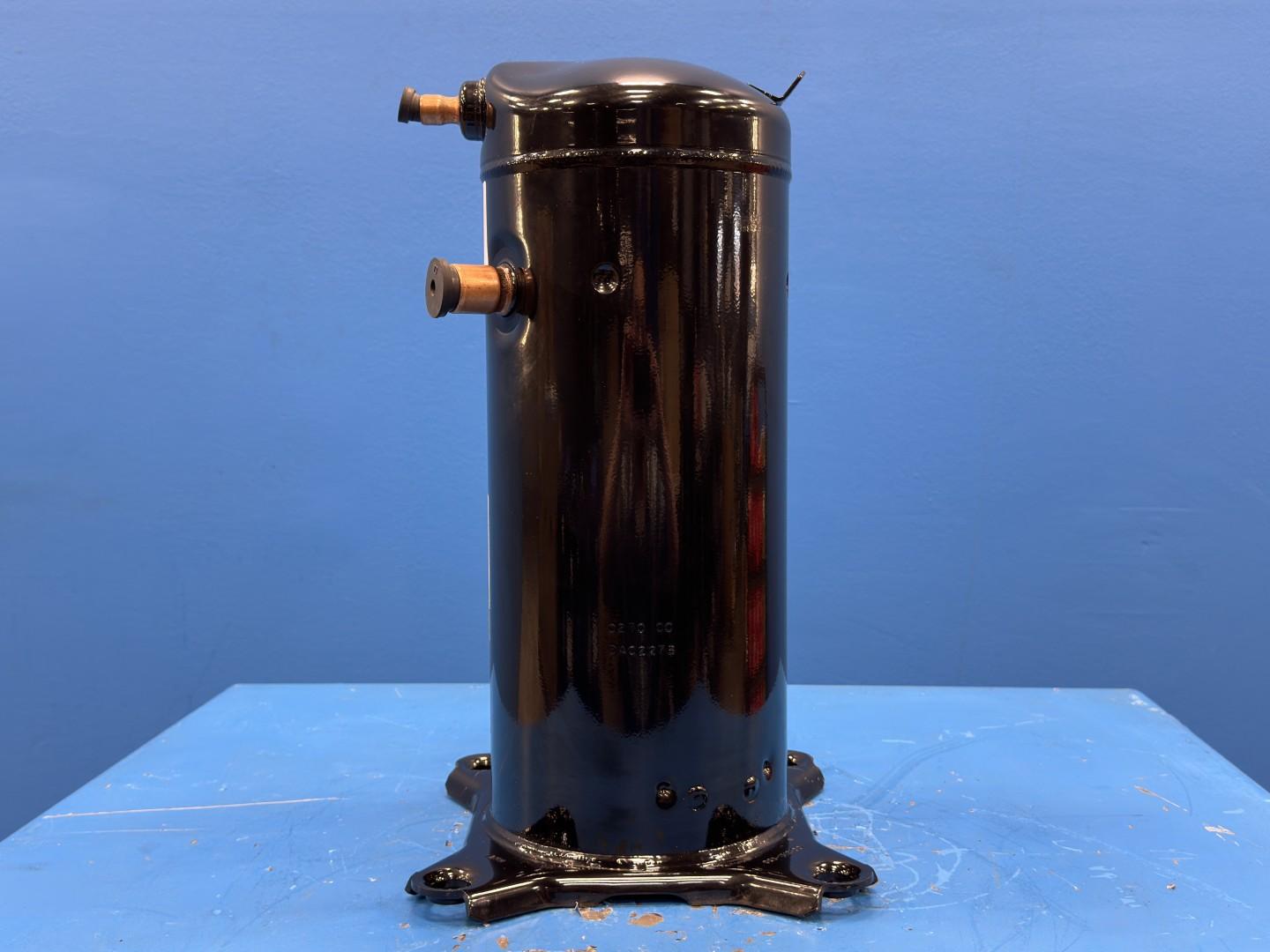

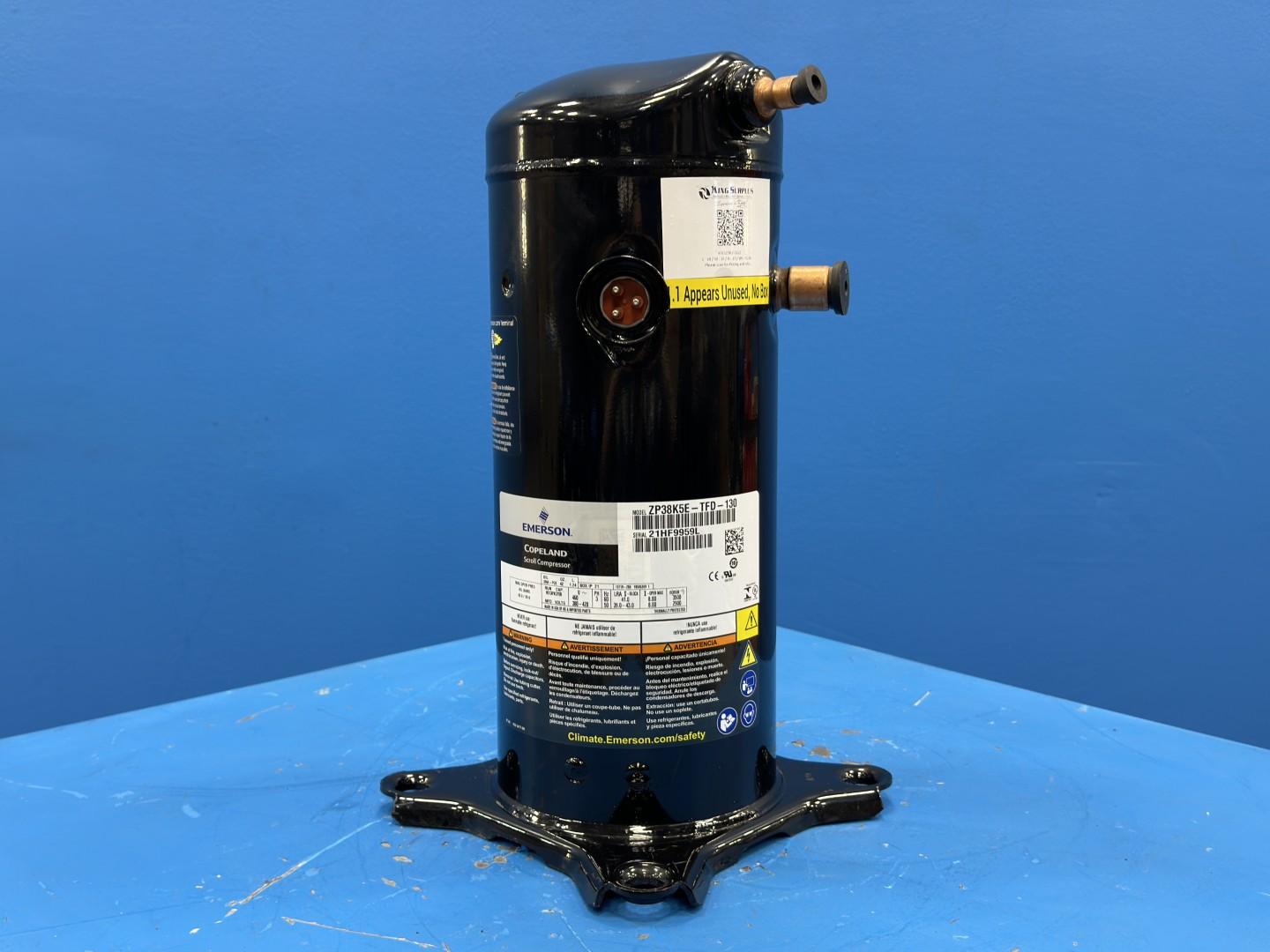

Copeland Scroll Compressor 3.2 Ton 38,000 BTU ZP38K5E-TFD-130 460V 3 Phase R410A
Copeland Scroll Compressor 3.2 Ton 38,000 BTU ZP38K5E-TFD-130 460V 3 Phase R410A
Copeland Scroll Compressor 3.2 Ton 38,000 BTU ZP38K5E-TFD-130 460V 3 Phase R410A
Copeland Scroll Compressor 3.2 Ton 38,000 BTU ZP38K5E-TFD-130 460V 3 Phase R410A
| Description | Details |
|---|---|
| Available Quantity | 11 |
| Model | ZP38K5E-TFD-130 |
| Condition | New |
| Manufacturer | Copeland |
| Asset Number | KSC1230 / 1112 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |

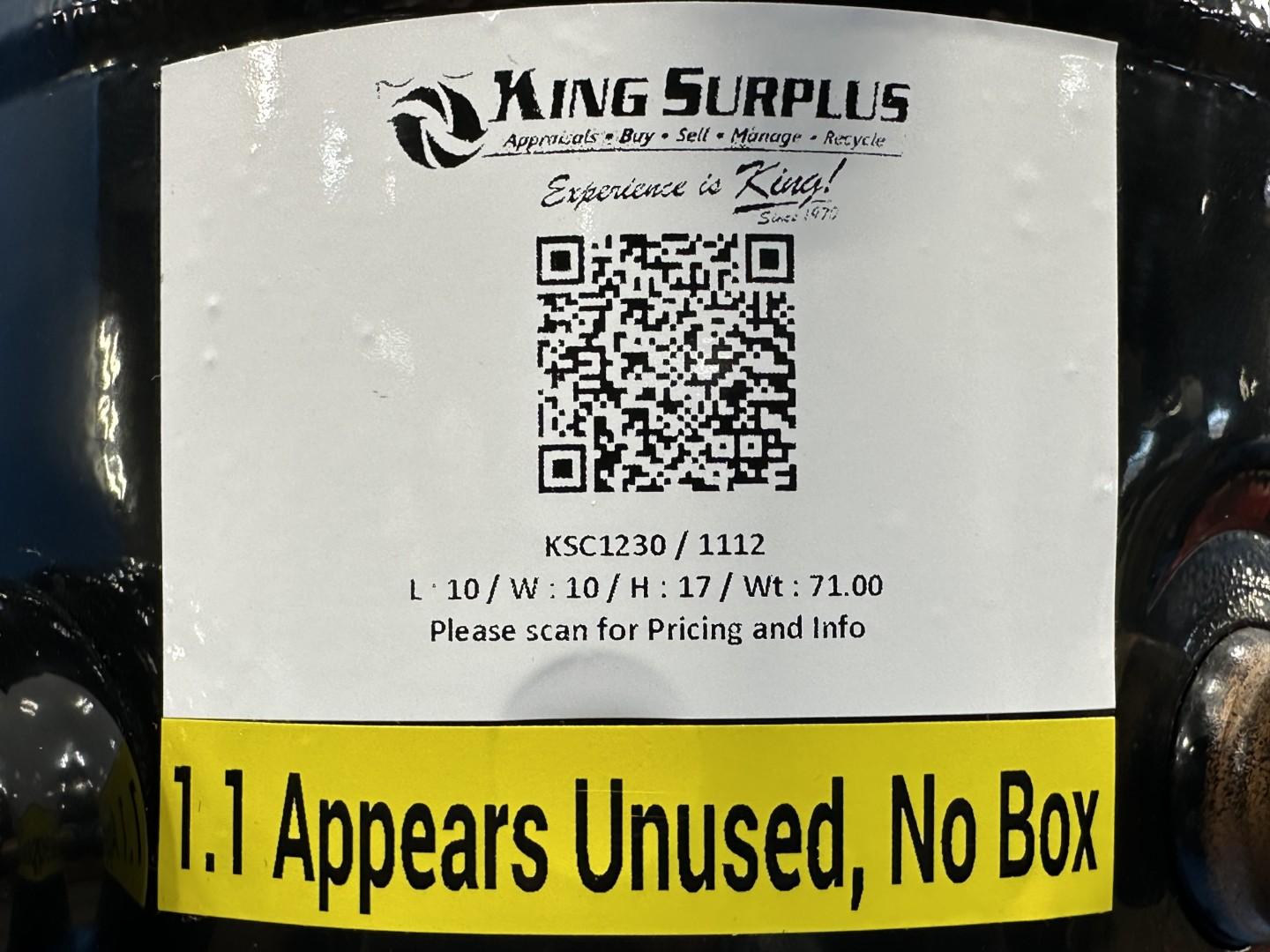

| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.1 Cardboard $10 |
$599.95
Basic Information
Asset #
KSC1230 / 1112
Available Quantity
11
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

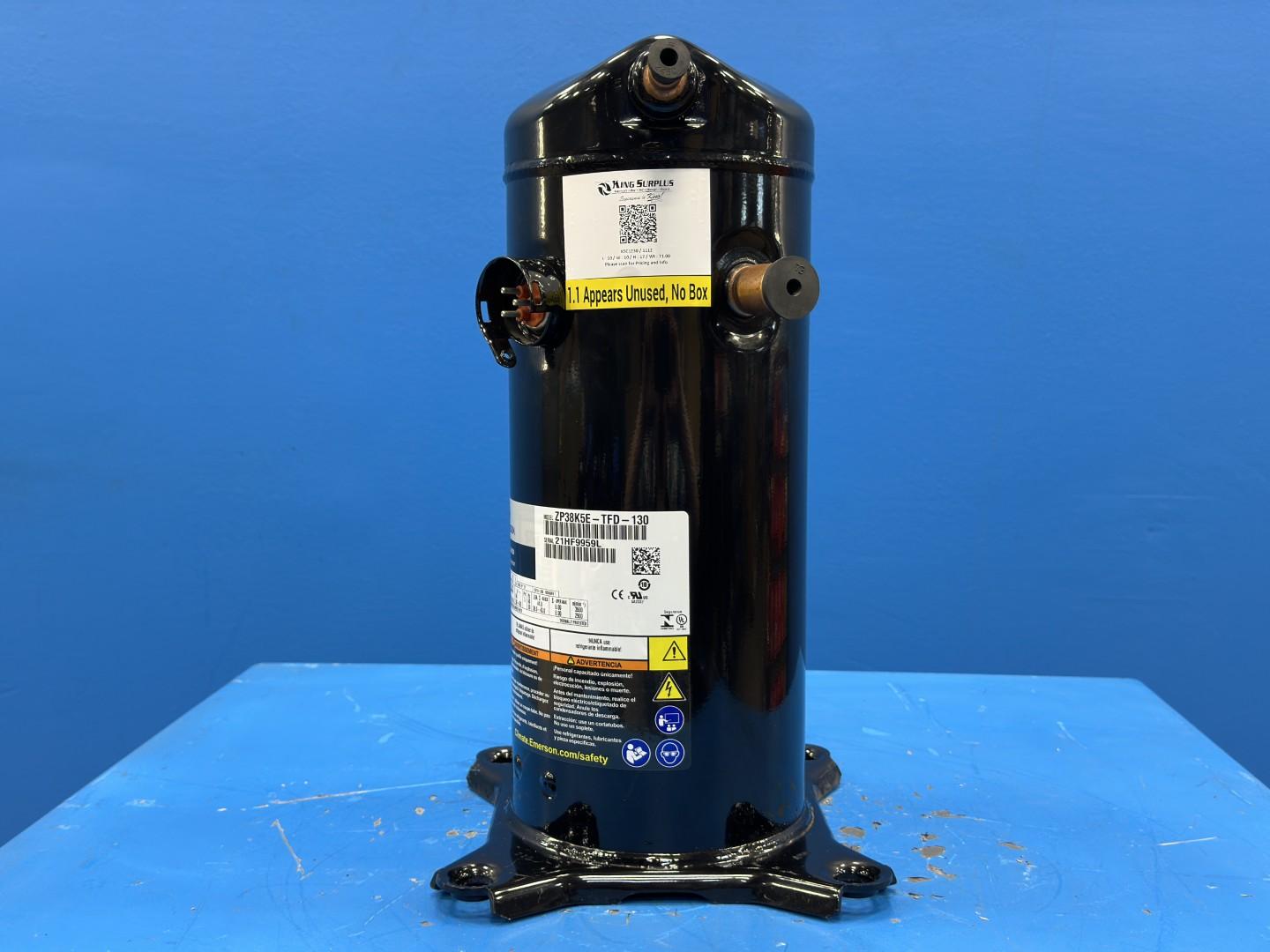

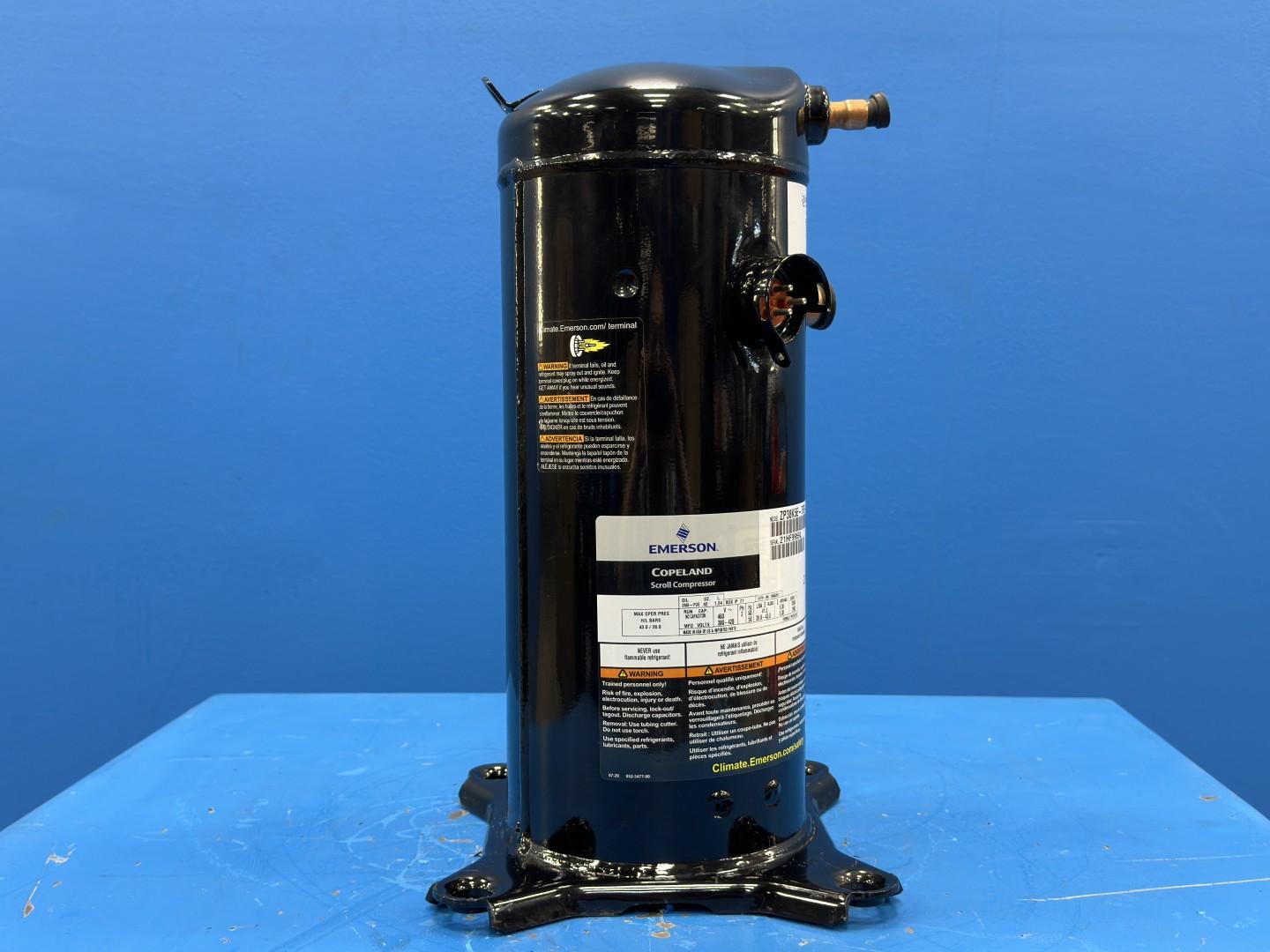

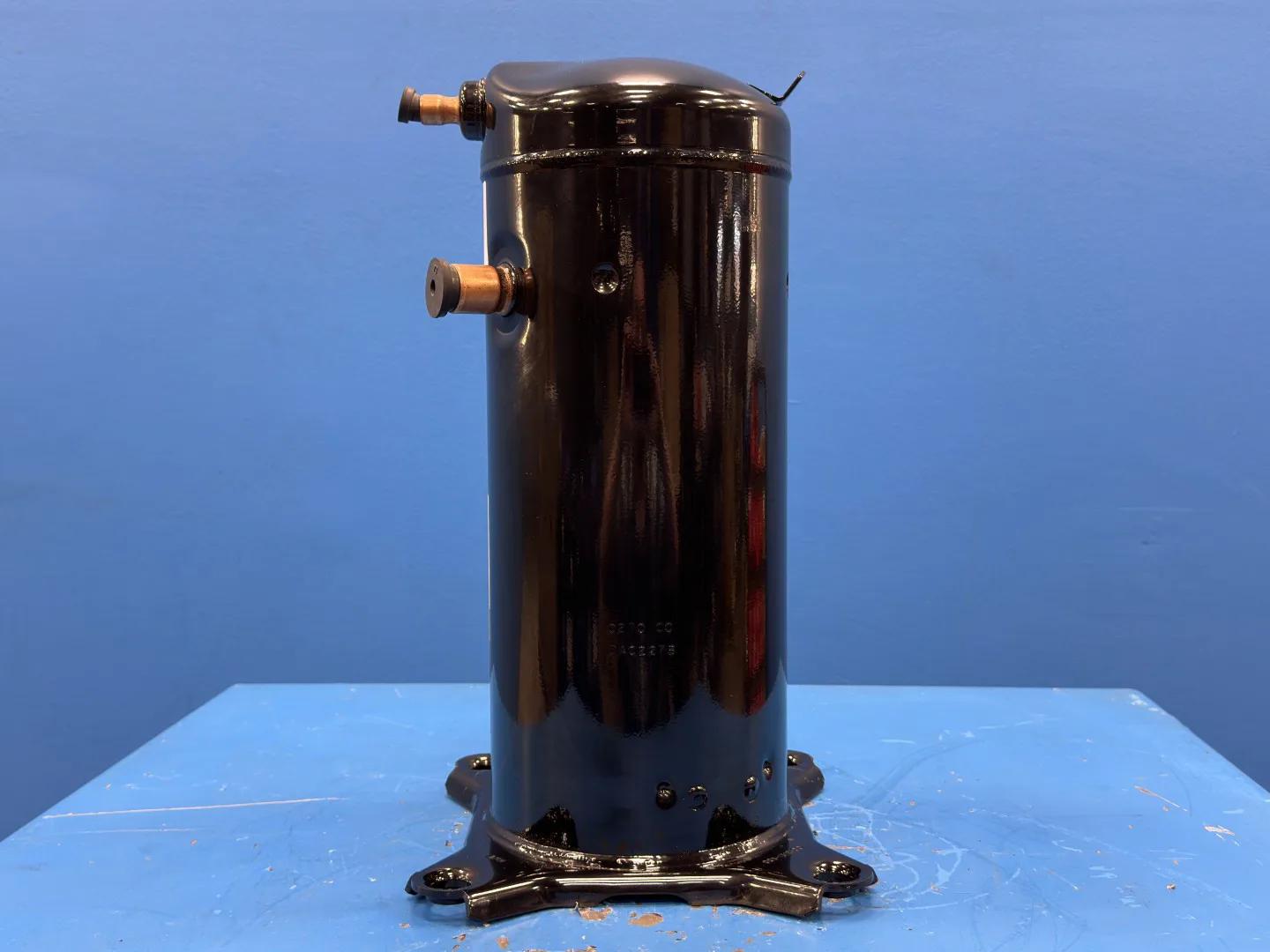

The ZP38K5E-TFD-130 is a hermetic, fixed-speed Copeland Scroll compressor for air conditioning and heat pump systems. It uses scroll compression (a fixed and an orbiting spiral progressively compressing refrigerant toward the center) with the motor and scroll sealed inside a welded shell, replaced as a complete unit. It runs at one speed and cycles on and off to regulate capacity.
This model is built for R410A refrigerant with POE lubricant and rated at about 3.2 tons (38,100 BTU/hr). It runs on 460 V three-phase, 60 Hz power and is used in commercial air conditioning and heat-pump condensing units, rooftops, and packaged systems. In the Copeland code, ZP is the R410A scroll family, 38 the nominal capacity in thousands of BTU/hr, K5E the platform generation, and TFD the motor code for 460 V three-phase, 60 Hz. It uses the standard Copeland 7.5 by 7.5 inch mounting pattern and has published RLA, MCC, and LRA ratings.
Factory Information
| Specification | Value |
|---|---|
| Manufacturer | Copeland (Emerson) |
| Model | ZP38K5E-TFD-130 |
| Compressor type | Hermetic scroll, fixed speed |
| Refrigerant | R410A |
| Lubricant | POE |
| Cooling capacity | 3.2 Ton (38,100 BTU/hr) |
| Power supply | 460 V / 3-phase / 60 Hz |
| RLA (rated load amps) | 6.8 A |
| MCC (max continuous current) | 9.5 A |
| LRA (locked rotor amps) | 41 A |

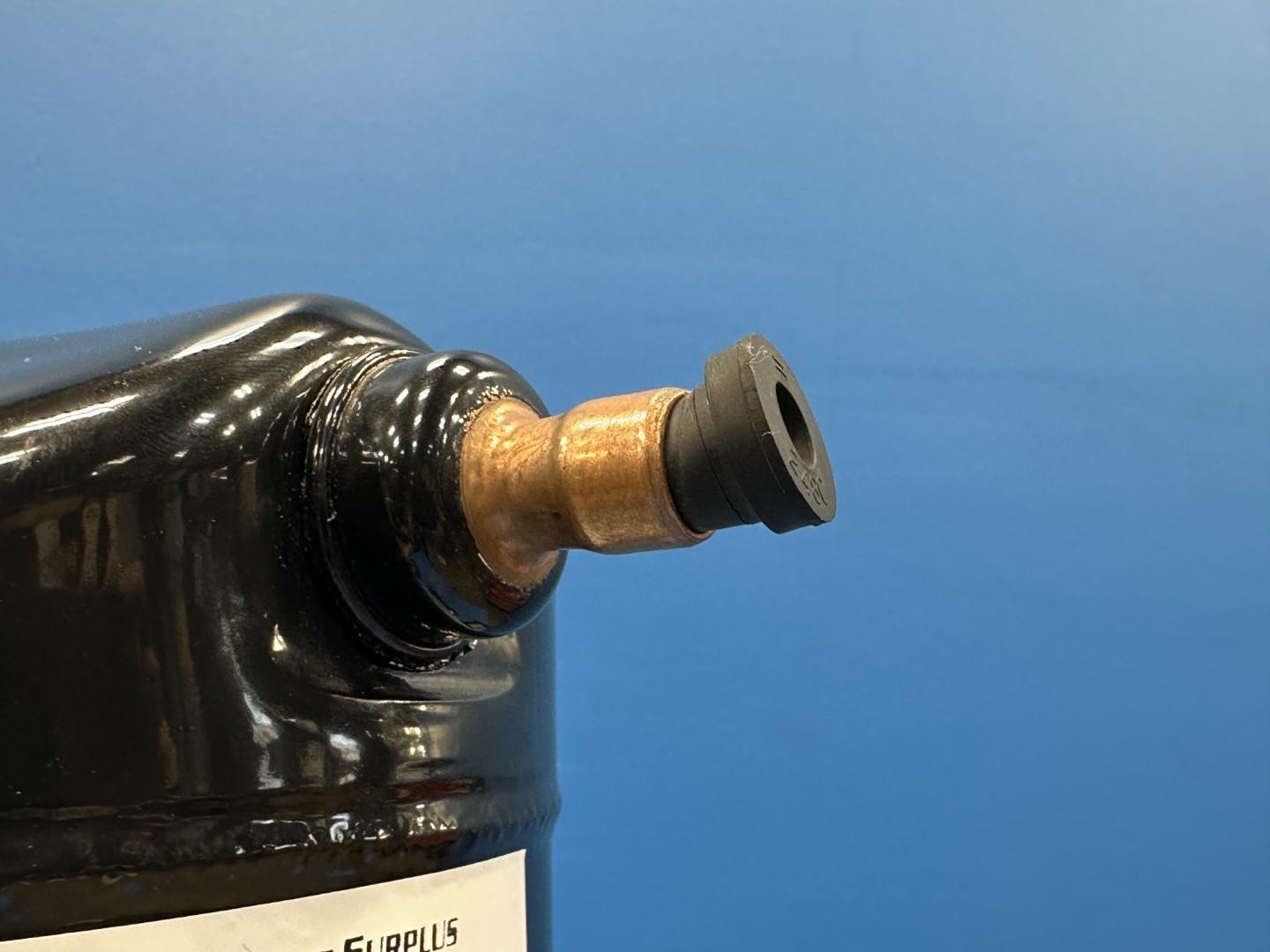

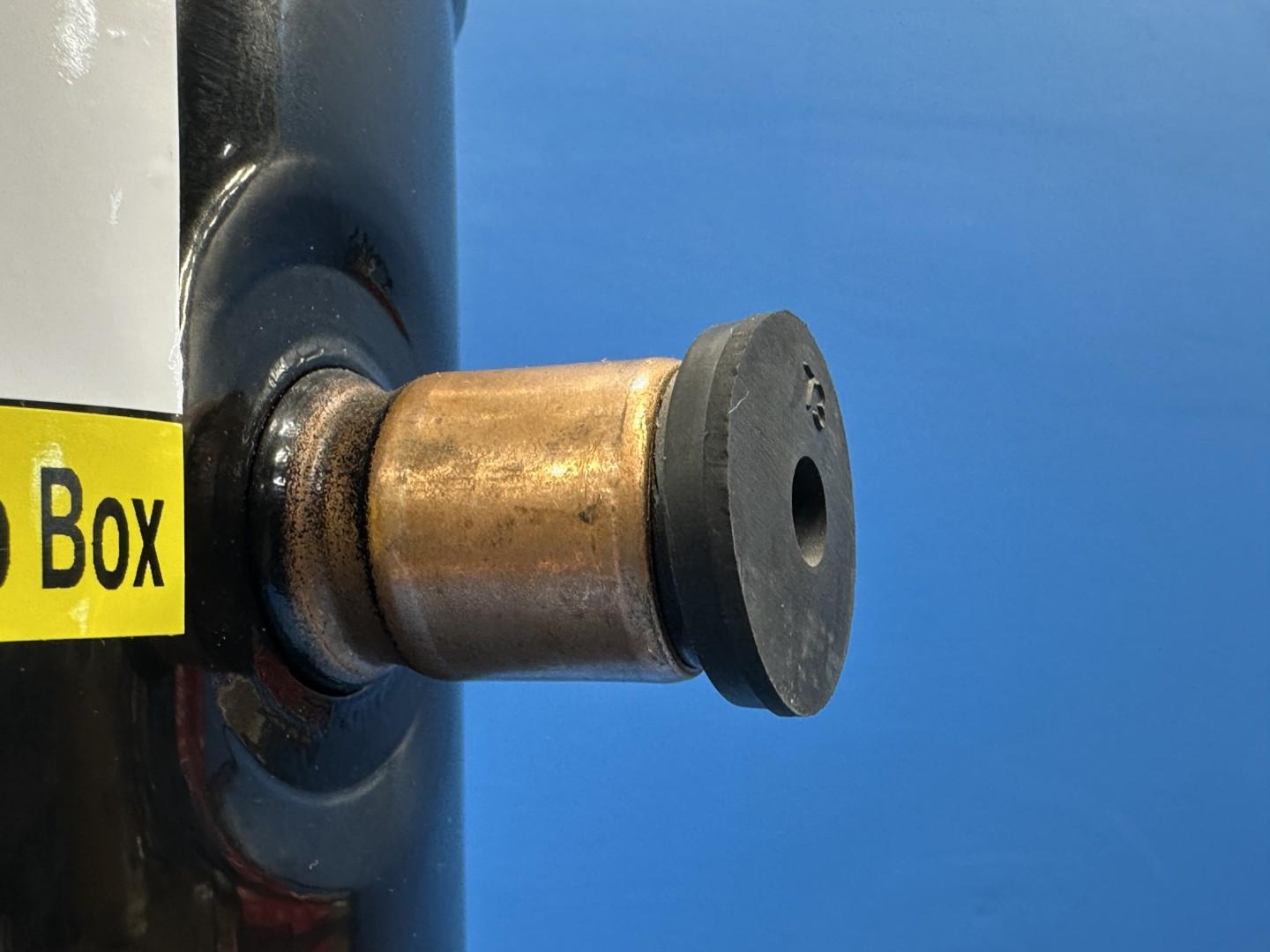

| Suction connection | 7/8 in |
| Discharge connection | 1/2 in |
| Mounting pattern | 190.5 mm x 190.5 mm (7.5 in x 7.5 in) |
| Net weight | 30.4 kg (67 lb) |

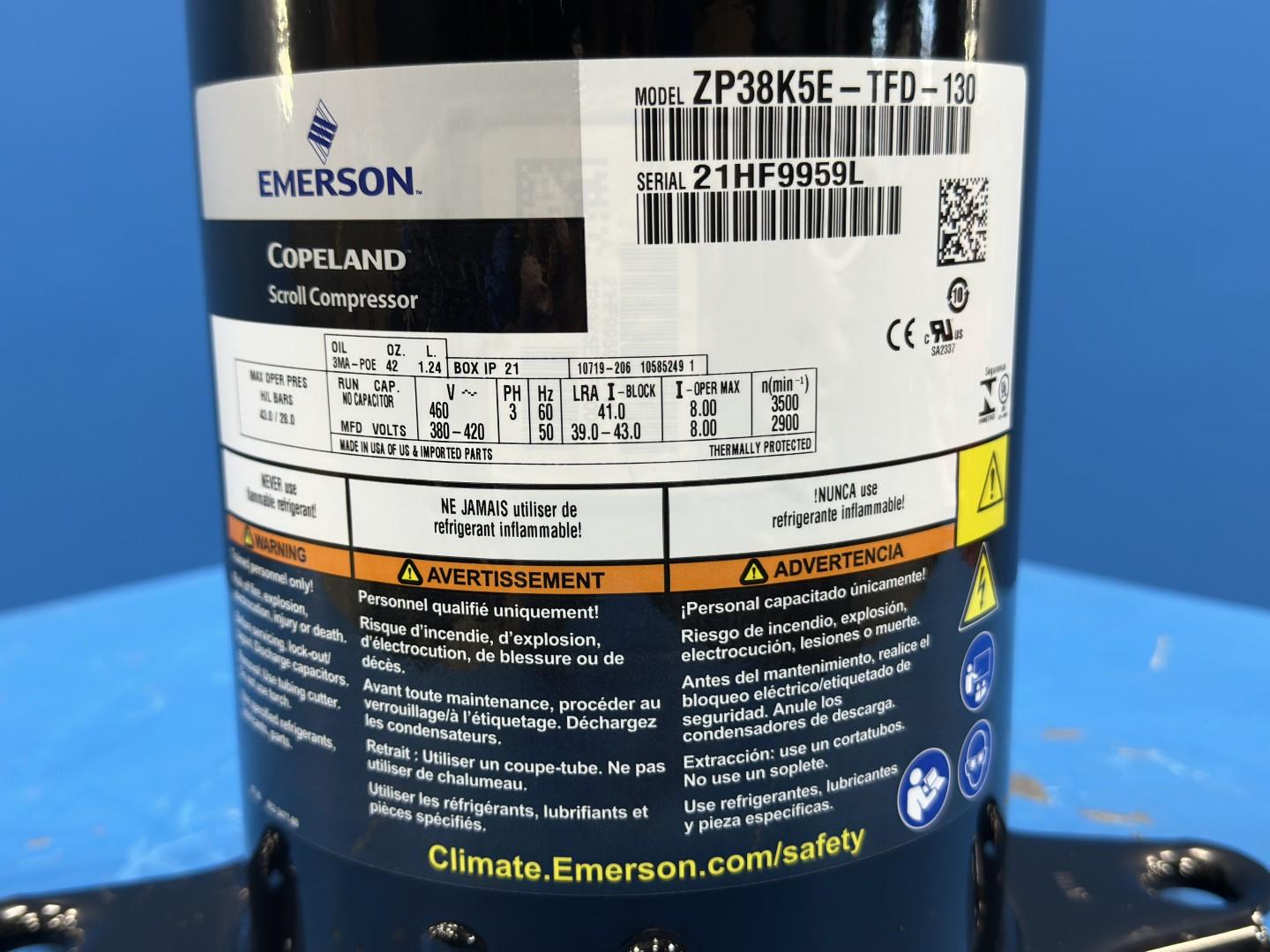

Specifications
Copeland

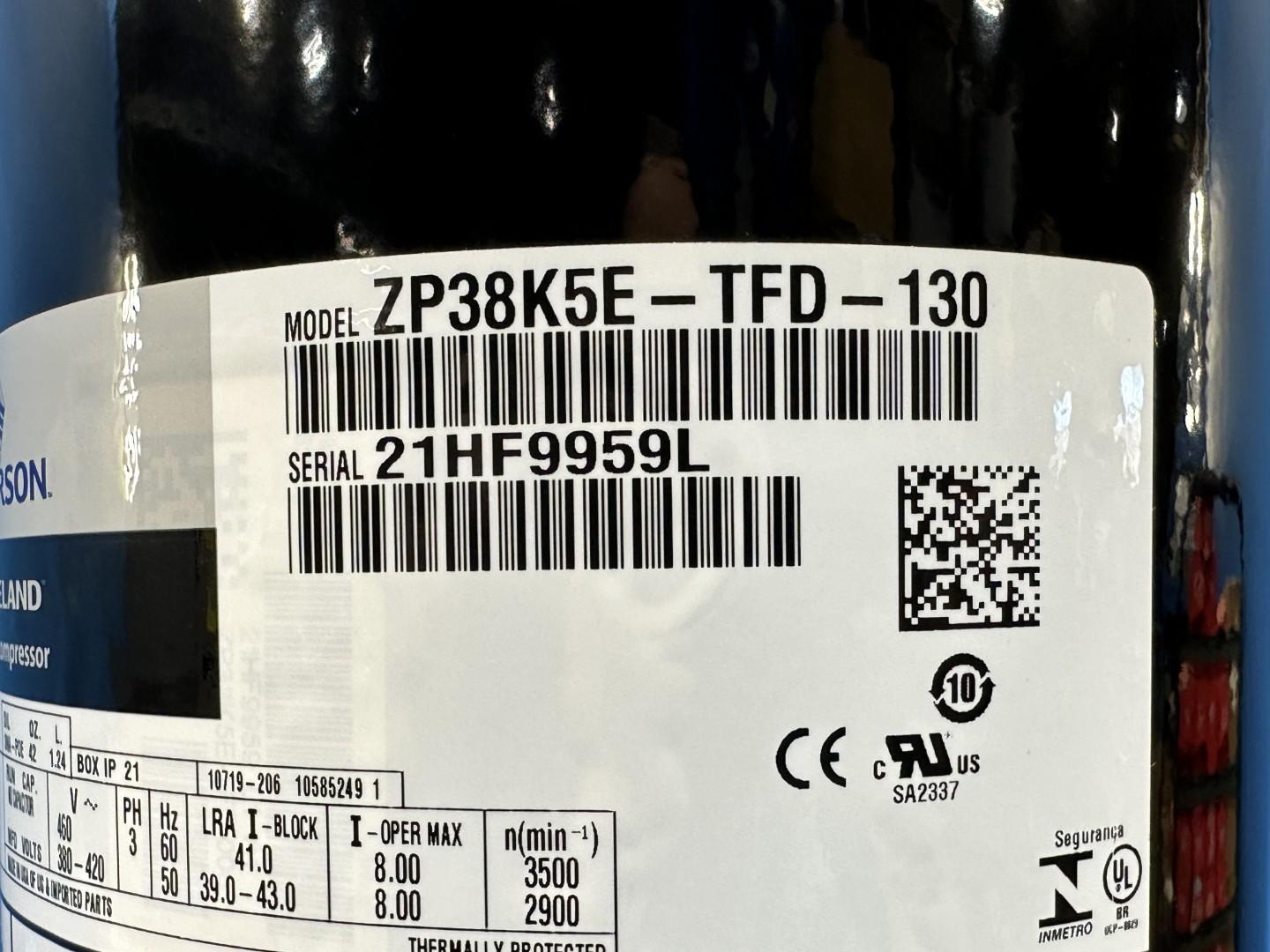

ZP38K5E-TFD-130

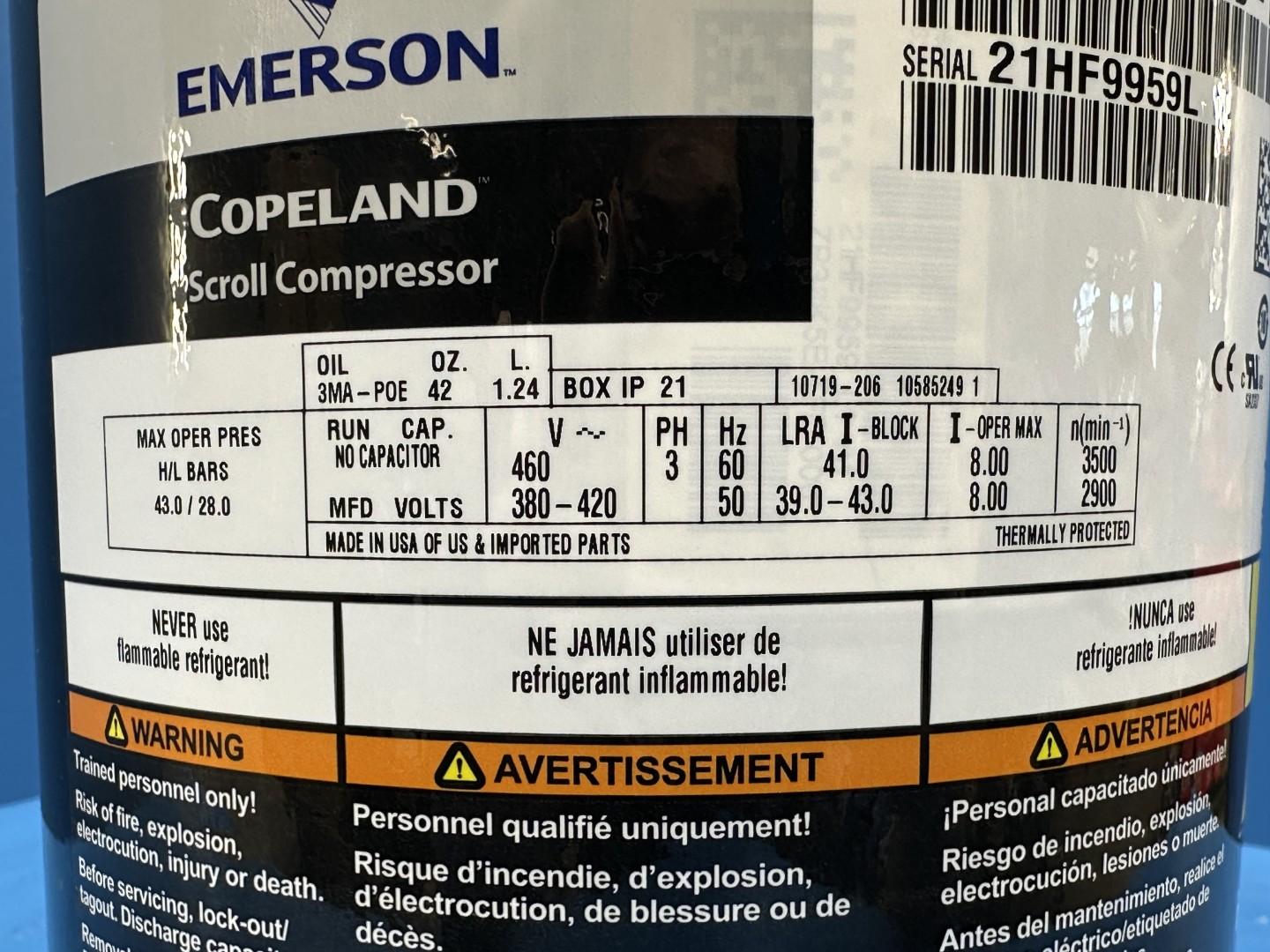

21HF9959L
N/A
60Hz
41
10
10
17
3
N/A
71
KSC1230 / 1112
Packaging fees
1.1 Cardboard $10
Payment Details
$599.95
Payment MethodsPayment Types Accepted : N/A
