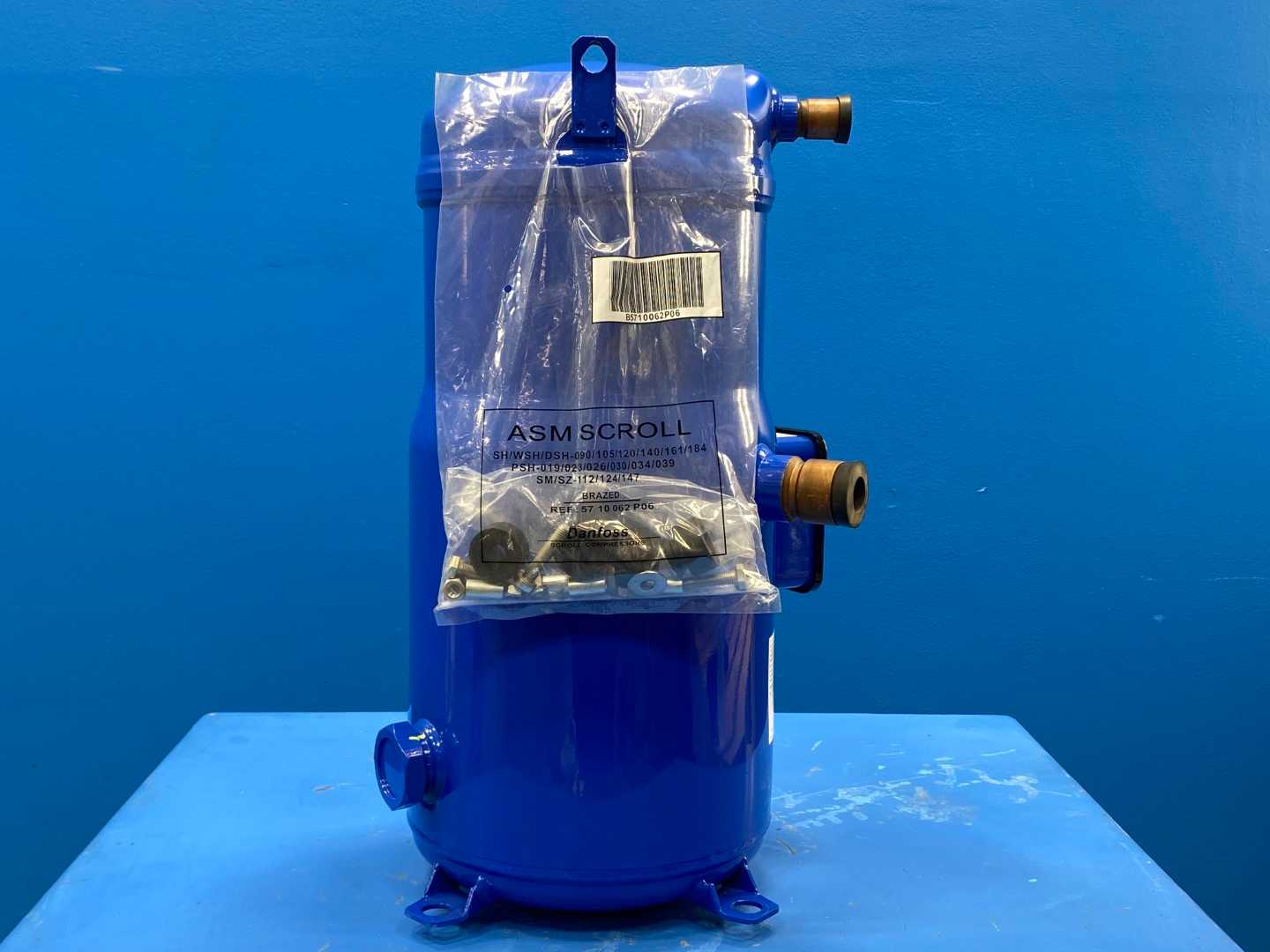

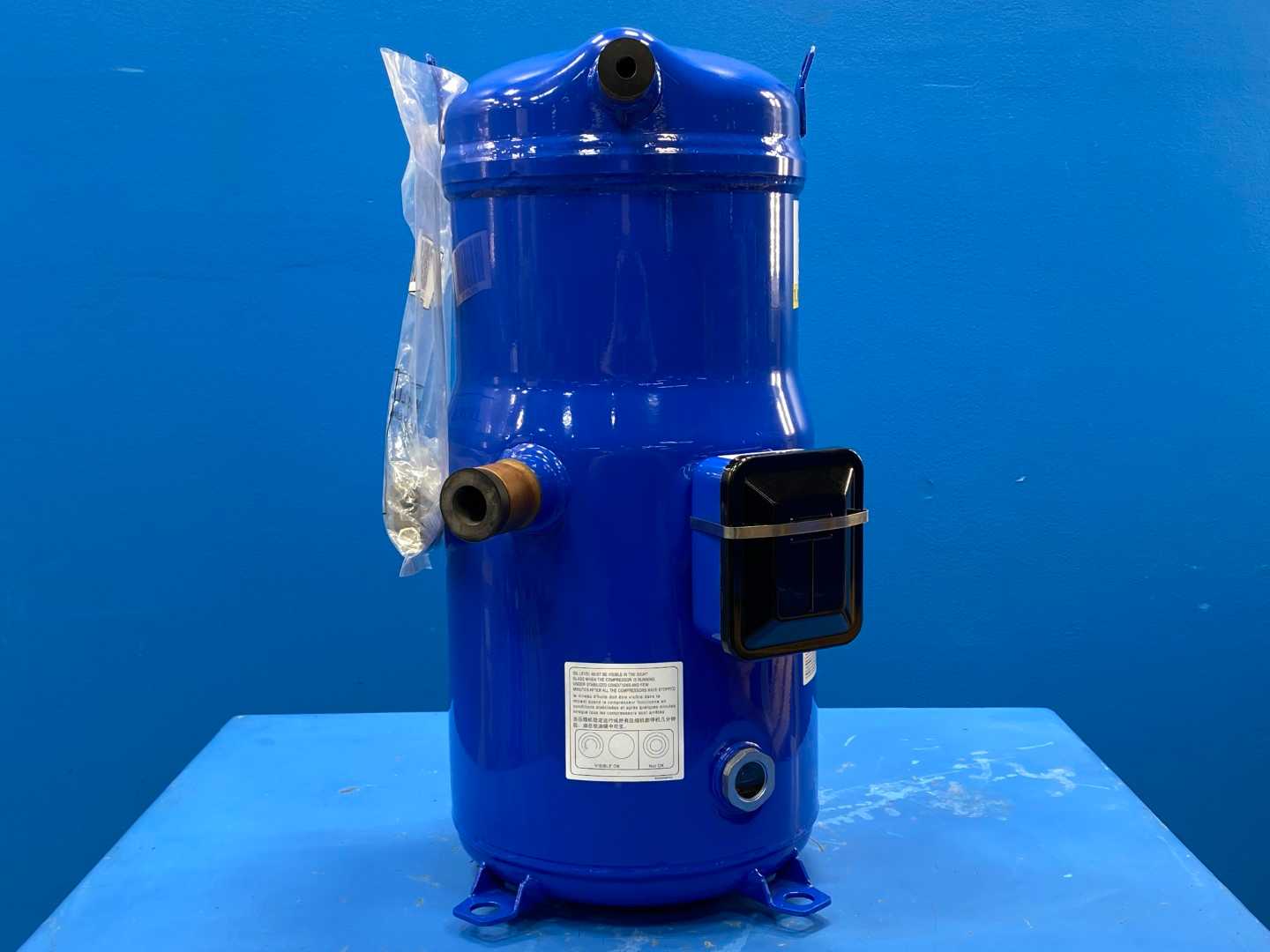

Danfoss 120H1188 DSH105A3ALA (8.5 Ton 102,000 BTU/h) Scroll Compressor R410
$2,495.00
Save for later
Basic Information

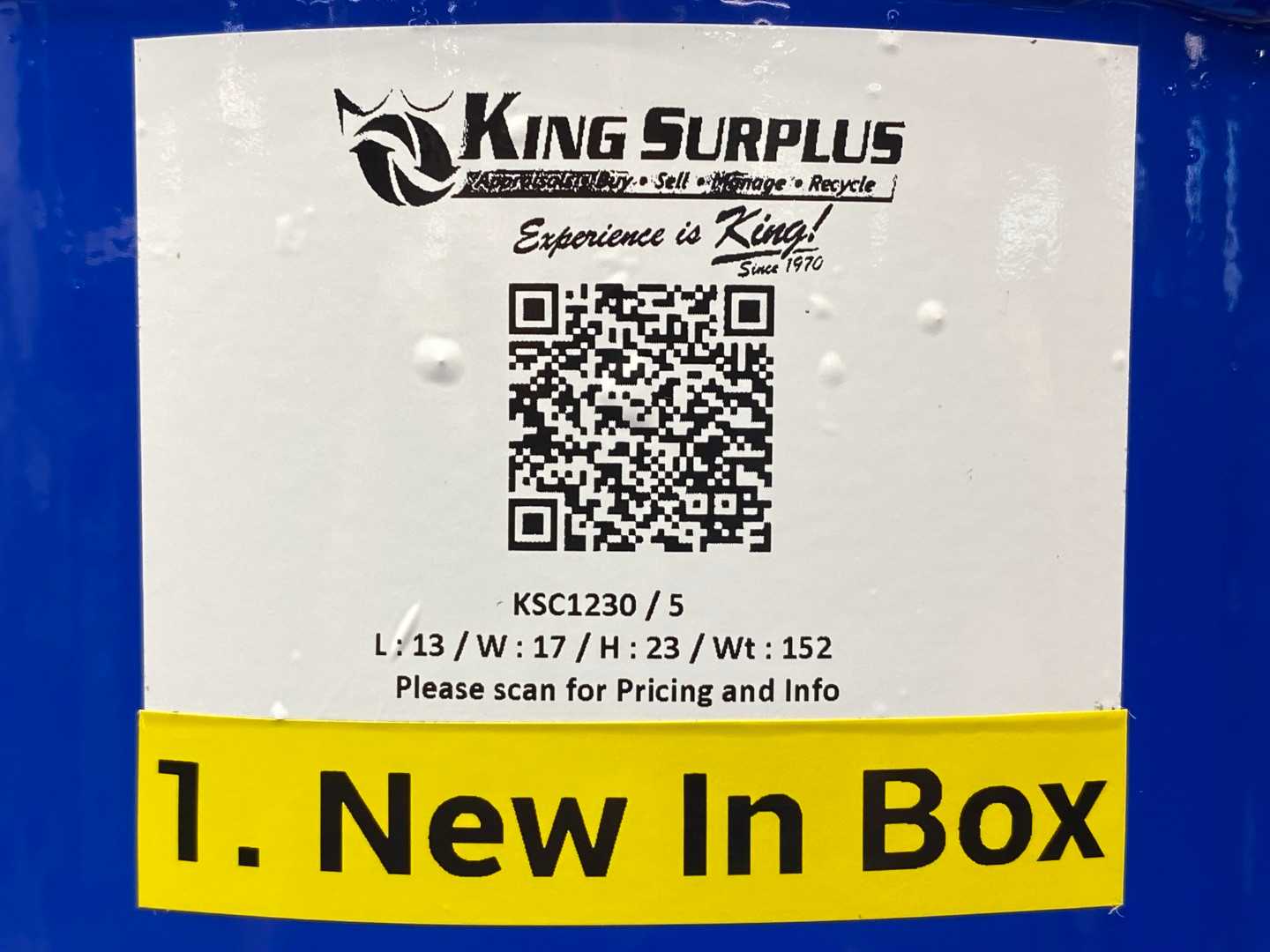

Asset # : KSC1230 / 5
Available Qty: 13
Inspections - Yellow Tag : 1. New in Box
Condition : New
Guarantee or ASIS : 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Payment Details
Appraised Value: $2,495.00
Payment Types Accepted : Visa , Mastercard , Check (14 Day Hold Before Release) , Cash
Shipping Options
Packaging Cost : 2.2 Pine Pallet $35
ITEM DESCRIPTION
Behold the Danfoss 120H1188 DSH105A3ALA Scroll Compressor! This top-quality, 8.5 Ton, 102,000 BTU/h compressor is your top-notch tool for climate control. Whether you're looking to cool a large complex or an industrial facility, the Danfoss Scroll Compressor has you covered. Its efficiency is unmatched, handling R410 refrigerant that not only cools rapidly but is also eco-friendly. This compressor is built for the long-haul. Its robust design ensures durability while maintaining quiet operation, providing comfortable cooling without the incessant humming of lesser models. It's meticulously engineered by Danfoss, a leading name in the HVAC industry, promising reliability and performance that surpasses the competition. This compressor offers energy-efficient cooling, making it a sound investment that will save on utility bills while maintaining top-tier comfort. With the Danfoss Scroll Compressor in your HVAC system, you're not just buying a product; you're buying peace of mind. Condition is key when investing in surplus items, and ours is impeccable: perfectly preserved, it's new and unused. On top of all that, we offer it at a competitive price - a deal hard to pass up. Get the Danfoss 120H1188 DSH105A3ALA Scroll Compressor and experience superior cooling now!
Read More ▼
INSPECTION REPORT
Specifications
DESCRIPTION
DETAILS
Manufacturer :
Danfoss
Serial #:
ML2505525131
HP / AMP / KW / KVA :
60Hz
Length (Inches):
13
Estimated Packaging Weight:
35
Estimated Total Weight:
187
DESCRIPTION
DETAILS

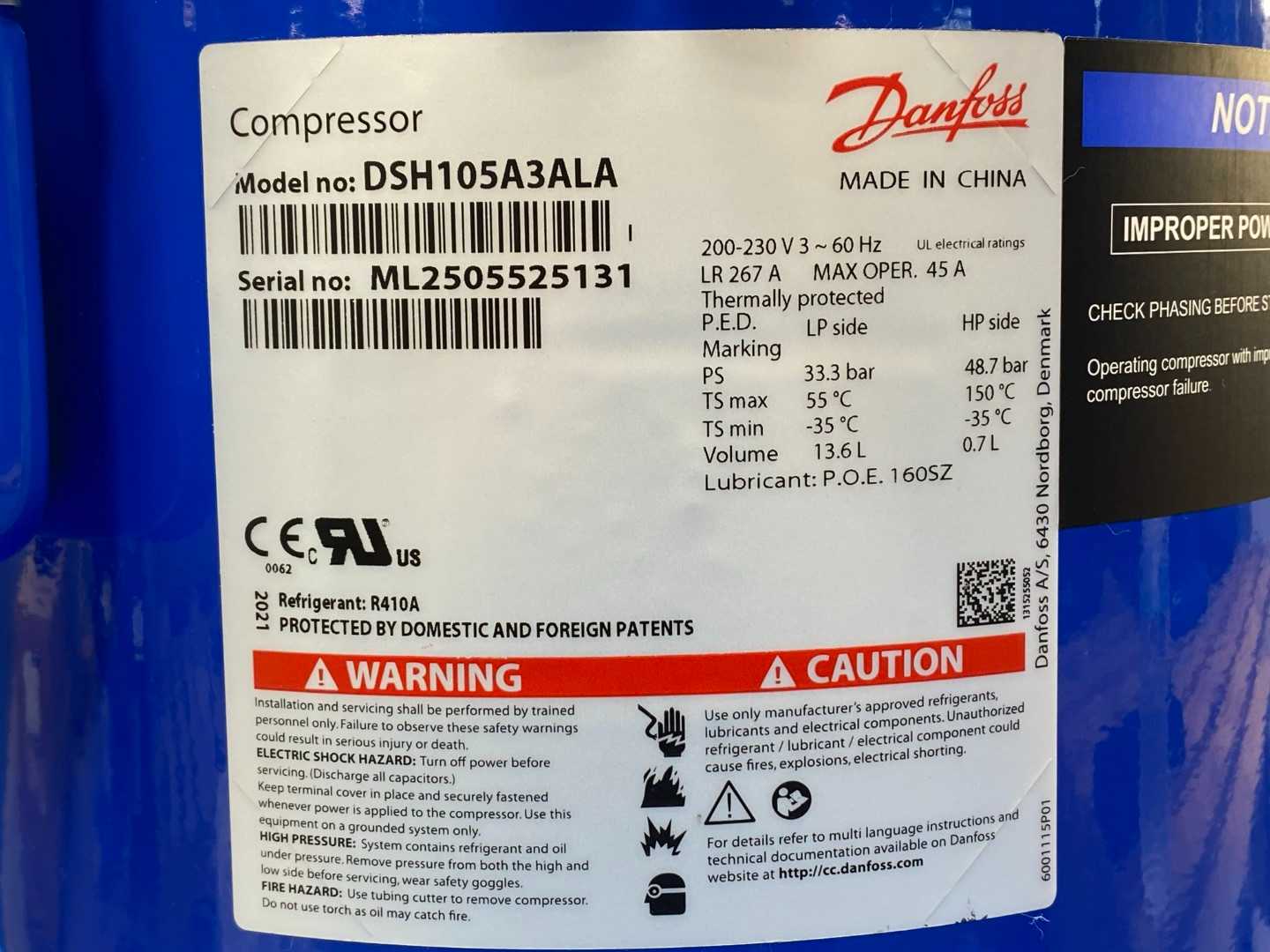

Model :
DSH105A3ALA
Year :
2020
Amps :
N/A
Phase :
3
Width (Inches):
17
Height (Inches):
23
Factory Information
Product details
| Gross weight | 69.01 Kilogram |
| Net weight | 64 Kilogram |
| Volume | 0.1 Cubic meter |
| EAN | 5702428585040 |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| China RoHS compliance | Out of scope |
| Colour | Blue |
| Compressor power supply [V] | 208-230/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | DSH105-3 |
| Diameter [mm] | 243 mm |
| Discharge connection height [mm] | 509 mm |

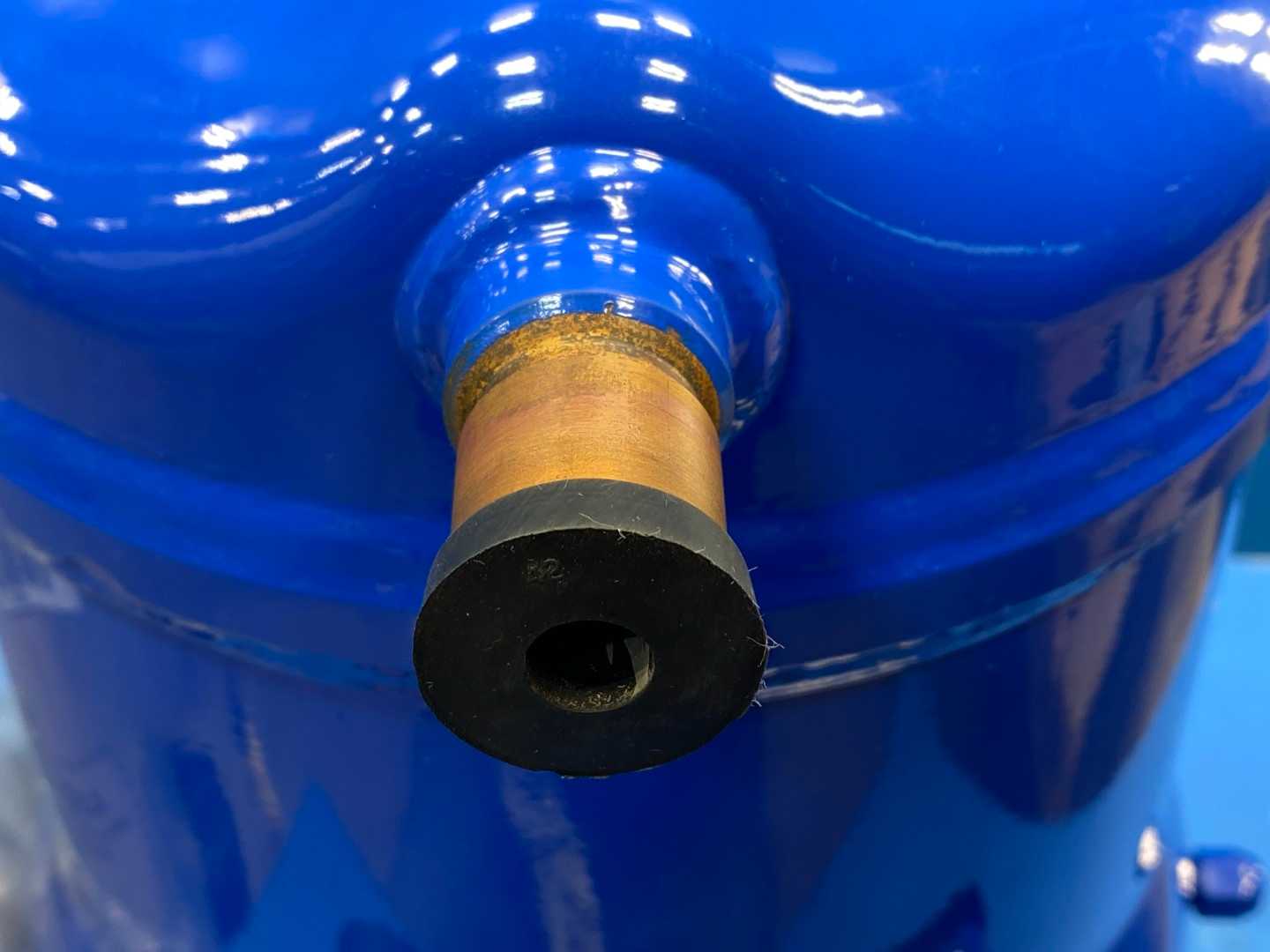

| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection size [in] | 7/8 in |
| Drawing number | 8560003 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b) |
| Family | DSH |
| Fitting standard | ODF |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |

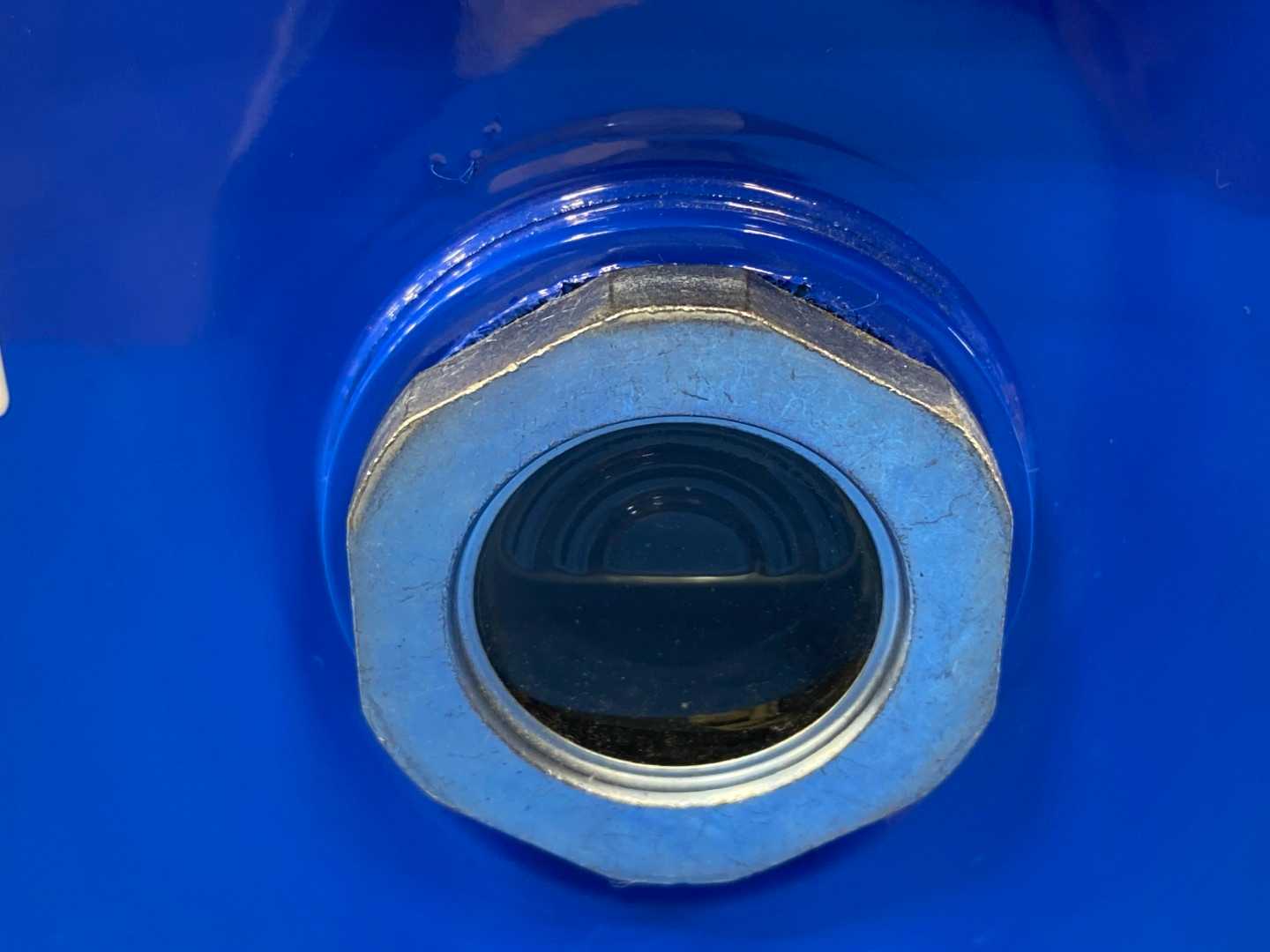

| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.7 L |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 60Hz [V] | 253 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP54 (with cable gland) |
| Low Side TS Max | 55 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 13.6 L |
| Low value of nominal voltage at 60Hz [V] | 200 V |
| Low value of voltage range at 60Hz [V] | 180 V |
| LRA | 267 A |
| Max pressure (PS) - high side | 48.7 bar |
| Max pressure (PS) - low side | 33.3 bar |
| Maximum Operating Current [MOC] | 45 A |
| MCC | 46 A |
| Model number | DSH105A3ALA |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 N-m |
| Network power supply [V/Ph/Hz] | 208-230/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 3.3 L |
| Oil equalization | 1-3/4'' Rotolock |
| Oil reference | 160SZ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw 4.8mm |
| Product group | Hermetic compressors |
| Product Name Description | DSH |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 10 kg |
| Refrigerants | R410A |
| Replacement code | 120H1517 |
| RLA | 32.9 A |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| SCIP dossier no. | bff3e2c3-5aad-40f0-b874-7eee67aaf788 |
| SCIP dossier product name | CSHD092-183/DSF090-200/DSH090-184/SH090-184/SJ161/WSH090-184 |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |

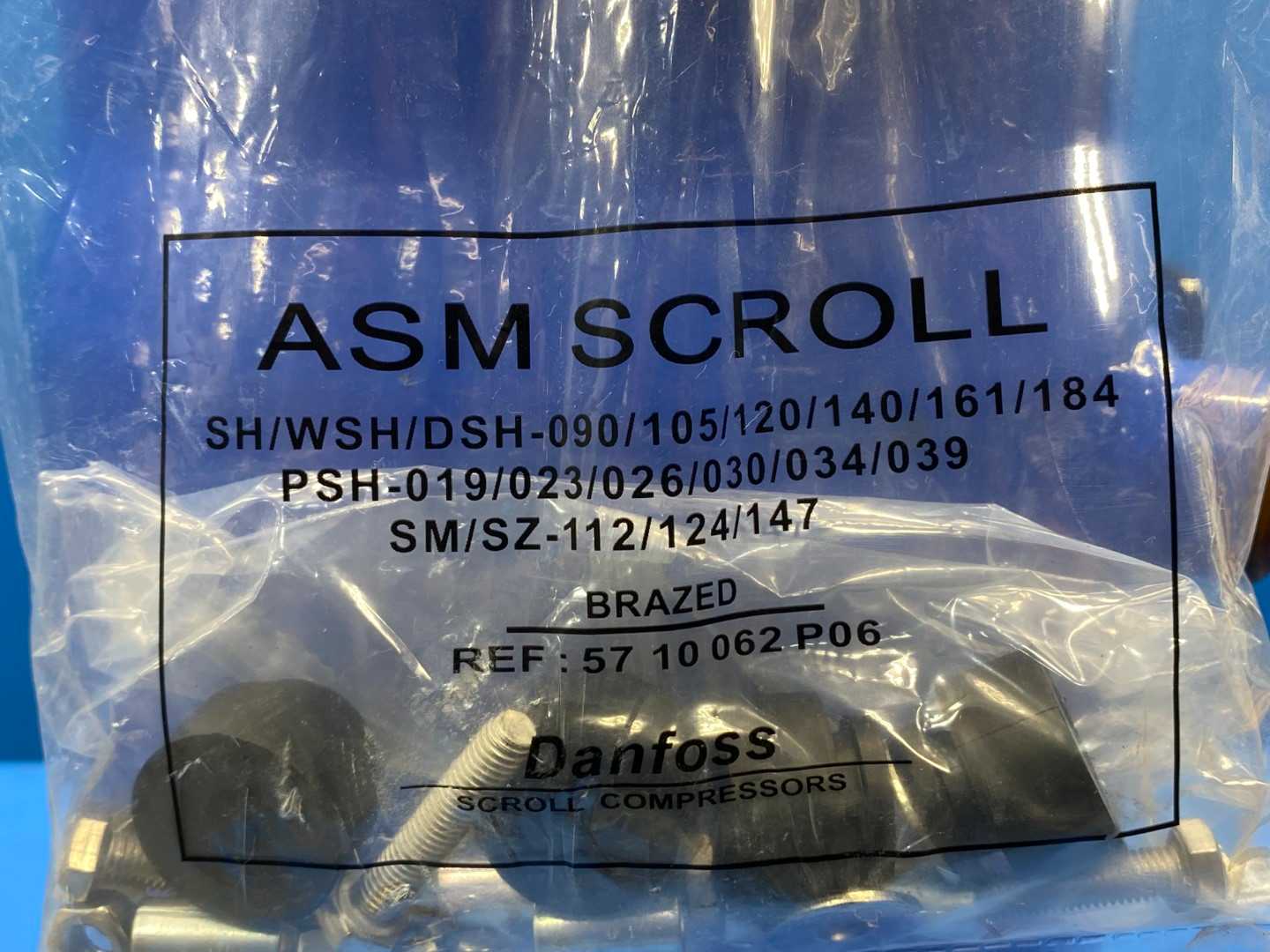

| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 278 mm |
| Suction connection material | - |

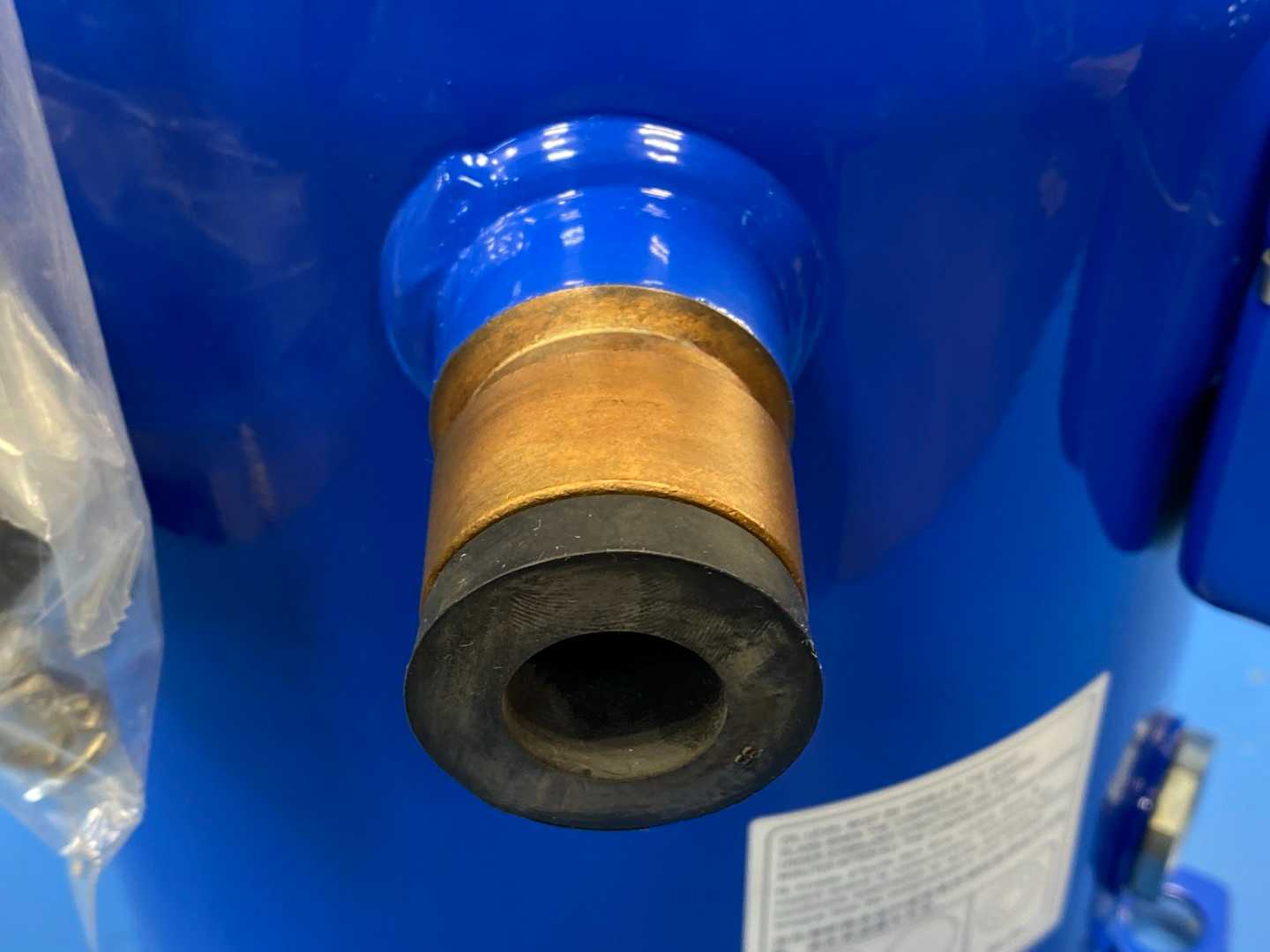

| Suction connection pipe size [in] | 1 3/8 in |
| Suction connection size [in] | 1 3/8 in |
| Swept volume [cm3] | 103.5 cm³ |
| Technology | Scroll |
| Test Dif [bar] [Max] | 37 bar |
| Test HP [bar] [Max] | 48.7 bar |
| Test LP [bar] [Max] | 33.3 bar |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 540 mm |
| Type | DSH105 |
| UK RoHS compliance | Out of scope |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.27 Ohm |
